Asus lists RTX 4070 GPU with a blower design, making it possible to build a budget multi-GPU machine for AI and deep learning

Turbo GeForce RTX 4070 12GB GDDR6X

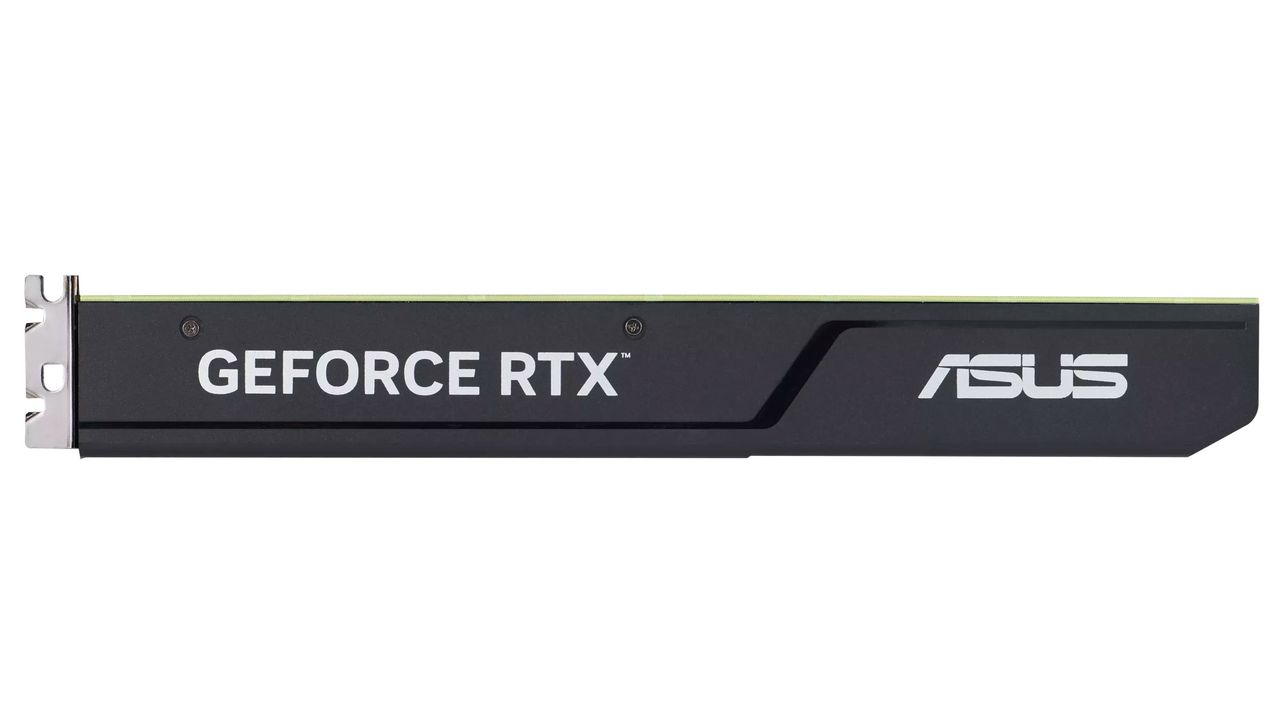

Turbo GeForce RTX 4070 12GB GDDR6X (Image credit: Asus)

Asus has put a blower cooler on the GeForce RTX 4070, which is currently one of the best graphics cards. The new Turbo GeForce RTX 4070 12GB GDDR6X (TURBO-RTX4070-12G) specifically caters to surroundings with restricted airflow, such as server racks and small-form-factory (SFF) systems.

With the ongoing AI fever, we're seeing more blower-type designs on the market. AI users would love to have one or a few of Nvidia's H100 (Hopper) or even the last-generation A100 (Ampere) inside their systems. But realistically, these models are out of reach for the majority. Therefore, many are turning to high-end consumer Ada Lovelace graphics cards, such as the GeForce RTX 4090, for their AI needs.

Surprisingly, we haven't seen any blower designs for the GeForce RTX 4080, although we have a couple for the GeForce RTX 4070 Ti and GeForce RTX 4070. Asus has now joined Leadtek and PNY and launched a blower-type GeForce RTX 4070.

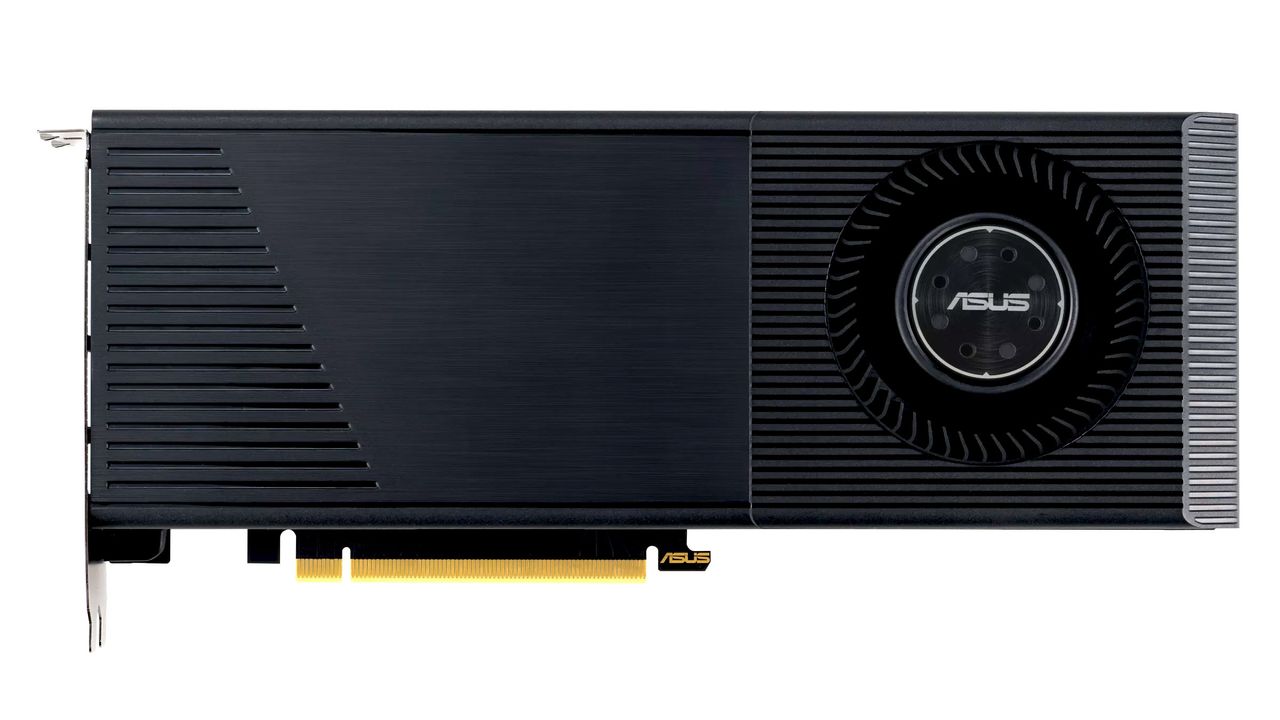

The Turbo GeForce RTX 4070 12GB GDDR6X (via momomo_us) arrives with your typical blower-type cooler: a single fan blowing the hot air through the graphics card's I/O port. Asus uses a dual-ball bearing fan on this new graphics card, to give consumers twice the lifespan rating over conventional fans with sleeved bearings. As with Asus' modern graphics cards, the Turbo GeForce RTX 4070 12GB GDDR6X is a product of the company's Auto-Extreme technology, a completely automated manufacturing process that the company says improves the quality of the graphics card.

The Turbo GeForce RTX 4070 12GB GDDR6X features a dual-slot design, permitting you to run a few of them on a motherboard, as long as it has the necessary number of expansion slots and spacing. The graphics card measures 269mm (10.59 inches), so it's shorter than Asus' other premium triple-fan models, such as the ProArt GeForce RTX 4070 12GB GDDR6X (300mm) or the ROG Strix GeForce RTX 4070 12GB GDDR6X (338.9mm). The Turbo GeForce RTX 4070 12GB GDDR6X is slightly longer than the Dual GeForce RTX 4070 12GB GDDR6X (267.01mm), which sports a dual-fan cooler.

As far as specifications go, the Turbo GeForce RTX 4070 12GB GDDR6X has a boost clock speed of 2,475 MHz, adhering to Nvidia's reference specifications. The graphics card exists solely for tight-spaced enclosures and does not offer the highest clock speeds for a GeForce RTX 4070. For that, Asus has the high-end ROG Strix models.

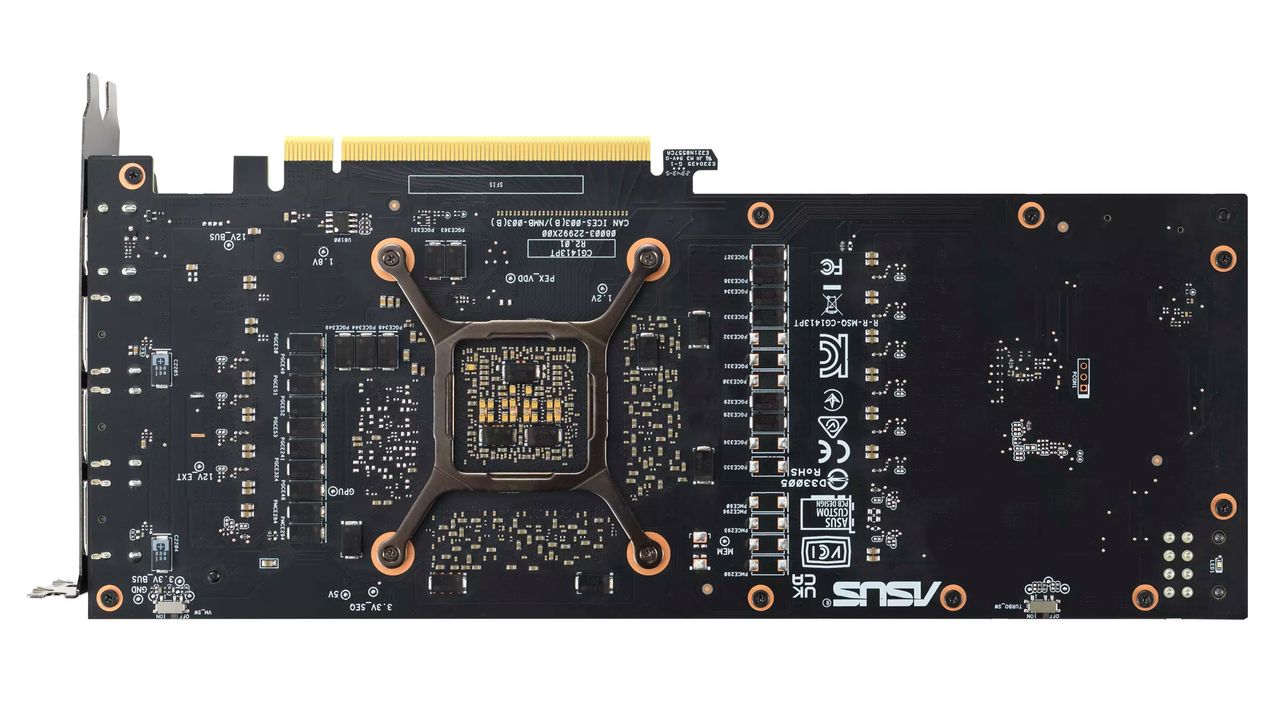

The Turbo GeForce RTX 4070 12GB GDDR6X draws external power from a standard 8-pin PCIe power connector. Like other blower-type designs and server-grade graphics cards, the power connector is located at the rear of the graphics card to help with cable management, especially inside server racks. The recommended power supply capacity for a single graphics card is 650W, so you'll need a bigger unit if you plan to run three or four of these in a server rack.

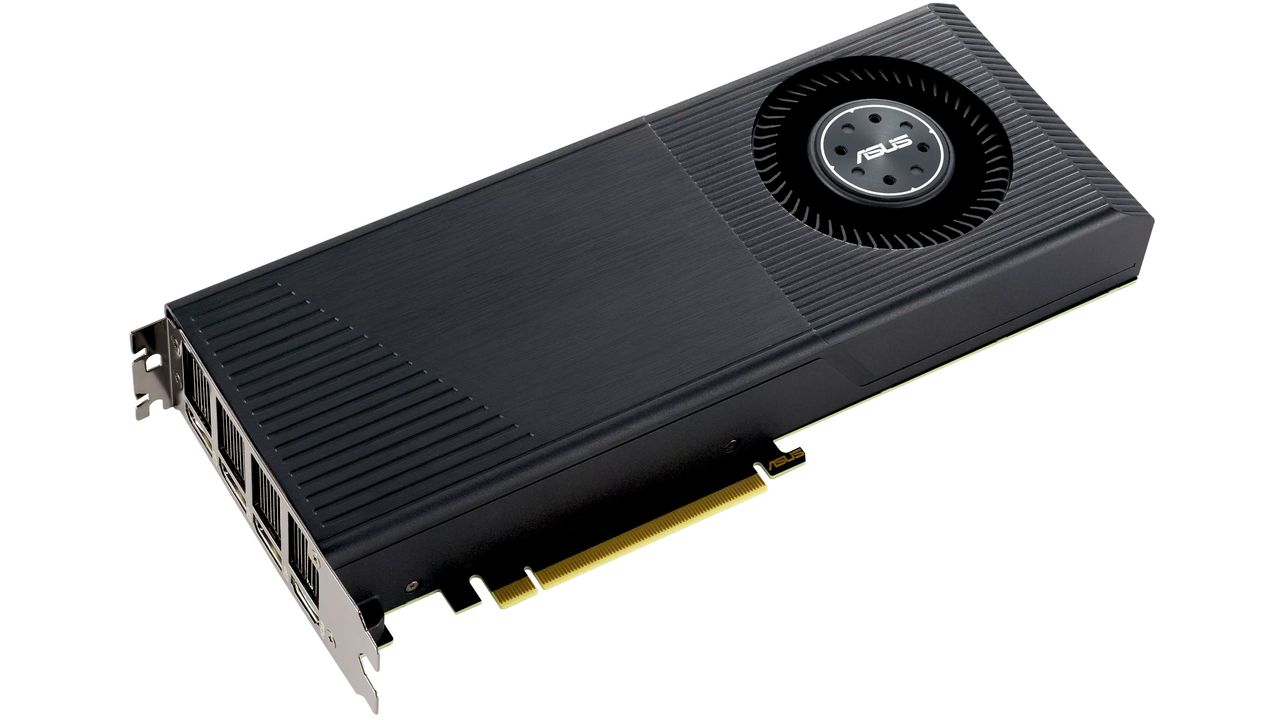

The graphics card has four display outputs, allowing you to connect up to four monitors simultaneously, via a native HDMI 2.1a port and three DisplayPort 1.4a outputs with HDCP 2.3 support. Asus has equipped the Turbo GeForce RTX 4070 12GB GDDR6X with a 304 stainless steel bracket that combats corrosion.

Pricing and availability of the Turbo GeForce RTX 4070 12GB GDDR6X are unknown, since Asus hasn't made an official announcement for the graphics card.

Zhiye Liu
News Editor and Memory Reviewer

Zhiye Liu is a news editor and memory reviewer at Tom’s Hardware. Although he loves everything that’s hardware, he has a soft spot for CPUs, GPUs, and RAM.

  • mac_angel
    how about a multi-GPU, multi-display, NVidia Surround setup without SLI?
    Reply
  • Amdlova
    multi gpu in today market ? you can have Multi nvme drivers maybe some one make a heat sink with nvidia looking. "Geforce from pendrives to heat sinks"
    Reply
  • bobba84
    FINALLY another card with the power connector on the end! Why aren't ALL blowers like this???
    Reply
  • Vision4life
    mac_angel said:
    how about a multi-GPU, multi-display, NVidia Surround setup without SLI?
    I agree. We could save money and place with that kind of design. The last mainstream multi-gpu known was the GTX590. I personally have a SLi GTX1080 Blower and i'm really proud : hot (85°) but surprisingly silent.
    Reply
  • Vision4life
    I will go for a Blower type if i see a RTX 4070Ti on the market.
    Reply
  • mac_angel
    Vision4life said:
    I agree. We could save money and place with that kind of design. The last mainstream multi-gpu known was the GTX590. I personally have a SLi GTX1080 Blower and i'm really proud : hot (85°) but surprisingly silent.
    yea, I used to have two 1080ti's in SLI, running on a triple display. I've been running a triple display for over 10 years, starting off with the GTX 970s in SLI, on three 46 1080p Samsung TVs. A few years ago I upgraded to three 55" Samsung RU8000 4K TVs (the lowest that support FreeSync). I skipped the 20XX series, picked up an RTX 3090. Had to replace it, got an RTX 3090ti. That had to be replaced too (F you, Gigabyte!), got an MSI RTX 4090 Suprim. I just ordered a waterblock for it on Black Friday, still waiting for it to come in.
    My wish list would be to be able to run three cards on three displays. I didn't know before, but apparently it works without using SLI, still being able to set up in NVidia Surround.
    Oh, well. Someday, if I win the lottery, because on top of running three cards, I'd also need a Xeon or Threadripper (definitely be getting a Xeon 24XX) just for the PCIe lanes
    Reply
