Aorus KD25F 240 Hz Gaming Monitor Review: Breaking Our Benchmark Records

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Grayscale, Gamma and Color

The KD25F was tested in its Standard picture mode, both in a default state and after calibration. Other picture modes may be suitable for different gaming types, but we prefer to stick with a single mode for all applications. Users can adjust gamma, grayscale and color saturation, then save those settings to one of three memories for later recall.

Grayscale and Gamma Tracking

We describe our grayscale and gamma tests in detail here.

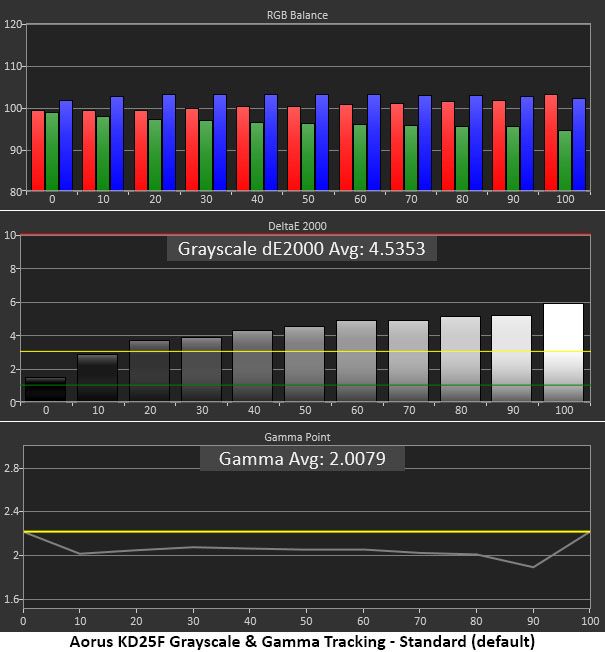

Out of the box, the KD25F’s grayscale tracking was a bit cool with a slight purple tint visible from 20-100% brightness. The error was slight and may not be an issue for some users. Our greater concern is the gamma tracking. Although it’s nicely linear, it runs below the 2.2 line, making images washed-out and flat.

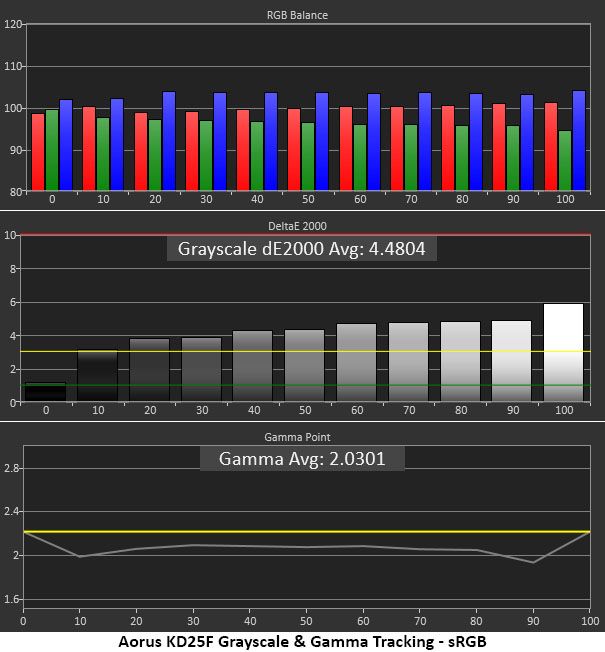

Changing the preset from 3 to 4 takes care of that problem. You can see in the second chart that the KD25F’s sRGB mode offered no improvement. It also locked out all luminance controls and fixed brightness to 150 nits max.

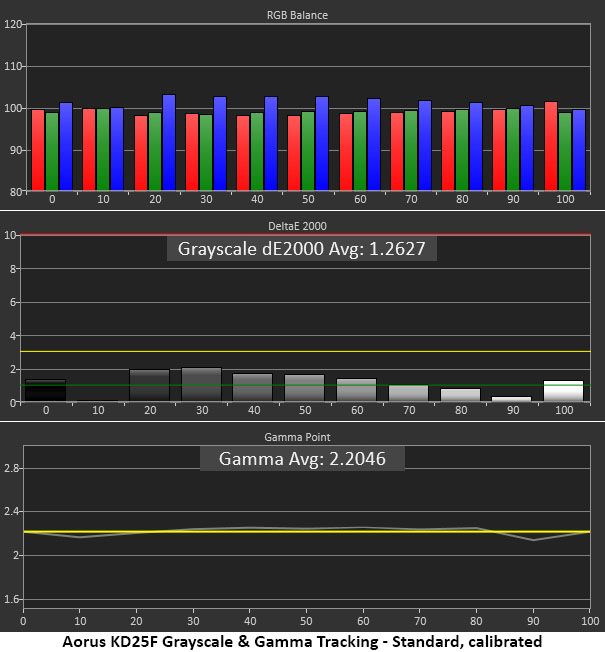

After calibrating the RGB sliders and changing the gamma preset, we have a much better-looking chart (third photo). All errors are now at a Delta E (dE) of less than 3, with most below 2dE. Gamma is right on the 2.2 line with tight tracking. This improved image depth and added a bit of color saturation, which you’ll see below in the color gamut test results.

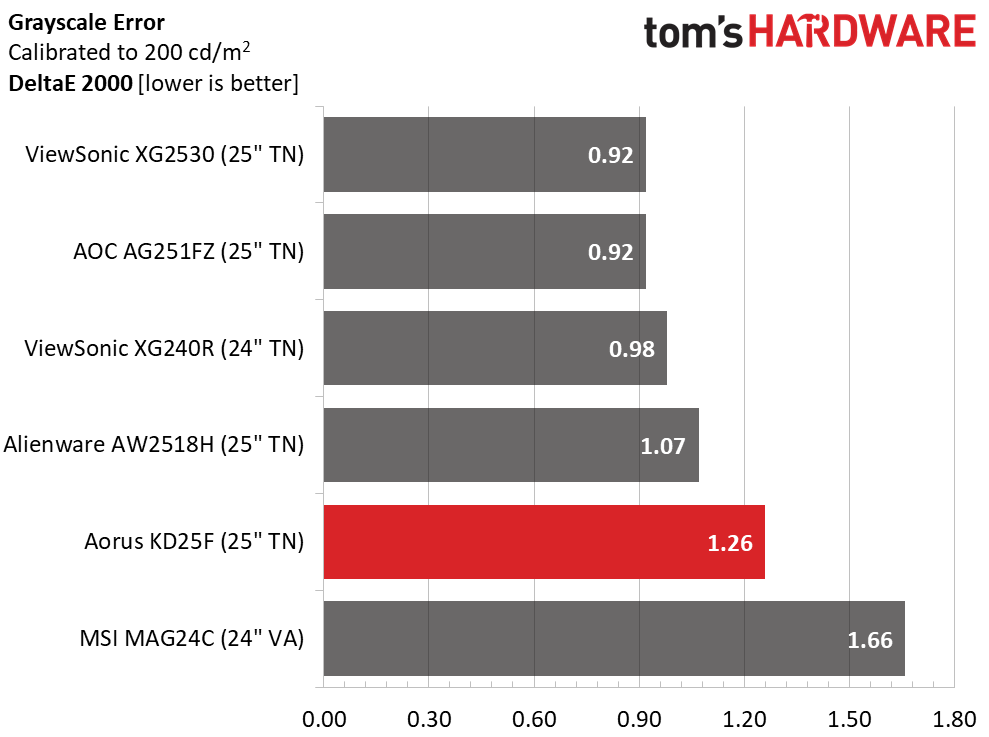

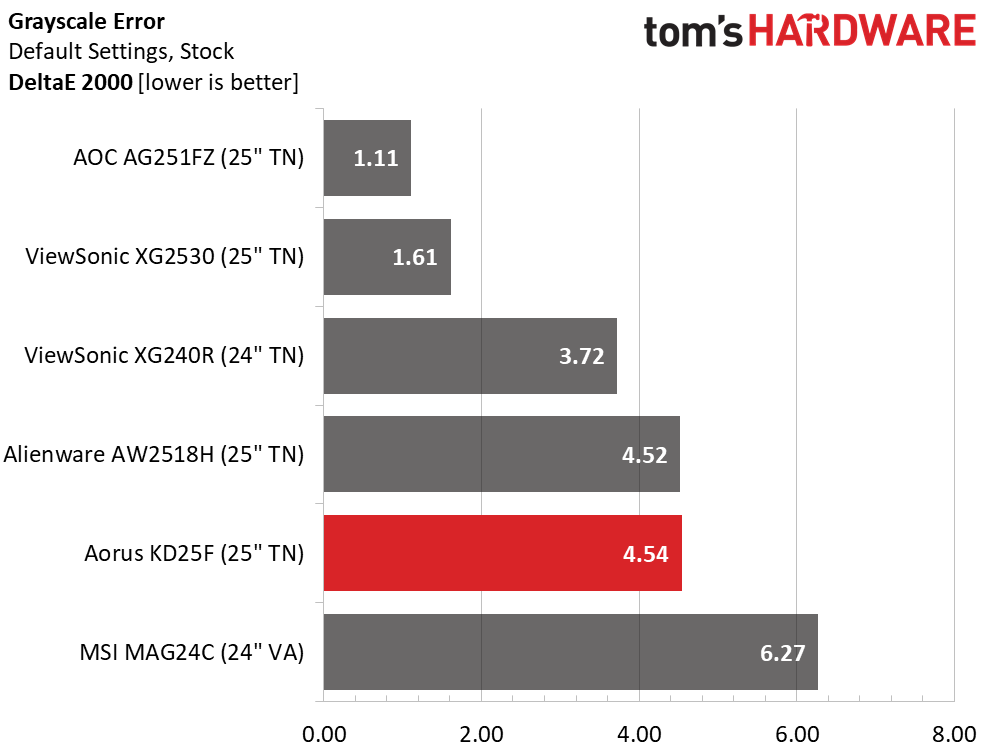

4.54dE isn’t too bad for an out-of-box result, but the AG251FZ and XG2530 posted better default grayscale scores. If you dial in our recommended values, however, you’ll see essentially perfect white balance. With calibration, all the monitors here perform very well.

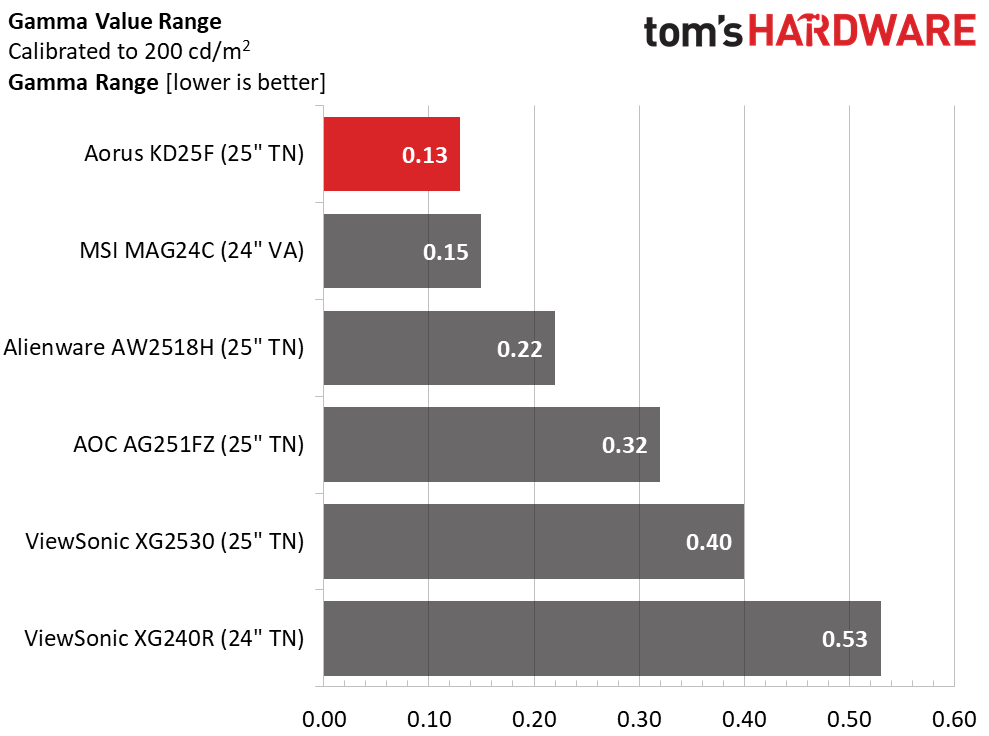

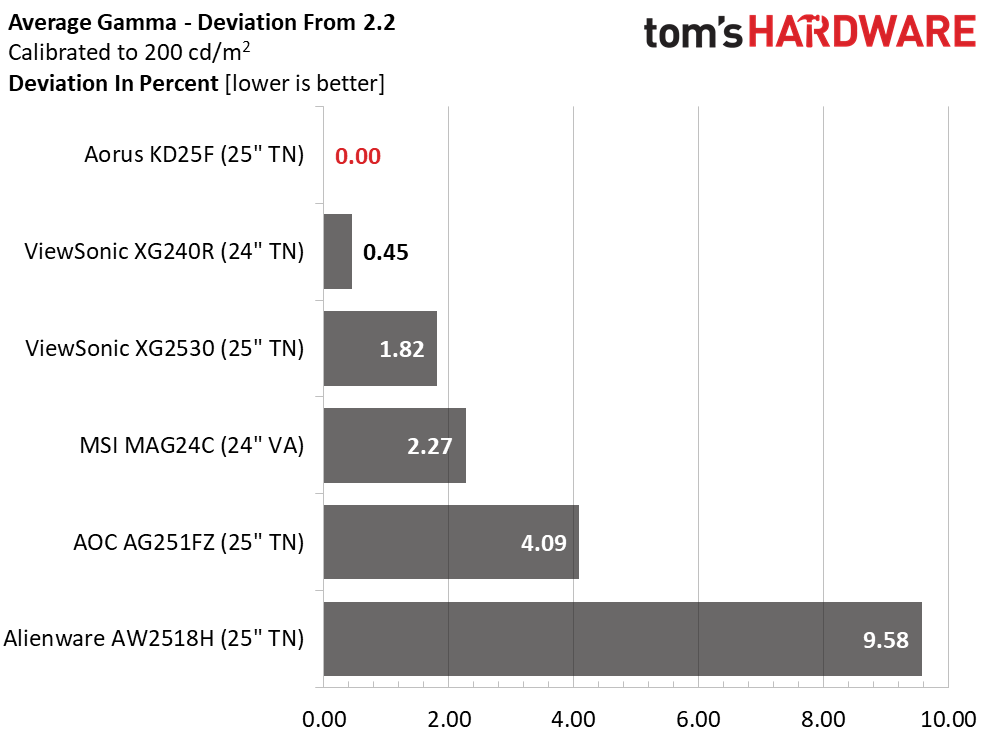

Changing the gamma preset from 3 to 4 put the KD25F in the top spot of the group. This really improved image depth, especially with relatively low contrast (like all the TN monitors here). With a tight 0.13 range of values and perfect 2.2 average, it doesn’t get better.

Color Gamut Accuracy

For details on our color gamut testing and volume calculations, click here.

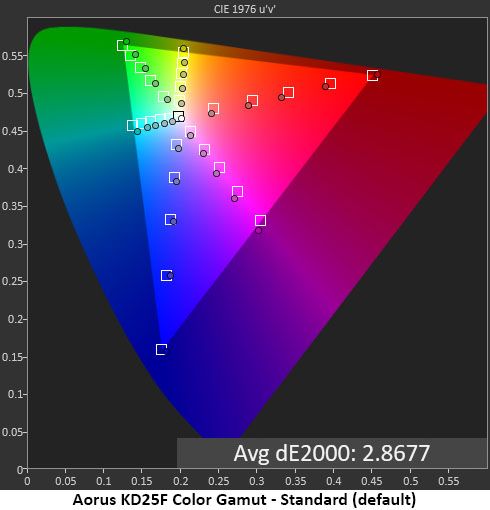

At its default settings, the KD25F tracked the sRGB gamut accurately, but the inner color targets were slightly under-saturated. This isn’t a huge issue, but it made the image a bit dull.

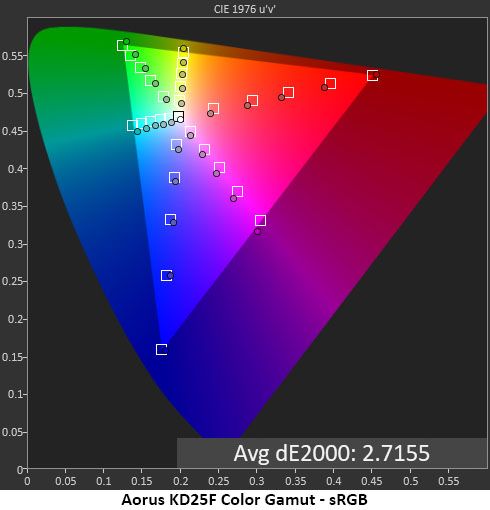

The sRGB mode is much the same as Standard. You can increase the Color Vibrance slider, which helps somewhat, but it isn’t as effective as changing the gamma preset and calibrating the white balance.

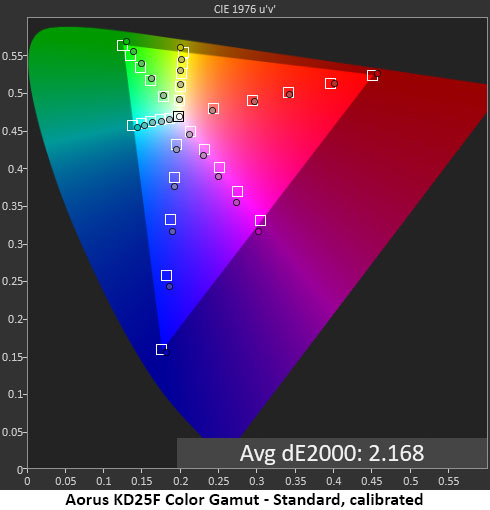

In the final chart, the average error is slightly lower, but the increase in overall color saturation was easily seen when viewing actual content. We highly recommend copying our recommended calibration settings, to get the most from your KD25F.

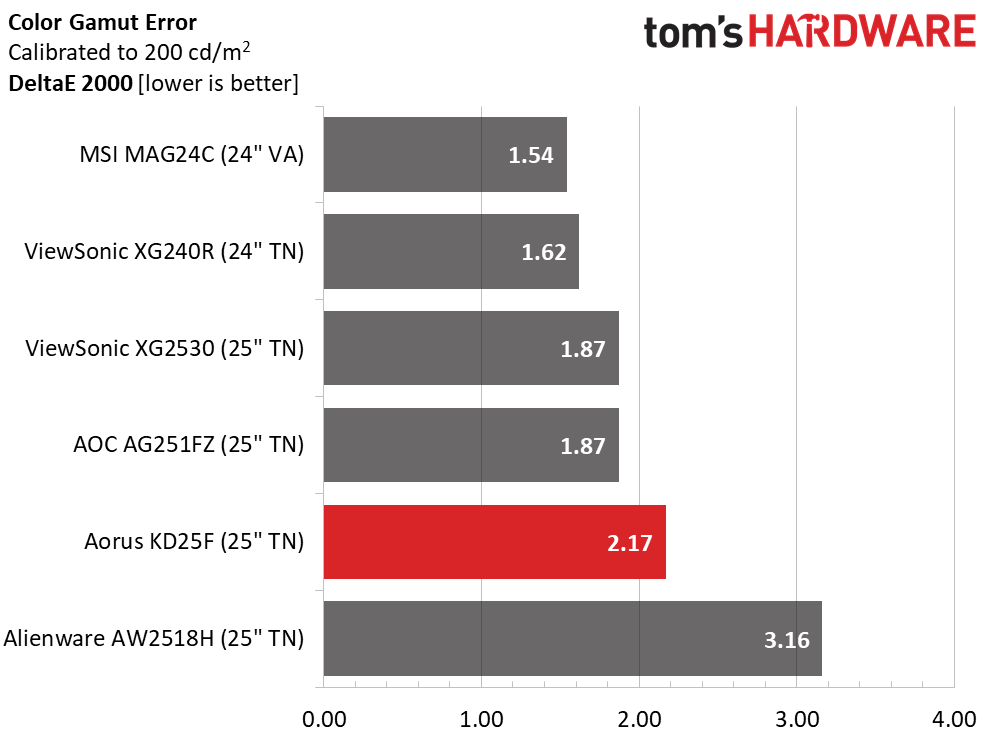

Calibration took the KD25F’s average color error from 2.87dE to 2.17dE. While that doesn’t sound like much, the increased saturation was easy to see. It’s mainly due to the change in gamma preset. That setting alone made a visible impact.

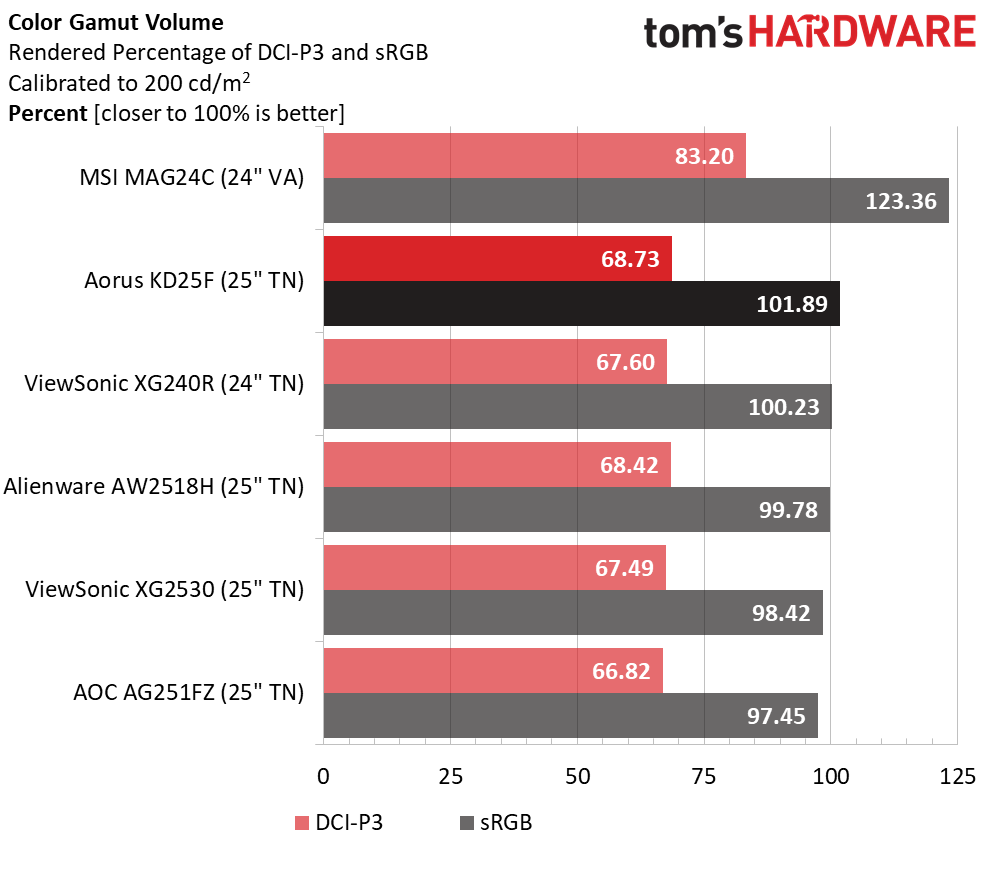

In the gamut volume calculation, the KD25F hit all the marks with a 101.89% score. Its color tracking at all saturation levels, coupled with a full sRGB volume, qualify it for color-critical duty. While it’s aimed squarely at gaming, it’s nice to see Aorus putting effort into color accuracy.
