Cooler Master V650 Gold Power Supply Review

The V650 Gold is expensive and its performance is not up to the competition's levels.

(Image: © Tom's Hardware)

Our Verdict

The V650 has high build quality and satisfactory overall performance, but with the same or a lower amount, you can find better options.

For

  • Full power at 47 degrees Celsius
  • High build quality
  • Quiet operation
  • Long hold-up time
  • 10-year warranty
  • 2x EPS and 4x PCIe connectors
  • Fully modular

Against

  • Expensive
  • No MOV and NTC thermistor
  • Mediocre EMC performance
  • Average transient response
  • Small distance between peripheral connectors

The Cooler Master V650 Gold features good build quality, but this is not enough to beat the competition, especially since its price is stiff and availability, in the US market at least, is limited. With the same or even lower amount, someone can get better power supplies from Corsair (RM650x), Seasonic (Focus Plus Gold 650W), EVGA (SuperNOVA 650 G3), and Asus (Rog Strix 650).

Cooler Master's V Gold line consists of four models, with capacities ranging from 550W to 850W. We have already evaluated the 750W unit (V750 Gold), and in this review, we will take a detailed look at the 650W model, which has enough power to handle a mid-level system.

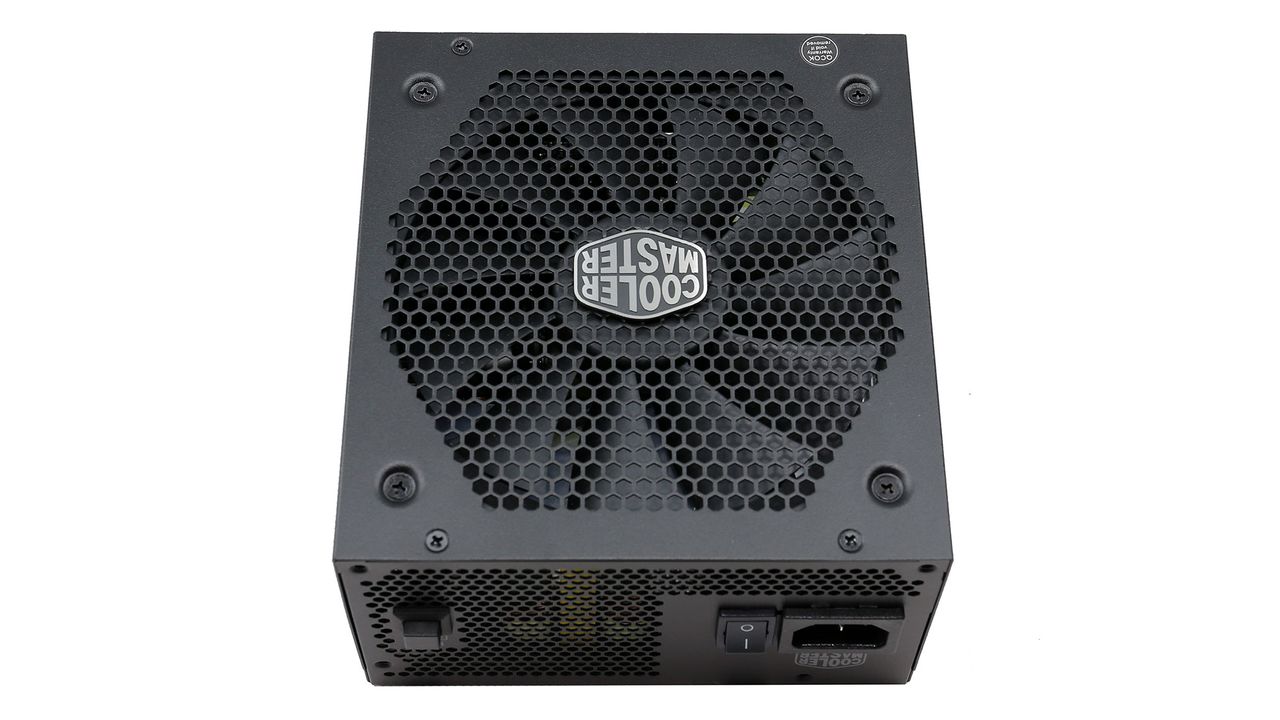

The V650 Gold (model number: MPY-6501-AFAAGV), like all the other members of the family, is fully modular and is equipped with a 135mm fluid dynamic bearing fan, which is supported by a semi-passive mode that can be deactivated, should you want the fan to be always spinning. Another interesting note about the V650 Gold is that it uses 16AWG gauges for the PCIe connectors, despite its modest capacity. Nonetheless, our sample came with standard 18AWG gauges, but according to Cooler Master, this won't be the case with retail units.

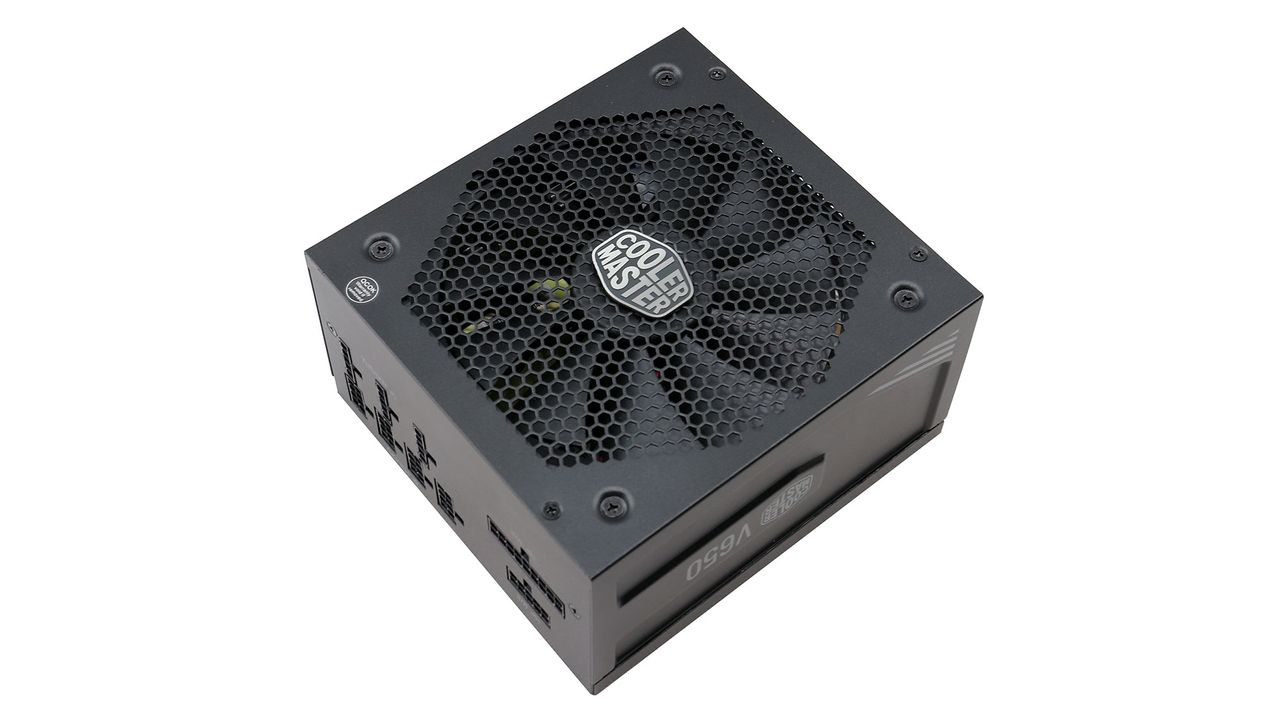

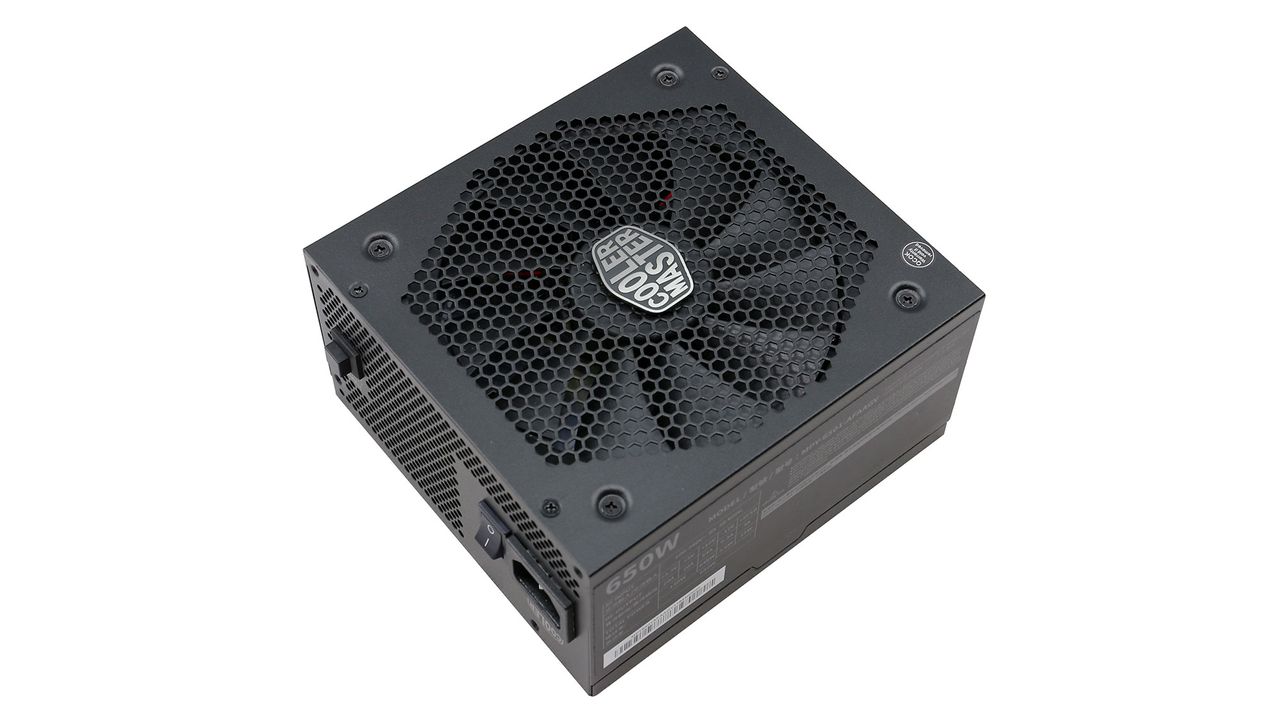

Image 1 of 9

(Image credit: Tom's Hardware)

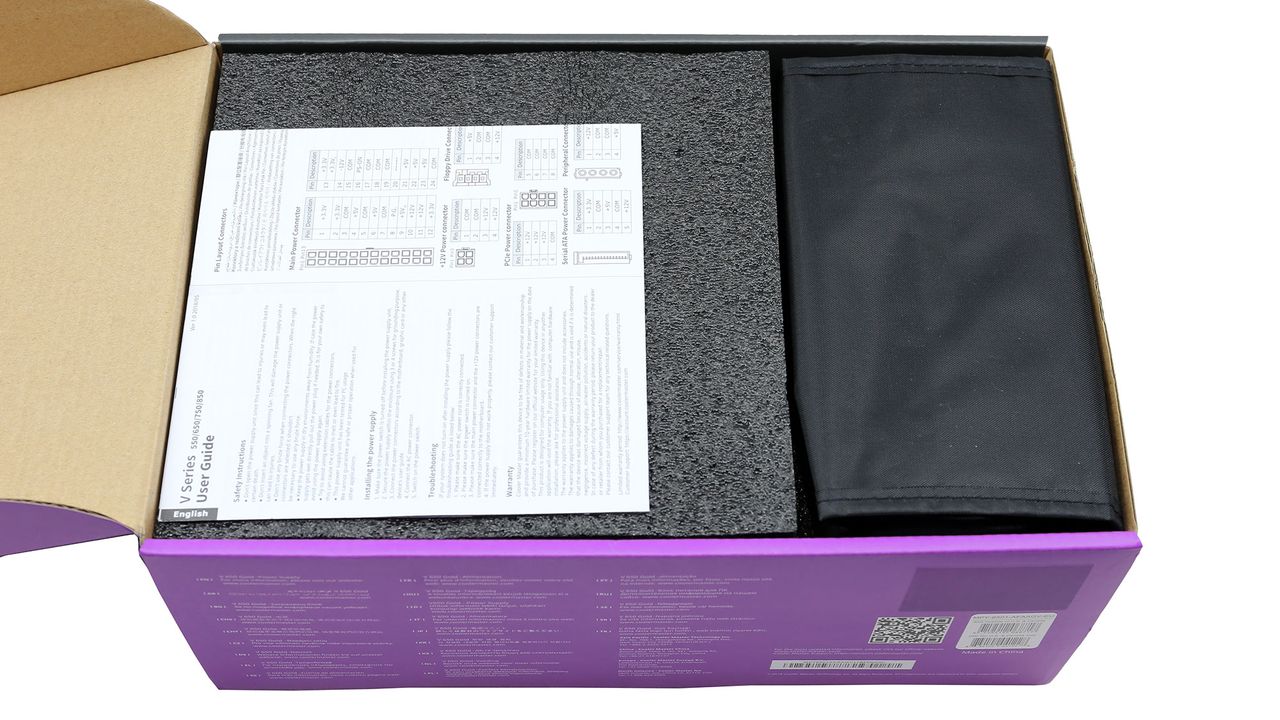

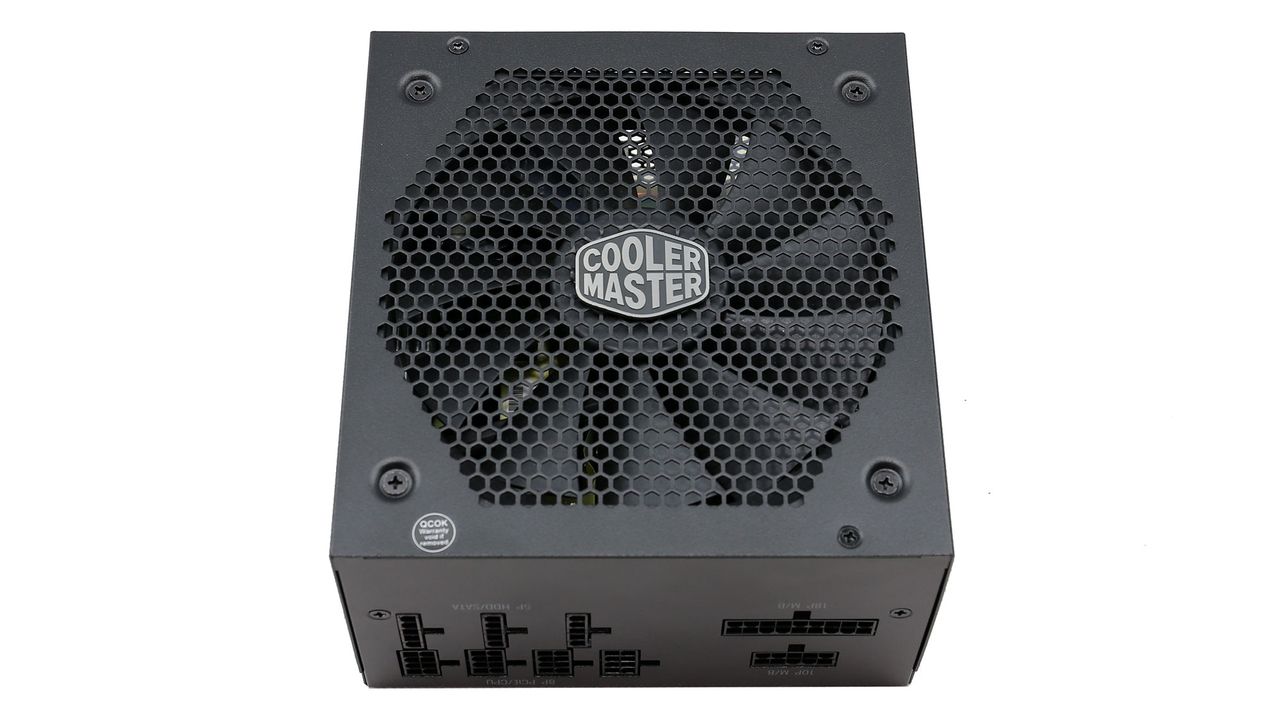

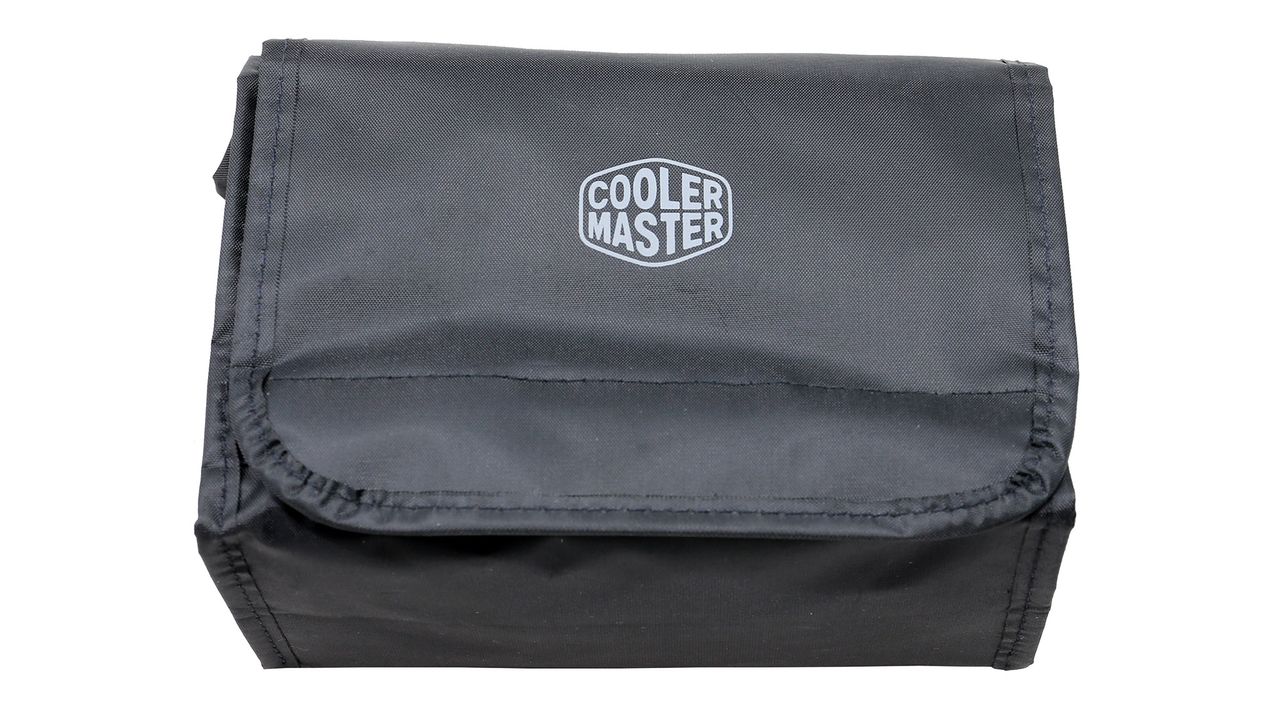

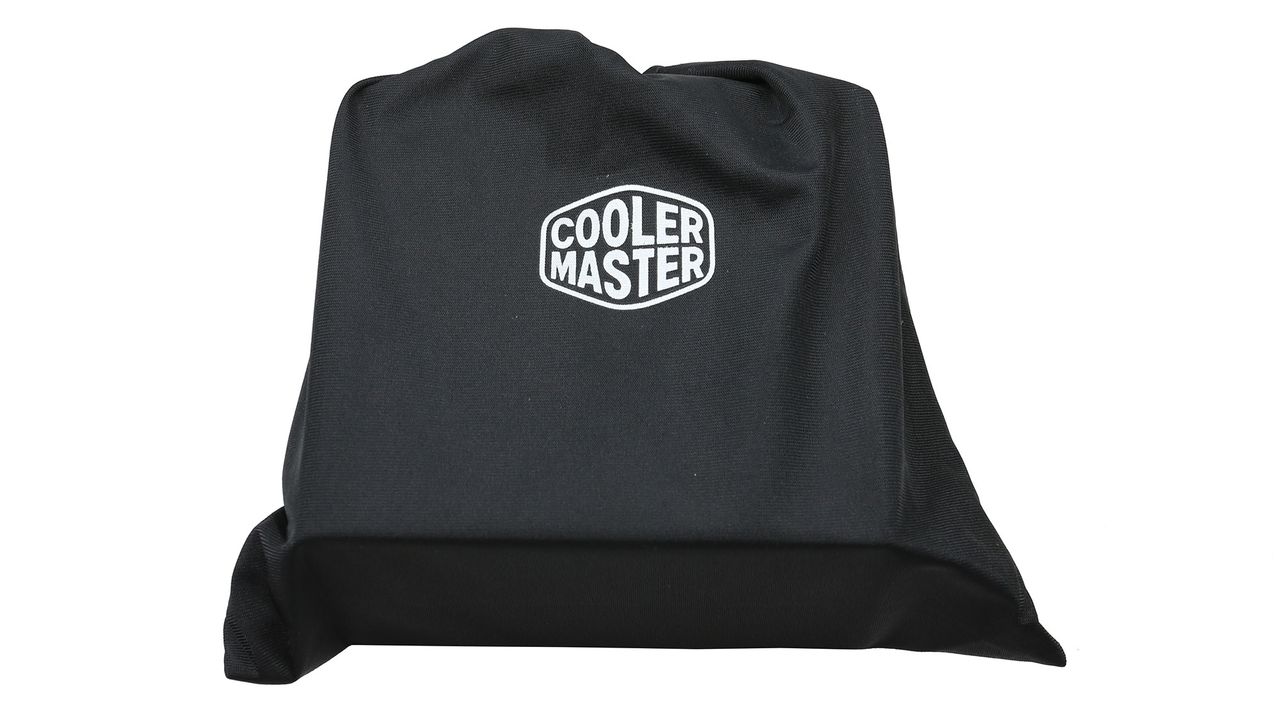

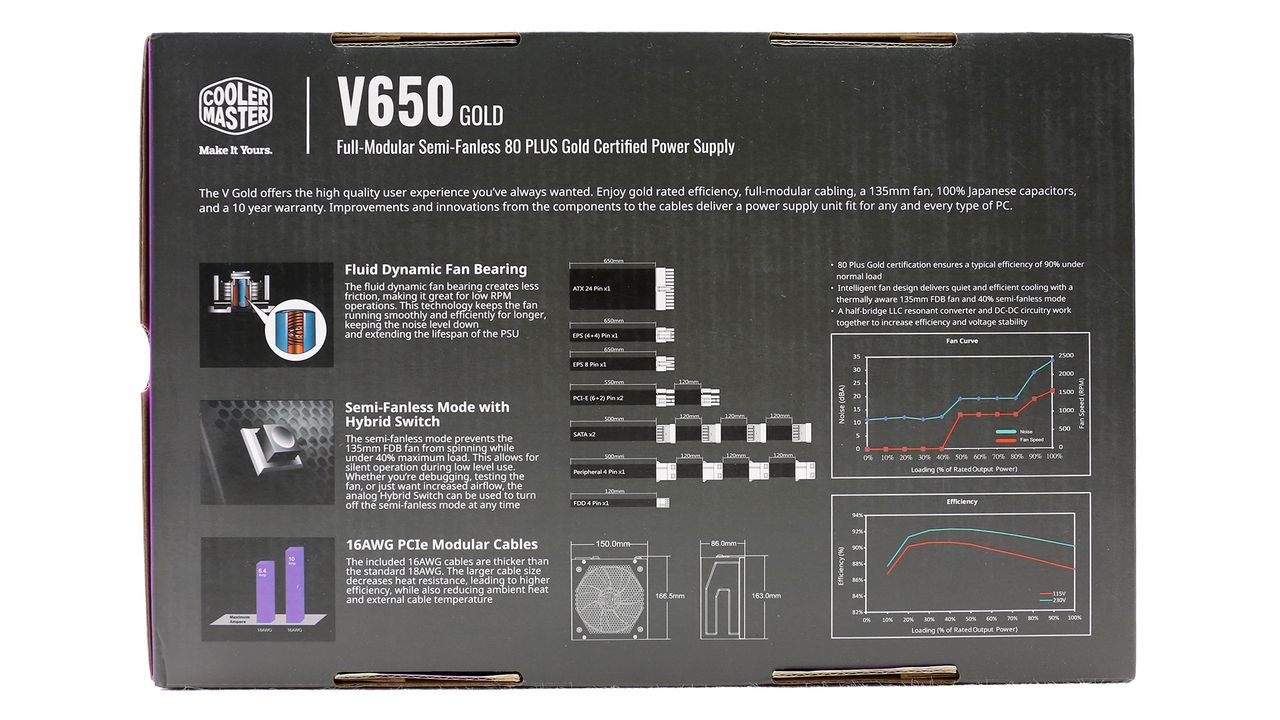

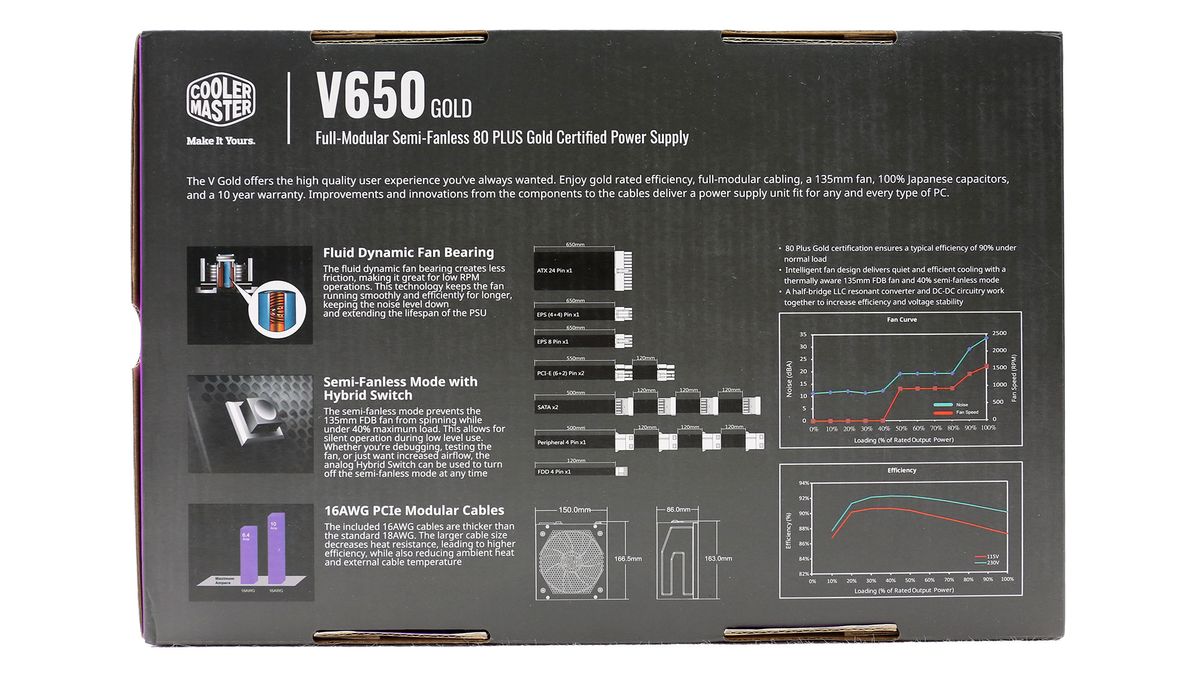

Product Photos

Image 2 of 9

(Image credit: Tom's Hardware)
Image 3 of 9

(Image credit: Tom's Hardware)
Image 4 of 9

(Image credit: Tom's Hardware)
Image 5 of 9

(Image credit: Tom's Hardware)
Image 6 of 9

(Image credit: Tom's Hardware)
Image 7 of 9

(Image credit: Tom's Hardware)
Image 8 of 9

(Image credit: Tom's Hardware)
Image 9 of 9

(Image credit: Tom's Hardware)

The V650 Gold is 80 PLUS certified, and it has also been evaluated by Cybenetics, scoring ETA-A and LAMBDA-A-, efficiency, and noise levels, respectively. This is not the quietest 650W power supply that money can buy today, but it is quiet enough with less than 30 dB(A) overall noise output.

Image 1 of 7

(Image credit: Tom's Hardware)

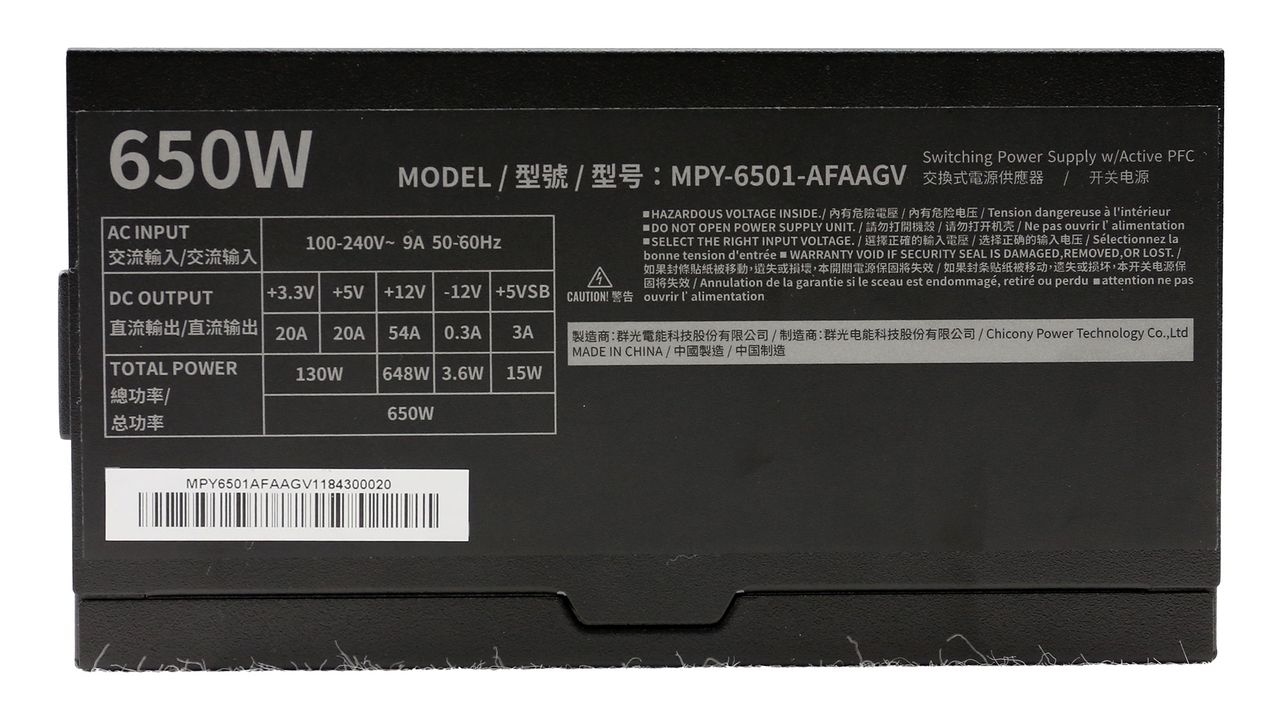

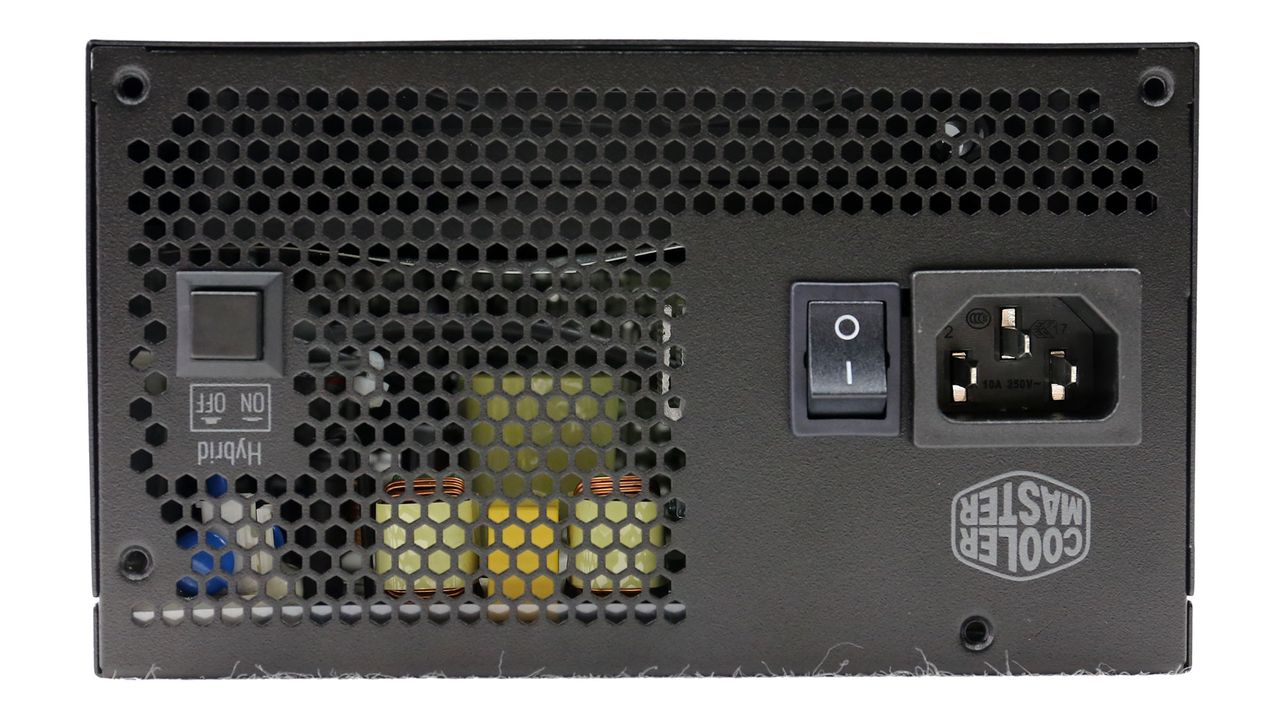

Product Photos

Image 2 of 7

(Image credit: Tom's Hardware)
Image 3 of 7

(Image credit: Tom's Hardware)
Image 4 of 7

(Image credit: Tom's Hardware)
Image 5 of 7

(Image credit: Tom's Hardware)
Image 6 of 7

(Image credit: Tom's Hardware)
Image 7 of 7

(Image credit: Tom's Hardware)

Specifications

Manufacturer (OEM)

Chicony Electronics

Max. DC Output

650W

Efficiency

80 PLUS Gold, ETA-A (88-91%)

Noise

LAMBDA-A- (25-30 dB[A])

Modular

(Fully)

Intel C6/C7 Power State Support

Operating Temperature (Continuous Full Load)

0 - 50°C

Over Voltage Protection

Under Voltage Protection

Over Power Protection

Over Current (+12V) Protection

Over Temperature Protection

Short Circuit Protection

Surge Protection

Inrush Current Protection

Fan Failure Protection

No Load Operation

Cooling

135mm Fluid Dynamic Bearing Fan (SAC4H2H)

Semi-Passive Operation

(selectable)

Dimensions (W x H x D)

152 x 87 x 162mm

Weight

1.46 kg (3.22 lb)

Form Factor

ATX12V v2.4, EPS 2.92

Warranty

10 Years

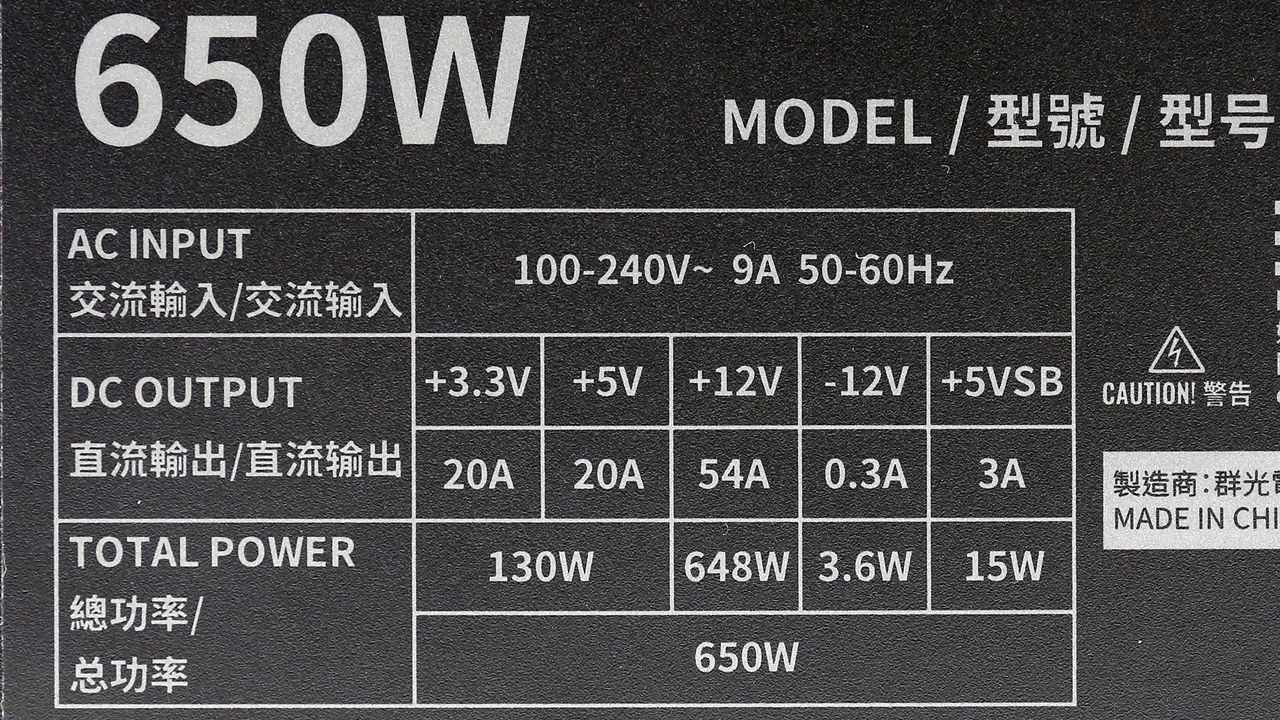

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430.3
Watts130648153.6
Total Max. Power (W)650

Cables & Connectors

Modular CablesCable CountConnector Count (Total)GaugeIn Cable Capacitors
ATX connector 20+4 pin (650mm)1118-22AWGNo
4+4 pin EPS12V (650mm)1118AWGNo
8 pin EPS12V (650mm)1118AWGNo
6+2 pin PCIe (550mm+120mm)2418AWGNo
SATA (500mm+120mm+120mm+120mm)2818AWGNo
4 pin Molex (500mm+120mm+120mm+120mm)1418AWGNo
FDD Adapter (125mm)1122AWGNo
AC Power Cord (1350mm) - C13 coupler1118AWG-

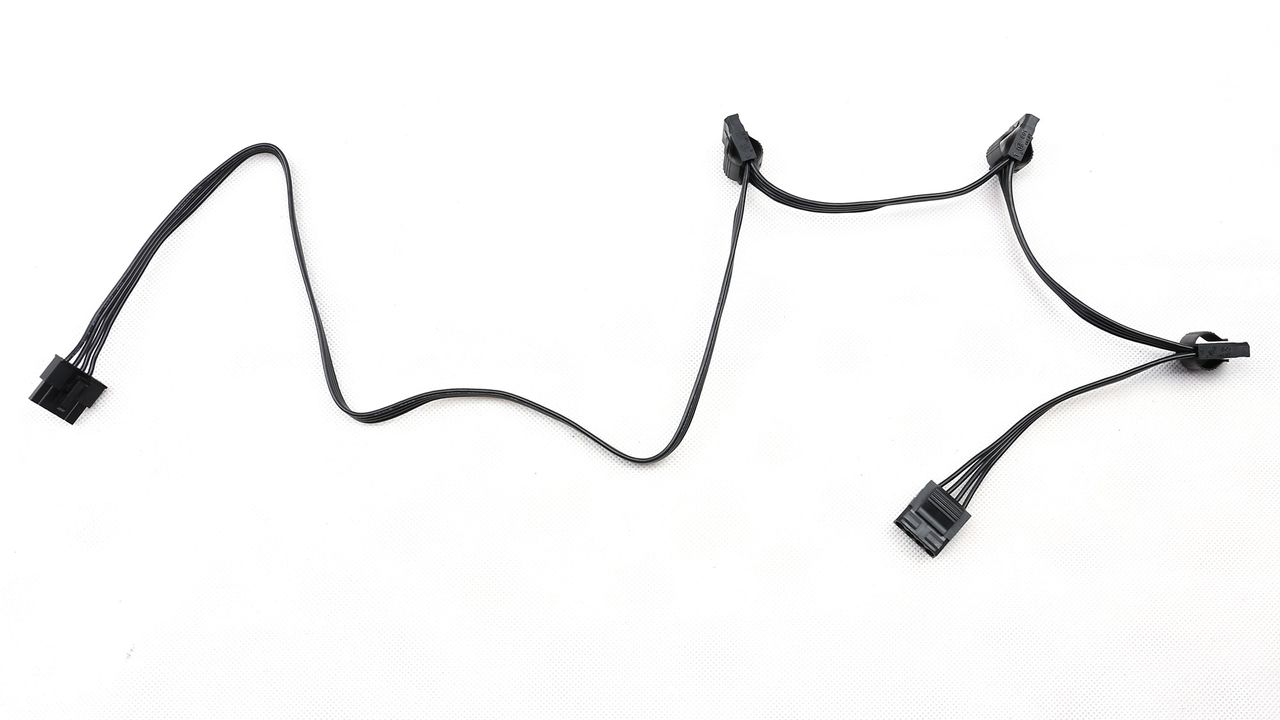

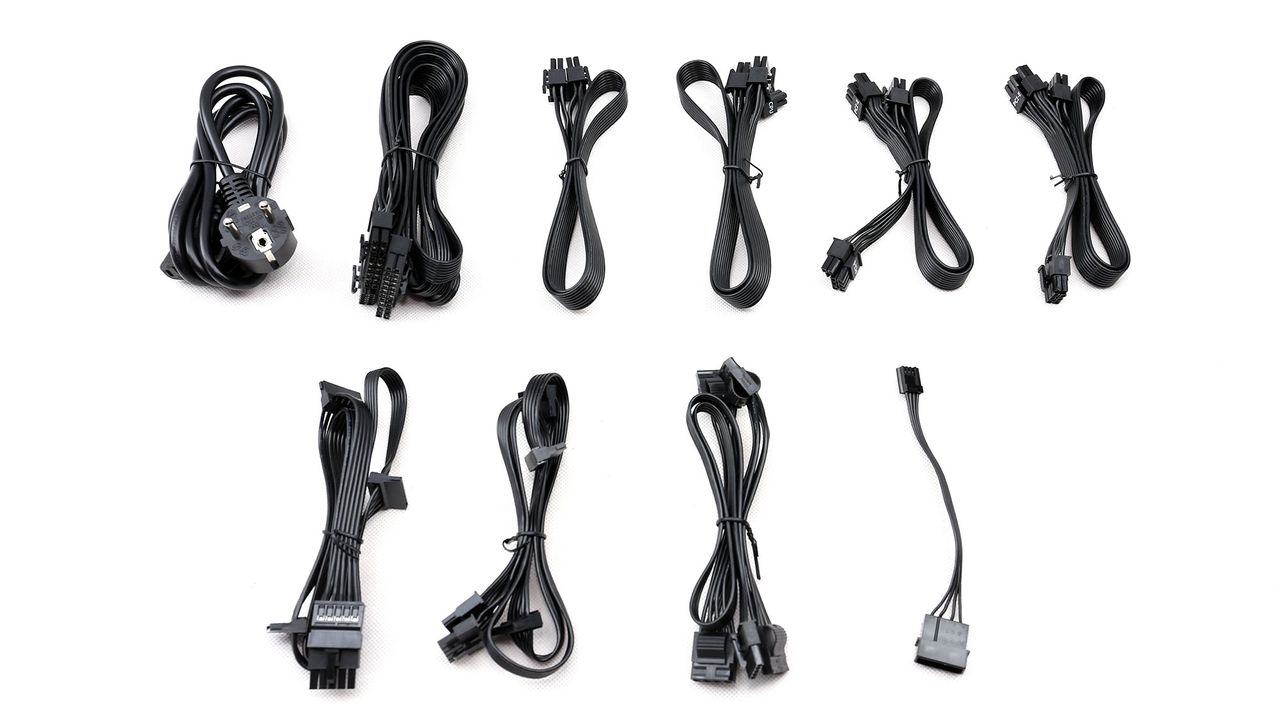

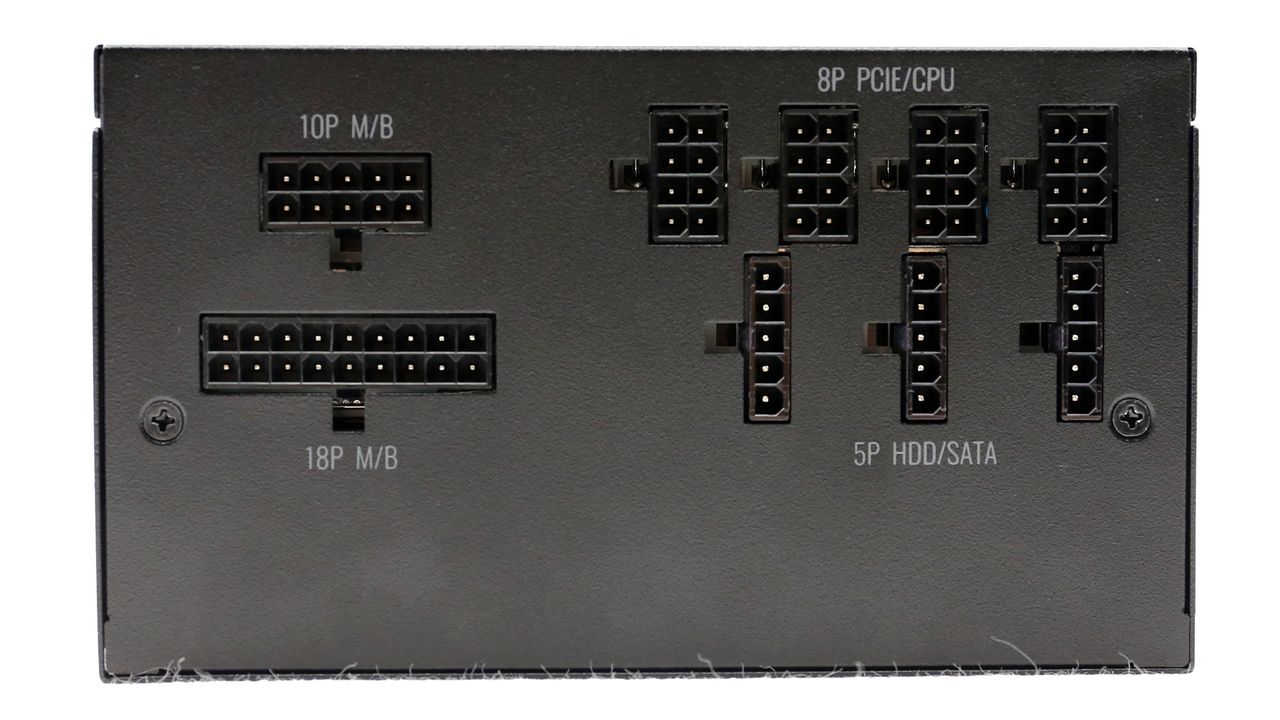

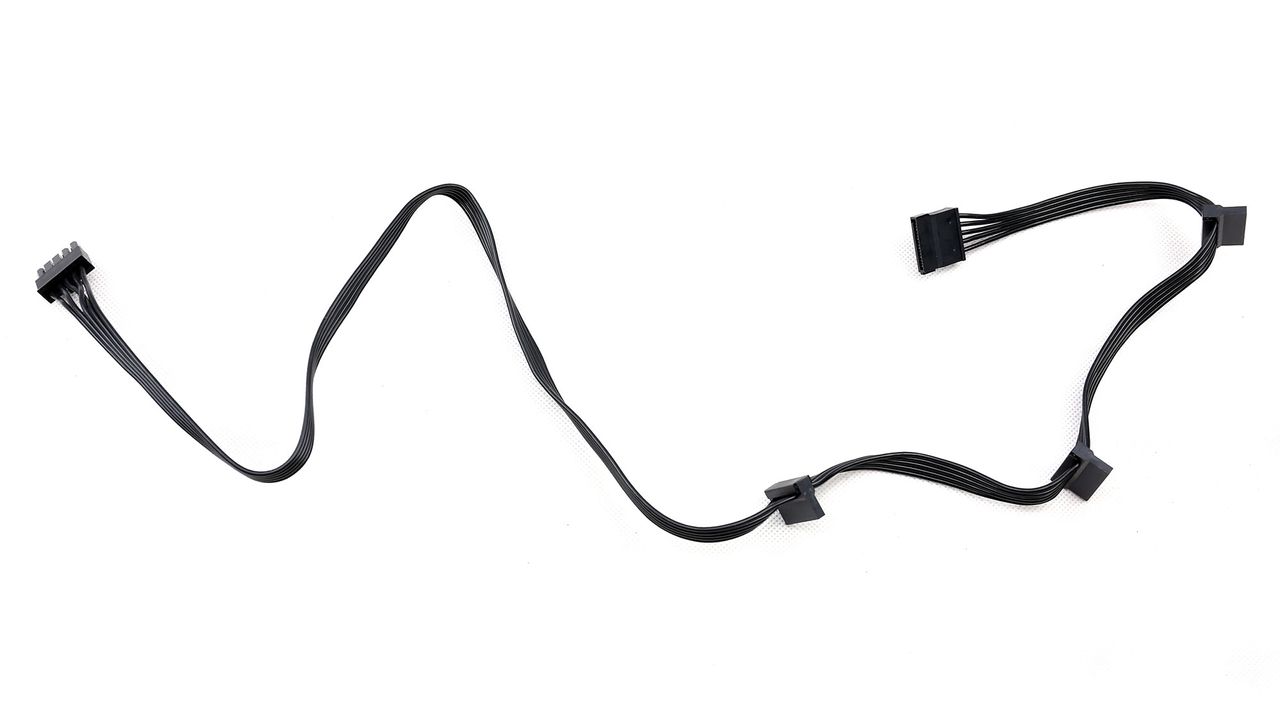

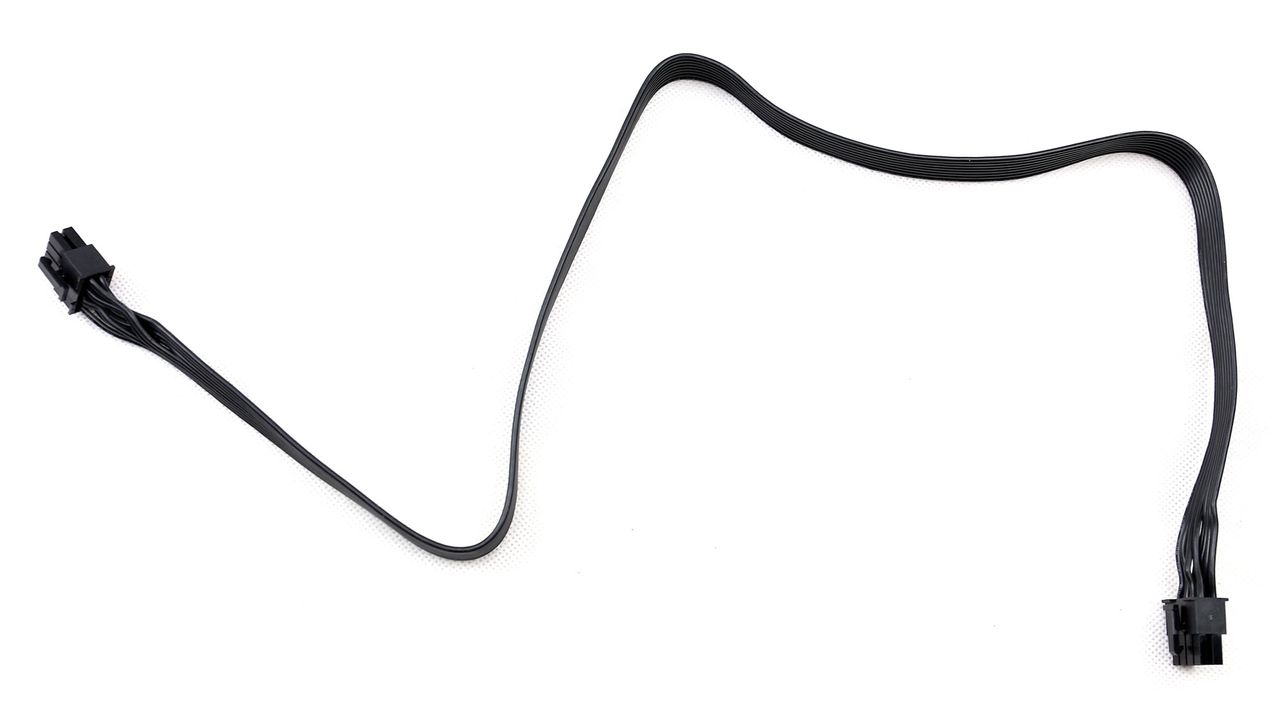

Although it is a mid-capacity unit,  the V650 Gold has plenty of connectors, including a pair of EPS and four PCIe. The number of peripheral connectors is also high, but the distance between them is small at only 120mm. Finally, there are no in-cable caps in any of the cables, which is an asset for cable management and routing processes.

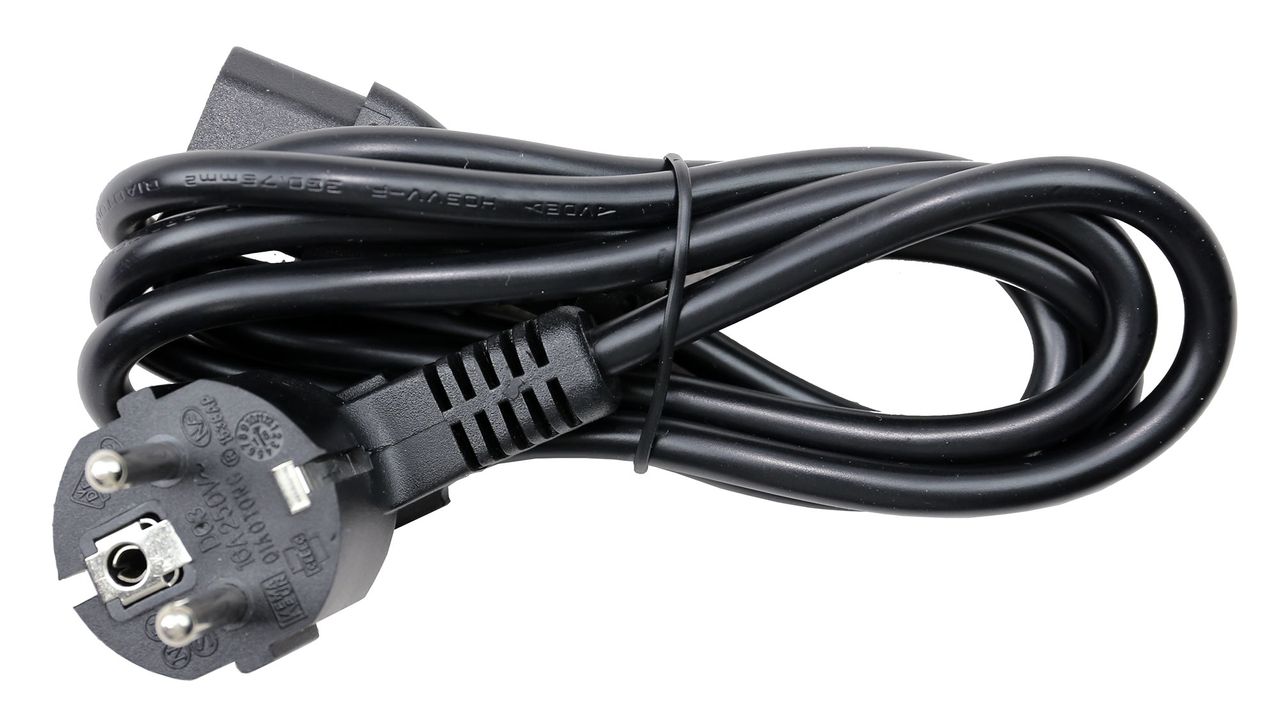

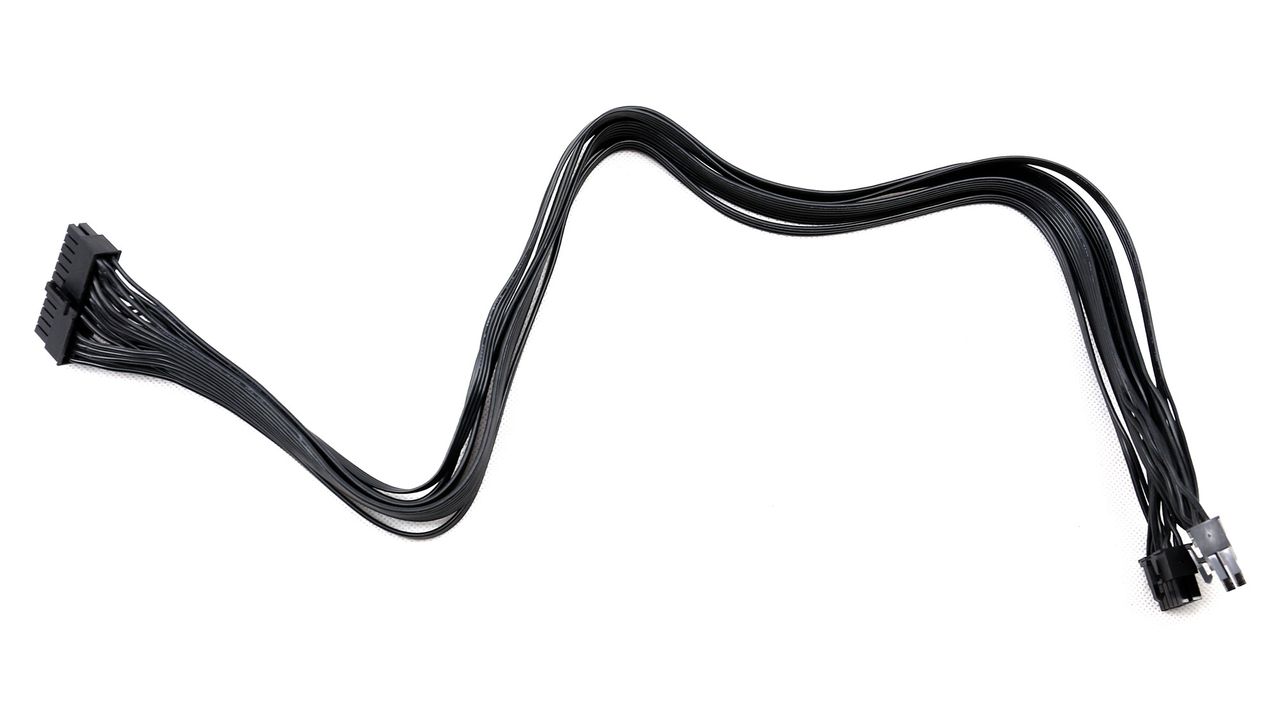

Image 1 of 8

(Image credit: Tom's Hardware)

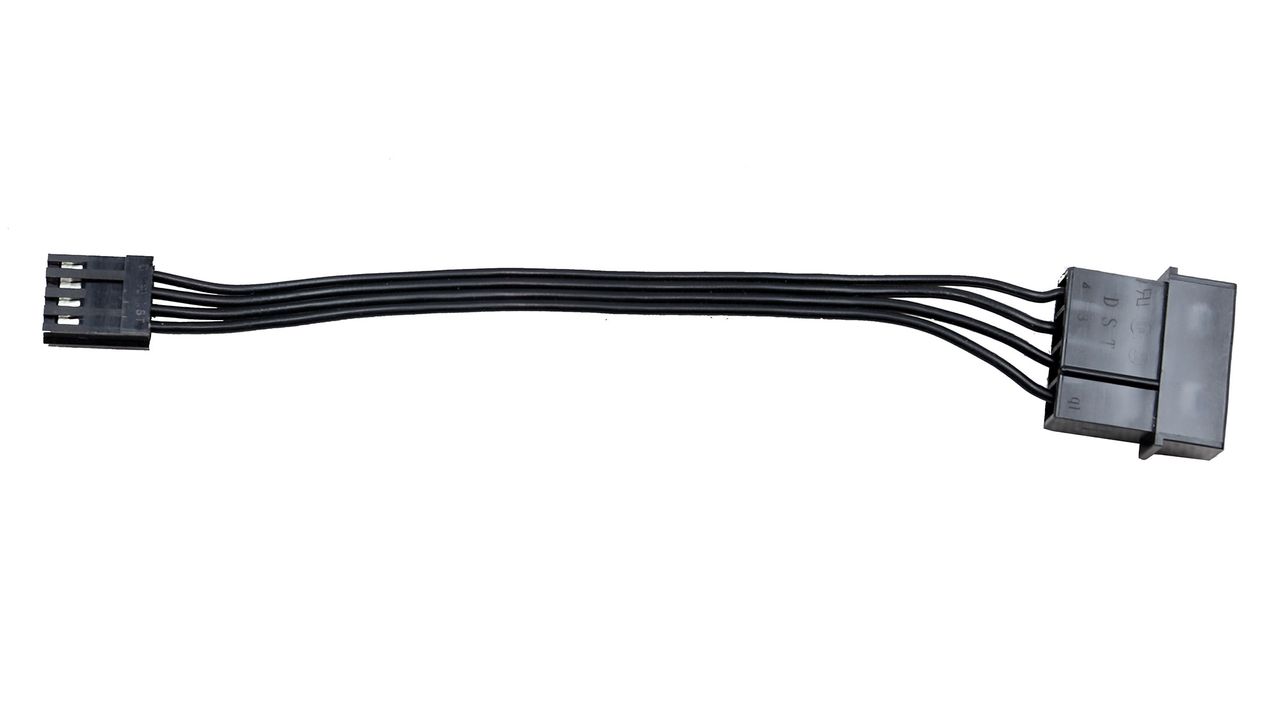

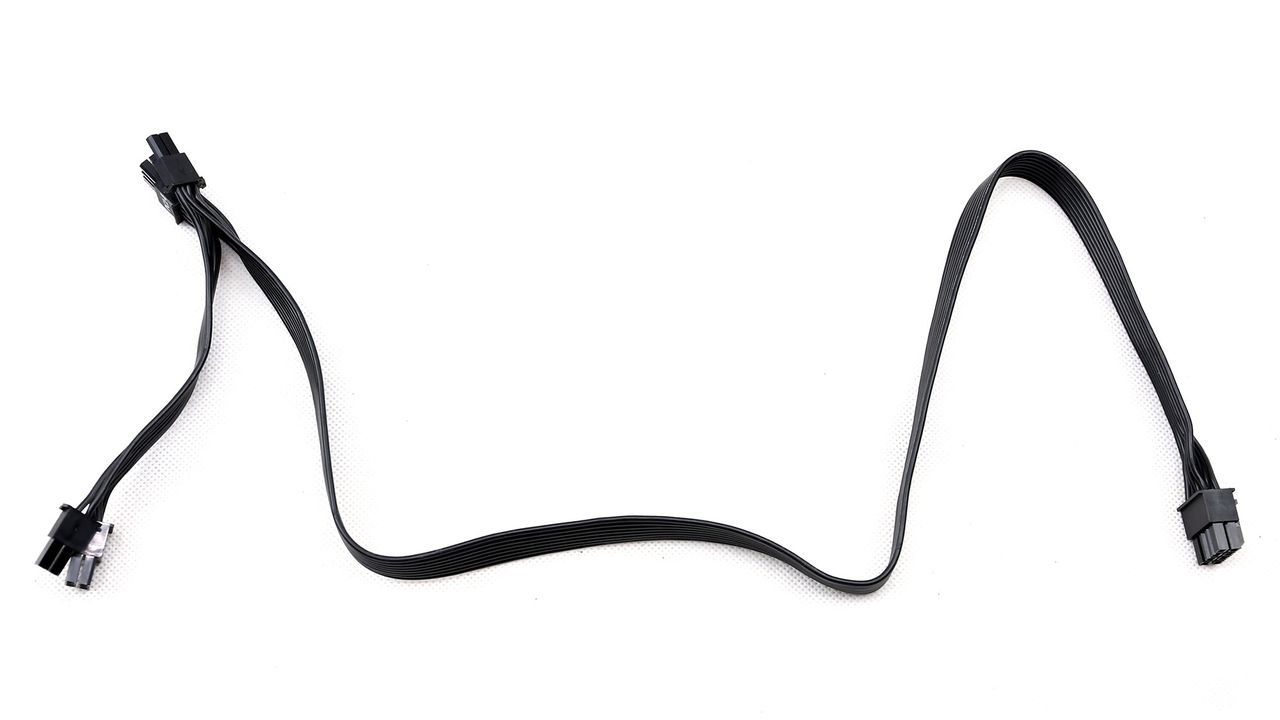

Cable Photos

Image 2 of 8

(Image credit: Tom's Hardware)
Image 3 of 8

(Image credit: Tom's Hardware)
Image 4 of 8

(Image credit: Tom's Hardware)
Image 5 of 8

(Image credit: Tom's Hardware)
Image 6 of 8

(Image credit: Tom's Hardware)
Image 7 of 8

(Image credit: Tom's Hardware)
Image 8 of 8

(Image credit: Tom's Hardware)

Component Analysis

We strongly encourage you to have a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

General Data-
Manufacturer (OEM)Chicony Electronics
PCB TypeSingle Sided
Primary Side-
Transient Filter4x Y caps, 2x X caps, 2x CM chokes
Inrush Protection-
Bridge Rectifier(s)2x GBU15JL (600V, 15A @ 115°C)
APFC MOSFETS1x Infineon IPW60R099P6 (650V, 24A @ 100°C, 0.099Ohm)
APFC Boost Diode1x CREE C3D06060A (600V, 6A @ 154°C)
Hold-up Cap(s)1x Nichicon (450V, 560uF, 2,000h @ 105°C, GL)
Main Switchers2x Infineon IPA60R099P6 (650V, 24A @ 100°C, 0.099Ohm)
APFC ControllerInfineon ICE3PCS03G
Resonant ControllersMPS HR1000A & 2x MPS MP6903 (Installed on the secondary side)
TopologyPrimary side: Half Bridge & LLC resonant converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side-
+12V MOSFETS4x JA54
5V & 3.3VDC-DC Converters: 2x Infineon IPD040N03L (30V, 76A @ 100°C, 4mOhm) & 4 Alpha & Omega D528
PWM Controllers: 2x APEC APW7160A
Filtering Capacitors

Electrolytics: 6x Rubycon (6-10,000h @ 105°C, ZLH), 1x Nichicon (5-6,000h @ 105°C, HV), 1x Nippon Chemi-Con (5-6,000h @ 105°C, KZH), 1x Nippon Chemi-Con (4-10,000h @ 105°C, KY)
Polymers: 7x FPCAP, 6x United Chemi-Con

Supervisor ICCP006WD
Fan ModelApistek SAC4H2H (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit-
Rectifier1x Diodes Inc. SDT20100CT TSR (100V, 20A) & 1x Alpha & Omega AOTF3N80 FET (800V, 1.8A @ 100°C, 4.8Ohm)
Standby PWM Controller400BBBBB2 PAJH
-12V-
RectifierUTC LM7912L (-12V, 1A)

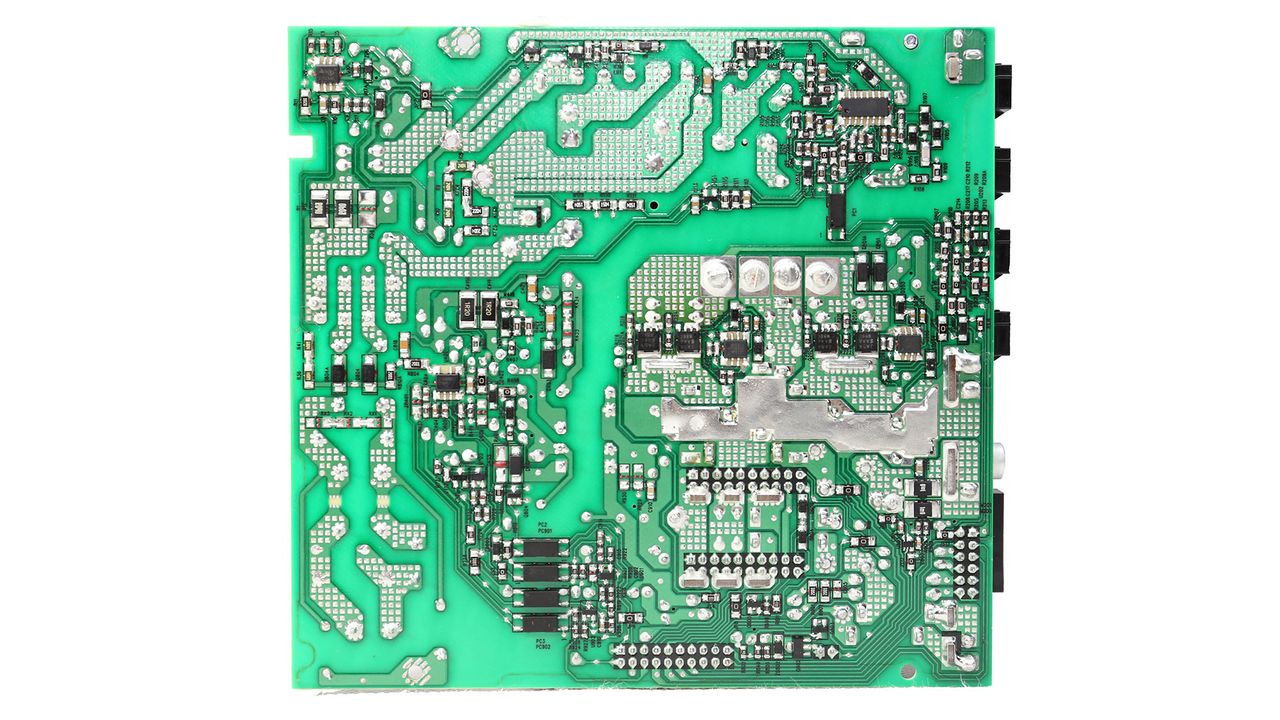

Image 1 of 4

(Image credit: Tom's Hardware)

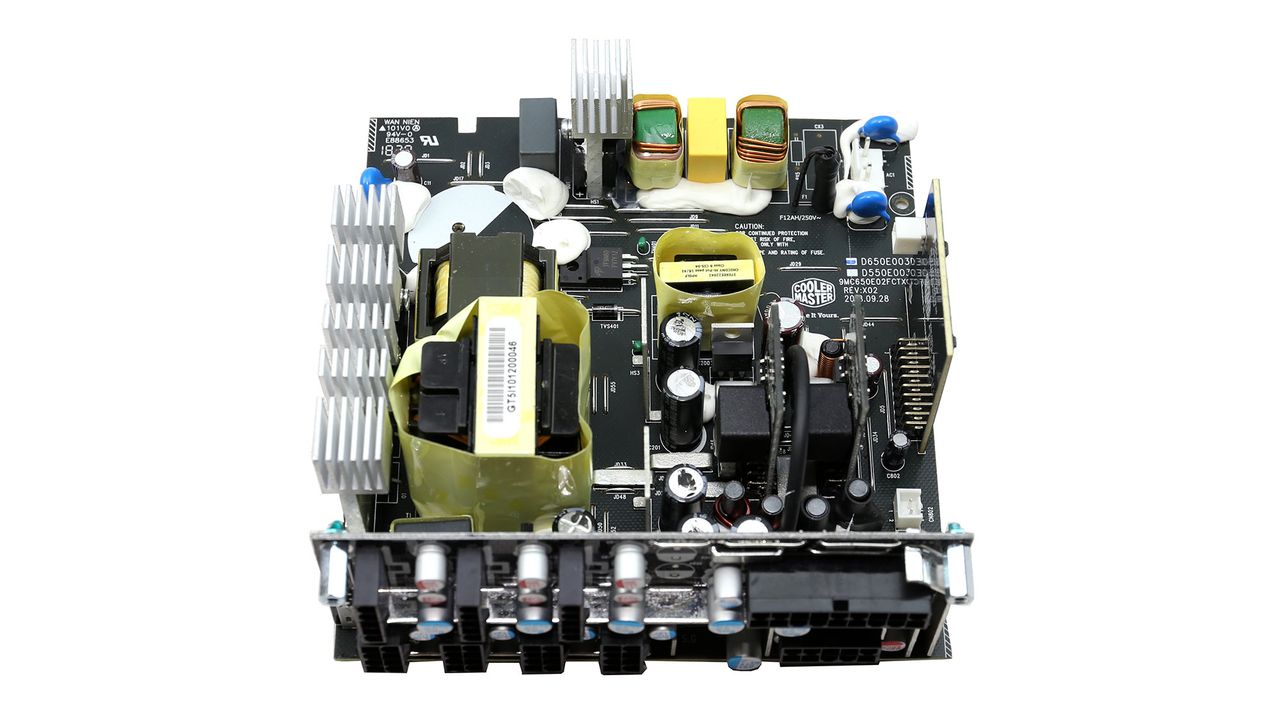

Overall Photos

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

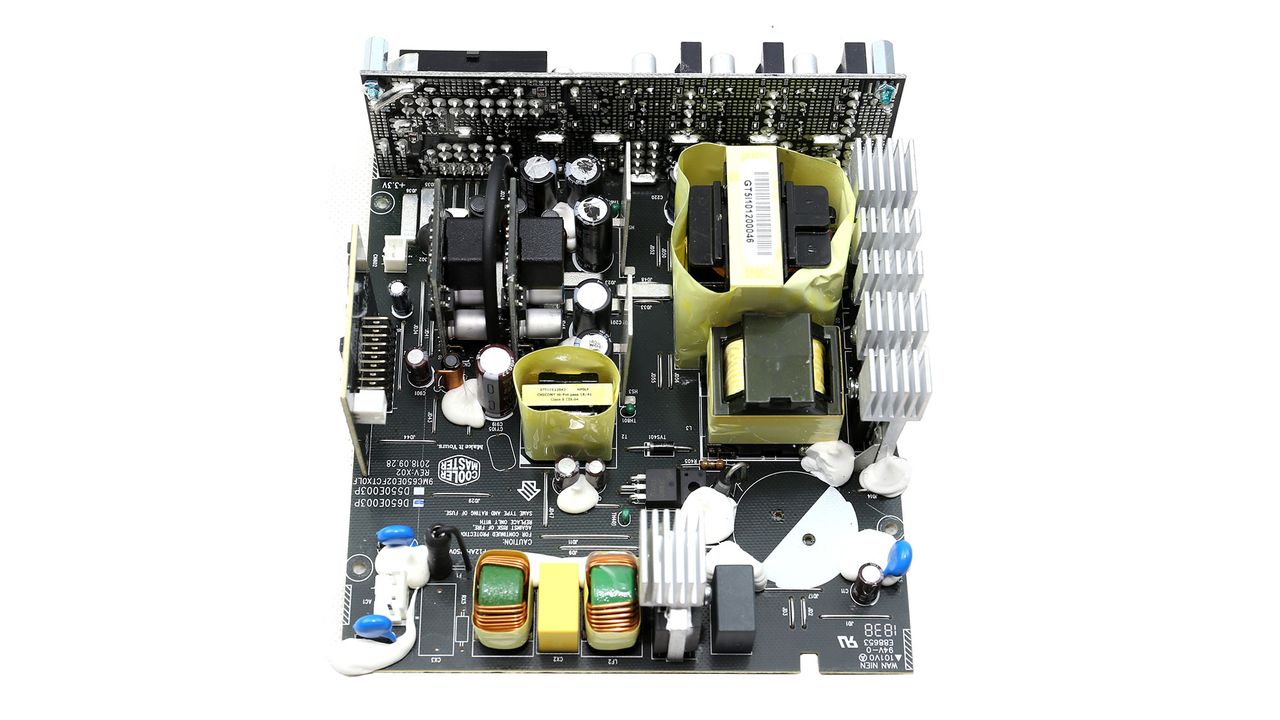

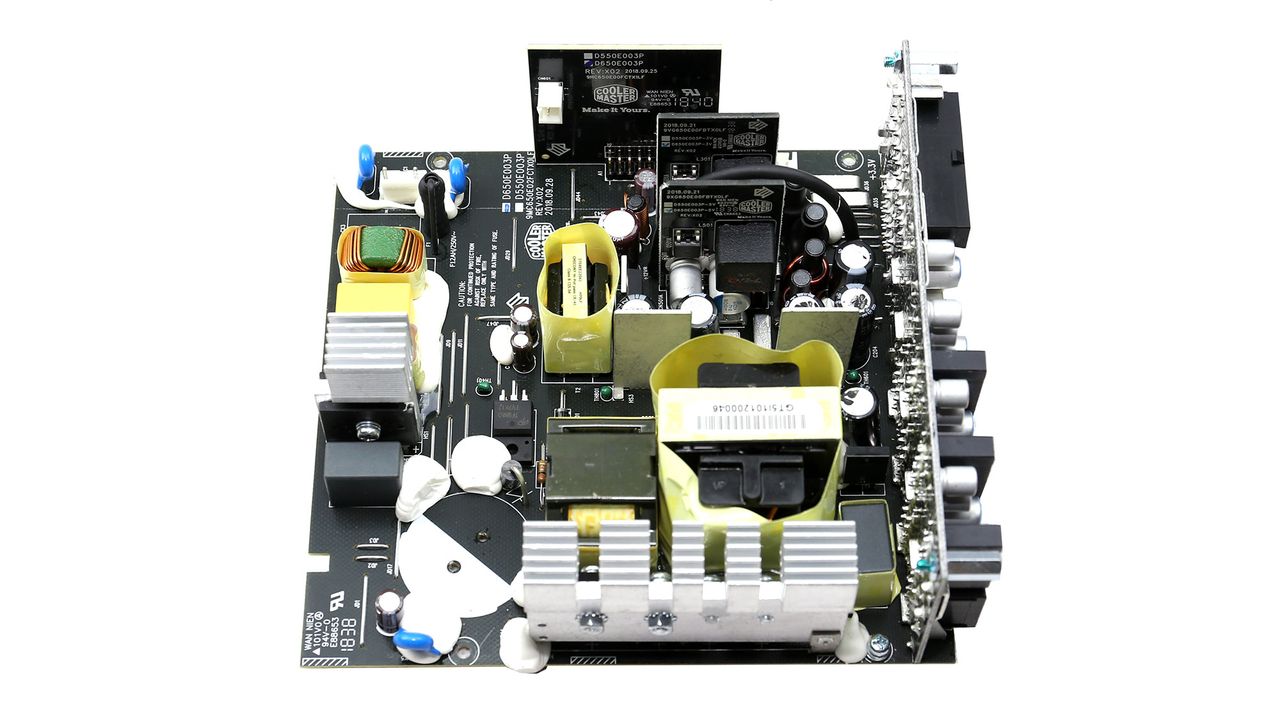

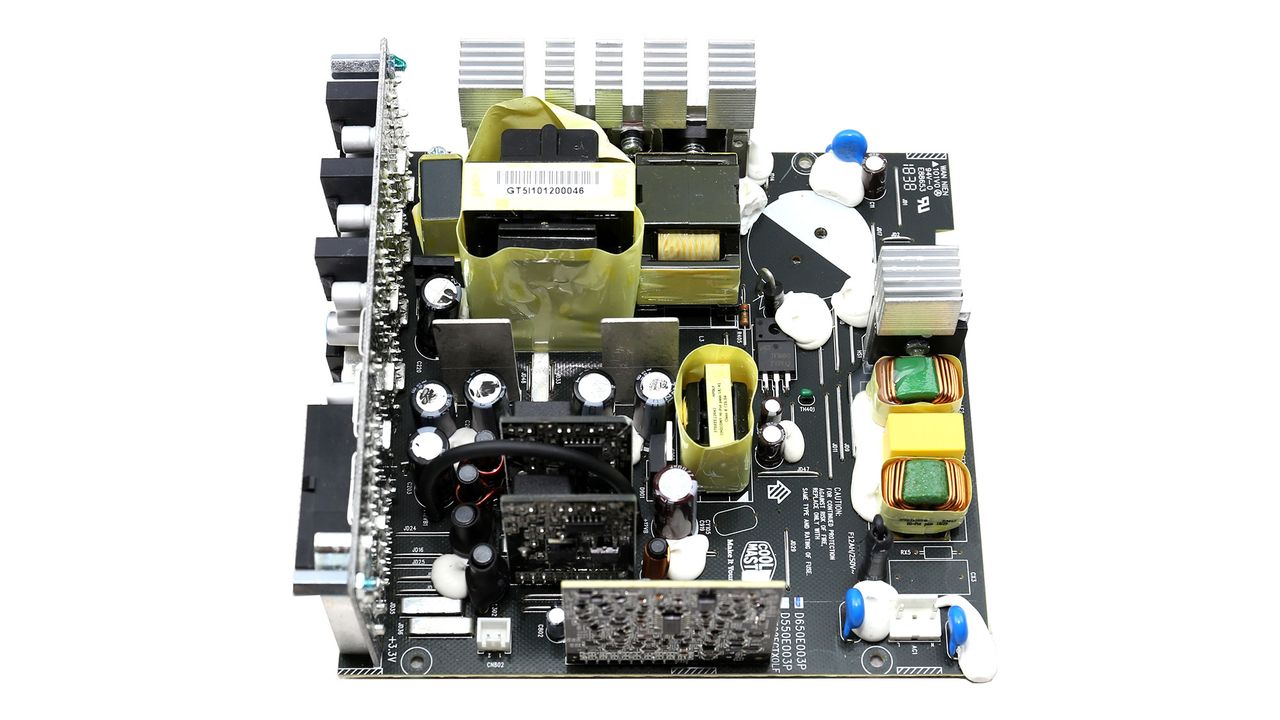

The platform's design looks clean, with adequate distance between the components for proper airflow. The primary heatsink is small, given that it hosts both the APFC converter's parts and the primary FETs. On the secondary side, the heat sinks are even smaller, since the +12V FETs are installed on the solder side of the main PCB.

On the primary side, a half-bridge topology is utilized along with an LLC resonant converter. On the secondary side, we find a synchronous regulation scheme along with a pair of DC-DC converters, for the generation of the minor rails. Finally, the assembly and soldering quality are good, and the parts that Chicony used belong to good lines, especially the capacitors.

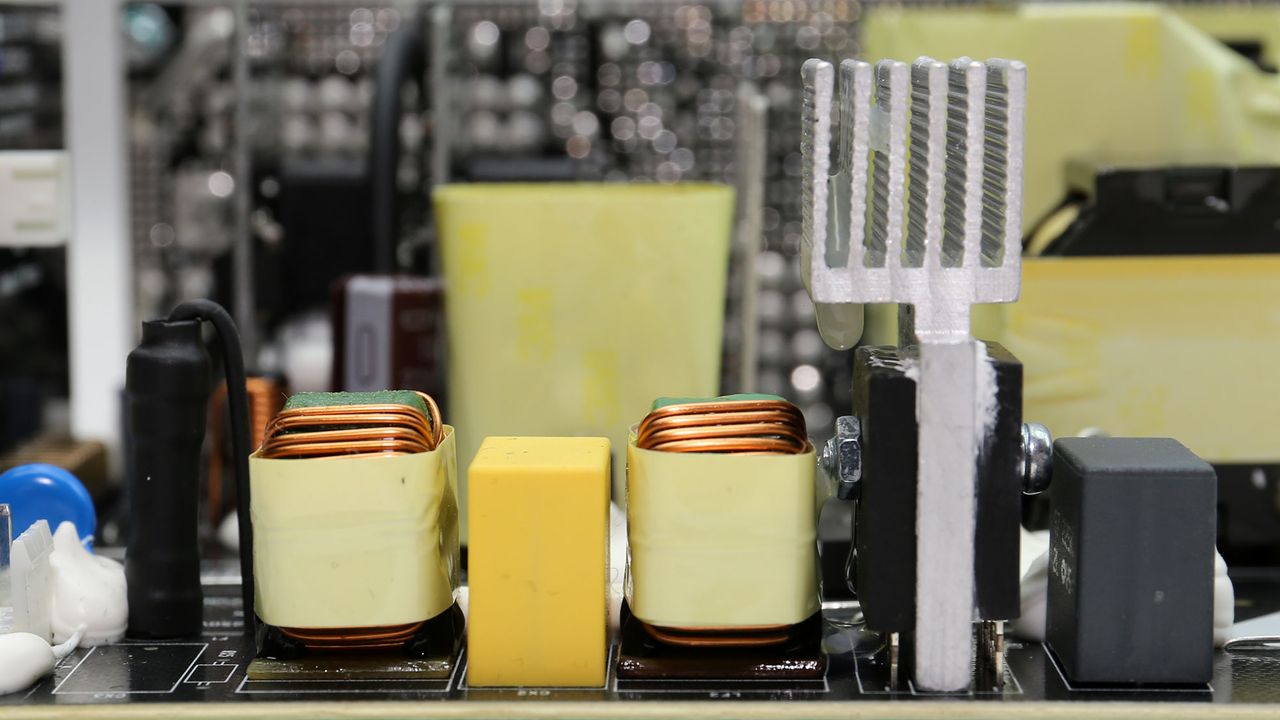

Image 1 of 4

(Image credit: Tom's Hardware)

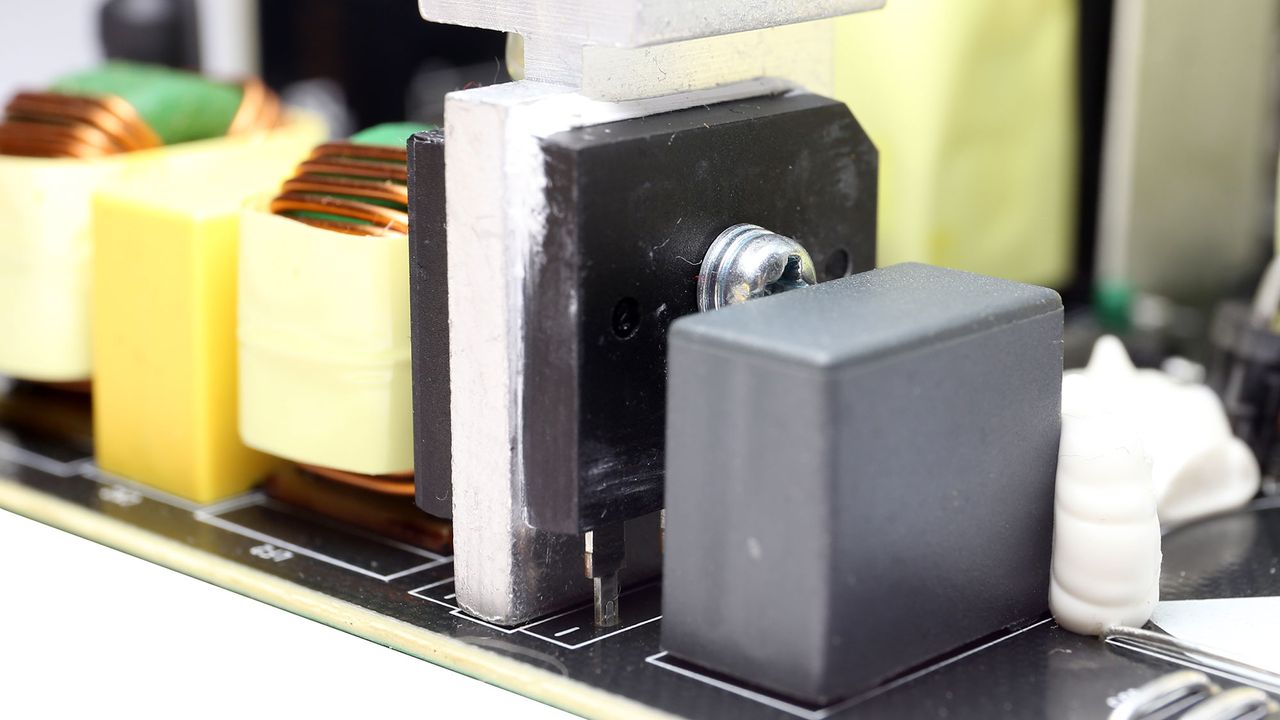

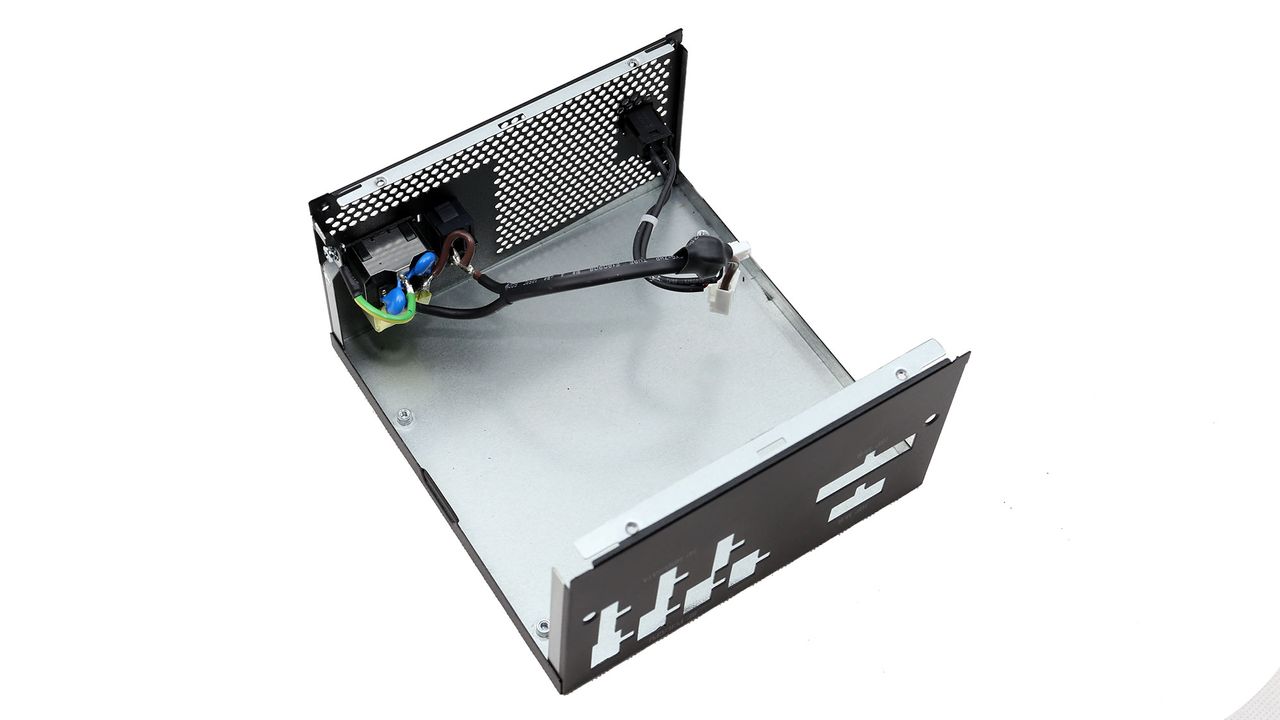

Transient filter

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

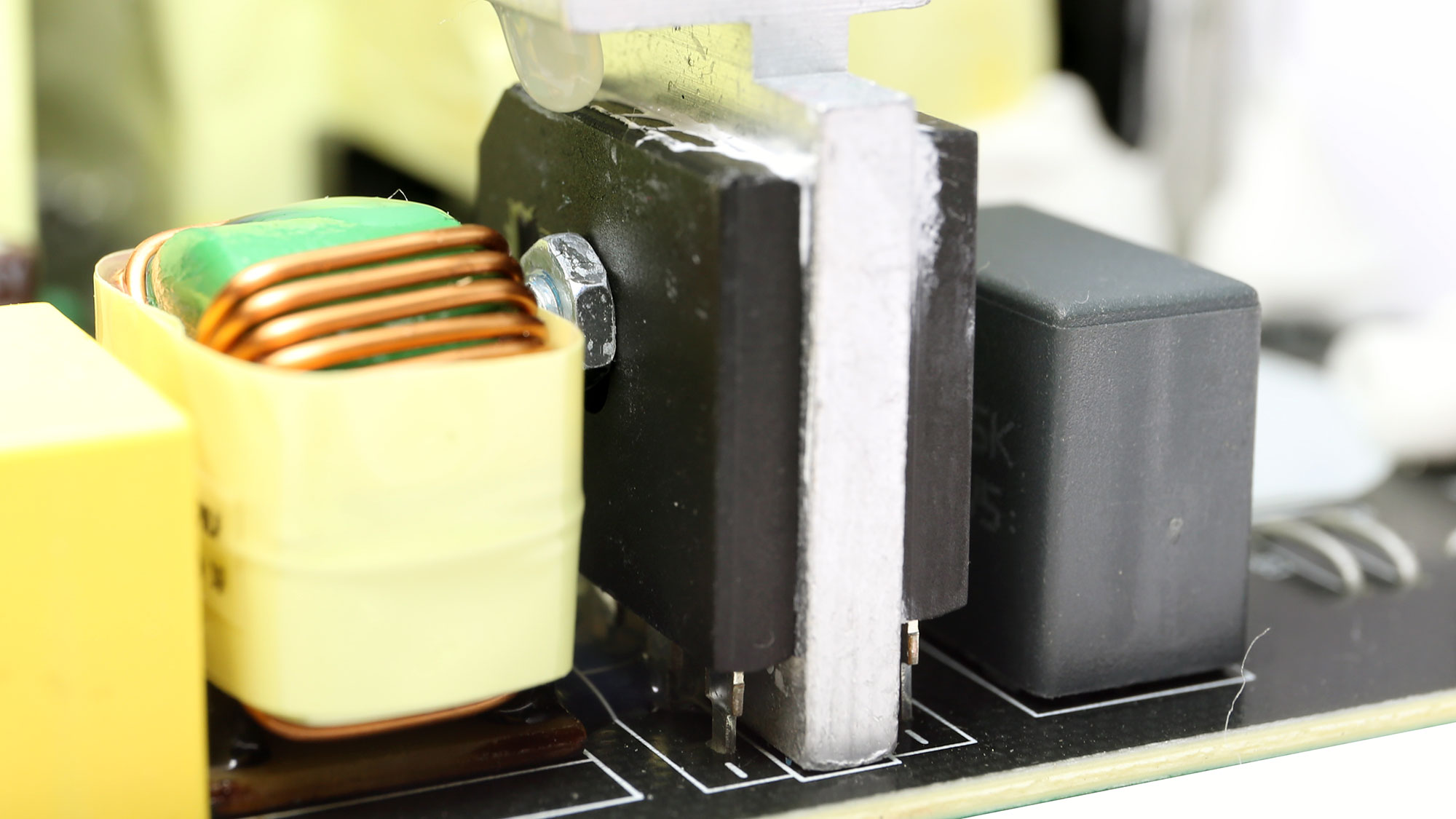

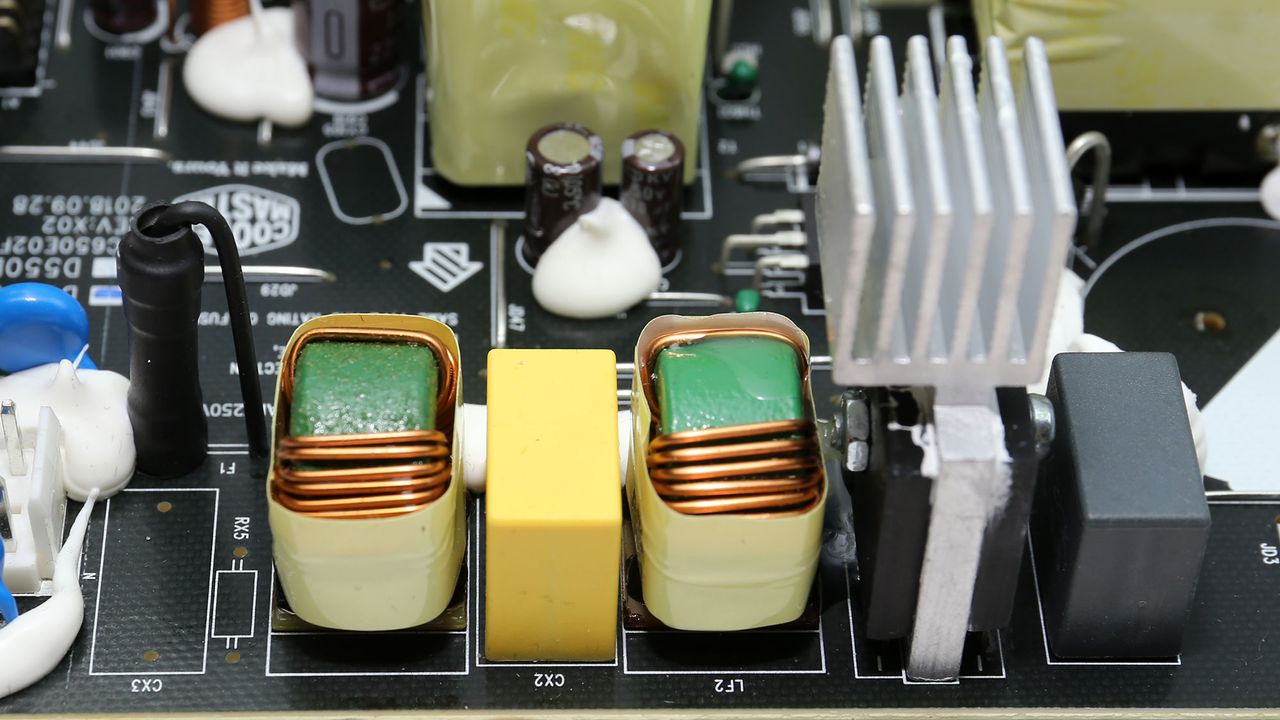

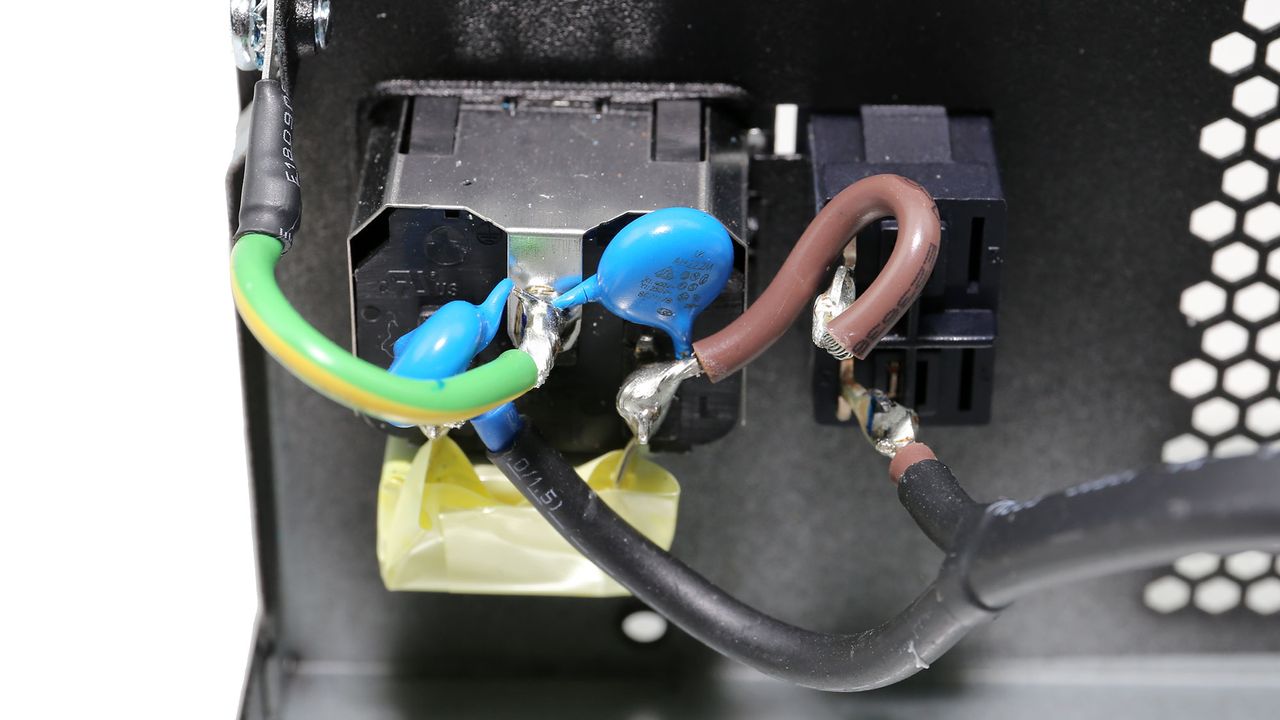

The transient filter doesn't include an MOV, unfortunately. This inexpensive part provides protection against voltage surges and spikes, coming from the network, so it is crucial and this is why most PSUs include one.

Image 1 of 2

(Image credit: Tom's Hardware)

Bridge rectifiers

Image 2 of 2

(Image credit: Tom's Hardware)

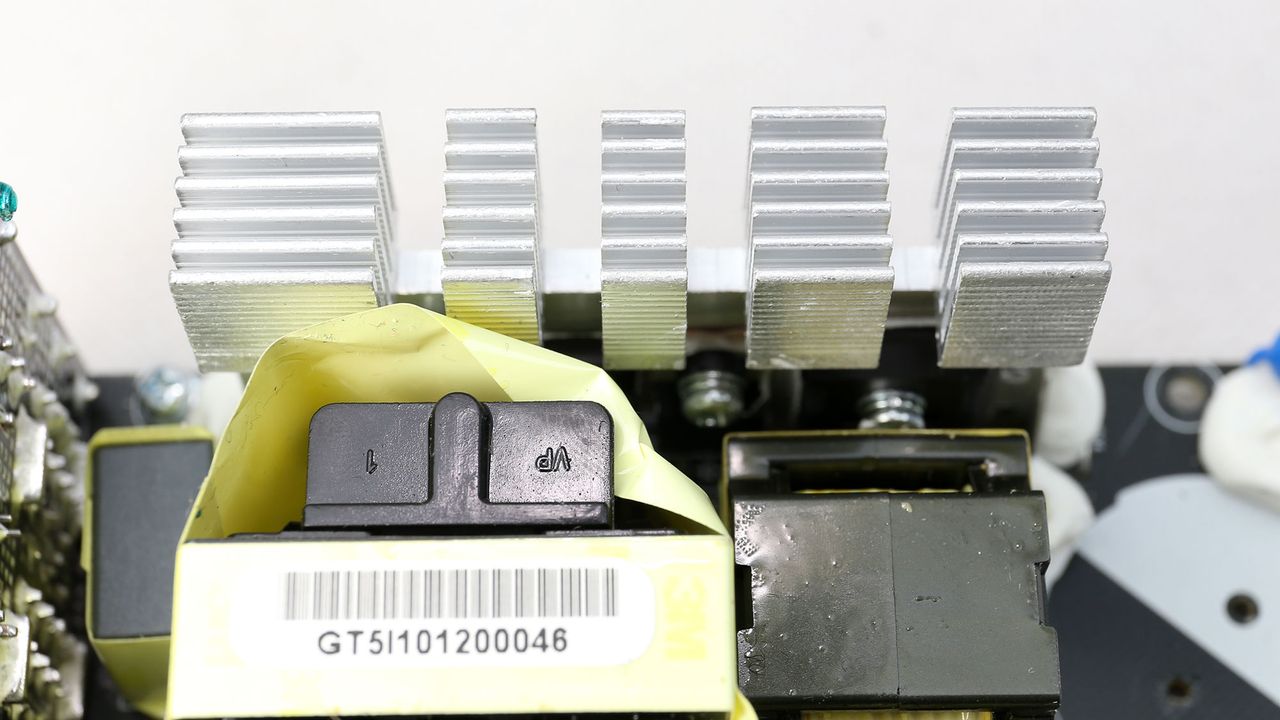

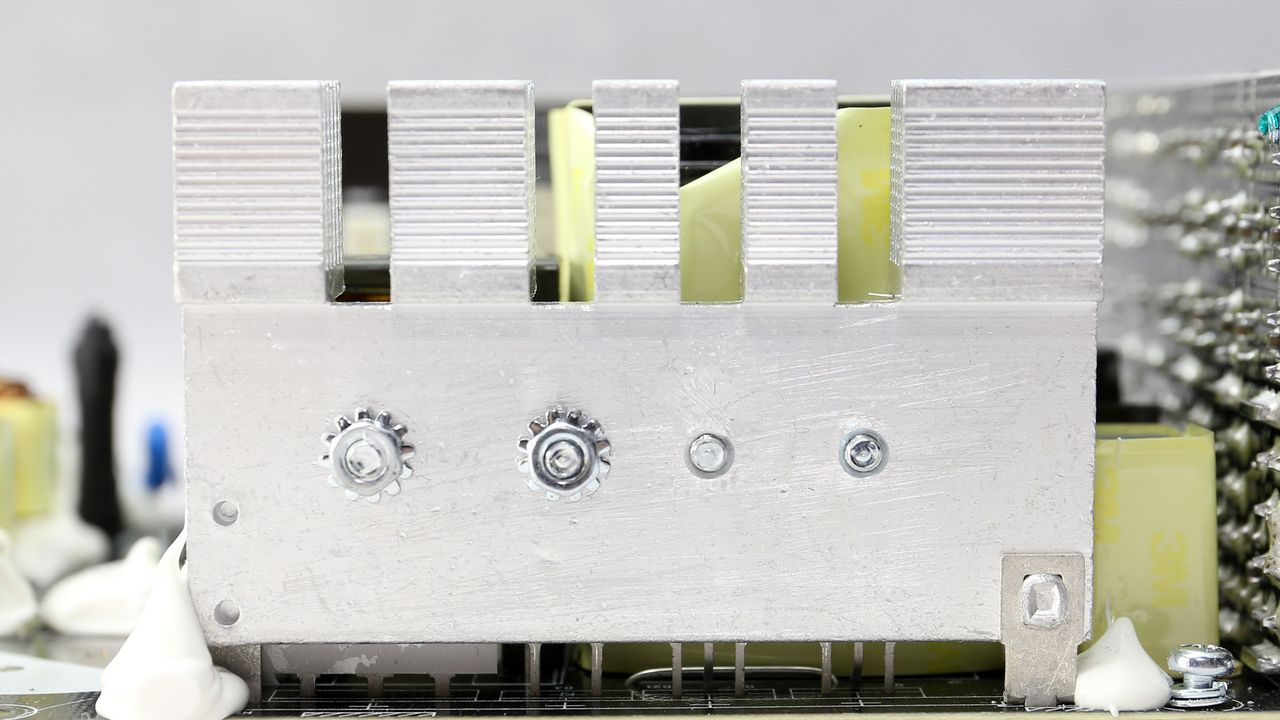

Both bridge rectifiers are bolted onto a small heat sink.

Image 1 of 5

(Image credit: Tom's Hardware)

APFC converter

Image 2 of 5

(Image credit: Tom's Hardware)
Image 3 of 5

(Image credit: Tom's Hardware)
Image 4 of 5

(Image credit: Tom's Hardware)
Image 5 of 5

(Image credit: Tom's Hardware)

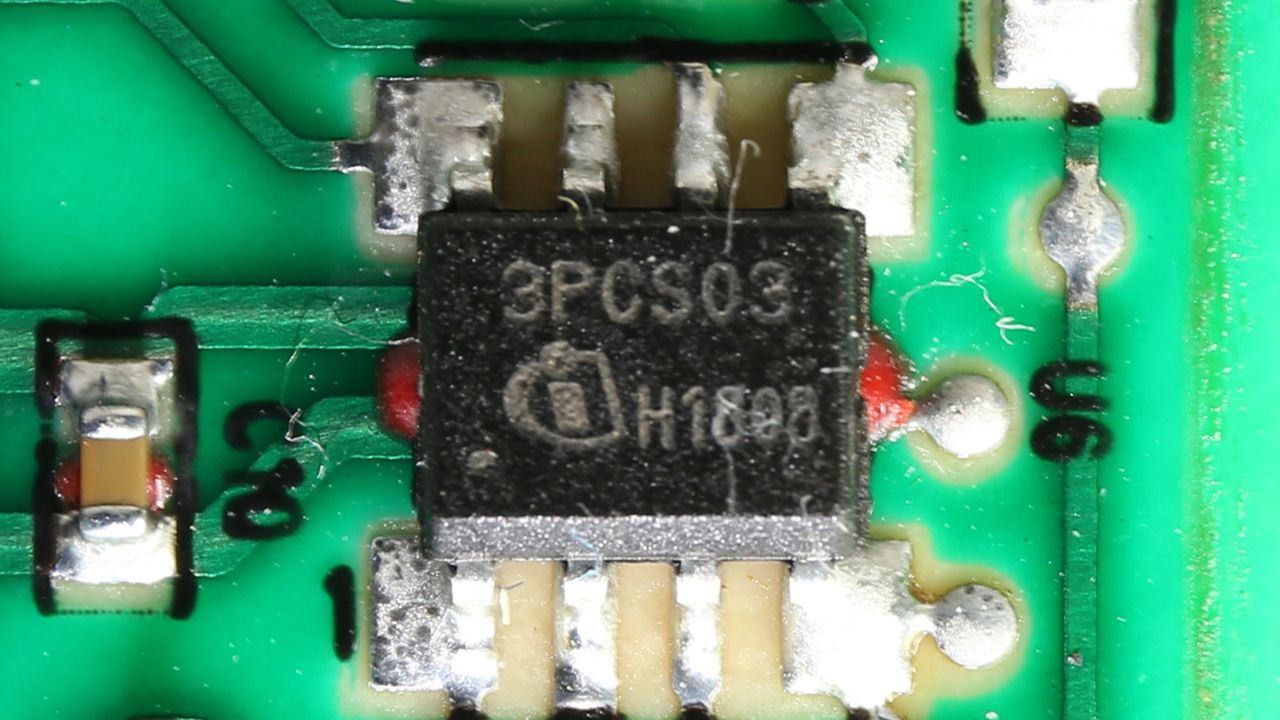

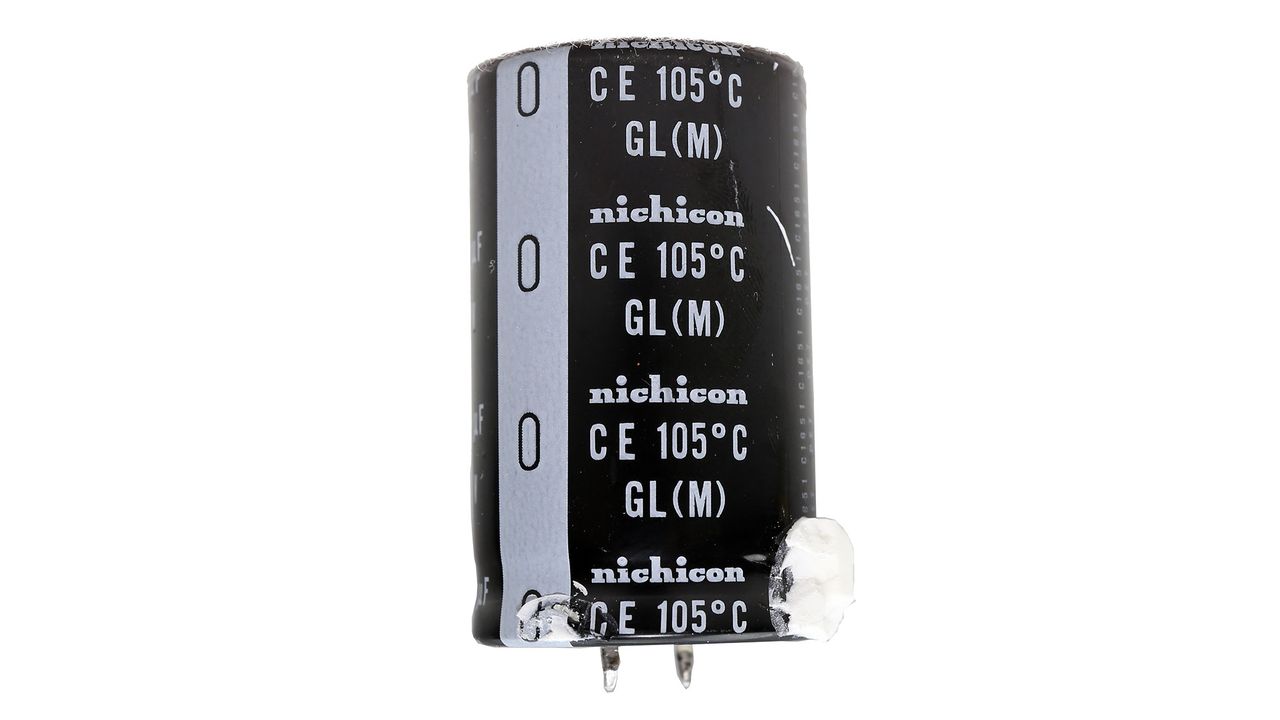

The APFC converter uses quality parts, including a Nichicon bulk cap, with enough capacity to provide a longer than 17ms hold-up time.

Image 1 of 4

(Image credit: Tom's Hardware)

Main FETs and primary transformer

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

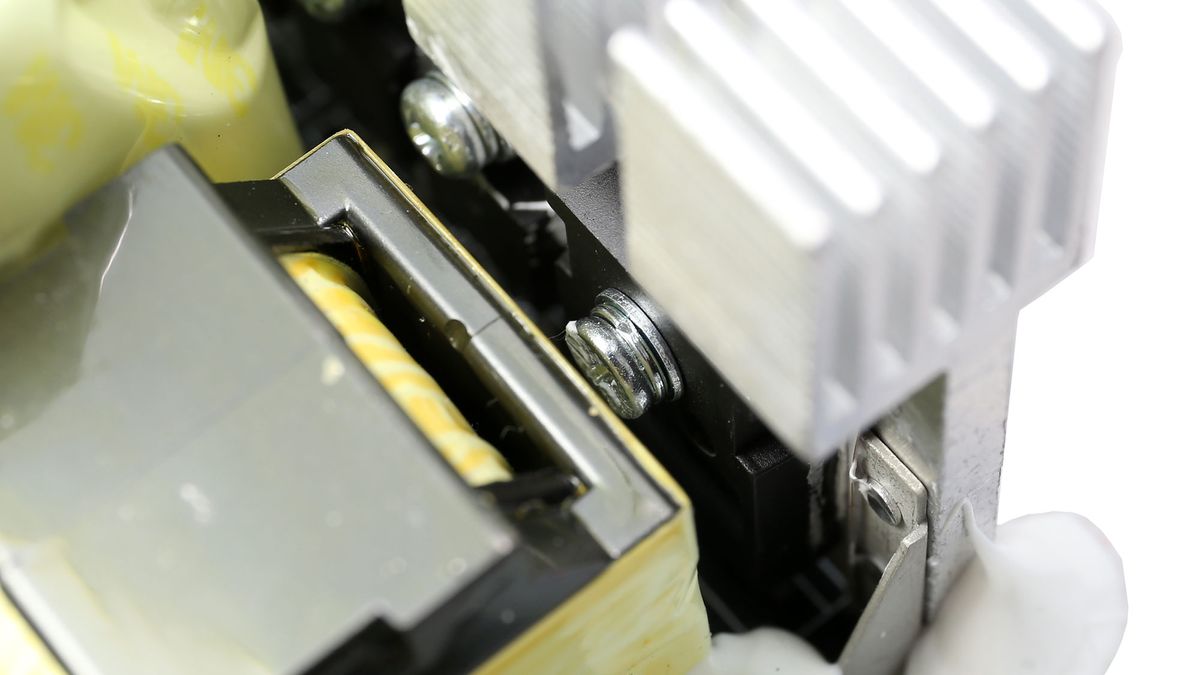

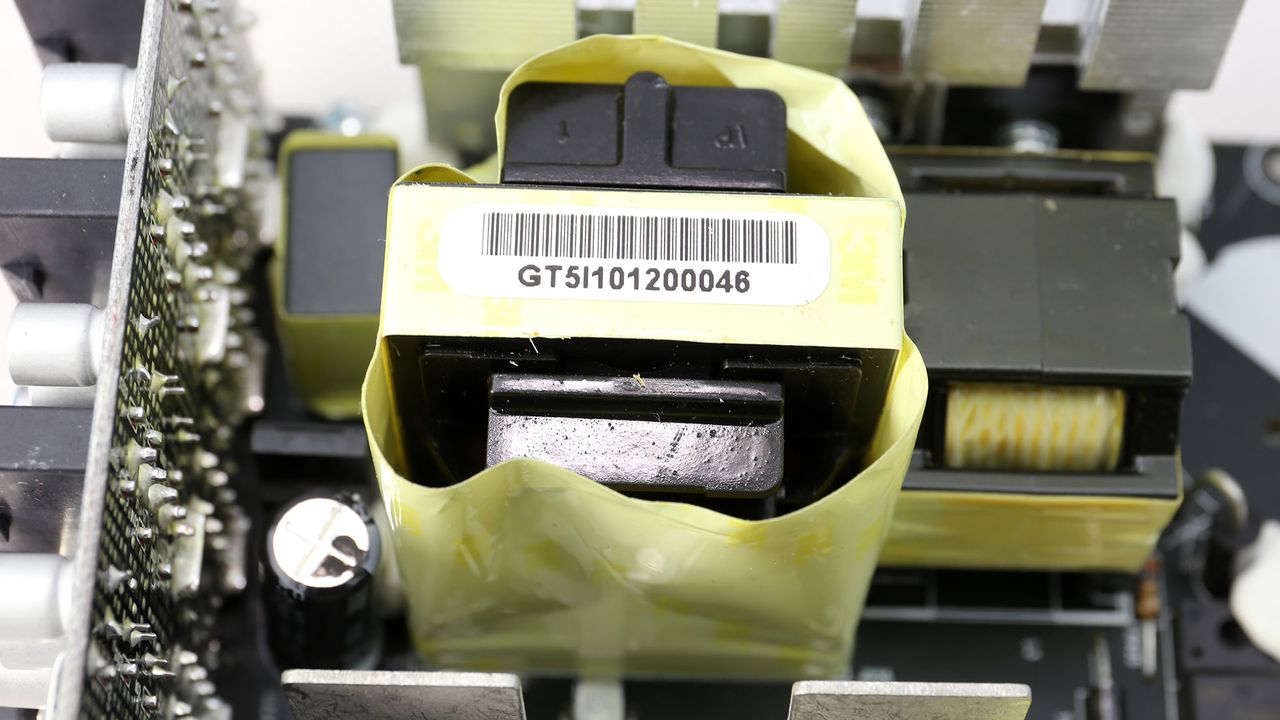

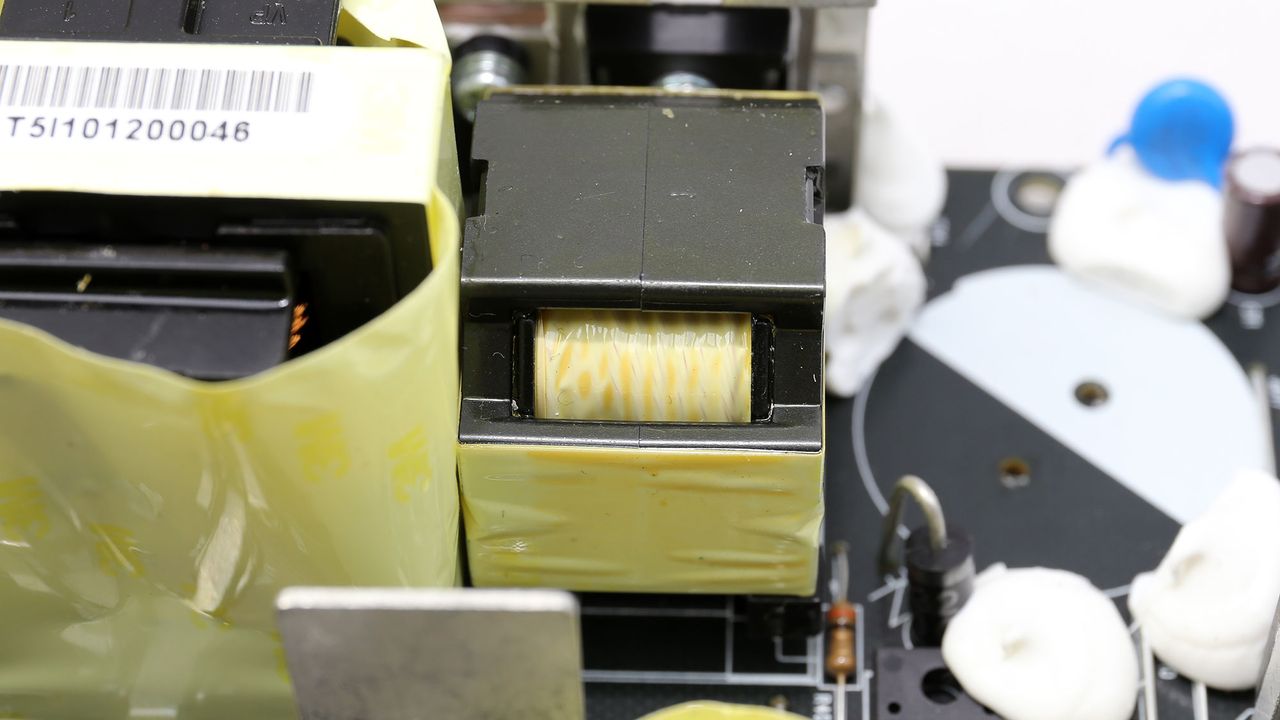

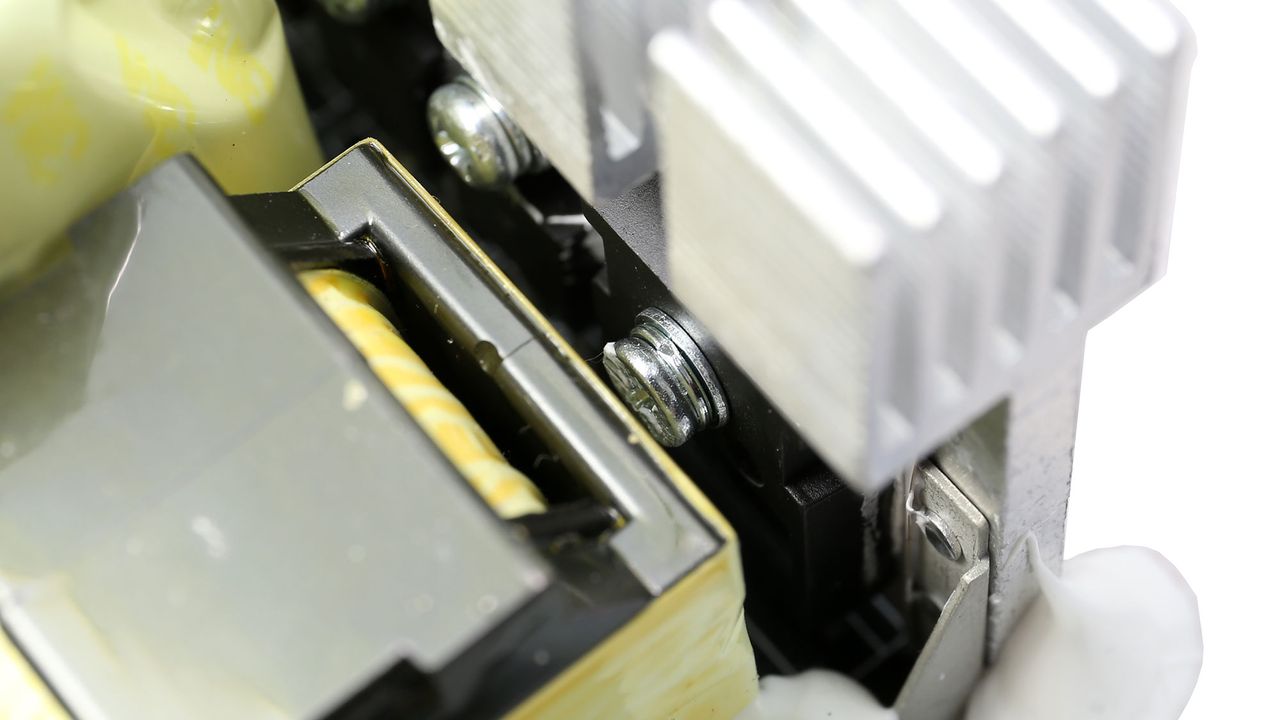

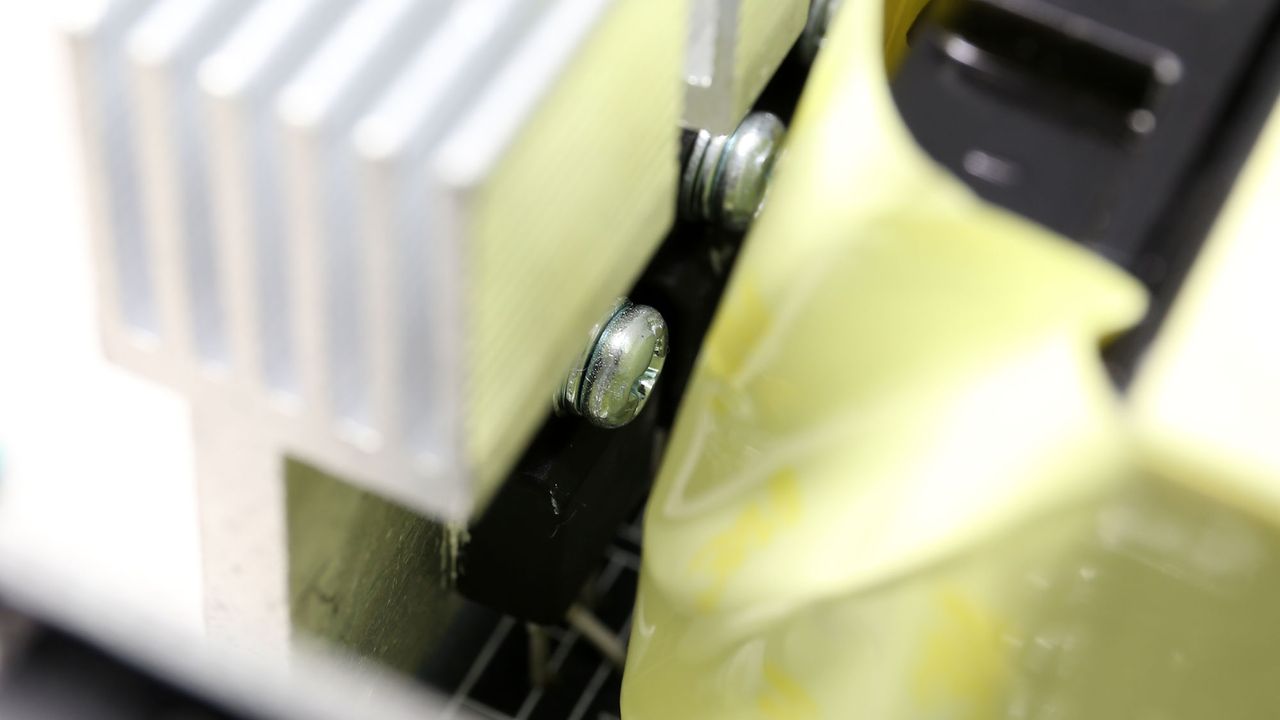

The main switching FETs, two Infineons, are configured in a half-bridge topology. An LLC resonant is also used to lower the switching losses.

Image 1 of 5

(Image credit: Tom's Hardware)

12V FETs and VRMs

Image 2 of 5

(Image credit: Tom's Hardware)
Image 3 of 5

(Image credit: Tom's Hardware)
Image 4 of 5

(Image credit: Tom's Hardware)
Image 5 of 5

(Image credit: Tom's Hardware)

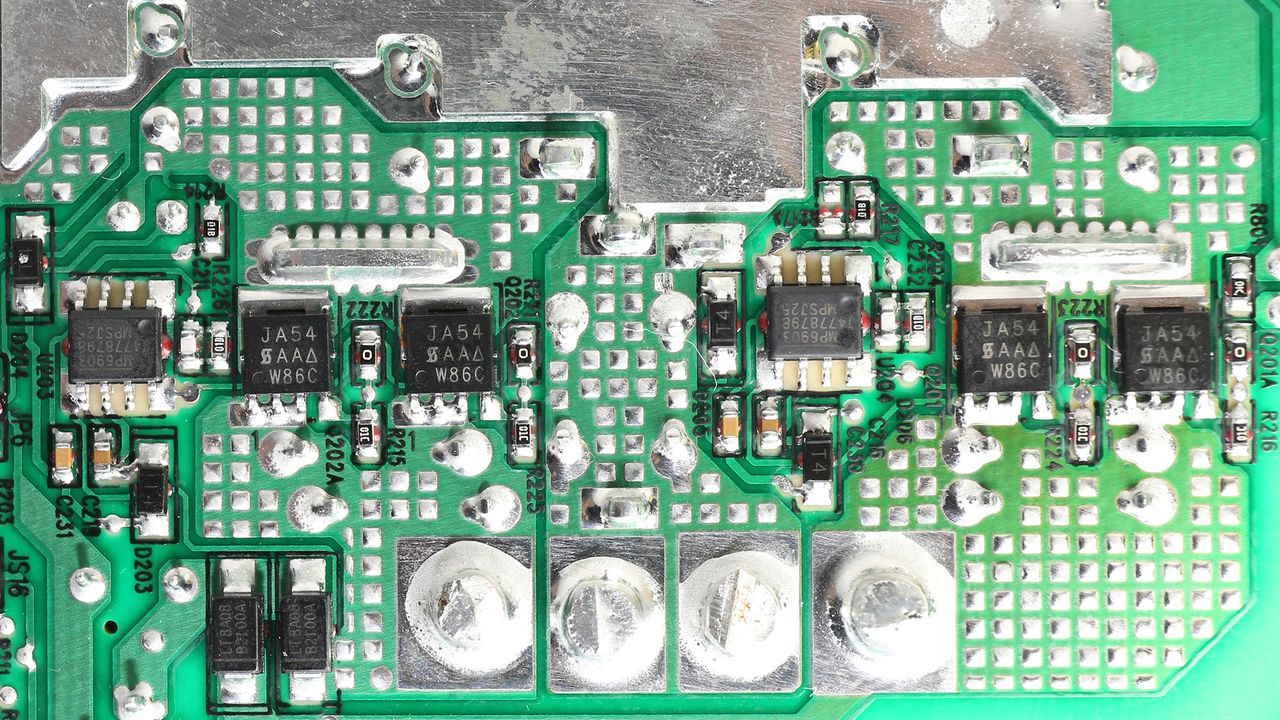

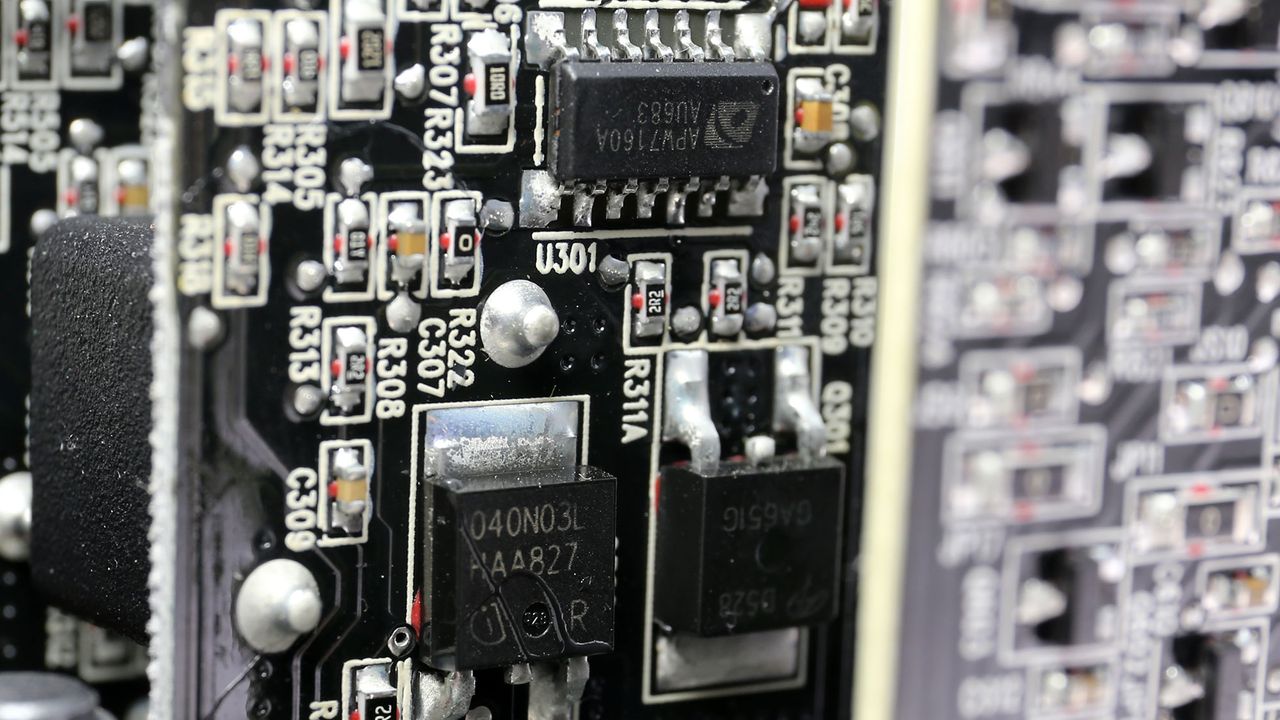

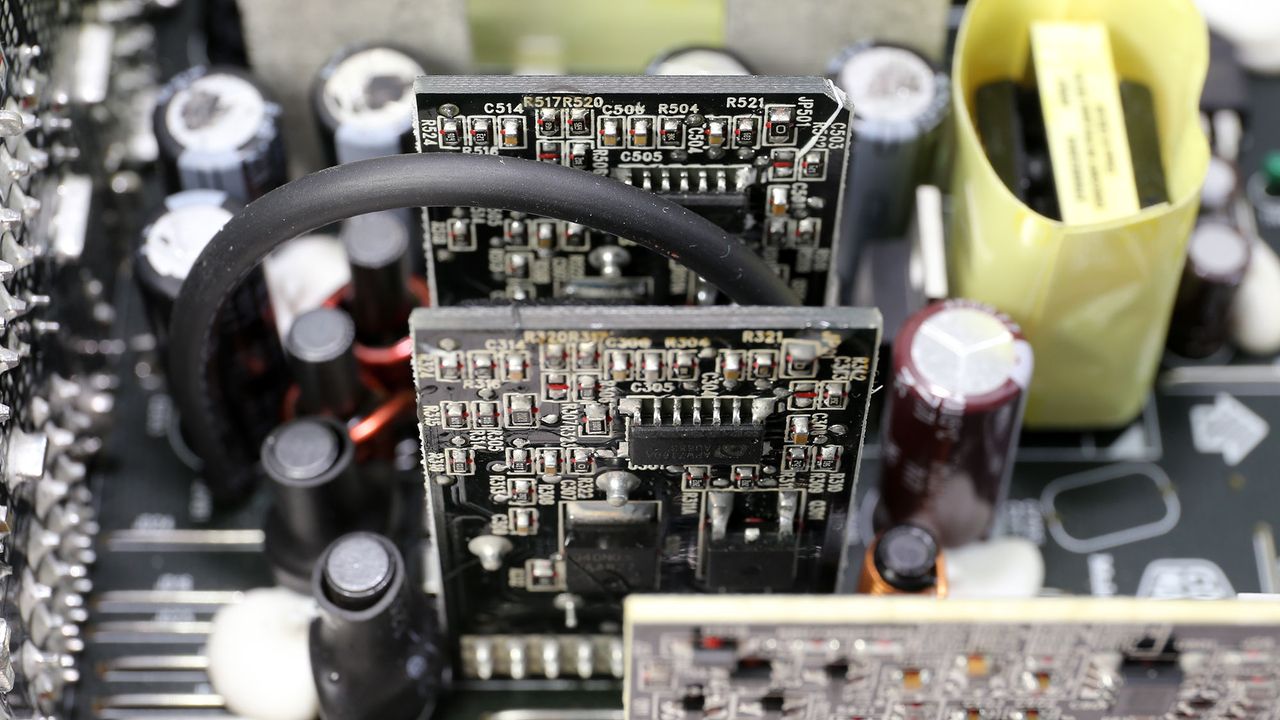

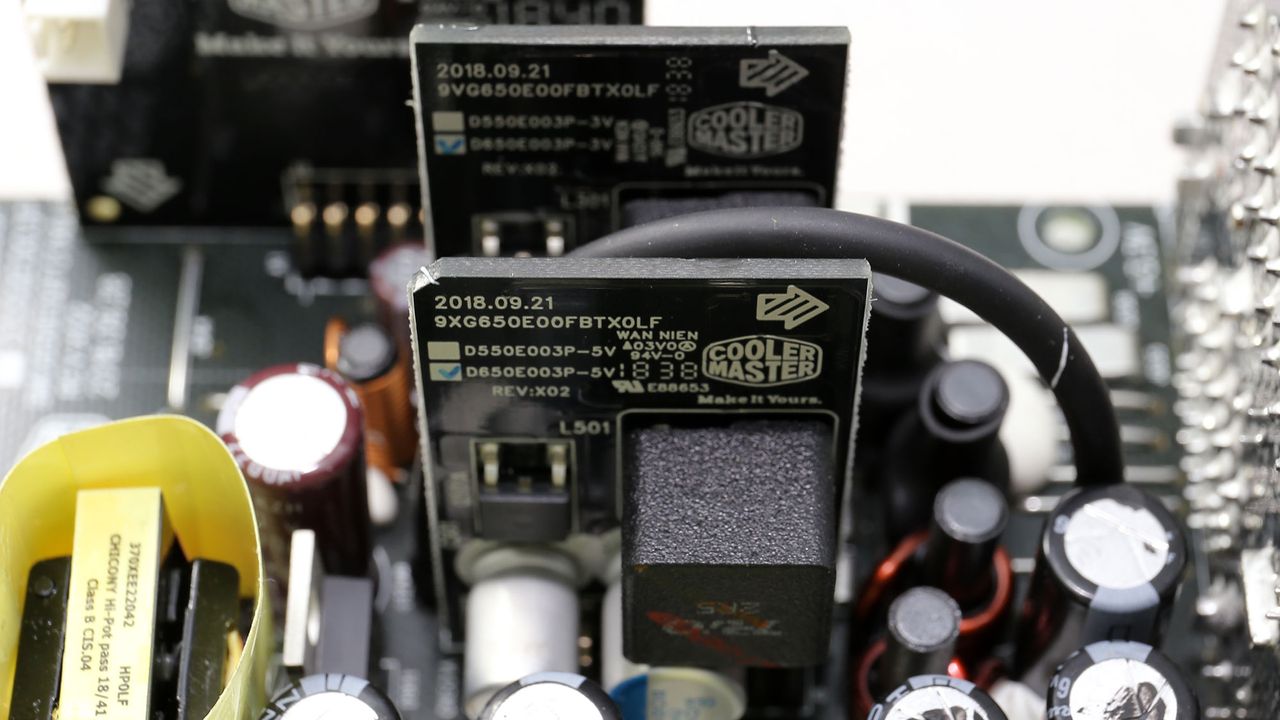

The +12V FETs are installed on the back side of the main PCB. The same rail feeds a pair of VRMs, which generate the minor rails (5V and 3.3V).

(Image credit: Tom's Hardware)

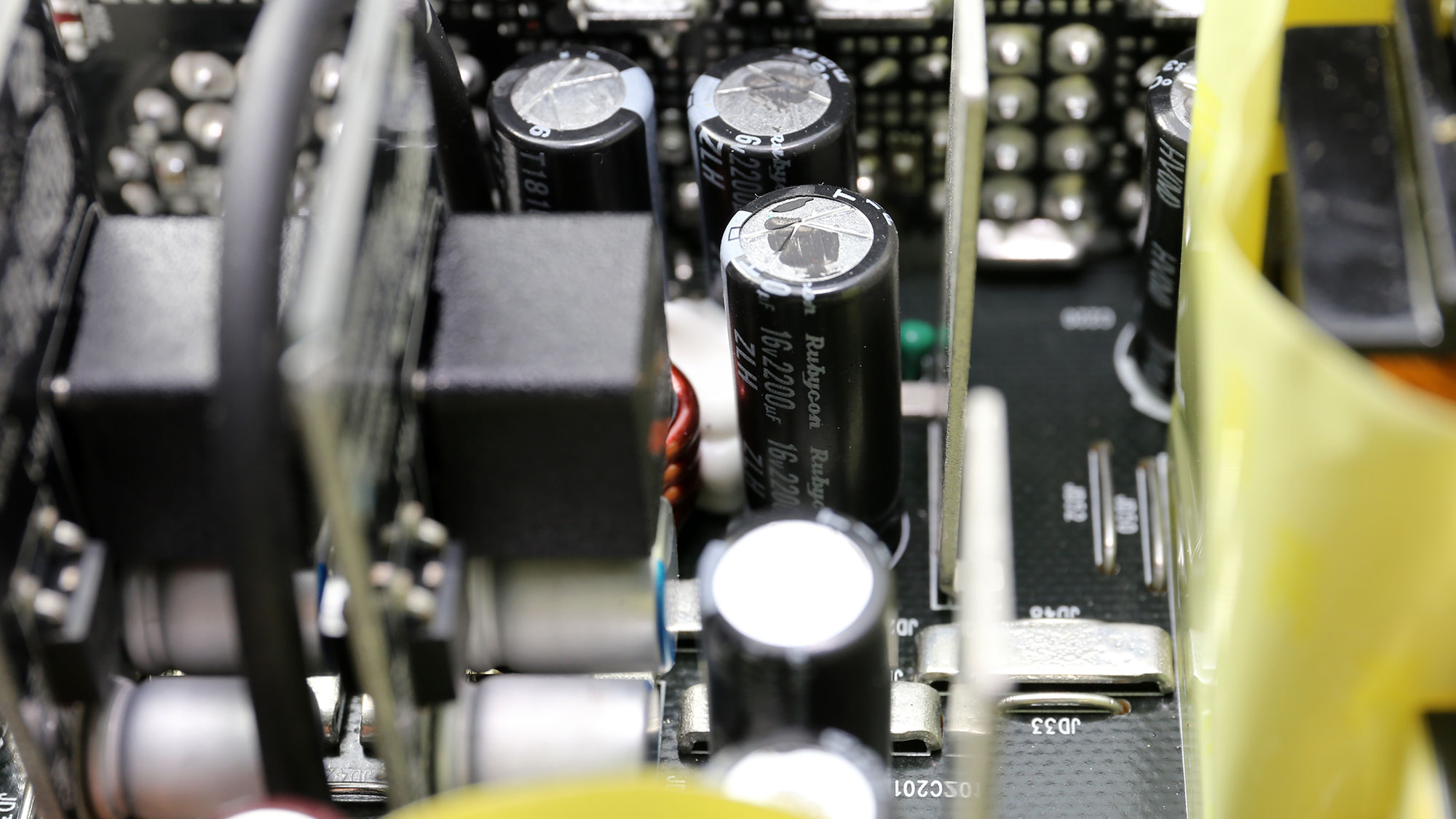

All filtering caps belong to good lines of Japanese manufacturers. Besides electrolytic caps, Chicony also used enough polymer ones, which are much more tolerant of increased operating temperatures.

Image 1 of 3

(Image credit: Tom's Hardware)

Modular board front

Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

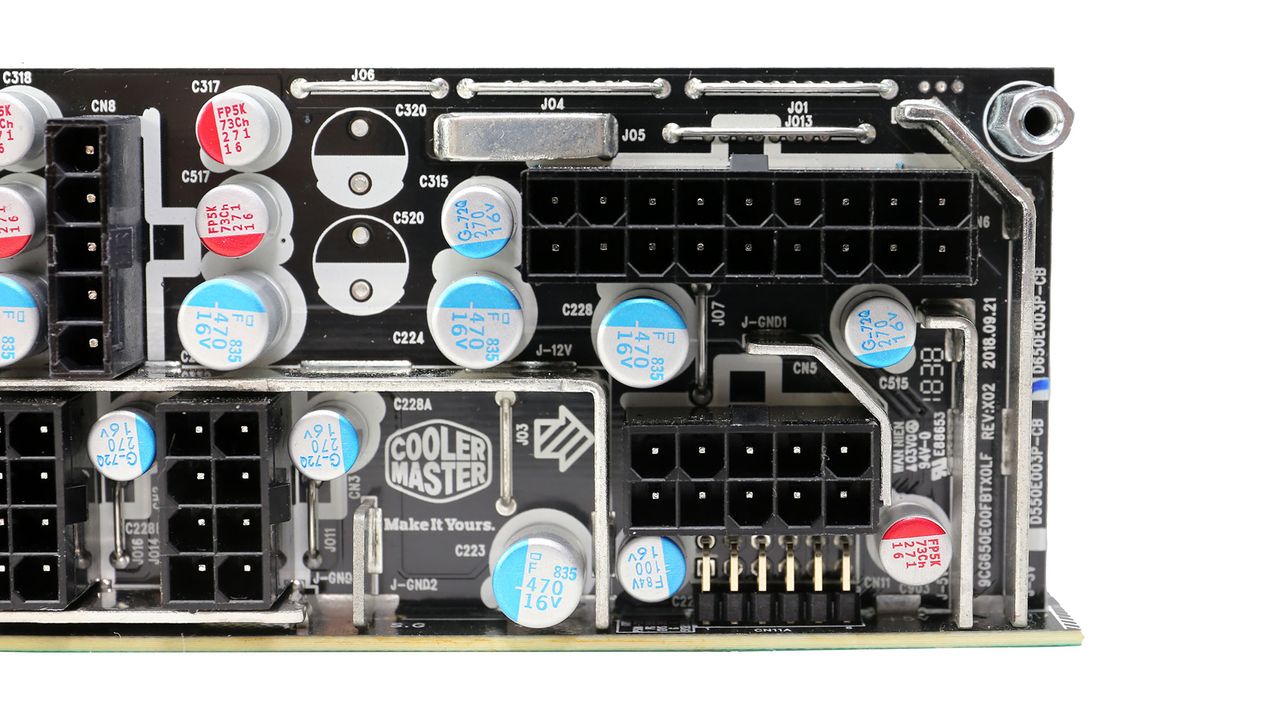

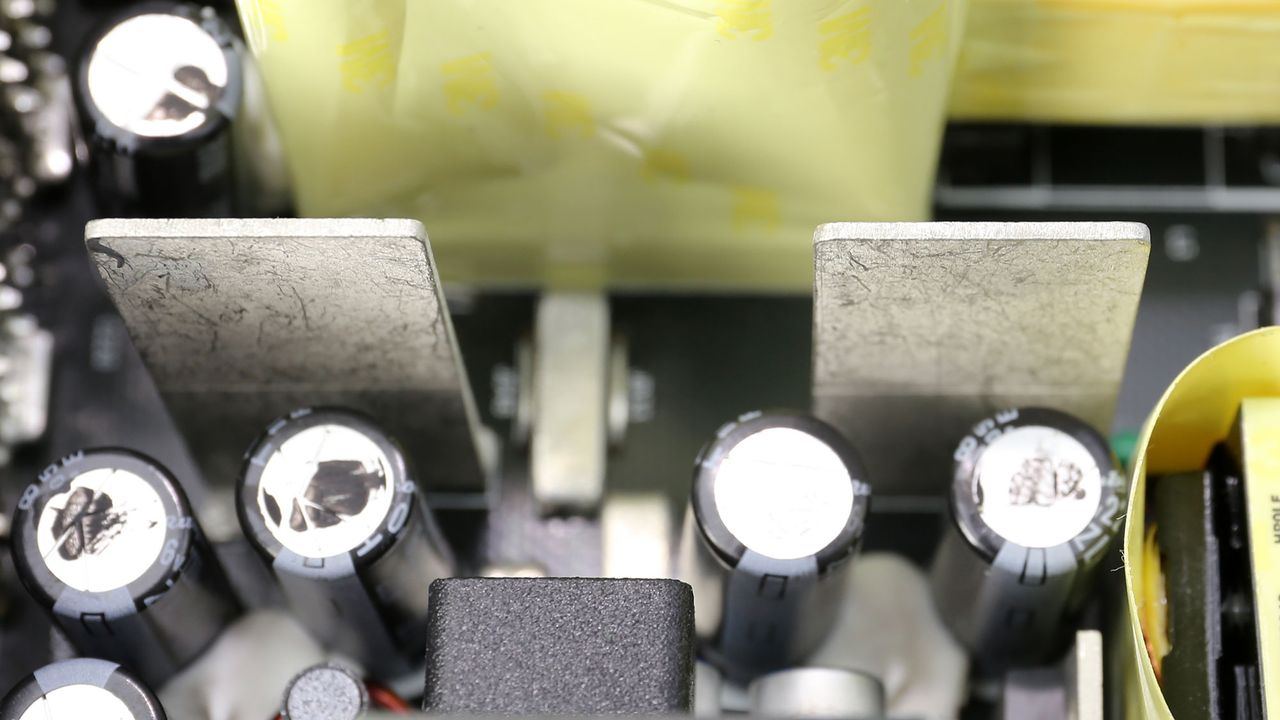

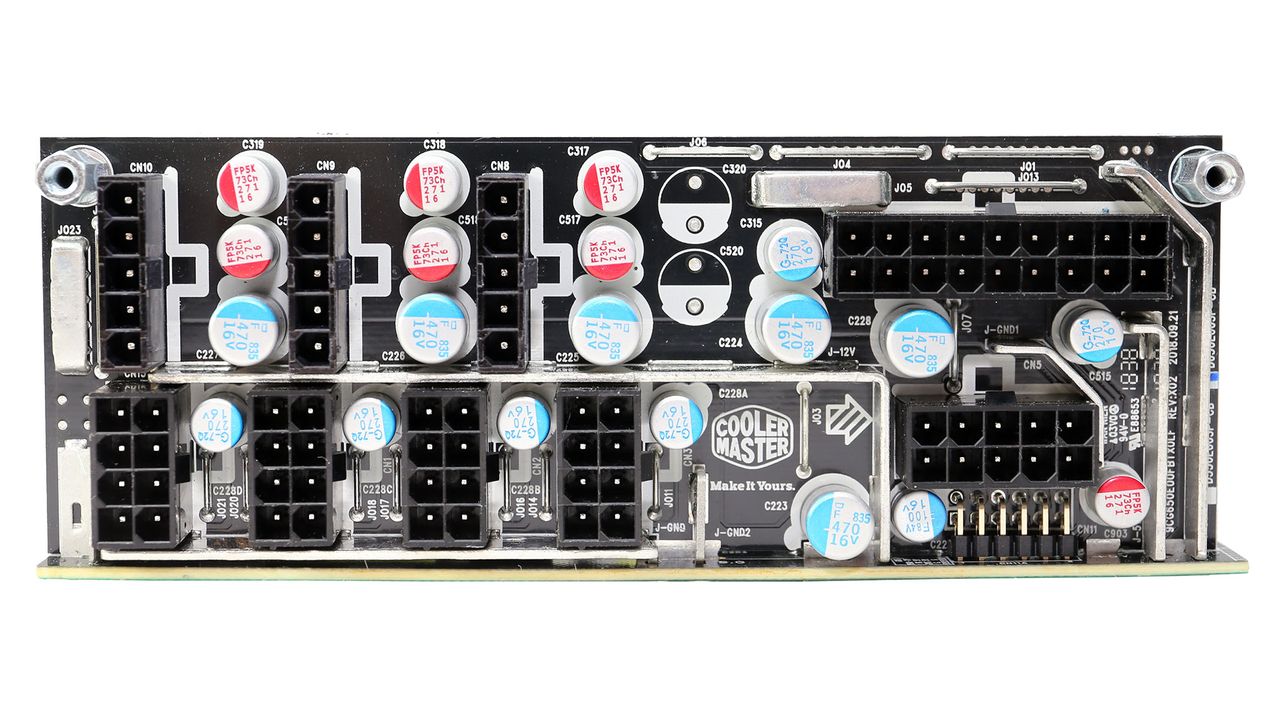

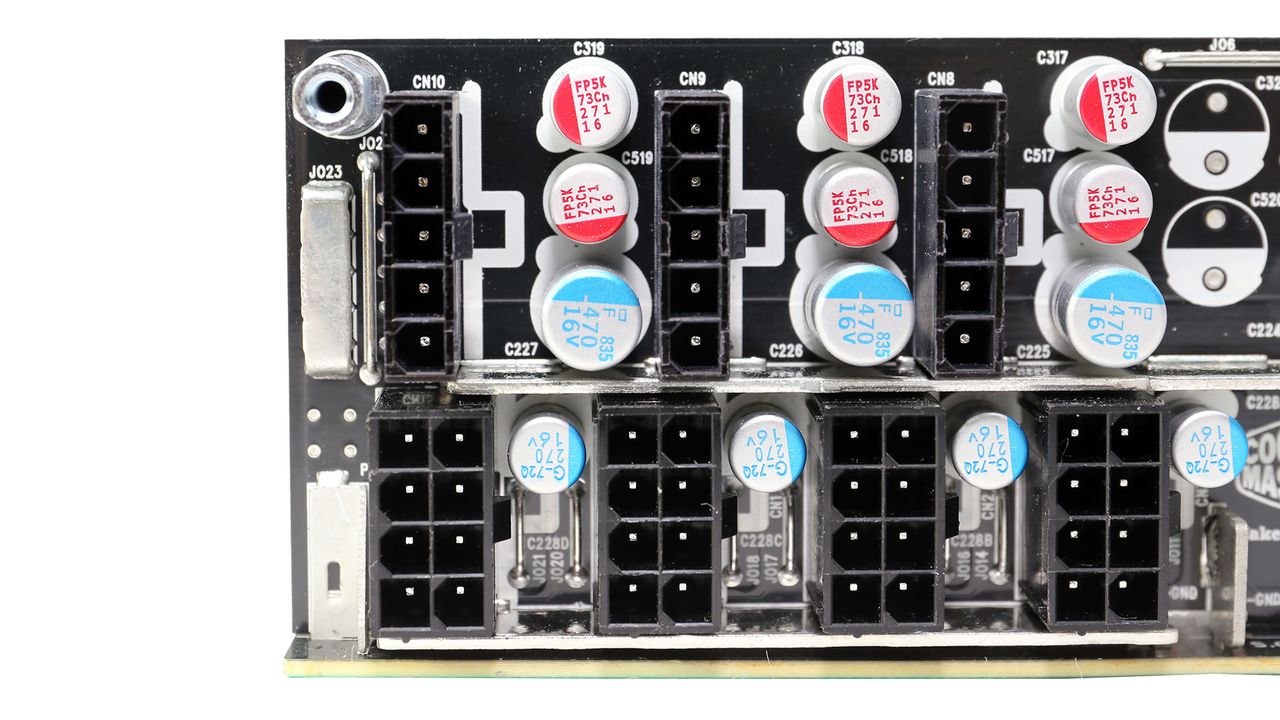

The modular board hosts many polymer caps. The power transfers are conducted through bus-bars, for reduced energy consumption.

Image 1 of 3

(Image credit: Tom's Hardware)

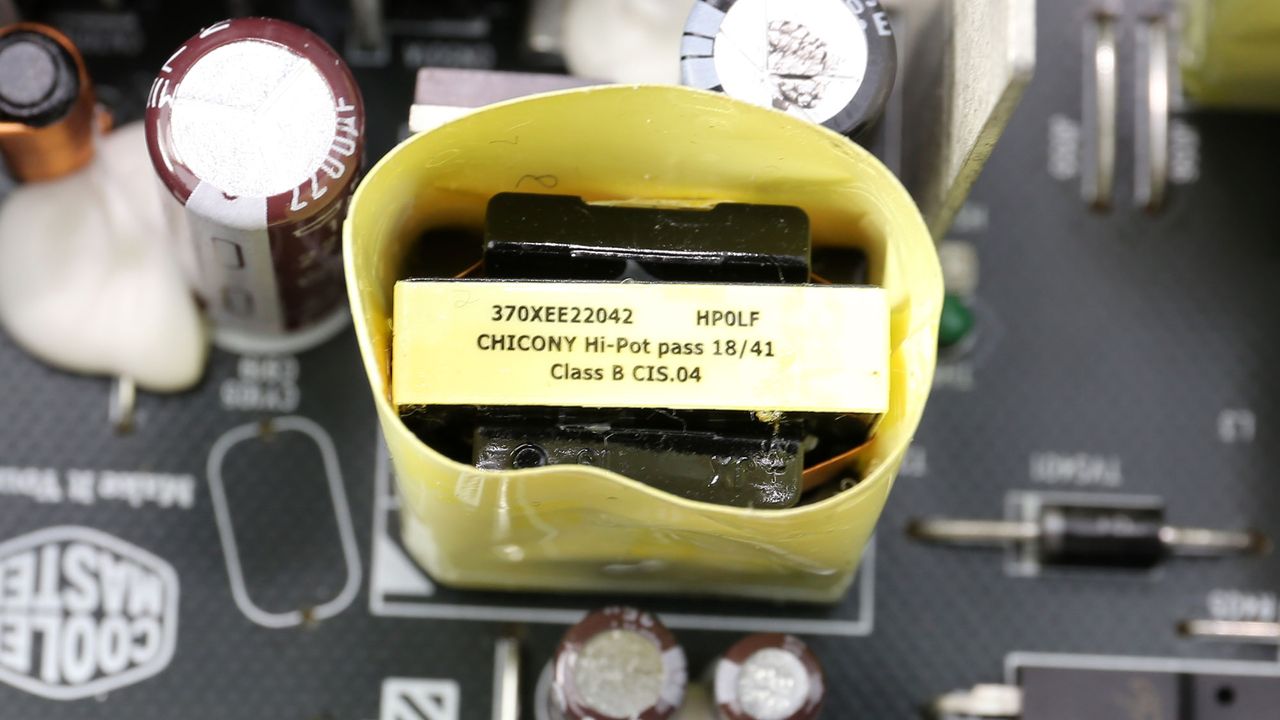

5VSB Circuit

Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

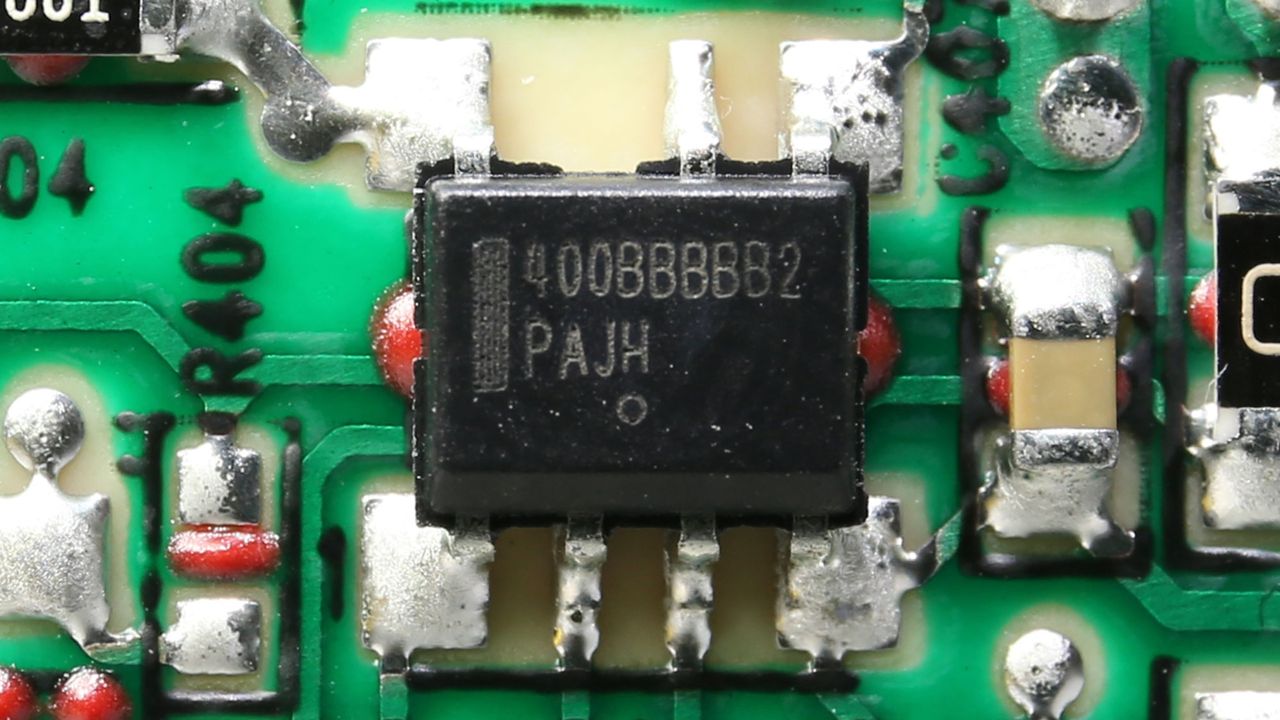

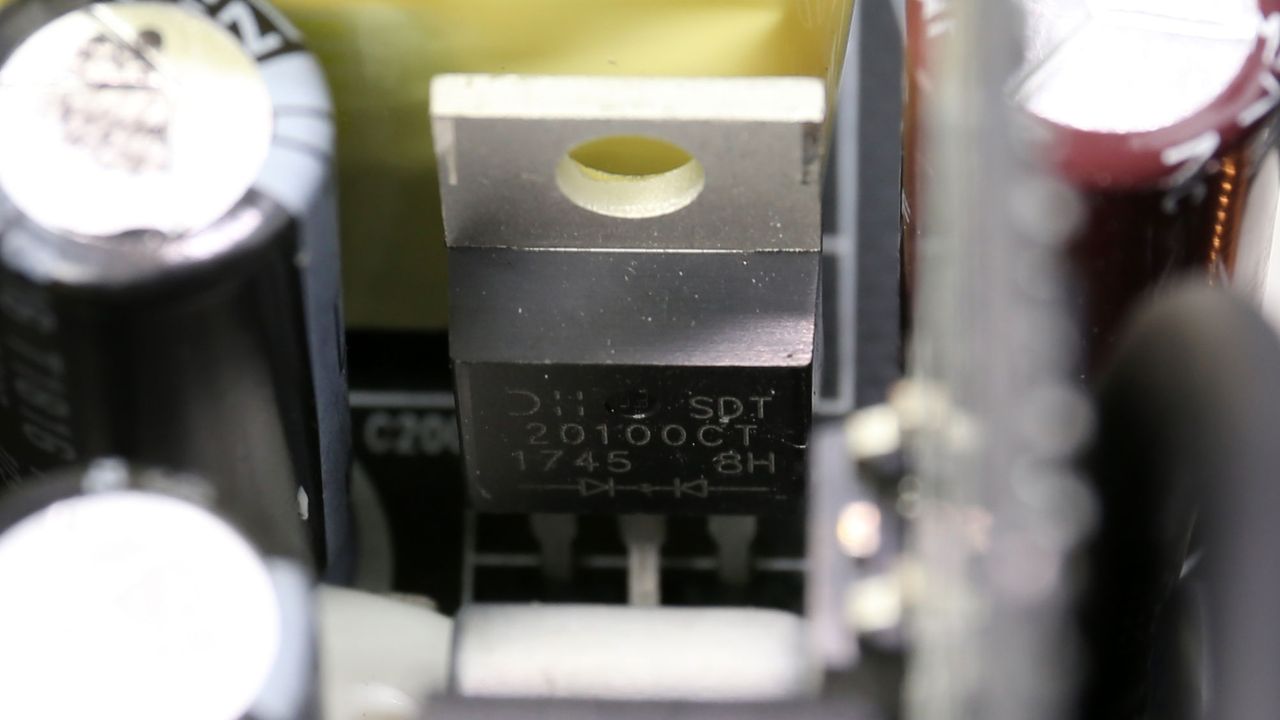

The 5VSB regulator uses an Alpha & Omega FET on its primary side and a TSR (Trench Schottky Rectifier) on its secondary side. The latter part briefly is an upgraded SBR (Schottky Barrier Diode), with lower energy losses and excellent EMC performance.

Image 1 of 2

(Image credit: Tom's Hardware)

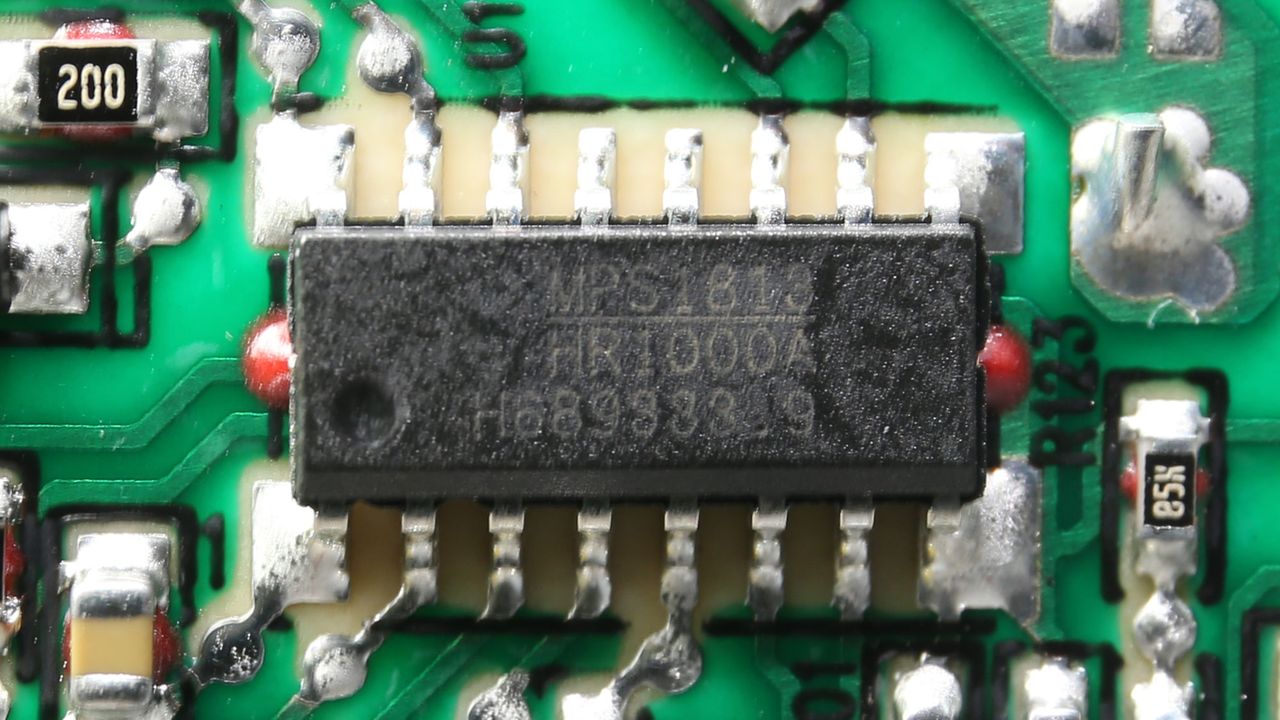

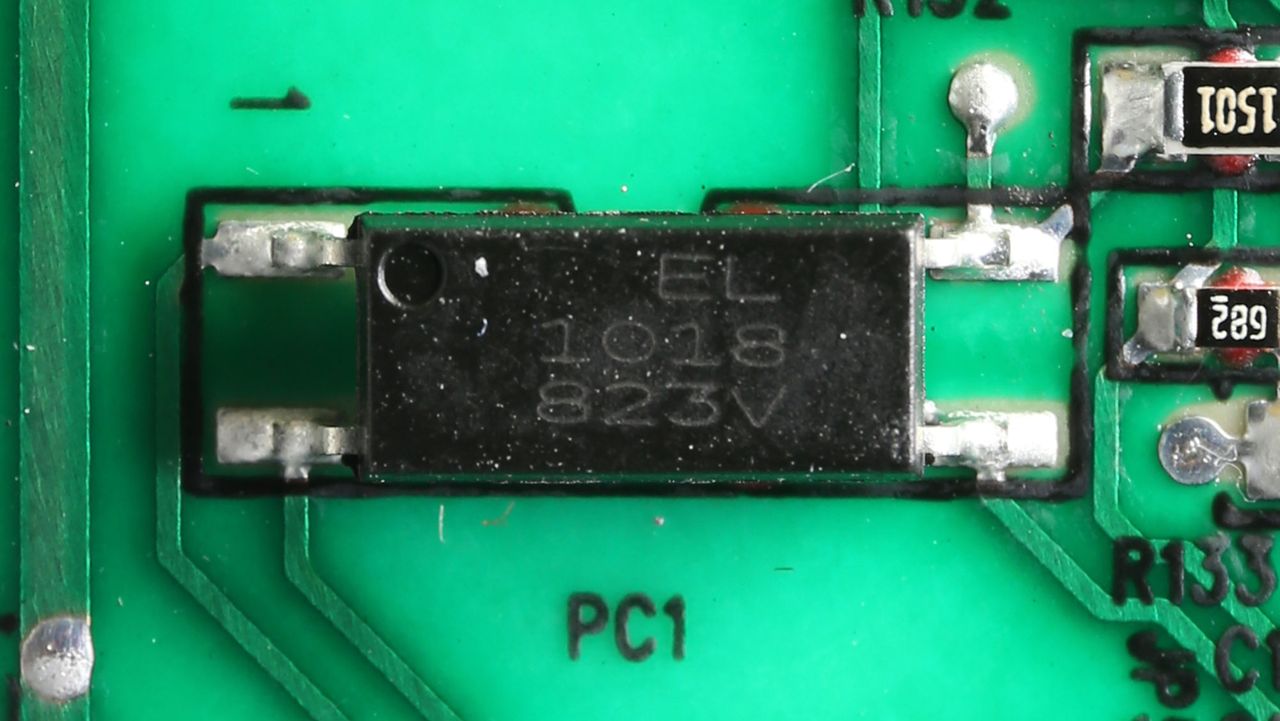

Supervisor IC

Image 2 of 2

(Image credit: Tom's Hardware)

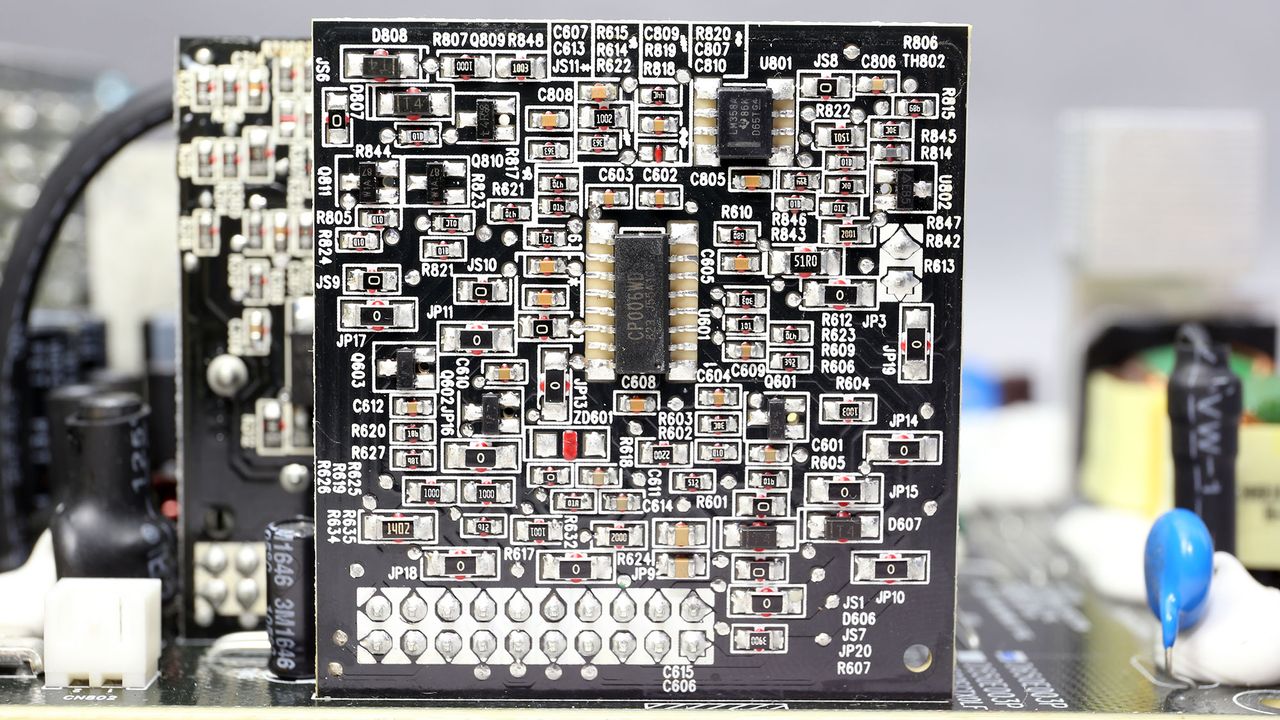

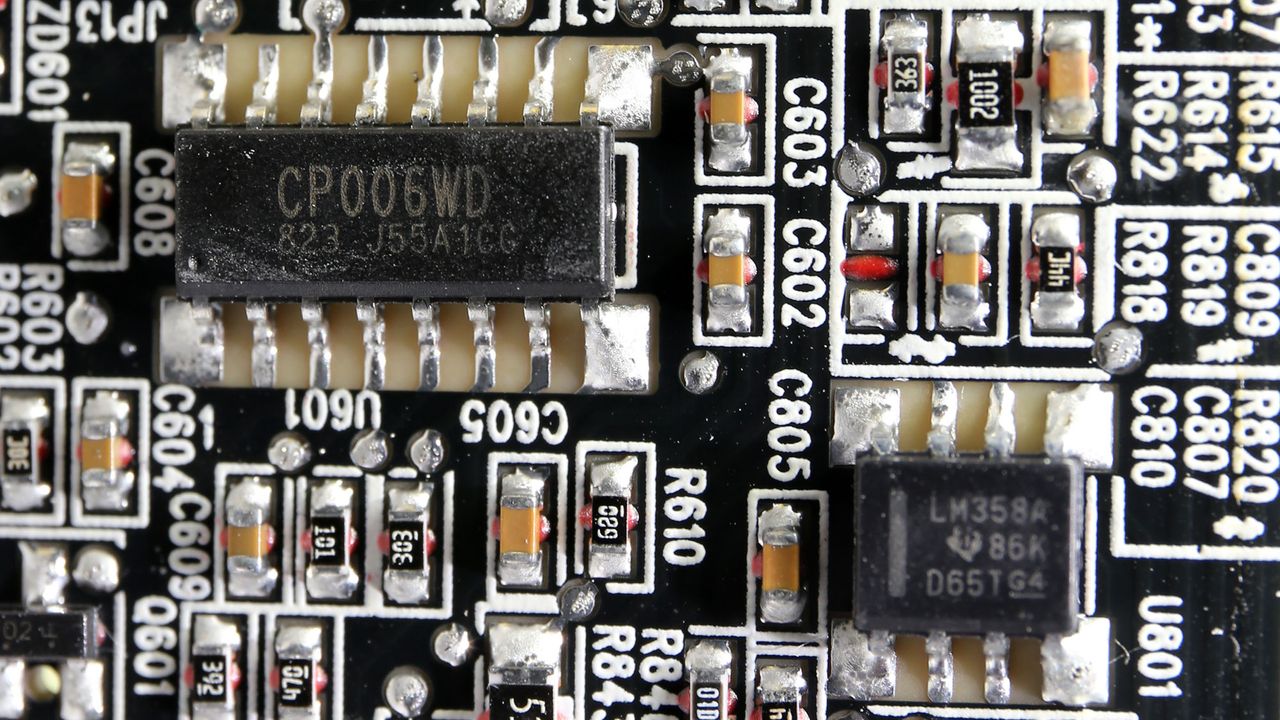

The supervisor IC is a CP006WD. We couldn't find any information on this IC, to check on the protection features that it supports.

Image 1 of 5

(Image credit: Tom's Hardware)

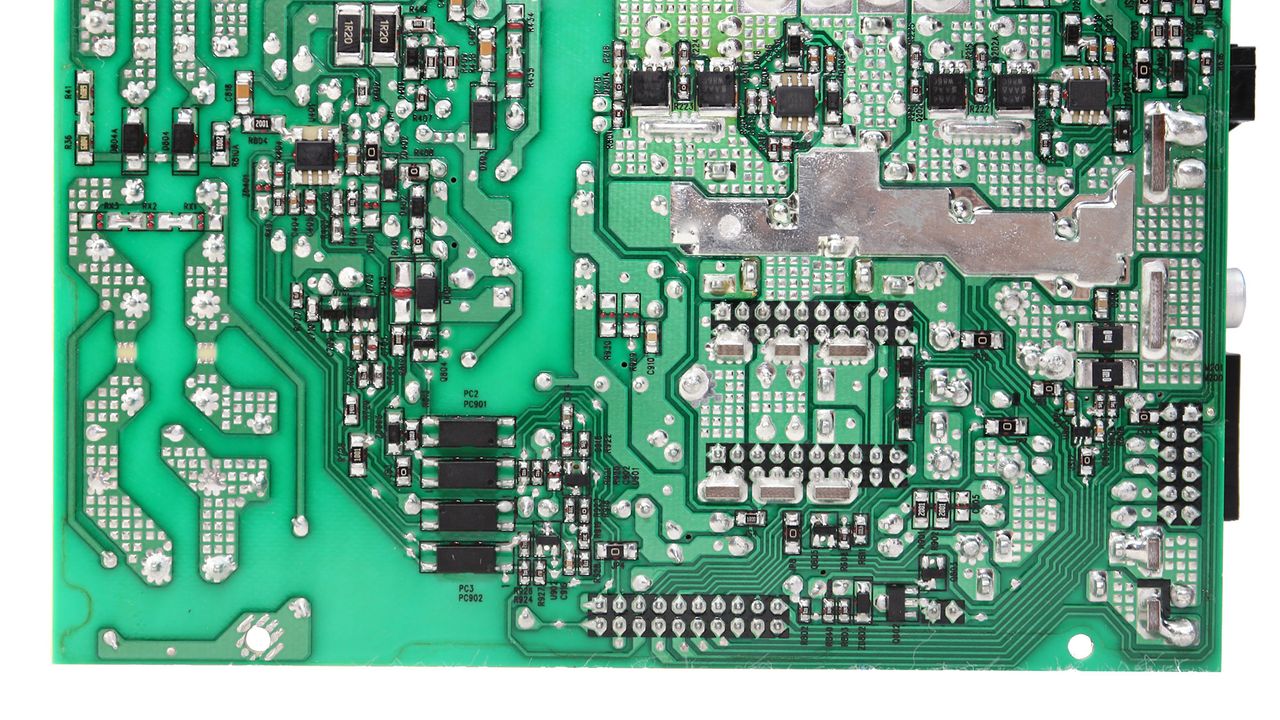

Soldering quality

Image 2 of 5

(Image credit: Tom's Hardware)
Image 3 of 5

(Image credit: Tom's Hardware)
Image 4 of 5

(Image credit: Tom's Hardware)
Image 5 of 5

(Image credit: Tom's Hardware)

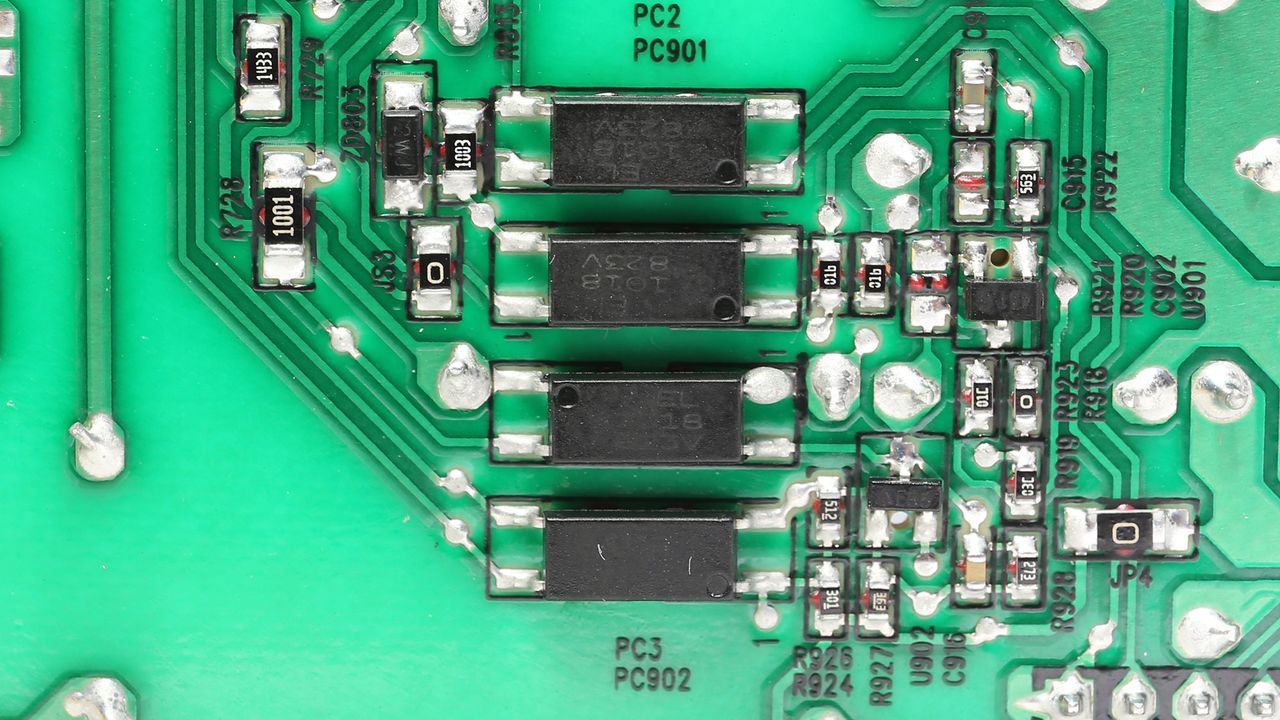

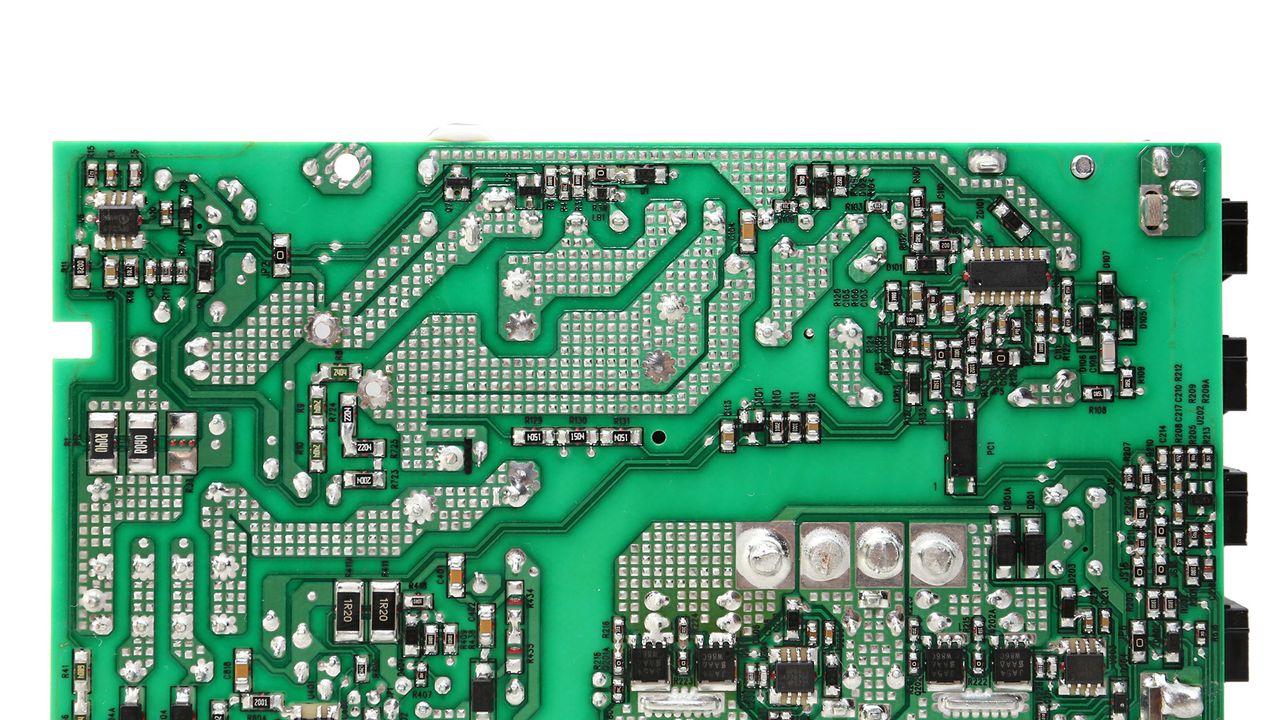

The soldering quality is good. Moreover, on this side of the PCB, there are many interesting parts, including the +12V FETs, the APFC, resonant and standby controllers, and the pair of MPS MP6903 low-drop diode emulators.

Image 1 of 2

(Image credit: Tom's Hardware)

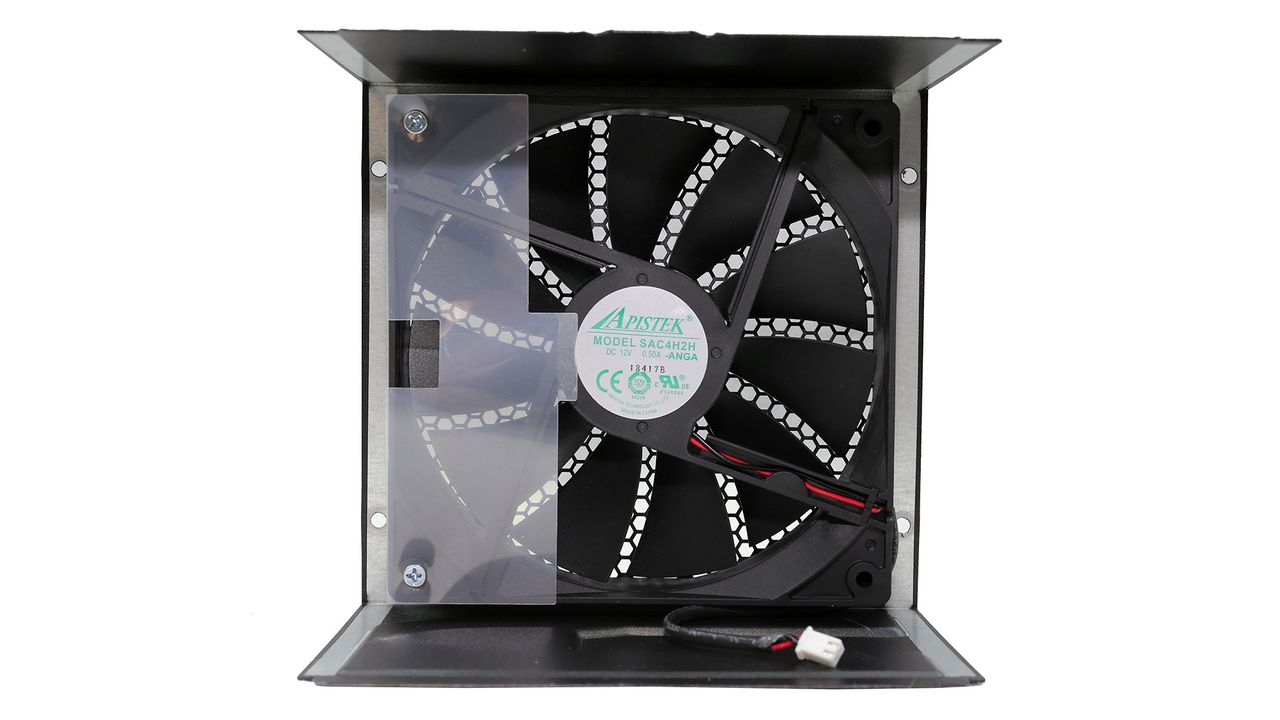

Cooling fan

Image 2 of 2

(Image credit: Tom's Hardware)

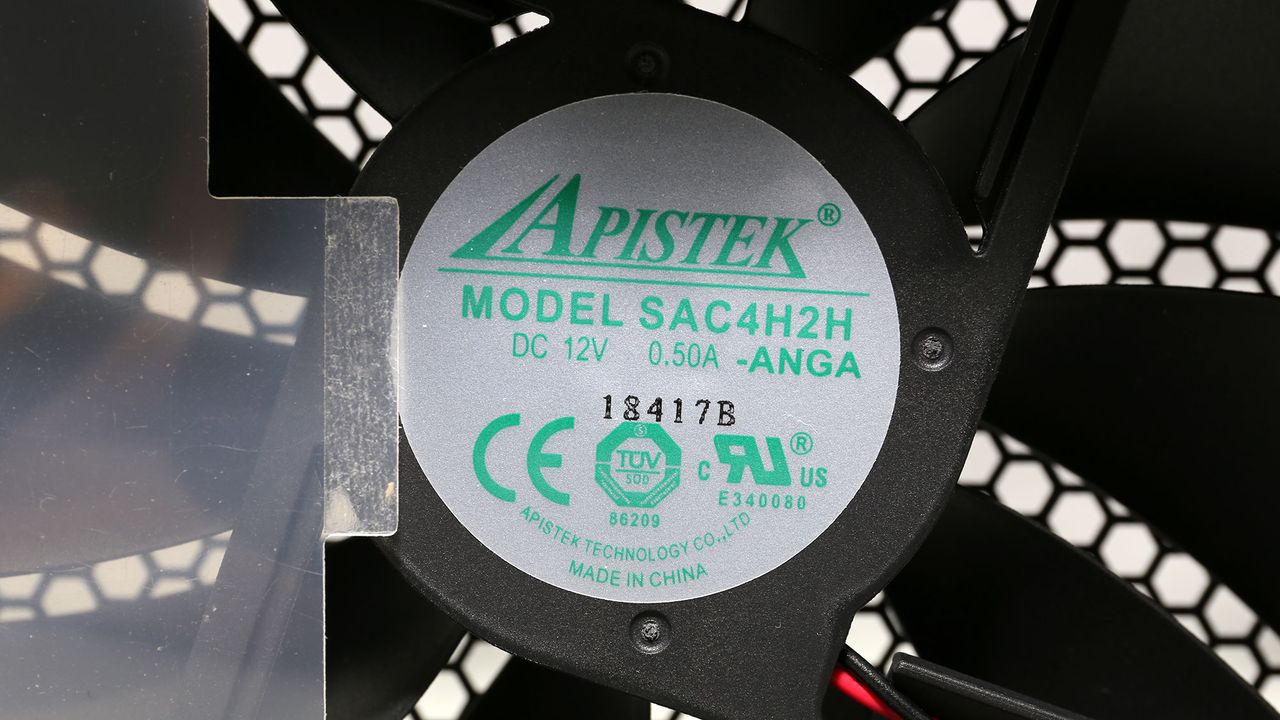

The cooling fan is provided by Apistech and uses a fluid dynamic bearing. We don't have much information on the reliability of those fans, so only time will tell whether they are up to the task in a PSU that is covered by a ten-year warranty.

MORE: Best Power Supplies

MORE: How We Test Power Supplies
