Tom's Hardware Verdict
Although the Cougar Conquer Essence is sleek, stylish and has very good thermal performance, there are just too many things wrong with this chassis to recommend it at this price.
Reasons to buy
- +
Good thermal performance
- +
Stylish design
- +
Two tempered glass side panels
Reasons to avoid
- -
No fans
- -
Poor acoustic performance
- -
Nowhere to route / hide cables
- -
Quality control
- -
No USB 3.1 Type-C
- -
Price
Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.
Features & Specifications
Although the Cougar Conquer Essence is sleek, stylish and has very good thermal performance, there are just too many things wrong with this chassis to recommend it at this price.
Looking for an open-air micro-ATX case that is stylish, easy to mod and stands out from the crowd right out of the box? Cougar's Conquer Essence might be right up your alley, if you can stomach all the dirt, dust and pet hair that will likely fall into the case and the price tag.
This chassis is essentially a smaller version of the Cougar Conquer chassis. The design is similar, but not only is the Conquer Essence smaller, a number of features have been removed, retooled and / or completely redesigned from the Conquer. The overall look is much more spartan than the full-sized Conquer chassis.
Specifications
| Type | Mini-Tower ATX |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Dimensions (HxWxD) | 18.9 x 9.2 x 20.5 inches (480 x 233 x 522mm) |
| Space Above Motherboard | 3 inches (76mm) |
| Card Length | 13.8 inches (350mm) |
| CPU Cooler Height | 6.3 inches (160mm) |
| Power Supply Length | 7.9 inches (200mm) |
| Weight | 22lbs (10.0kg) |
| External Bays | ✗ |
| Internal Bays | 2x 3.5 inches6x 2.5 inches |
| Card Slots | 5x vertical |
| Ports/Jacks | 2x USB1x audio jack1x mic jack |
| Other | Tempered glass side panels |
| Front Fans | ✗ (2x 120mm max) |
| Rear Fans | ✗ (2x 120mm max) |
| Top Fans | ✗ (2x 120mm max) |
| Bottom Fans | ✗ |
| Side Fans | ✗ |
| Dampening | ✗ |
| Warranty | One year, limited |
Exterior

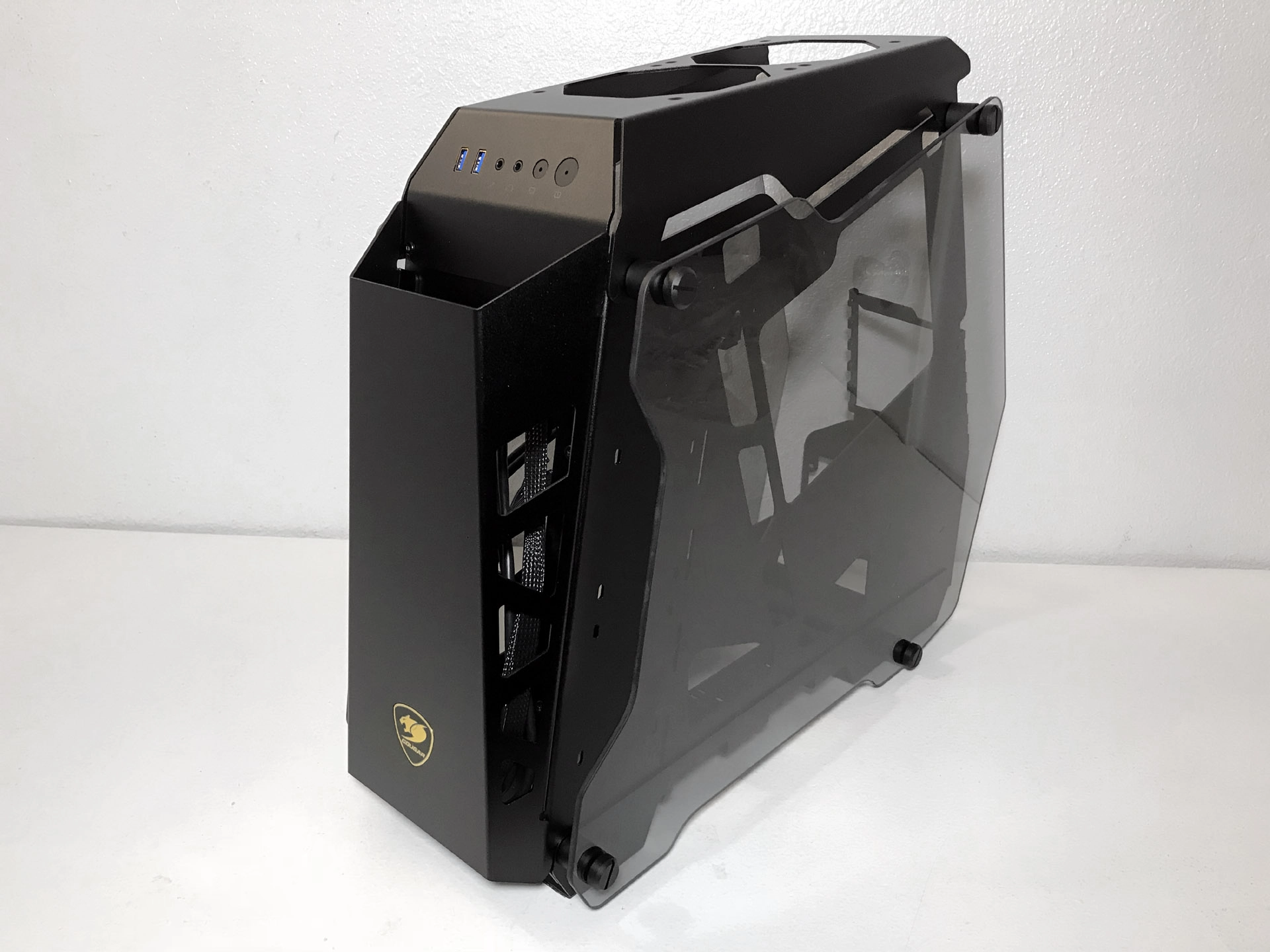

The entire chassis, aside from the tempered glass side panels, is constructed out of an aluminum alloy and is powder-coated black inside and out. The trapezoid-shaped chassis measures 480 x 233 x 522mm (HxWxD) and tips the scales at just over 22lbs. The frame of the chassis appears to be made of a single large sheet of aluminum that is laser-cut and folded into shape.

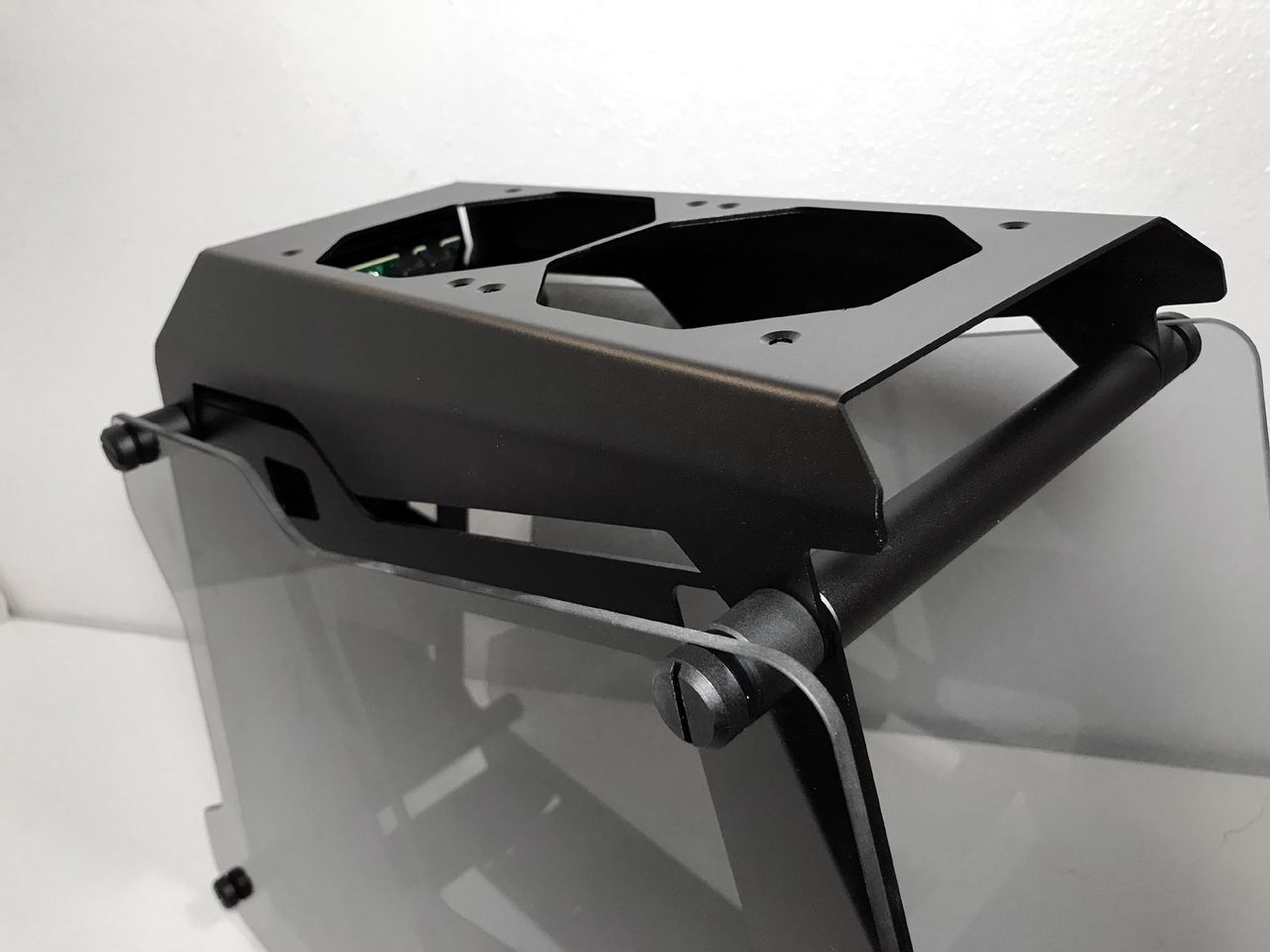

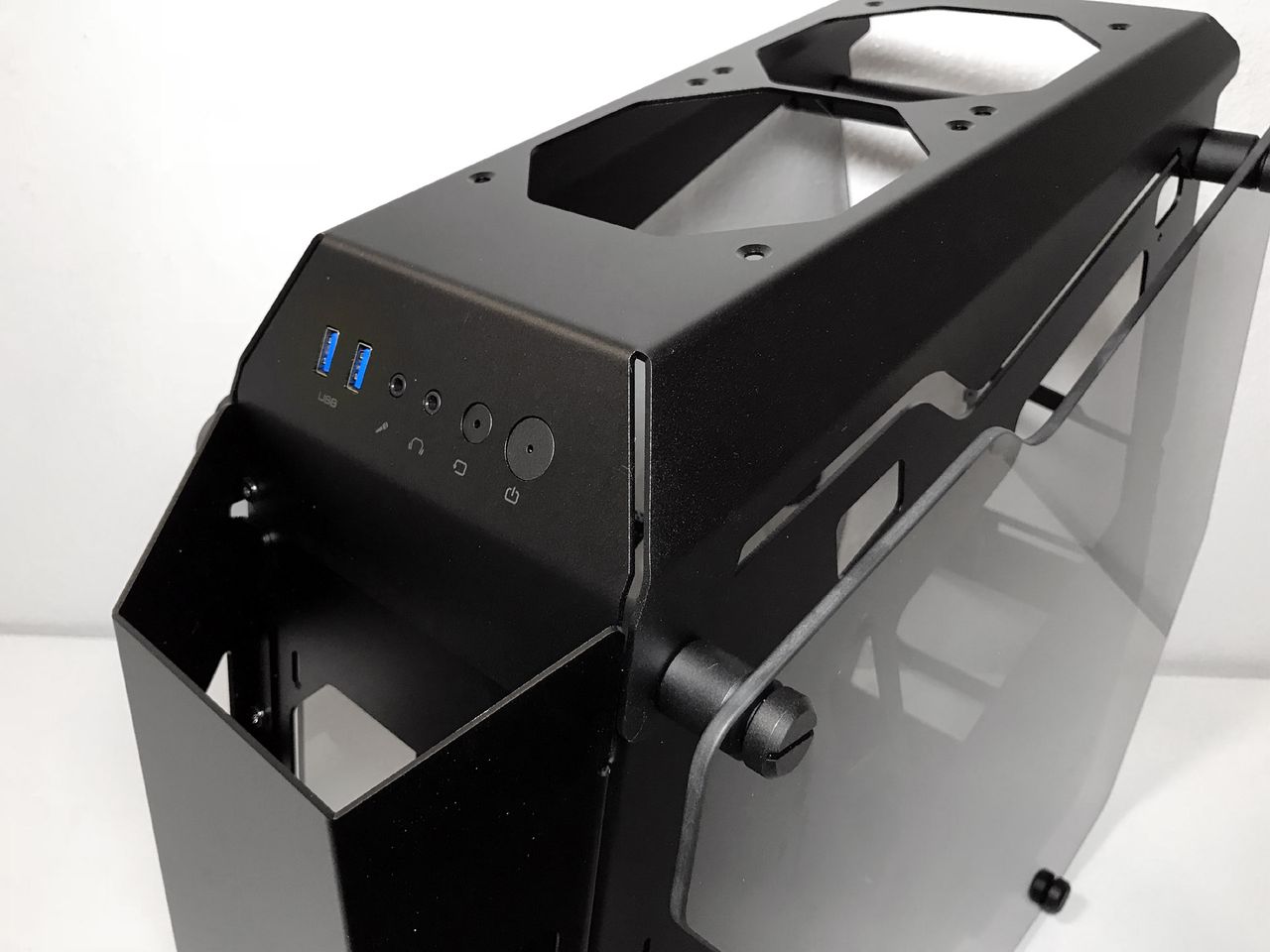

The top of the chassis is bare except for two open 120mm fan holes. The area between the top panel and the front panel is slanted at a 45-degree angle. This space is home to two USB 3.0 ports, headphone and microphone jacks and reset and power buttons
View Original
View Original
View Original
View Original
View Original
The removable front panel consists of a solid piece of aluminum that has large unfiltered ventilation holes lining both sides. There are large openings located at the top and bottom of the front panel as well. These air-intake holes provide a path for fresh air to be drawn into the chassis. Directly behind the front face are mounting locations for two 120mm fans. The front panel is held in place by four Philips head screws.

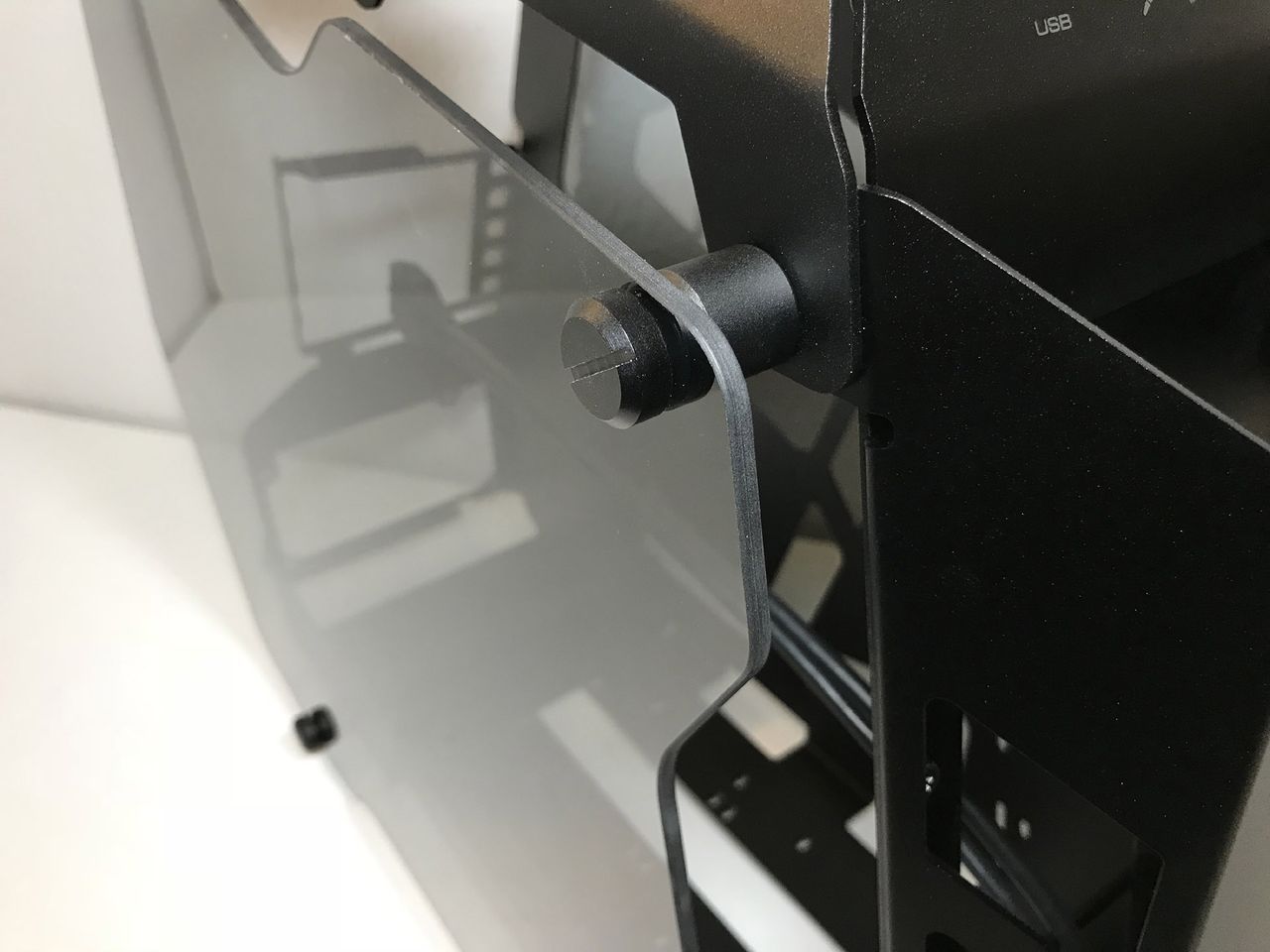

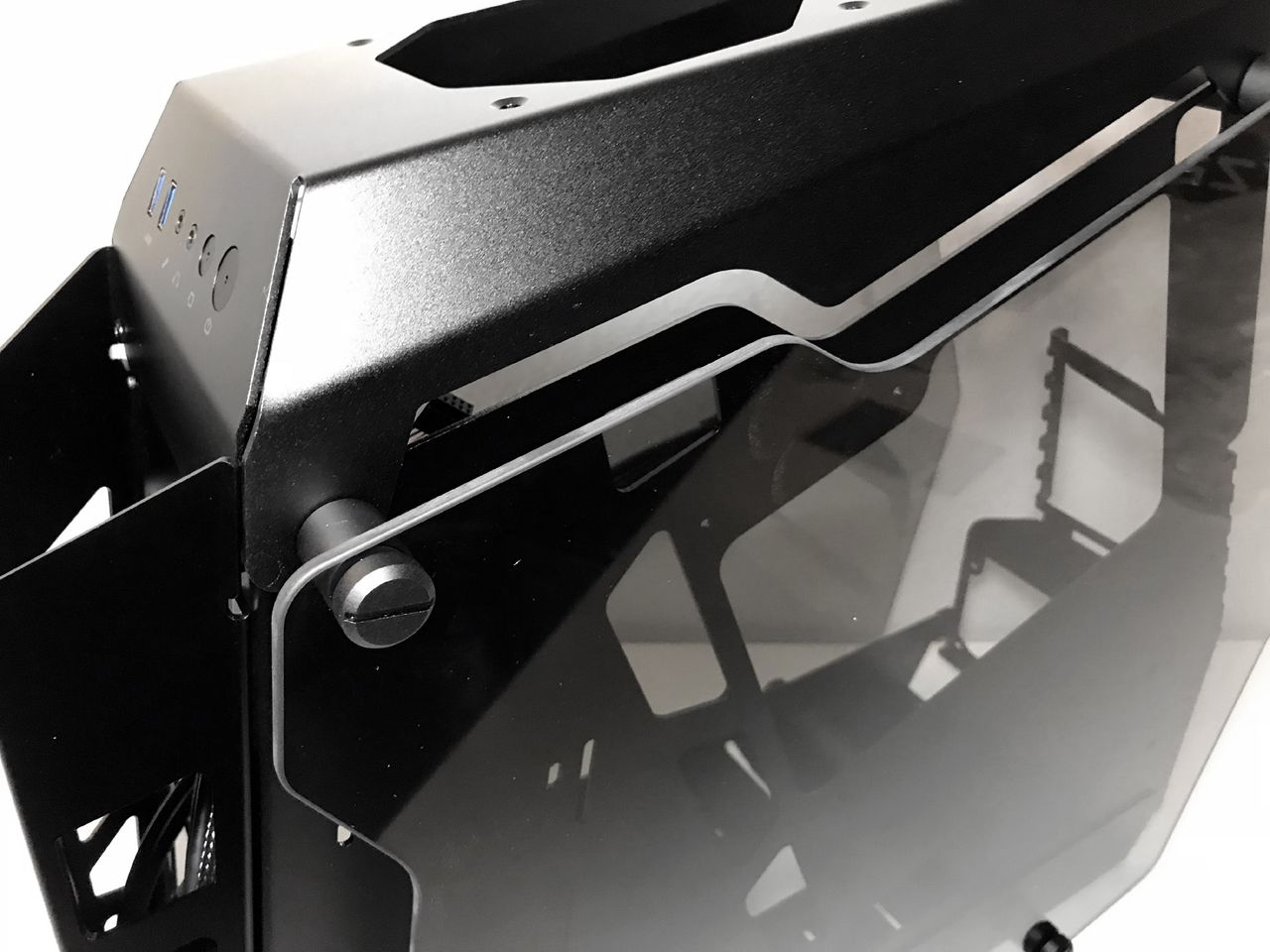

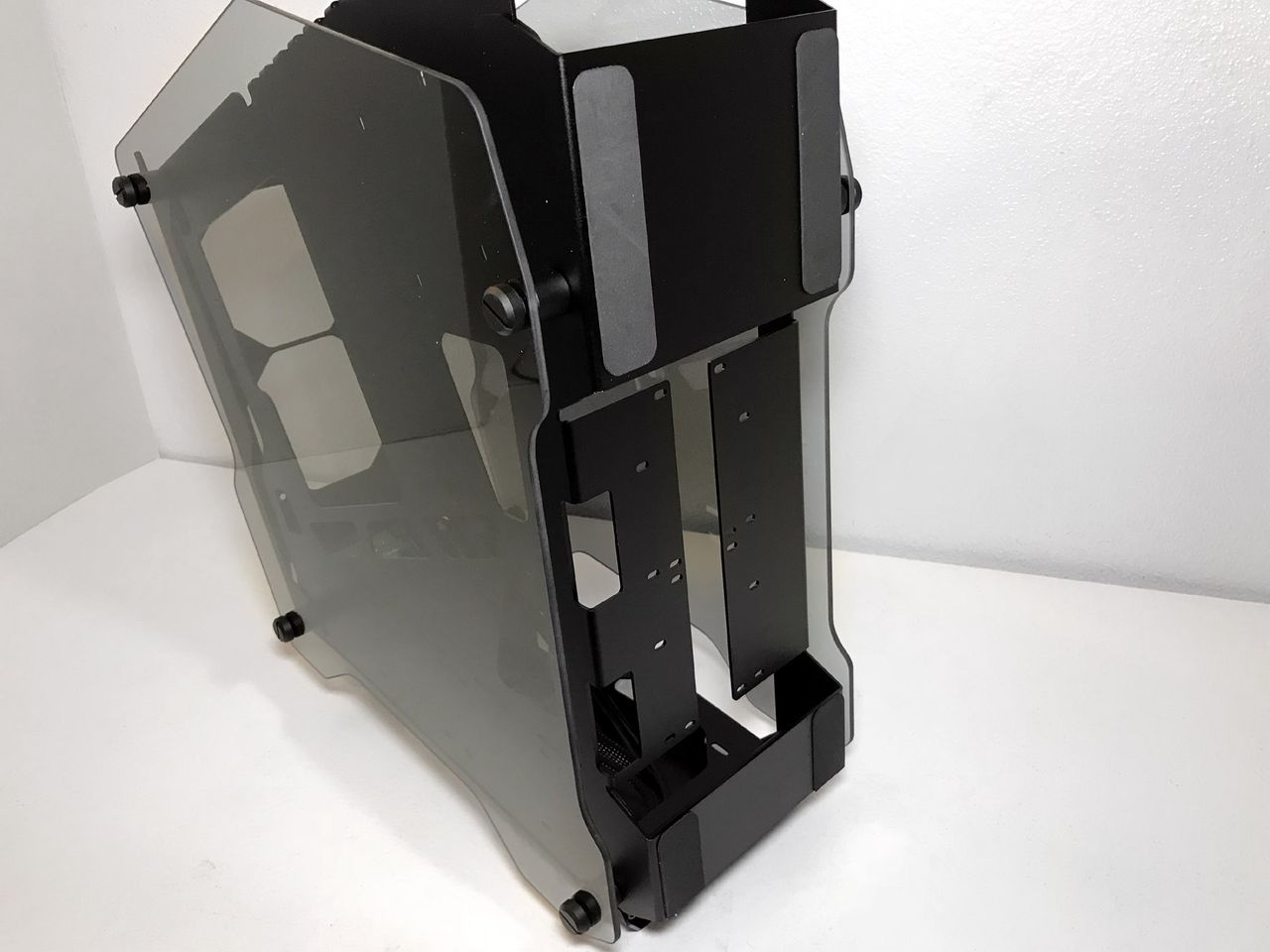

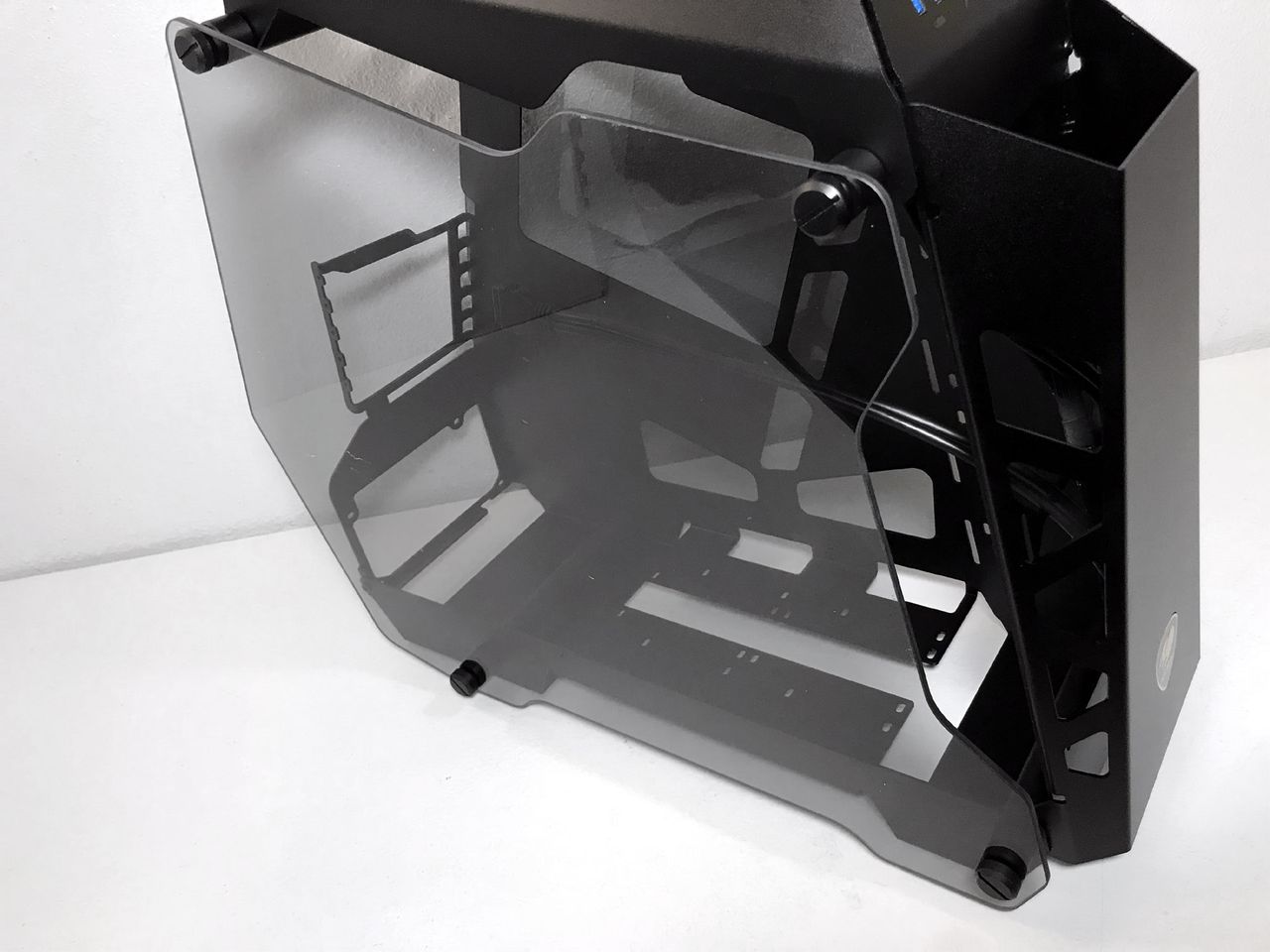

The full-coverage tinted tempered glass side panels are held in place by large thumbscrews that thread directly into metal rods, much the same as the side panels on the original Conquer and the Thermaltake Core P3 and P5 cases. Bear in mind that although rubber grommets line the holes in the tempered glass, there is nothing to hold the panel in place and prevent the glass against accidental drops. We highly recommend laying this case on its side when removing the tempered glass panels.
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
On a side note, there was a large amount of what seemed to be melted plastic all over both side panels on our unit. A razor blade and a bit of rubbing alcohol made short work of the mess, but was still disappointing that this wasn't caught at the factory.
While we are on the subject, we also noticed that the bracket for the five expansion cards was severely bent. Although we were able to bend it back in place, doing so caused a small tear in the aluminum alloy material at the base of the bracket.

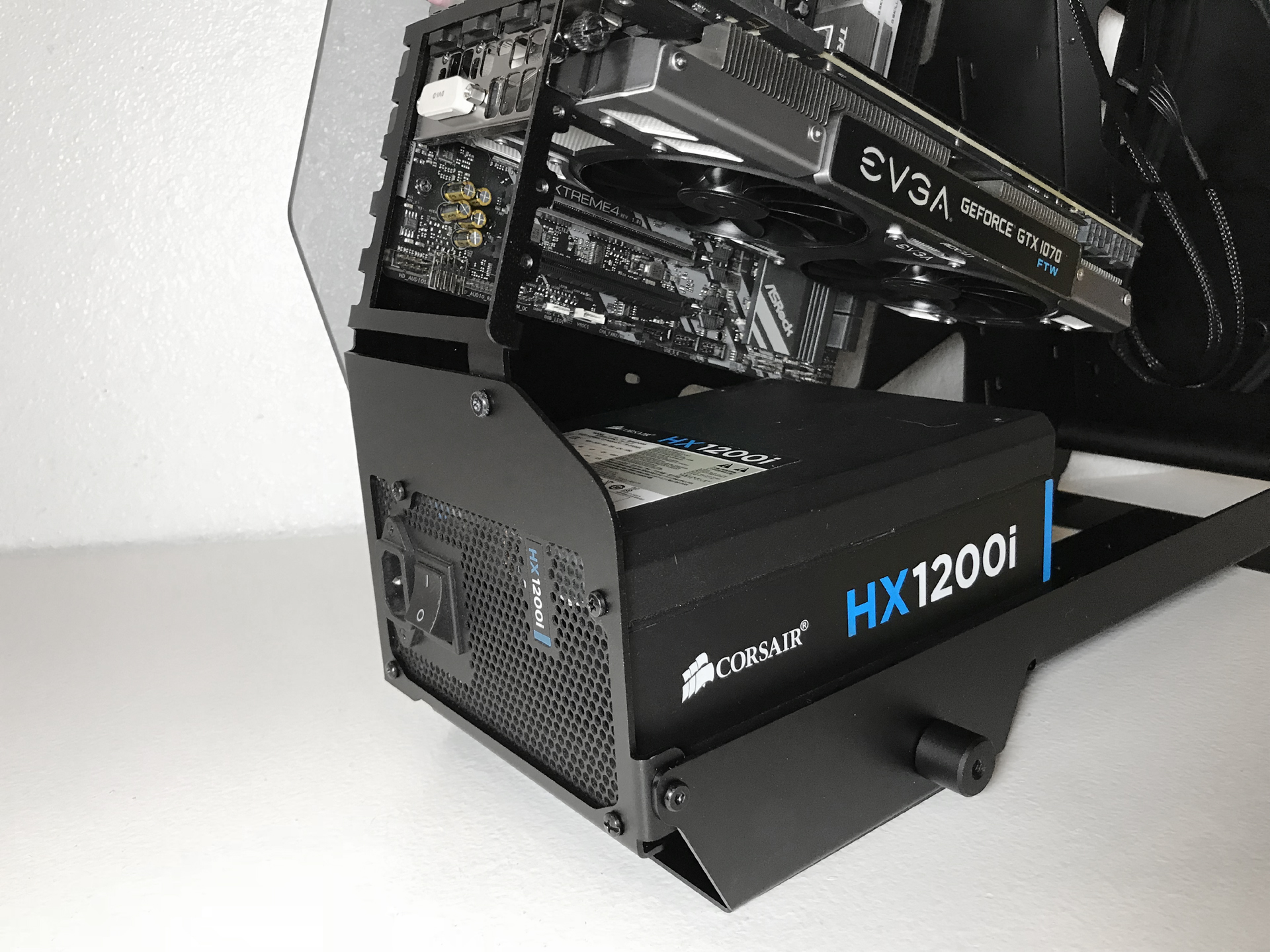

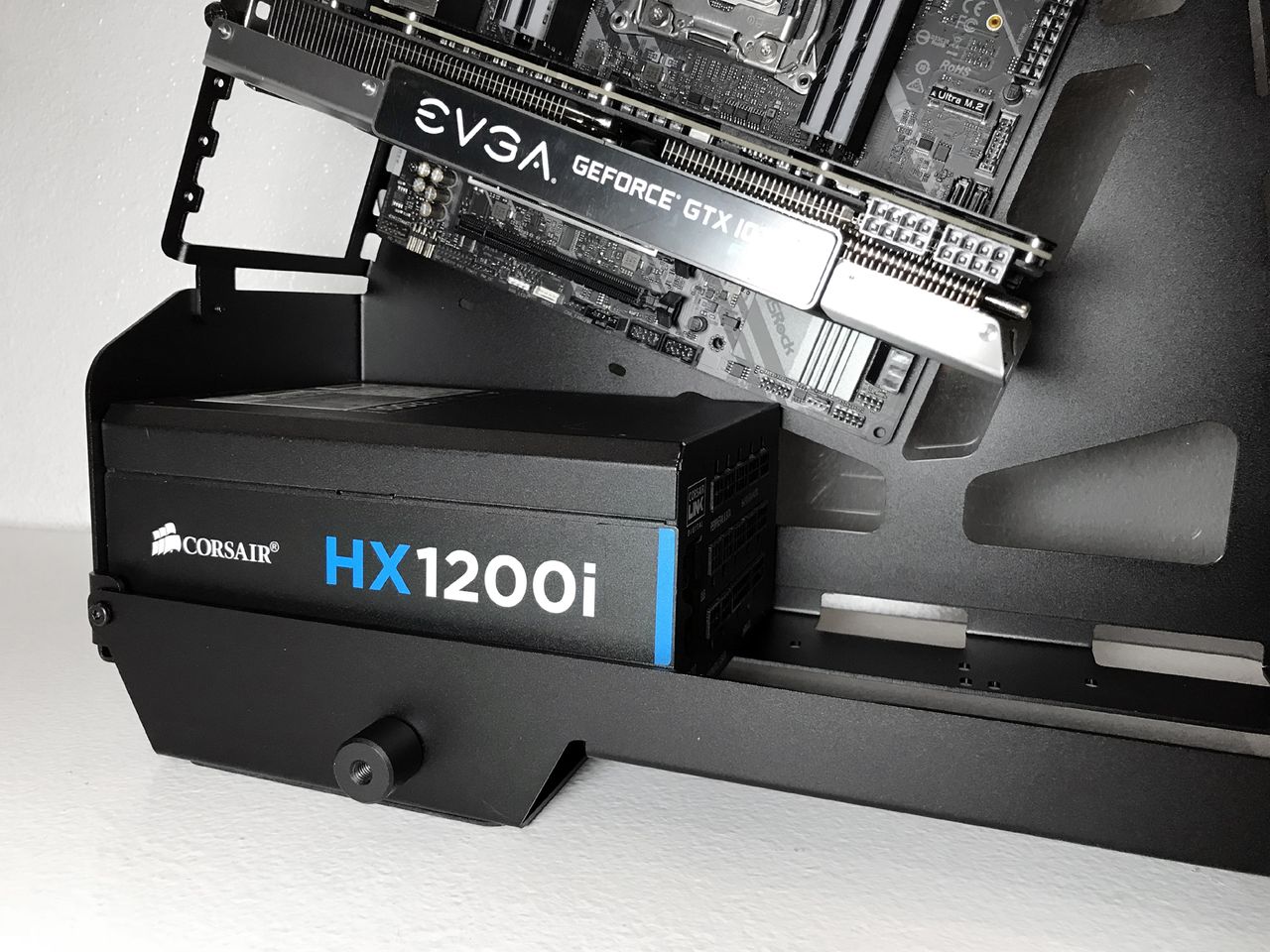

Directly below the expansion card bracket is the mounting location for your power supply. The Conquer Essence does not feature a PSU tunnel.
Since this is an open-air chassis, there is no filtration system in place. In fact, even though the company includes a pair of fan grills, there is nothing at all preventing dust and debris from falling into your system or spilling directly onto your exposed hardware.
MORE: Best Cases
MORE: All Case Content
