DeepCool AK500 Review: Big Air, Incredible Value

Strong, Silent Performance, with full DRAM compatibility that pairs well with Alder Lake CPUs

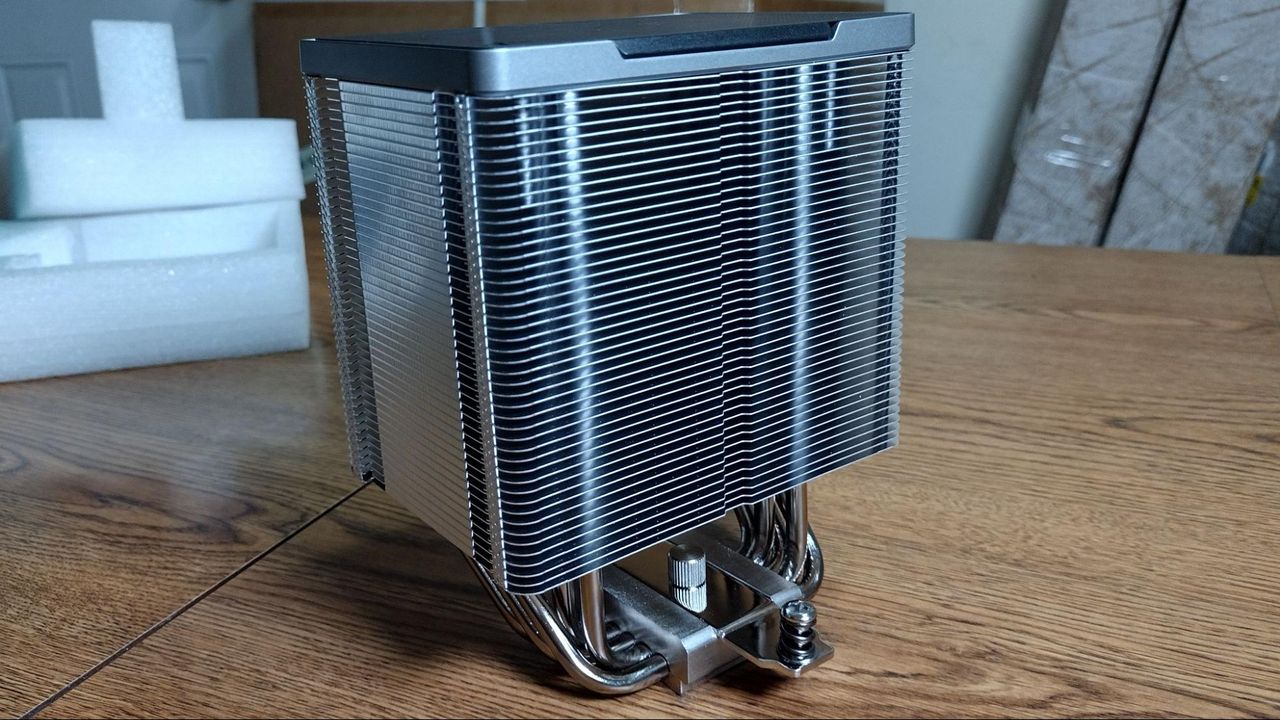

DeepCool AK500
Editor's Choice
(Image: © Tom's Hardware)

Tom's Hardware Verdict

DeepCool delivers yet another impressive air cooler with its AK500. Our tests show it can handle thermal demands over 200W while remaining quiet, and its angled heatpipes mean tall RAM shouldn’t be a worry. With an MSRP of just $59.99, it’s an excellent value.

Pros

  • +

    Capable of cooling 200W+ with Alder Lake

  • +

    Low noise levels

  • +

    Reasonable $60 price

Cons

  • -

    Installation can be slightly difficult

  • -

    No ARGB (a pro for some)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

DeepCool was founded in Beijing in 1996 and has, in recent years, earned a solid reputation in the CPU Cooler space with options like the Assassin III and AK620, considered to be some of the best CPU air coolers on the market. The company’s lineup includes both air and AIO coolers, as well as computer cases, keyboards, power supplies, and other accessories.

But with the latest CPUs from AMD and Intel requiring ever more capable cooling, DeepCool is back with a new AK500 air cooler. The AK500 features a chungus radiator and a 120mm FK120 fan, but is that enough to tame Intel’s 12900K and earn a spot on our best coolers list? We’ll have to put it through testing to find out. But first here are the AK50’s specifications from DeepCool.

Specifications for the DeepCool AK500

Swipe to scroll horizontally
CoolerDeepCool AK500
MSRP$59.99 USD
Heatsink Dimensions127 × 90 × 158 mm (127 × 117 × 158 mm with fan)
Net Weight1040 g
Socket CompatibilityIntel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
 AMD AM4/AM5
Rated Noise LevelUp to 31.5 dBa
Heatpipes(x5) 0.6 mm copper heatpipes
Rated TDPUp to 240w with a Core i9-10900k CPU

Packing and Included Contents

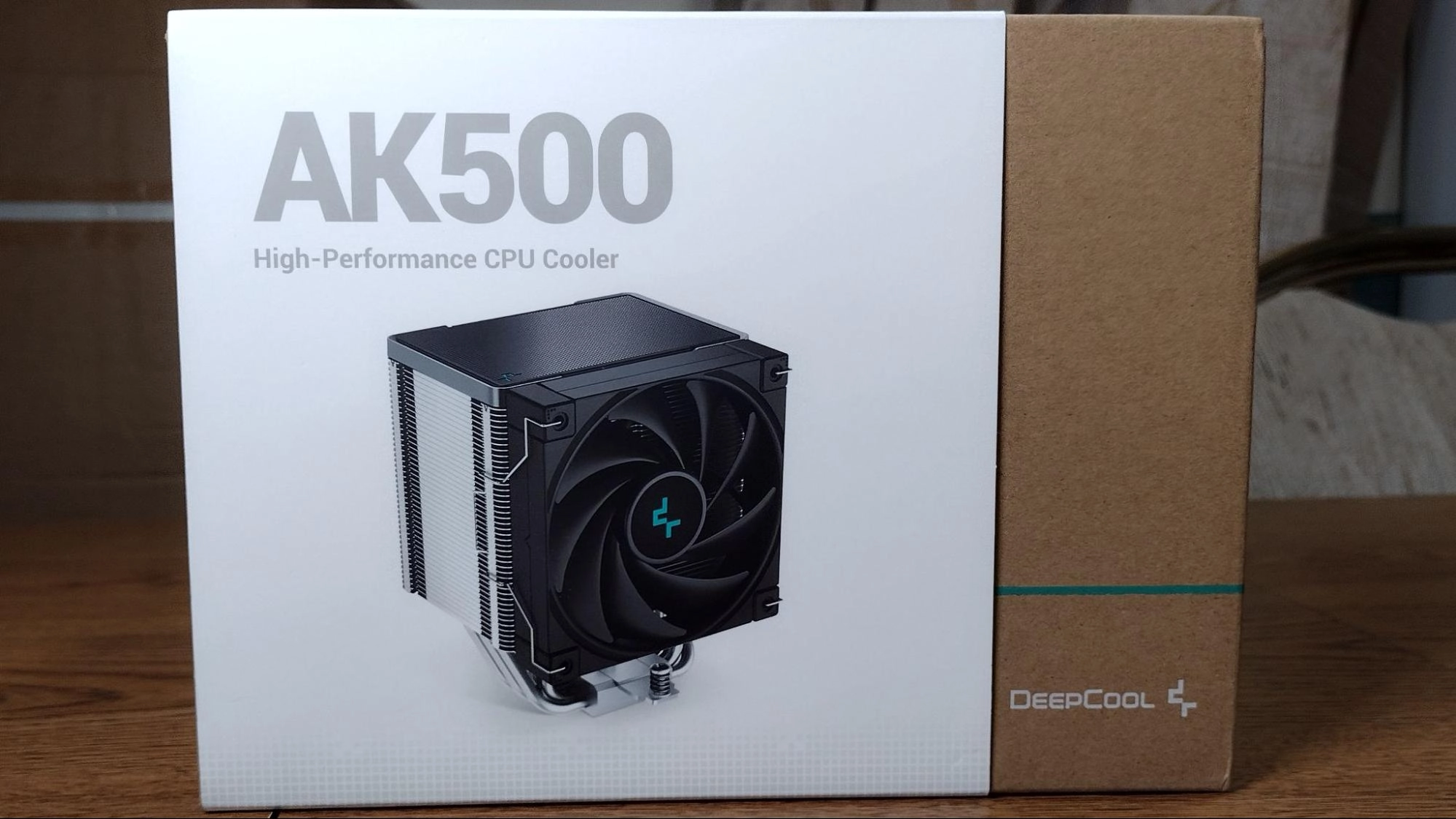

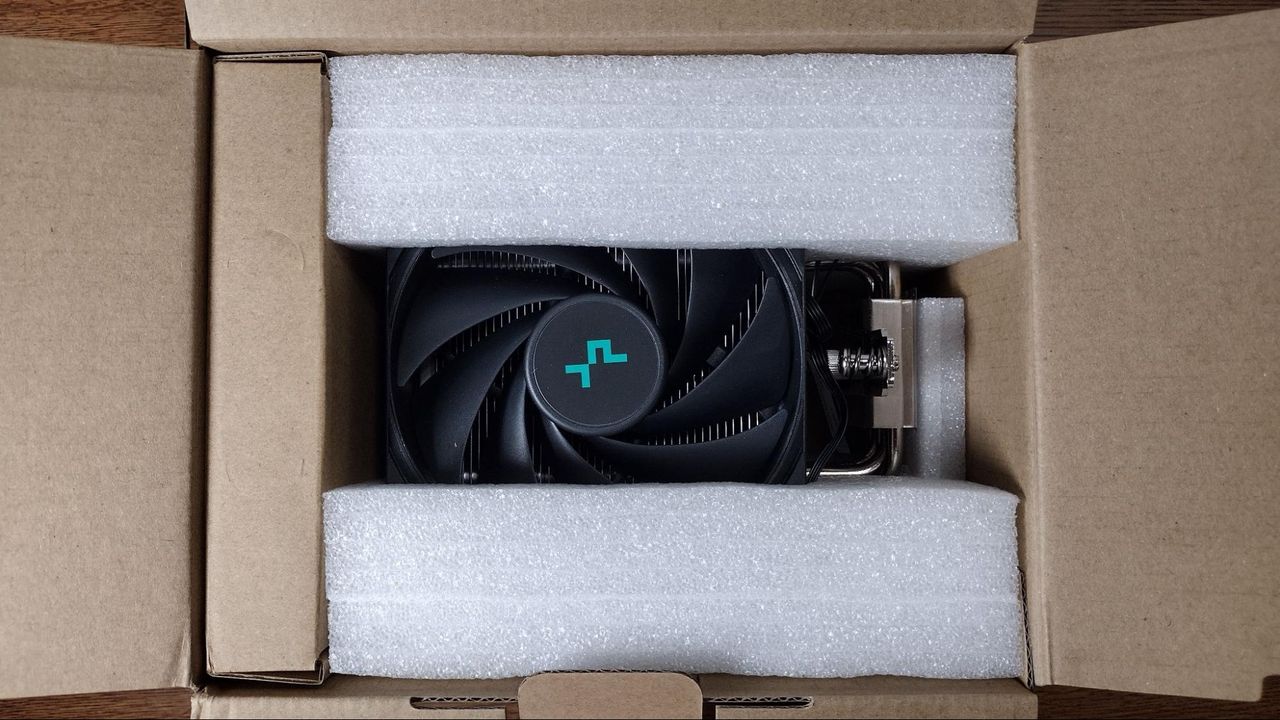

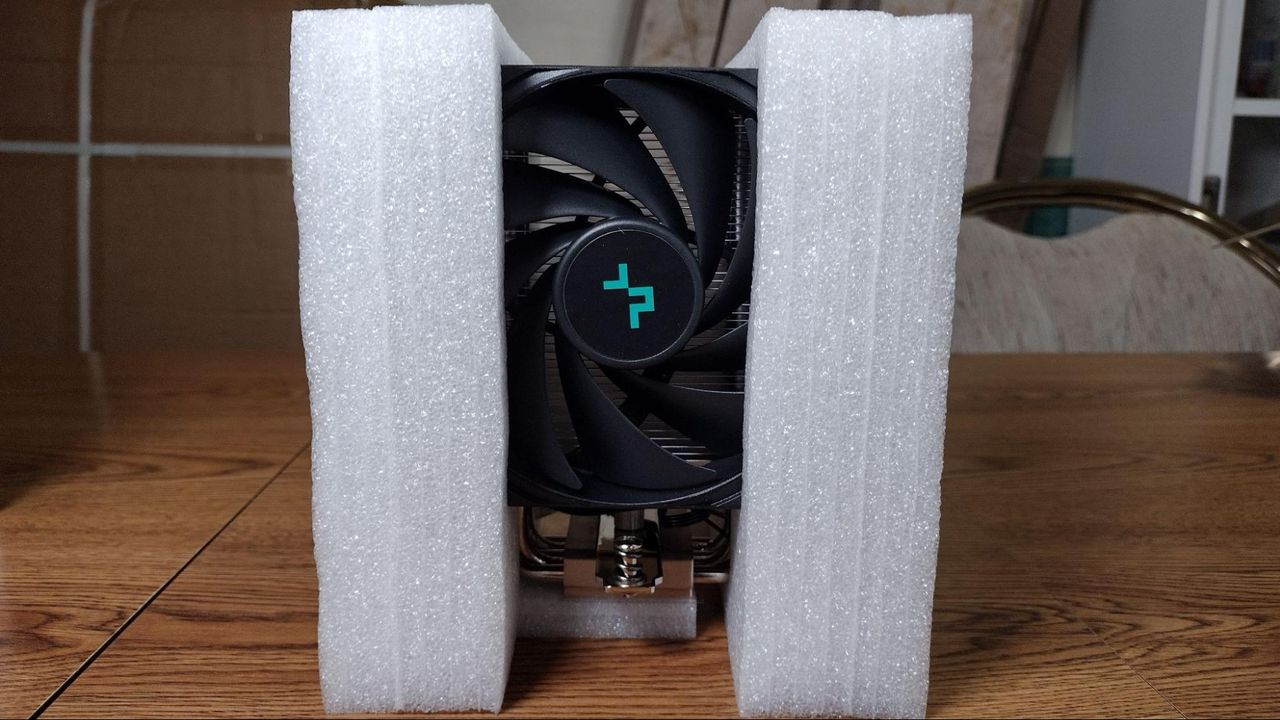

DeepCool’s AK500 is packaged in a medium-sized box, with cardboard and foam to protect the cooler during shipping.

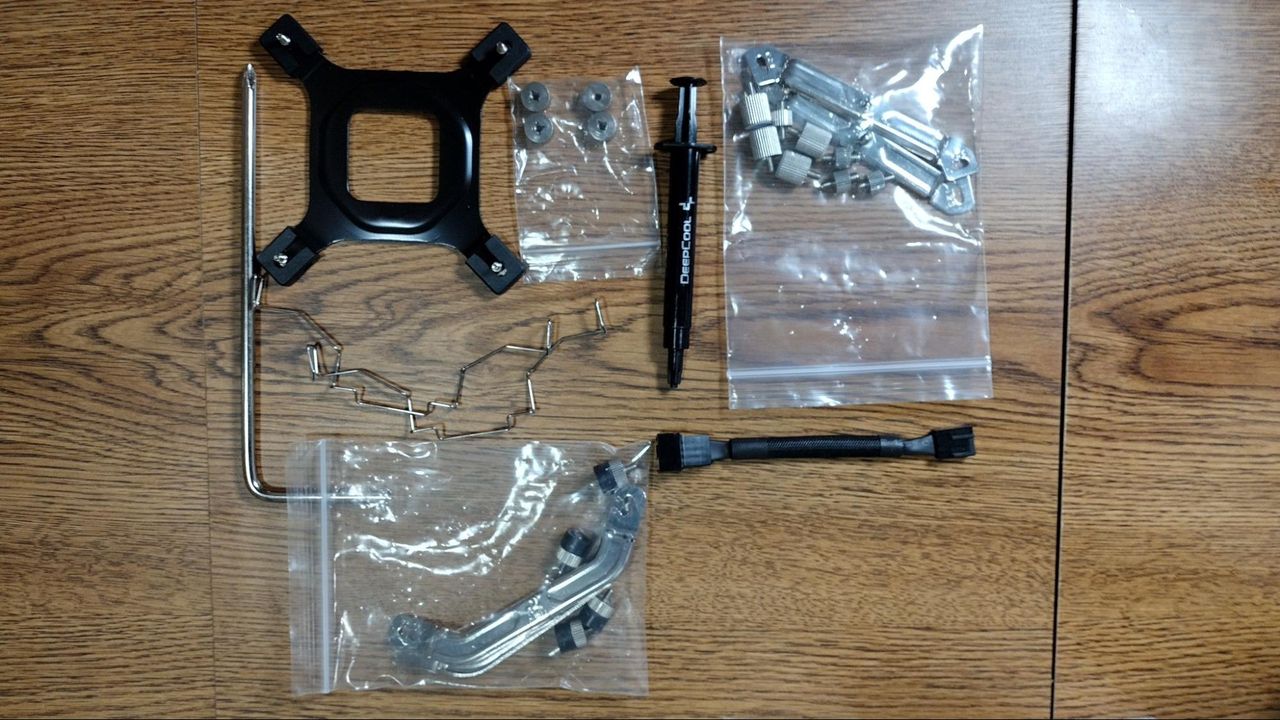

Included with the package are the following:

  • Thick heatsink
  • 1x DeepCool FK120 fan
  • Mounts for all modern CPU sockets, including AM5 & LGA1700
  • A full-sized tube of thermal paste
  • Manual
  • Screwdriver
  • Low-speed fan adapter
  • Clips for a second fan (not included)

Cooler Installation

DeepCool AK500

(Image credit: Tom's Hardware)

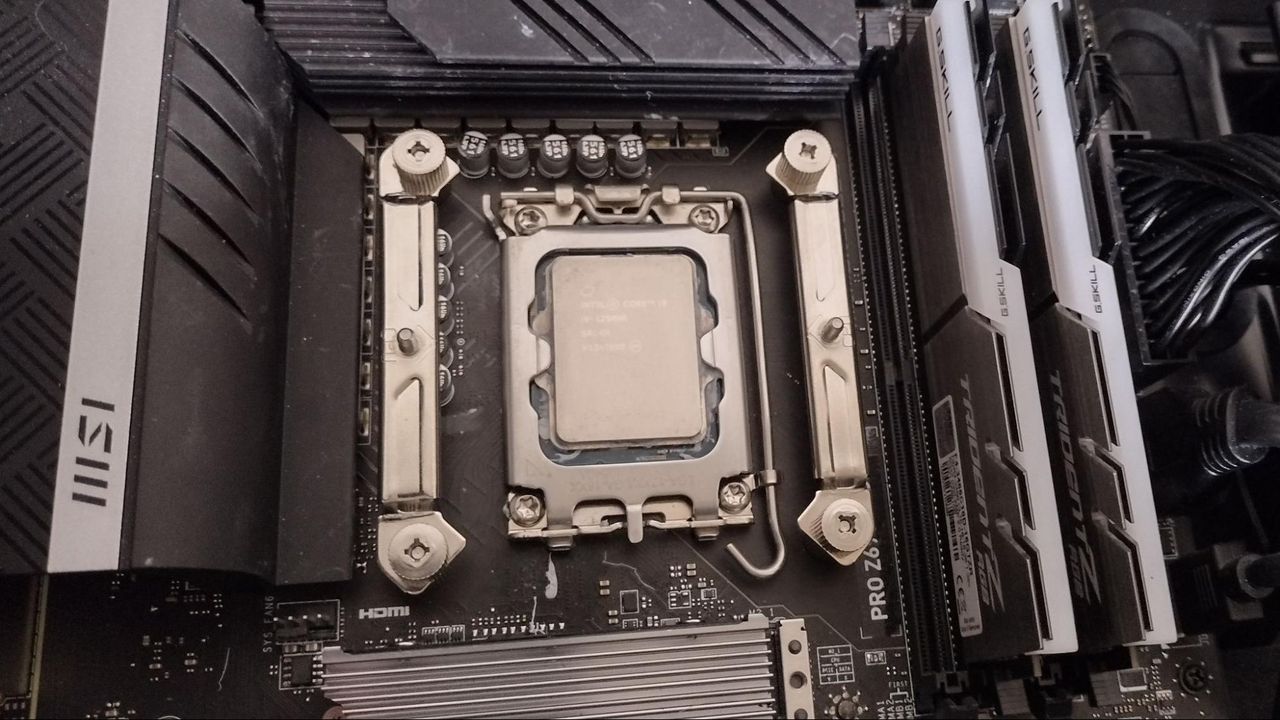

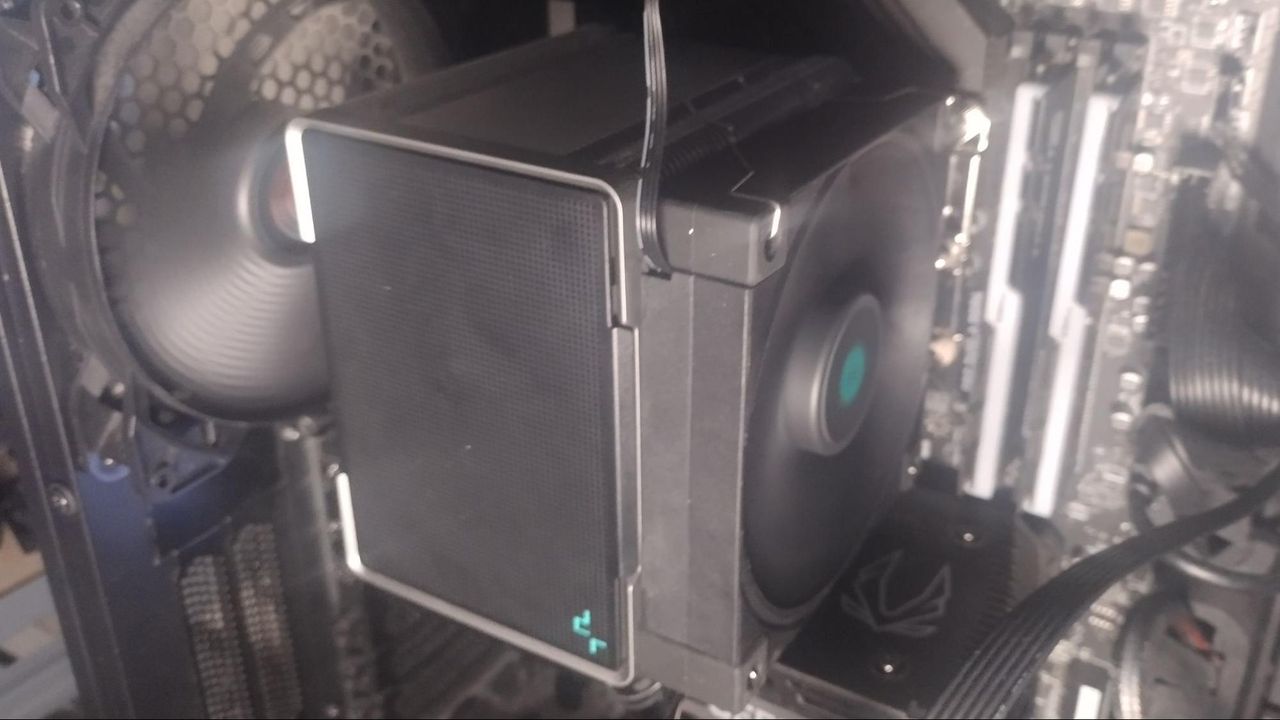

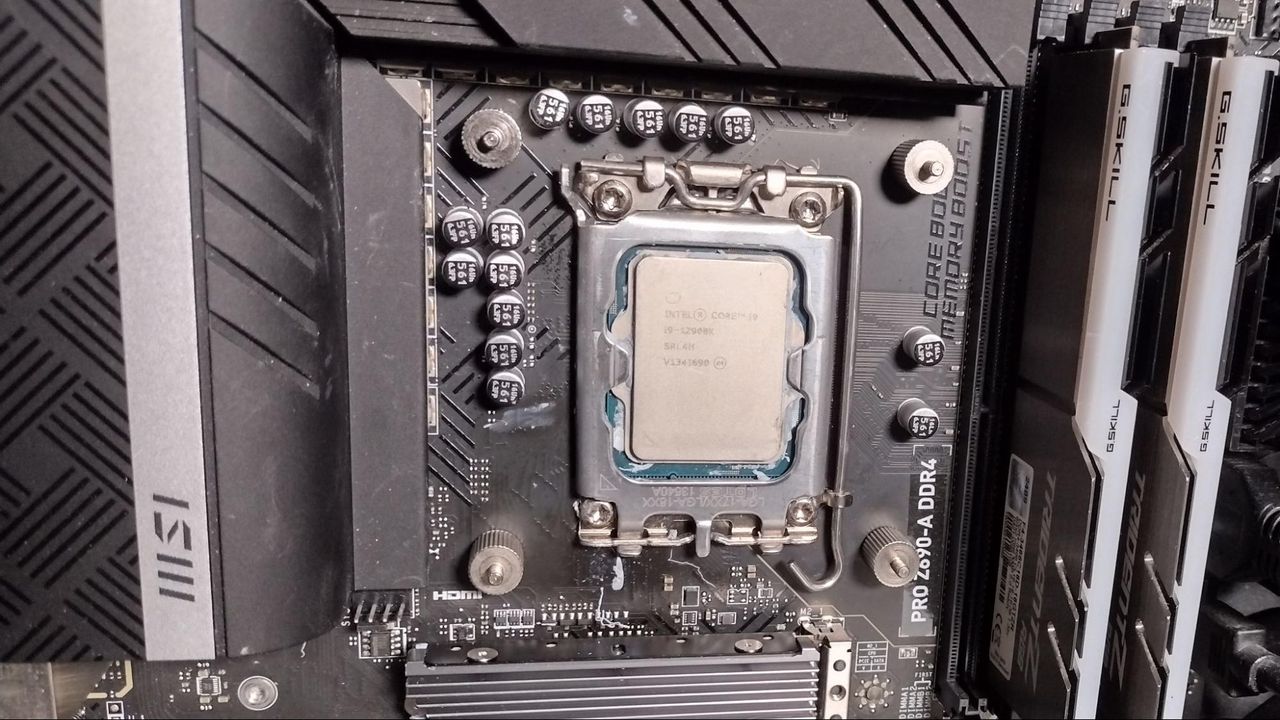

Installing DeepCool’s AK500 is mostly easy. To begin, you’ll press the backplate against your motherboard and then use the thumbscrew standoffs to secure it. Afterward, set the mounting bars on the standoffs and secure them using the included thumbscrews.

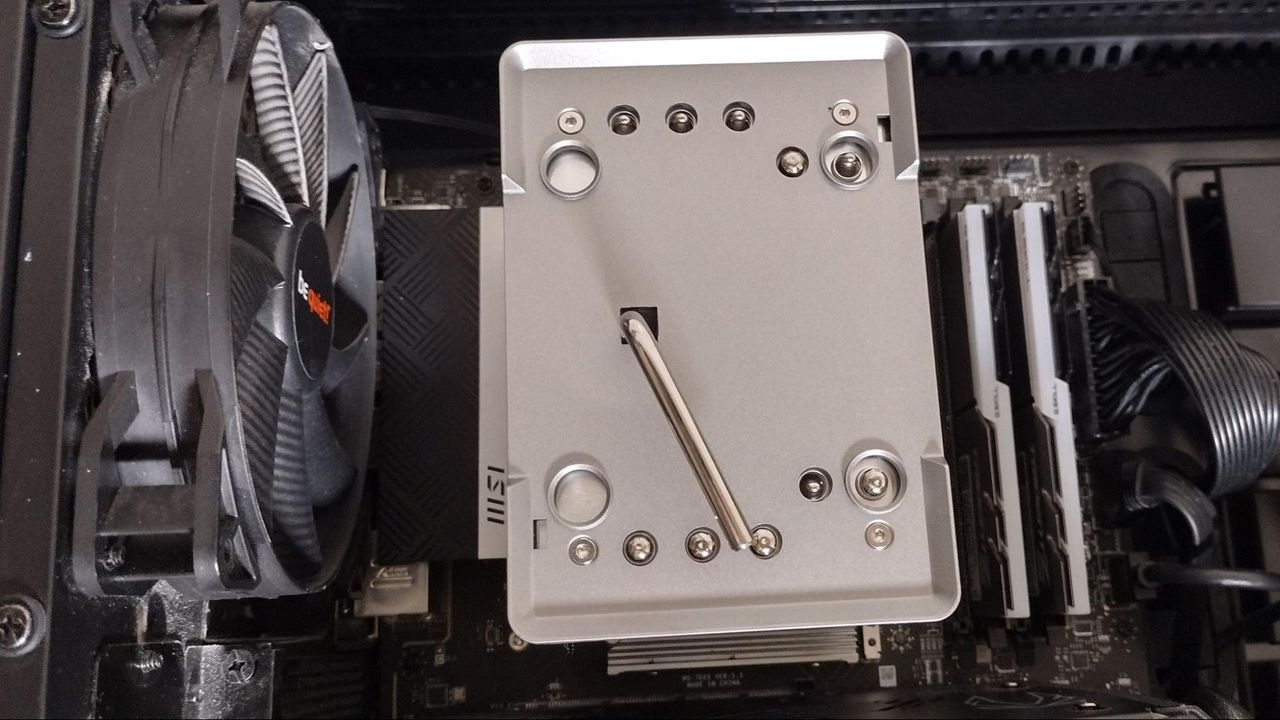

The AK500’s thermal paste isn’t pre-installed, but DeepCool instead includes a medium-sized tube of thermal paste that can be used for multiple applications. After applying the thermal paste, you’ll need to secure the heatsink against the mounting bars with the captive screws. This is where it can be a little tricky. The screw on the right is easy enough to secure, but the screw on the left requires the use of a long screwdriver through the body of the heatsink, and it can be tricky to aim properly.

New Testing Configuration

Swipe to scroll horizontally
CoolerDeepCool AK500 Air Cooler
Comparison Coolers TestedBeQuiet Pure Loop 2 FX, 360mm AIO
 Cooler Master Master Liquid PL360 Flux 360mm AIO
 Cougar Forza 85 Air Cooler
 Cougar Poseidon GT 360, 360m AIO
 Corsair iCUE H100i Elite 240mm AIO
 DeepCool LS520, 240mm AIO
CPUIntel i9-12900K
MotherboardMSI z690 A-Pro DDR4
CaseBeQuiet! Silent Base 802 Window
PSUDeepCool PQ1000M

What's different than other coolers?

Angled Heatpipes with tall DRAM compatibility

(Image credit: Tom's Hardware)

The heatpipes on the AK500 have an angled offset, which allows for compatibility with tall RAM – you shouldn’t have to worry about RAM height causing installation problems. DeepCool says the internal capillary structure of the heatpipes has been optimized to achieve high heat dissipation, no matter the orientation of the cooler, whether installed vertically or horizontally.

Optimized Metal Mounting Bracket

(Image credit: DeepCool)

The included metal mounting bracket has been optimized to ensure proper contact on the latest Intel and AMD platforms.

(Image credit: Tom's Hardware)

Mounting Clips for a 2nd fan

While the AK500 only includes one fan, DeepCool has included an extra pair of fan clips for enthusiasts who want to add a second fan for maximum cooling performance.

1x DeepCool FK120 fan

(Image credit: Tom's Hardware)

There’s more to an air cooler than just a heatsink. The fan included has a significant impact on cooling, noise levels, and performance. Included with DeepCool’s AK500 is a single 120mm FK120 model fan. On the sides of the LK120 fans, there are two arrows. One arrow shows the direction the fans spin, the other indicates the direction of the airflow.

(Image credit: Tom's Hardware)
Swipe to scroll horizontally
ModelFK120
Dimensions120 x 120 x 25 mm
Fan Speed500-1550 RPM ±10%
Air Flow68.99 CFM
Air Pressure2.19 mmAq
Noise LevelUp to 31.5 dB(A)
LightingNone

Checkerboard Matrix Fin Array

(Image credit: Tom's Hardware)

The AK500 incorporates a matrix fin array, resembling a checkerboard, which is designed to increase the static pressure of the airflow.

Testing Configuration

I'll be testing DeepCool’s AK500 paired with Intel’s i9-12900K CPU installed in MSI’s z690 A PRO DDR4 motherboard and BeQuiet’s Silent Base 802 Computer Case. I’ve mentioned in previous reviews that due to the increased thermal density of the Intel 7 manufacturing process, as well as changes to core and component layouts, Alder Lake CPUs are more difficult to cool than previous generation CPUs in the most core-intensive of workloads.

This means that coolers that kept previous generation products like the i9-10900K nice and cool sometimes struggle to keep Intel's i9-12900K under Tj max (the top temperature before the CPU starts to throttle). Many coolers I’ve tested have failed to keep the i9-12900K under TJ max when power limits are removed in workloads like Cinebench and OCCT.

For this review, I’ll be primarily comparing DeepCool’s AK500 to Cougar’s Forza 85, but I’ll also include results from various liquid coolers I’ve tested recently.

Please note there are many factors other than the CPU cooler that can influence your cooling performance. A system's motherboard can especially influence this, as there are boards on the market with CPU sockets that aren't up to Intel's spec, which can cause warping or poor contact with the CPU. The case you use will also influence cooling results.

With Alder Lake's cooling demands in mind, I'll be rating CPU Coolers in 3 different tiers.

Tier 1: These coolers are able to keep the i9-12900K below TJ max in most loads, with no power limits enforced. I expect only the best liquid coolers to meet this standard.

Tier 2: These coolers are able to keep the i9-12900K under the TJ max threshold with CPU power limits of 200W enforced. I expect most liquid coolers and the best air coolers to meet this standard.

Tier 3: These coolers are able to keep the i9-12900K under TJ max with CPU power limits of 140W enforced.

Testing Methodology

To test the limits of a cooler's thermal dissipation capabilities, I run two primary stress tests: Cinebench and OCCT each for 10 minutes. While this may be a short amount of time, it is sufficient to push most coolers – air and liquid – to their limits.

While stress testing in Cinebench, I run both with power limits removed and with an enforced 200W CPU power limit. In this test setup using MSI’s z690 A Pro DDR4 Motherboard and Be Quiet’s Silent Base 802 Computer Case, only the best coolers are able to pass Cinebench testing when power limits are removed.

I don’t test OCCT without power limits because attempting to do so results in CPU package power consumption jumping to over 270W and instantly throttling with even the best AIO coolers. Instead, I test at 200W to give coolers a chance at passing. I’ve included 140W results to give data comparable to a CPU that doesn’t use as much power, such as AMD’s Ryzen 5800X or Intel’s i5-12600K. 95W test results are also included, for those interested in results comparable to low TDP CPUs such as AMD’s Ryzen 5600x or Intel’s i5-12400.

Albert Thomas
Freelancer, CPU Cooling Reviewer

Albert Thomas is a contributor for Tom’s Hardware, primarily covering CPU cooling reviews.
