Dual DDR For Pentium 4: Intel E7205 Chipset Put To The Test

Asus P4G8X, Continued

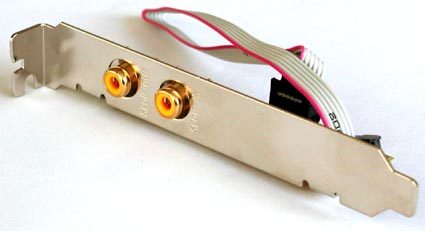

Slot bracket with SP/ DIF for audio

IEEE1394/ FireWire (i.Link) with small and large port.

Game port and two additional USB 2.0 ports.

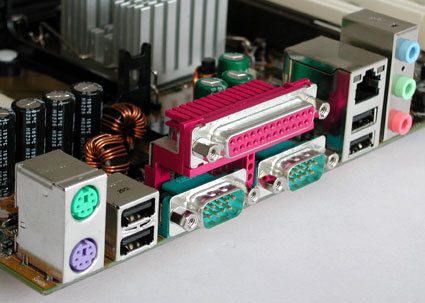

View of the ATX bay: PS/ 2 mouse, keyboard, 2 x 2 USB, two serial, one parallel, 1 GB/second network and 3x sound

Expensive voltage regulation for memory: additional fixed voltage regulator in use.

The Broadcom chip supplies the 1 GB/second network.

Two serial ATA ports powered by SiliconImage.

Uwe Scheffel
