Benchmarks And Conclusion

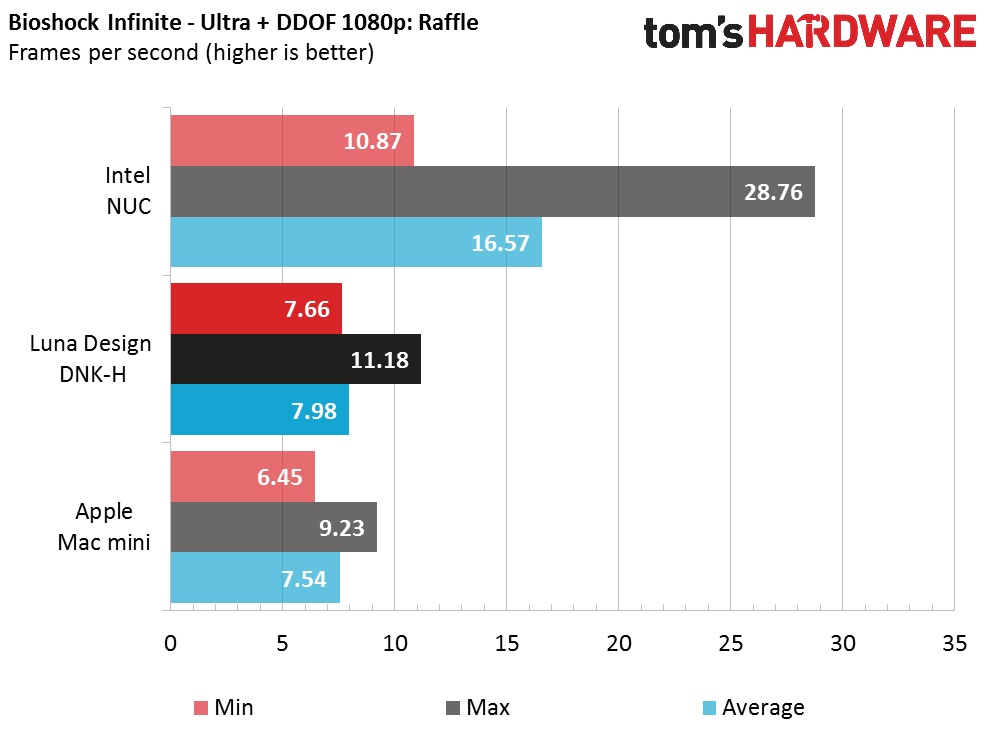

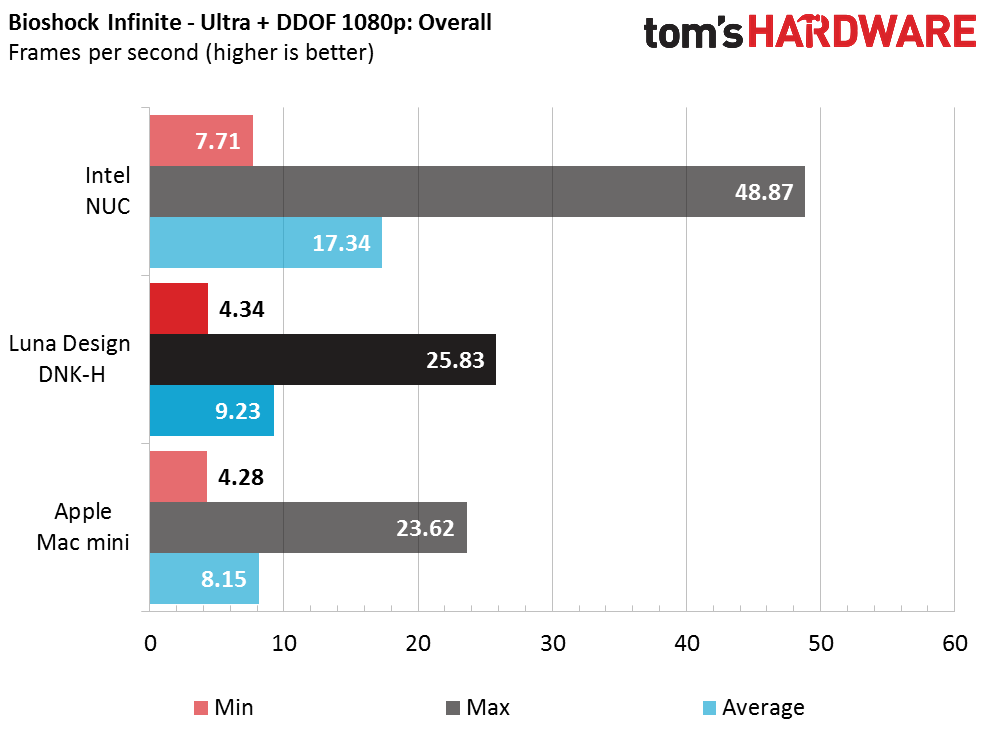

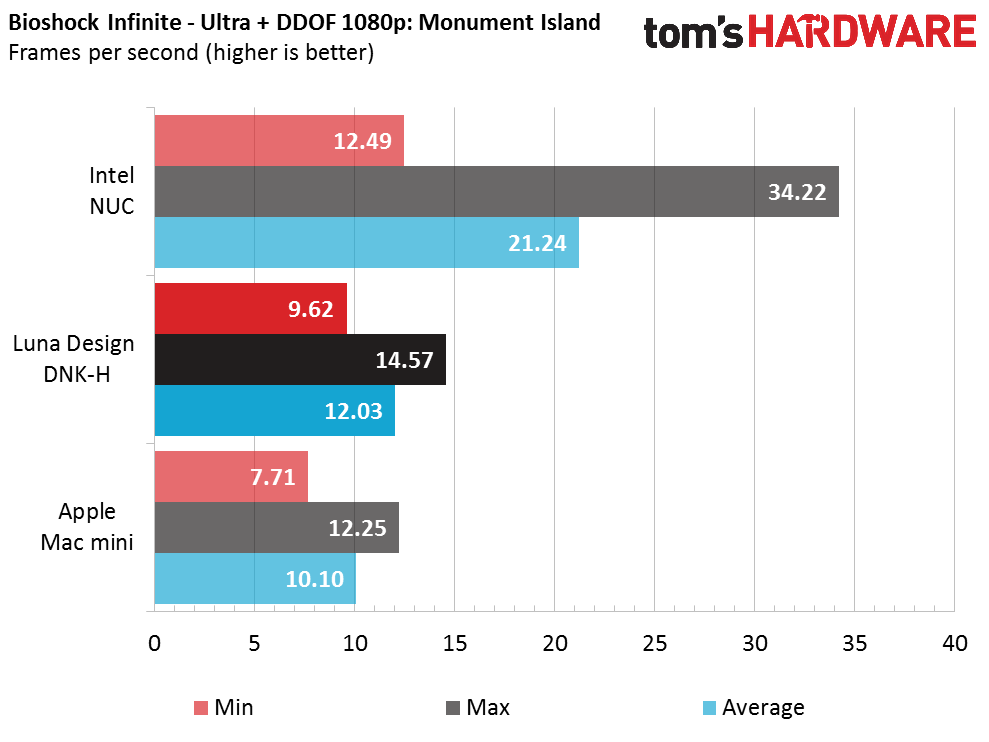

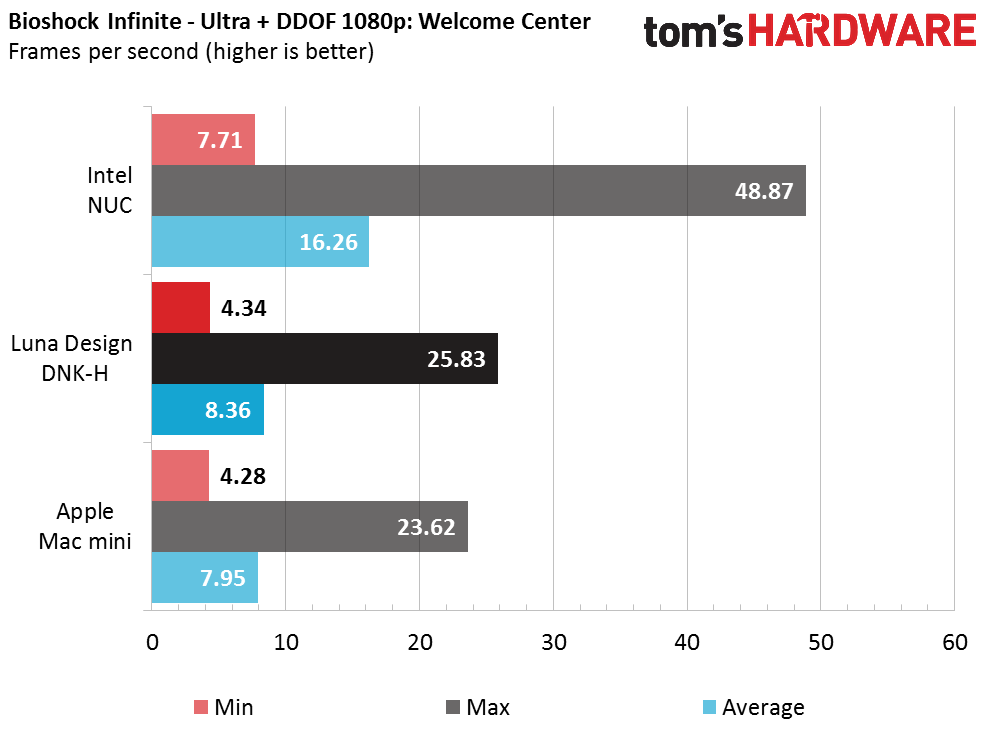

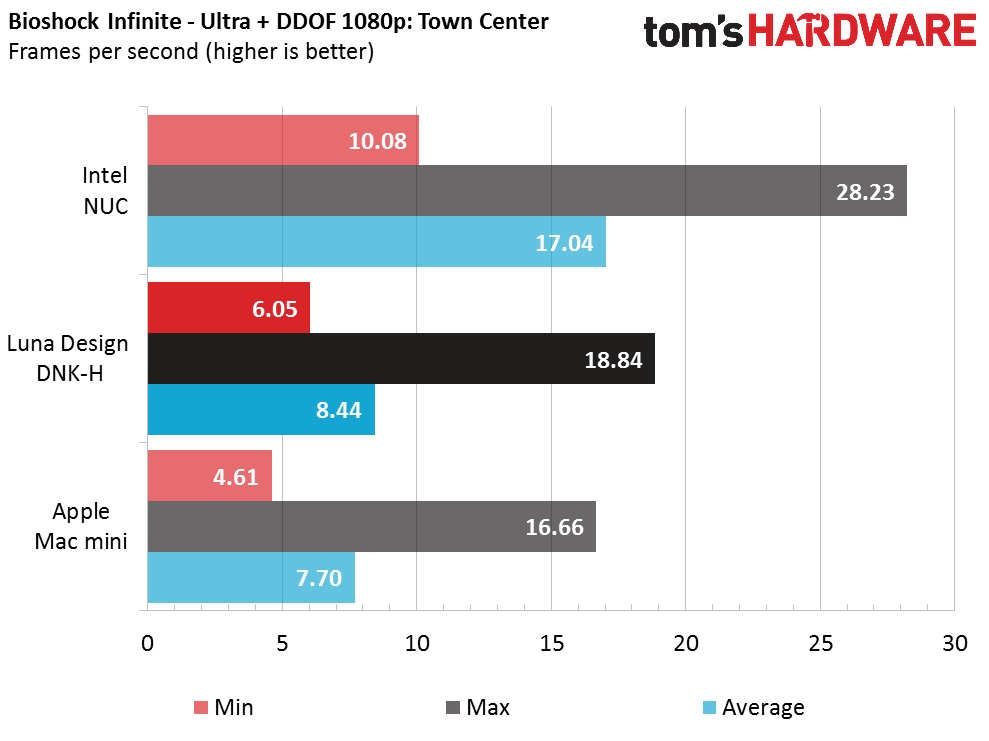

We ran the Luna Design DNK-H through our standard First Look suite, with a couple of extra tests added. Our standard test suite consists of PCMark 8, 3DMark Fire Strike, and Unigine Valley for the synthetic tests, as well as the built-in benchmarks in Bioshock Infinite and Metro: Last Light Redux for the gaming tests. Because compact systems are expected to be both cool and quiet, we’ve added CPU thermal testing and noise testing to the mix.

Latest Videos FromTom's Hardware

Watch full video here:

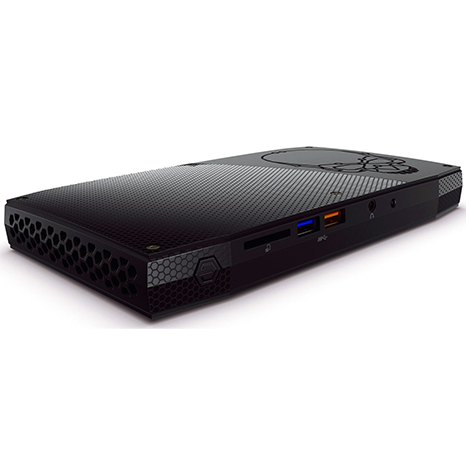

For our first benchmark we see the DNK-H and the NUC trade blows as the DNK-H’s more powerful desktop CPU comes out on top in the Work test while the NUC’s Iris Pro GPU gives it a distinct advantage in the more GPU-bound Home and Creative tests. Meanwhile, we find Apple’s Mac mini in last place with its aging mobile CPU, which can’t keep up with the modern hardware found in the other two products.

We conducted today’s thermal tests by running both Prime95 (small FFTs) and 3DMark 11’s Graphics Test 1 (extreme preset) for a punishing, full two hours on each system. Then we averaged Tcore temperature from each core to determine the CPU’s overall temperature, from which we subtracted the ambient temperature of the room to derive the final value. The room temperature for today’s tests was maintained at approximately 26°C (78.8°F).

Even after a full two hours of intense load on its 65W TDP Intel Core i7-6700, the DNK-H manages to maintain a somewhat high, but still quite acceptable overall temperature of 83.5°C, mainly thanks to its full-size heatsink and cooling fan. Meanwhile, even with lower TDP processors, the heat pipes and small cooling fans in the Mac mini and NUC leave them roasting with overall temperatures of 92.2°C and 93.6°C respectively.

Because compact systems should be both cool and quiet, we put all three systems to the test with our Galaxy CM-140 SPL meter. We measured the CPU fan noise of each system by placing the meter 0.25m away from the front left corner of each system, with the meter’s microphone pointed directly at the system’s case. The numbers were then corrected to the 1m industry standard – used by many loudspeaker and fan manufacturers – by subtracting 12 decibels.

All three systems are quiet enough at idle that they managed to push our sound meter to its limits by coming in just under its certified 32 dBA minimum. Short of placing your ear against one of them, you won’t be able to hear them under light loads. Under more intense loads we start to see a marked increase in fan noise. The same cooling solution that left the Mac mini roasting in our temperature test also makes it the quietest system of the three. Meanwhile, we see the DNK-H and NUC trading blows, with the win going to the DNK-H for its lower overall temperatures.

Luna Design’s DNK-H is a great compact system, in the sense that you can either buy the case standalone and build your own system, or have the company build one for you. If you choose to have Luna Design build one for you, you get a great system full of parts that are guaranteed to work together, and if you choose to go it on your own, you still get a great compact case with lots of space, and a built-in cooling system and power supply, all of which is ready to build. Finally, the ability to use a desktop CPU instead of its mobile equivalent should place the DNK-H above a good bit of the competition, especially in the pre-built systems market which is dominated by less capable mobile processors.

Even though the DNK-H is a great system, it won’t be replacing your gaming desktop or laptop any time soon. As a whole, compact systems like the DNK-H usually don't fare well in heavy graphics workloads because they lack a discrete graphics card. Furthermore, the scarcity of desktop CPUs with on-chip, high-performance graphics, and that drop into an LGA socket, make gaming with the DNK-H even more difficult, even with lowered settings.
