SilverStone SX500-G PSU Review

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the SX500-G's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally
Test12V5V3.3V5VSBPass/Fail
10% Load24.9mV17.1mV21.9mV16.6mVPass
20% Load36.8mV14.3mV14.4mV15.3mVPass
30% Load24.2mV17.9mV15.4mV21.2mVPass
40% Load23.9mV21.1mV21.4mV23.9mVPass
50% Load23.1mV21.7mV23.9mV20.4mVPass
60% Load25.8mV29.0mV28.9mV23.8mVPass
70% Load29.0mV27.0mV33.1mV27.4mVPass
80% Load30.9mV30.2mV36.0mV30.4mVPass
90% Load31.7mV32.4mV30.8mV34.3mVPass
100% Load35.4mV36.0mV36.5mV32.0mVPass
110% Load37.1mV35.0mV36.6mV34.2mVPass
Cross-Load 132.9mV28.1mV38.2mV30.0mVPass
Cross-Load 234.6mV47.7mV46.8mV28.9mVPass

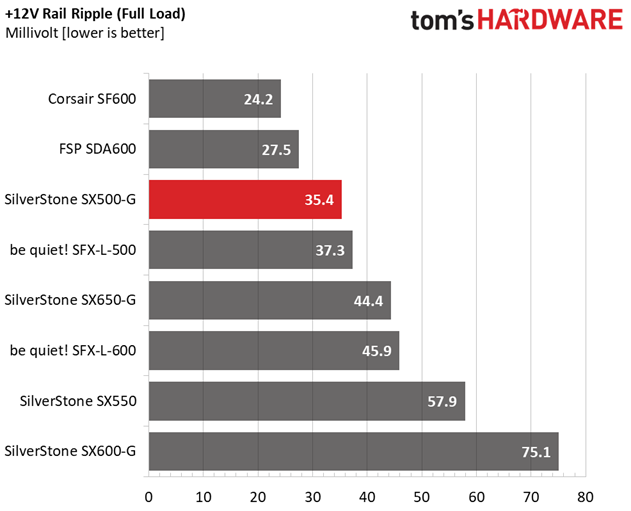

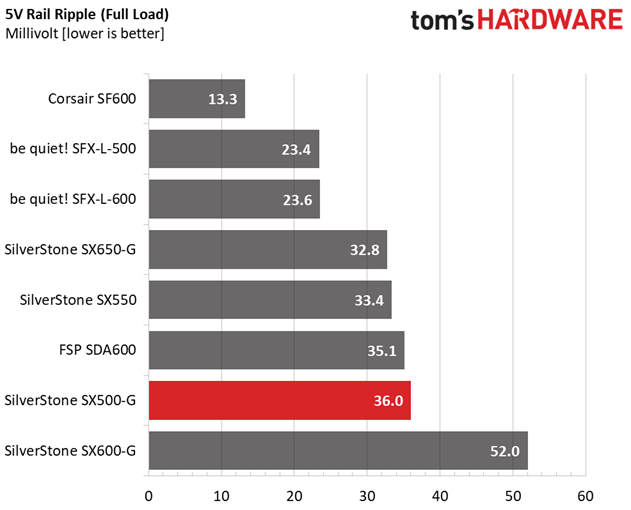

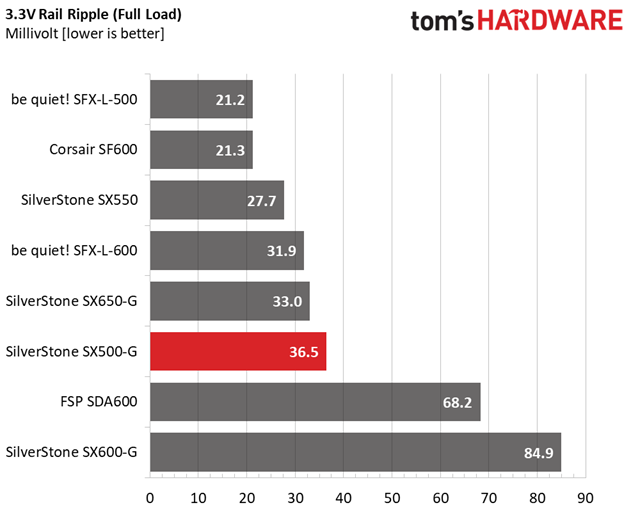

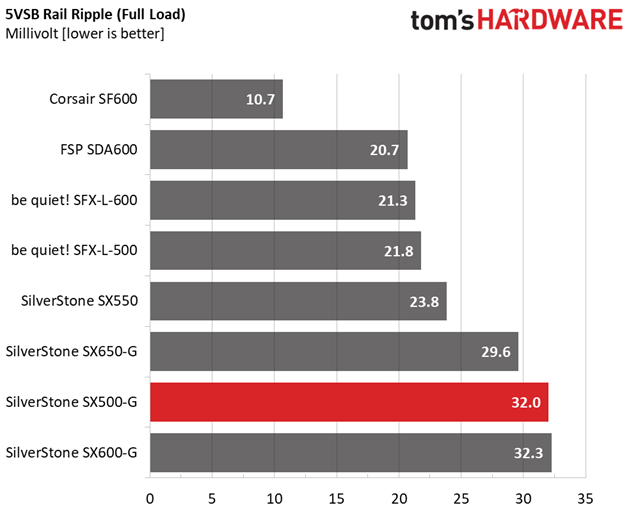

Ripple suppression is good on the +12V rail and average on the minor rails, where we want to see below 30mV readings (<20mV, ideally). The 5VSB rail is close to 34mV, and we did notice a strange (small) drop on this rail during the full load test.

Ripple Oscilloscope Screenshots

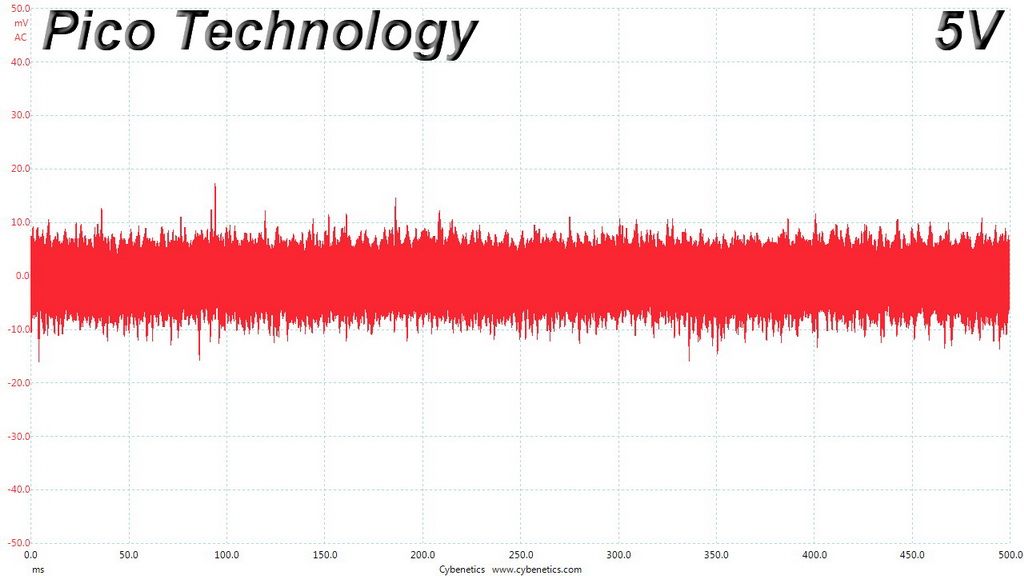

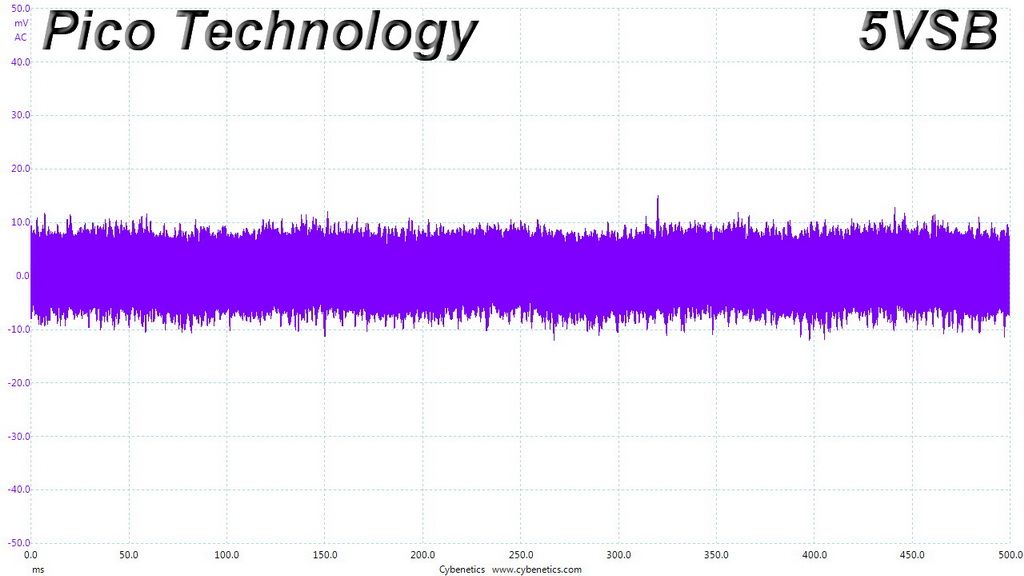

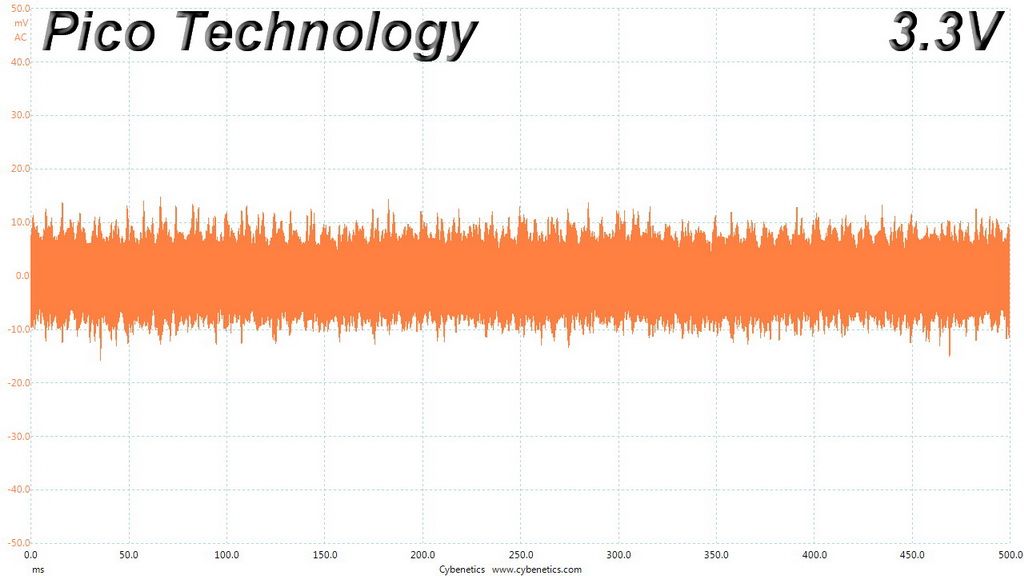

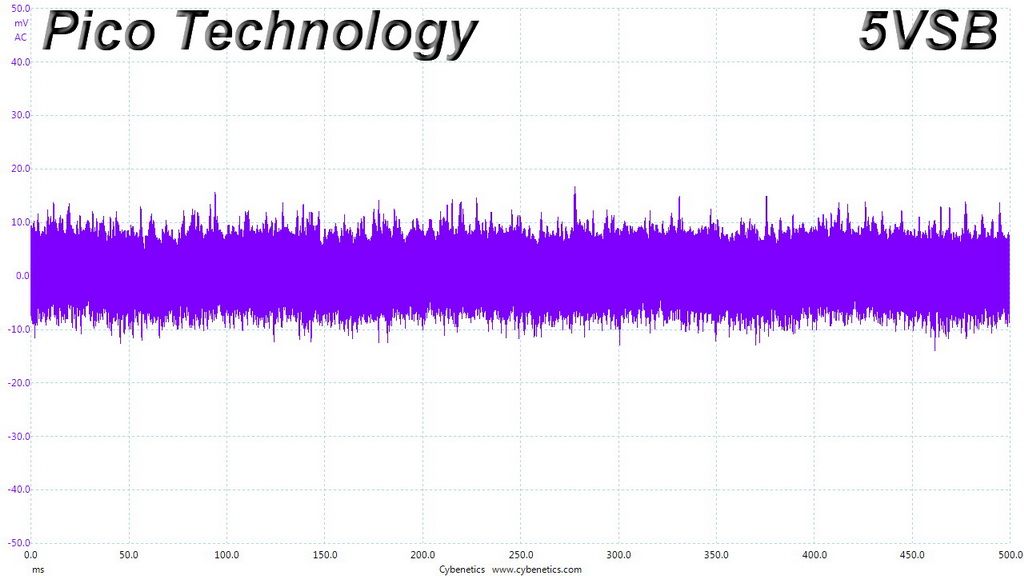

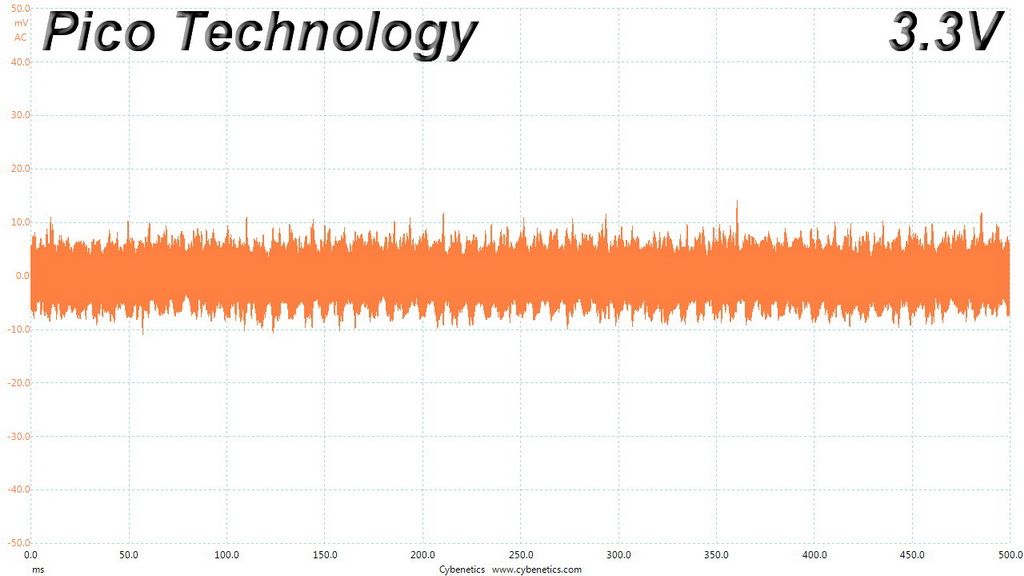

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

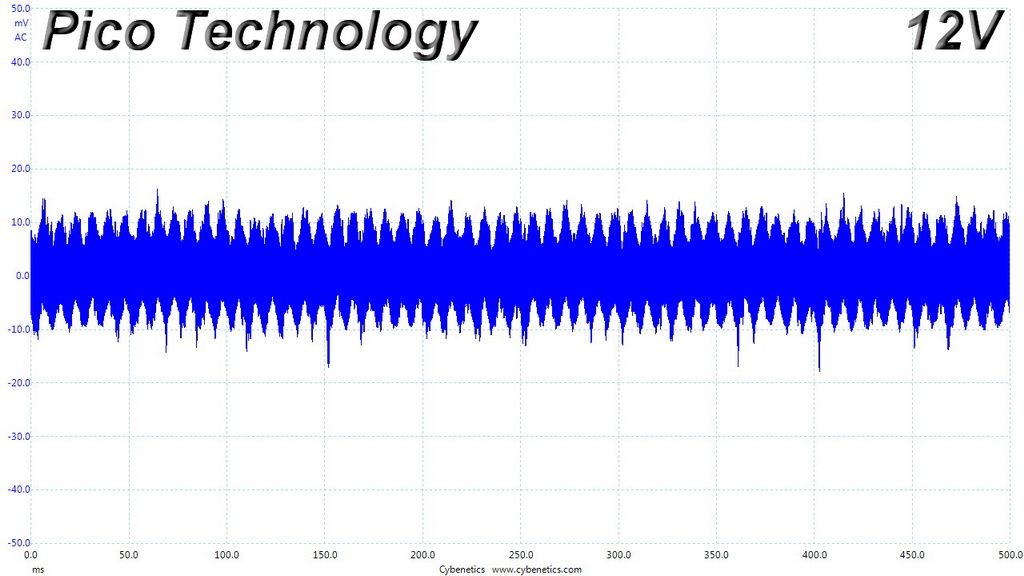

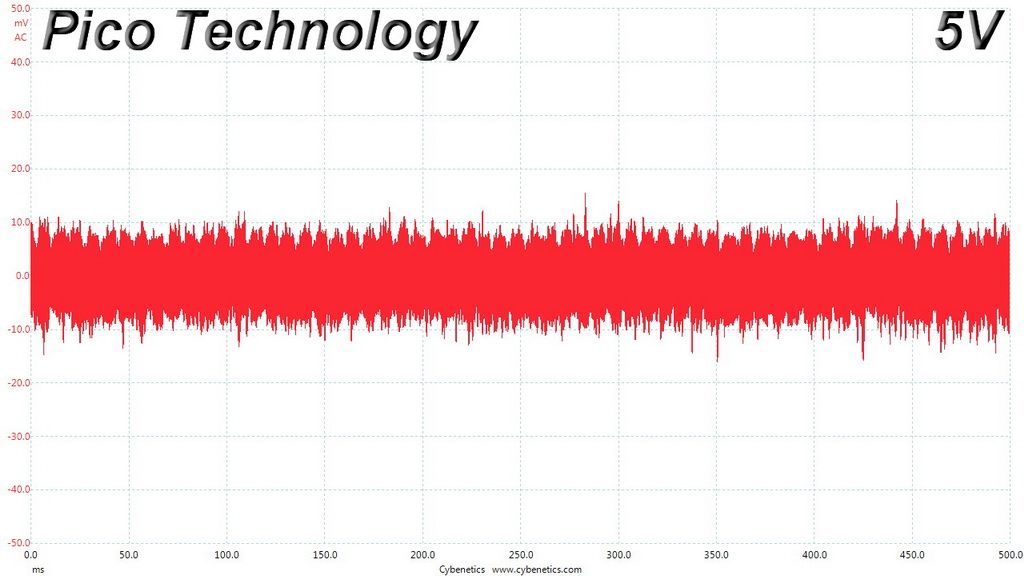

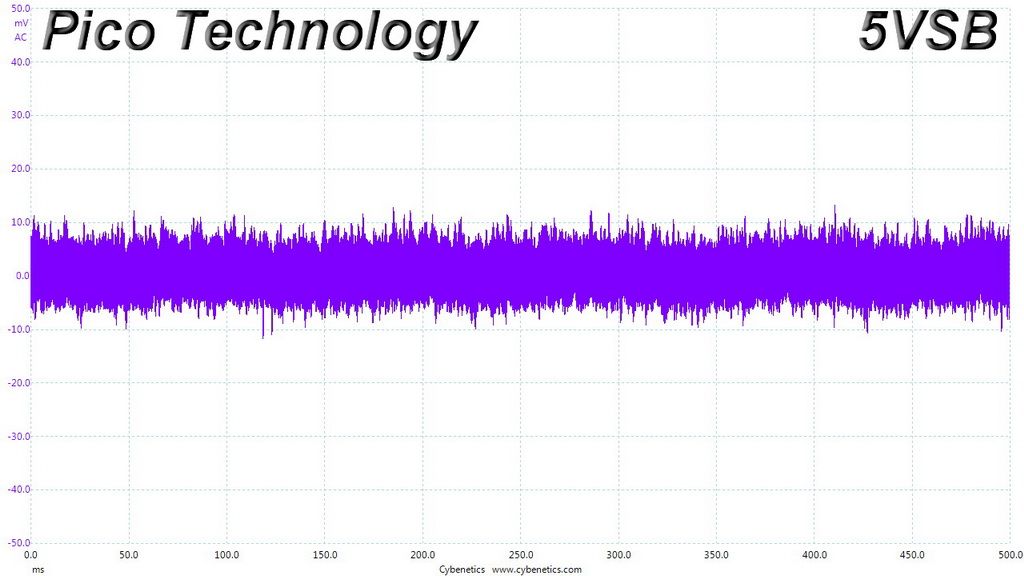

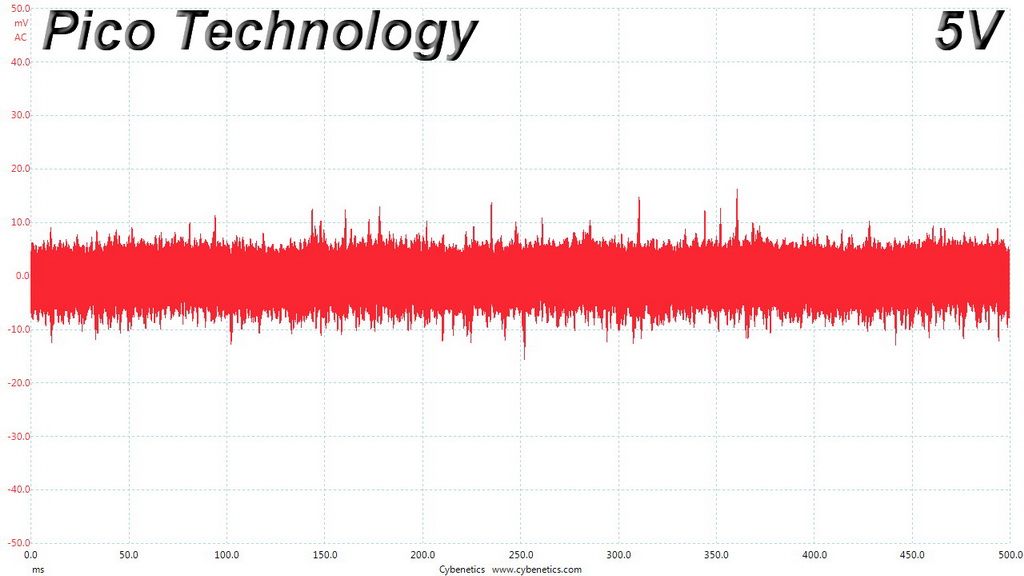

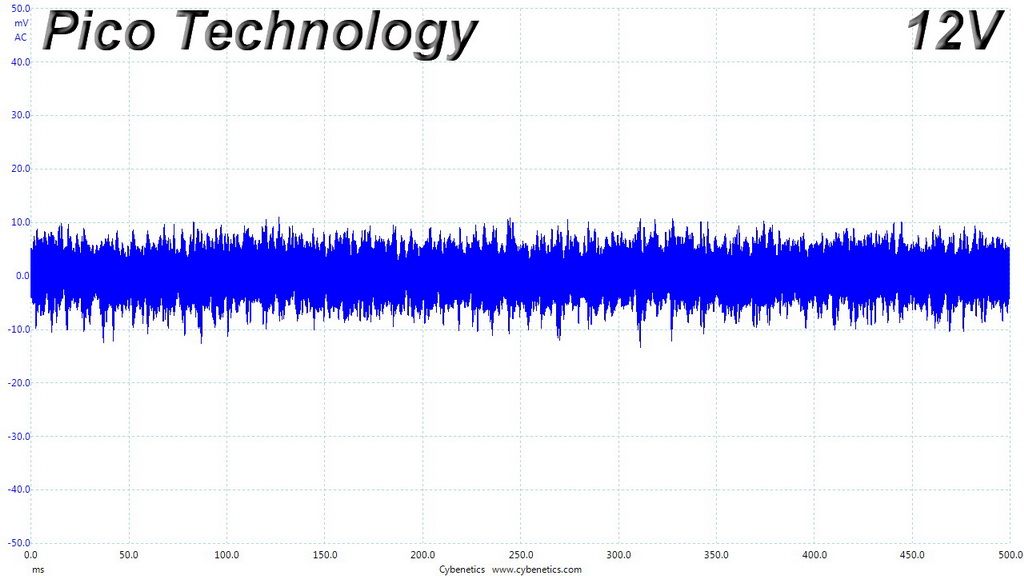

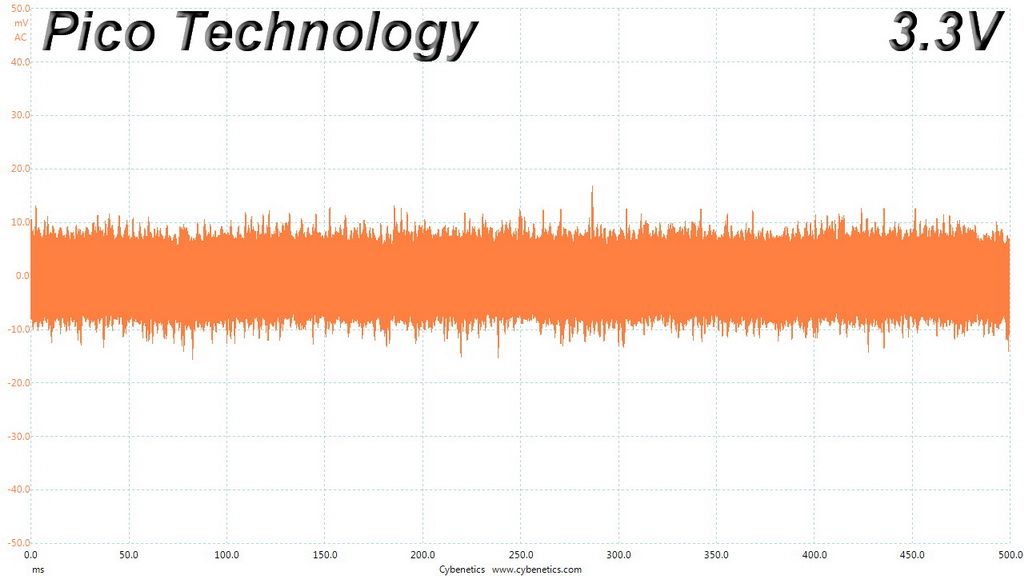

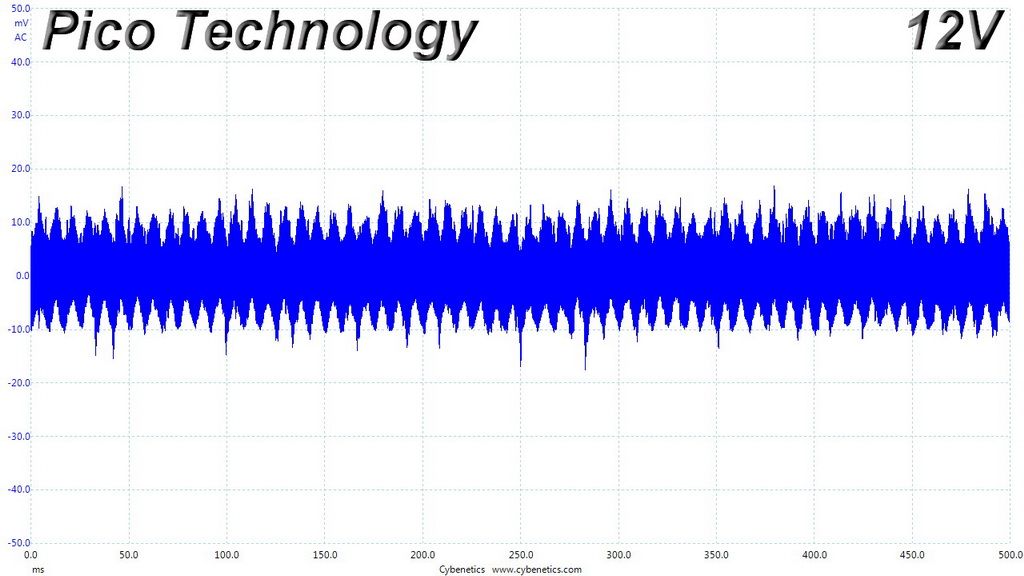

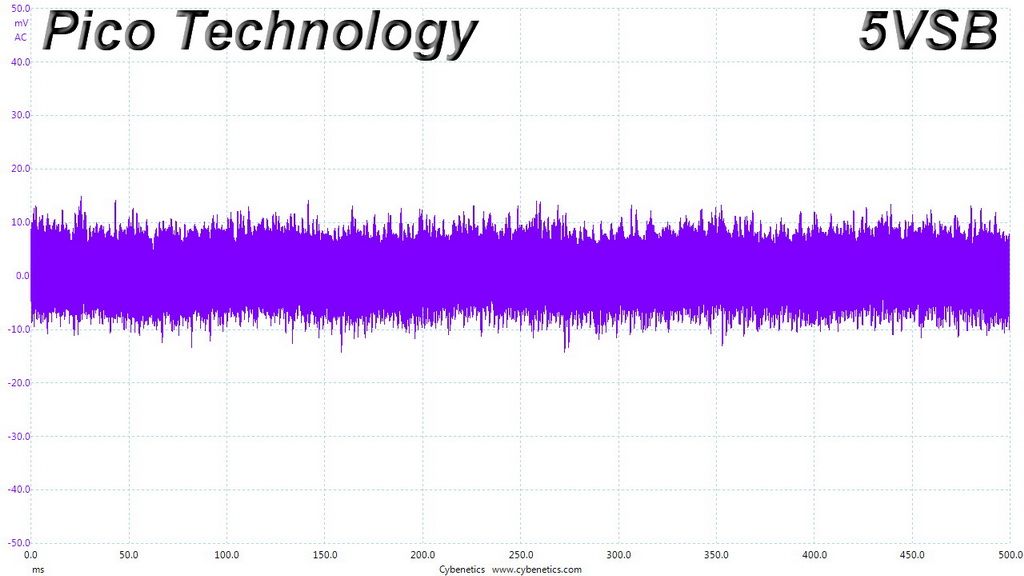

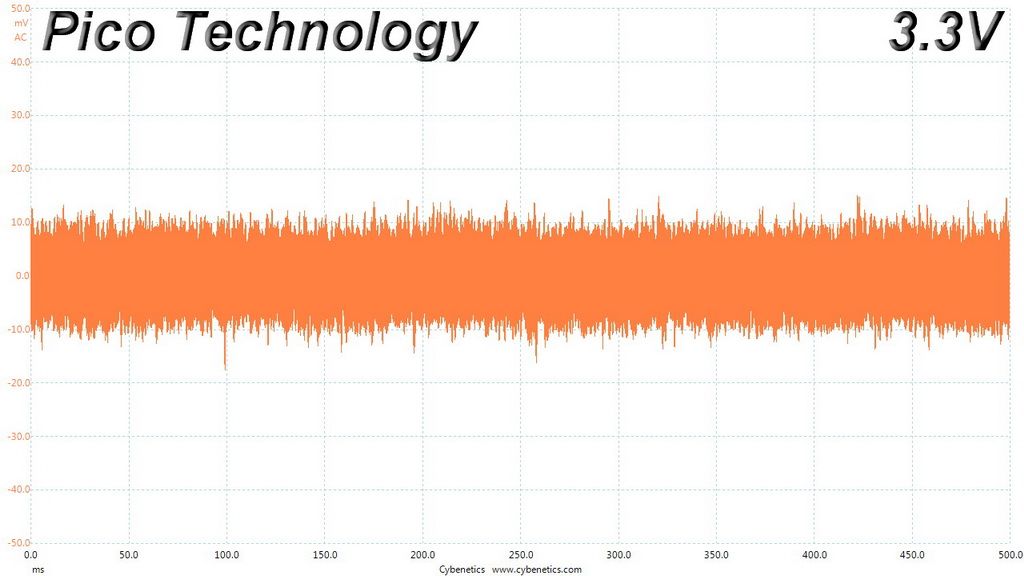

Ripple At Full Load

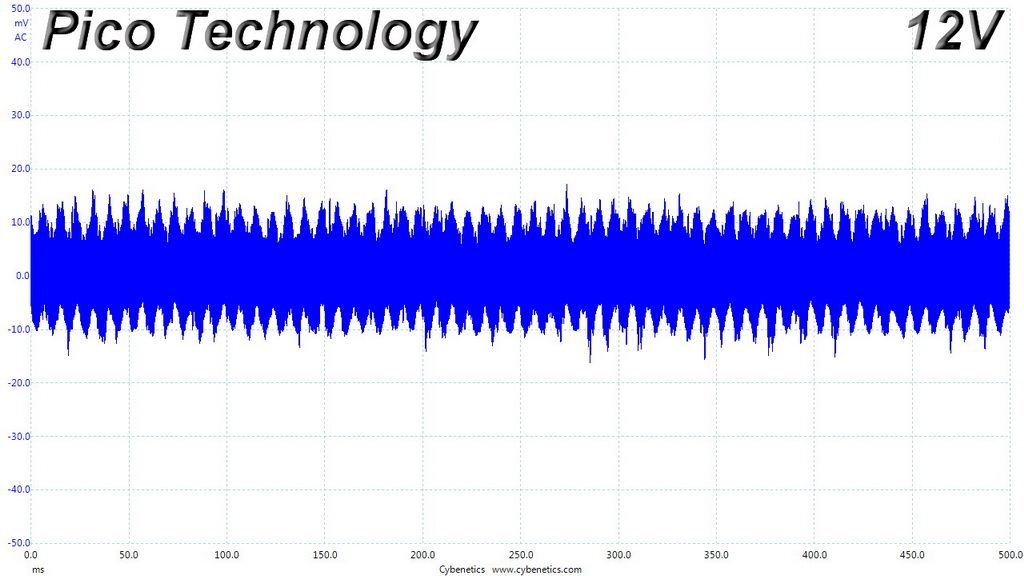

Ripple At 110-Percent Load

Ripple At Cross-Load 1

Ripple At Cross-Load 2


MORE: Best Power Supplies


MORE: How We Test Power Supplies


MORE: All Power Supply Content
