Performance, Value, Noise & Efficiency

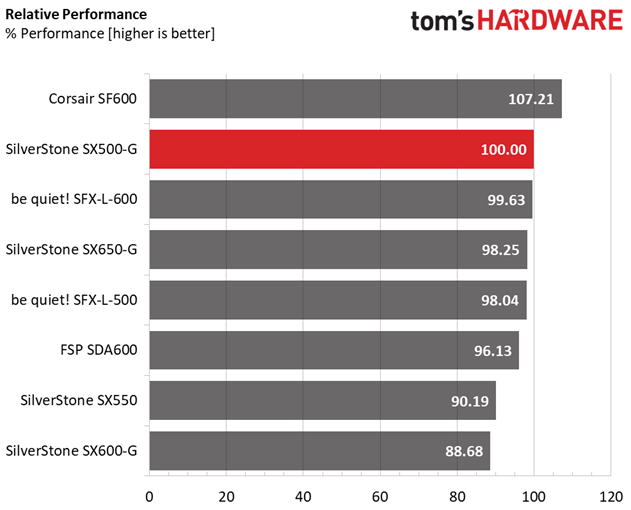

The following graph shows the SX500-G's total performance rating, comparing it to other units we have tested. To be more specific, the tested unit is shown as 100 percent, and every other unit's performance is shown relative to it.
SilverStone achieves very good overall performance, although there's still a big gap between its SX500-G and the top-notch Corsair SF600.
Performance Per Dollar
The following chart may be the most interesting to many of you because it depicts the unit's performance-per-dollar score. We looked up the current price of each PSU on popular online shops and used those prices and all relative performance numbers to calculate the index. If the specific unit wasn't available in the United States, we searched for it in popular European Union shops, converting the listed price to USD (without VAT). Note that all of the numbers in the following graph are normalized by the rated power of each PSU.
The SX500-G demonstrates a decent value ratio, mostly thanks to its good performance.
The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30°C and 32°C (86°F to 89.6°F).
Thanks to a relaxed fan profile, the SX500-G operates quietly. An SFX form factor makes it hard to keep noise output low. But a 92mm fan translates to slower rotational speeds than PSUs armed with 80mm fans, which obviously helps.
The following graph shows the PSU's average efficiency throughout its operating range, with an ambient temperature close to 30°C.
This PSU's overall efficiency score is in line with its competition. Once more, only Corsair's SF600 fares notably better.
