ASRock RX 5500 XT Phantom Gaming D Review: Inexpensive, Well-performing

Inexpensive, cool running and performs well

ASRock RX 5500 XT Phantom Gaming D
(Image: © Shutterstock)

Beginning with the 1080p ultra results, the ASRock RX 5500 XT Phantom Gaming D averaged 71.9 fps across all titles. At these settings, all but three titles—Metro: Exodus (37.7 fps), The Division 2 (57.9 fps) and Borderlands 3 (42.9 fps)—are able to average at least 60 fps and provide a smooth gaming experience. All of AMD’s RX 5500 XT cards are capable 1080p ultra video cards, though some games will need to reduce settings to reach 60 fps.

Looking at the other RX 5500 XT cards in this review, the ASRock card is just as fast as the other 8GB variants—all averaging over 71 fps with the Asus O8G Gaming averaging 71.7 fps and the Gigabyte 71.3 fps. The Sapphire Pulse RX 5500 XT 4GB is well behind at 63 fps (or 13% slower) because some titles showed a severe performance drop due to the 4GB memory and PCIe 3.0 x8 configuration.

If we include the two Nvidia based GPUs, our ASRock review card is almost 4% faster than the much less expensive Zotac GTX 1650 Super (69.3 fps average), and over 6% slower than the slightly more expensive Zotac GTX 1660 Amp (76.6 average). Since these Turing based video cards do not support ray tracing or DLSS, the decision between some of these cards will come down to price, performance (both thermal and fps) and card features.

The Divison 2

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Borderlands 3

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Gears of War 5

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

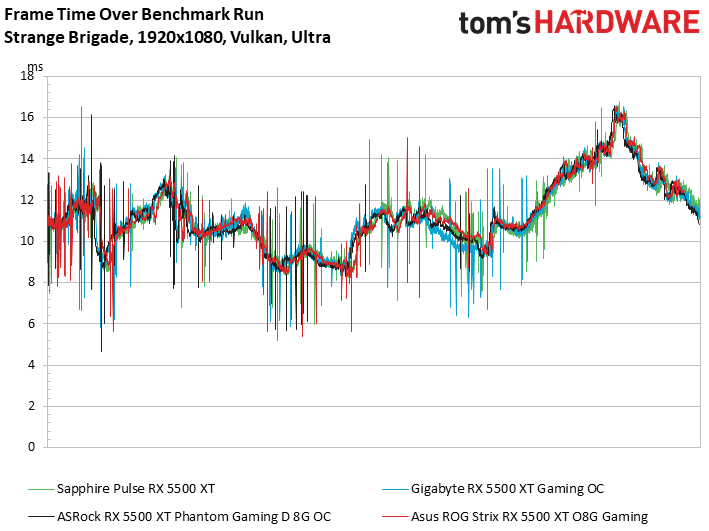

Strange Brigade

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

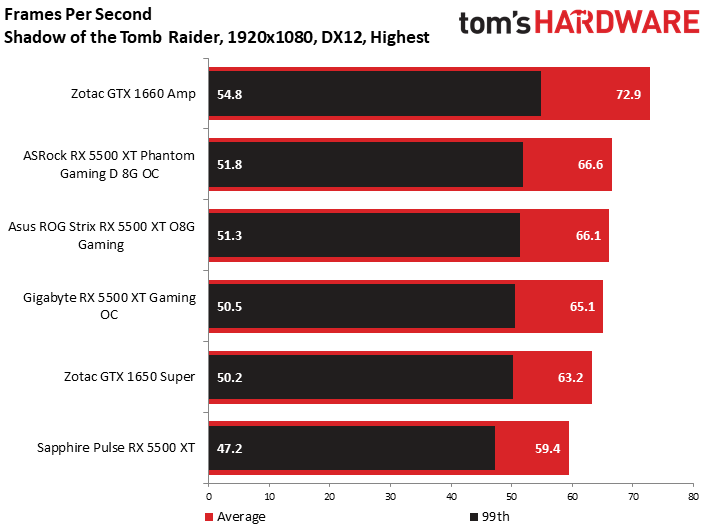

Shadow of the Tomb Raider

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Far Cry 5

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Metro: Exodus

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

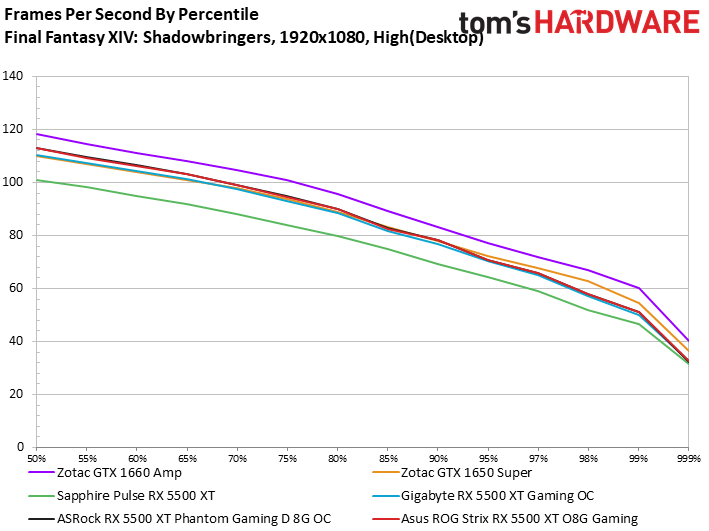

Final Fantasy XIV: Shadowbringers

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

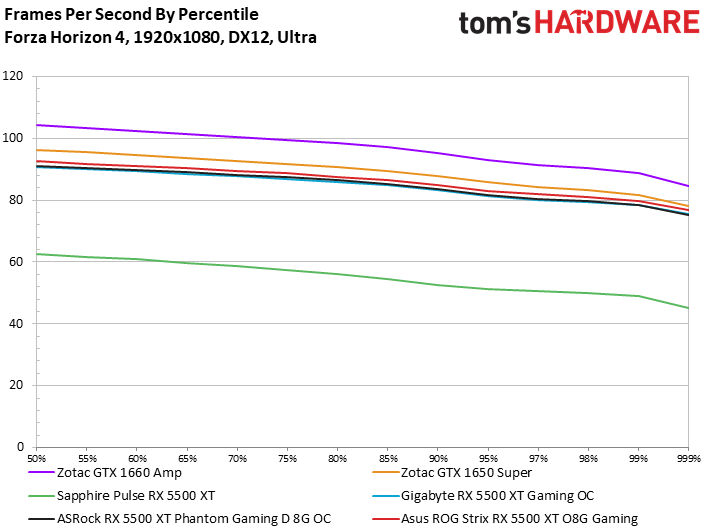

Forza Horizon 4

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

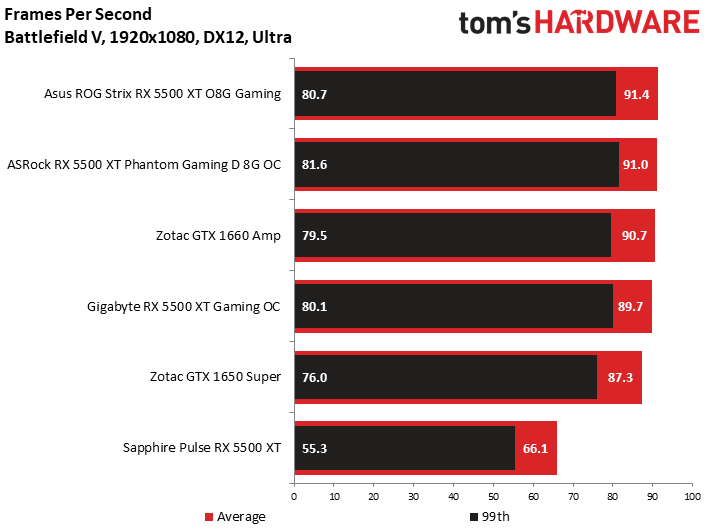

Battlefield V

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

MORE: Best Graphics Cards

MORE: Desktop GPU Performance Hierarchy Table

MORE: All Graphics Content
