ASRock RX 5500 XT Phantom Gaming D Review: Inexpensive, Well-performing

Inexpensive, cool running and performs well

By

ASRock RX 5500 XT Phantom Gaming D
(Image: © Shutterstock)

Staying at 1080p resolution but lowering the image quality settings to medium allowed all the games to reach over 60 fps. The ASRock Phantom Gaming D averaged 102 fps along with the Asus. The Gigabyte Gaming OC averaged 101 fps—all are within 1% of each other, which is basically the margin of error for our testing and wouldn’t be noticeable in gaming.

At these settings, the Sapphire Pulse didn’t choke on its 4GB of VRAM with medium settings and ended up only 4% behind. Most games were over 80 fps with a few (The Division 2, Strange Brigade, Final Fantasy XIV, Forza Horizon 4 and Battlefield V) averaging well over 100 fps. Dropping down to the medium settings shows a significant performance increase over ultra.

Performance differences between the ASRock Phantom Gaming D and the Nvidia cards are similar to the 1080p ultra results, with the GTX 1650 Super about 5% slower and the GTX 1660 almost 4% faster. This is a more CPU bound setting so the performance gaps tend to shrink at these settings compared to higher resolutions and image quality.

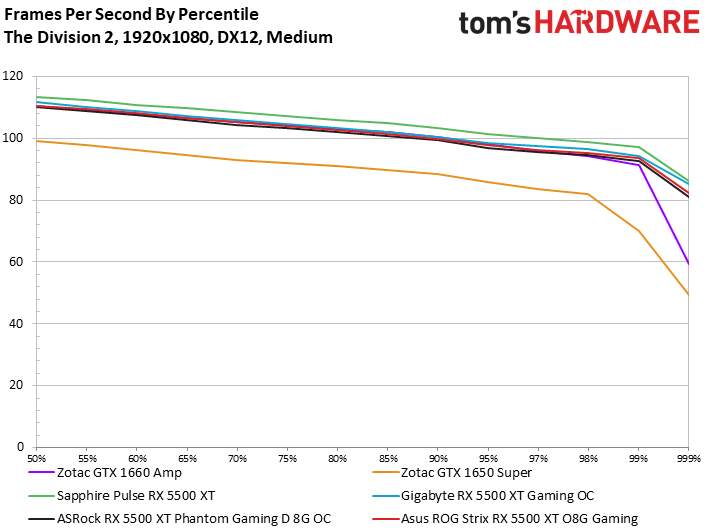

The Divison 2

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

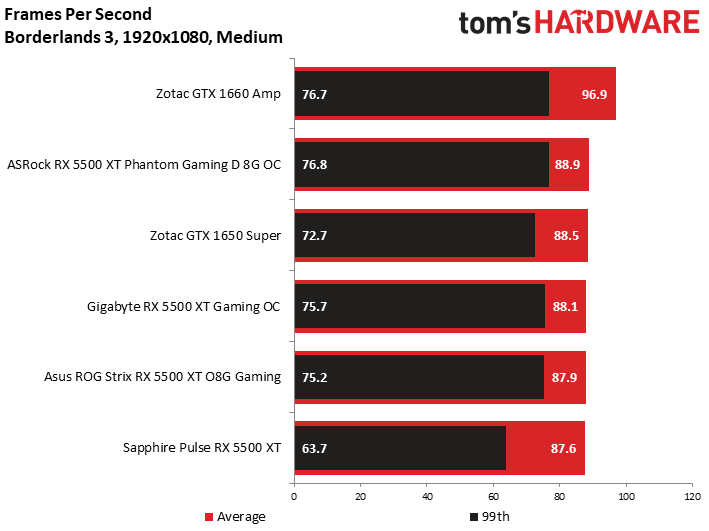

Borderlands 3

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Gears of War 5

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Strange Brigade

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Shadow of the Tomb Raider

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Far Cry 5

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Metro: Exodus

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Final Fantasy XIV: Shadowbringers

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Forza Horizon 4

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

Battlefield V

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

MORE: Best Graphics Cards

MORE: Desktop GPU Performance Hierarchy Table

MORE: All Graphics Content
