ASRock TRX40 Creator Review: a Threadripper Value?

This board has faster networking and a better slot configuration than pricier models.

(Image: © Tom's Hardware)

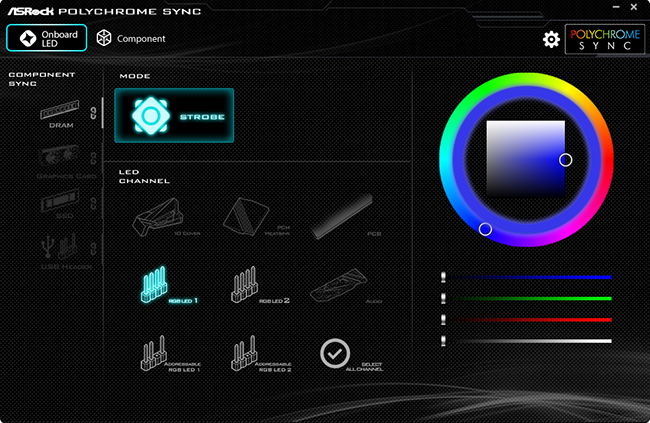

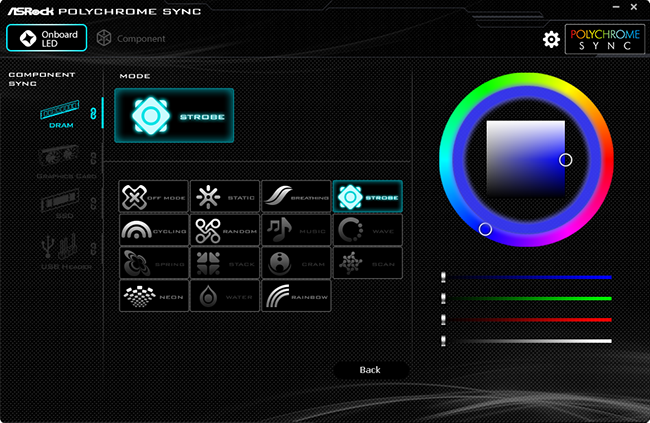

The TRX40 Creator has no onboard RGB, so its onboard controls are for RGB and ARGB headers. Our DRAM was recognized only after we installed its own RGB app, which in turn installed the controller driver that Polychrome Sync required. Uninstalling the memory vendor’s app while retaining the added driver was likewise effective.

Image 1 of 2

(Image credit: Tom's Hardware)
Image 2 of 2

(Image credit: Tom's Hardware)

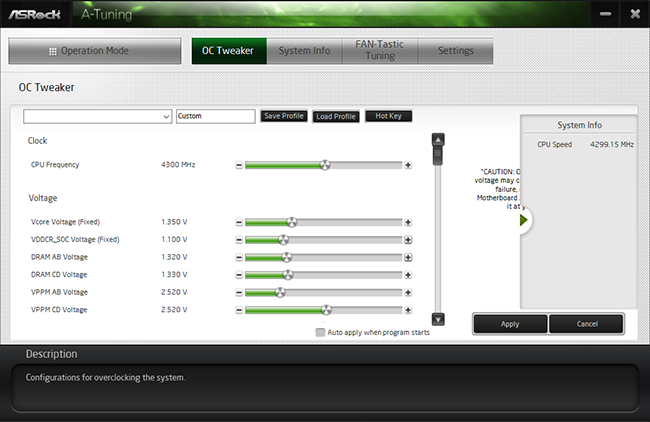

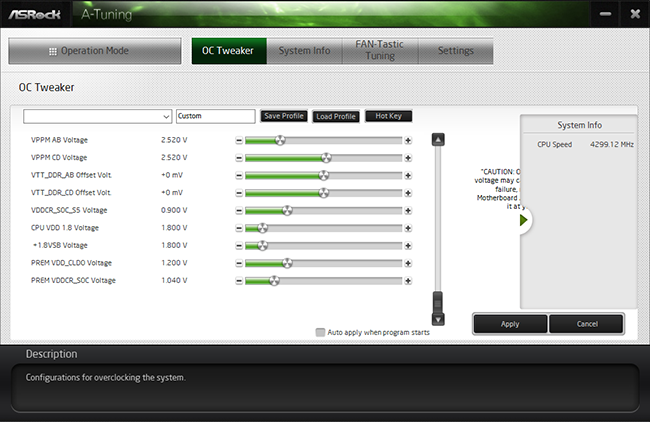

ASRock A-Tuning wasn’t even listed as an option within ASRock’s “App Shop” updater, so we were surprised to find a working copy on the motherboard’s support webpage. Users can choose their own CPU frequency and voltage levels within reason, and the results were reported accurate in CPU-Z.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

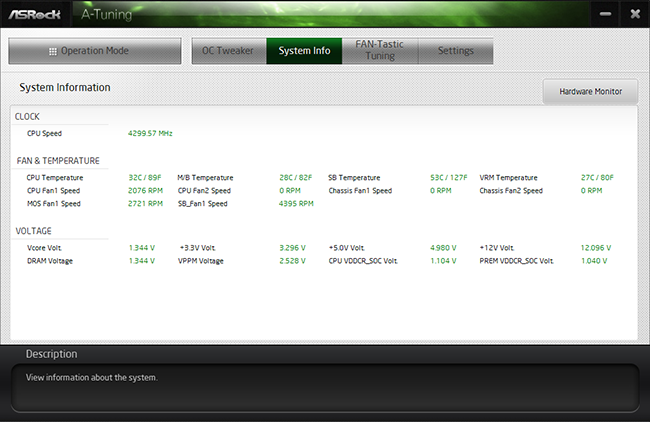

Other A-Tuning features include a System Info page and Fan-Tastic Tuning. Everything appeared close to being correct on System Info, with the widest variation being that DRAM voltage levels reported as 1.352V by our meter were displayed as 1.344V here.

Firmware

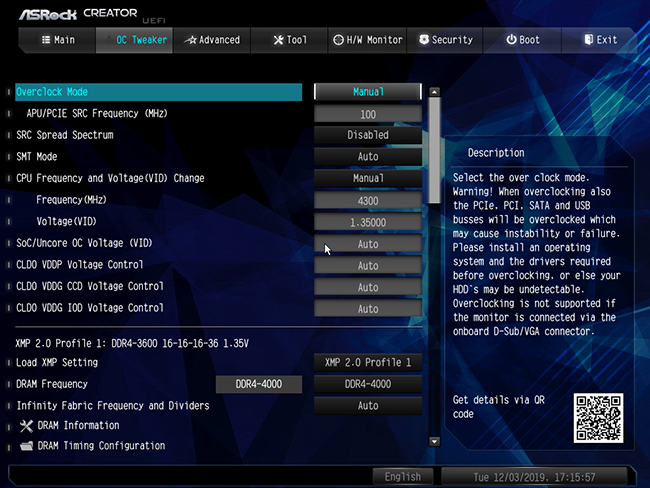

The OC Teaker menu of TRX40 Creator firmware provides all of the settings that most moderately-experienced overclockers will need to push their Threadripper CPU to a somewhat-safe limit. That doesn’t mean it’s perfect though, as we found a significant difference between the DIMM voltage we set and the slot reading of our meter: We try to keep these competitions fair by instituting a hard limit of 1.355V, and achieved 1.352V on both banks by setting the front to 1.32V and the rear to 1.33V.

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

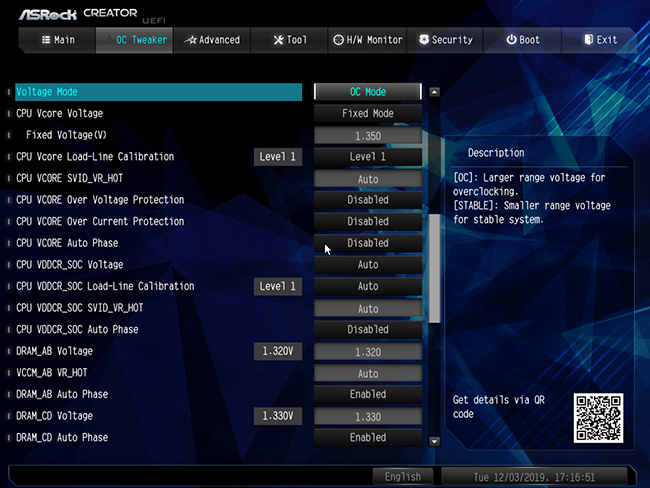

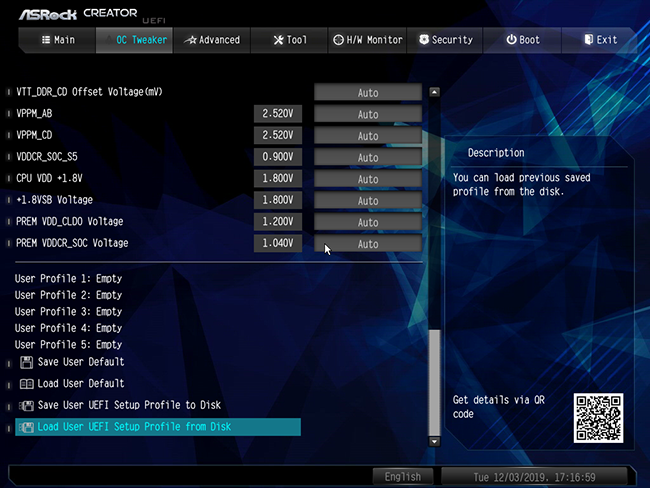

Switching voltage mode from “Stable Mode” to “OC Mode” revealed all the overload limiter that we might have needed to push our CPU past whatever AMD thinks is reasonable. Settings include everything from “CPU VCORE SVID_VR_Hot” to “CPU VCORE Auto Phase” in the second image, above.

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

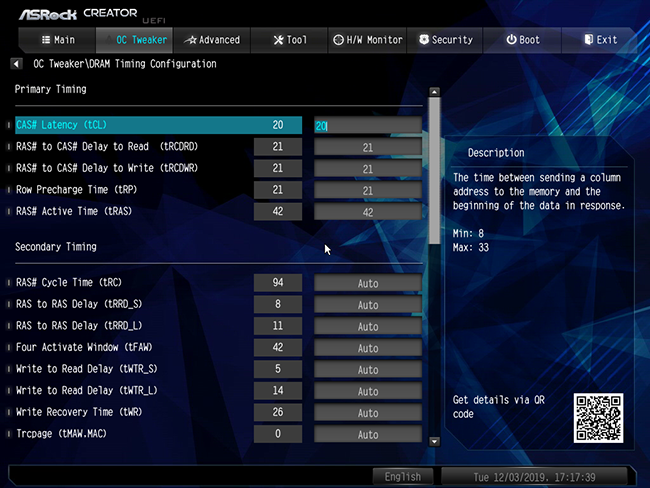

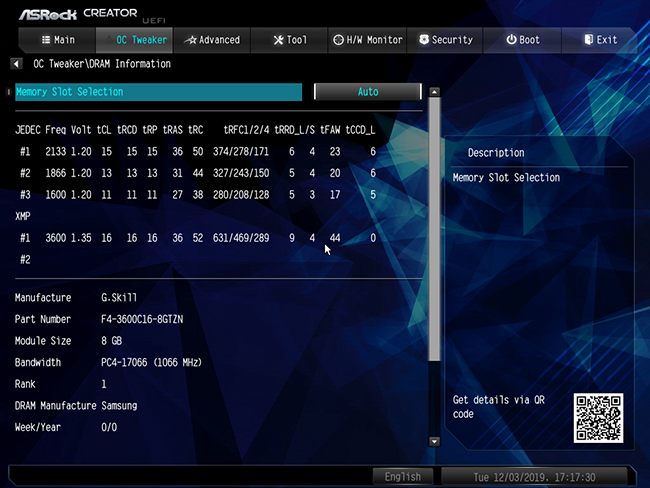

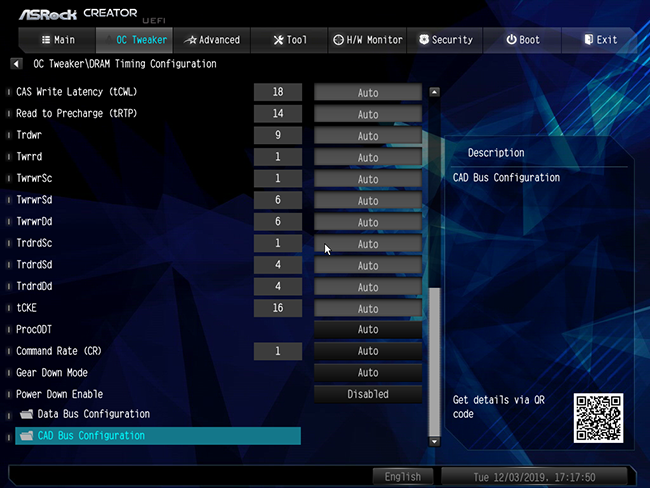

Submenus also allow memory tweakers to view module programming and pick their own primary and secondary memory timings.

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

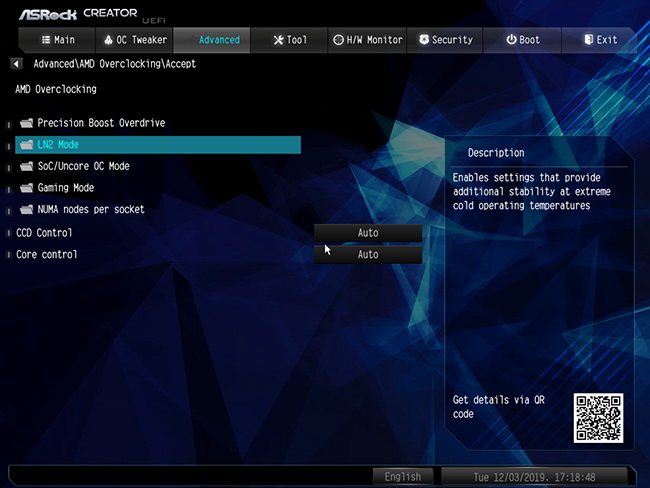

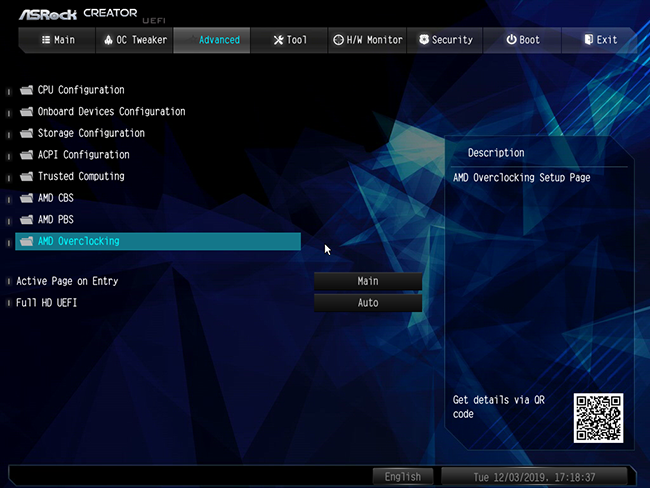

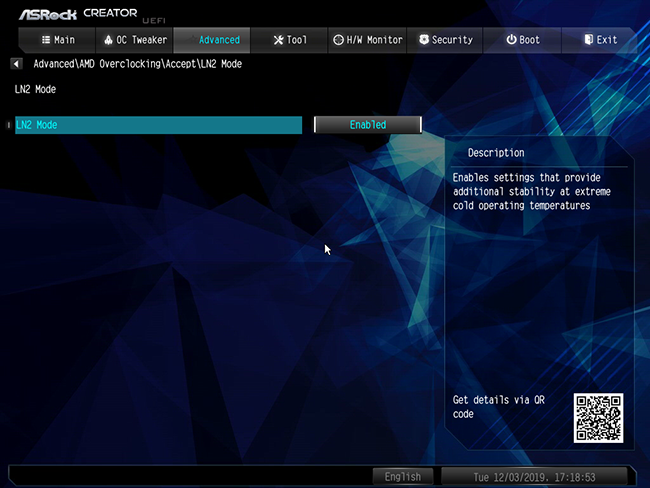

Most of the CPU thermal and power limits revealed by changing the previously-mentioned voltage mode setting to “OC Mode” can be automatically disabled by switching to “LN2 Mode” from the AMD Overclocking menu under the TRX40 Creator’s “Advanced” menu.

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

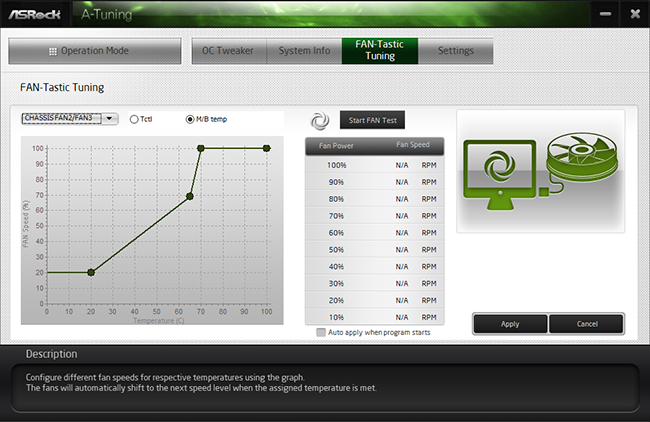

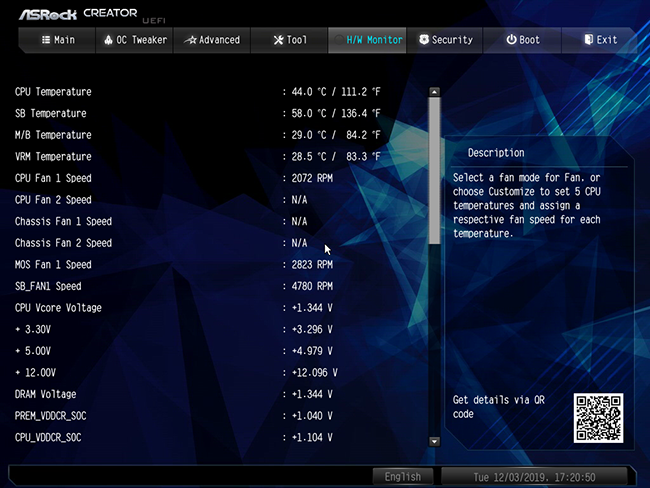

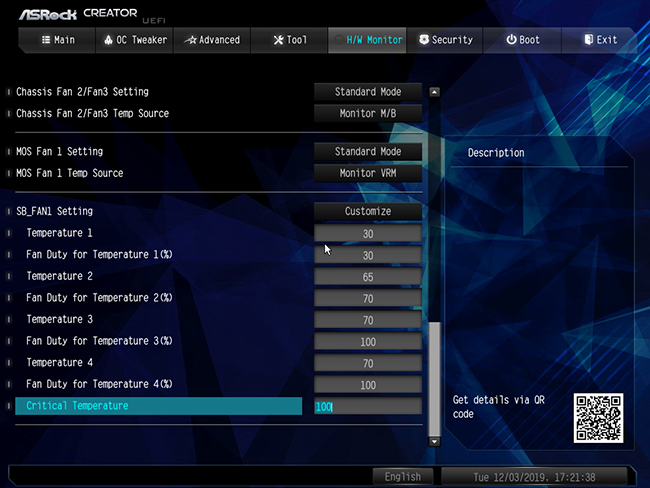

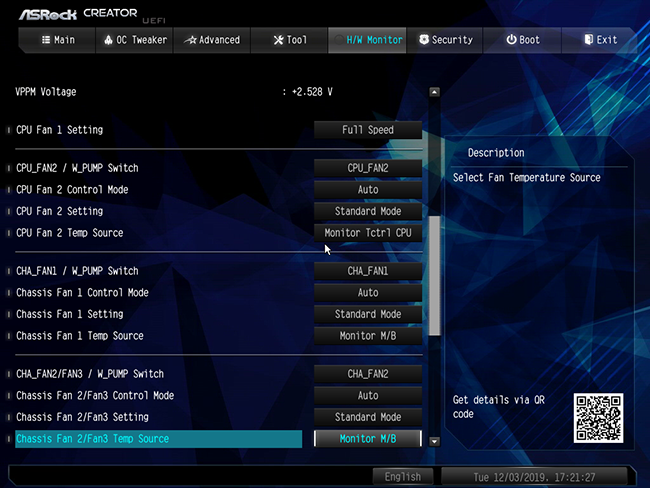

Fan controls at the bottom of the HW Monitor menu allow users to pick from a manufacturer program or set their own numerically. Four of the five open fan headers can be switched between PWM and voltage-based RPM control, but the first CPU fan header is PWM-only.

Comparison Hardware

Frequency and Voltage settingsASRock TRX40 CreatorGigabyte TRX40 Aorus Master
BIOSL1.13 (11/22/2019)F4a (11/06/2019)
Reference Clock100-200 MHz (1 MHz)100-300 MHz (0.1 MHz)
CPU Multiplier22-63x (0.25x)8-63x (0.25x)
DRAM Data Rates1866-2666/5000/6000 (267/66/100 MHz)1333-2666/5000/6000 (266/66/100 MHz)
CPU Voltage0.90-1.60V (5 mV)0.75-1.80V (6.25 mV)
CPU SOC0.70-1.55V (10 mV)0.75-1.80V (6.25 mV)
VDDP0.70-1.55V (10 mV)0.80-2.00V (10mV)
DRAM Voltage1.10-1.80V (5 mV)1.00-2.00V (10 mV)
DDR VTTOffset -600 to +600 mV (10mV)0.75-1.67V (8.33 mV)
Chipset 1.05VXX
CAS Latency8-33 Cycles8-33 Cycles
tRCDRD/RDCWR8-27 Cycles8-27 Cycles
tRP8-27 Cycles8-27 Cycles
tRAS21-58 Cycles21-58 Cycles

ASRock’s TRX40 Creator takes on Gigabyte’s TRX40 Aorus Master and ASRock’s own TRX40 Taichi in our benchmarks, all using our Swiftech SKF TR4 Heirloom water block on an Alphacool Eisbecher D5 / NexXxoS UT60 X-flow cooling system. Gigabyte’s GeForce RTX 2070 Gaming OC 8G, Toshiba’s OCZ RD400, and G.Skill’s Trident-Z DDR4-3600 work to reduce bottlenecks and keep performance focused on the boards.

Overclocking Results

One thing we should note about the TRX40 Creator’s voltage regulator is that the board itself limits the voltage regulator’s theoretical 720A maximum to 670A. Our CPU wouldn’t even get close to that limit when using nothing more than liquid cooling, however.

(Image credit: Tom's Hardware)

The higher load of Prime95 pushes our CPU past any reasonable thermal limit at voltage levels above 1.20V, so we started there and found that frequencies beyond 3925 MHz caused our CPU to throttle after around 20 minutes, regardless of firmware settings (we tried several). This, as opposed to the other boards, were increasing the clock speed beyond shown values caused Prime95 to drop threads / error out.

The highest stable frequency caused over 660W continuous system power draw, which corresponds to over 400A of CPU current being pulled through that 670A-limited voltage regulator (after estimating for other losses). So, perhaps we wouldn’t use this board to overclock AMD’s upcoming 64-core Threadripper 3990X.

(Image credit: Tom's Hardware)

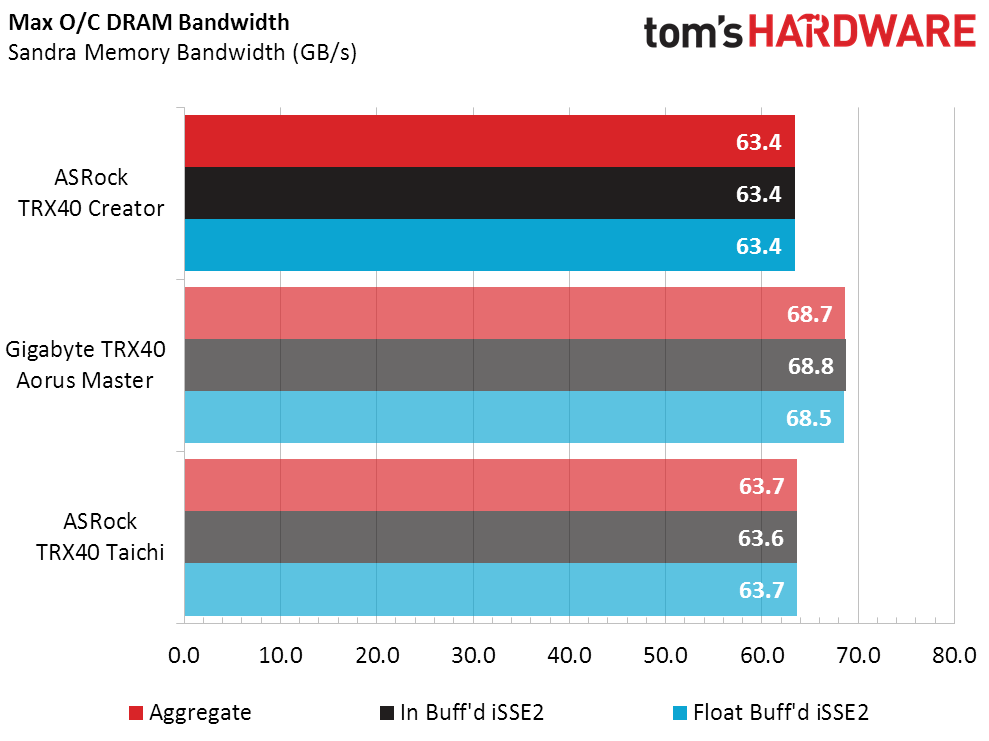

Neither ASRock board was able to match the Gigabyte’s high DRAM OC, and though both outstripped its CPU OC, Gigabyte still prevails in overclocked memory bandwidth. We include this test to dissuade manufacturers from using terribly-slow advanced memory settings to boost stable frequency, as this former problem only went away after we added this test.
