Exploring SSD Performance In Battlefield 3, F1 2011, And Rift

Launching Battlefield 3

Swipe to scroll horizontally
Overall StatisticsBattlefield 3: Launching
Elapsed Time01:24
Read Operations13 978
Write Operations510
Data Read317.54 MB
Data Written12.98 MB
Disk Busy Time2.58 s
Average Data Rate128.16 MB/s

Battlefield 3 requires 20 GB of free space to install, which is more than double Crysis 2's requirement. However, only a small portion of that data is used to launch the game. According to the summary stats, the exact figure is a little over 300 megabytes, which naturally consists of pure reads.

Although this is one of the most visually impressive games launched in 2011, there isn't a ton of I/O involved in starting it. About half of all accesses are randomly organized, and most are 4 KB in size at a queue depth of one. Given that hard drives don't perform as well when they're confronted with random access patterns, even at low queue depths, we're expecting a quantifiable performance improvement when we draw our comparison to magnetic storage.

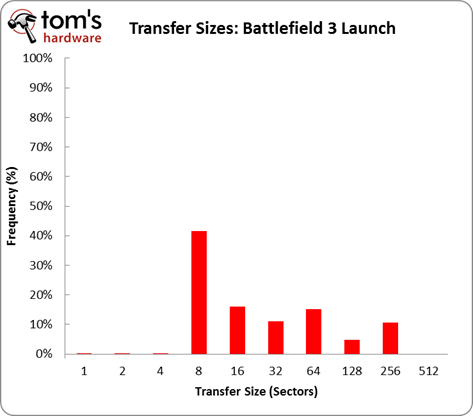

I/O Trends:

  • 93% of all operations occur at a queue depth of one
  • 53% of all operations are random
  • 42% of all operations are 4 KB in transfer size
  • 16% of all operations are 8 KB in transfer size
  • 11% of all operations are 16 KB in transfer size
  • 15% of all operations are 32 KB in transfer size
  • 11% of all operations are 128 KB in transfer size
