Launching Rift
| Overall Statistics | Rift: Launching |
|---|---|
| Elapsed Time | 00:33 |
| Read Operations | 9 233 |
| Write Operations | 268 |
| Data Read | 202.32 MB |
| Data Written | 2.36 MB |
| Disk Busy Time | 1.31 s |
| Average Data Rate | 156.34 MB/s |

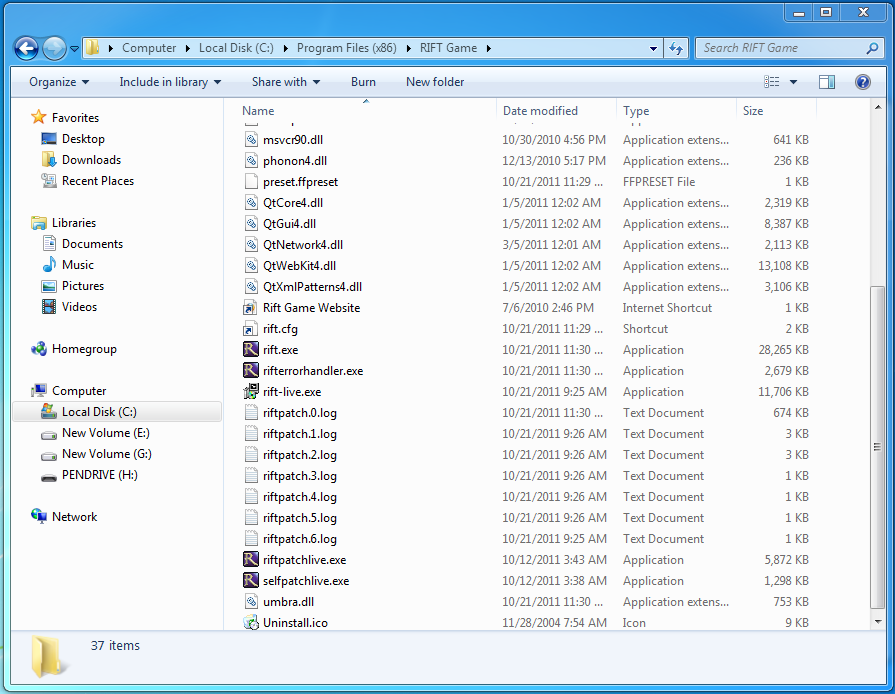

Our WoW installation borders on 25 GiB, and it grows with every update. In comparison, Rift is much smaller, only consuming 9.5 GiB. The latter, however, turns out to be a little more storage-intensive than the former during the launch process. According to our summary stats, the exact figure is a little over 200 megabytes consisting of pure reads.
Overall, both MMORPGs have similar I/O characteristics. Most of the accesses are randomly organized, scattered among various transfer sizes, and at a queue depth of one. That's still great news for SSD owners, since they excel in random transfers. As such, your guild mates gaming on hard drive-equipped systems might not load into the game as quickly.
I/O Trends:
- 81% of all operations occur at a queue depth of one
- 65% of all operations are random
- 16% of all operations are 4 KB in transfer size
- 40% of all operations are 16 KB in transfer size
- 27% of all operations are 32 KB in transfer size
