Cooler Master MasterAir G100M CPU Cooler Review: From Roswell With Love

What better place to roll out a UFO-inspired CPU cooler than in Nevada? (Well, perhaps Roswell, N.M., but we'll settle for Area 51.)

Cooler Master, at CES 2018 in Las Vegas, announced a new cooler for its air-cooling arsenal: the MasterAir G100M. Based on what looks like a 1950s-era sci-fi saucer, the G100M looks like it jumped out of a cheesy alien-invasion film. A sleek, rounded top and gentle curves slope downward to meet the angular fin housing, giving the cooler a low, wide profile.

The MasterAir G100M comes ready for installation with most common AMD and Intel CPU sockets, but it does not have mounting hardware for AMD's Threadripper TR4. Mounting brackets and a universal backplate provide anchor points for the usual threaded standoffs and fastening nuts. An offset spanner wrench is also provided, with open and closed ends for securing the cooler during installation. A small syringe of Cooler Master thermal compound comes in the box, rather than a pre-applied splotch on the cooler base itself. Like most Cooler Master CPU cooling products, the G100M carries a two-year warranty.

Cooler Master has equipped the G100M with a 90mm-diameter version of its RGB MasterFan, which you control via the included thumb remote, or handle in software; you can connect the fan directly to any standard four-pin RGB motherboard header for 16.7-million-color support. The G100M uses Cooler Master’s new "Heat Column Technology," which employs a 1.77"-diameter (45mm) copper column. It dissipates thermal load to the circular fin array in the same way that a large heatpipe does...at least, if the product webpage tells it like it is.

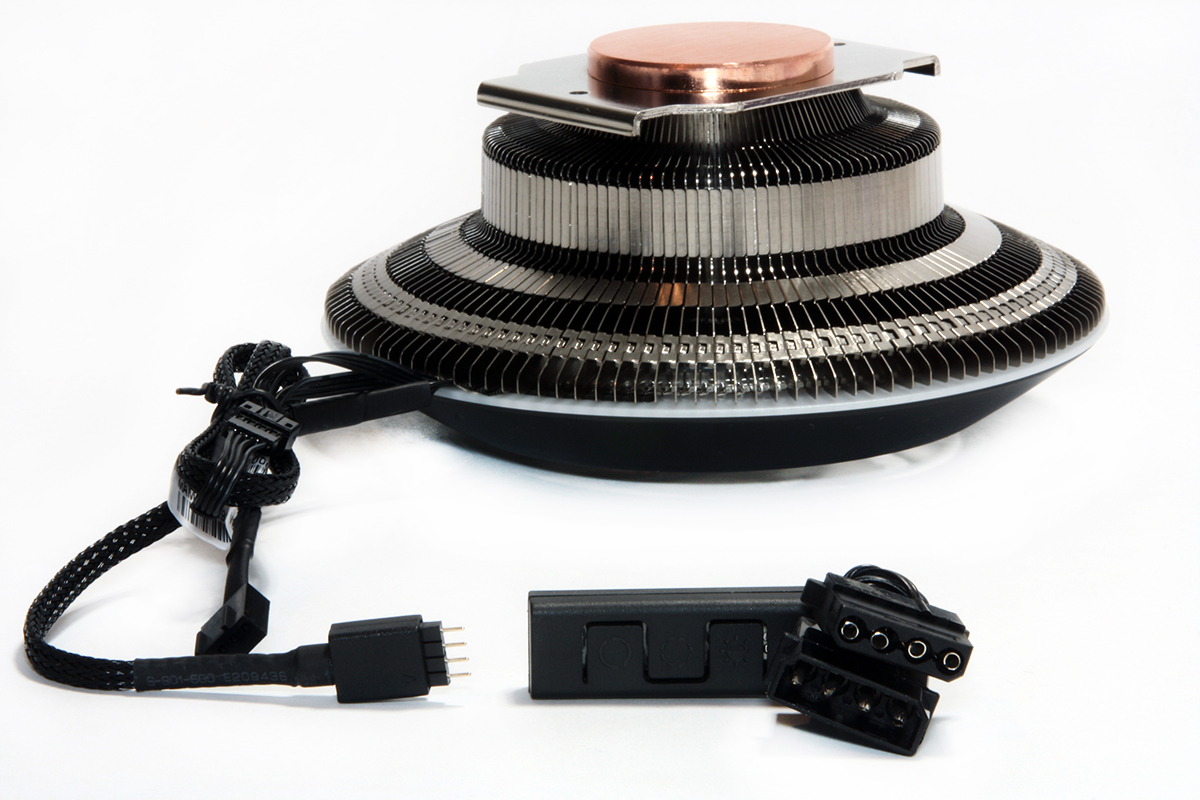

The copper contact base of the G100M is relatively smooth, with a slight lateral grain milled into the surface. The copper contact plate is engineered as part of the copper heat column, which feeds up through the center of the nickel-plated mounting base. The aluminum cooling fins have an interlocking pattern that overlaps one fin to the next and radiates out from the central heat column, below the cooling fan. While it seems that a configuration like this would provide some added density and heft, to us the cooler feels like it lacks the expected mass for such a large copper column, hollow as it may be. The G100M has most of its mass at the base, and it feels relatively lightweight less than halfway up the cooling-fin array.

The fan is four-pin/PWM-controlled, and the cable is covered in braided nylon sleeving. A four-pin RGB header is also present, built into the fan housing. An included Molex power splitter provides juice for the fan illumination; as mentioned, it is managed via the thumbstick control for those of us without on-motherboard RGB-lighting support.

The MasterAir G100M features several lighting-display options that you can manipulate via the included thumbstick control. These include static color selection, color cycle, intensity, flashing, mirage, and a "breathing" cycle. The central fan hub houses the primary LEDs, while an opaque outer ring provides a coordinated color accent.

The G100M is meant to be a low-profile CPU cooler, and at just under 3" in height (75mm), it seems to hover just over the motherboard, once installed. Which brings us to the next detail: the installation of this low-profile cooler.

Installation

While Cooler Master has employed its usual threaded-standoff-and-bracket mounting system, the G100M is wide enough that the cooling fins overhang the mounting posts, which require hex nuts to fasten down. With memory DIMMs on both sides and a motherboard heatsink on a third, we struggled with small, incremental turns using the included spanner wrench to secure the hex nuts.  We found the closed end of the wrench too limiting in angle to fit easily under the cooler and over the surrounding hardware. While the open end of the wrench worked better, it constantly slipped off the nut heads, especially when trying to get the final turns torqued down.

Ideally, it would be easiest to mount this CPU cooler prior to installing the motherboard in a case, unless you happen to have excellent dexterity. Also, given that the cooler is low-profile in design, taller memory DIMMs nearby might have clearance issues. We realized that while our system memory partially blocked what would seem to be the easiest path of access to the nuts, it would also be difficult to install the cooler before the DIMMs, due to the low overhang.

Once all of our tests were completed, we removed the cooler and observed the thermal-paste patch and CPU contact area. After all the struggle of installation, we can confirm that the G100M was, in fact, making good contact with the CPU heat spreader, as we saw a consistent, expected spread of the Arctic MX-4 compound we used.
