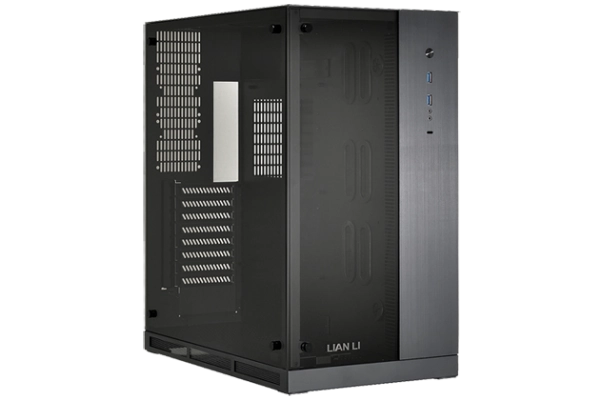

Lian Li PC-O11 WX Oversized ATX Case Review

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Hardware Installation, Evaluation And Conclusion

The PC-O11 includes enough shoulder screws to mount four 3.5” drives upon the factory-installed grommets (plus one spare screw), the motherboard, two SSDs, and the included 3x 120mm front-panel fan bracket. While the bracket can hold a large radiator, installing it requires removing the factory-installed pump bracket. Cable ties, adhesive cable loops, a PC speaker, and even a USB 3.0 header-to-USB 2.0 header adapter are included. Although three extra standoffs are included, the mounting points to support an EATX motherboard are either missing or cut away for cable passages.

Motherboard connections are sparse, since there aren’t any USB 2.0 ports or a reset button. There are USB 3.0, power, HD-Audio, and activity LED leads.

With the power supply and drives mounted behind the motherboard tray, space inside the motherboard compartment is cavernous. Shown is our full ATX case testing configuration.

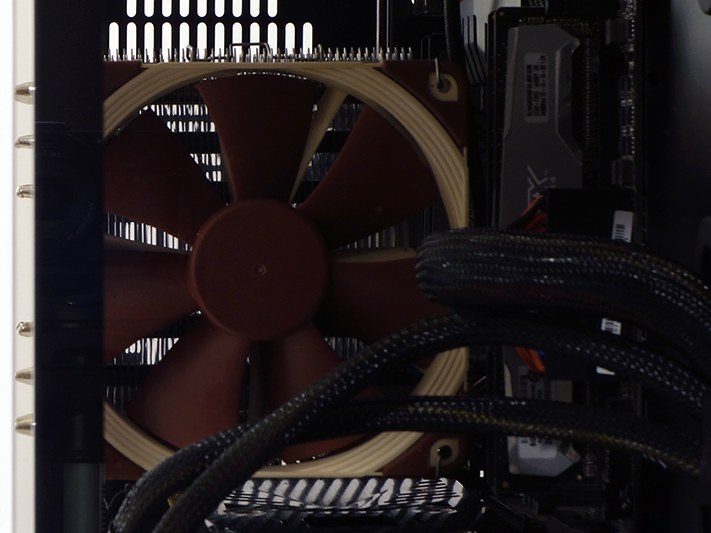

Unfortunately, our Noctua NH-U12S CPU cooler is about 0.3” too tall to fit beneath the PC-O11’s side panel. We recommend a maximum CPU cooler height of 6.0” (152mm).

Since we had already generated test data using the shorter Noctua NH-U9B SE2 in our Riotoro CR1080 case review, it seemed appropriate to substitute this high-power part in today’s evaluation.

The CR1080 also shares a dual-chamber design with the PC-O11 WX, although it’s far shorter. The Corsair Carbide Air 740 is a more sizable comparison candidate. Apart from the shorter CPU cooler, components are carried over from our standardized configuration.

Comparison Cases

Test Results

Lacking fans of its own, the PC-O11 WX runs quite a bit hotter than even the tiny CR1080. We’re hoping it’s also much quieter.

Lacking fans of its own, the PC-O11 WX is one of the quietest cases we’ve tested with this hardware. It’s actually the quietest case we’ve tested using this dual-fan CPU cooler, which fills in for the taller single-fan unit used in most of our other big-case reviews.

The PC-O11 even has a better cooling-to-noise ratio than the CR1080, with its lower noise more than offsetting its higher temperatures in this overall performance metric. Unfortunately for Lian Li, the Carbide Air 740 sets the standard.

While the Carbide Air 740 is only twice the price of the CR1080, the PC-O11 WX is three times the price of Riotoro’s case. The result is an inverse value scale.

Value scores probably aren’t your top priority if you’re looking for a black-anodized, brushed-aluminum case with a tempered glass wraparound view of the motherboard compartment. Under that fancy skin you’ll still find a light gauge sheet steel chassis, however, so the only way the PC-O11 WX looks like a good value is if you’re building a PC demo unit, such as those used in trade shows. Wealthy buyers seeking to impress their nerdy friends can also count themselves among the PC-O11 WX target market, particularly after considering all of the room it has above, below, and before the motherboard for liquid cooling components. The PC-O11 WX begs for a build filled with multiple radiators, hard lines, and colored coolant.

MORE: Best Cases

MORE: All Case Content

MORE: In Pictures: 40 Unusual Computer Case Mods

Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
