Updated: Nvidia GeForce GTX 1070 8GB Pascal Review

Ashes of the Singularity, Battlefield 4 And GTA V Results

Ashes of the Singularity

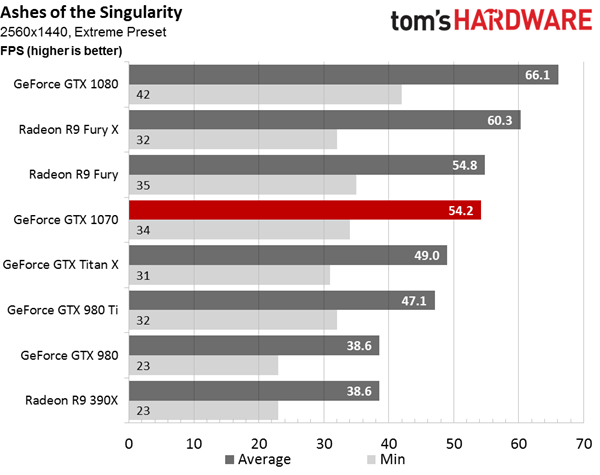

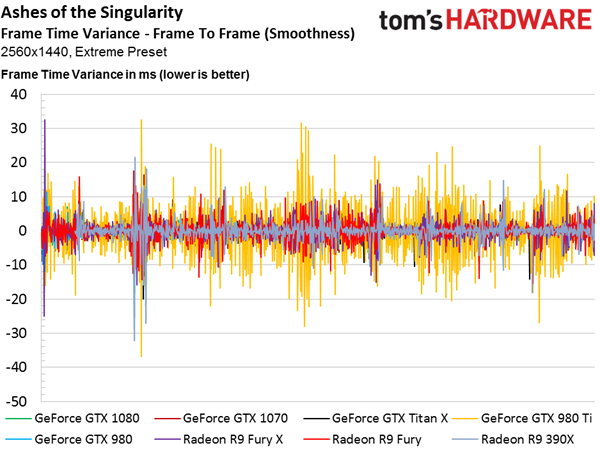

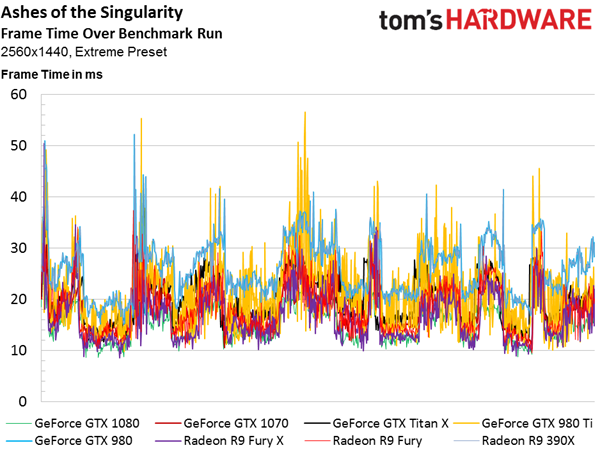

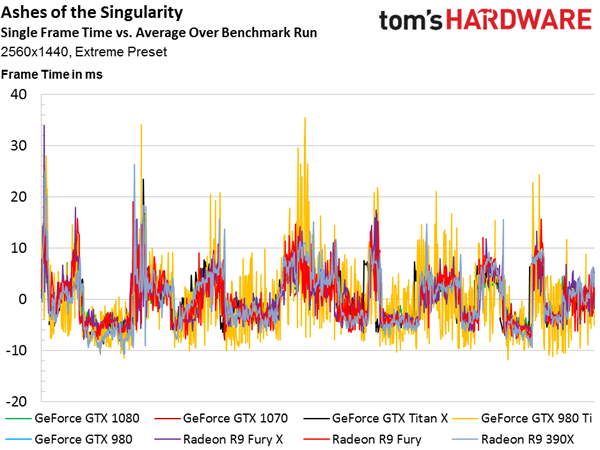

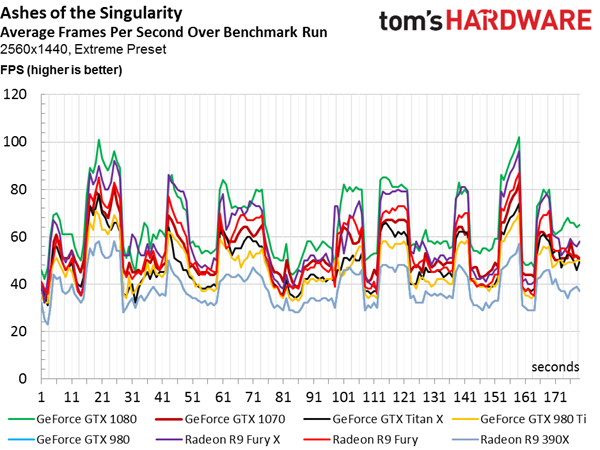

In our analysis of the GeForce GTX 1080, we commented on the flagship’s ability to overtake AMD’s Fiji-based boards, both of which excel in Ashes. The GeForce GTX 1070 does not enjoy the same distinction. Although it’s faster than the $1000+ GeForce GTX Titan X, it slides in just behind the Radeon R9 Fury at 2560x1440.

Before we all start ripping on the GP104-based board, though, remember that the Founders Edition card is expected to sell for $449, while the Radeon that nudges past it goes for $520 on Newegg (on 5/24/16). And Ashes is perhaps a best-case for AMD. Almost certainly we’ll be seeing price drops on Fiji-based hardware to correspond.

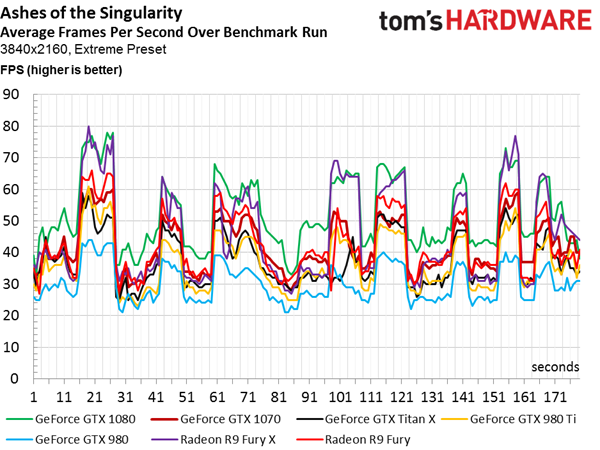

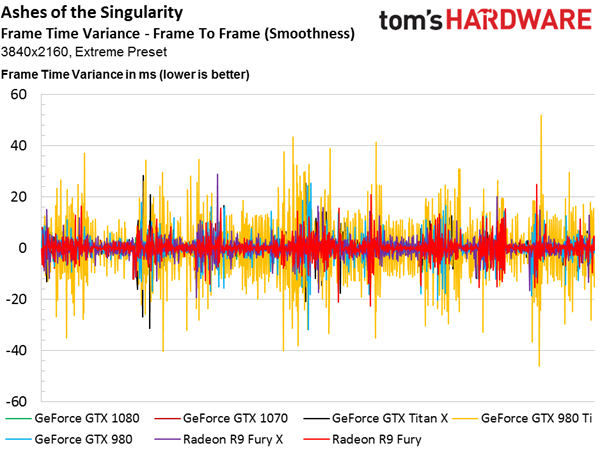

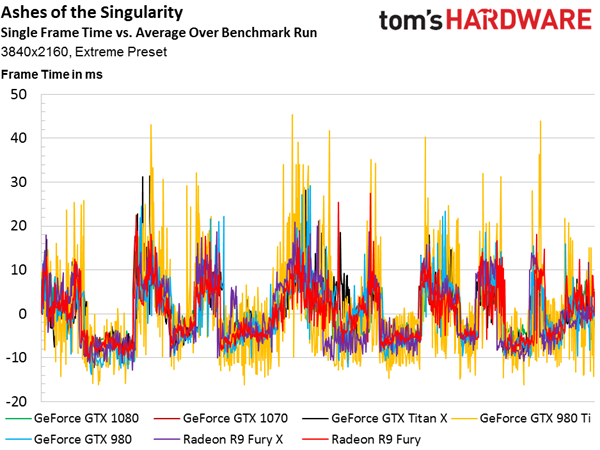

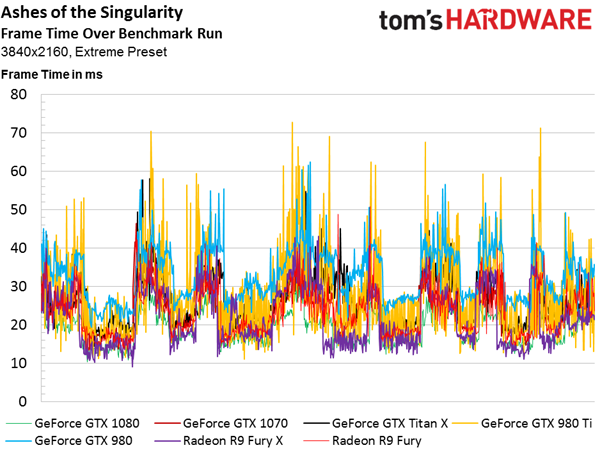

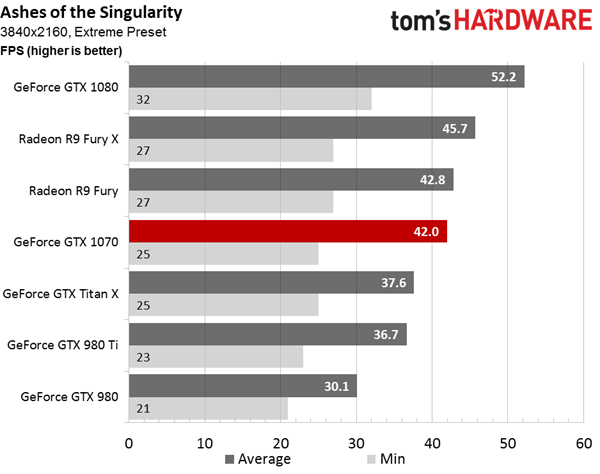

Stepping up to 4K doesn’t change the finishing order; it simply shifts all of the benchmark results down significantly. The GeForce GTX 1070 still trails both Fiji-based boards, but it’s only just behind the vanilla Fury that sells for $70 more at the time of writing.

We can’t help but be impressed by how the Fury X holds up to the GeForce GTX 1080 at a price point almost $100 below Nvidia’s new flagship. Then again, we saw the rest of the story play out earlier in the month, and we know most games don’t acquiesce to GCN quite like this one.

Battlefield 4

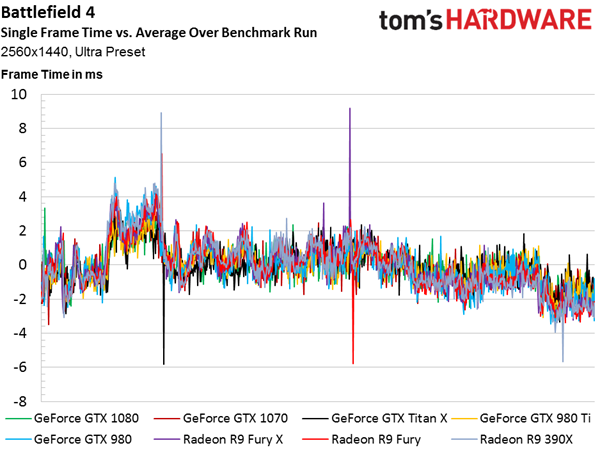

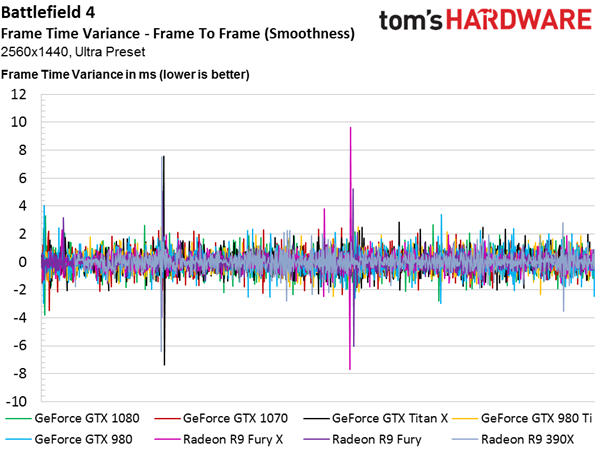

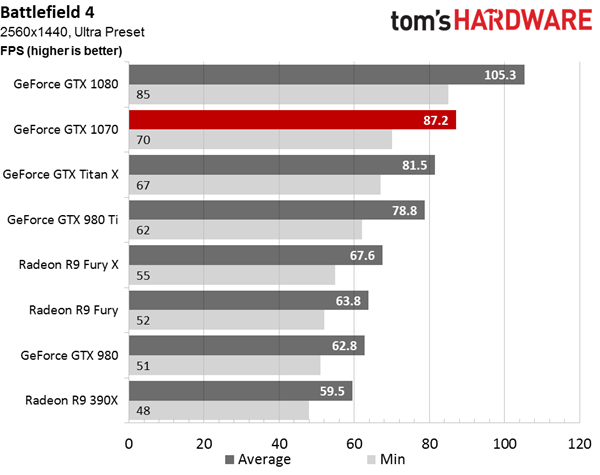

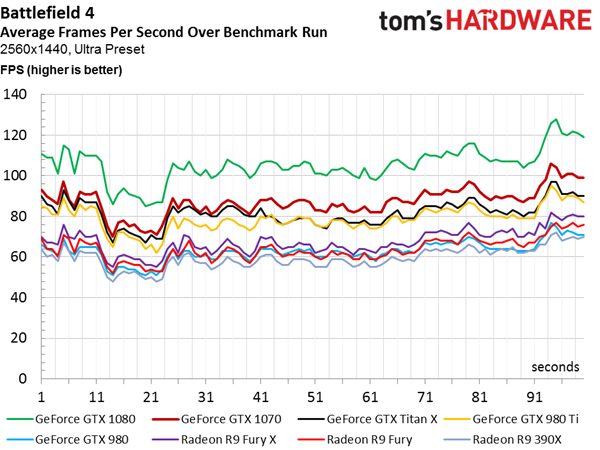

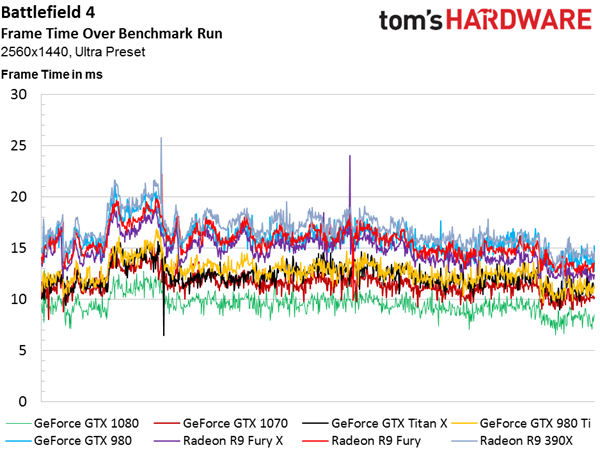

Case in point, the GeForce GTX 1070 follows the 1080 in Battlefield 4 at 2560x1440 for a second-place finish. The GeForce GTX Titan X takes third and the 980 Ti lands in fourth. AMD’s hardware doesn’t show up until we get to fifth place. Despite tight frame time groupings delivered by all of these cards, perhaps best illustrated by frame-to-frame variance, charting frame rate over time shows how they’re all clearly separated into distinct performance tiers.

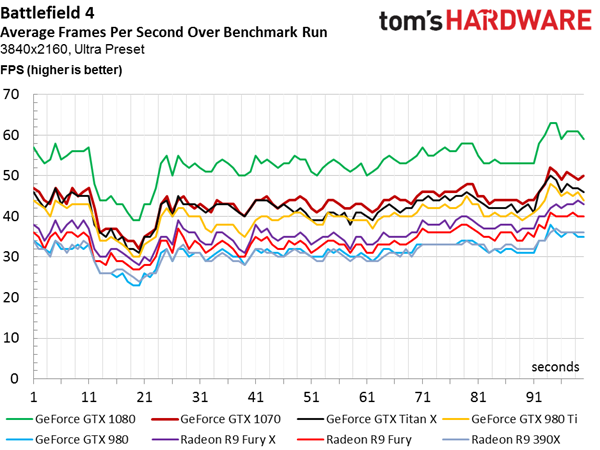

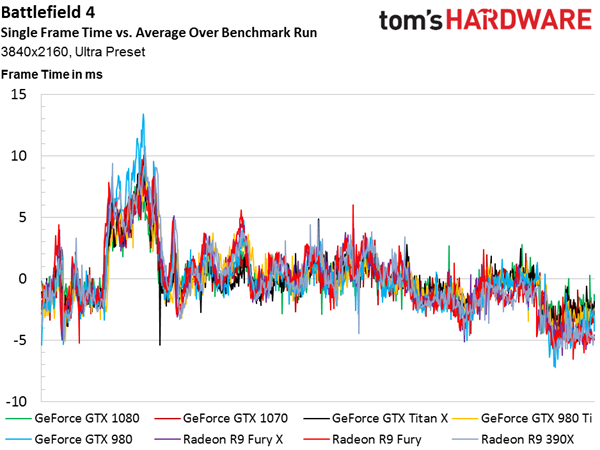

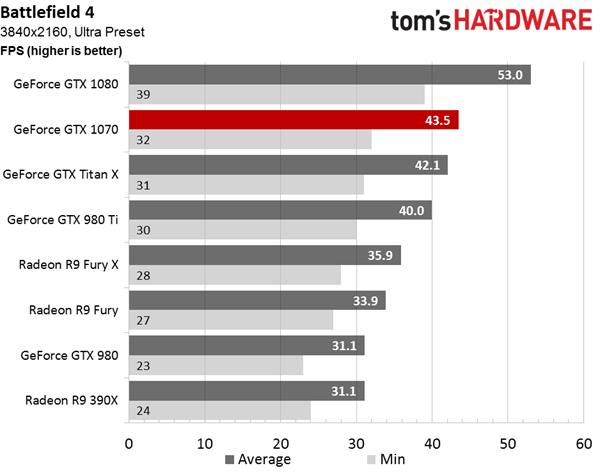

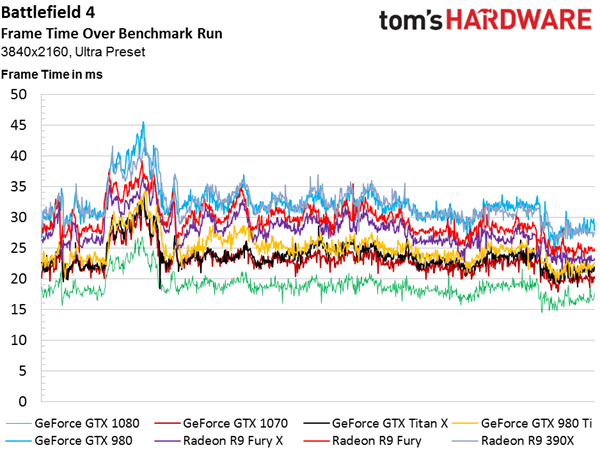

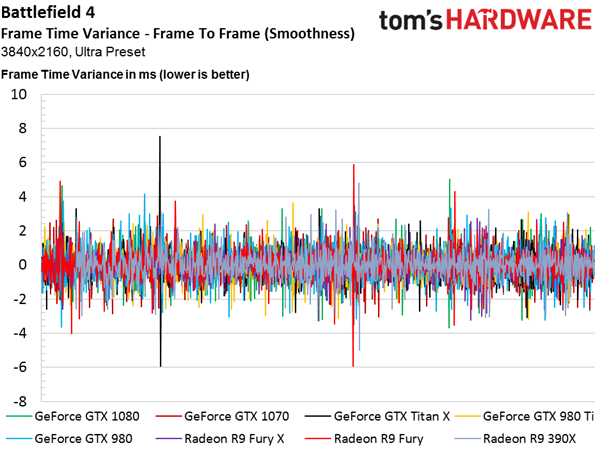

The same situation unfolds at 3840x2160. Despite its age, Battlefield 4 exacts a tolls on these high-end cards. So much so, in fact, that we’re not as comfortable calling the GeForce GTX 1070 a single-GPU solution for 4K with details maxed out. QHD is low-hanging fruit for this card. We’d even say 1080x1200 at 90Hz should be doable most of the time (of course, that’s before factoring in a ~1.4x render target). But the demands of 3840x2160 with quality cranked up are a bit much to expect a steady 60 FPS (that’s almost 500 million shaded pixels per second).

Grand Theft Auto V

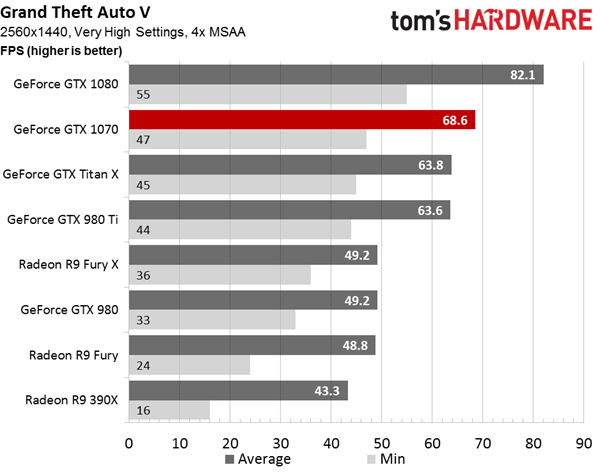

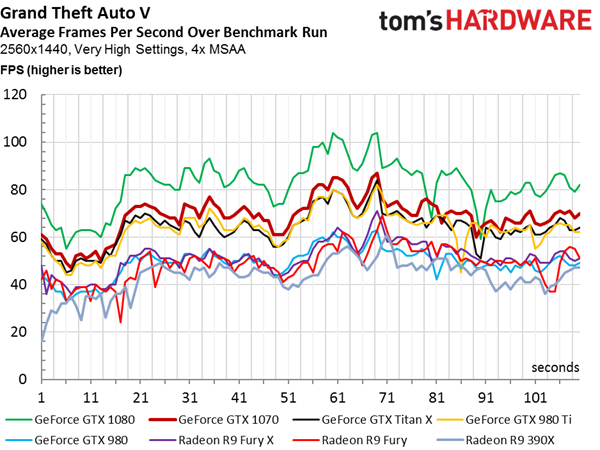

Nvidia’s GeForce GTX 1070 again proves its mettle against the previous-gen GeForce GTX Titan X for less than half the cost. In the process, it secures a second-place finish after the superior GeForce GTX 1080. AMD’s fastest gaming card shows up in fifth place (the 1070 is almost 40% faster).

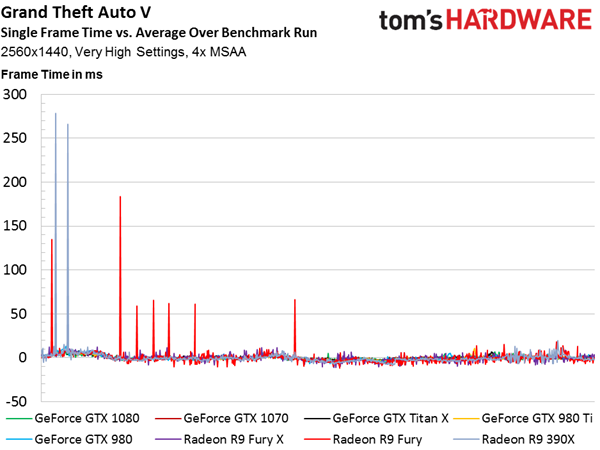

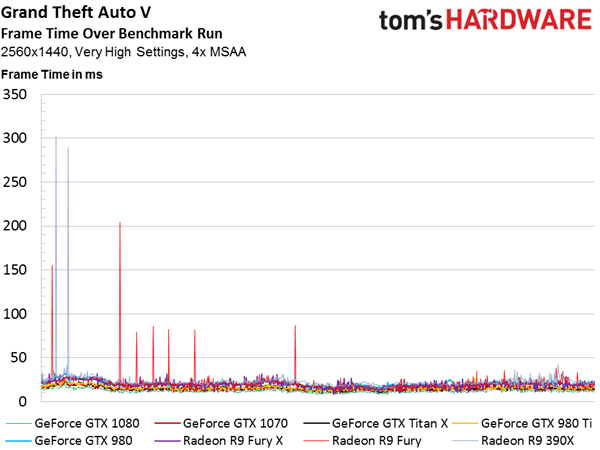

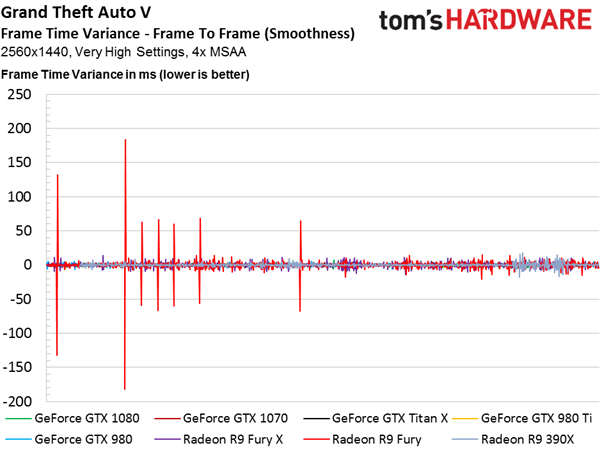

The following observation from our GTX 1080 review still bears mention: “Interestingly, the Radeon R9 Fury and 390X—both from AMD add-in board partners—demonstrate sharp frame time spikes that show up as hitching during playback. The reference Radeon R9 Fury X doesn’t exhibit the same behavior.”

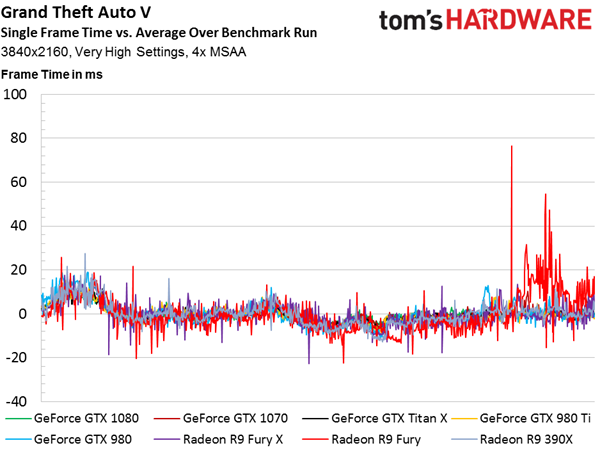

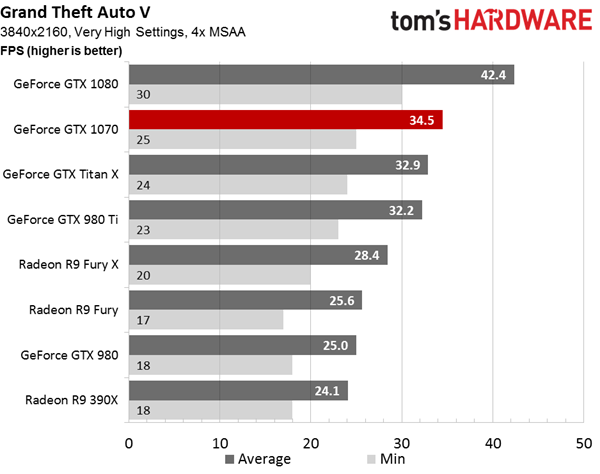

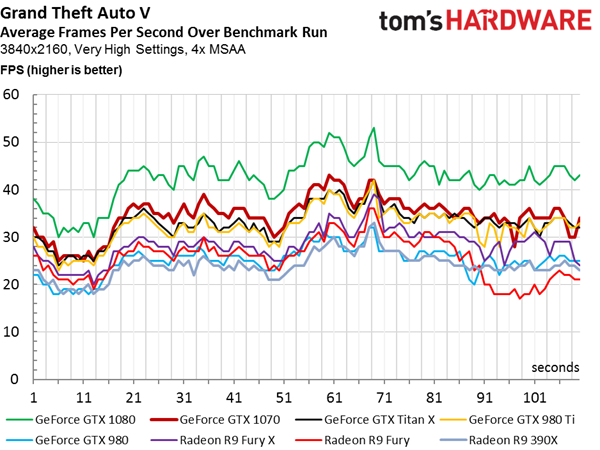

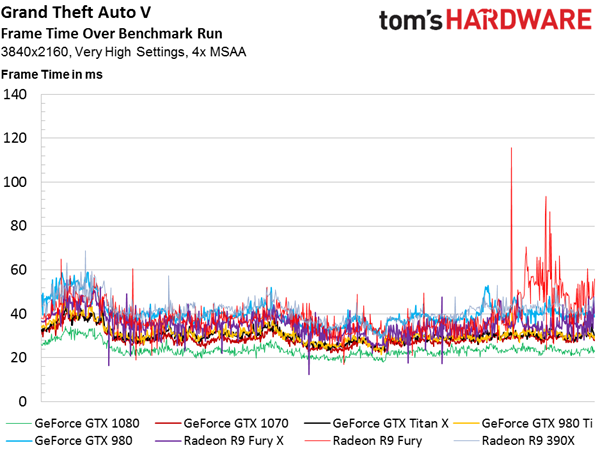

Ultra HD nearly cuts performance in half. In the case of GeForce GTX 1080, you still get mostly-playable frame rates. But the 1070 dips under 30 FPS in a few different places. You’d want to dial back the game’s very granular settings to find the best compromise between speed and fidelity.

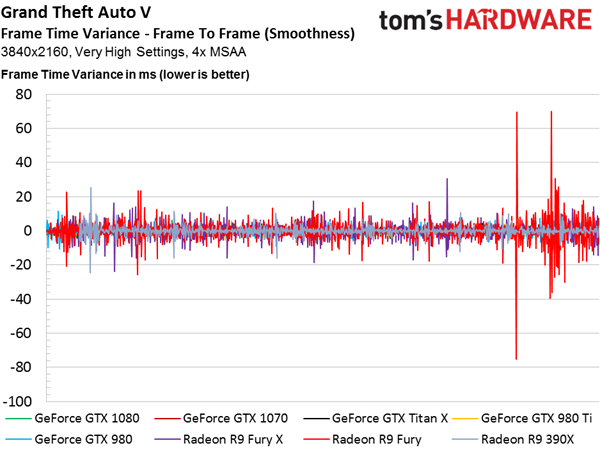

Meanwhile, the frame-to-frame variance chart shows all three AMD cards experiencing different degrees of stuttering, with the R9 Fury faring worst.


MORE: Best Graphics Cards


MORE: All Graphics Content

Chris Angelini
Chris Angelini is an Editor Emeritus at Tom's Hardware US. He edits hardware reviews and covers high-profile CPU and GPU launches.
