System Builder Marathon, Dec. 2009: $700 Gaming PC

By Paul Henningsen
published

Case, Power Supply, And Optical Drive

Case: Antec Two Hundred

The Antec Three Hundred exemplifies the enclosure to gun for in an affordable overclocked gaming box, but at times has been a bit too pricey for our lowest budget system. Thankfully Antec has an answer to such a problem in the more recently-released Two Hundred.

Read Customer Reviews of Antec's Two Hundred Chassis

Both cases share features such as 3 x 5.25” external bays, 7 x 3.5” internal bays, bottom power supply mounting, a mesh front panel, a top-mounted 140mm exhaust fan, a rear-mounted 120mm exhaust fan, and room to add 3 x 120mm intake fans. However, the pre-installed fans on the Two Hundred are TwoCool models with rear-mounted high/low switches instead of the low/med/high TriCool fans in the Three Hundred.

Dimensions and exterior volume are similar, but at 13.9 lbs., the Two Hundred weighs in 2 lbs. lighter. Other unique features include a 3.5” external SATA hot-swap caddy and a CPU cutout in the motherboard tray providing rear access to mounting brackets for easier cooler swapping.

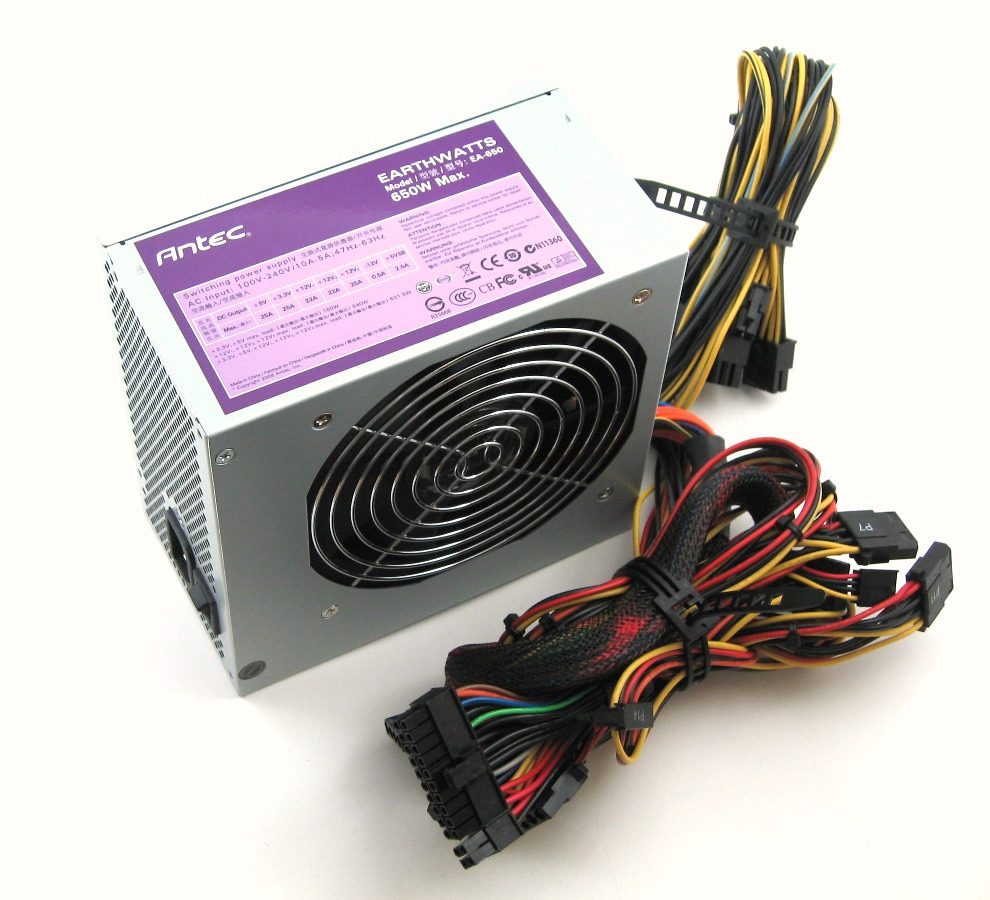

Power Supply: Antec EarthWatts EA650 650W

Read Customer Reviews of Antec's EarthWatts EA650 PSU

We again chose the affordable Antec EarthWatts EA650 power supply, which served our needs well in the September $650 PC. It has a combined maximum +12V output of 45A, an 80 PLUS efficiency rating, quiet operation, and a three-year warranty.

Having just 1 x 6-pin and 1 x 6+2-pin PCIe power cable meant we would need to rely on using two Molex power adapters for our video cards. Given the miserly consumption of our dual-core CPU, we felt the EA650 offered plenty of power for this gaming system.

Optical Drive: Samsung Black 22X DVD Burner SATA Model SH-S223C

Read Customer Reviews of Samsung's SH-S223C Burner

The SH-S223B used last time was out of stock, so we chose this Samsung optical drive when trying to stay within our $700 design budget. While less than favorable user reviews have been posted for this drive, ours was a fairly quiet unit and posed no trouble when used to install applications and while burning at speeds above our blank DVD-R’s 16x rating.

Paul Henningsen
85 Comments Comment from the forums
  • shadowryche
    Must be something wrong with my ThermalTake Toughpower 750watt, because even that had trouble running a pair of Radeon 4870 512mb cards in crossfire under heavy load. And I only had two hard drives and one optical drive. The only other expansion card I ran was a Wireless N card.
    Reply
  • noob2222
    Wish there was an included SBM September in the charts, or at least a link to it. http://www.tomshardware.com/reviews/amd-gaming-pc,2424.html If the numbers are consistent, and seeing how W7 is slightly faster, the september build is a tad faster with less graphic power and $50 less in the build. With the exception of max resolution, and thats the graphics card difference doing the work.

    Add in the new AMD options, http://www.tomshardware.com/reviews/athlon-ii-x3,2452.html, wich takes the lead for the most part over the Phenom II x2 550, I am suprised you opted for the intel chip.

    That is unless you plan on doing SBMs alternating wich manufacturer is used.

    Athlon II 435 with 2 4870s would kill this build at the same price.
    Reply
  • qwertymac93
    So we are back to an intel only marathon again. i guess it was silly of me to expect at least ONE system to have an amd cpu in it. it would have been interesting to see the athlon 620+ddr3 be put in the $700 pc, it would have been a nice "are 4 better then 2?" comparison with Septembers build. would have been nice to see dual 5750s in the $700 pc too, but availability and bla bla, i know. with all those modifications though, it would have been closer to a $800pc :(. On a side note, any thoughts on nzxt beta evo vs antec two hundred?
    Reply
  • benzjie
    looks like intel owns not only the OEM market.
    Reply
  • darthfett
    It seems to me that in a budget computer, you are not going to be paying huge amounts for a large monitor. Why use 2 graphics cards when one will do for a smaller monitor. Games these days are still pretty CPU heavy.
    Reply
  • rdawise
    noob2222Wish there was an included SBM September in the charts, or at least a link to it. http://www.tomshardware.com/review ,2424.html If the numbers are consistent, and seeing how W7 is slightly faster, the september build is a tad faster with less graphic power and $50 less in the build. With the exception of max resolution, and thats the graphics card difference doing the work.Add in the new AMD options, http://www.tomshardware.com/review ,2452.html, wich takes the lead for the most part over the Phenom II x2 550, I am suprised you opted for the intel chip. That is unless you plan on doing SBMs alternating wich manufacturer is used.Athlon II 435 with 2 4870s would kill this build at the same price.

    You beat me to this.

    Have to wonder why the author used a dead socket with no upgrade path.
    Reply
  • dangerous_23
    where are the photos of the actual build?
    Reply
  • snorojr
    5750 availability problem ???? you gottas be joking, i had no problem having my hd 5770 while the 5850 where nowhere findable. They could seriously have took the 57xx serie route and the 5750 and 5770 are doing very good in crossfire setup. Sometime with the big overclock margin they have, a pair 5770 can beat a pair of 4890 in crossfire.
    Reply
  • pauldh
    noob2222Wish there was an included SBM September in the charts, or at least a link to it. http://www.tomshardware.com/review ,2424.html Last round’s data was left out of the charts because of the migration to Windows 7 and updated benchmark versions. However, a link to the September $650 PC was provided in the opening paragraph of the intro, and comparisons made throughout the data analysis.
    noob2222If the numbers are consistent, and seeing how W7 is slightly faster, the september build is a tad faster with less graphic power and $50 less in the build. With the exception of max resolution, and thats the graphics card difference doing the work. The gaming benchmarks are especially comparable, and yes as we note, this rig was behind the Sep PII at the lower settings/resolution and had a graphics advantage taking over at the higher settings. But note, the September build was MORE expensive when this system was ordered, not $50 cheaper. Had we opted to use up this whole “price adjustment” budget and build a $750 machine, a kit of CAS 5 DDR2 (like the AMD build) would have done this one wonders, even more so than expected.
    noob2222I am suprised you opted for the intel chip. That is unless you plan on doing SBMs alternating wich manufacturer is used. Bingo; Notice all AMD last round even at the high end, and all Intel this round, even at the low end. Something we wanted to try, but will not be continuing.
    noob2222Athlon II 435 with 2 4870s would kill this build at the same price. That is exactly the plan for next round, although getting a pair of 4870s will likely not be an option. At $87, pairing with an aftermarket cooler will then raise the CPU+cooler budget a bit over the $102 from Sep, or the $92 from December. One of the goals set for this Intel rig back in September was to keep an equal CPU budget to last round, and if possible put the extra money into a graphics step up, although more along the lines of 4850 1GB not 4870’s. There was nothing exciting to challenge the PII at stock clocks, instead the focus was on an aftermarket cooler and better OC. Unfortunately this E5300 was a bit of a dud compared to previous E5200’s.

    I wouldn’t say the 435 would kill these past two rigs though. I suspect it will trade blows in the apps, and likely take a few nice wins(at low res) in the games.
    Reply
  • saeedxfx
    hi
    price per hd4870 is 230$

    and for 2 hd4870=460$
    but in your table is 250$
    how?
    Reply
