Using SteamVR to Benchmark VR Framerates on Integrated Vega Graphics
We would love to show you performance numbers that evaluate Microsoft’s Windows MR platform. However, we don’t have any tools to capture the frame rate and frame pacing of native Windows MR content.

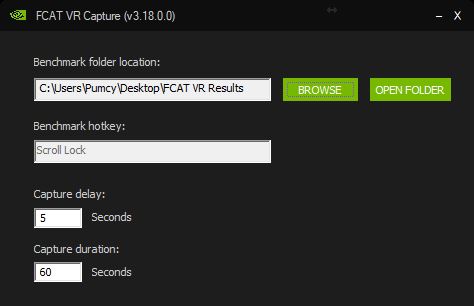

Currently, we have only one performance evaluation tool for VR experiences. Nvidia’s FCAT VR tool allows us to capture the frame rate and frame pacing data directly from the VR rendering pipeline. However, it doesn't currently support Microsoft’s Windows Mixed Reality platform. Nvidia told us that a future release would integrate with Windows MR, but for now, we can’t provide performance numbers for Microsoft’s immersive environment and Windows MR native applications. But that doesn't mean we can't test performance elsewhere.
SteamVR For Metrics
Without support for the native Windows MR environment, we had to resort to firing up SteamVR to get performance numbers from FCAT VR. Windows MR headsets do work with SteamVR, though the performance of our integrated GPU falls far short of what is generally necessary for smooth rendering in this more-demanding gaming-focused platform. And the under-powered hardware takes another hit here as well.
When you use a Windows Mixed Reality headset to run Steam VR content, the CPU and GPU take a big hit because the Windows MR platform must run in the background on top of Valve’s SteamVR platform. Microsoft and Valve both suggest that you should have an Intel Core i7 processor and the equivalent of a GeForce GTX 1070 graphics card to run a Windows MR headset with Steam VR. Of course, our Ryzen 5 2400G is no match for such a combination, but SteamVR was our only avenue for the benchmark results we desired, so we plowed ahead.
We selected four SteamVR titles to test, including theBlu, Fruit Ninja, Job Simulator, and Island 359. Using Steam VR, we recorded 60 second benchmarks of each experience on our Raven Ridge system. And for comparison, we attempted the run the same experiences on our Core i5 system. More on that attempted bit later.
First, we fired up theBlu on our Raven Ridge test rig, and were surprised at how well it seemed to run. We didn’t experience any significant judders. We could tell that Steam VR was relying on reprojection to deliver a smooth experience, but we were fine with the perceived performance overall.

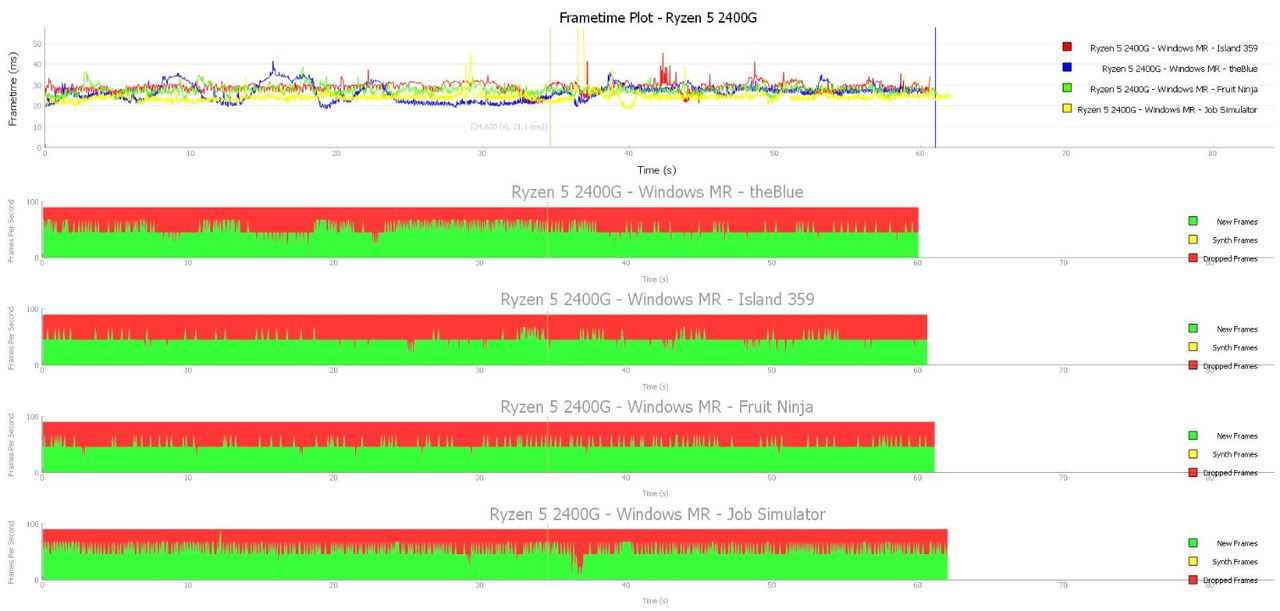

Later, upon studying the frametime graphs in FCAT Analyser, we saw the truth: Our Ryzen 5 2400G with Vega graphics wasn’t even delivering 45fps, which would be necessary to provide one rendered frame for every two displayed frames. The Vega 11 cores achieved an average of just 36fps, which means that two out of three frames weren’t rendered in time.
Fruit Ninja was the second SteamVR experience that we threw at the Raven Ridge chip. Unlike theBlue, which is entirely passive, Fruit Ninja is an active game that requires rapid arm movements. We managed to play Fruit Ninja with a modicum of success, but again, we could tell that reprojection had a big role in making the experience passable. The FCAT VR results indicated that we also achieved roughly 30fps in Fruit Ninja. If anything, this test reinforced our belief in the viability reprojection technologies--the experience was surprisingly decent given the low performance numbers we got from our benchmarking.
Next, we fired up Job Simulator. We didn’t expect this game to work well, but it ended up giving us marginally better results than the previous two titles. Again, reprojection was necessary to produce a comfortable experience, but it worked well enough to play the game.
The FCAT VR results indicated that AMD's integrated GPU delivered an average of 37.1fps, but the graph shows that our Raven Ridge rig kept that framerate at a relatively steady pace throughout our 60 second test.
Finally, we pulled out the big guns to truly test the limitations of AMD's Ryzen 5 2400G. Island 359 is a much more demanding game than Job Simulator or Fruit Ninja, though it does offer graphics options to help make it playable on lower-end hardware. We set the graphics to low and dialed the image scaling to 60%. The result wasn’t pretty, but we managed to make the game at least somewhat playable.
With the settings dialed down as far as they could go, the Ryzen 5 2400G pushed out a relatively steady 30fps, which put it in the same rough performance range as the rest of our test lineup.

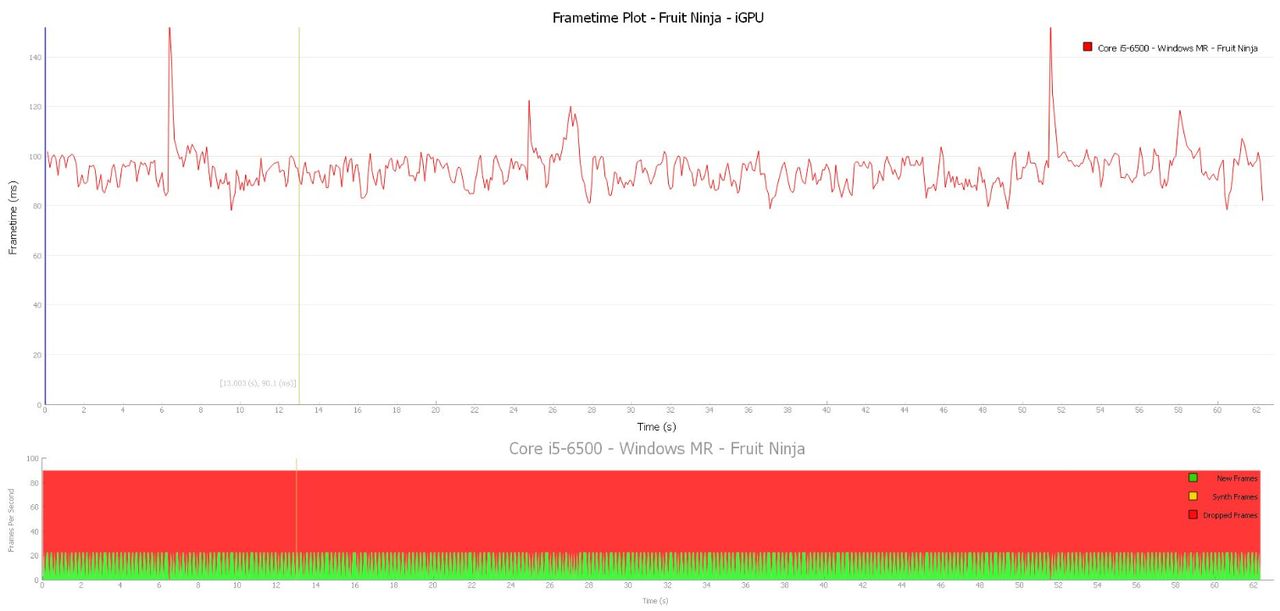

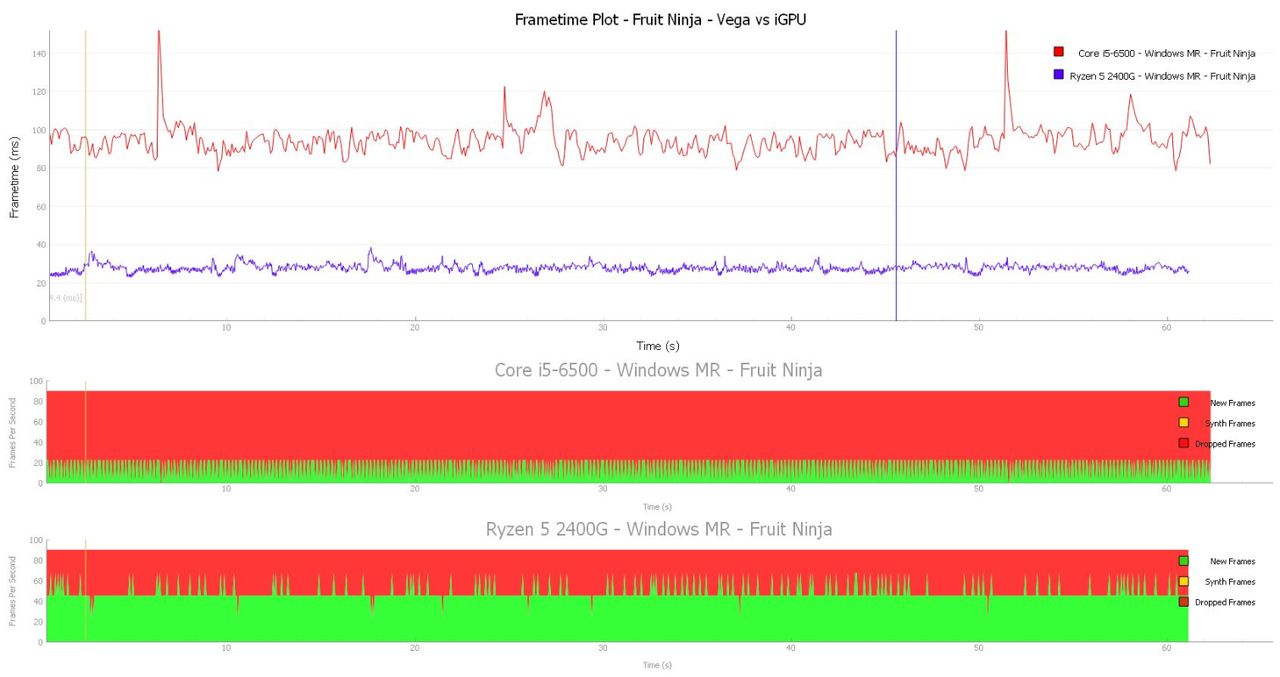

We had intended to run the same battery of tests with the integrated graphics of our Core i5-6500 for comparison, but that didn’t work well. We started with theBlue, which wouldn’t at all on our Intel-based system. Next, we tried Fruit Ninja, which produced a flickering, juddering mess that finally pushed our nausea buttons. We managed to last long enough to get one result from FCAT VR, which told us we were "playing" at 10fps. We weren’t about to test Job Simulator and Island 359 after that experience. Suffice to say; you can’t use Intel's integrated graphics for SteamVR games. And while the Vega 11 graphics in AMD's Ryzen 5 2400G aren't ideal for gaming either, the performance with AMD's latest integrated graphics is in another league.
