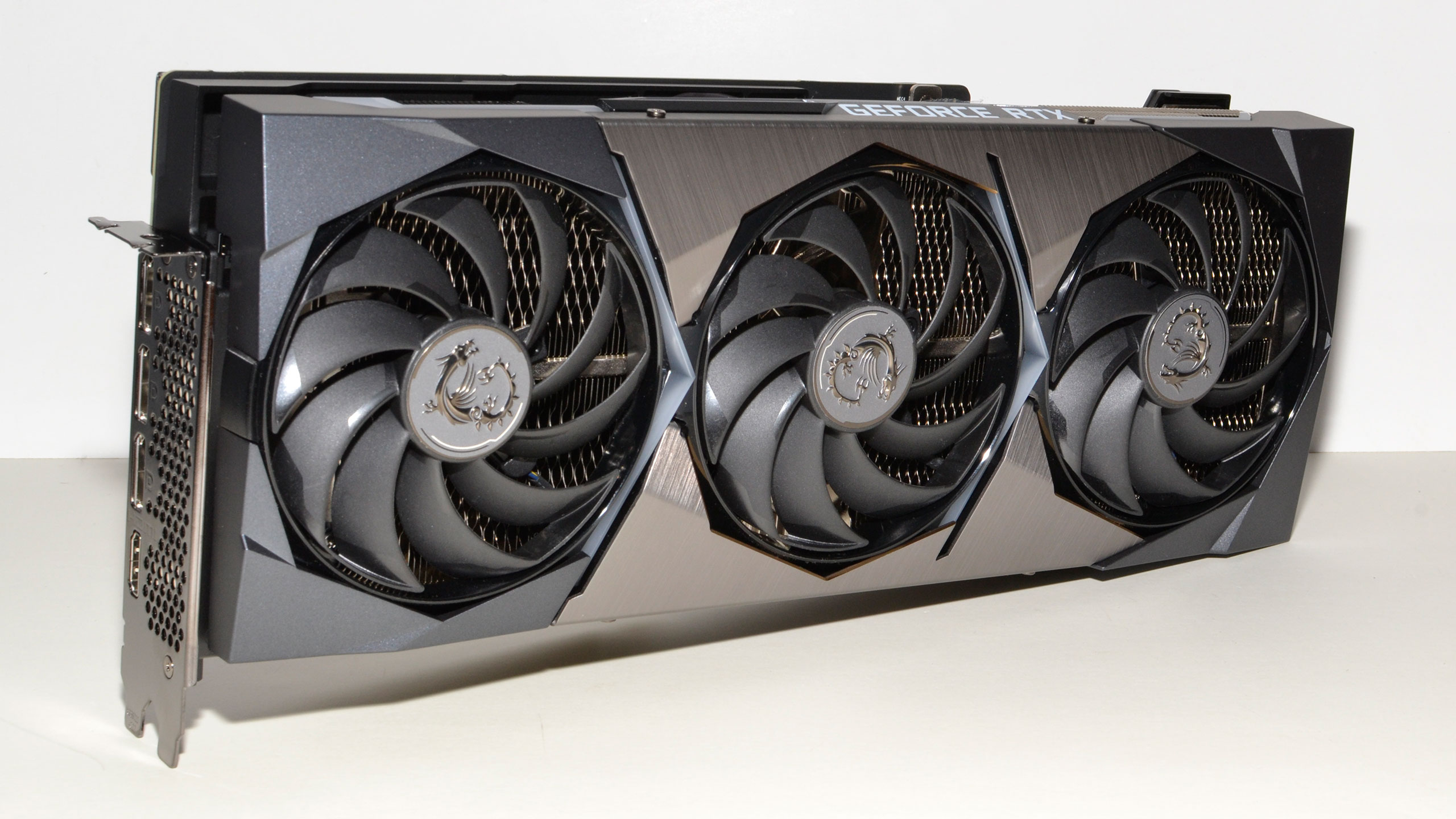

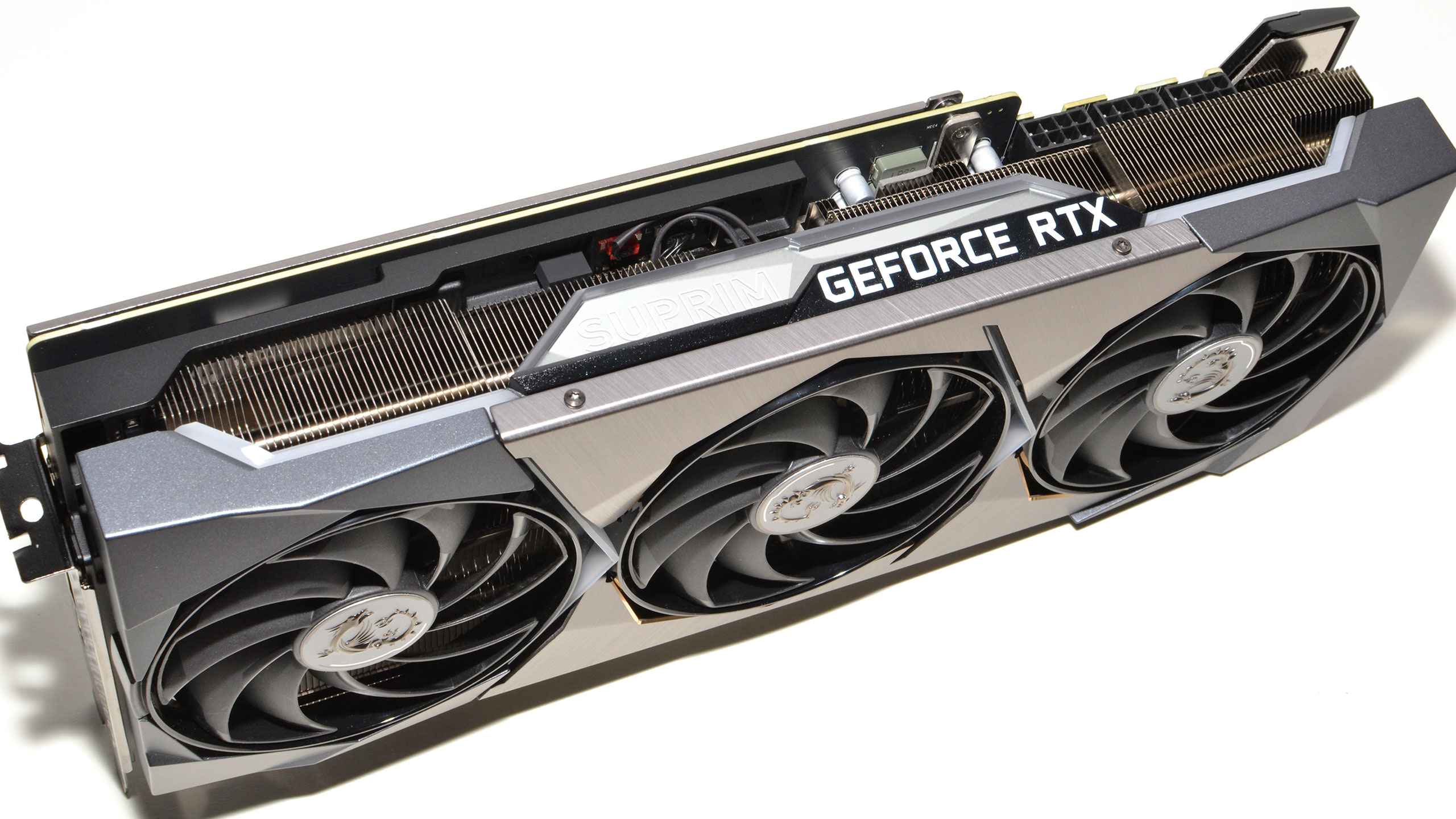

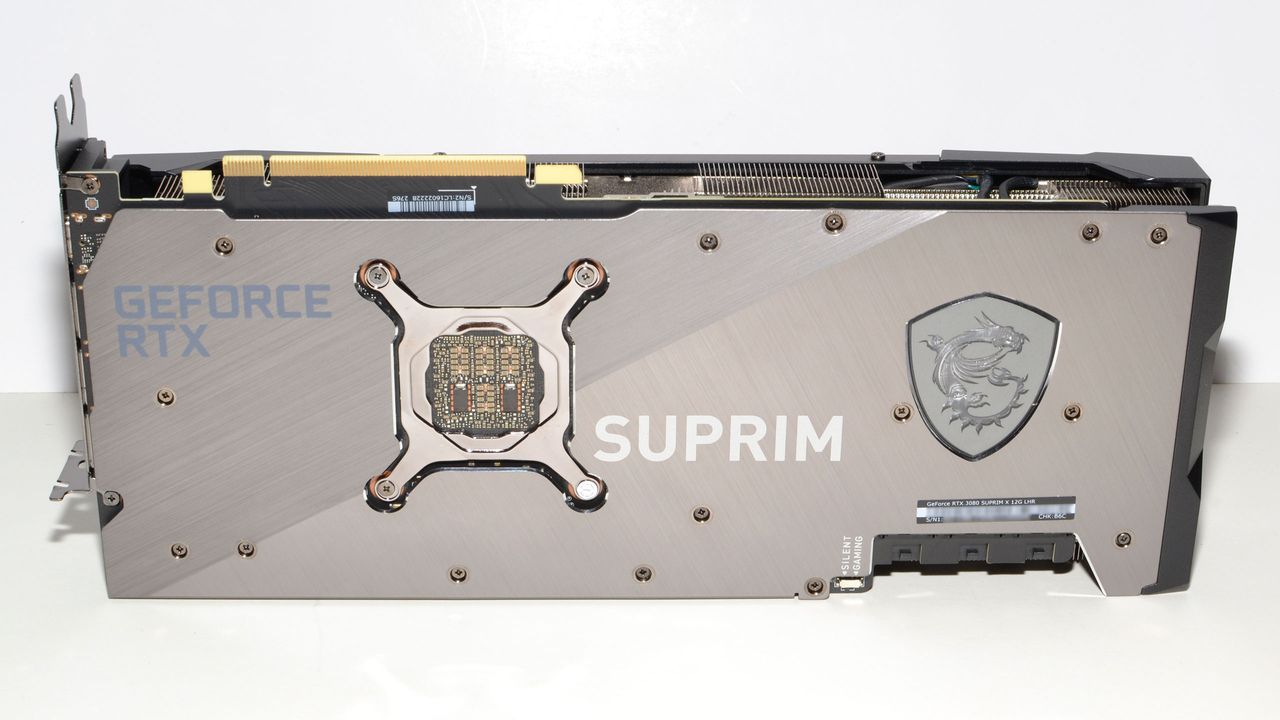

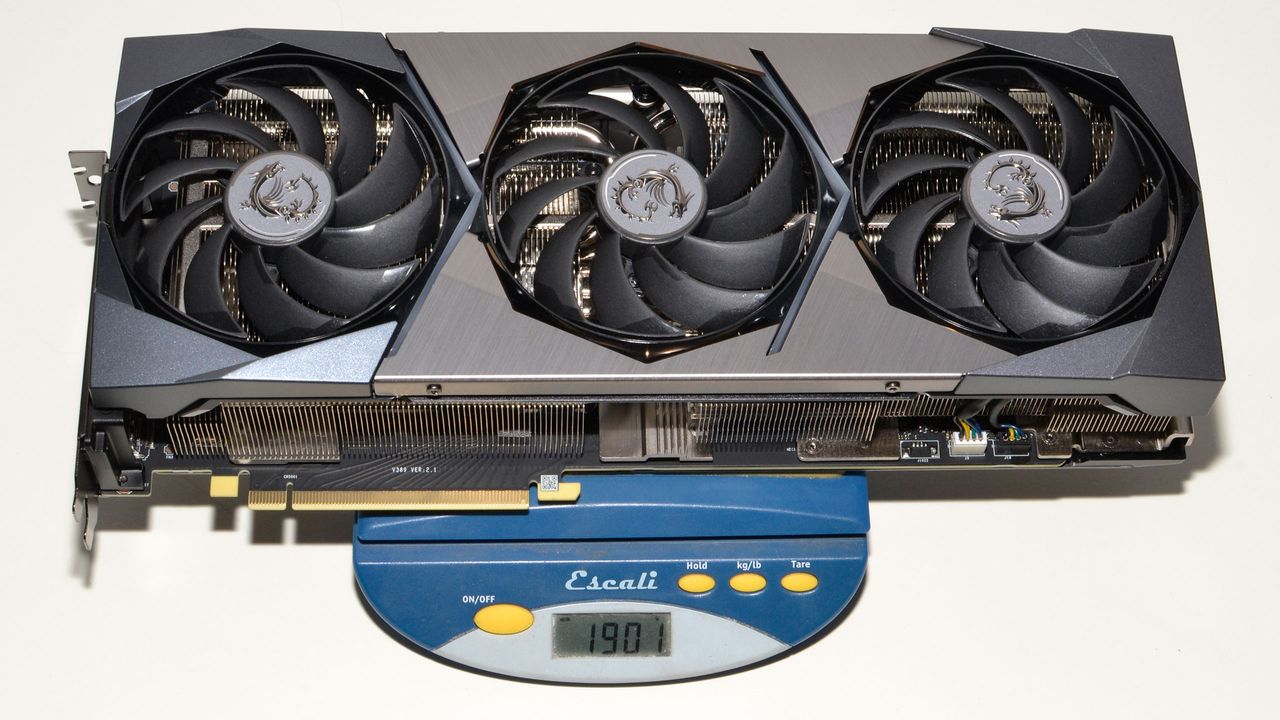

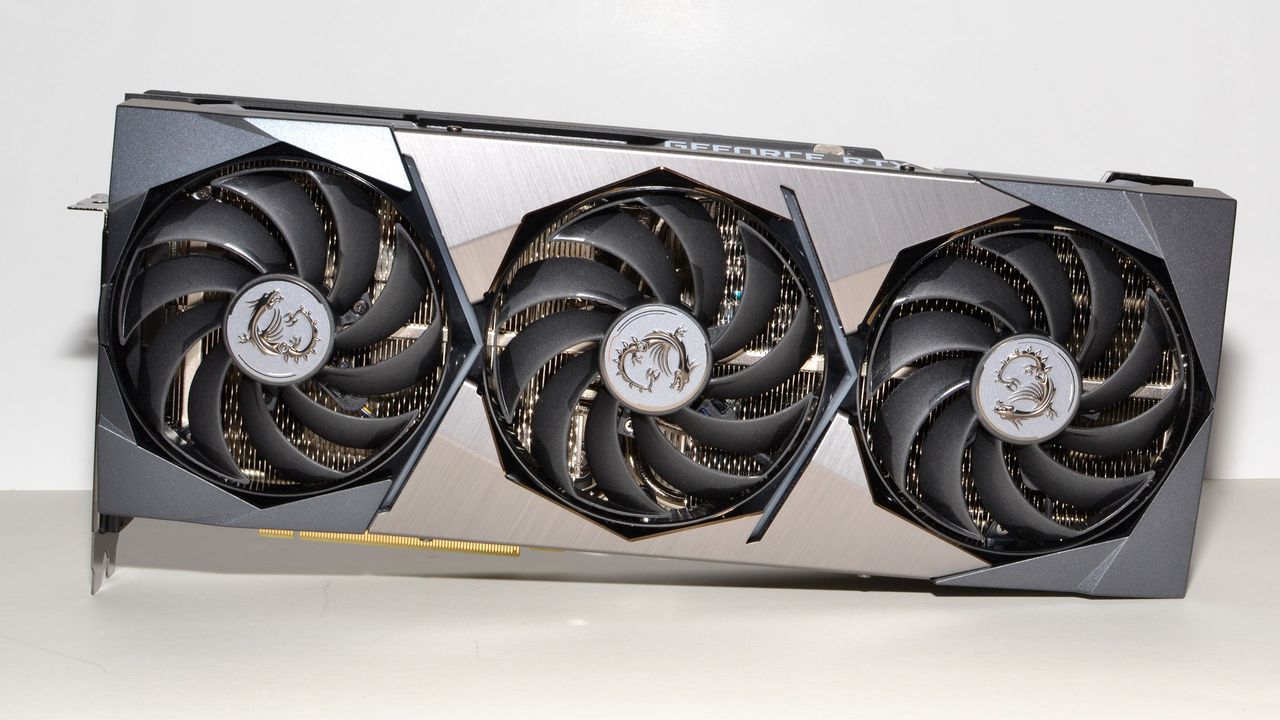

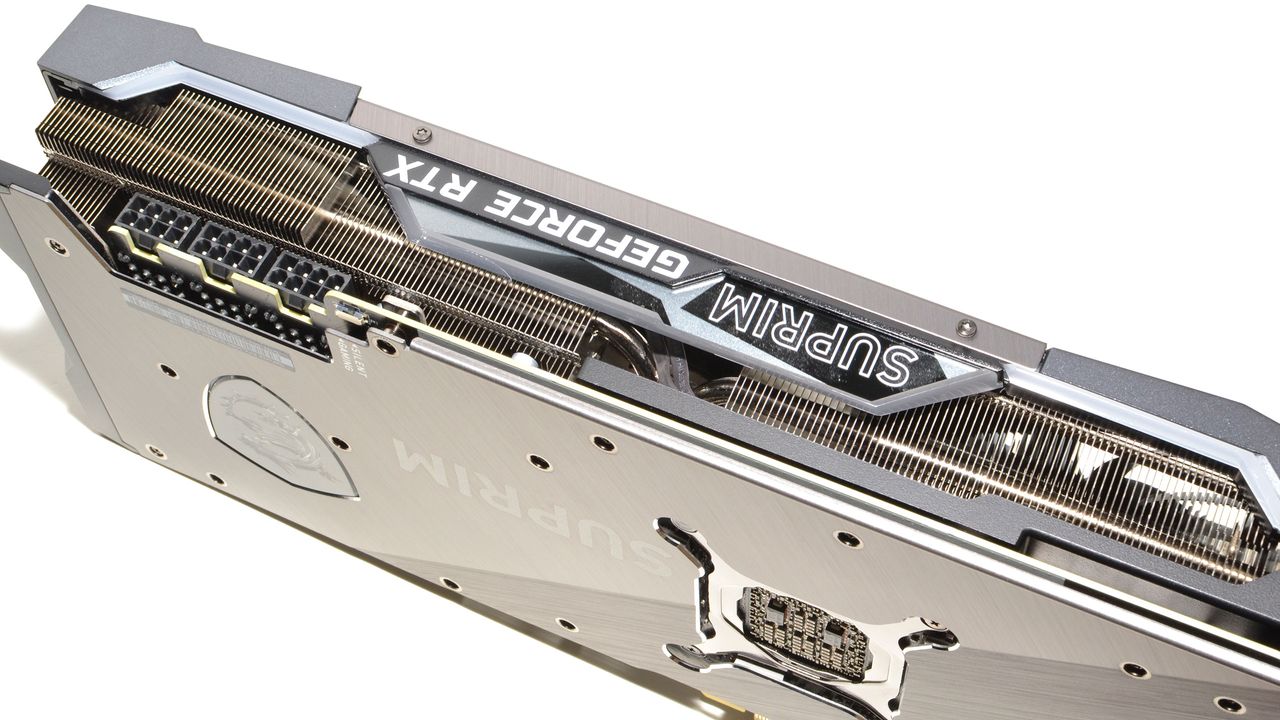

MSI provided its RTX 3080 12GB Suprim X for this review, which uses the same core design as other Suprim X GPUs. It's a large triple-fan, triple-slot card that measures 336x140x61mm and weighs 1901g. It includes a fair amount of RGB lighting, with two "wide V" accents between the fans, a large RGB strip along the top, and an RGB MSI Dragon logo on the metal backplate. MSI uses three custom 95mm Torx 4.0 fans in its Tri Frozr 2S cooling configuration, which feature partially integrated rims to increase static pressure and airflow. Combined with the chunky heatsink, there's plenty of cooling potential on tap.

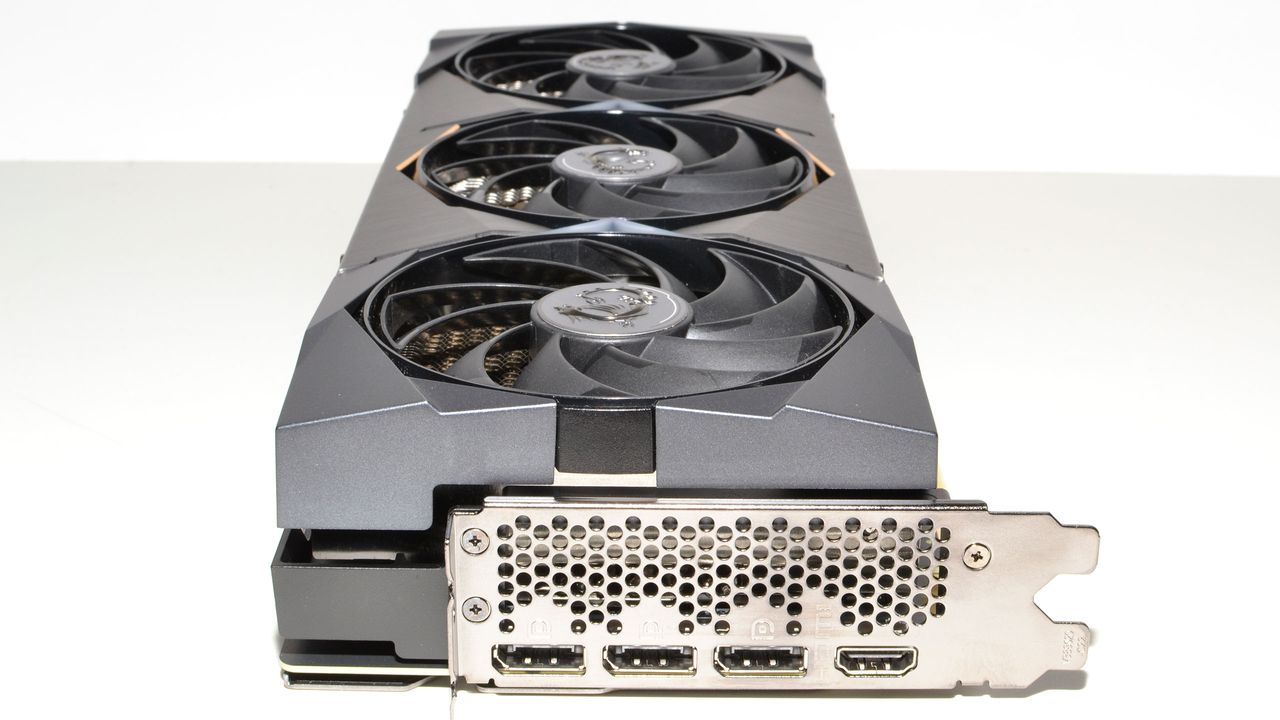

Video outputs consist of the usual triple DisplayPort 1.4 and single HDMI 2.1. That's a bit surprising, considering the high-end nature of the design, and some of the competing GPUs add a second HDMI 2.1 connection as a fifth output. Note also that the card runs with a boost clock of 1830MHz, unless you install the MSI Dragon software and select the OC profile, which bumps the clocks to 1845MHz. It also requires three 8-pin PEG power connectors, and MSI lists the power consumption at 400W. That's higher than the reference 3080 Ti and 3090, and is largely due to the boosted GPU clocks.

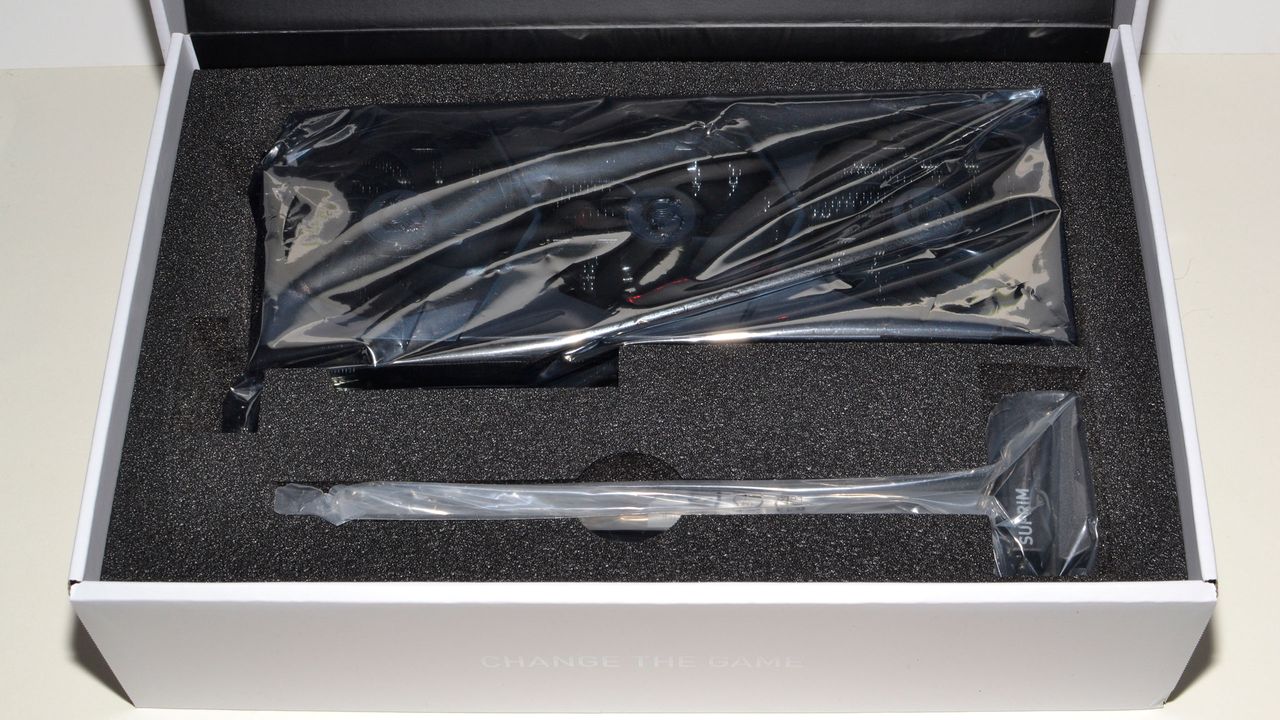

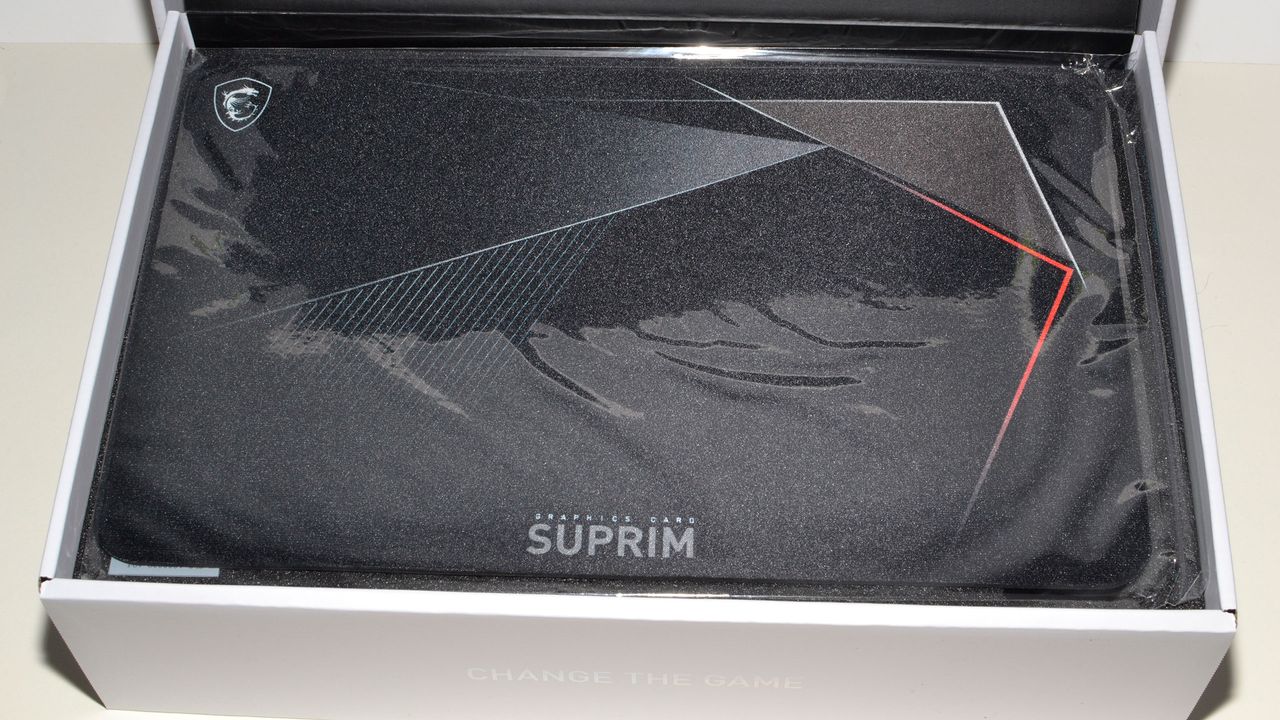

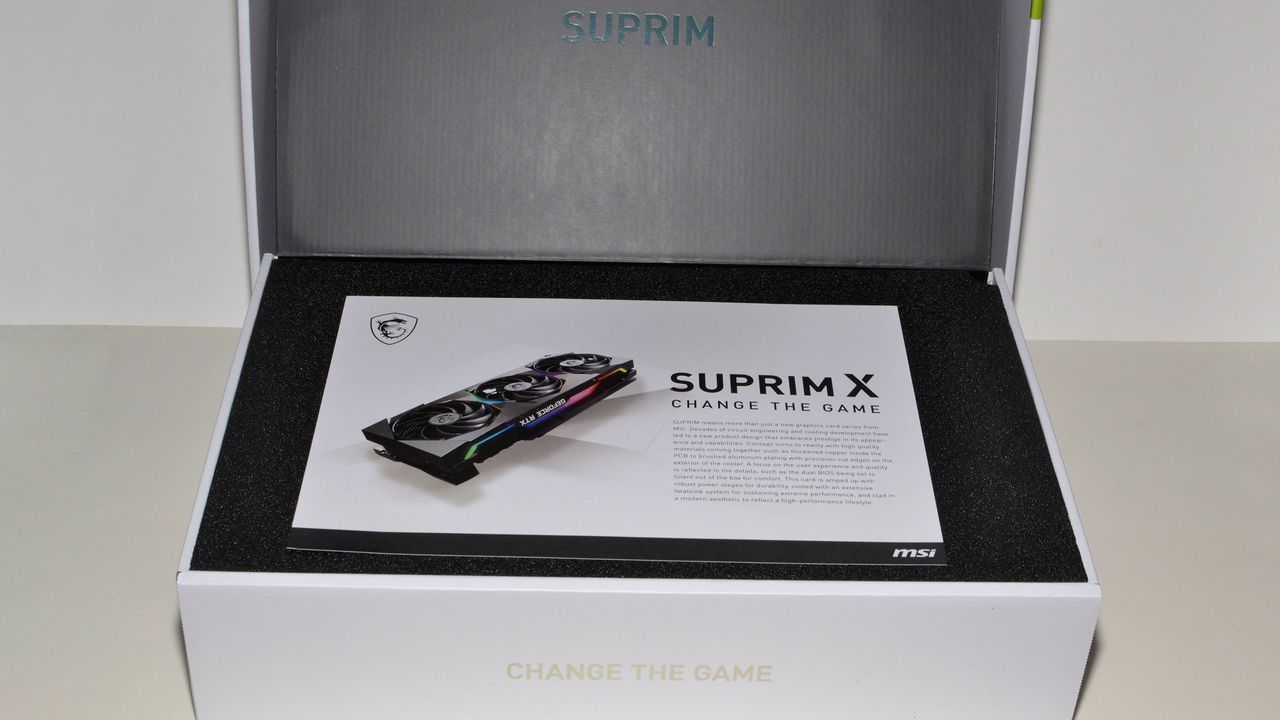

MSI includes a few other extras with the card as well. For people who worry about the weight of the graphics card, an adjustable-height support can help out — just don't move or ship the PC anywhere with the stand installed, as it will end up banging around inside your case. There's also a decent 38x24cm mouse pad, should you need one of those. In short, the MSI Suprim X brand is the "kitchen sink" approach to graphics cards, with plenty of enthusiast-oriented features and extras.
Test Setup for GeForce RTX 3050
We've updated our GPU test PC and gaming suite for 2022. We're now using a Core i9-12900K processor, MSI Pro Z690-A DDR4 WiFi motherboard, and DDR4-3600 memory (with XMP enabled). We also upgraded to Windows 11 Pro, since it's basically required to get the most out of Alder Lake. You can see the rest of the hardware in the boxout.
Our new gaming tests consist of a "standard" suite of seven games without ray tracing enabled (even if the game supports it), and a separate "ray tracing" suite of six games that all use multiple RT effects. For this review we'll be testing at 4K, 1440p, and 1080p at "ultra" settings — which generally means maxed out settings, except without SSAA if that's an option. We also enable DLSS Quality mode in the games that support it, which includes all of the ray tracing suite and three of the games in the standard suite.
