Lian Li Lancool 207 Digital review: The best on the market, now with a six-inch screen

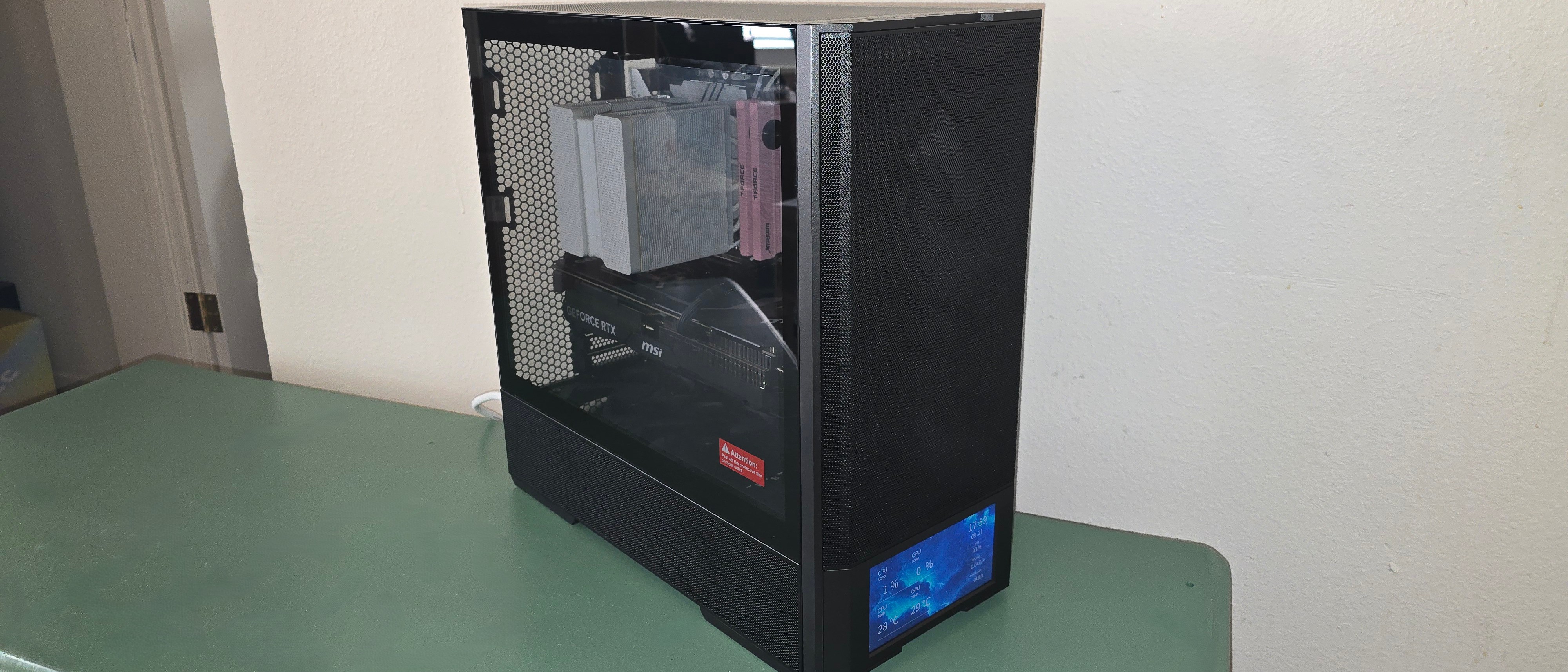

The original version of the Lancool 207 impressed us around this time last year, with its airflow and included fans, at an affordable $80-$85 in the U.S. Today we’re taking a look at a refreshed variant, the Lancool 207 Digital, which effectively delivers all that was great about last year’s model, plus a bright front-mounted screen, for about $20 more.

We’ll be taking a close look at the primary upgrade in this digital model, the 6-inch, 1600x720 screen that’s rated to 500 nit of brightness. It can show performance metrics or even be configured as a secondary monitor.

We’ll also run the case through some difficult thermal benchmarks, using Intel’s i9-14900K and an Nvidia RTX 4000 series GPU to test its cooling effectiveness, both at noise-normalized settings and with the fans at maximum speeds.

Will Lian Li Lancool 207 Digital make our list of the best PC cases? You’d better believe it! The thermal performance of this case is among the best on the market, as you’ll see in the benchmarks section. Let’s take a look at the specifications and features of the case, then we’ll wrap up our review with thermal results.

Product Specifications

Features of Lian Li’s Lancool 207 Digital PC case

▶️ GPU length and anti-sag support

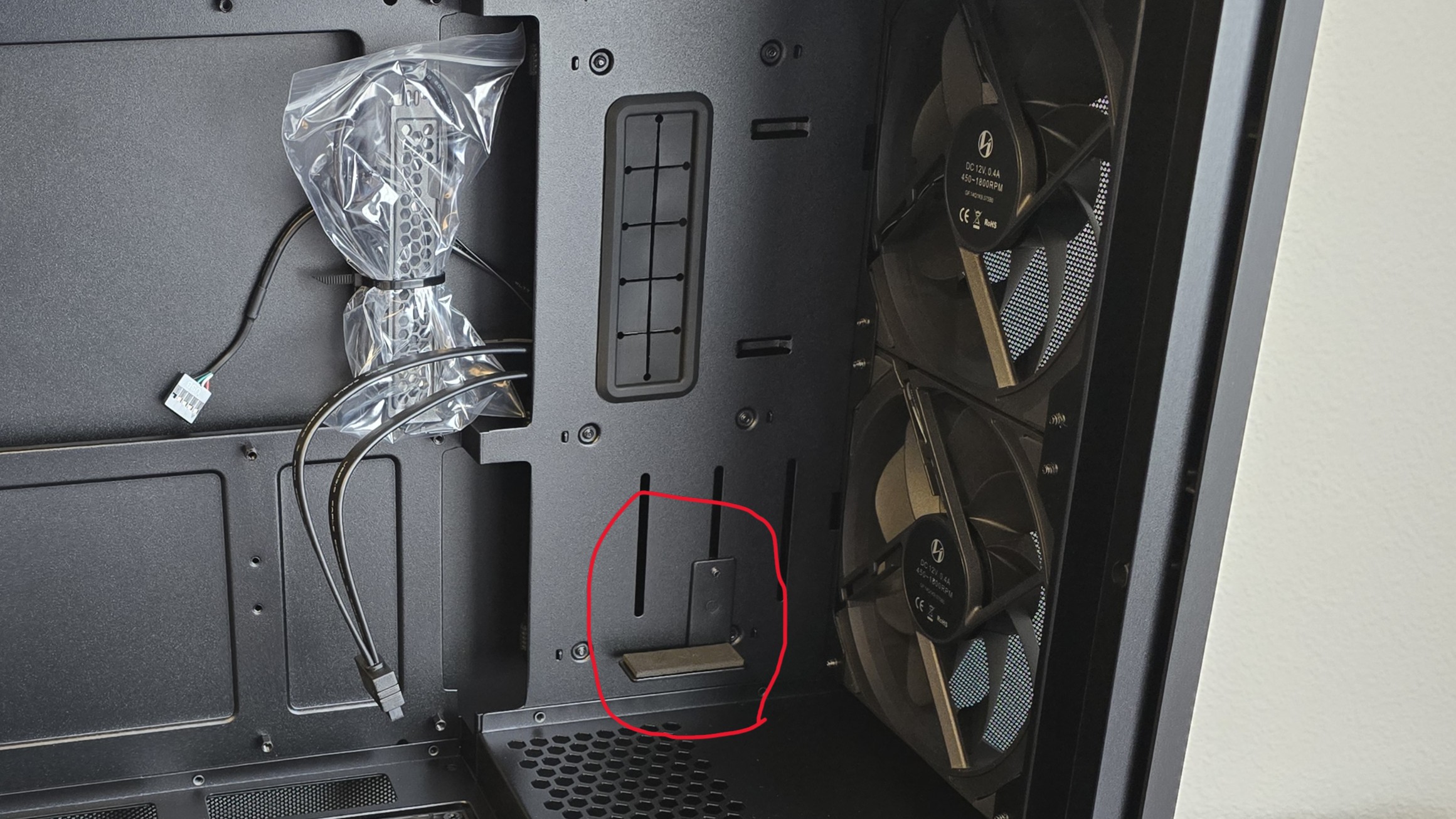

While it is a fairly compact mid-sized case, Lian Li’s Lancool 207 supports the biggest RTX 5090 GPUs, with room for graphics cards up to 375mm (14.76 inches )in length. An essential GPU anti-sag bracket is included with the case, outlined below in red.

▶️ PSU up front makes room for cooling at the back

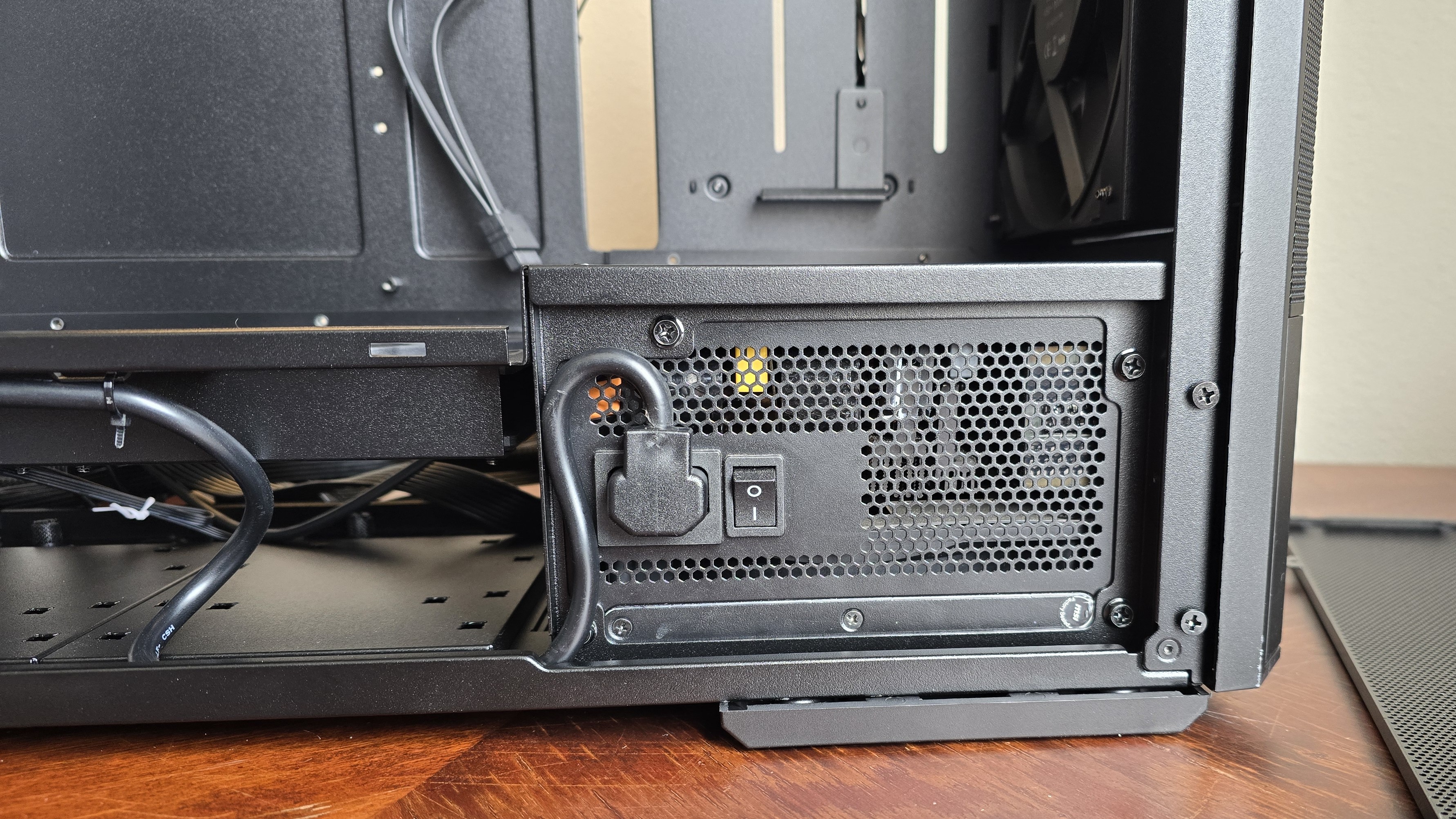

Most PC cases have the power supply installed in the rear of the case, but Lian Li’s Lancool 207 features a front placement for the PSU. This is a trend we’ve seen elsewhere, like in Montech’s HS01 Pro. But here it’s at the bottom, and turned 90 degrees. A bottom mesh cover assures the PSU won’t have an issue dumping its heat outside the chassis.

▶️ Dual fans up front and the bottom of the case, with strong airflow in the back

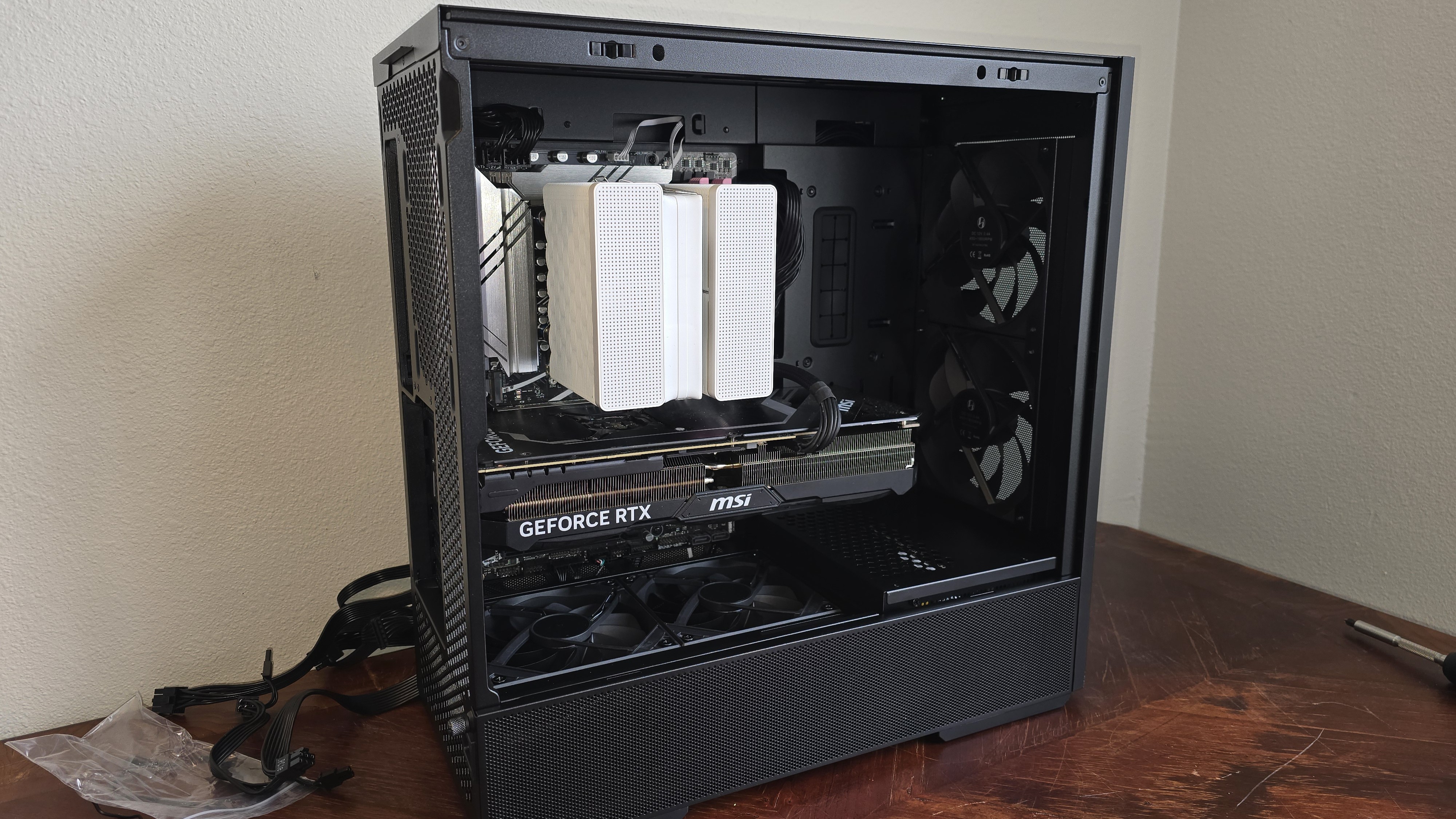

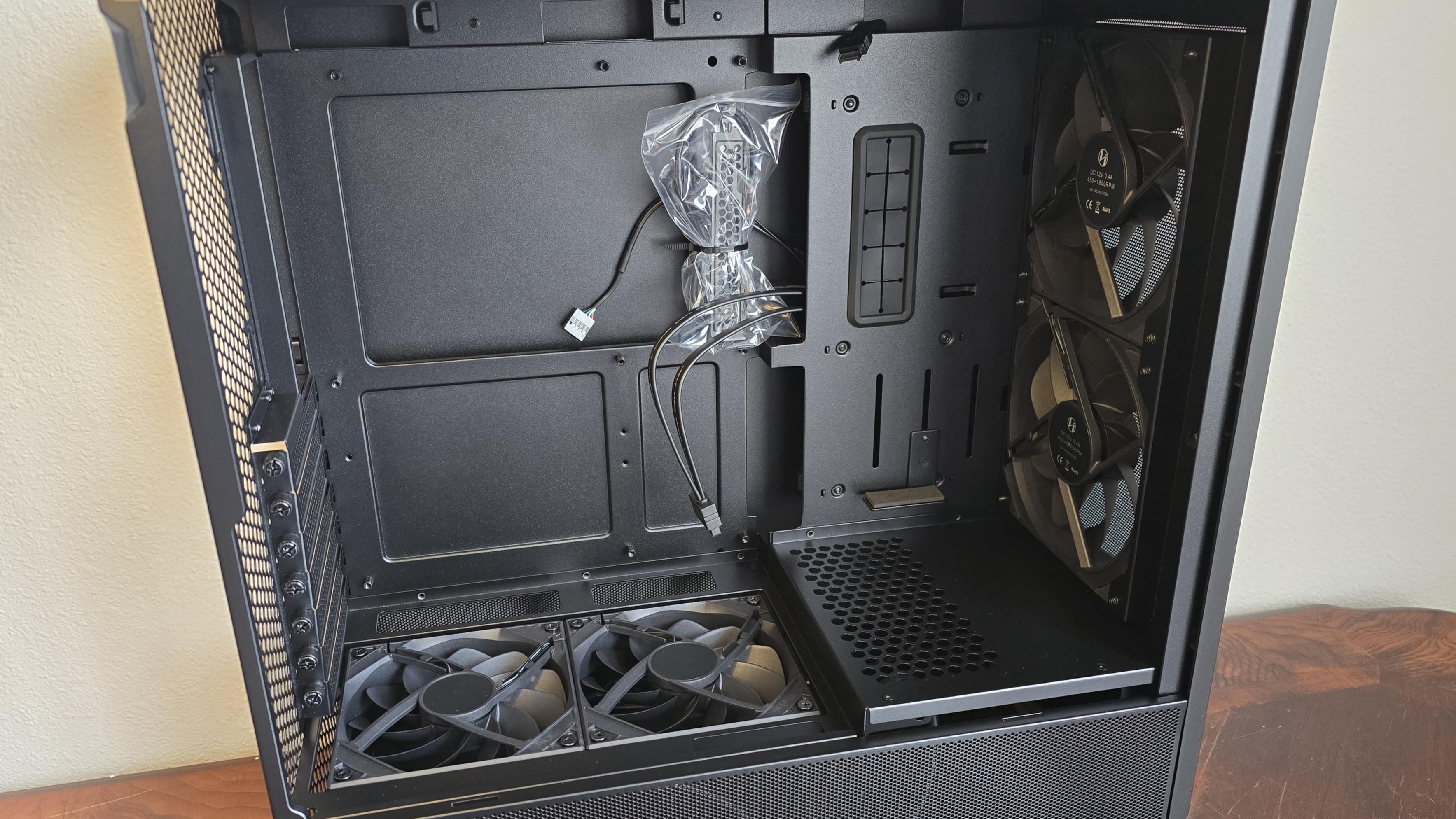

The case comes with two 140mm fans installed in the front (non-RGB on this model), and two 120mm fans installed on the bottom. Despite lacking – at least in the default configuration – a traditional exhaust fan, airflow through the back of the case (which is also mesh with large holes) is very strong! For those wanting the best cooling possible, an exhaust fan can be installed here. Up to three additional fans, or a 360mm AIO, can be installed at the top of the case.

▶️ Air cooler support

In addition to supporting the largest GPUs on the market, the Lancool 207 Digital also has room for larger air coolers, with towers up to 180mm tall (7.1 inches) supported.

▶️ Bottom view: rubber feet and dust filter

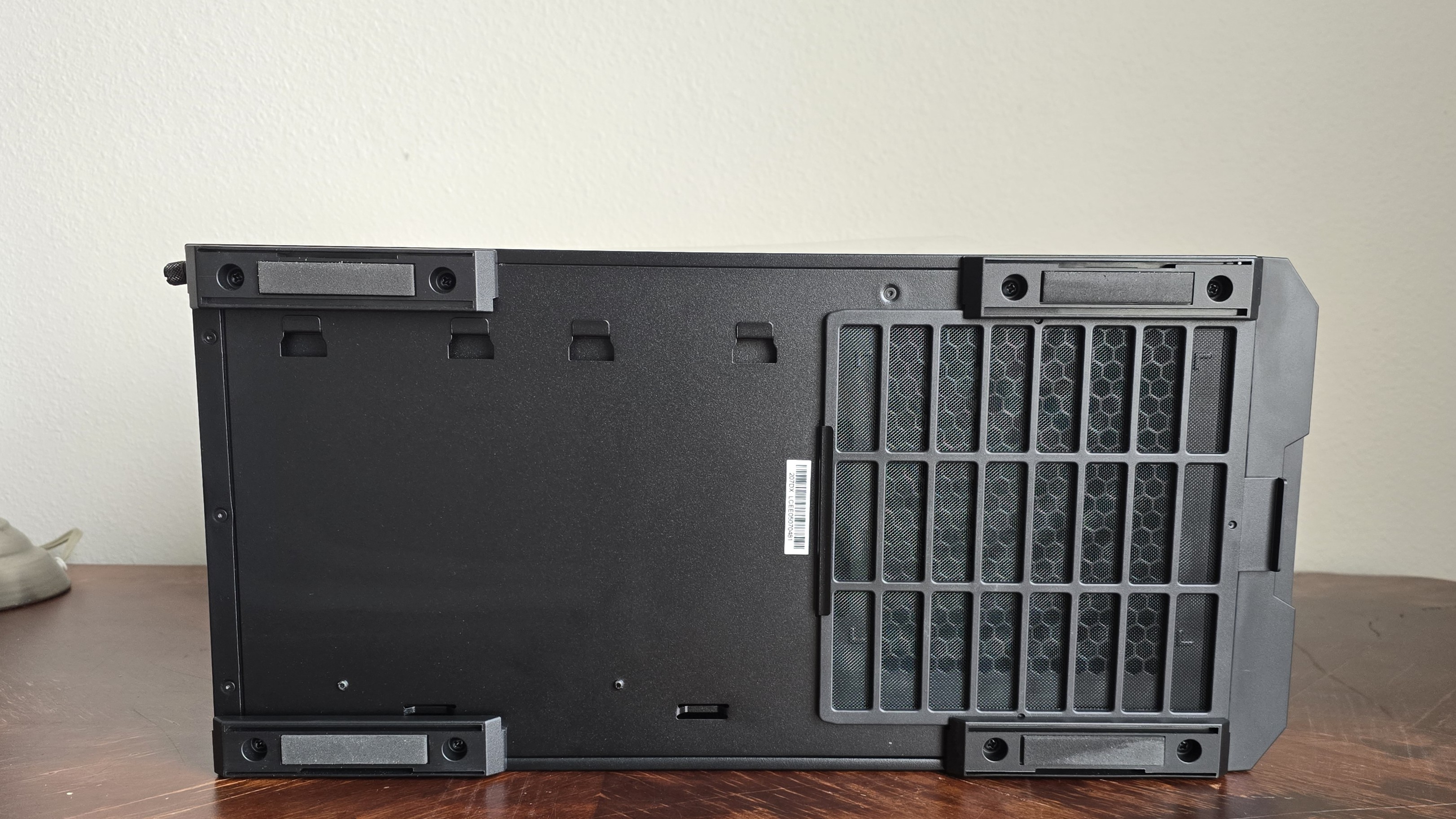

There are four rubber feet on the bottom to ensure airflow to the PSU (there’s also a dust filter here) and prevent it from moving.

▶️ Back side, cable management, and storage support

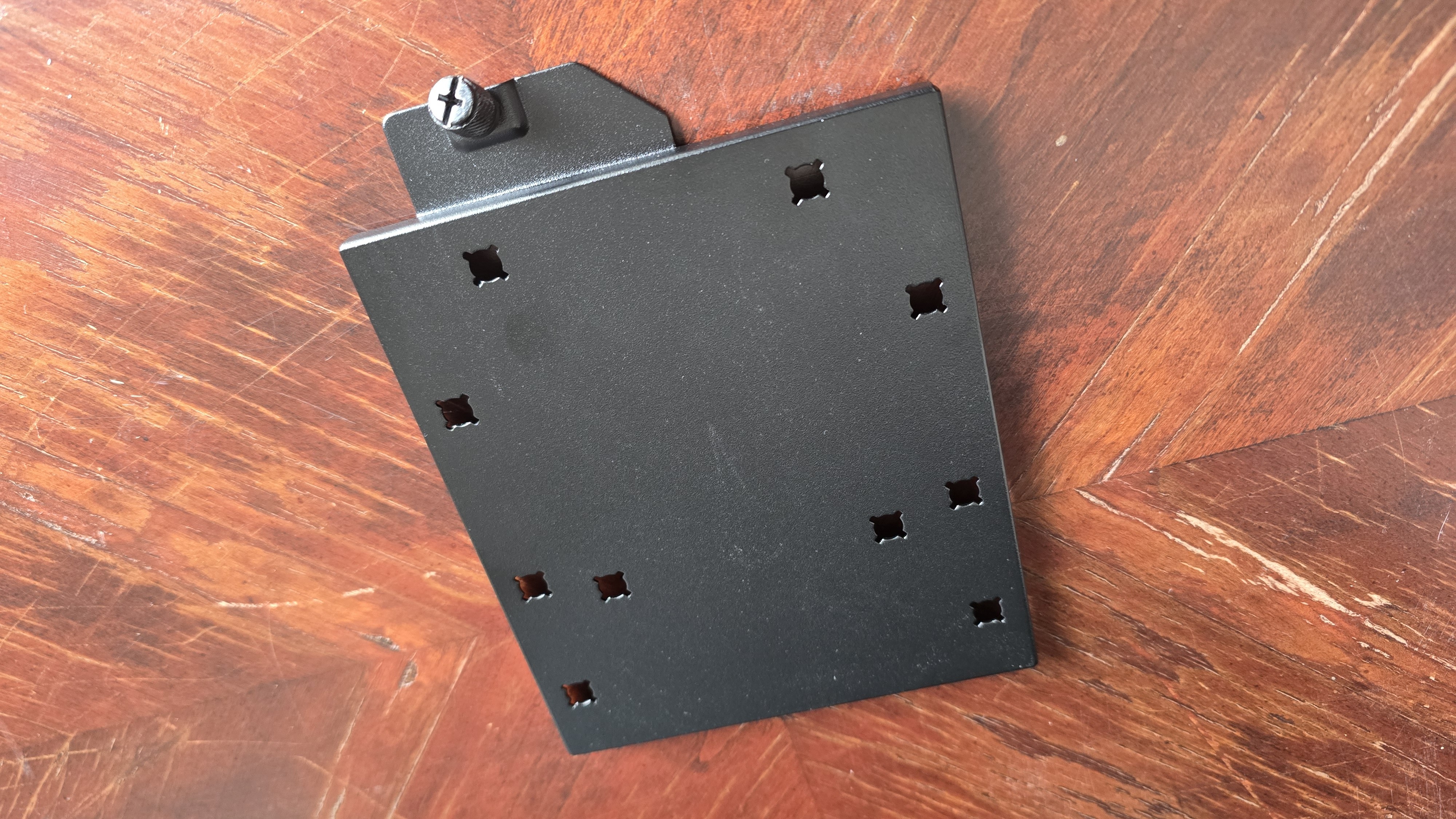

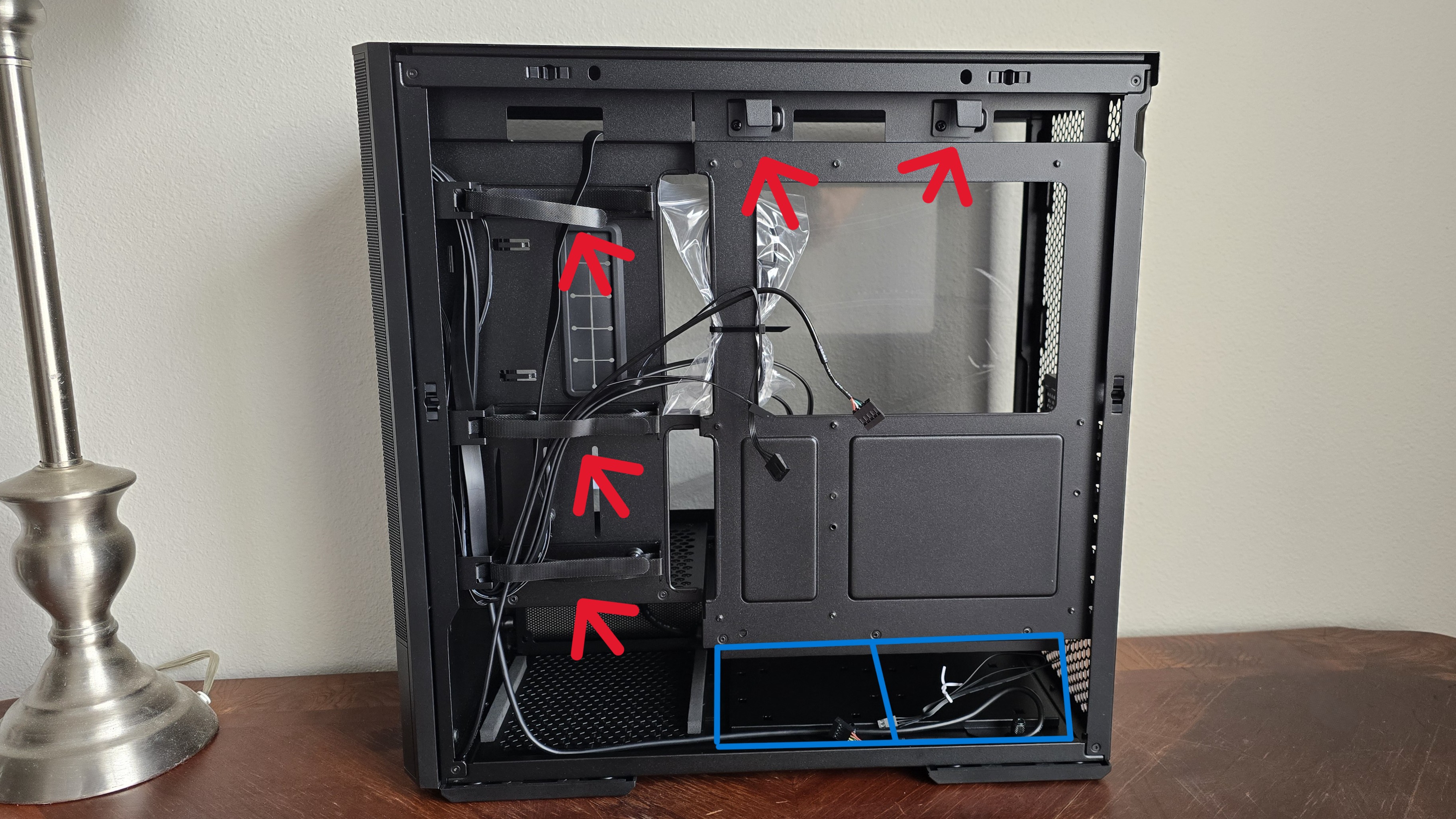

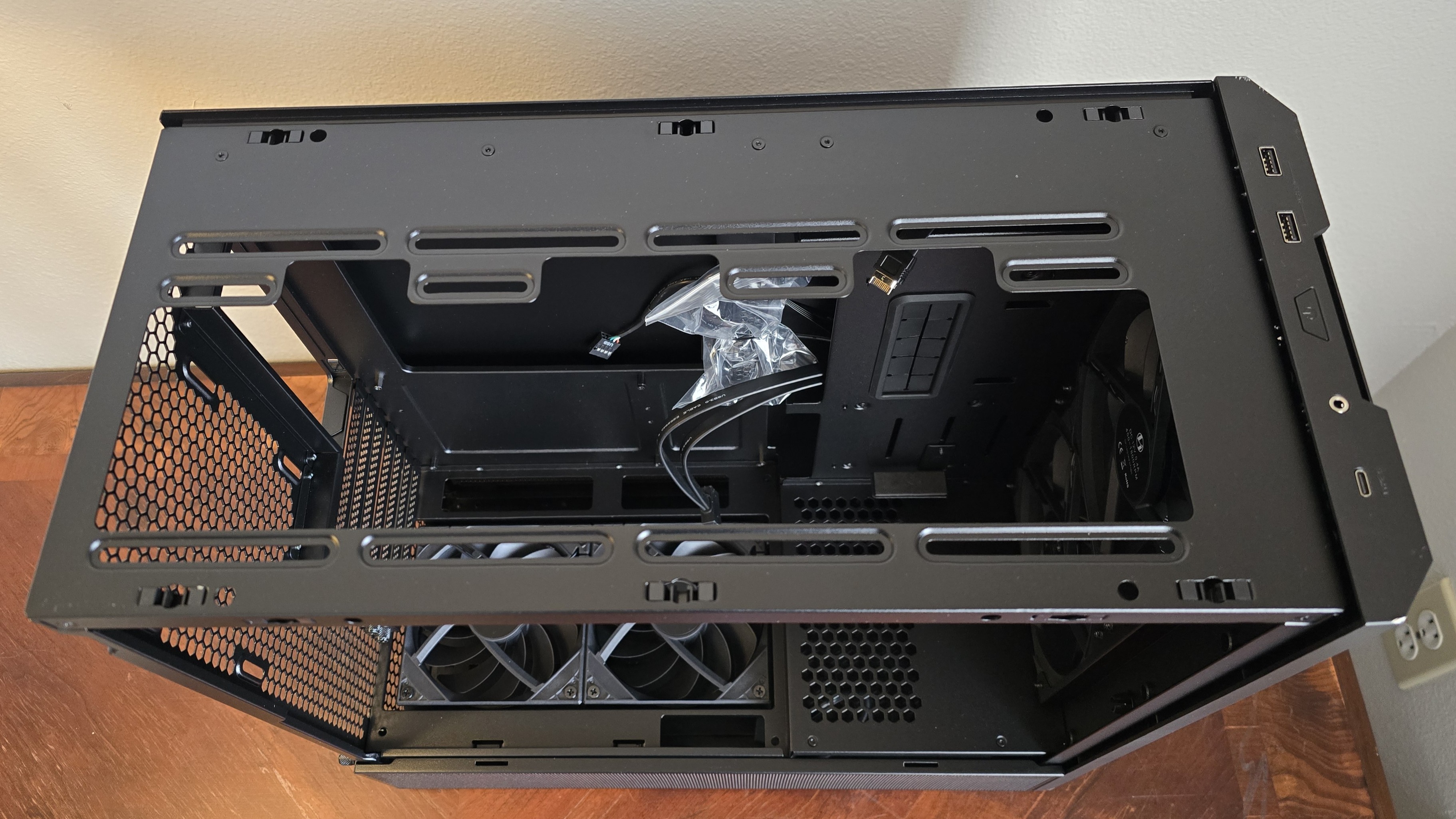

From the backside of the case, we see a simple but efficient setup. Cables can be managed and tucked in a tidy fashion secured by the three velcro straps on the left side of the case and through the top. Those who have extra cables from their PSUs can stash them above the SSD plates, highlighted in blue. Both 3.5-inch and 2.5-inch drives are supported by the drive plates, shown below.

▶️ ATX, Micro-ATX, and Mini-ATX support

While the Lancool 207 won’t support the largest EATX motherboards, it does support standard-sized ATX boards up to 244mm in width, as well as smaller boards. We’ve installed the Asus Z790-P Prime Wifi, paired with Intel’s i9-14900K CPU for this review’s testing.

▶️ IO panel

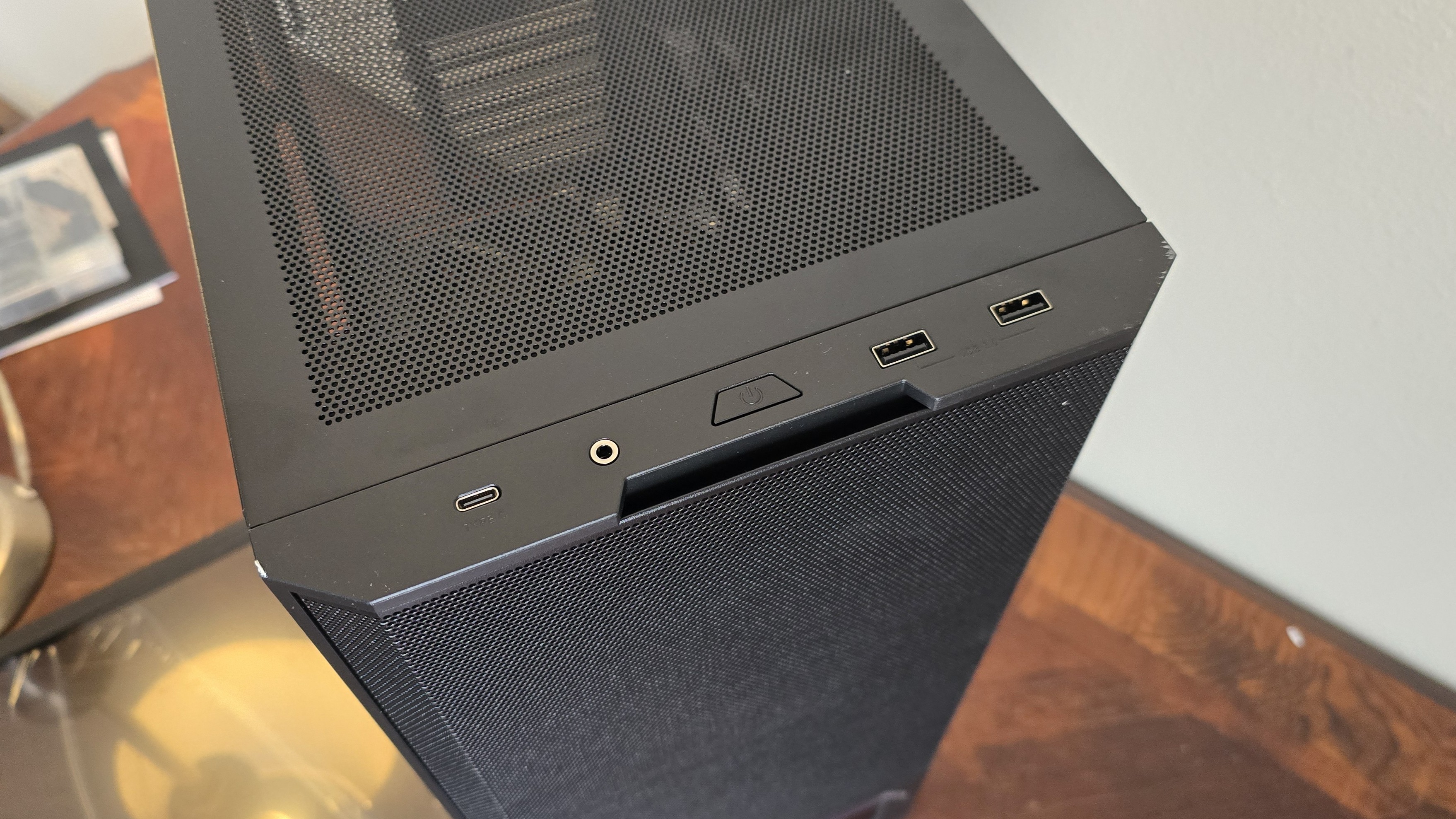

The IO panel is located at the front and top of the case. It offers a power button, audio jack, and three USB ports – two USB-A and one USB-C.

▶️ Accessories packaging

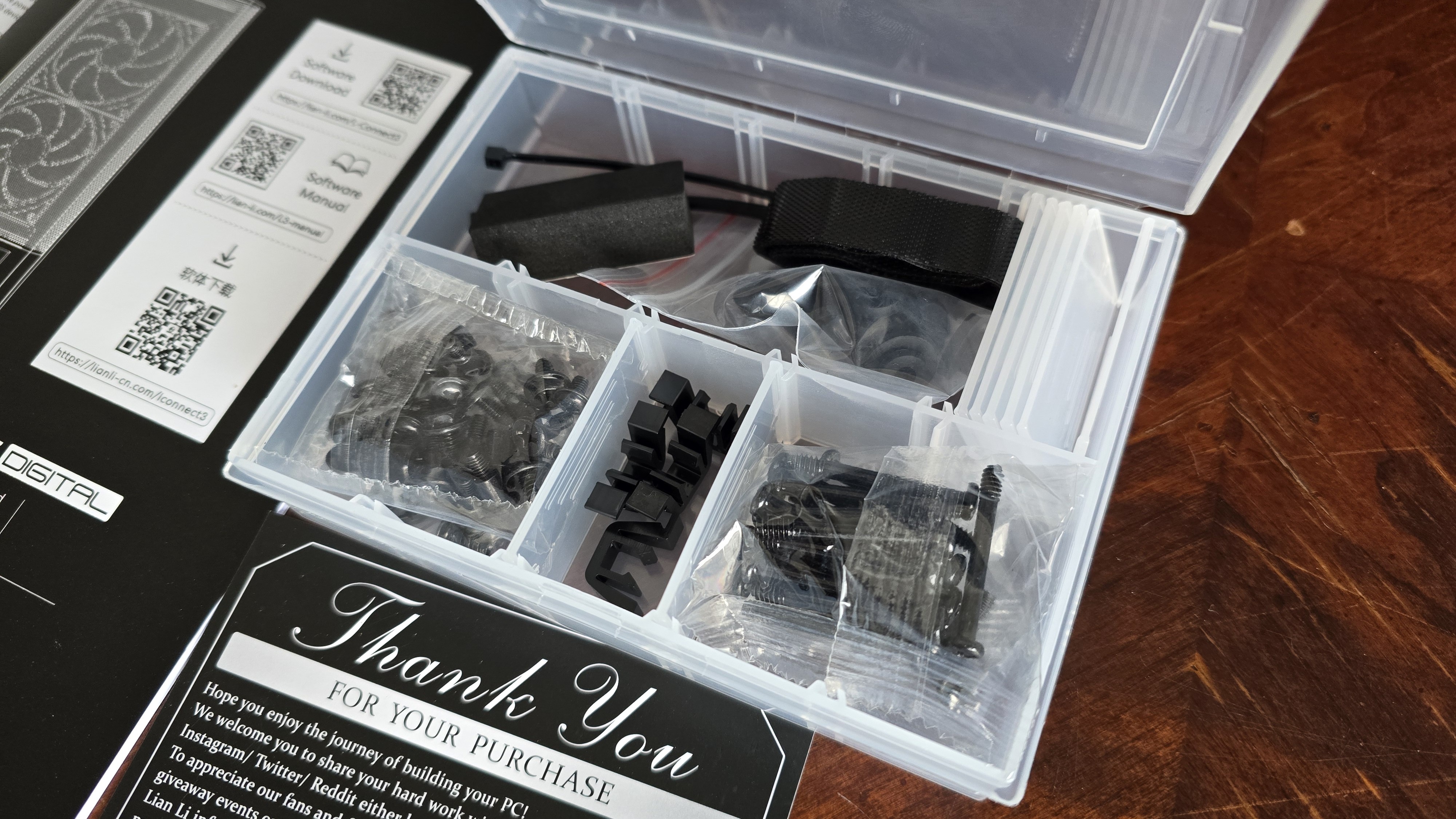

Lian Li goes the extra mile in the packaging of case accessories. Many manufacturers include the spare parts in simple plastic bags or a cardboard box. The Lancool 207 comes with a premium box that includes dividers that can be used to customize it as desired.

▶️ Toolless side panels

The side panels of this case can be removed and installed without tools, which some may appreciate for simplicity.

▶️ Six-inch, 500-nit 1720x600 display

Image 1 of 2

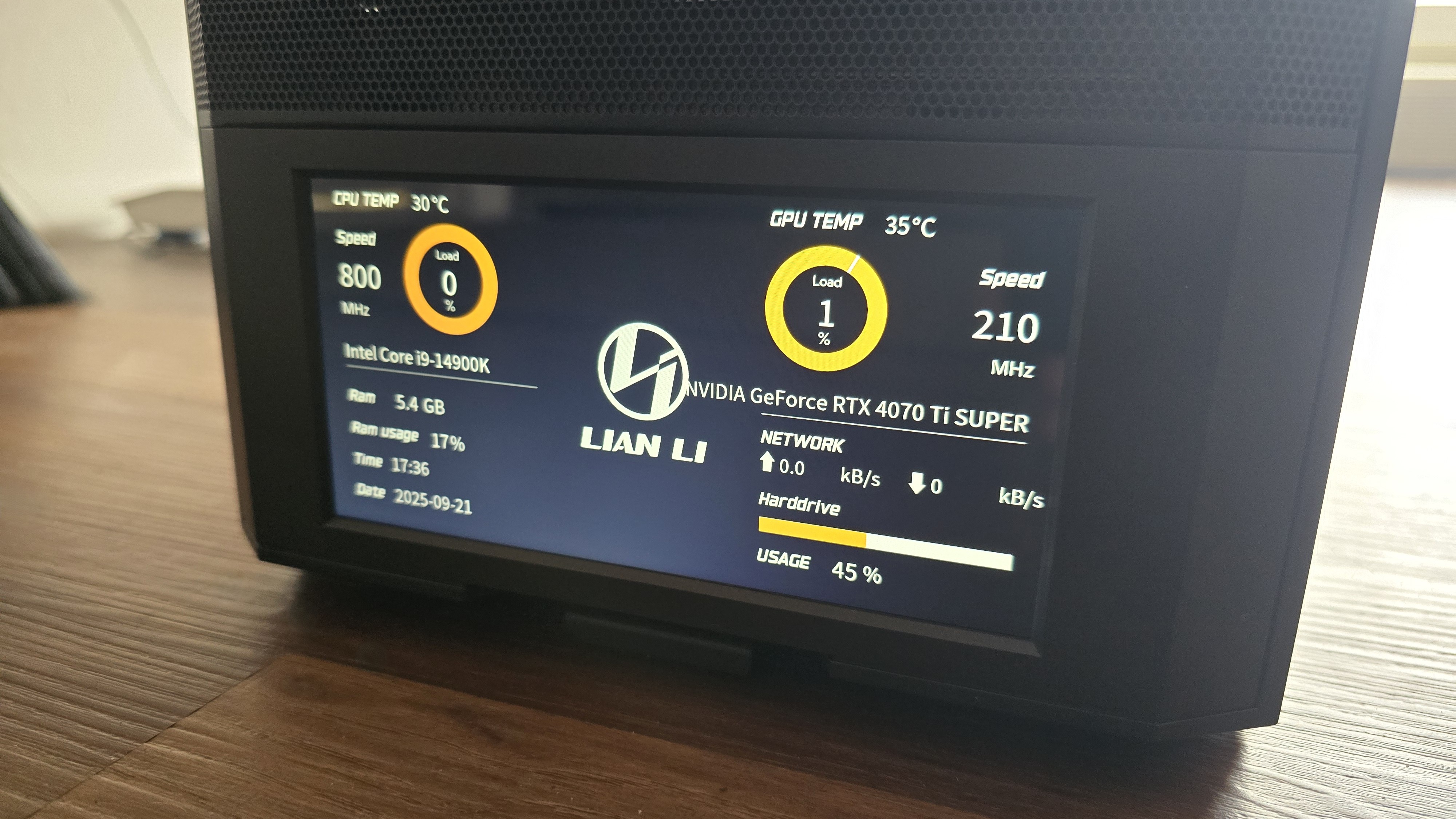

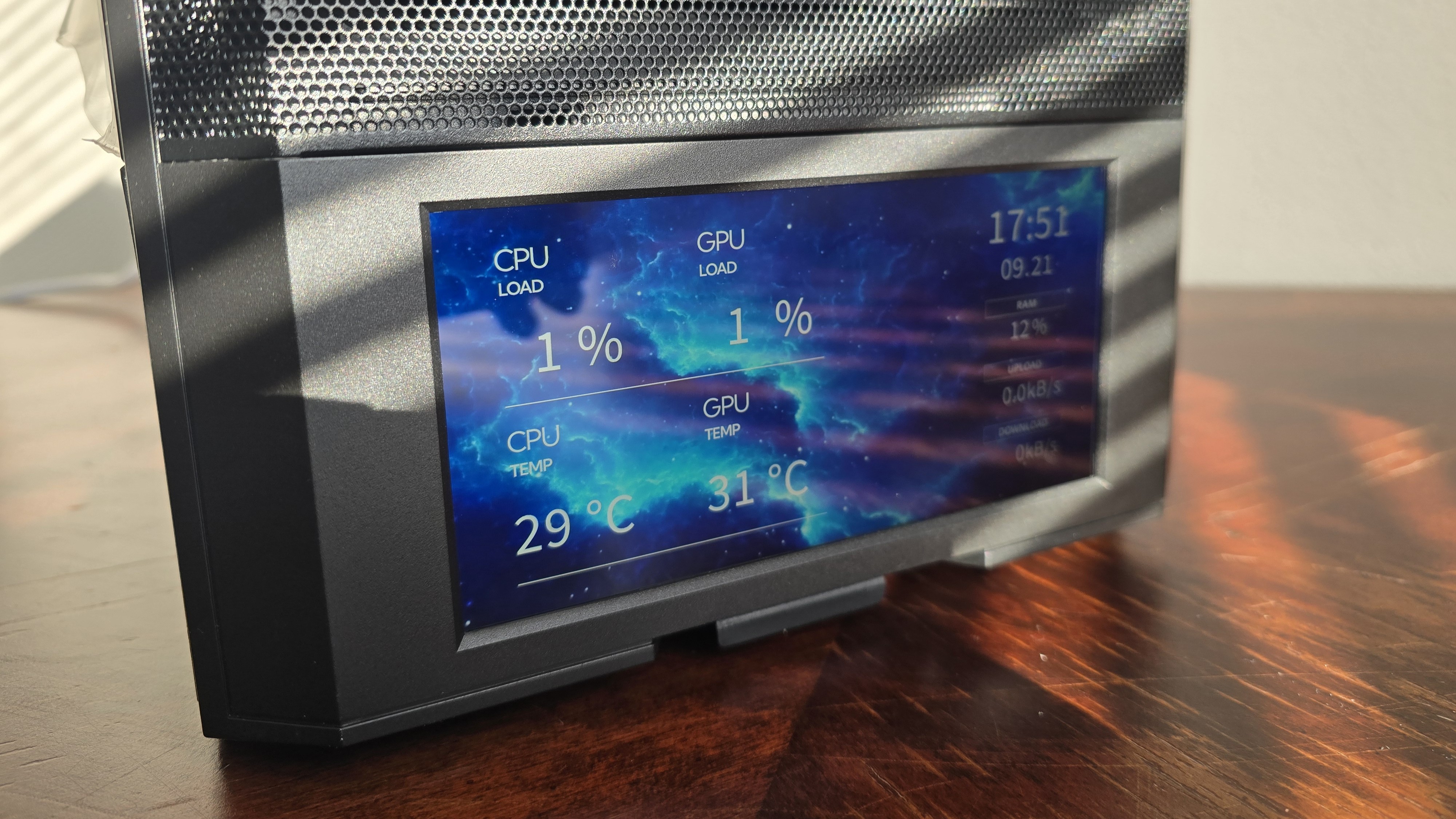

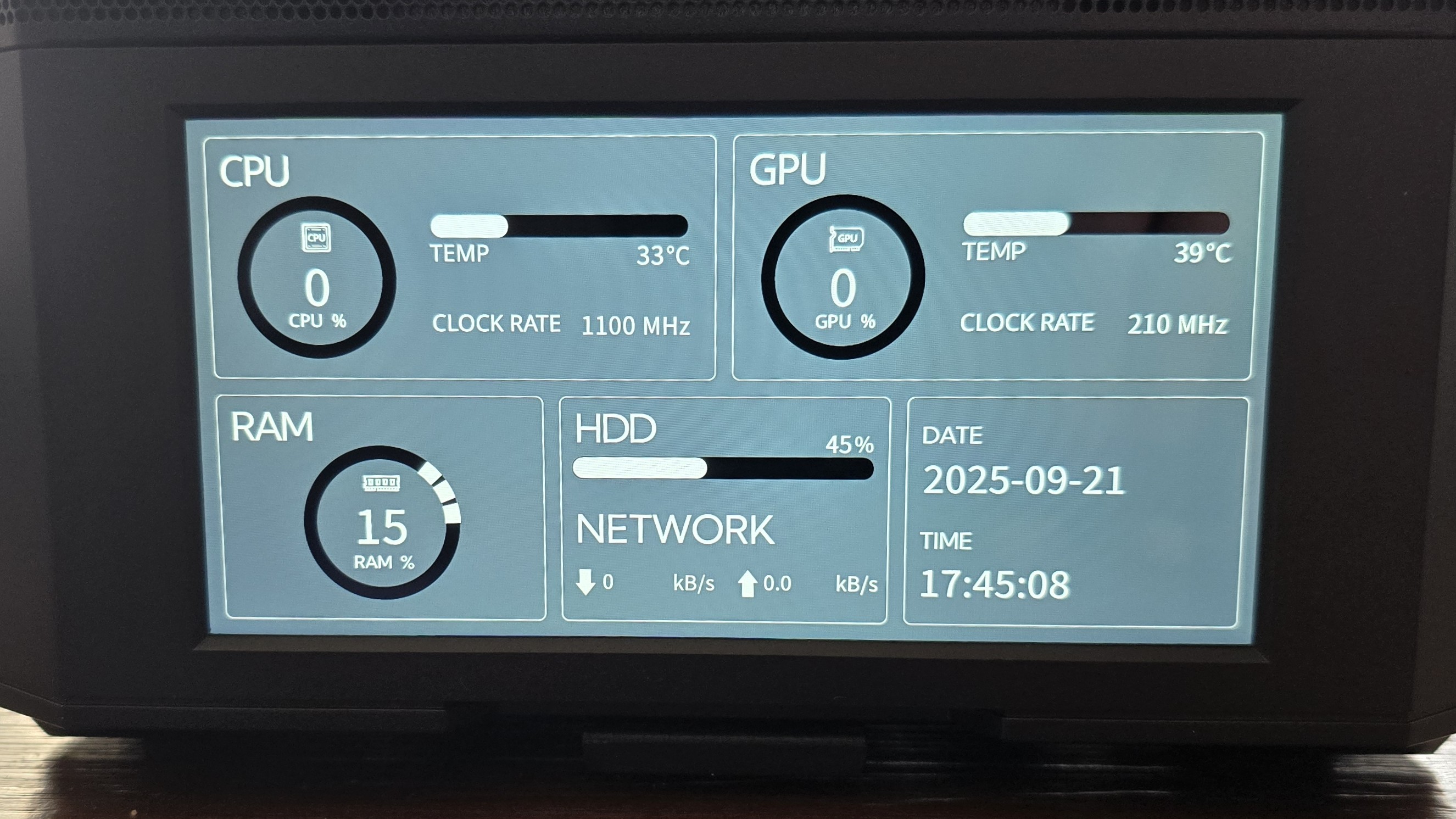

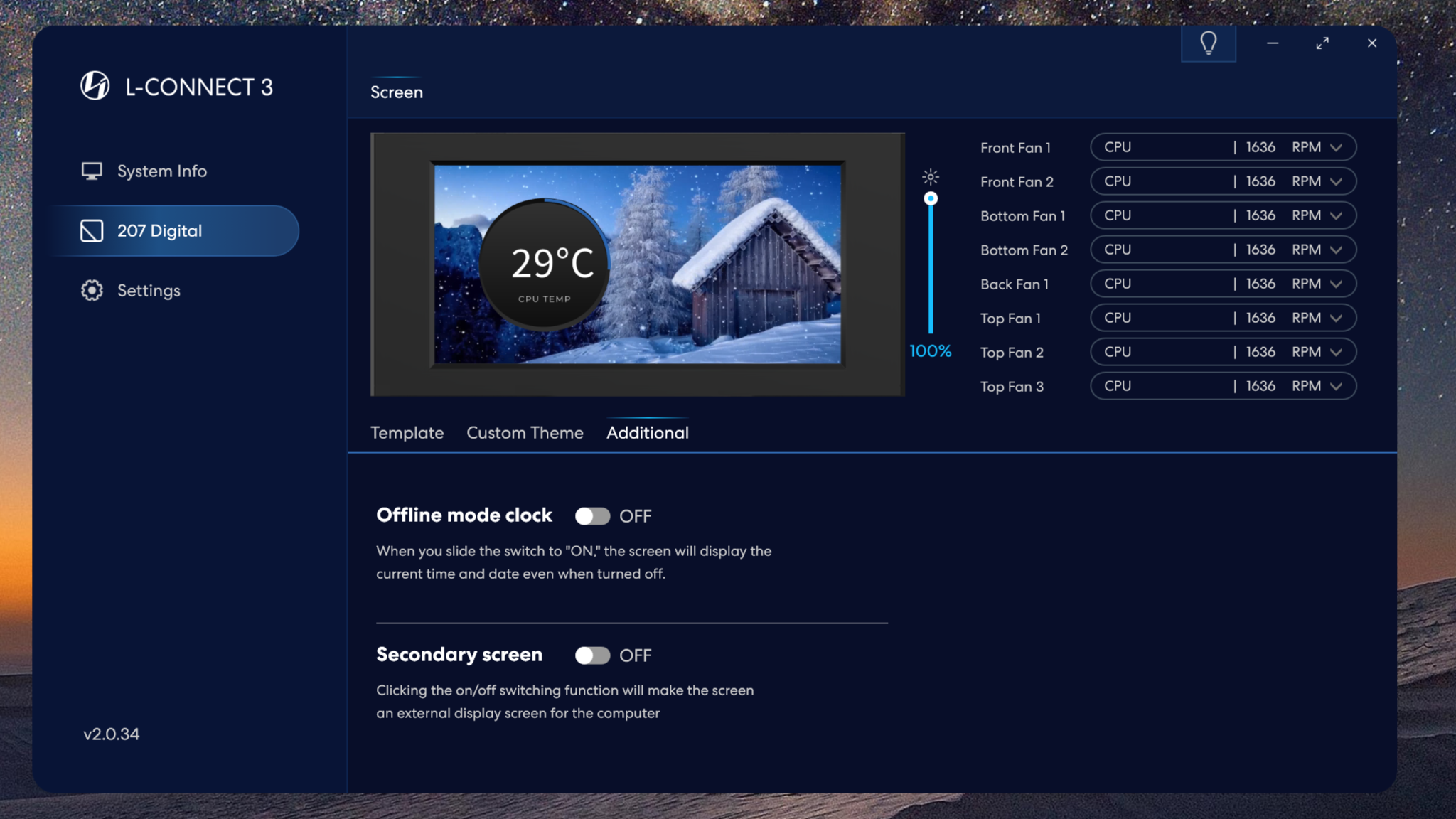

The distinguishing feature of this case revision is the inclusion of a 500-nit, 1720x600 display. This can be customized through Lian Li’s L-Connect 3 software, which we’ve covered in-depth in previous reviews. It allows easy customization of the screen to show performance metrics, images, or videos of your choosing. There is a large variety of pre-packaged themes to choose from, I’ve shown a few in the pictures here.

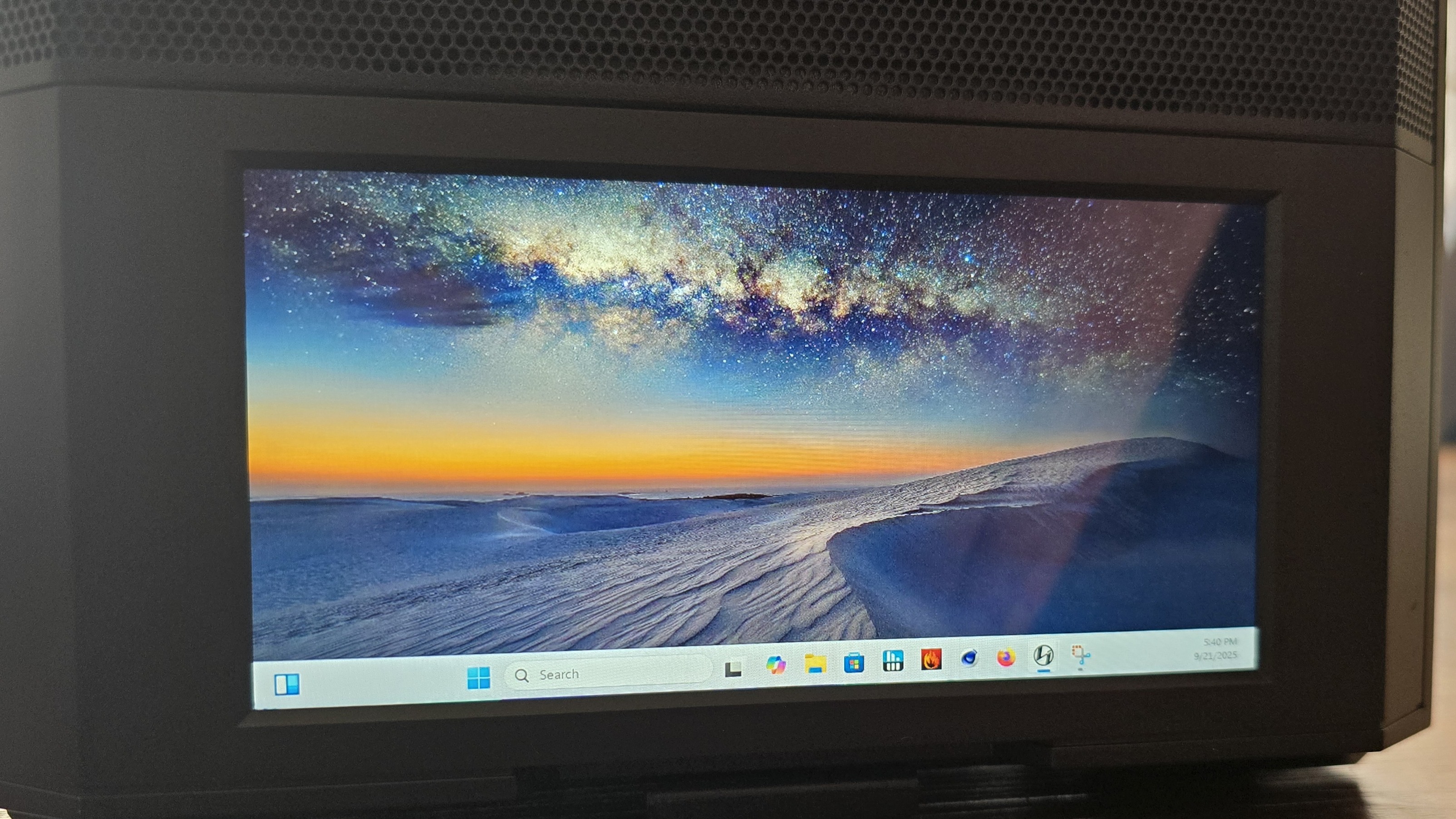

But if you don’t want to use Lian Li’s software or just want to display something else, the screen can also function as a secondary display.

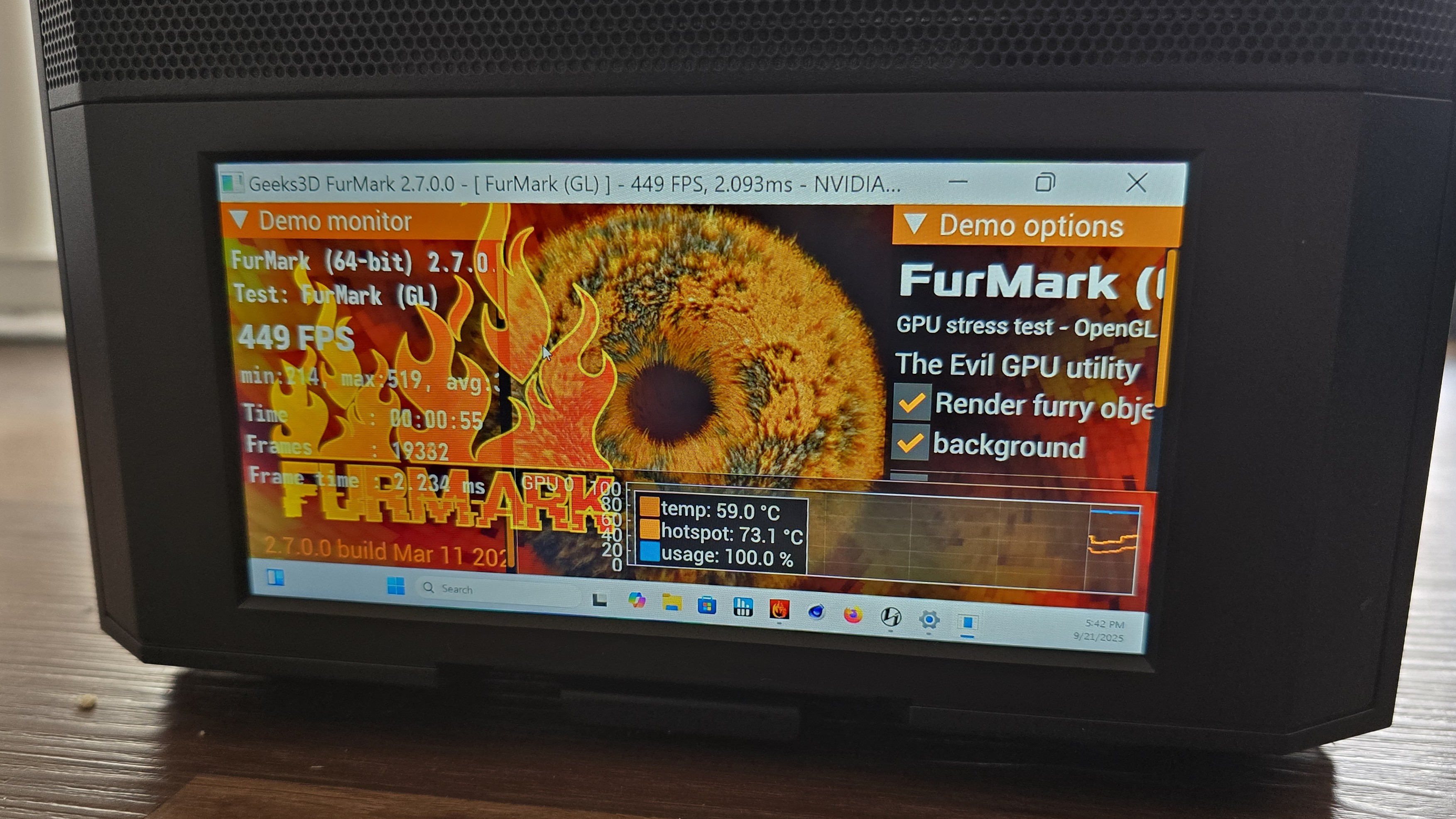

This allows the display to be used as you see fit – I’ve run Furmark at a whopping 450 FPS in the demo above. One thing I like using this feature for is to set up a slideshow of pictures in an album, changing every few minutes to display a different memory.

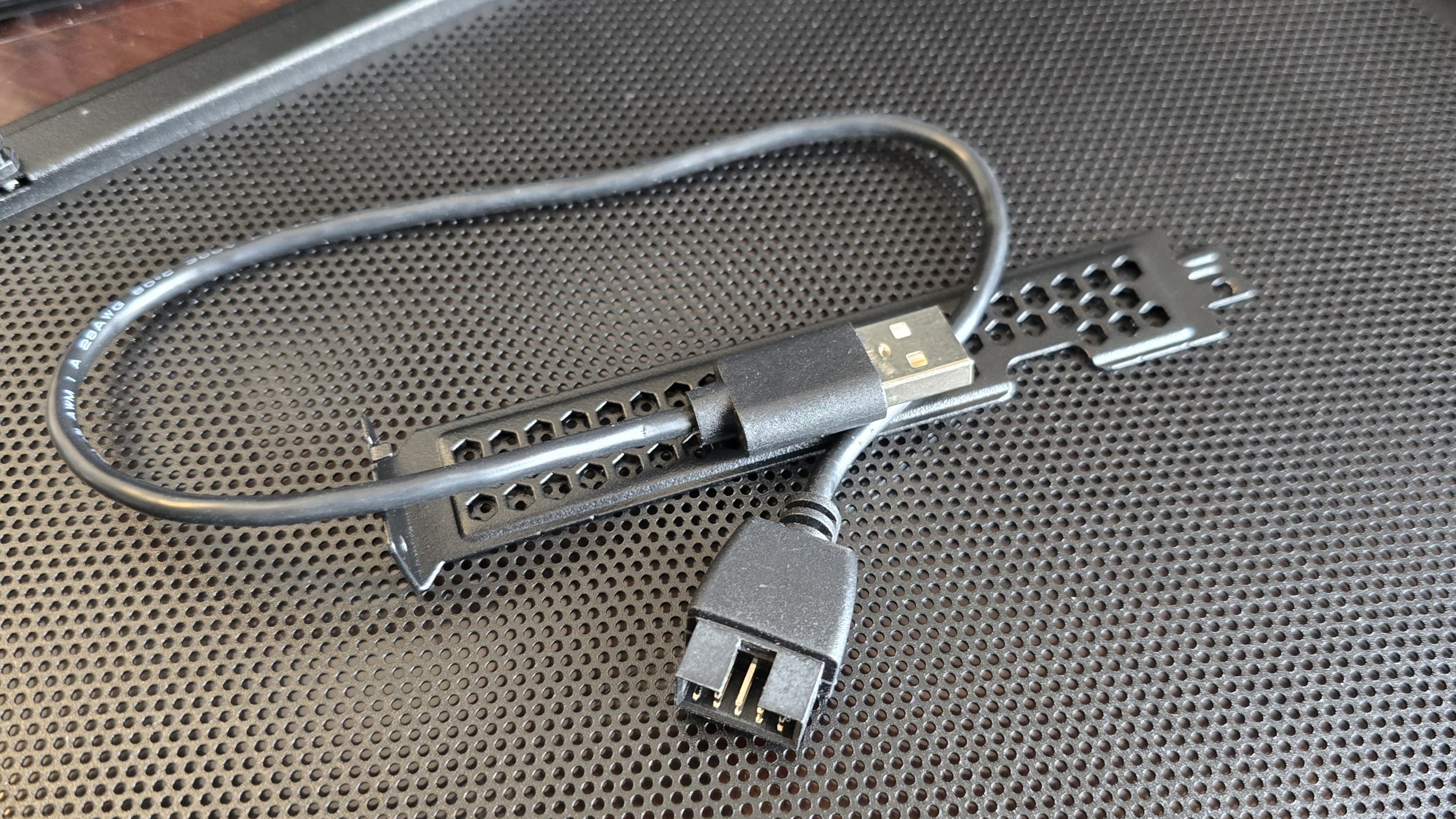

Most users will need to connect the display to a USB header on their motherboard. However, if you don’t have a spare USB header on your motherboard, Lian Li aslo includes an adapter so that the display can be connected through a traditional USB-A port!

▶️ Rear view

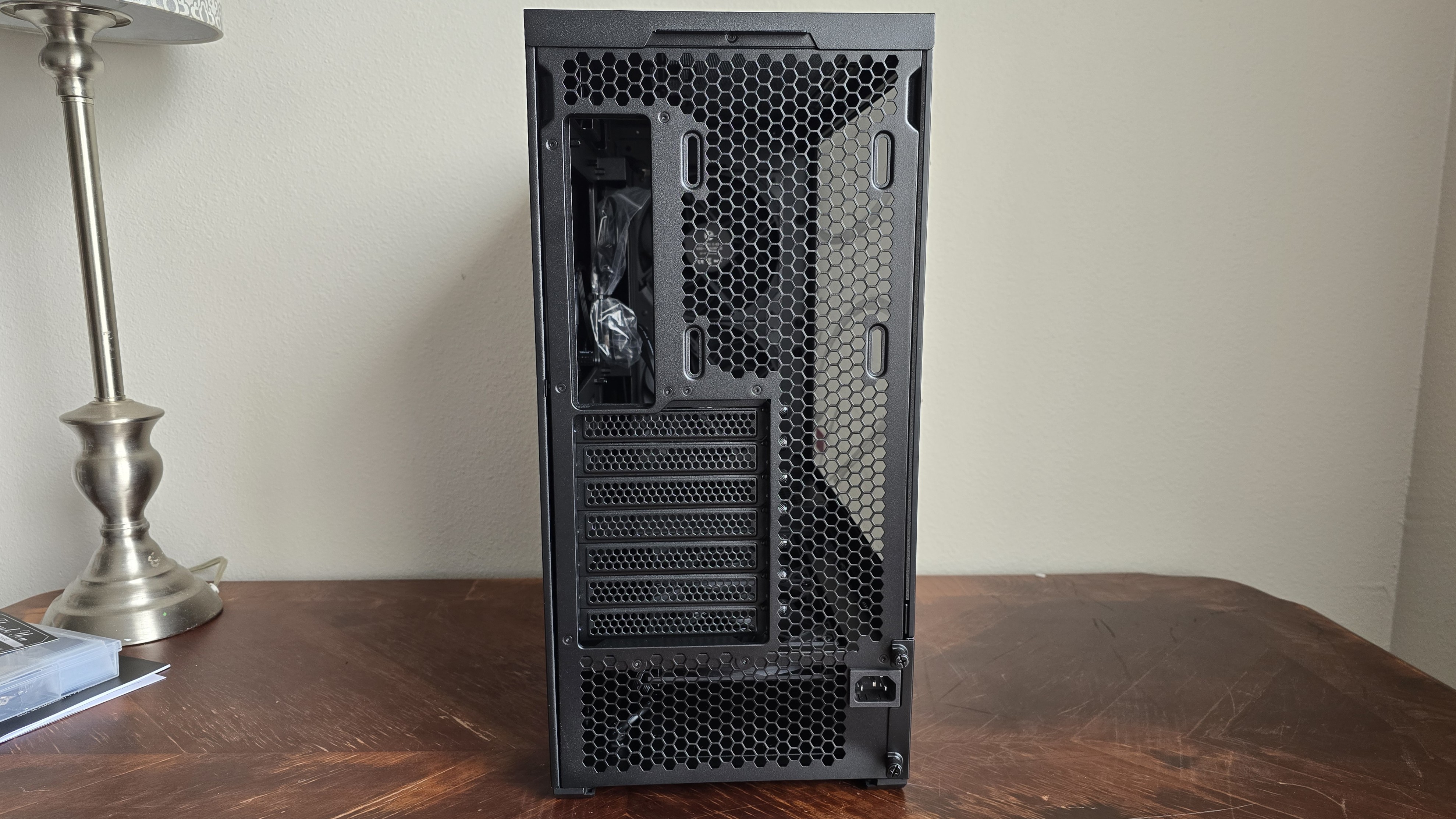

There’s not much to say about the rear of the case. Like most, it supports seven PCI-e expansion slots. The main difference you’ll notice from typical cases is the power plug on the bottom of the case, which connects to the power supply in the front of the unit.

Thermal tests, test setup, and testing methodology

The measurements I’ve benchmarked this case against focus on the efficiency of the case’s thermal transfer.

Our thermal tests are presented to give you more information about the product’s performance, but aren’t intended as the sole judgment of the chassis. The style, price, features, and noise levels of a case should also be considered, and we all have different preferences. What I might like in a case, you might not, and that’s OK. My goal with these reviews is to give everyone, no matter their preferences, enough information to decide whether or not a product is right for them.
