AMD Radeon RX 560 4GB Review: 1080p Gaming On The Cheap

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Power Consumption

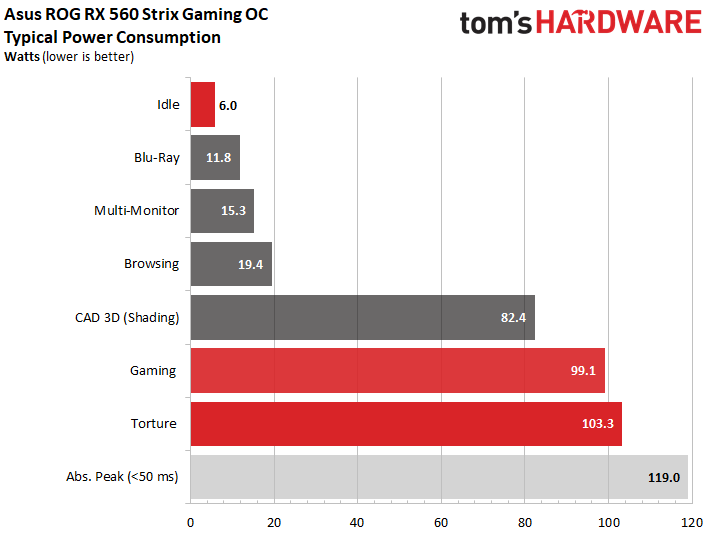

The power consumption we see during our gaming loop corresponds almost exactly to Asus' 100W power limit. Meanwhile, a stress test pushes the card just beyond that threshold.

Separately, it's great to see that AMD managed to reduce idle power consumption significantly with its new drivers.

Voltages corresponding to our two benchmark scenarios at stock settings are charted in the graph above.

Motherboard Slot Utilization

The observed maximum of 4.2A in our gaming and stress tests falls well below the 5.5A ceiling defined by the PCI-SIG's specifications.

Detailed Graphs: Power Consumption & Current

To better illustrate our findings, we're charting them out in more detailed curves for the enthusiasts who enjoy poring over data.


MORE: Best Graphics Cards


MORE: Desktop GPU Performance Hierarchy Table


MORE: All Graphics Content

Chris Angelini
Chris Angelini is an Editor Emeritus at Tom's Hardware US. He edits hardware reviews and covers high-profile CPU and GPU launches.
