AMD Radeon RX 560 4GB Review: 1080p Gaming On The Cheap

Asus ROG Strix Radeon RX 560 4GB Gaming OC Edition

Specifications

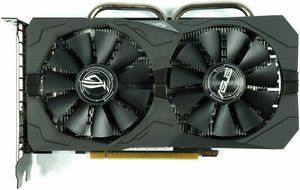

Asus uses the same matte graphite shroud that we've seen on its previous models. It's not particularly conservative, but it doesn't jump out at you either. A back-lit logo is perhaps the most eye-catching highlight, and you're able to control its color output via software. There are also a couple of stickers in Asus' bundle for adding flair, if you feel like tacking them on.

There’s no backplate, which we find a little surprising given this particular card's price tag (expect to pay ~$150, whereas the least-expensive Radeon RX 560s sell for $130).

A six-pin power connector is found on the card's top edge, all the way at its back.

The thermal solution's cooling fins are oriented vertically, meaning waste heat is directed down toward your motherboard and out to the side of your case. Fortunately, Polaris 11 isn't a particularly hot GPU.

Display outputs include one DP 1.4 connector, an HDMI 2.0 interface, and one DVI port, all three of which can be used simultaneously. DVI is fine, though it's really falling out of vogue. We imagine it makes the most sense on an entry-level graphics card like this one that might go into a lower-end machine without a brand new monitor.

Board and Power Supply

Asus uses a custom PCB sporting 4+1 power phases. Its design looks a little unconventional from the front and back. Case in point, the memory's VRM is over there on top-right, below the six-pin power connector.

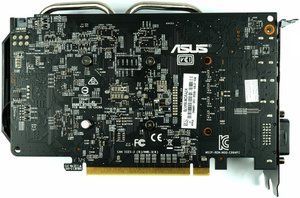

On the back and behind AMD's GPU, you'll find a number of surface-mount components that generate a significant thermal hot-spot in our infrared images. The BIOS is in the same vicinity, and it heats up quite a bit as well.

GPU Power Supply

PWM Controller
Digi+ EPU
Realtek
ASP1206

VRM
M3056M
UBIQ
High-side
1x per phase

M3054M
UBIQ
Low-side
2x per phase

N-channel MOSFETs


Coils
SAP II
Super Alloy Power
Ferrite Core Chokes

Memory Modules & Power Supply

Memory Modules
H5GC8H24MJR-ROC
SK hynix
4x 8Gb module
7 Gb/s

PWM Controller
uP1540
uPI Semiconductor
Synchronous-rectified
Buck converter
Single-phase
VRM
M3056M
UBIQ
High-side

M3054M
UBIQ
Low-side

N-channel MOSFETs


CoilsSAP II
Super Alloy Power
Ferrite Core Chokes

Other Components

Fan Controller
8915FN
ITE
Fan control
Monitoring
BIOS
Winbond 25X20
Kynix Semiconductor
EEPROM
BIOS


Other Features

Additional Features
- 1x six-pin auxiliary power connector
- Regulated fan connection for case fan

MORE: Best Graphics Cards

MORE: Desktop GPU Performance Hierarchy Table

MORE: All Graphics Content
