System Builder Marathon, Q3 2013: $350 Bonus Entry-Level PC

Name: System Builder Marathon, Q3 2013: $350 Bonus Entry-Level PC
Author: Paul Henningsen

by Paul Henningsen September 26, 2013 at 11:00 PM

System Builder Marathon, Q3 2013: The Articles

Here are links to each of the five articles in this quarter’s System Builder Marathon (we’ll update them as each story is published). And remember, these systems are all being given away at the end of the marathon.

To enter the giveaway, please fill out this SurveyGizmo form, and be sure to read the complete rules before entering!

Day 1: The $650 Gaming PC
Day 2: The $1300 Enthusiast PC
Day 3: The $2550 Performance PC
Day 4: Performance And Value, Dissected
Day 5: The $350 Bonus Entry-Level PC

Introduction

Packing a six-core AMD FX-6300 and beefy GeForce GTX 760 graphics card, my gaming-oriented PC on day one of the System Builder Marathon was a potent, no-compromise machine that delivered big value. However, we were still concerned that all three of this quarter’s hardware budgets would simply be too pricey for some folks, or even overpowered for a second entertainment machine out in the den.

So, we wondered, is it still possible to build a competent system if we chopped the least-expensive build's budget in half again? That's just too little money, right? Actually, how does a quad-core processor, 8 GB of RAM, and a 1 TB hard drive sound?

To do this correctly, we had to "cheat" a little bit and capitalize on Newegg's discounts, including a $20 promotional code on AMD’s top A10-series Trinity-based APU. For our Socket FM2-equipped motherboard, we chose an inexpensive platform from MSI with the A75 FCH. A few days earlier, it was available as a combo deal add-on.

When you construct a cheap PC, the basic necessities chew up a good chunk of the budget. Each dollar had to be spent smartly. I knew that, in the end, vanishing promo codes wouldn't count in my favor and my setup would tip the scales. So, I spent an extra $16 on three upgrades that vastly boost this build's appeal for $350.

At this price, I'd typically be thinking about 4 GB of RAM, and it'd be most natural to find a dual-channel kit rather than cripple Trinity's graphics performance with one module. At a much better price-per-gigabyte ratio, I doubled the system memory for $10 by grabbing a low-cost 8 GB Team Vulcan DDR3-1600 kit. Rated at 1.5 V, I thought I could overclock to 1866 MT/s with a slight voltage boost and save $20 off the cheapest higher-speed offerings. Then I started at the least-expensive 3.5" hard drives and found WD's Blue-series 1 TB model selling for cheap. Quadrupling storage for an extra $2 was a no-brainer! Lastly, I knew this rig would sip power. A reliable 300 W supply from Sparkle would be adequate. However, spending $4 more on Antec's VP-450 gives us reserves for a future mid-range graphics upgrade.

Component	Model	Purchase Price
CPU	AMD A10-5800K APU	$130
CPU Cooler	AMD boxed heatsink/fan	-
Motherboard	MSI FM2-A75MA-E35, A75 FCH	$55
RAM	Team Vulcan 8 GB (2 x 4 GB) DDR3-1600 TLAD38G1600HC9DC01	$48
Graphics	Radeon HD 7660D (Integrated)	-
Hard Drive	WD Blue WD10EZEX 1 TB	$57
Case	DIYPC FM08-W Black ATX MidTower	$22
Power	Antec VP-450 450 W ATX12V v2.3	$40
	Total Price	$352

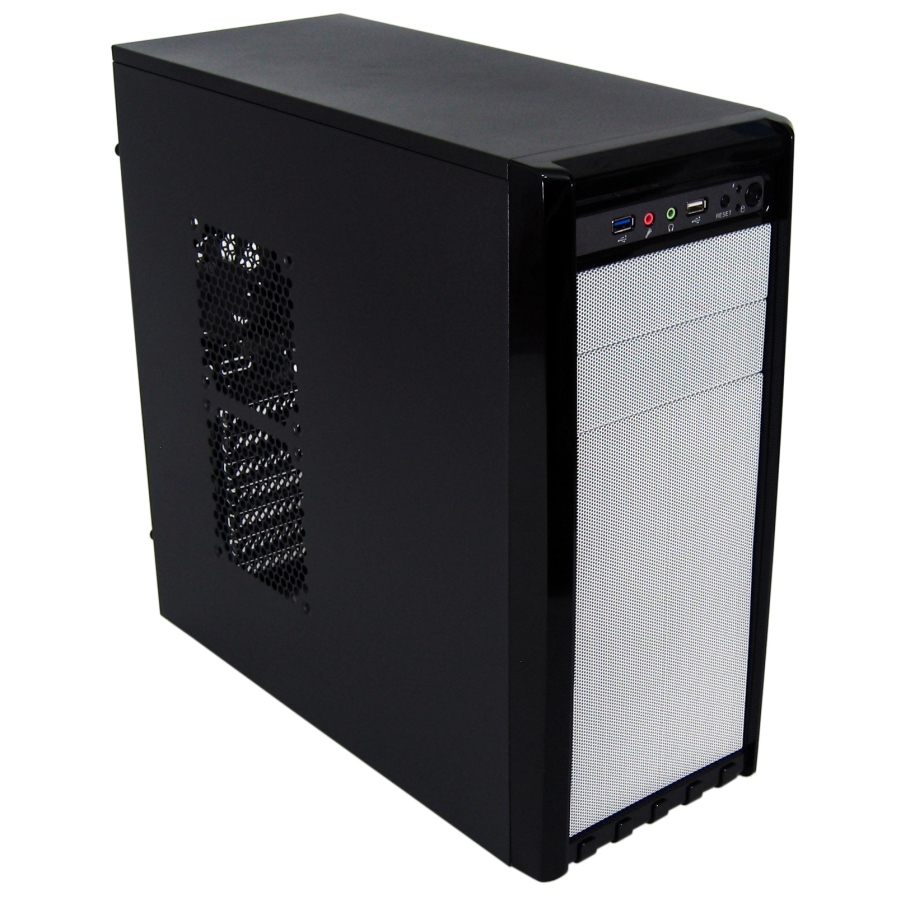

When it comes to a limited budget, sacrifices have to be made. I had to choose from the cheapest enclosures on Newegg to house this system's components. The roomy DIYPC FM08-W stood out because it included two cooling fans for $22. Other competing options had no blowers or a single 80 mm exhaust fan.

Today I'm pitting this $350 general-purpose machine against last quarter’s $400 Spirit Of Mini-ITX PC, a console-sized machine built specifically to play games. Staying consistent, I again omit the expense of an optical drive, although a Newegg combo could have given up this functionality for $11 more. While the final tally sat at $352 in our shopping cart, without discounts, the hard drive and memory kit are now a bit pricier.

Summary

About the author

Paul Henningsen

This thread is closed for comments

85 comments

Comment from the forums

Your comment

slomo4sho

Nice choice in parts (unlike their mid/high end counterparts, the low end MSI boards continue to disappoint. Maybe consider Biostar, ECS, or ASRock in future low end builds) . However, those wanting to cheat can pickup a 750K with 7770 within $20-30 of the price of the APU for overall improved gaming performance. It is interesting what $40-50 can accomplish in these low budget builds
internetlad

Have to admit, I like where this went. This is a little higher than a similarly priced build I was looking at for my brother in law about a year ago
rolli59

Well throw in a HD7750 (can be had for $50 after MIR) and it will keep up with the $400 system in gaming. Since MIR do not count reduce the ram to 2x2GB (Q2 $400build) to offset the cost.
pauldh

The promo is now back, so the A10-5800K was (for us) and is once again $110 from Newegg no rebates. We can't match that price too easy with HD7750/7770. Although as rolli said $50 after $30 mail-in rebate + a Pentium gets close (AR).

EDIT: My mistake! Actually this is a different promo. A $20 gift card. When we chose this part, the savings instantly removed $20 from the shopping cart total.
sicom

So a $350 PC has better performance than an Xbox 360, and a $400 PC blows it clear out of the water. Cost of operating system not withstanding. I realize this console generation is nearly ancient history by now, but I still find that interesting, and perhaps because it's not ancient history yet.

Note of reference: BF3 plays at 720p @ 30 FPS at about medium'ish settings on 360/PS3.
pauldh

195632 said:

Nice choice in parts. However, those wanting to cheat can pickup a 750K with 7770 within $20-30 of the price of the APU for overall improved gaming performance. It is interesting what $40-50 can accomplish in these low budget builds

That must be a pretty big cheat. But that pairing sure stymies the 6800K's appeal doesn't it.

You are so right, $40-50 more does wonders. We could make a fun poor man's marathon out of exploring that alone.$400/450/500 gaming faceoff?
aggroboy

696701 said:

So a $350 PC has better performance than an Xbox 360, and a $400 PC blows it clear out of the water. Cost of operating system not withstanding. I realize this console generation is nearly ancient history by now, but I still find that interesting, and perhaps because it's not ancient history yet. Note of reference: BF3 plays at 720p @ 30 FPS at about medium'ish settings on 360/PS3.

You're using 2012-2013 components to compare against a 2005 console.
itzsnypah

750K HD7750 4GB RAM and you have much better computer (overall and gaming) for the same price.

750K vs A10-5800K (CPU wise)
The same (except 750K no graphics to cool)

7750 vs 7660D
512 vs 384 shaders
GDDR5 vs DDR3
800Mhz vs 800Mhz

Did you even consider this or did you go into this budget with your heart set on an APU?
pauldh

900814 said:

750K HD7750 4GB RAM and you have much better computer (overall and gaming) for the same price. 750K vs A10-5800K (CPU wise) The same (except 750K no graphics to cool) 7750 vs 7660D 512 vs 384 shaders GDDR5 vs DDR3 800Mhz vs 800Mhz Did you even consider this or did you go into this budget with your heart set on an APU?

That's an easy answer. The math simply didn't (and still doesn't) add up.

The cheapest 7750 was $85, the 750K was also $85. That's $170 when the 5800K was $110 with a promo code anyone buying one would have used to save instantly before checking out. The goal was $325 factoring that promotional instant savings.

And as mentioned in the text on page one, a 4GB mem kit saved only $10, meaning 750K+7750 was still $50 over, which is huge on a $325 budget.

Although, I knew before order time playing by the rules we'd call this a $350 PC. Hope that all makes sense.
Memnarchon

The current APU costs $130. And the memory costs $50. Total: $180.
Now if you place an Athlon X4 750K 3,4Ghz for $80 or an Ivybridge Pentium G2120 3,1Ghz $70, using a HD 7770 for $90 and for memory 4GB (2 x 2GB) for $35 it will be total: Intel: $195 ($15 more) and AMD:$205 ($25 more).

Now for $15/$25 you can have double or more performance on games. Why to go with an APU???

edit: I actually read the article and didn't read all the comments.
But even if you choose not to go with 7750, according to Tom's hierrarchy chart the 6670 (even the DDR3 version) is still two tiers faster. And I can't remember even prvious month the 6670DDR3 to cost more than $60 (maybe less with some AR) So a 750K or a G2120 (or a bit lower) will still offer better performance at almost same price (the pentium will be the same price) with 4GB RAM.
pauldh

Memnarchon - read the comment right above yours. The APU fit in budget. None of these other suggestions even came close.

We don't control pricing changes that occur way after ordering parts. BY all means, the story shows a G2120 + HD7750 would deliver twice the fps.

Put it this way. This is similar to us later wondering why you'd chose a certain 750K+7770 configuration today rather than grabbing a Black Friday deal that buys i3+HD 7850 for $10 more. The answer is simple right, that's not the prices/bargains we are dealing with today when trying to place an order.
Memnarchon

29478 said:

Memnarchon - read the comment right above yours. The APU fit in budget.

I did thats why I updated my comment. Sorry I wasnt fast enough :P
envy14tpe

A10-6800k with 1600 RAM?!? Nooooo. gotta get 1866 or 2133, even if only 2x2GB.
pauldh

@ Memnarchon no problem.

I don't really like the 6670 GDDR3 when priced so similar to HD 7750 ($15 difference iirc). But had this been a gaming build, yes we'd try to fit in discrete. And G2120+ 7750 would get my vote any day at the same cost as 750K+ 6670. edit: looking at slightly older notes from another story tell me it was $70 for a 6670 and the cheapest 7750 had just dropped to $85 for this story. $100 was more common prior to this and could change daily though. It may have been $60-65 for a 6670 GDDR3 when we ordered this rig.

Anyway... It wasn't a gaming PC, and budget was key! ($325 / $350 less the discount)

BTW, I edited my above comment. I see the current APU promo code is not an instant savings like it was when we picked it out, its now a gift card.
pauldh

699111 said:

A10-6800k with 1600 RAM?!? Nooooo. gotta get 1866 or 2133, even if only 2x2GB.

If you are referring to this build. It was a 5800K, and the ram was tested overclocked to 1866 and 2133 also.

You bring up a good point though. 6800K deserves 2133 MT/s. Depending when you buy the RAM, that has at times been a big price difference. When I last checked Newegg doesn't even sell a 4GB kit above 1866. That cost alone can be put towards a discrete solution instead.
ojas

Paul, i'm curious, why the $50 reduction in budget from last time? The other builds had the same price point...

(Or was it simply, as you've written, "let's chop the least expensive rig's budget in half and see what happens"?)
Lee Yong Quan

should just get a g630 with hd 7750 or a athlon ii x4 750k with hd 7750. i think this should be better
pauldh

463569 said:

Paul, i'm curious, why the $50 reduction in budget from last time? The other builds had the same price point... (Or was it simply, as you've written, "let's chop the least expensive rig's budget in half and see what happens"?)

That's an interesting question ojas, Basically the short answer is this PC was built in direct response to accumulated reader feedback.

The $400 Spirit of Mini-ITX was so well received we knew there was interest in highly affordable builds. But there were folks less concerned about gaming who felt it deserved an APU. One even said with an APU you could build one for $350.

Admittedly, an APU in an SBM sounds ridiculous at first, as by default our cheapest machines are dubbed gamers. But I've long wanted to build a general purpose machine that's shown steady reader interest going back years. And really, when I thought about it an APU makes perfect sense.

So both of these cheap bonus builds started off with a "how low could we go and still be satisfied with the result" attitude. The $400 budget grew in order to maximize the low-profile graphics possibilities. That tiny gaming PC is no longer attractive with less graphics.

This round we aimed the needs of folks who didn't like big sacrifices in livability just to game. A dual-core, small/slow storage, 4GB RAM, etc. doesn't' cater to everyone's desires. At $109 the 5800K jumped out as a best no compromise bargain to fill the desired need. Intel doesn't have an affordable quad, and the X4 750K loses it's edge when gaming takes a back seat. Also, Richland scared me a bit as budget A55/A75 mobos were just starting to roll out with firmware support. I didn't want a build I'd have to flash just to boot, plus the 6800K done right with high speed RAM was just too costly to scream high-value. We already know how it performs anyway.

Sorry to ramble, I just found this to be such a good question, I wanted to share the thought process behind the build's purpose and budget. It took some tweaking to get there but in the end a $325 build ($350 if we removed discounts) was not only possible, but allowed a highly desirable result outside of serious gaming.
pauldh

Hmm and jut to add..... It seems gamers may take over these comments and twist this build into a failure at something it was never meant to be. That's fine and all, I don't mind those discussions. But keep in mind this wasn't supposed to improve gaming, it was meant to improve everything else at the lowest price. It is compared to the $400 PC because we have the data on hand and the two together showcase how, when money is tight, you absolutely must build with a purpose in mind. We may very well drop back down to $500 gaming PC's next round, or if not then soon after. I didn't want to totally miss an opportunity to build a cheap entry level (but still capable) machine for those who are less interested in gaming.
pauldh

449423 said:

Have to admit, I like where this went. This is a little higher than a similarly priced build I was looking at for my brother in law about a year ago

Awesome, glad to hear it. I like where it went also, and it's a result of readers shining a light this type of build deserves attention, and can serve numerous purposes without wasting unnecessary funds on un-needed muscle.
Onus

Well Paul, you did it; redeemed this SBM cycle.

1. There is just no way around the sad truth that an APU is really not sufficient for demanding modern titles. While my past comments and budget approach should clearly indicate I believe in the concept of "good enough," and do not require anywhere near UltraMaxOhWOW settings, realistically an APU just doesn't cut it; not yet.
2. Nice job of frequently mentioning fitness for purpose, and "bending" the data presentation to support it. The APU does have a place, it just isn't [AA] gaming. It would be fine for Grandma, or for a homework machine also good for kids' games
3. There's got to be a better choice than MSI in the budget segment. While the limitations you encountered may very well protect the board, they also make it a very unsatisfying product. We saw this in your $650 build as well. This is kind of a shame, because I got to review a MSI Z77A GD65 Gaming board, and it is one sweet board.
4. As many scholastic and casual titles as you can pick up at Walmart, Office Depot, or Best Buy, I believe an optical drive must be included in this segment.
Traciatim

I was pretty impressed by what a little work horse machine this was for very little cash. Seems like this would be a pretty great steamOS rig that streams your heavy lifting games off of your main rig but otherwise is independent for all your media and data processing needs.
ojas

@Paul: Thanks for the detailed answer! I had asked because i was wondering about Richland, and had supposed that a similar $400 budget would have allowed you to go with the A10-6800K.

But honestly, was a very interesting comparison, and i think in this budget segment you really have a choice of either/or, between productivity and gaming. Unless of course, you decide to skimp on things like the case, psu, etc.

And hey, for me the main attraction of the SBMs are that they allow real-world combinations of parts and make them interesting. There's always a specific build that "i would build" but it's informative to see other combinations, crazy things and when an editor's build matches your own, how it performs.

As you said, trolls will be trolls, and we're infested with them now, but keep it up! FOR SCIENCE!
jabliese

An excellent starter system. Put this together today, and buying a $100 video card in a year or two would be a great upgrade. Love the case for the price.
