System Builder Marathon, Q3 2013: $350 Bonus Entry-Level PC

Quick And Easy Assembly

There’s so little to putting this build together that I’d want it for a speed-building challenge. Assembly was quick and easy, and everything went according to plan.

The inexpensive DIYPC FM08-W case is lightweight, like we’d expect at this price, though not at all flimsy. I only had to remove one side panel, and the enclosure was rigid enough to hold its shape. If you’ve ever wrestled a warped panel back into place (which I have, even on enclosures costing twice as much), then you'll appreciate how easy it is to get a straight one put back together.

The enclosure shipped with six standoffs installed for ATX, and the extras didn't interfere with our microATX motherboard. Unlike the slim mini-ITX chassis I used in last quarter's SBM, there was ample room with which to work.

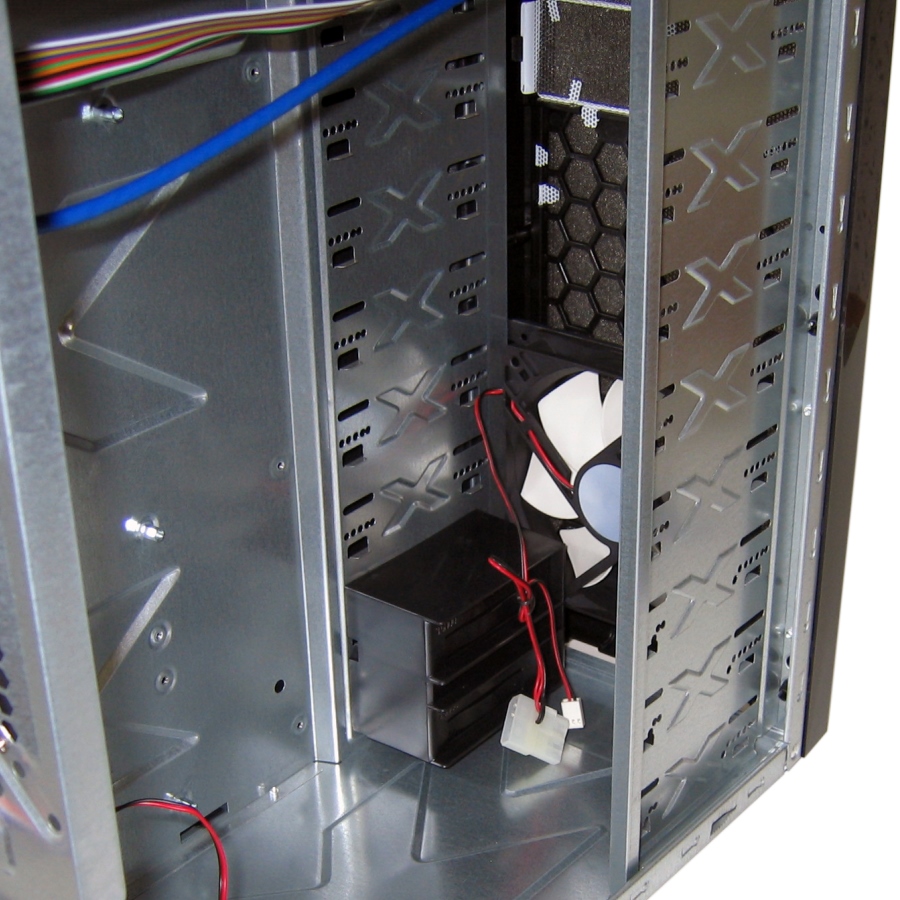

From top to bottom, you see a nine-bay 5.25” drive cage. A plastic adapter is included for installing as many as two 3.5” drives. DIYPC doesn’t include an instruction manual, aside from a thin strip of paper with a couple of unclear drawings highlighting hard drive installation. In essence, though, 3.5” drives can be mounted using just a pair of screws on the front side and indented pressure on the back of the plastic housing. I wouldn’t be too confident shipping this enclosure with drives installed, but they do sit snug and secure on a desktop.

The expansion slots are covered by the break-out tabs often seen on cheap enclosures, though we don't even need to touch them for this build.

It's a little strange that DIYPC includes an 80 mm exhaust fan when the mounting holes also accommodate 92 and 120 mm coolers. What is nice, however, is that both bundled fans are wired for either a four-pin Molex plug from the power supply or a three-pin motherboard header.

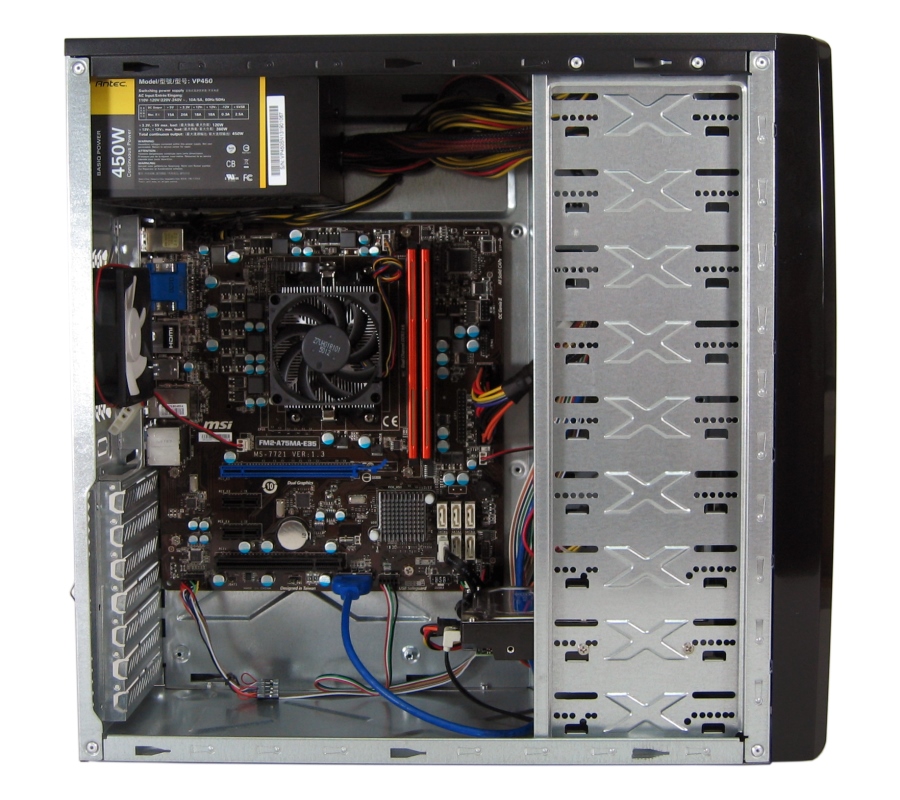

The case is plenty roomy for our modest hardware, though it's completely devoid of modern cable management features.

  • slomo4sho
    Nice choice in parts (unlike their mid/high end counterparts, the low end MSI boards continue to disappoint. Maybe consider Biostar, ECS, or ASRock in future low end builds) . However, those wanting to cheat can pickup a 750K with 7770 within $20-30 of the price of the APU for overall improved gaming performance. It is interesting what $40-50 can accomplish in these low budget builds :)
    Reply
  • internetlad
    Have to admit, I like where this went. This is a little higher than a similarly priced build I was looking at for my brother in law about a year ago
    Reply
  • rolli59
    Well throw in a HD7750 (can be had for $50 after MIR) and it will keep up with the $400 system in gaming. Since MIR do not count reduce the ram to 2x2GB (Q2 $400build) to offset the cost.
    Reply
  • pauldh
    The promo is now back, so the A10-5800K was (for us) and is once again $110 from Newegg no rebates. We can't match that price too easy with HD7750/7770. Although as rolli said $50 after $30 mail-in rebate + a Pentium gets close (AR).


    EDIT: My mistake! Actually this is a different promo. A $20 gift card. When we chose this part, the savings instantly removed $20 from the shopping cart total.
    Reply
  • sicom
    So a $350 PC has better performance than an Xbox 360, and a $400 PC blows it clear out of the water. Cost of operating system not withstanding. I realize this console generation is nearly ancient history by now, but I still find that interesting, and perhaps because it's not ancient history yet.

    Note of reference: BF3 plays at 720p @ 30 FPS at about medium'ish settings on 360/PS3.
    Reply
  • pauldh
    11609414 said:
    Nice choice in parts. However, those wanting to cheat can pickup a 750K with 7770 within $20-30 of the price of the APU for overall improved gaming performance. It is interesting what $40-50 can accomplish in these low budget builds :)

    That must be a pretty big cheat. ;) But that pairing sure stymies the 6800K's appeal doesn't it.

    You are so right, $40-50 more does wonders. We could make a fun poor man's marathon out of exploring that alone.$400/450/500 gaming faceoff? :D
    Reply
  • aggroboy
    11609551 said:
    So a $350 PC has better performance than an Xbox 360, and a $400 PC blows it clear out of the water. Cost of operating system not withstanding. I realize this console generation is nearly ancient history by now, but I still find that interesting, and perhaps because it's not ancient history yet.

    Note of reference: BF3 plays at 720p @ 30 FPS at about medium'ish settings on 360/PS3.
    You're using 2012-2013 components to compare against a 2005 console.
    Reply
  • itzsnypah
    750K HD7750 4GB RAM and you have much better computer (overall and gaming) for the same price.

    750K vs A10-5800K (CPU wise)
    The same (except 750K no graphics to cool)

    7750 vs 7660D
    512 vs 384 shaders
    GDDR5 vs DDR3
    800Mhz vs 800Mhz

    Did you even consider this or did you go into this budget with your heart set on an APU?
    Reply
  • pauldh
    11609701 said:
    750K HD7750 4GB RAM and you have much better computer (overall and gaming) for the same price.

    750K vs A10-5800K (CPU wise)
    The same (except 750K no graphics to cool)

    7750 vs 7660D
    512 vs 384 shaders
    GDDR5 vs DDR3
    800Mhz vs 800Mhz

    Did you even consider this or did you go into this budget with your heart set on an APU?

    That's an easy answer. The math simply didn't (and still doesn't) add up.

    The cheapest 7750 was $85, the 750K was also $85. That's $170 when the 5800K was $110 with a promo code anyone buying one would have used to save instantly before checking out. The goal was $325 factoring that promotional instant savings.

    And as mentioned in the text on page one, a 4GB mem kit saved only $10, meaning 750K+7750 was still $50 over, which is huge on a $325 budget.

    Although, I knew before order time playing by the rules we'd call this a $350 PC. Hope that all makes sense.
    Reply
  • Memnarchon
    The current APU costs $130. And the memory costs $50. Total: $180.
    Now if you place an Athlon X4 750K 3,4Ghz for $80 or an Ivybridge Pentium G2120 3,1Ghz $70, using a HD 7770 for $90 and for memory 4GB (2 x 2GB) for $35 it will be total: Intel: $195 ($15 more) and AMD:$205 ($25 more).

    Now for $15/$25 you can have double or more performance on games. Why to go with an APU???

    edit: I actually read the article and didn't read all the comments.
    But even if you choose not to go with 7750, according to Tom's hierrarchy chart the 6670 (even the DDR3 version) is still two tiers faster. And I can't remember even prvious month the 6670DDR3 to cost more than $60 (maybe less with some AR) So a 750K or a G2120 (or a bit lower) will still offer better performance at almost same price (the pentium will be the same price) with 4GB RAM.
    Reply
