SSD Deathmatch: Crucial's M500 Vs. Samsung's 840 EVO
Micron's consumer products division, Crucial, wasn't the first brand to introduce a 1 TB SSD. But it was the first to sell one for less than a fortune, and it sports some snazzy new features to boot. We got our hands on the entire line-up to test.
Results: File Copy

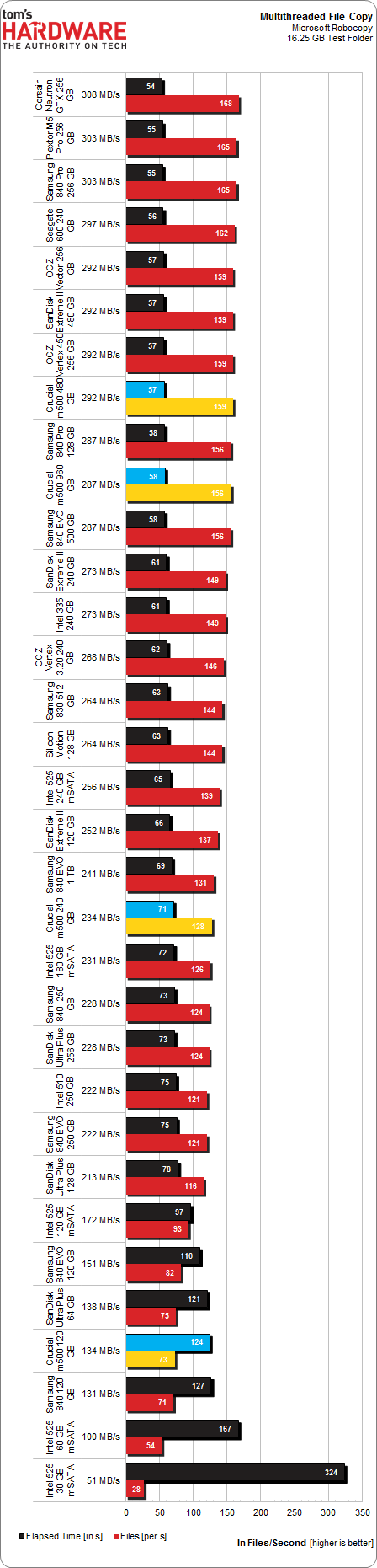

File Copy Performance with Microsoft Robocopy
Microsoft's Robocopy, a CLI directory replication command, gradually replaced the older xcopy. It's multi-threaded, has a ton of options, and generally outperforms vanilla Windows copy operations. Best of all, it's built right in to Redmond's operating system. Especially useful for network copy operations and backups, Robocopy doesn't stop to ask you one hundred questions while it copies over your music collection, either.
The reality of benchmarking file copy performance is that you need something fast to move data from and fast hardware to move it to. This is most important with SSDs. It doesn't matter if your drive can write sequentially at 500 MB/s if the source files are hosted on a USB 2.0-attached external hard drive. We're copying our test files from an Intel SSD DC S3700 to the drives in the chart below, taking source speed out of the equation.
There are 9065 files comprising the 16.2 GB payload. Some of the files are huge (up to 2 GB), while others are best described as tiny. On average, that's around 1.8 MB per file. The files are a mix of music, program, pictures, and random file types.
It's fair to say that this chart would look much different if we were copying from a hard drive to a SSD. Even if the disk drive's sequential throughput wasn't a bottleneck, it'd still choke on the smaller files.
When it comes to desktop SSDs, there are really two tiers of products, mostly invented by the vendors selling them. For instance, Samsung and SanDisk have bifurcated line-ups, split into enthusiast-class products like the 840 Pro and Extreme II, and value-oriented offerings like the 840 EVO and Ultra Plus. Bucking that trend, Crucial only sells one series aimed at the client space: its M500.
We're fine with that. There aren't many distinguishing features to set one group apart from the other. The differences that do exist usually show up as middling benchmark gaps. Crucial does plenty of heavy lifting, and its M500 falls between those often-contrived classifications. The more spacious models are just three and four seconds behind the first-place Corsair Neutron GTX in our 16.2 GB robocopy test, placing them ahead of midfield. Meanwhile, the 240 GB shows up just behind the 1 TB Samsung 840 EVO. Can you honestly claim to tell which of these drives are enthusiast-oriented, and which are designed to get your foot in the door of solid-state storage? It's not that easy. And the M500 gets extra points for features that aren't readily available on competing drives. The attraction is more than just benchmark-deep.
Stay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Unfortunately, the 120 GB M500 surfaces behind SanDisk's 64 GB Ultra Plus, which definitely is a value SSD. On the brighter side, it's one place ahead of the now-moribund vanilla 840.
Current page: Results: File Copy
Prev Page Results: PCMark 7 And PCMark Vantage Next Page Results: Power Consumption-
Someone Somewhere I think you mixed up the axis on the read vs write delay graph. It doesn't agree with the individual ones after, or the writeup.Reply -
Someone Somewhere Even 3bpc SSDs should last you a good ten years...Reply
The SSD 840 is rated for 1000 P/E cycles, though it's been seen doing more like ~3000. At 10GB/day, a 240GB would last for 24,000 days, or about 766 years, and that's using the 1K figure.
You're free to waste money if you want, but SLC now has little place outside write-heavy DB storage.
EDIT: Screwed up by an order of magnitude. -
cryan 11306005 said:I think you mixed up the axis on the read vs write delay graph. It doesn't agree with the individual ones after, or the writeup.
You are totally correct! You win a gold star, because I didn't even notice. Thanks for catching it, and it should be fixed now.
Regards,
Christopher Ryan
-
cryan 11306034 said:I would only buy SSD that uses SLC memory. I dont wan't to buy new drive every year or so.
Not only are consumer workloads completely gentle on SSDs, but modern controllers are super awesome at expanding NAND longevity. I was able to burn through 3000+ PE cycles on the Samsung 840 last year, and it only is rated at 1,000 PE cycles or so. You'd have to put almost 1 TB a day on a 120 GB Samsung 840 TLC to kill it in a year, assuming it didn't die from something else first.
Regards,
Christopher Ryan
-
Someone Somewhere I'd like to see some sources on that - for starters, I don't think the 840 has been out for a year, and it was the first to commercialize 3bpc NAND.Reply
You may be thinking of the controller failures some of the Sandforce drives had, which are completely unrelated to the type of NAND used. -
mironso Well, I must agree with Someone Somewhere. I would also like to see sources for this statement: "Yes, in theory they last 10 years, in practise they last a year or so.".Reply
I would like to see, can TH use SSD put this 10GB/day and see for how long it will work.
After this I read this article, I think that Crucial's M500 hit the jackpot. Will see Samsung's response. And that's very good for end consumer. -
edlivian It was sad that they did not include the samsung 830 128gb and crucial m4 128gb in the results, those were the most popular ssd last year.Reply -
Someone Somewhere You can also find tens of thousands of people not complaining about their SSD failing. It's called selection bias.Reply
Show me a report with a reasonable sample size (more than a couple of dozen drives) that says they have >50% annual failures.
A couple of years ago Tom's posted this: http://www.tomshardware.com/reviews/ssd-reliability-failure-rate,2923.html
The majority of failures were firmware-caused by early Sandforce drives. That's gone now.
EDIT: Missed your post. First off, that's a perfect example of self-selection. Secondly, those who buy multiple SSDs will appear to have n times the actual failure rate, because if any fail they all appear to fail. Thirdly, that has nothing to do with whether or not it is a 1bpc or 3 bpc SSD - that's what you started off with.
This doesn't fix the problem of audience self-selection
-
Someone Somewhere You were however trying to stop other people buying them...Reply
Sounds a bit like a sore loser argument, unfortunately.
SSDs aren't perfect, but they generally do live long enough to not be a problem. Most of the failures have been overcome by now too.
Just realised there's an error in my original post - off by a factor of ten. Should have been 66 years. -
warmon6 11306841 said:I am not talking about Samsung SSD-s, I am talking about SSDs in general. And I am not going to provide any sources because SSD fail all the time after a year or so. That is the raility. You can find, on the internet, people complaining abouth their SSD failing. There are a lot of them...
Also, SLC based SSD-s are usually "enterprise", so they are designed for reliability and not performance, and they don't use some bollocks, overclocked to the point of failure, controllers. And have better optimised firmware...
Tell that to all the people on this forum still running intel X-25M that launched all the way back in 2008 and my Samsung 830 that's been working just fine for over a year.......
See what you're paying attention too is the loudest group of ssd owners. The owners that have failed ssd's.
See it's the classic "if someone has a problem, there going to be the one that you hear and the quiet group, isn't having the problem" issue.
Those that dont have issues (such as myself) dont mention about our ssds and is probably complaining about something else that has failed.
