Introducing The Cullinan
Many brands got started as “house brands” for major sellers, and while some have stuck (Craftsman tools anyone?), others have spread out. Beginning life as the better-value brand of Newegg, Rosewill quickly picked up several other sellers as it added premium parts to its product line.
The Cullinan makes a bold statement about Rosewill’s premium product strategy by using tinted glass panels on three sides. Thick 0.20” (5.2mm) tempered side panels add rigidity without the need for frames, while the moderate weight of the front panel indicates a thinner glass insert.
The front panel ports are more typical of high-end cases, with two USB 3.0 and two USB 2.0 ports, headphone and microphone jacks, and a two-speed fan controller. Both the power and reset buttons have black-anodized aluminum caps, and the rings surrounding these light up in blue (power) and red (HDD activity).
Apart from the position of the removable warning sticker, both side panels are identical and secured identically with slotted thumb screws upon rubberized locator pins.
The rear of the case shows off the 2.2” of above-motherboard radiator space, along with a pair of knock-outs for external radiators. The included 120mm rear fan can be upgraded to 140mm, and slotted fan mounts allow vertical adjustment to ease the installation of various rear-mounted radiators.

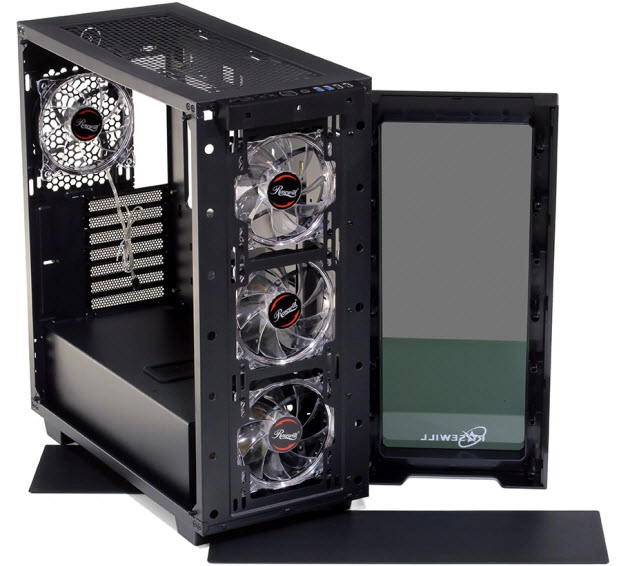

The Cullinan’s top panel and front panel use magnetic filter sheets with rounded edges to provide an inset appearance. The top panel is shorter and only able to support two 140m (or three 120mm) fans, while the front supports three fans in either size. Builders who would like to place two enormous radiators in both locations should consider possible tank clearance issues at the Cullinan’s upper-front corner before selecting radiators.
A power supply intake filter slides out from behind the bottom panel.

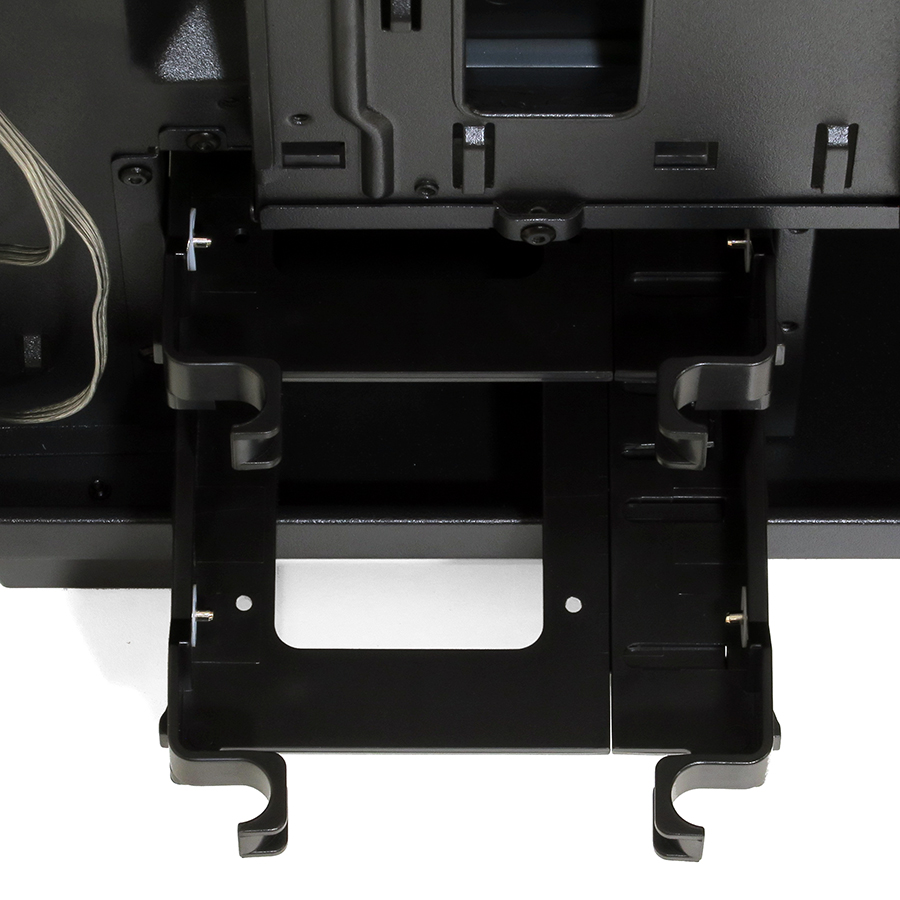

The Cullinan has only 0.5” of cable space behind the motherboard tray, and a large portion of that space is consumed by three 2.5” drive trays. A 2.5”-wide support section between the motherboard tray and front panel is inset a full 1.0” to provide additional clearance for the main power cable, but routing in that way forces it under the two 3.5” hard drive trays. And that’s where the third 3.5” drive mount resides, bolted through rubber grommets to the bottom panel via shoulder screws.
Powered by a four-pin ATA-style power lead, the two-speed fan controller is delivered with two empty headers. We used one of those for the rear fan. The L-S-H markings of its top-panel switch correspond to low-stop-high, and both its low-speed and stop settings disable fan LEDs.
MORE: Best Deals
MORE: Hot Bargains @PurchDeals
Building With The Rosewill Cullinan
A power supply shroud covers cables and stops exactly 1.5” short of included fans, so that any 1.5”-thick radiator placed there will touch it. That shroud is also riveted in place, further restricting access to a modular power supply’s cable connections.
A plastic shroud helps builders conceal even more cable length. Removing it provides space for full-EATX (13” deep) motherboards, and the installation kit even includes the extra standoffs.
Located 10” forward of the power supply mounting flange, the lower drive cage does not have any backplane connector, nor rear access to drive cables, so anyone who needs to reach their cables will need to point the interface towards the right-hand panel, where cables are visible through the Cullinan’s tinted side panel. These trays also have 2.5” mounting holes, although these are inset too far to work with right-angle cable connectors.
A cardholder bracket slides open 1/2” to allow card installation, which is unfortunately 1/8” less than the space required to slide a PCIe graphics card over its slot. After wiggling and jamming our test card through that access hole, I was happy to find regular slot screws in addition to the clamping mechanism.
Cables include an ATA-style 4-pin power connector for fans, USB 3.0, USB 2.0, HD Audio, and the switch/indicator cluster. The Power LED connector is split to fit both standard 2-pin and Asus/legacy AT 3-pin spacing. Builders must be advised to attach an ATA power cable to their modular power supplies before shoving it into the limited-access power supply bay.
Roswill was kind enough to include both thumb screws and standard #6 case screws for mounting a power supply, where the thumb screws match those of the Cullinan’s side panel. Shoulders on the 3.5” HDD screws prevent them from being over-tightened against vibration-damping grommets.
One thing Rosewill doesn't mention in the manual is that the upper cable cover also acts as a card brace. The circuit board of our test card wasn’t long enough to reach it, but it still mated nicely with the card’s cooler support frame.
Other than minor cable access difficulties and a card tab access hole that wasn’t large enough to fit a card, component installation went smoothly. I mounted our 2.5” test drive behind the motherboard tray, and removing another 2.5” tray made space for the EPS12V lead.
