SuperMicro X6DA8-G2 (I7525), Continued

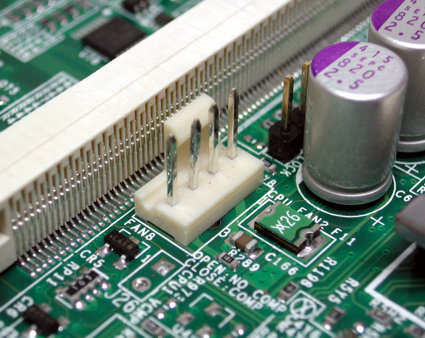

A total of eight fan headers using the advanced 4-pin headers are available on the X6DA8-G2.

The two CPU and six system fan headers can be monitored and controlled by the motherboard.

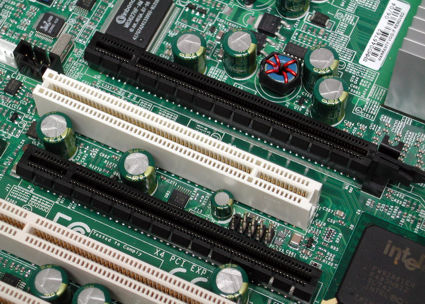

Using the 6700PXH bridge, this board offers a second physical x16 connector, running in x4 mode.

Both x16 slots (one running x16 mode, the other one running x4) have been placed in order to allow for NVIDIA's SLI mode to be used.
