How We Test
Our growing collection of ATX-form-factor Z370 boards has allowed us to focus our comparative efforts on models at lower prices with less-divergent feature sets.
| Sound | Integrated HD Audio |
| Network | Integrated Gigabit Networking |
| Graphics Driver | GeForce 382.53 |
Back during the Intel X299 launch, we upgraded our test bed to handle the tremendous heat produced by the Core i9-7900X. Our award-winning Fractal Design S24 liquid cooler system sample serves the same purpose for the newer, lower-heat Core i7-8700K. Cooler Master’s HAF-XB provides an optimal layout to blow the S24’s fans sufficiently over each motherboard’s voltage regulator.
Comparison Products

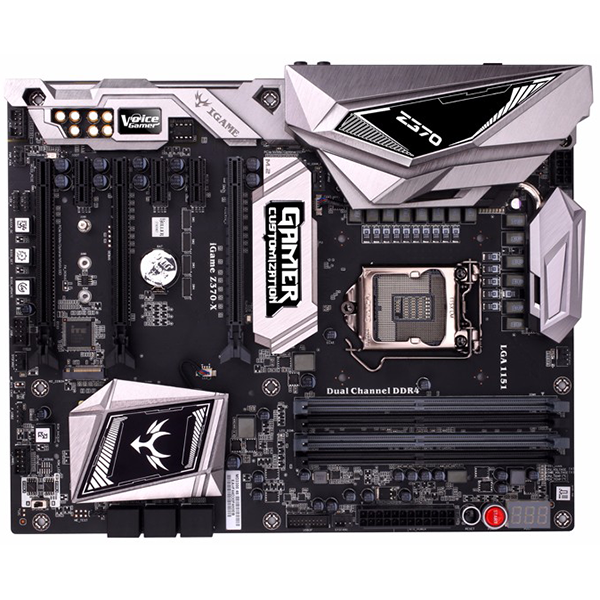

Since the Colorful iGame Z370 Vulcan X V20 is priced over $250, we included all of our over-$250 samples in today's comparison. A quick look at the firmware overclocking options shows that all four boards should be similarly capable.
Benchmark Settings
| Synthetic Benchmarks & Settings | |
| PCMark 8 | Version 2.7.613Home, Creative, Work, Storage, Applications (Adobe & Microsoft) |
| 3DMark 13 | Version 4.47.597.0Skydiver, Firestrike, Firestrike Extreme Default Presets |
| SiSoftware Sandra | Version 2016.03.22.21CPU Arithmetic, Multimedia, Cryptography, Memory Bandwidth |
| DiskSPD | 4K Random Read, 4K Random Write128K Sequential Read, 128K Sequential Write |
| Cinebench R15 | Build RC83328DEMOOpenGL Benchmark |
| CompuBench | Version 1.5.8Face Detection, Optical Flow, Ocean Surface, Ray Tracing |
| Application Tests & Settings | |
| LAME MP3 | Version 3.98.3Mixed 271MB WAV to mp3: Command: -b 160 --nores (160 Kb/s) |
| HandBrake CLI | Version: 0.9.9Sintel Open Movie Project: 4.19GB 4K mkv to x265 mp4 |
| Blender | Version 2.68aBMW 27 CPU Render Benchmark, BMW 27 GPU Render Benchmark |
| 7-Zip | Version 16.02THG-Workload (7.6GB) to .7z, command line switches "a -t7z -r -m0=LZMA2 -mx=9" |
| Adobe After Effects CC | Release 2015.3.0, Version 13.8.0.144PCMark-driven routine |
| Adobe Photoshop CC | Release 2015.5.0. 20160603.r.88 x64PCMark-driven routine (light and heavy) |
| Adobe InDesign CC | Release 2015.4, Build 11.4.0.90 x64PCMark-driven routine |
| Adobe Illustrator | Release 2015.3.0, Version 20.0.0 (64-bit)PCMark-driven routine |
| Game Tests & Settings | |
| Ashes of the Singularity | Version 1.31.21360High Preset - 1920x1080, Mid Shadow Quality, 1x MSAACrazy Preset - 1920x1080, High Shadow Quality, 2x MSAA |
| F1 2015 | 2015 Season, Abu Dhabi Track, RainMedium Preset, No AFUltra High Preset, 16x AF |
| Metro Last Light Redux | Version 3.00 x64High Quality, 1920x1080, High Tesselation, 16x AFVery High Quality, 1920x1080, Very High Tesselation, 16x AF |
| The Talos Principle | Version 267252Medium Preset, High Quality, High Tesselation, 4x AFUltra Preset, Very High Quality, Very High Tesselation, 16x AF |
