Asus ROG Crosshair 2006 motherboard review: 20 years of ROG

Dark Hero goes retro: Crosshair 2006 combines throwback styling with modern underpinnings

Reviews
By published
Asus ROG Crosshair 2006
(Image credit: © Future)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

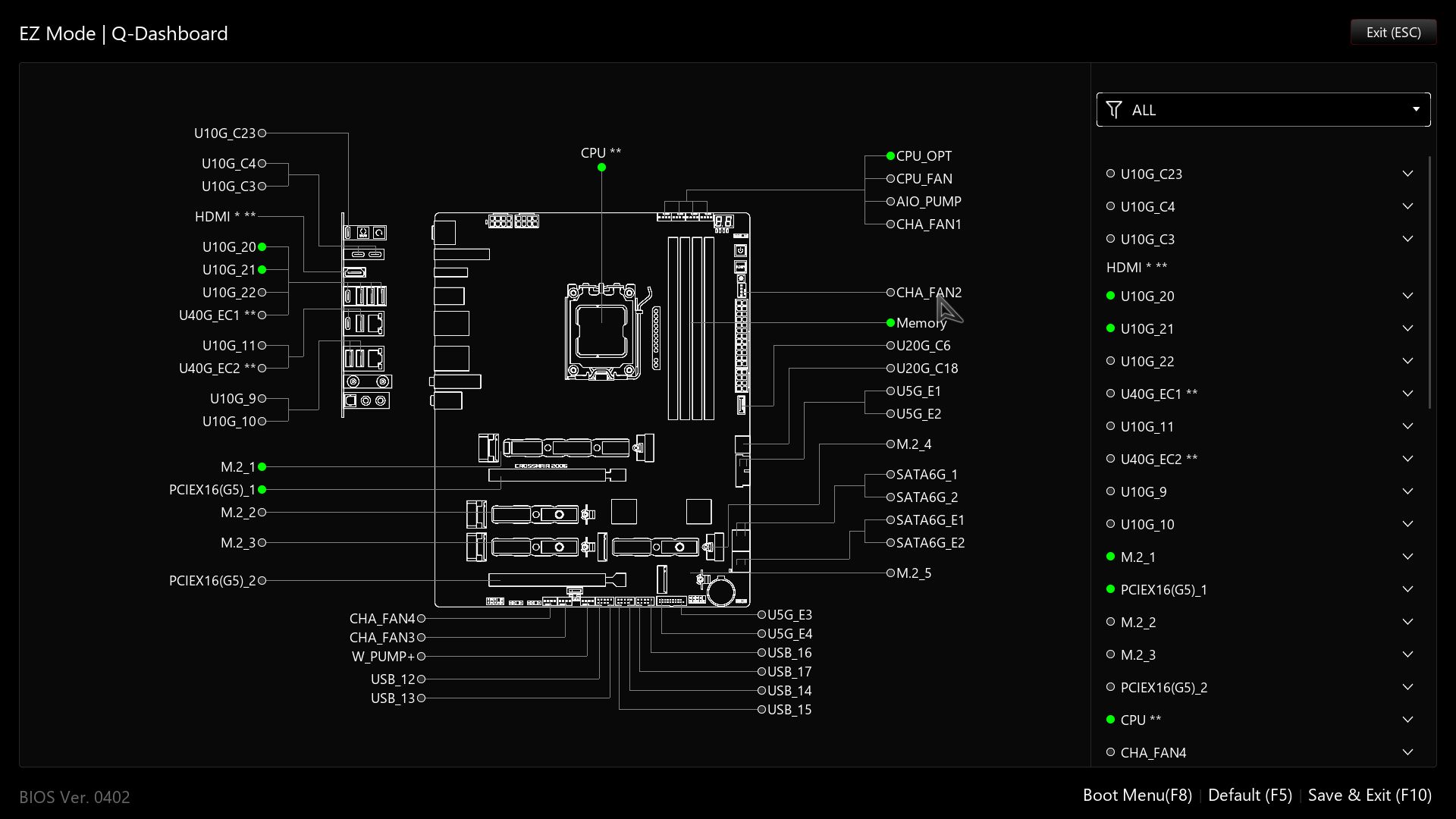

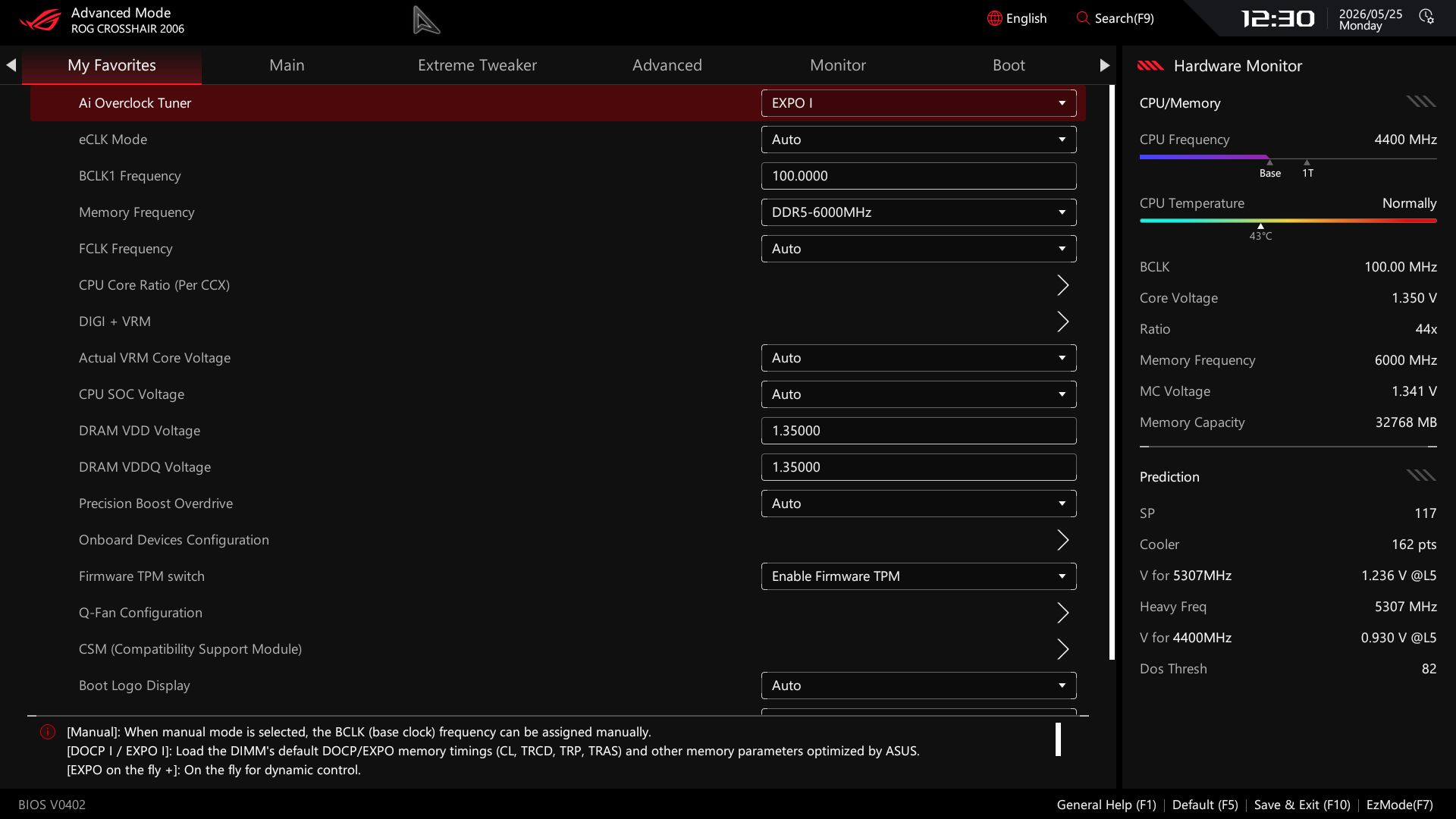

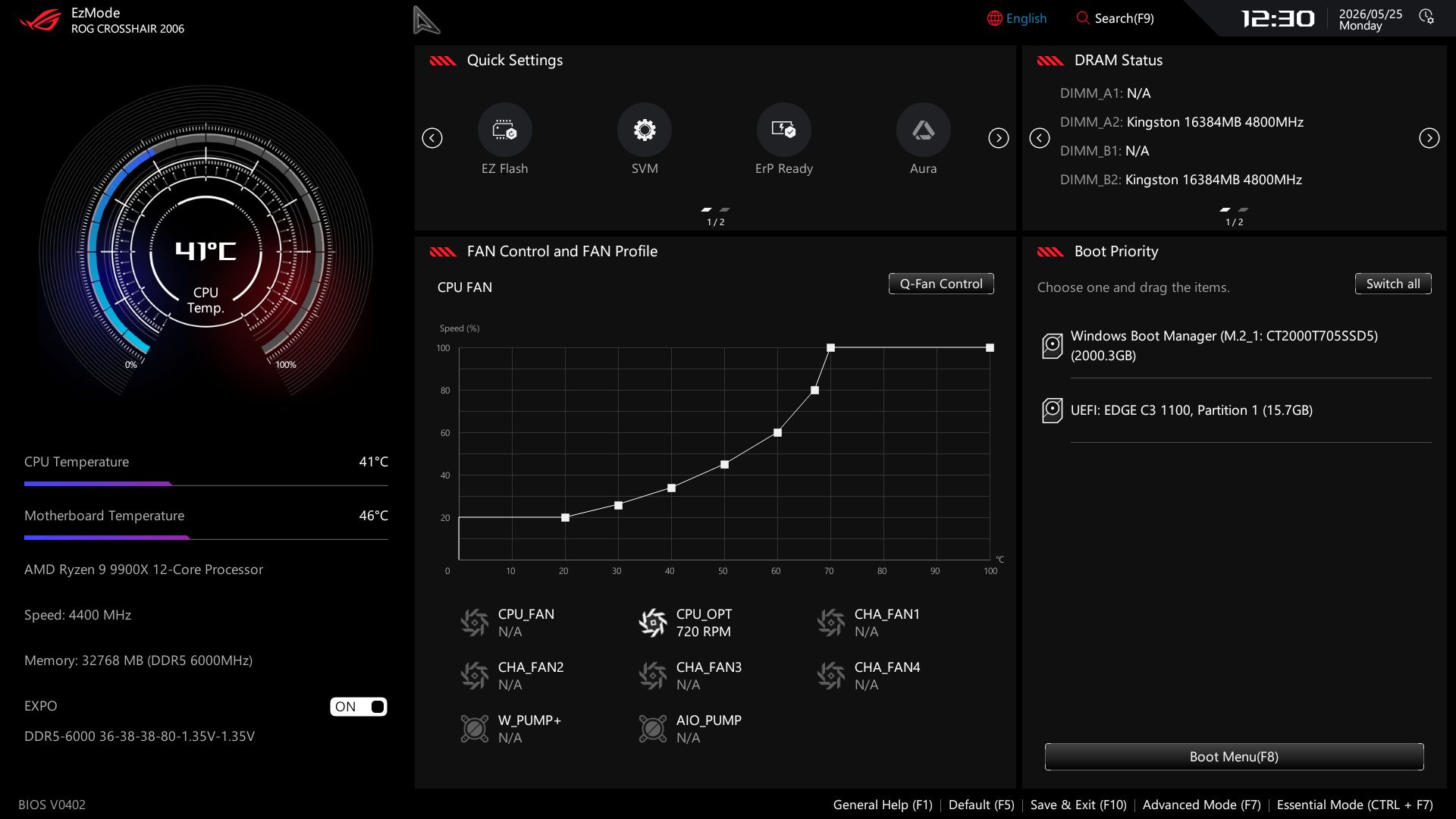

Asus updated the BIOS layout and color earlier in the year, and for the Crosshair 2006, adopted the familiar ROG black-on-white with red accents theme. EZ Mode is mostly informative, with system information and temperatures on the left, and quick settings for EZ Flash, Aura RGB, the Driver Hub for easy driver installation, and more in the middle. Fan control and access to full Q-Fan functionality are below. The right block displays DRAM and storage status, and Boot Priority is self-explanatory.

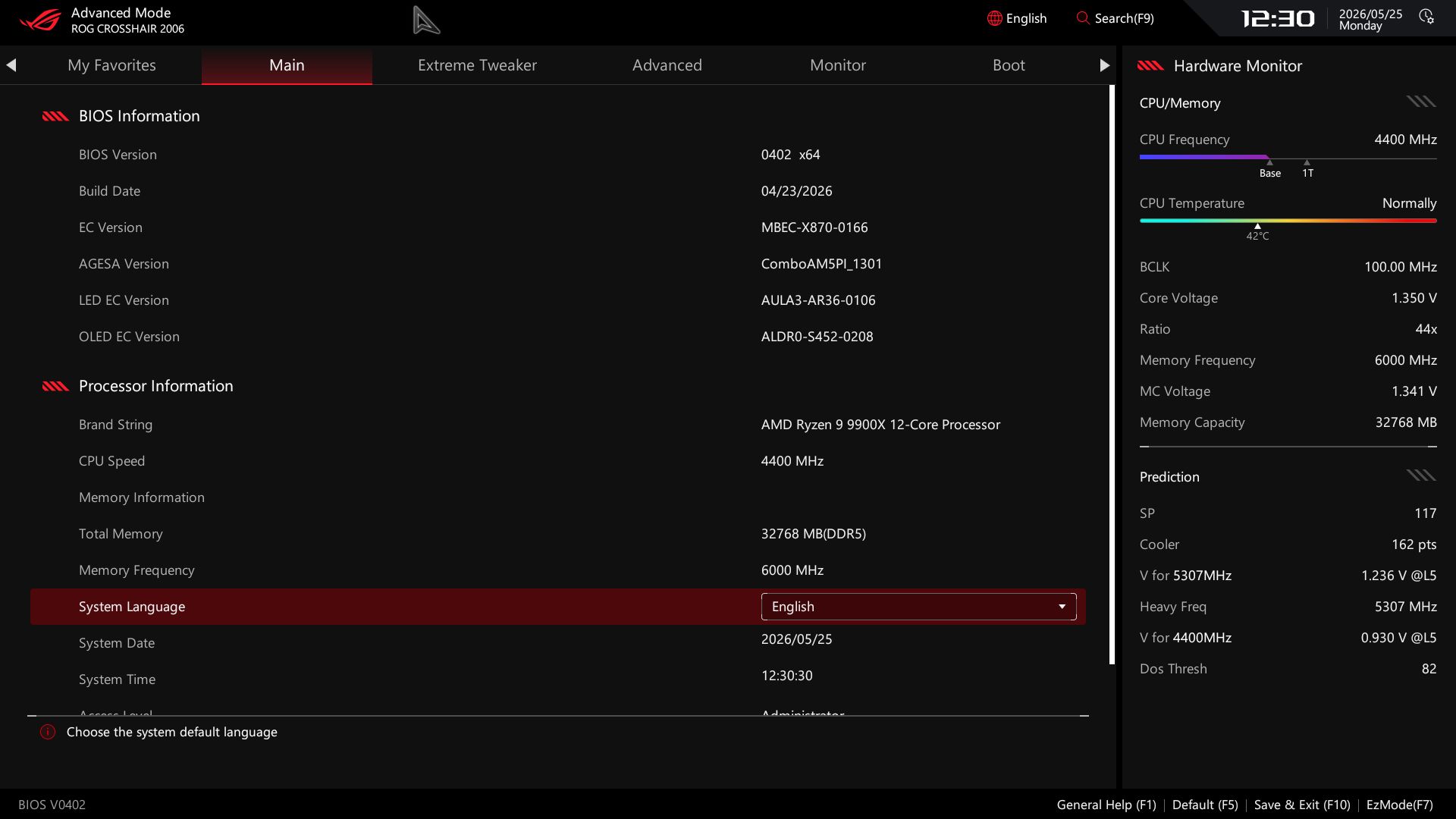

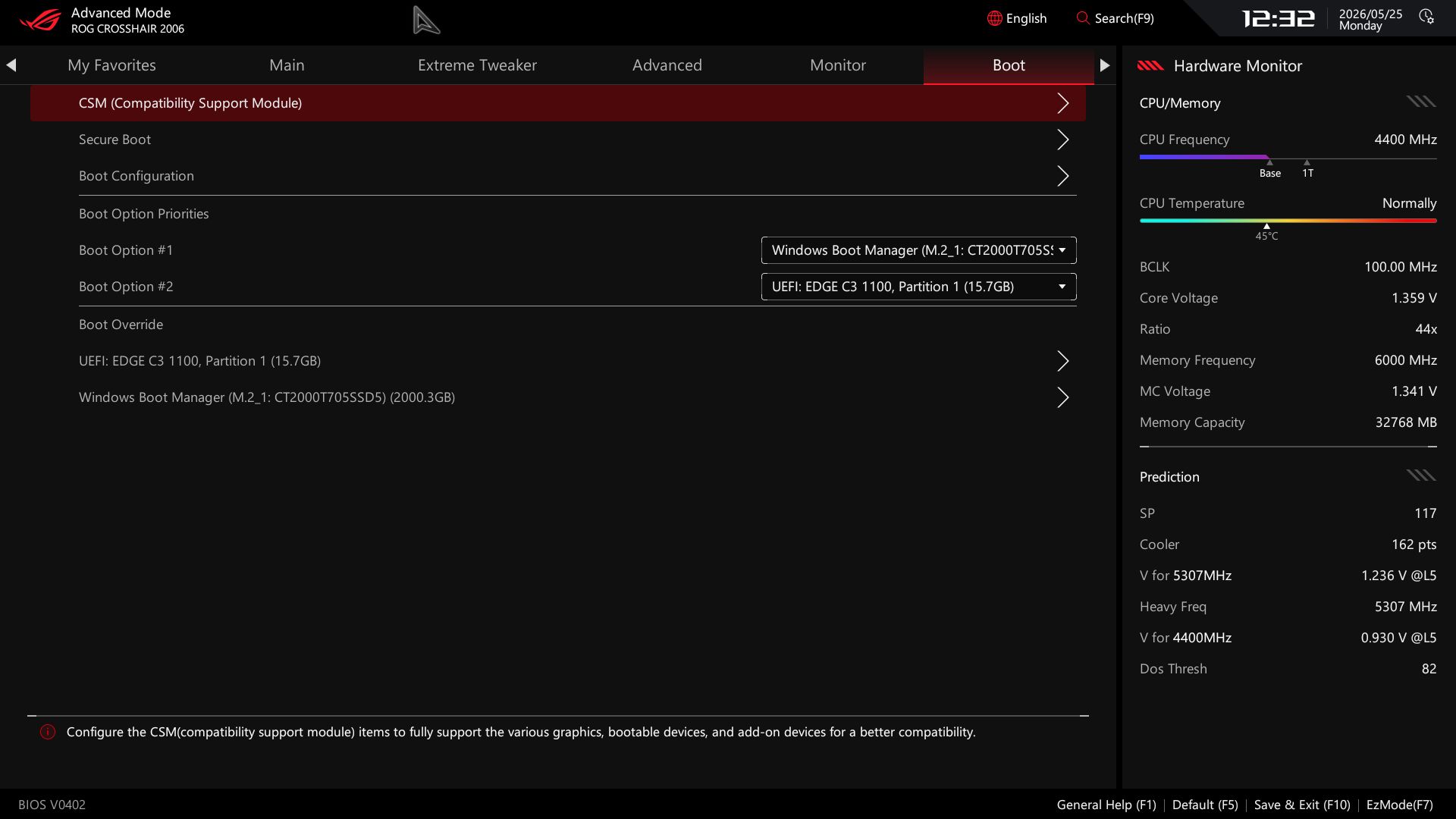

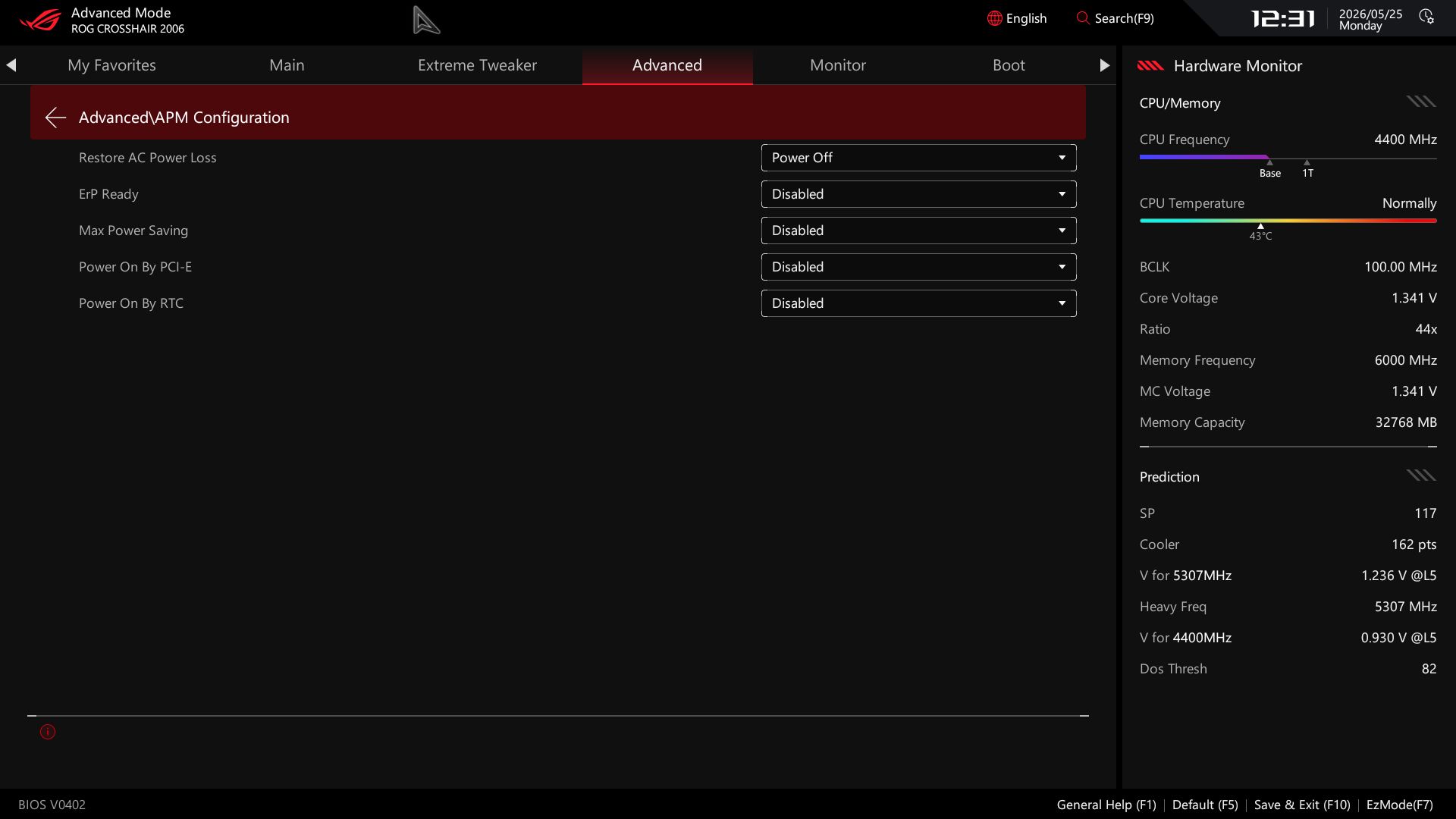

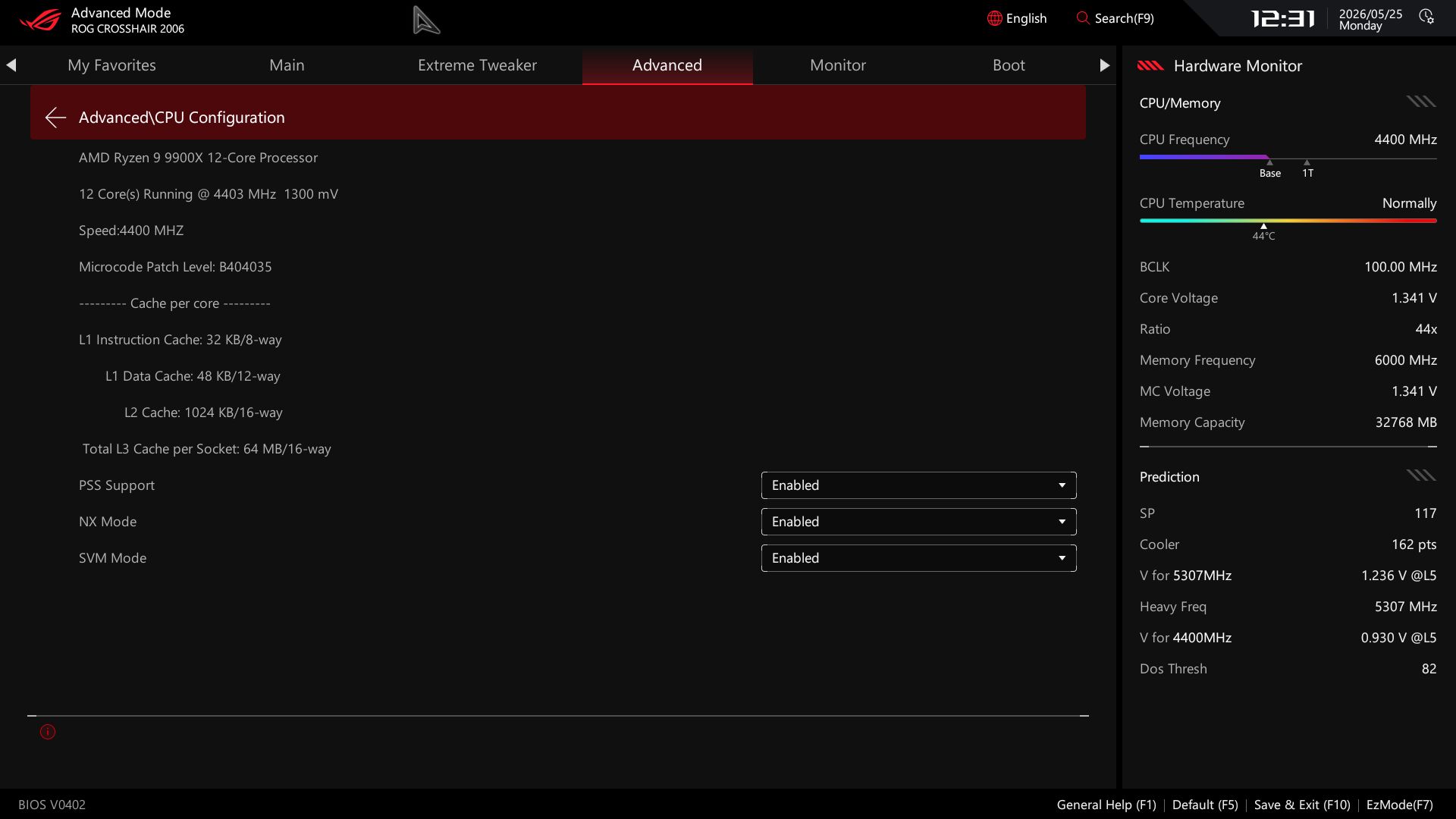

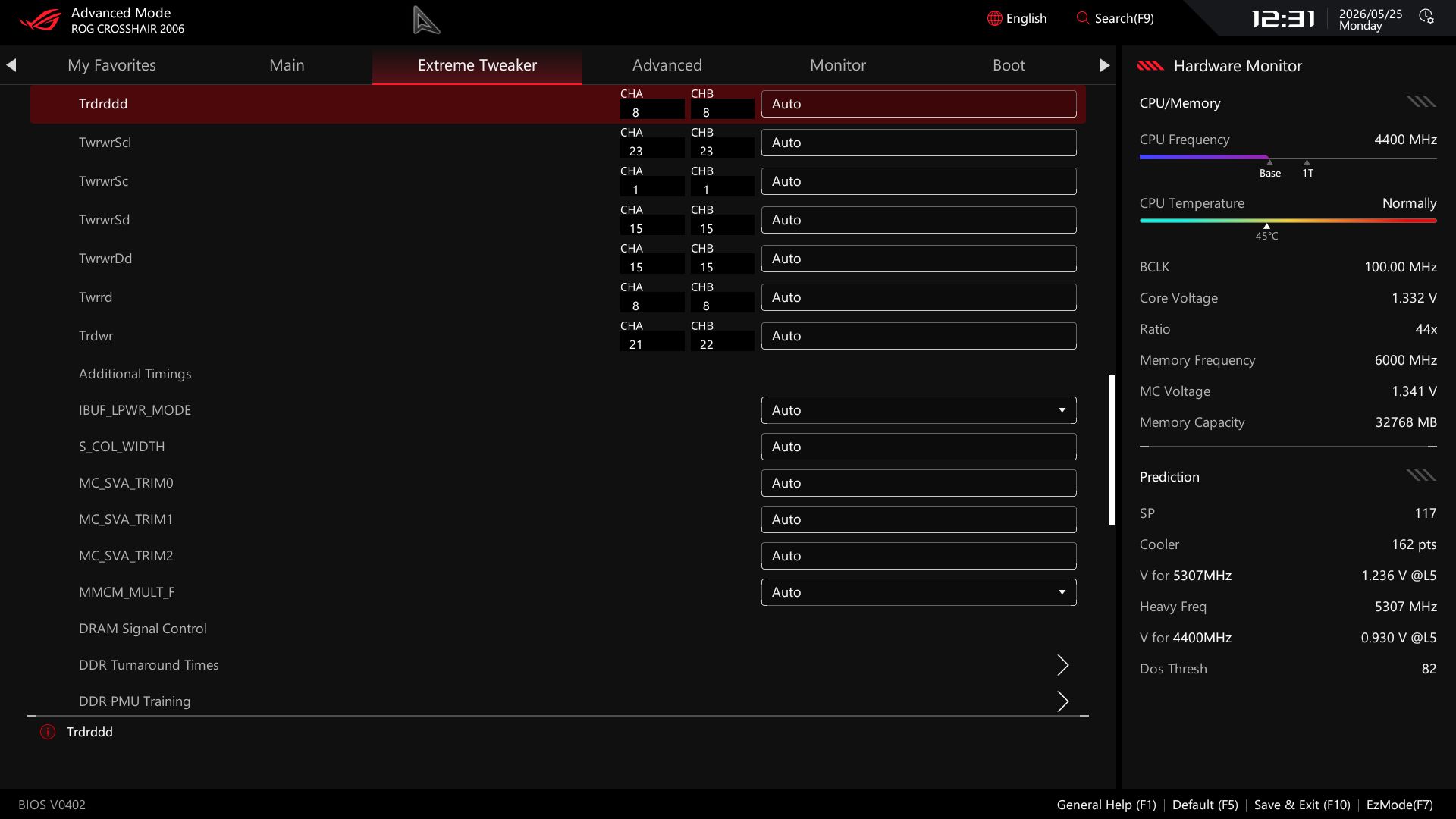

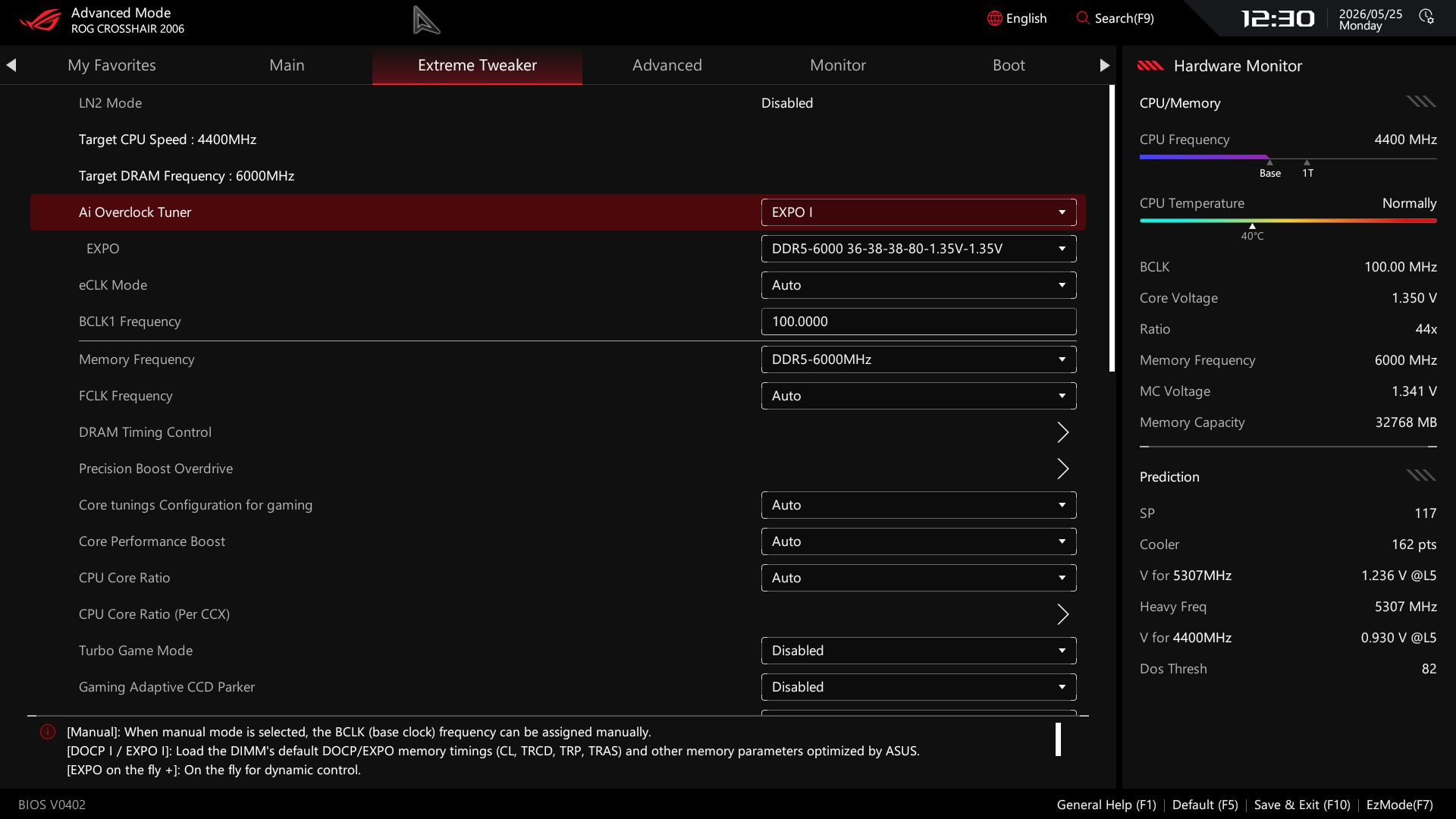

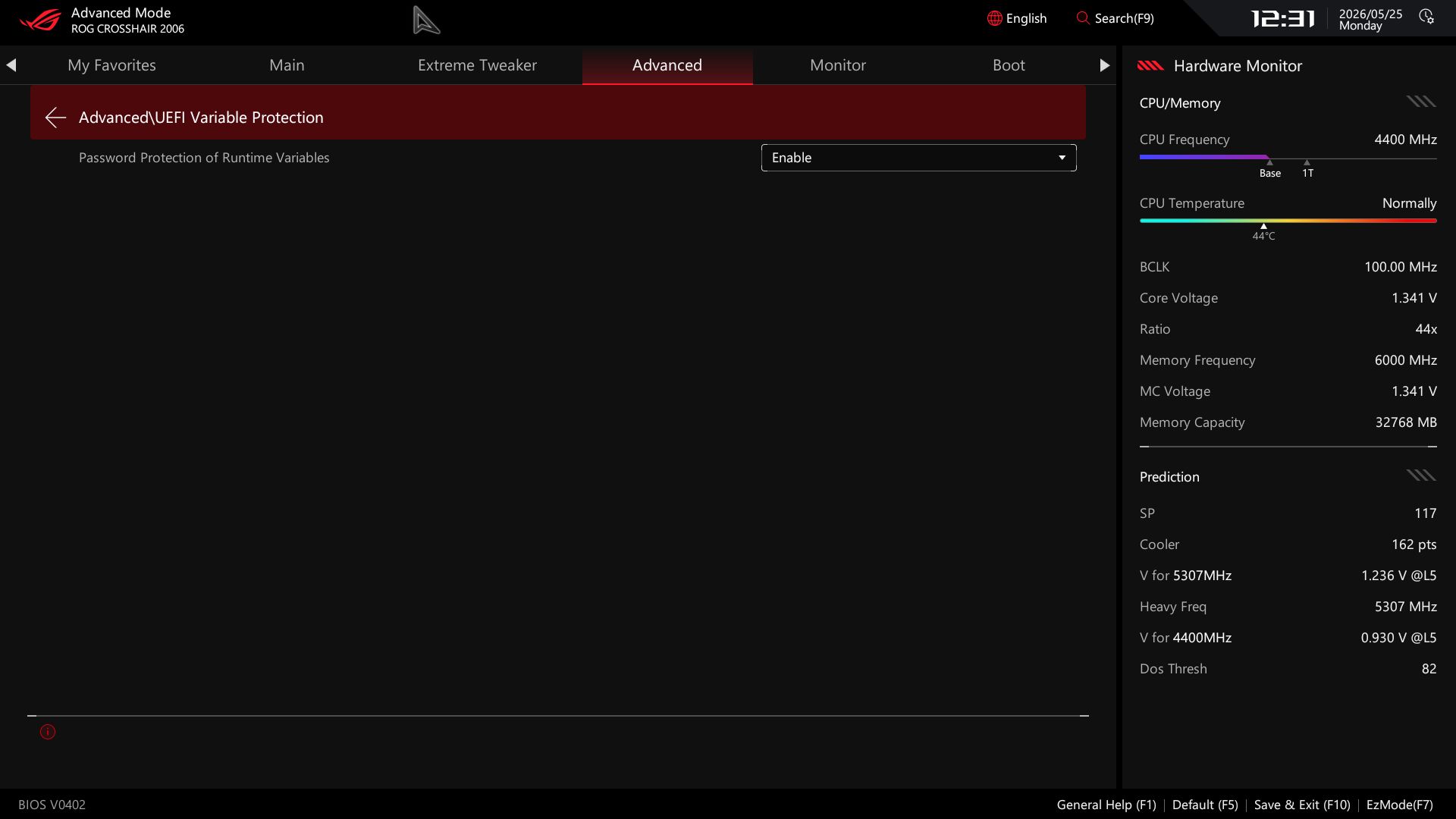

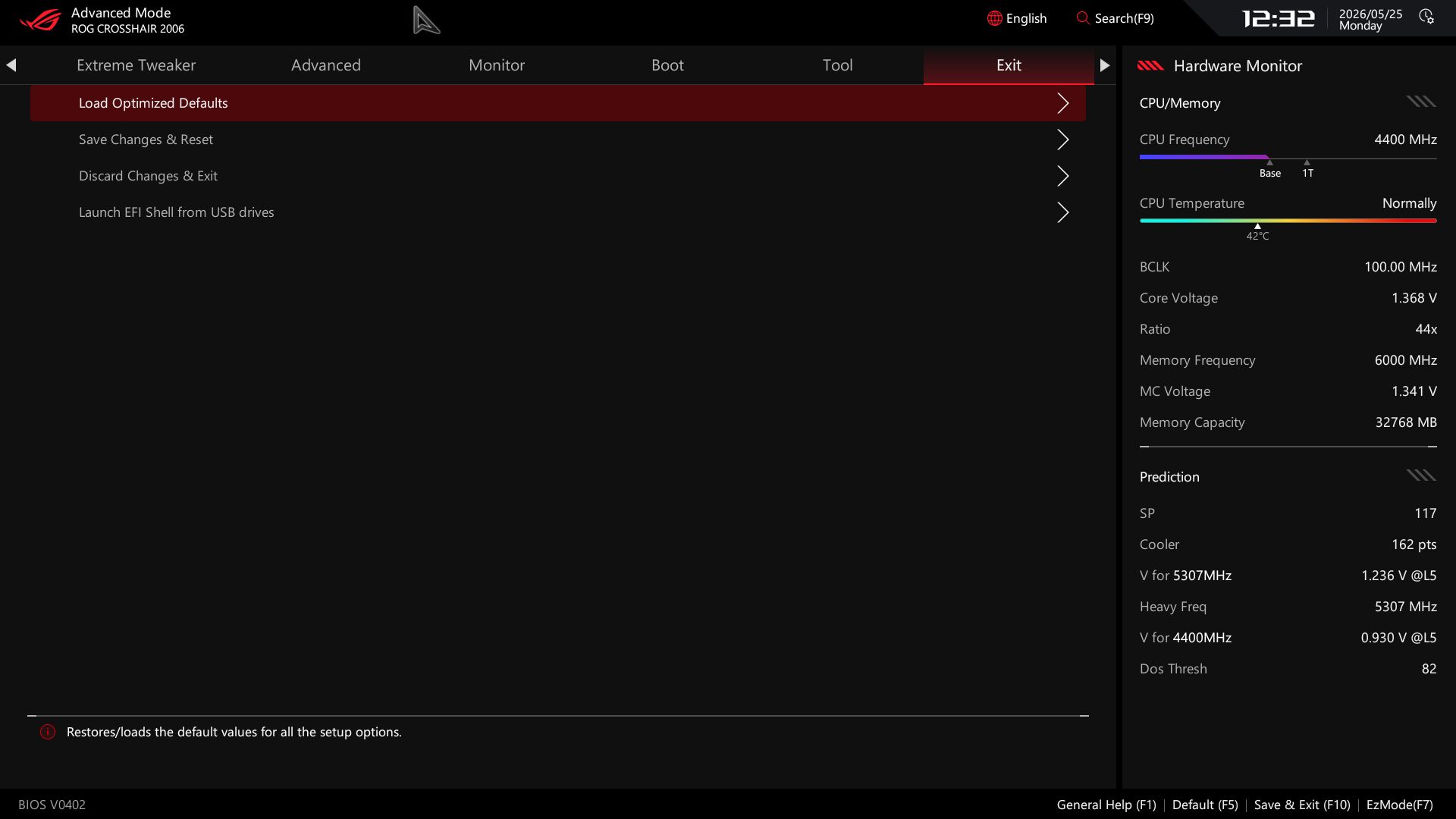

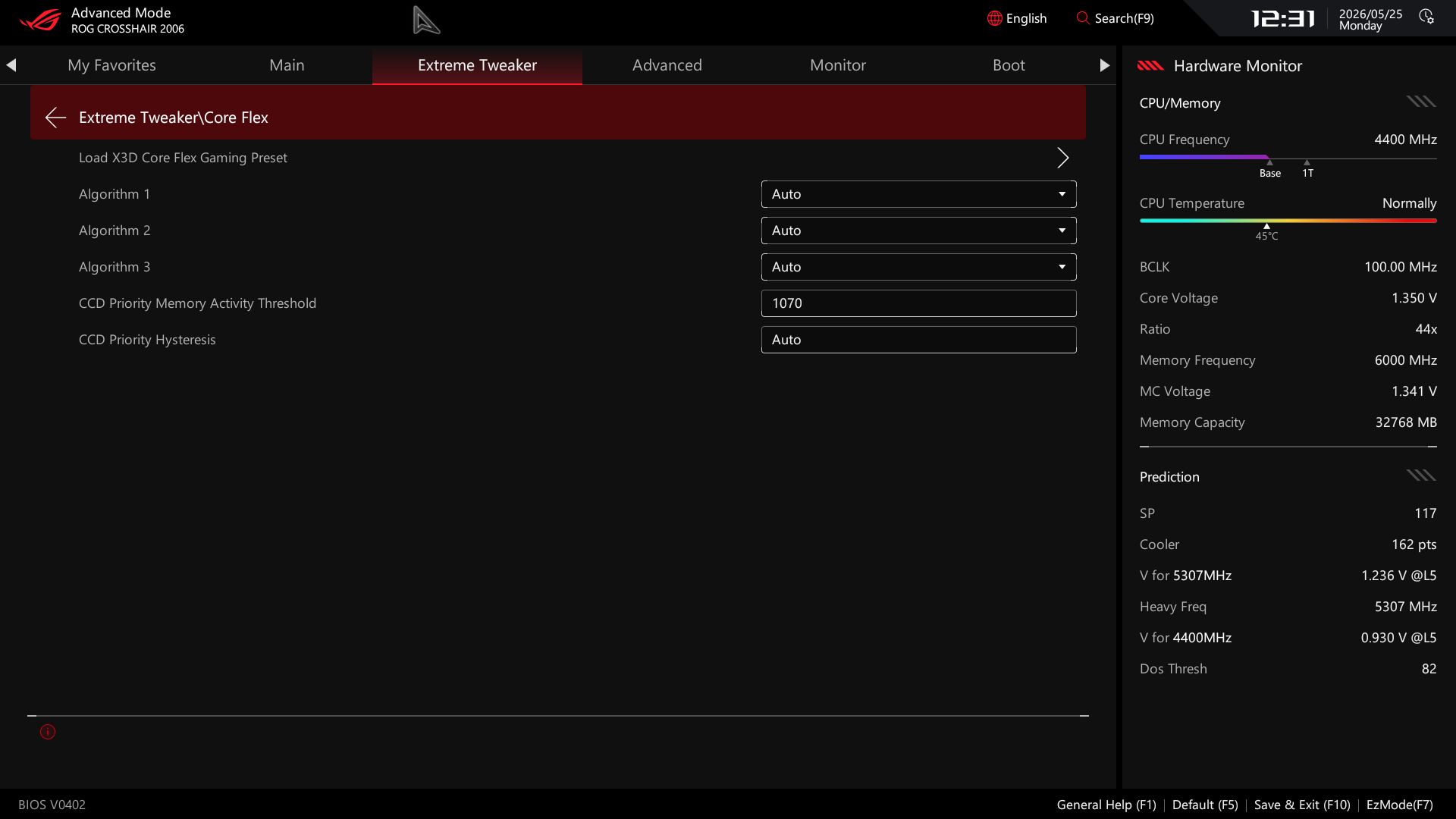

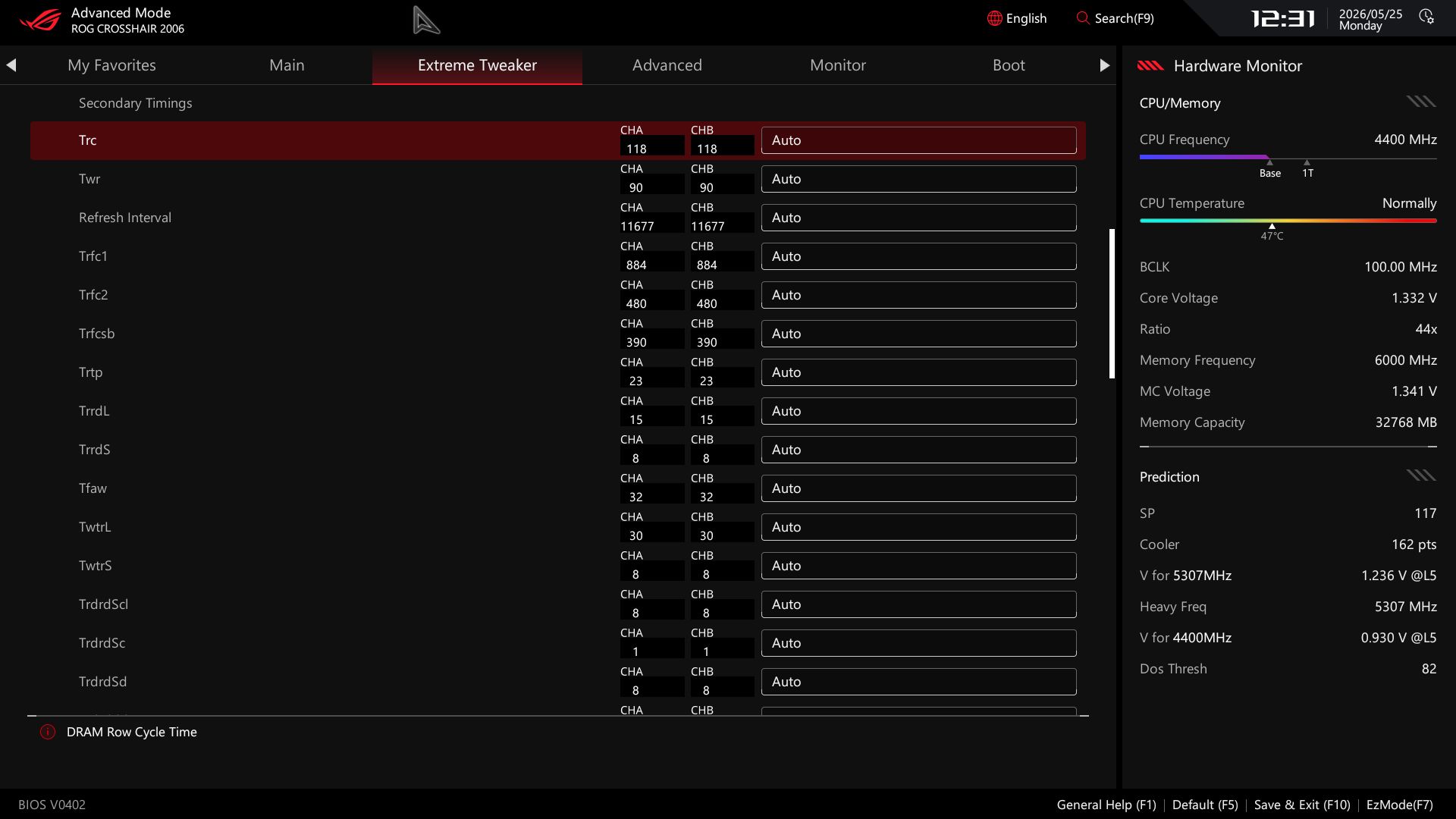

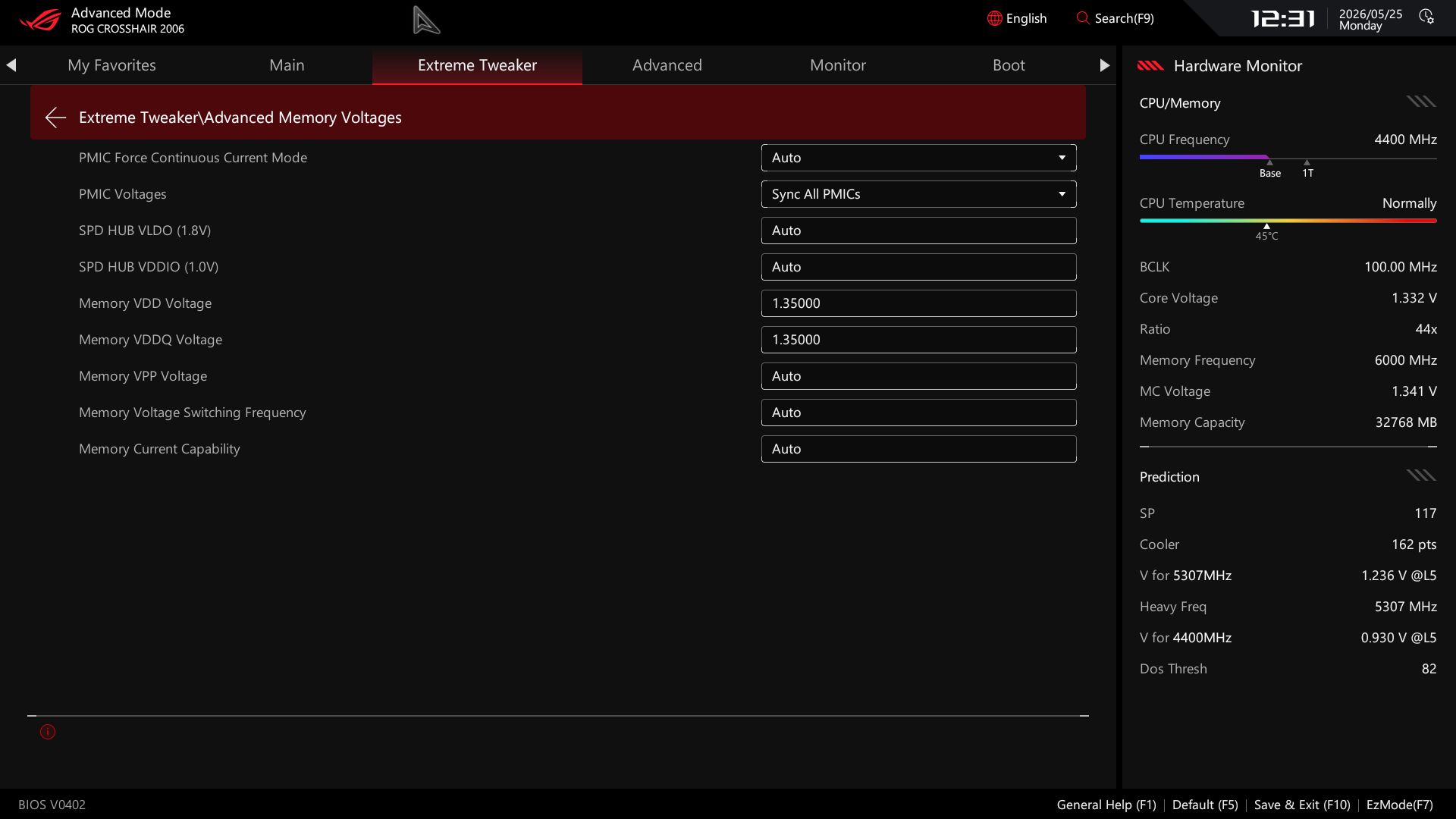

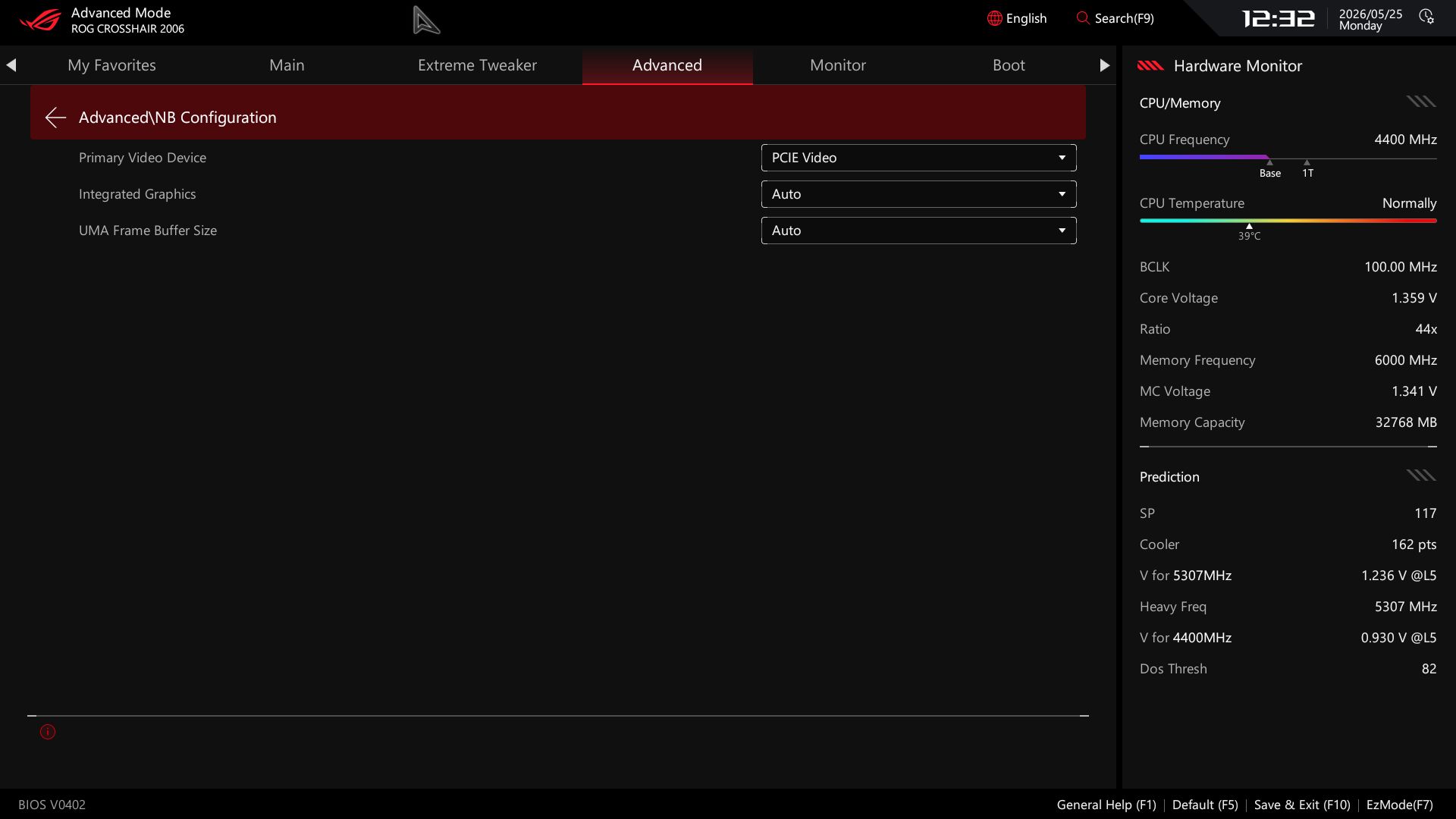

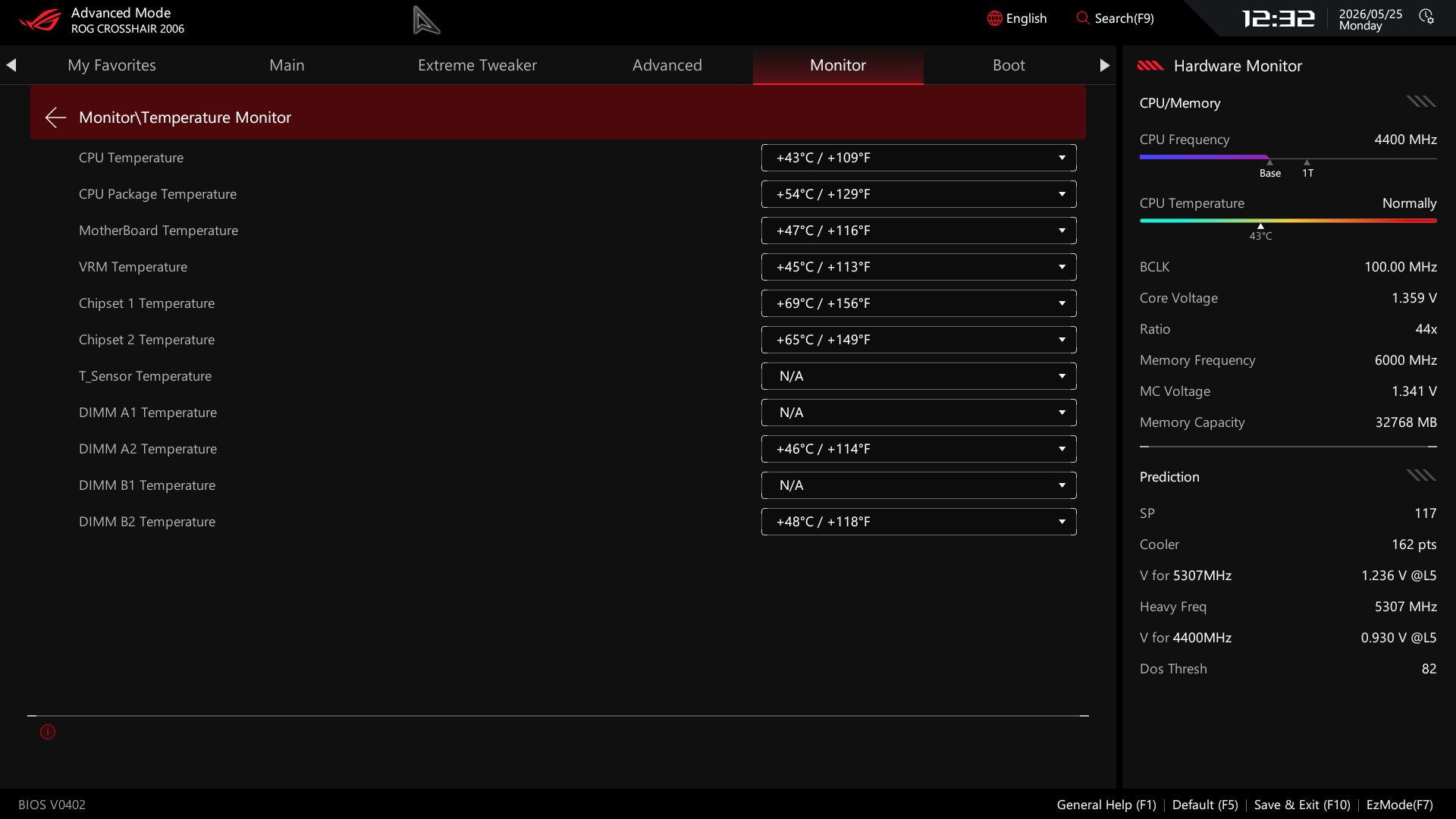

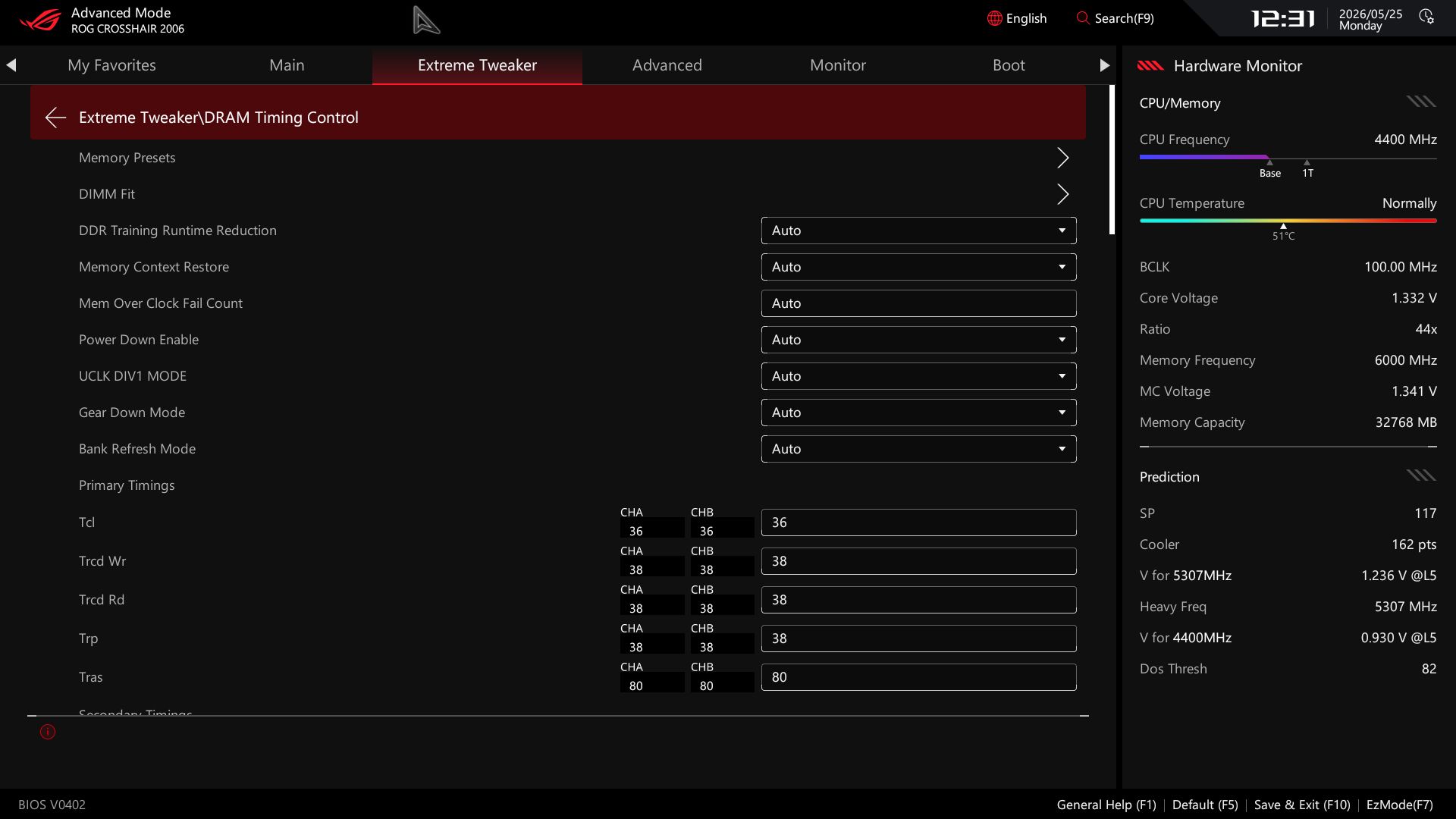

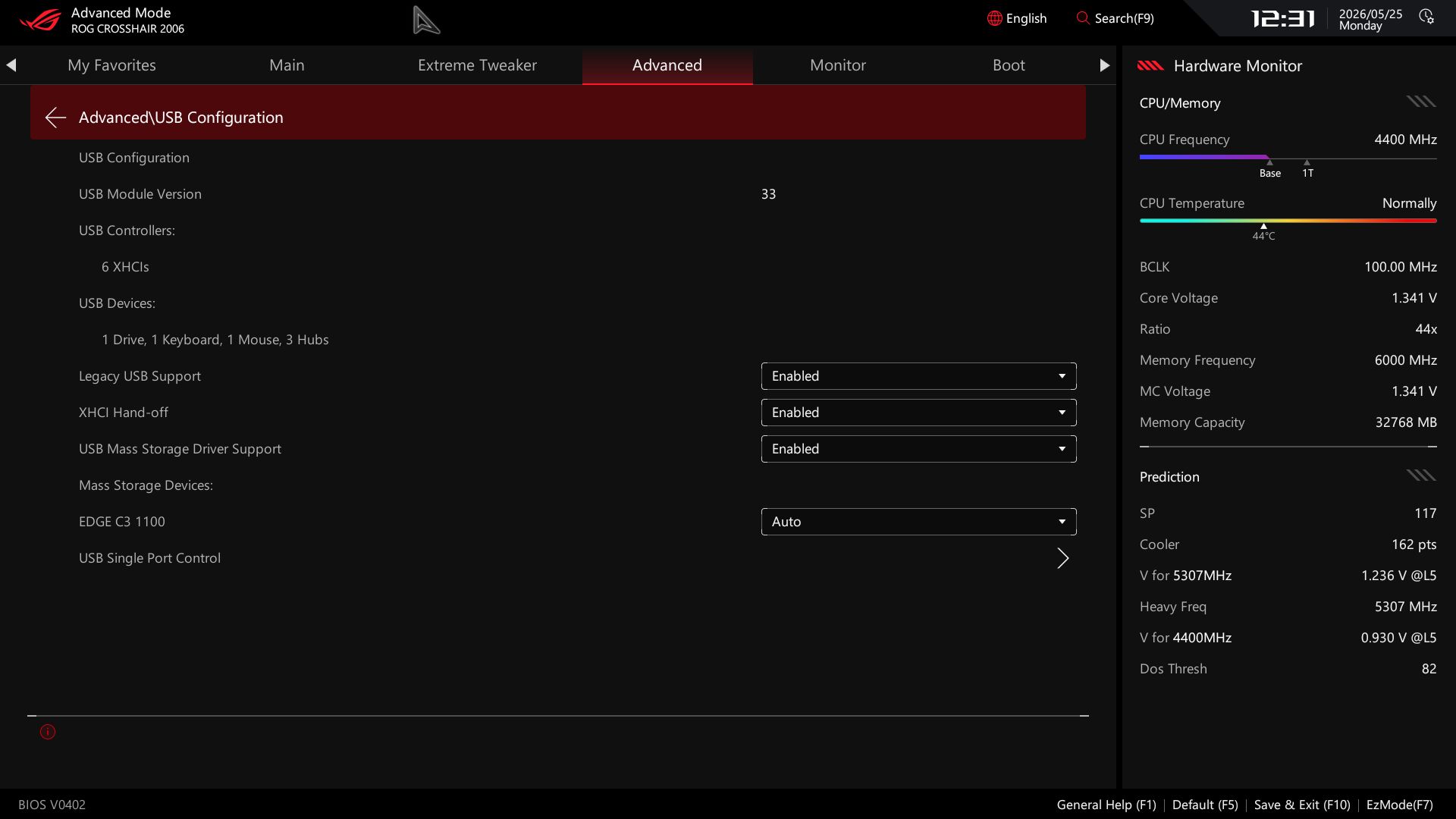

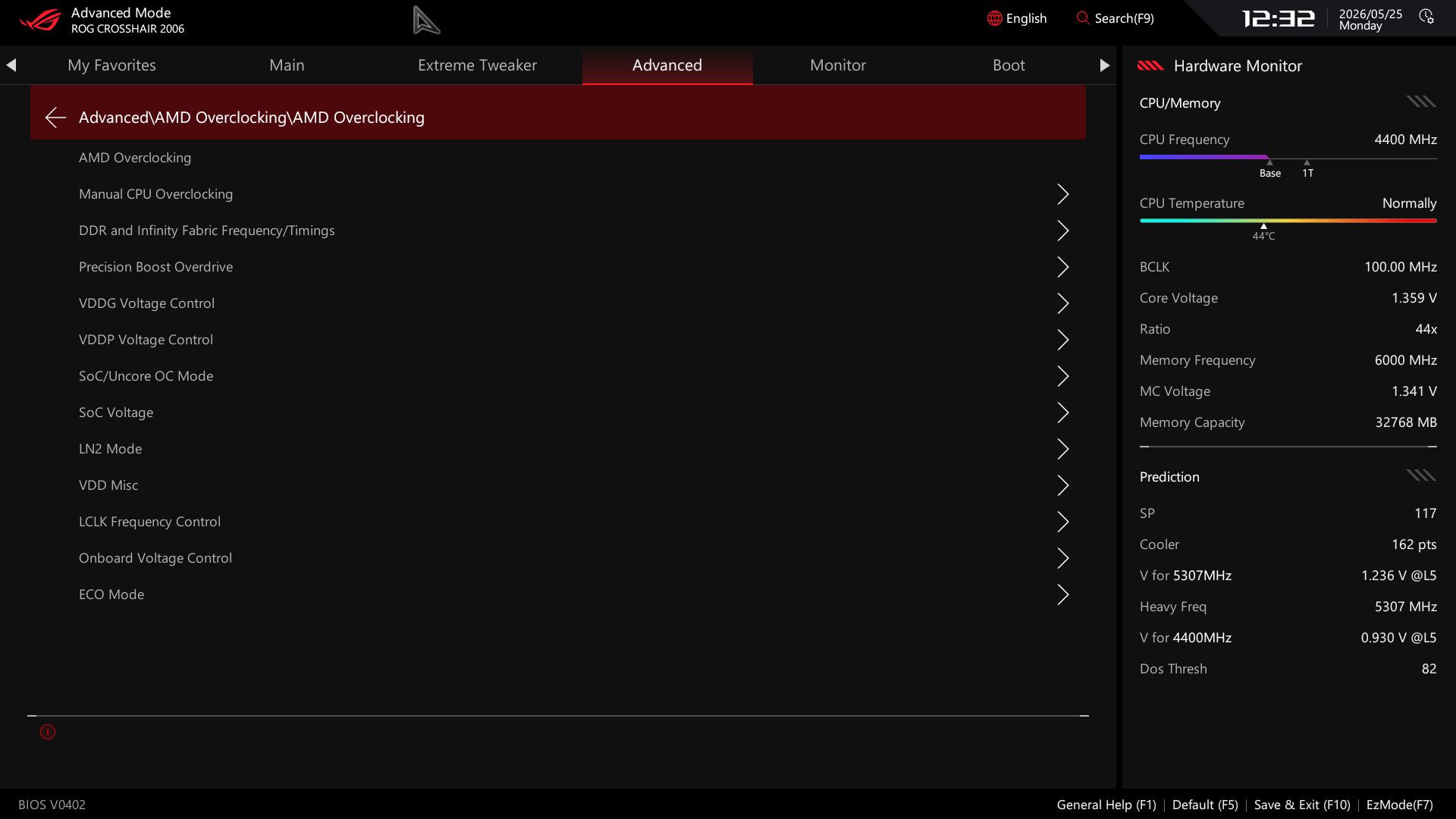

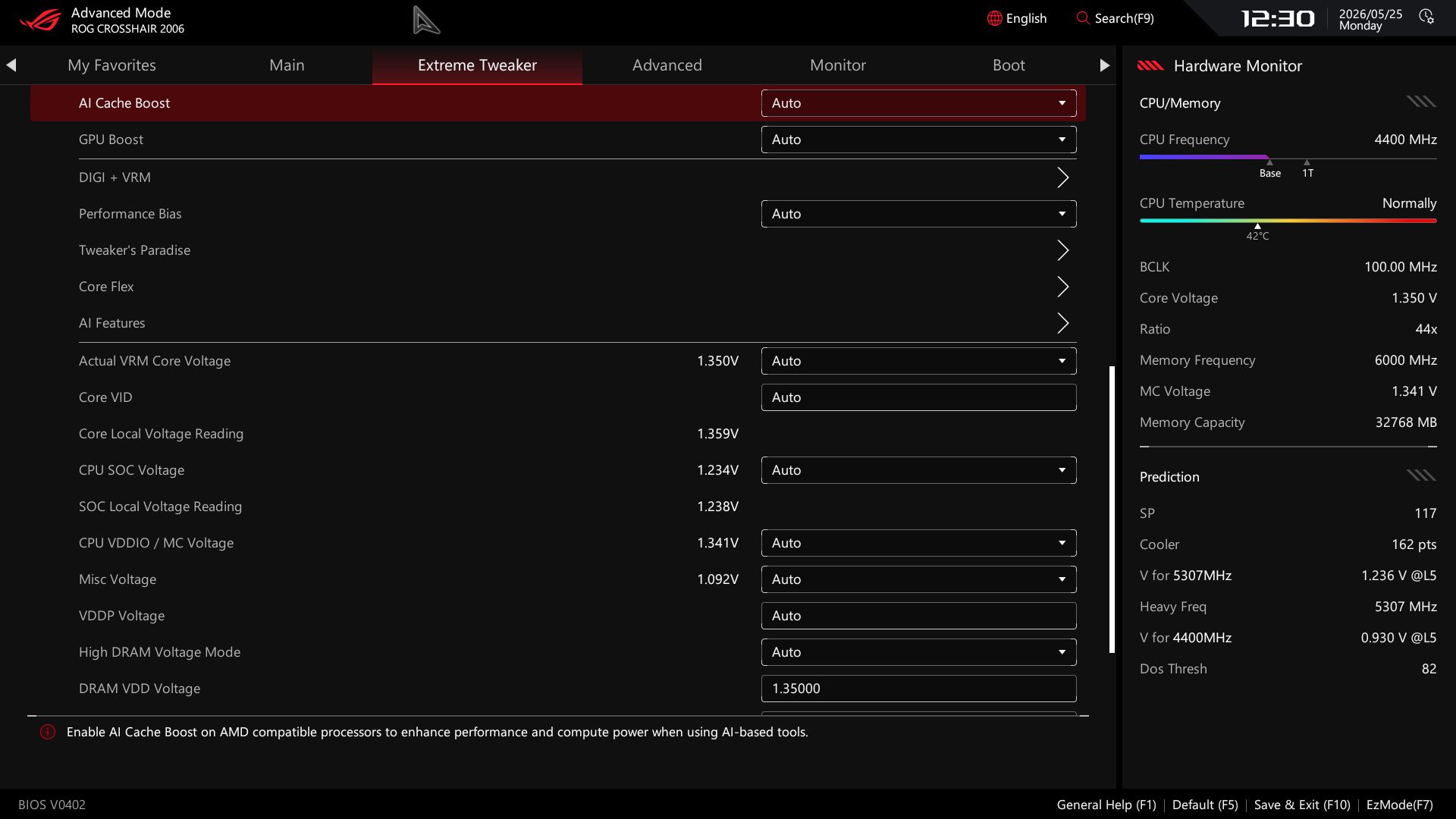

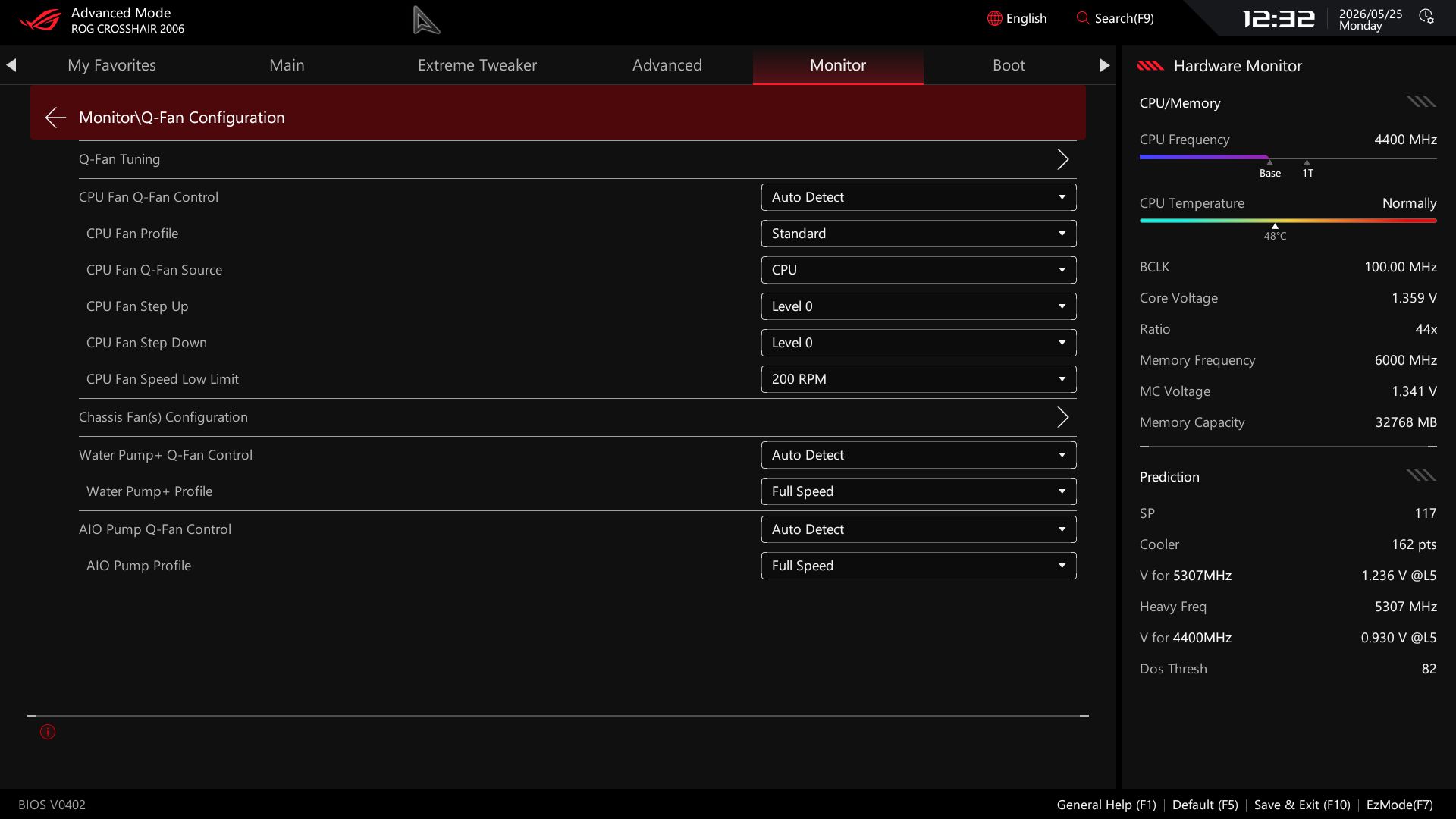

Advanced mode still has the headers across the top, but the shortcuts to Q-Fan and AI OC have been moved to quick settings and other locations. The right panel holds system information, including CPU frequency and temperature, in a colorful display. The main body has all the editable functionality.

Overall, I like the aesthetic update for the BIOS. It’s easy to read and, as usual with Asus BIOS, frequently used items are easy to find and not buried too deeply in their menus. Anything that’s a pain to access can be added to the customizable favorites screen.

Latest Videos From
Image 1 of 37

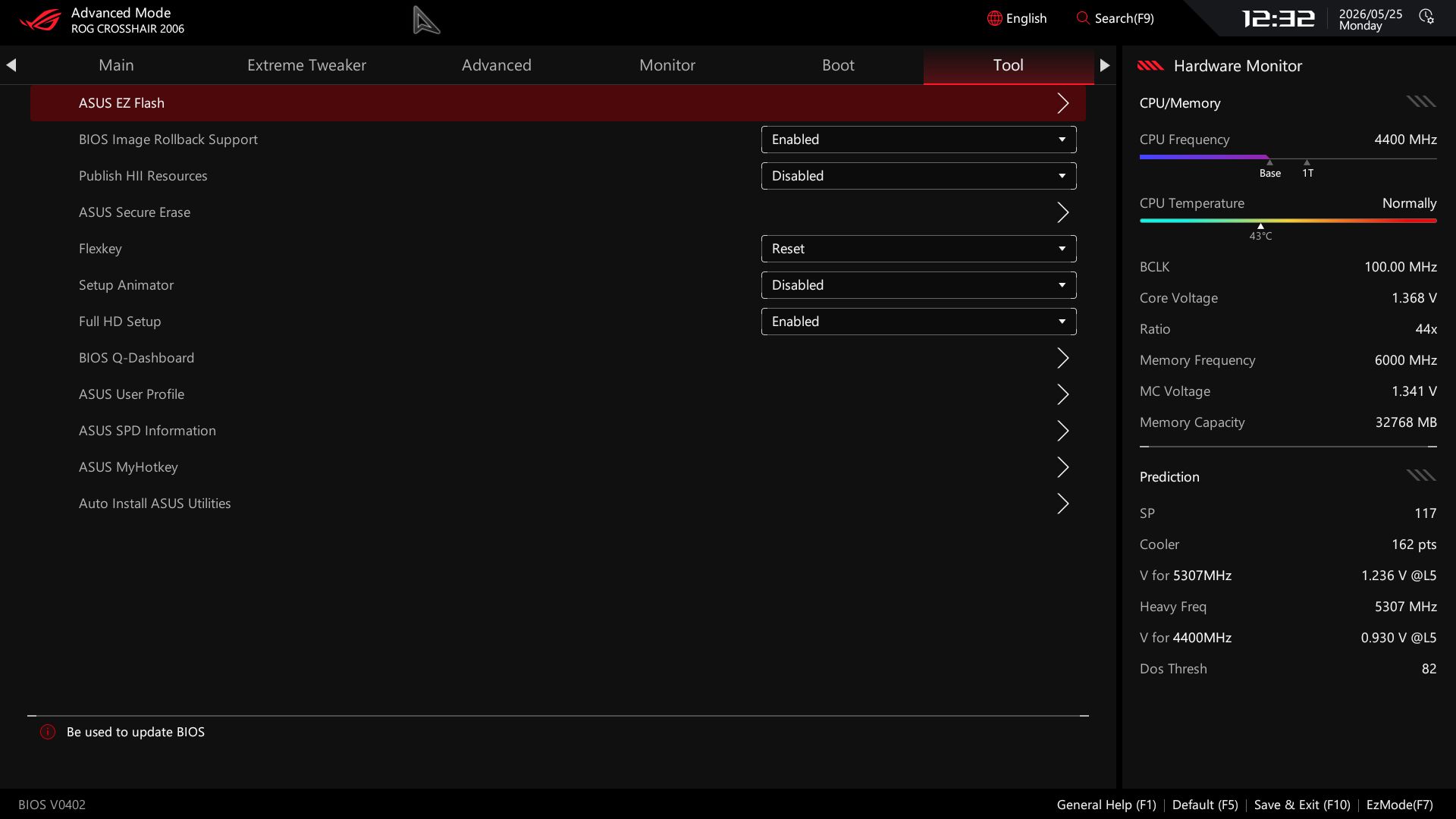

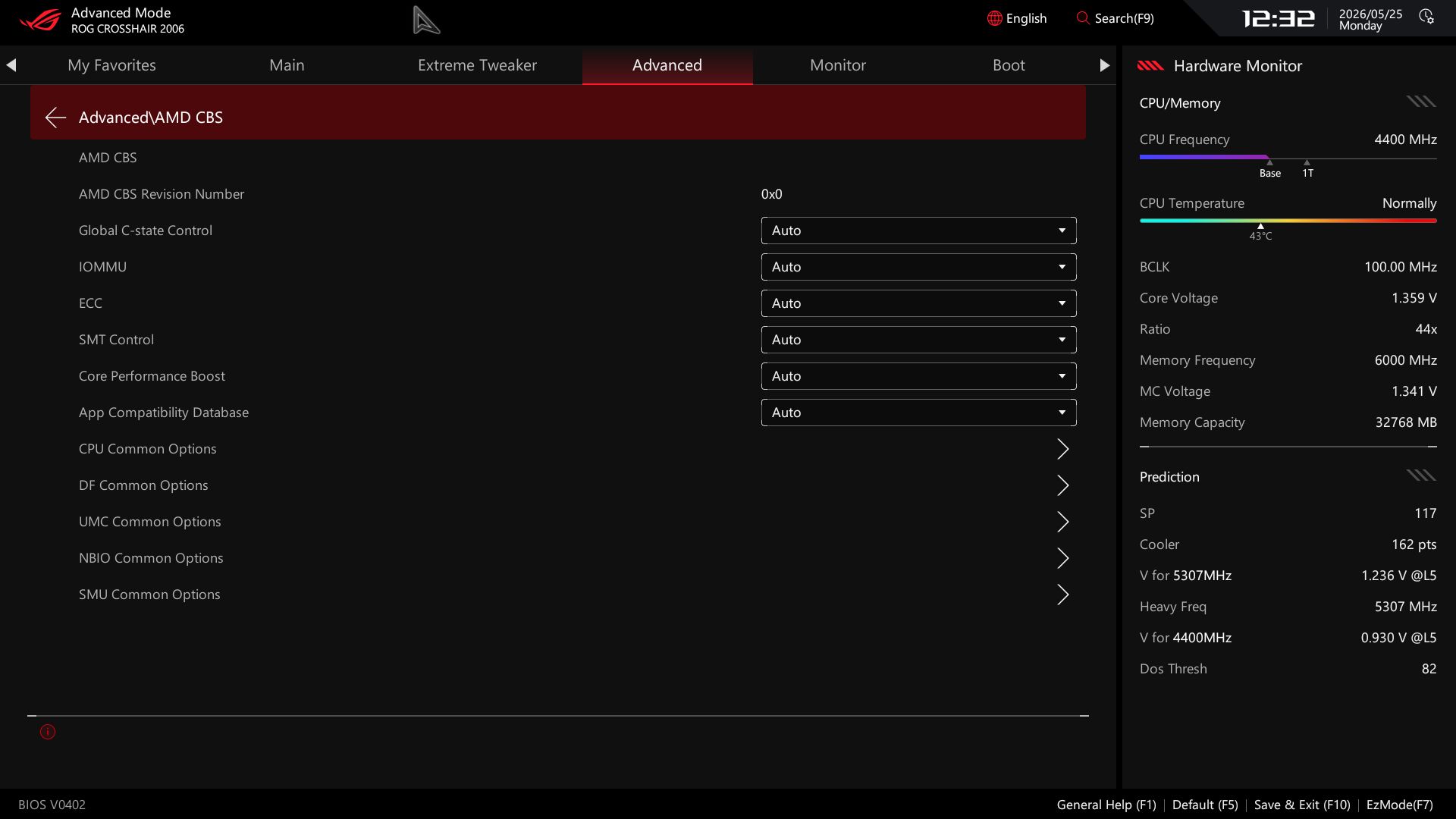

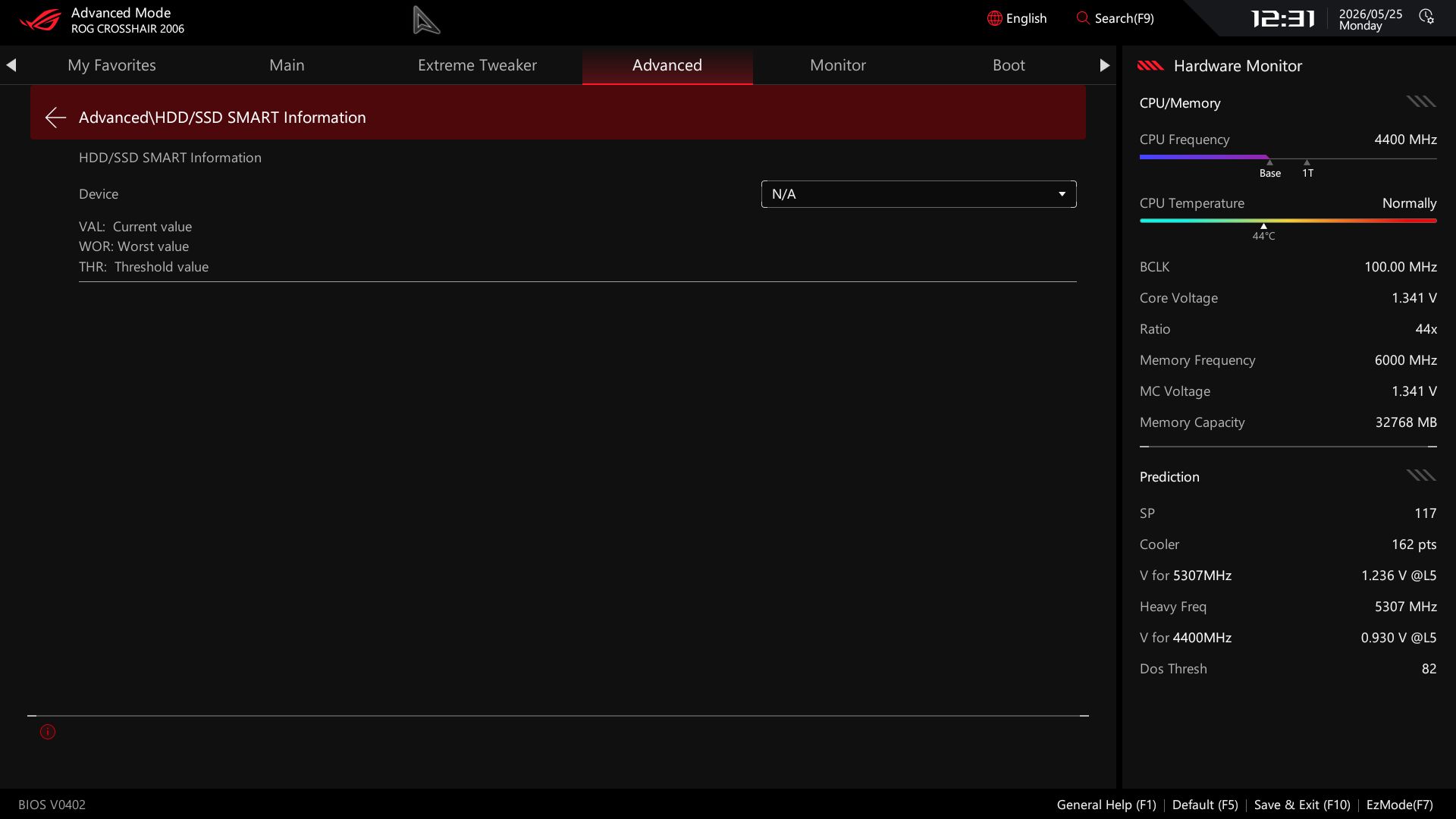

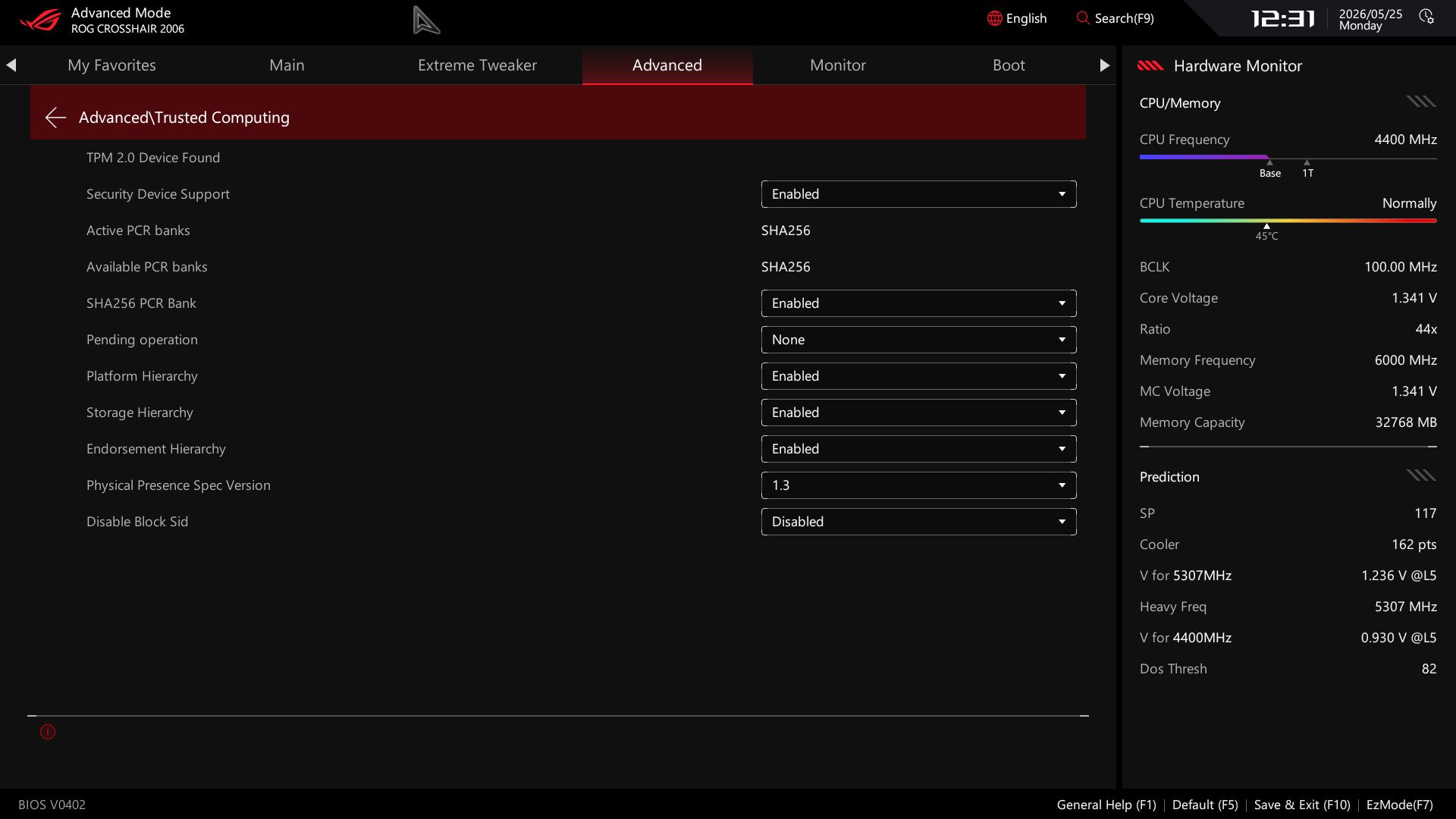

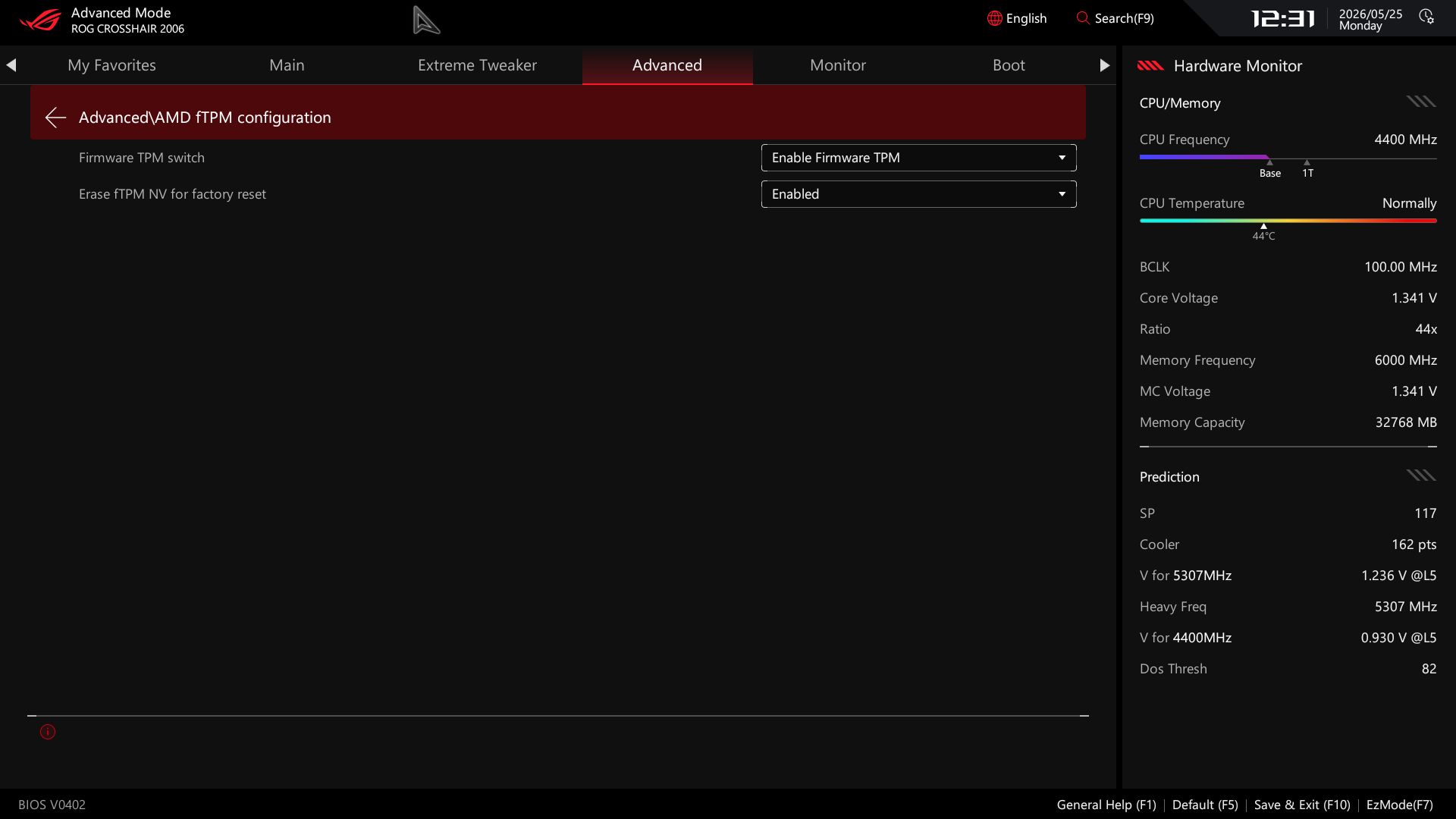

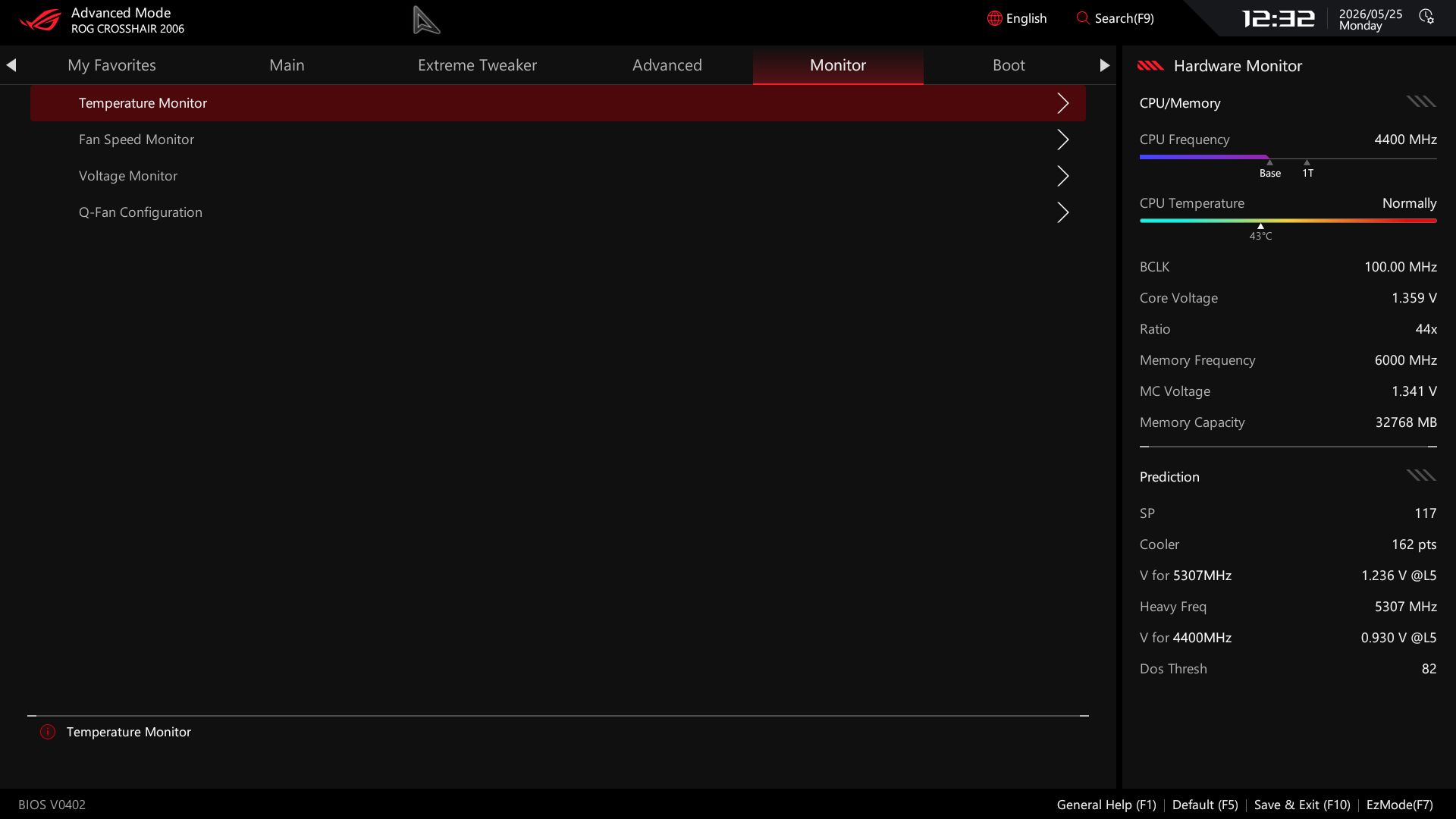

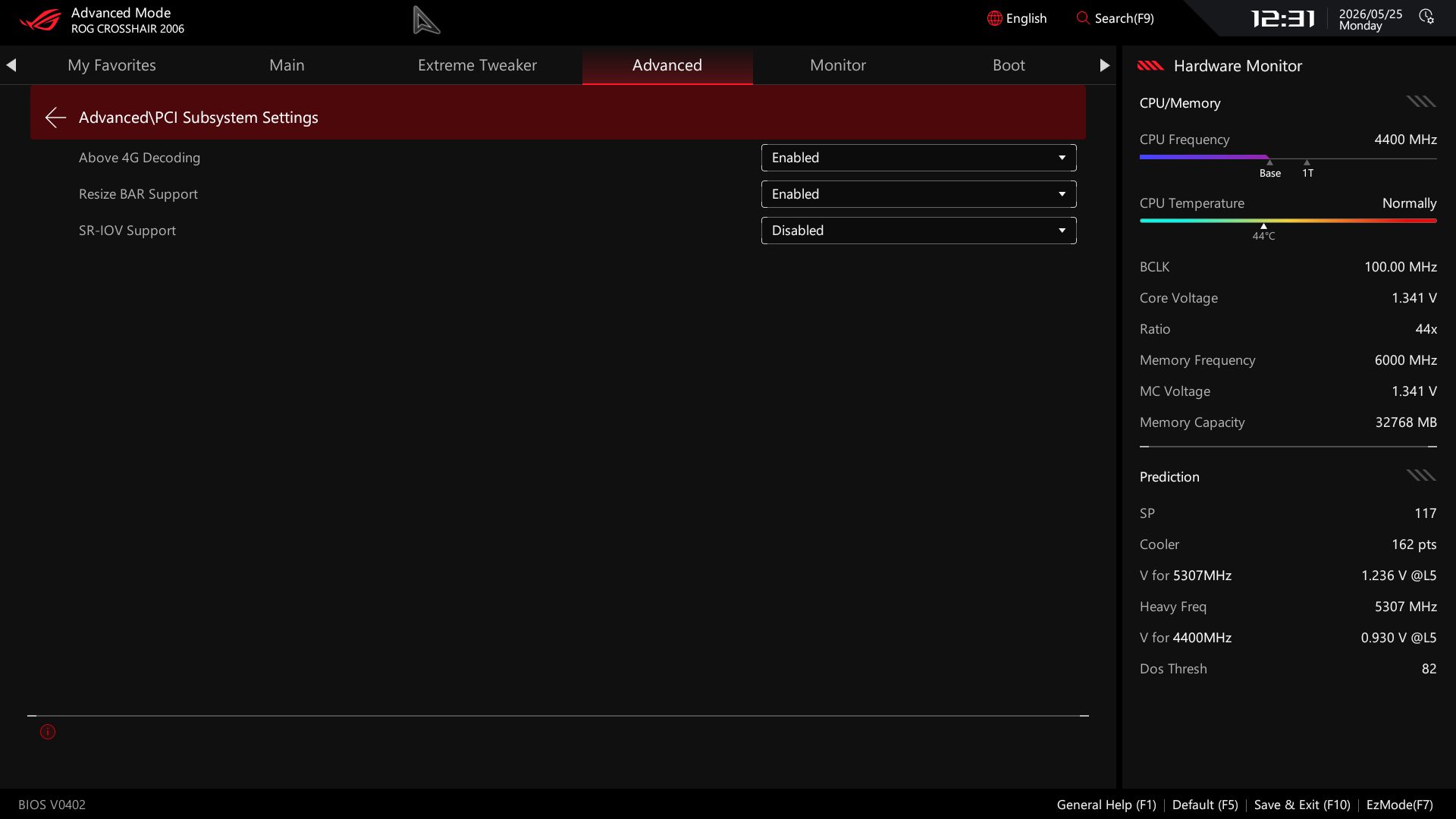

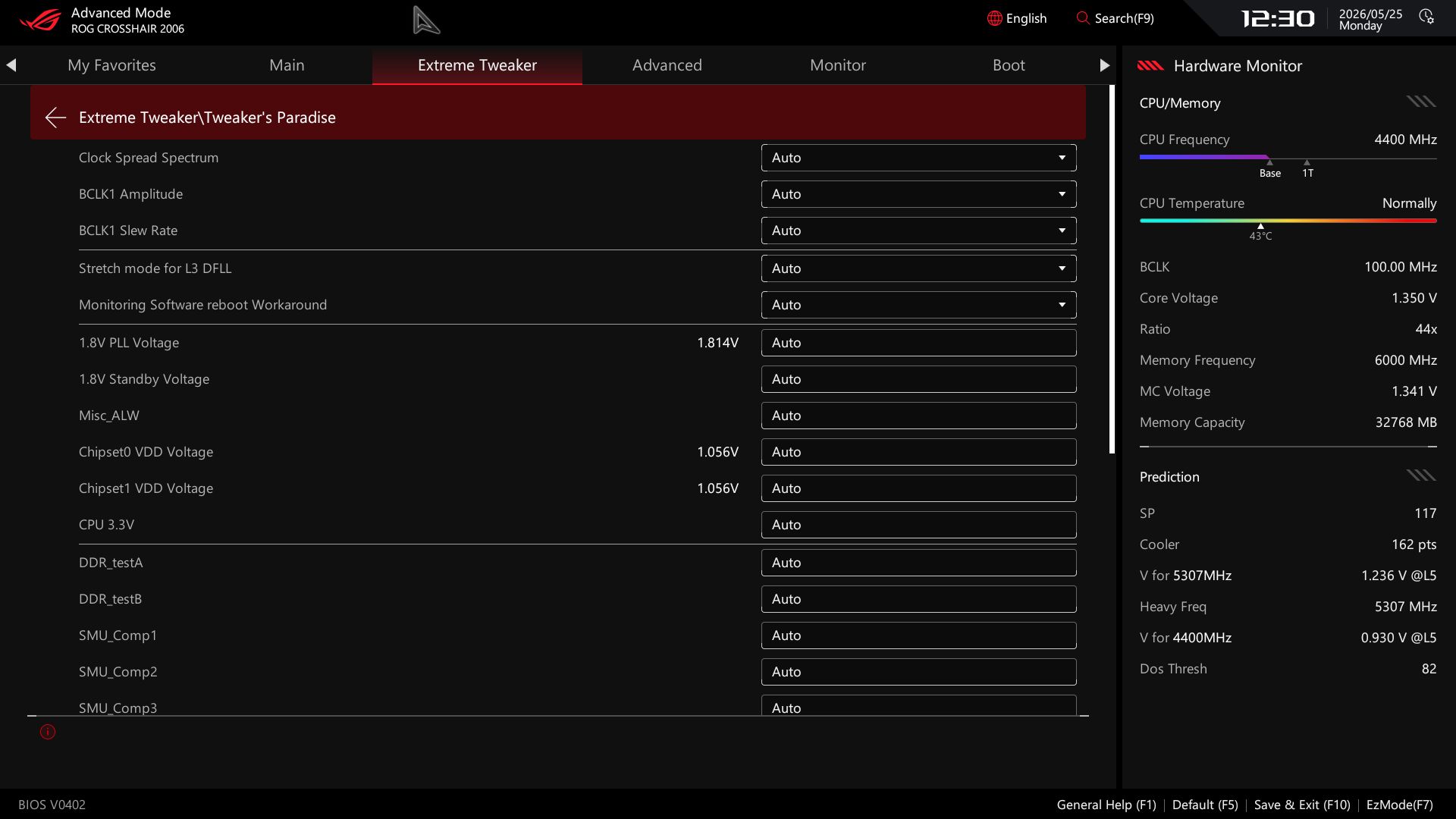

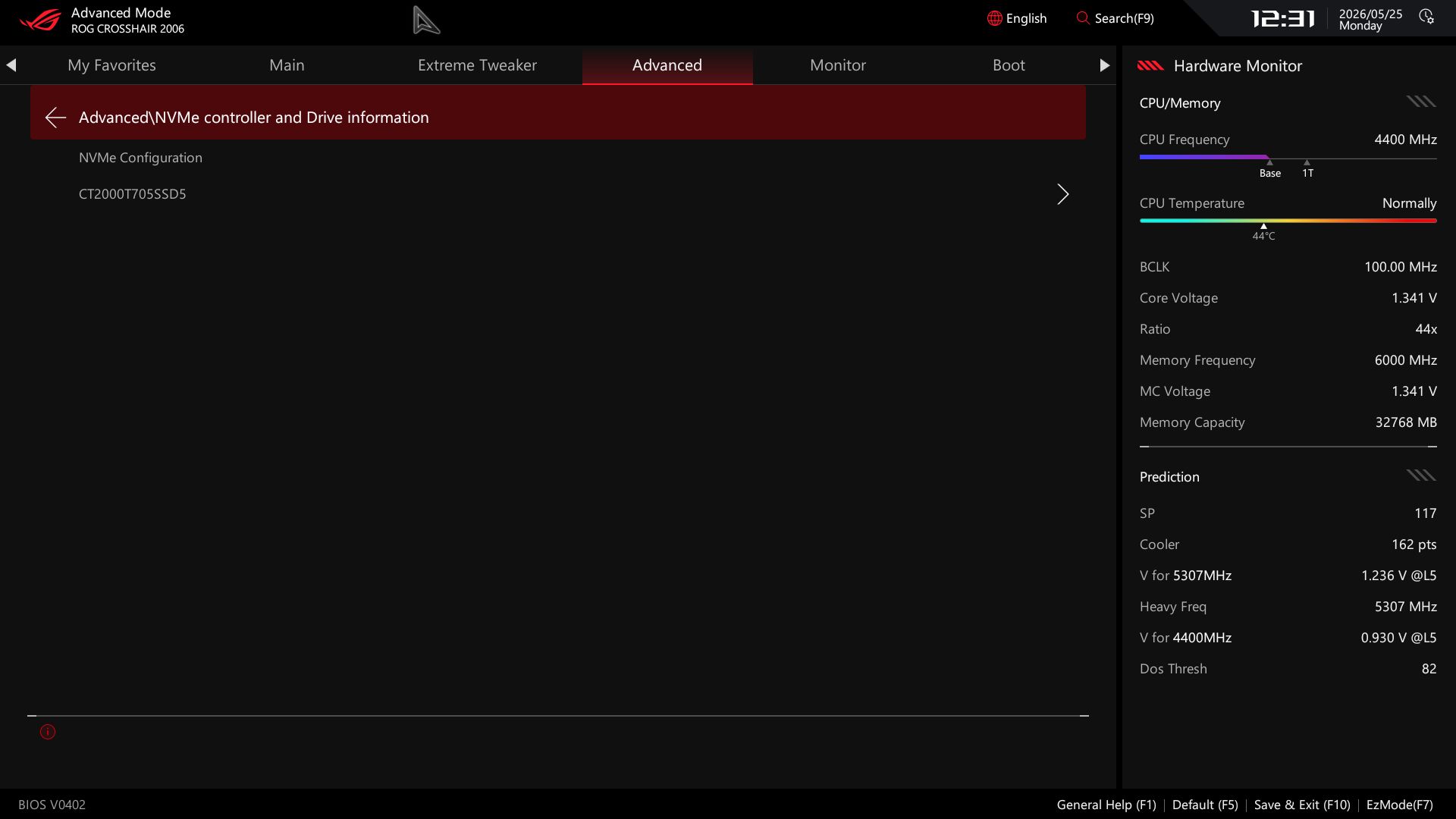

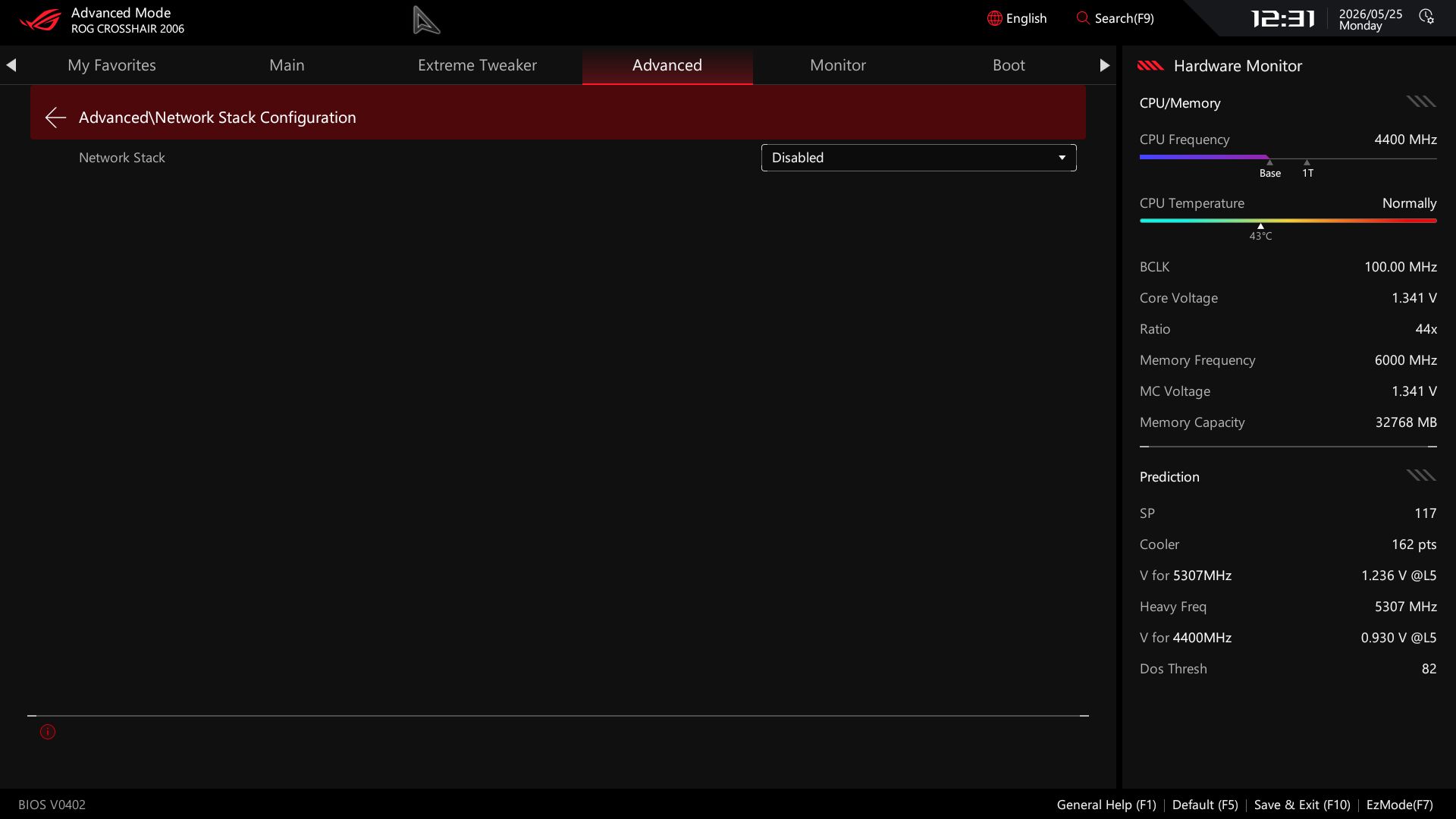

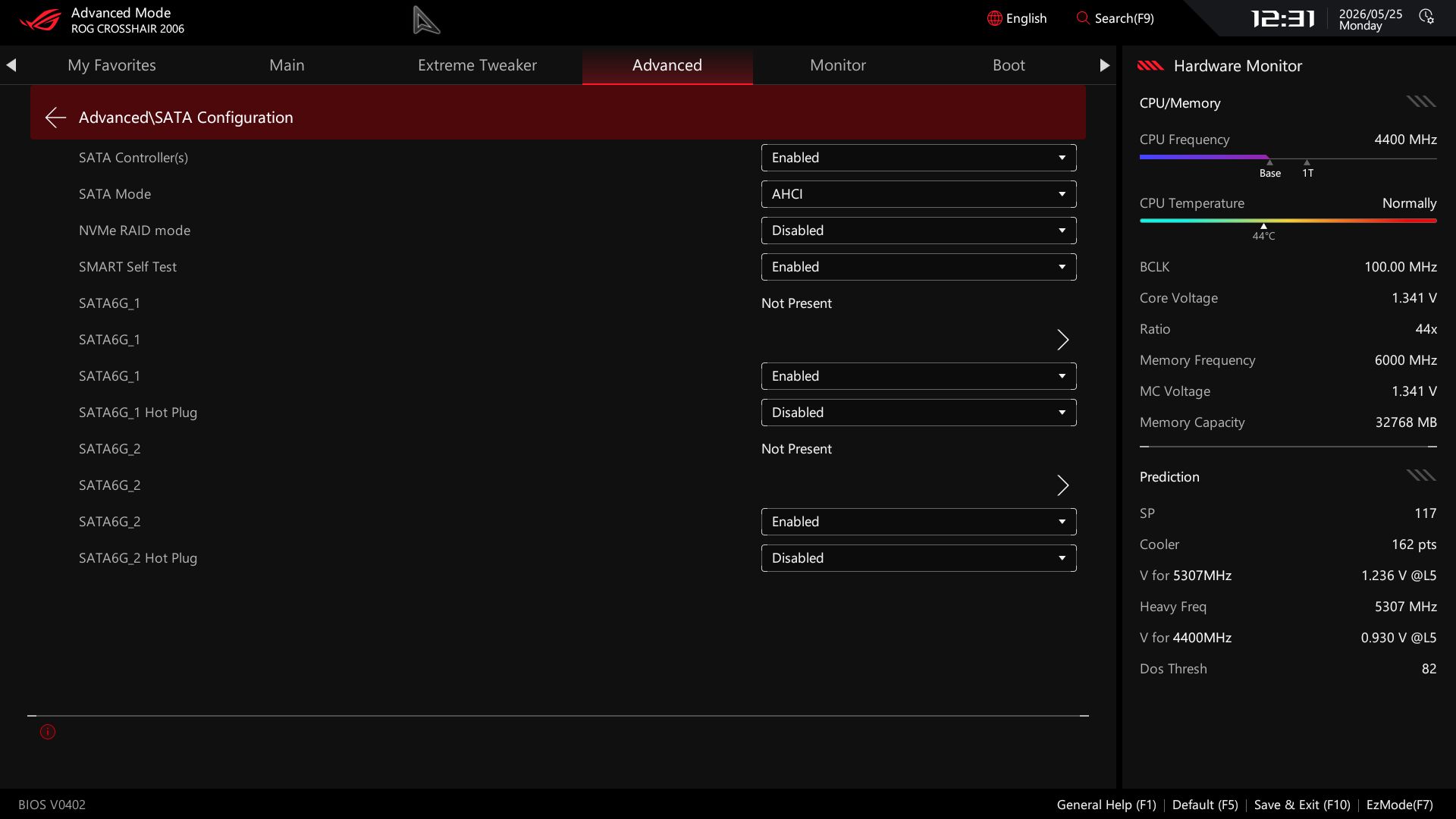

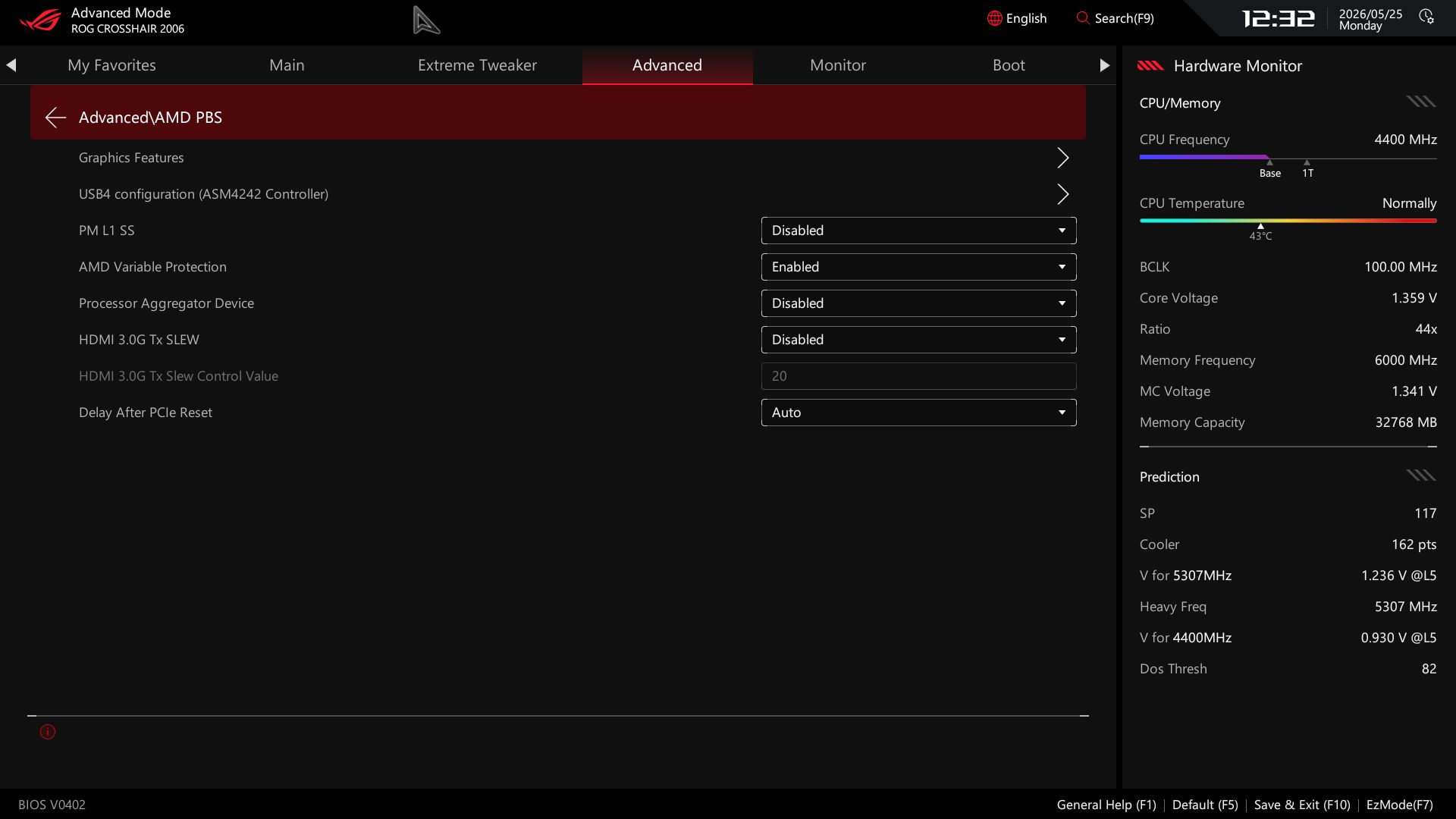

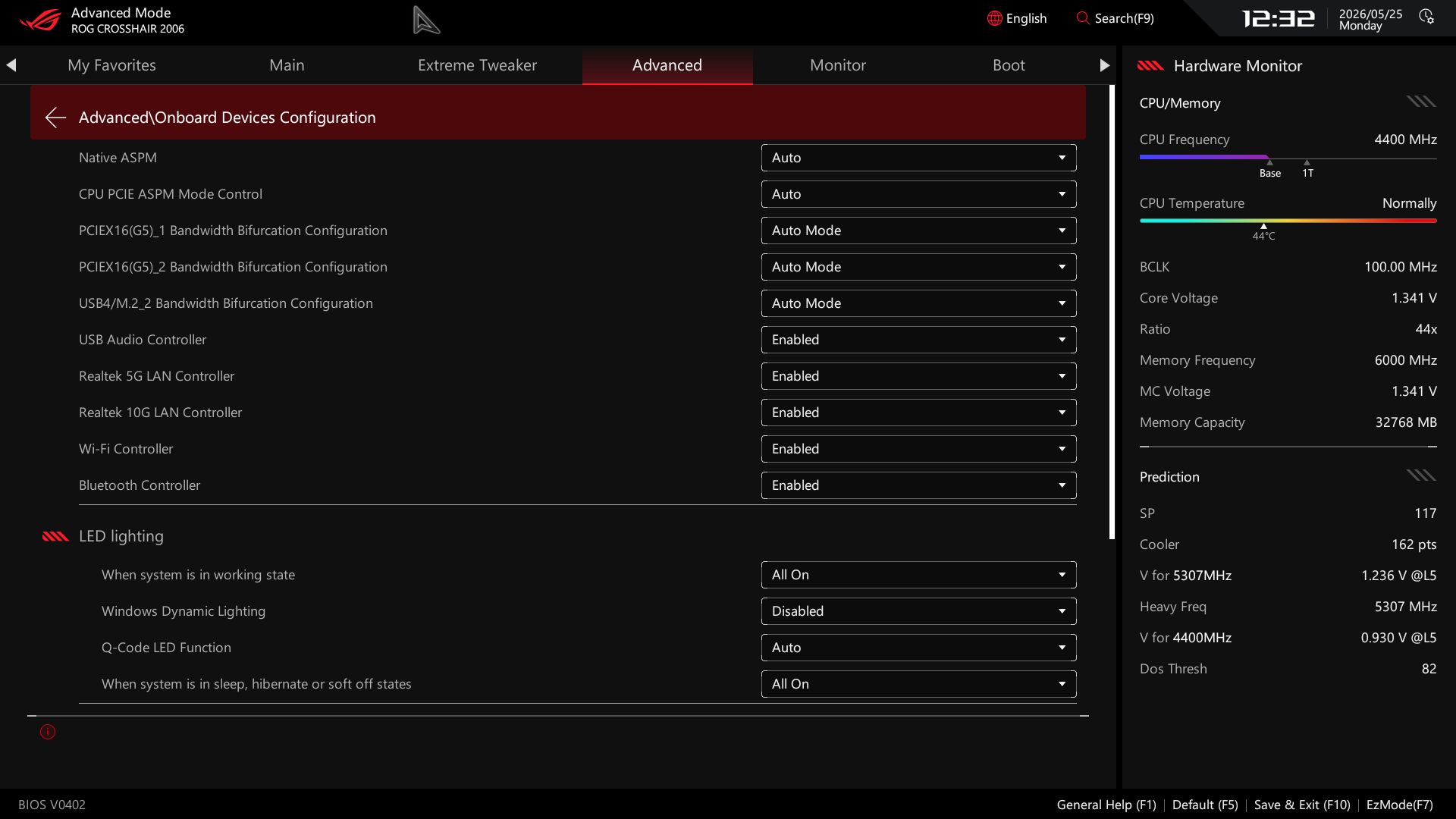

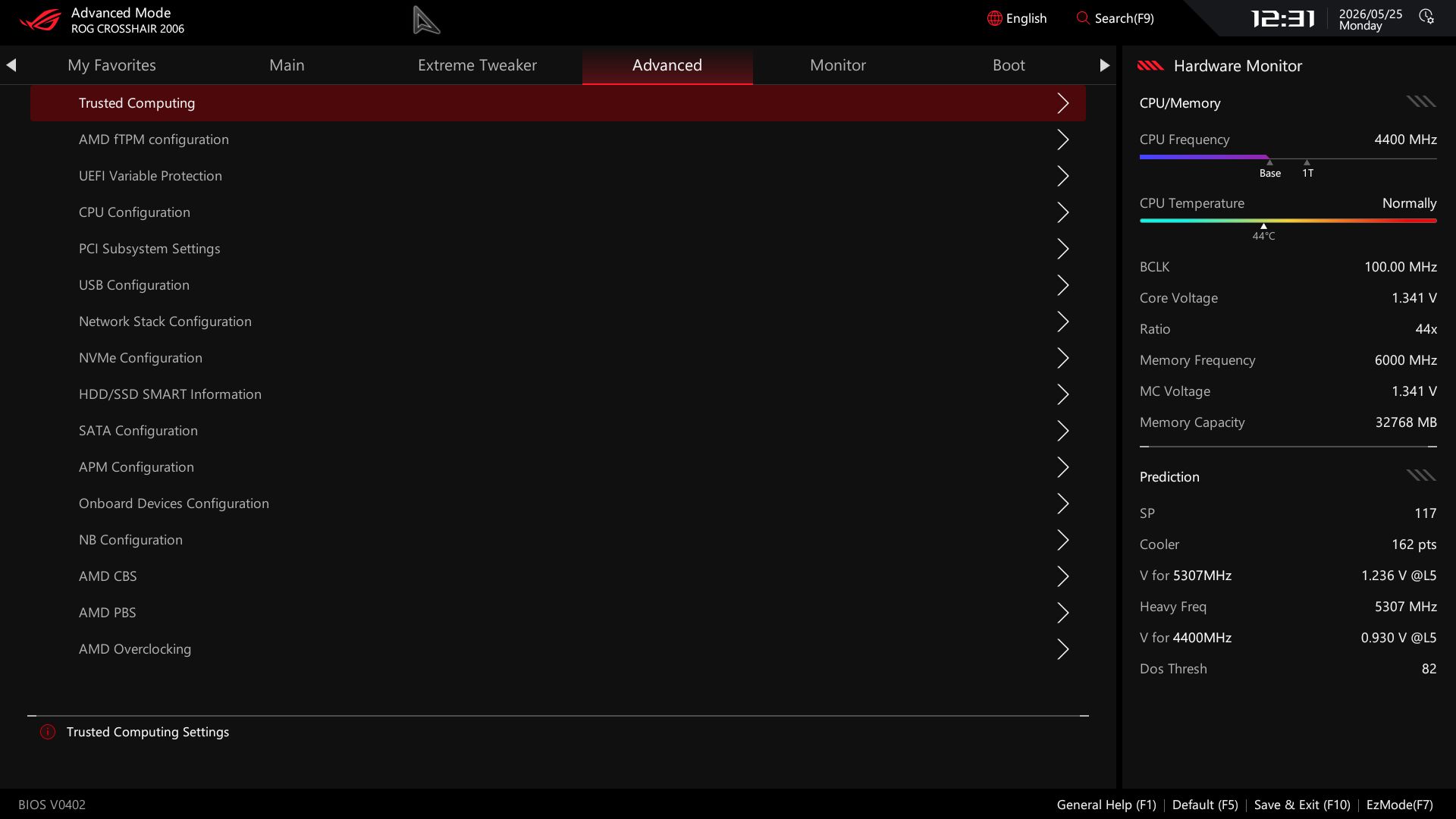

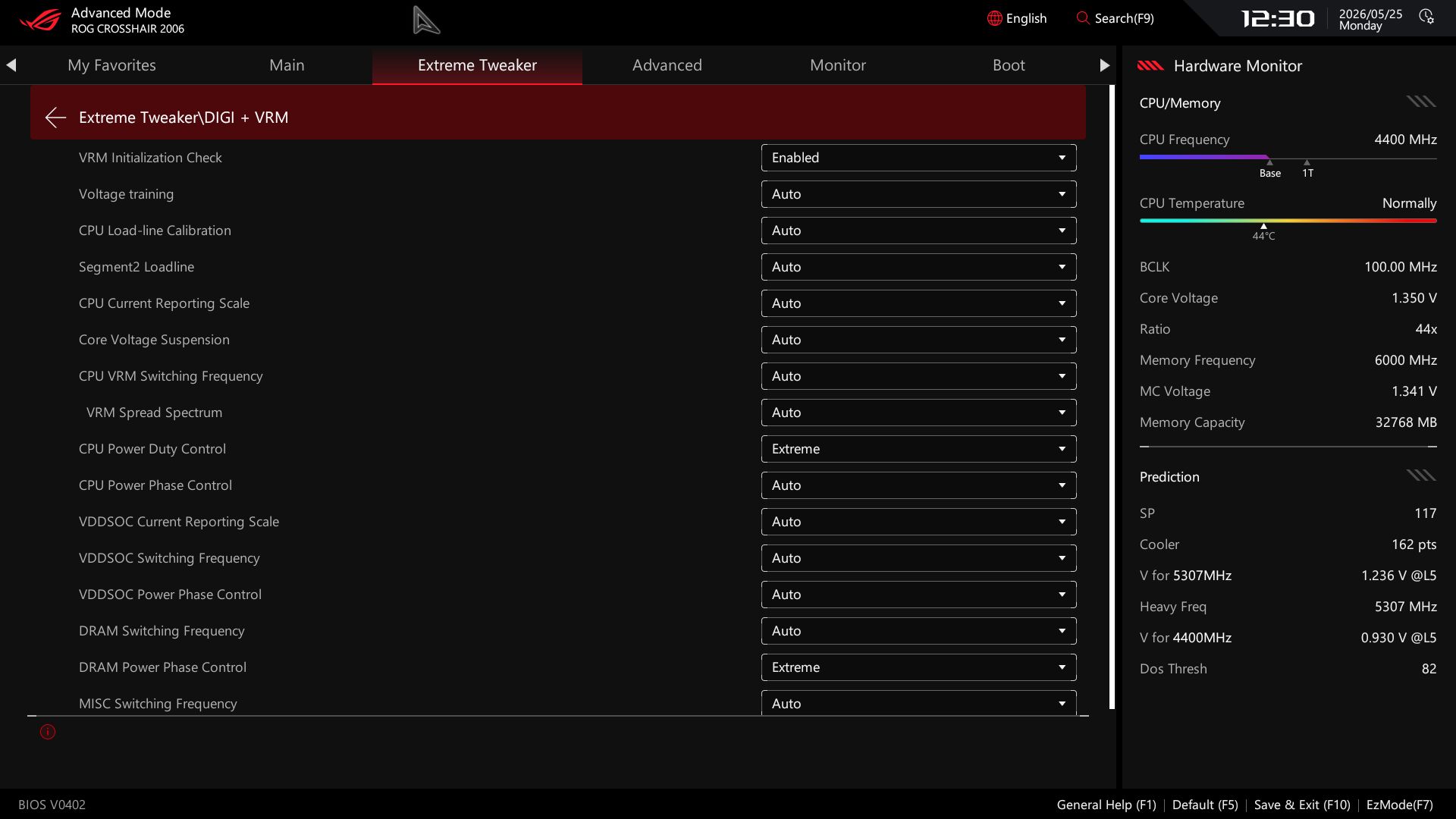

Asus ROG Crosshair 2006 - BIOS
(Image credit: Future)

Software

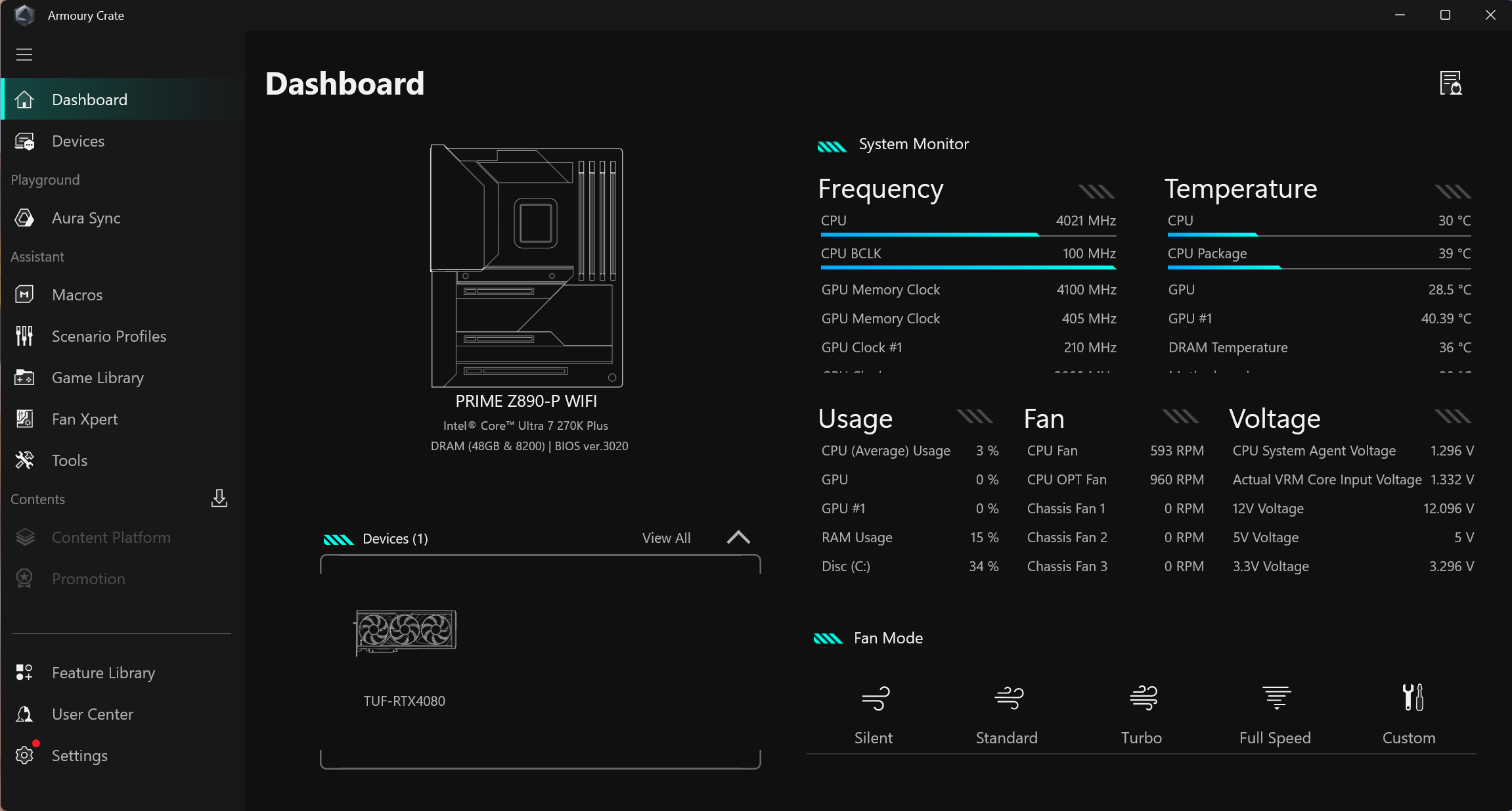

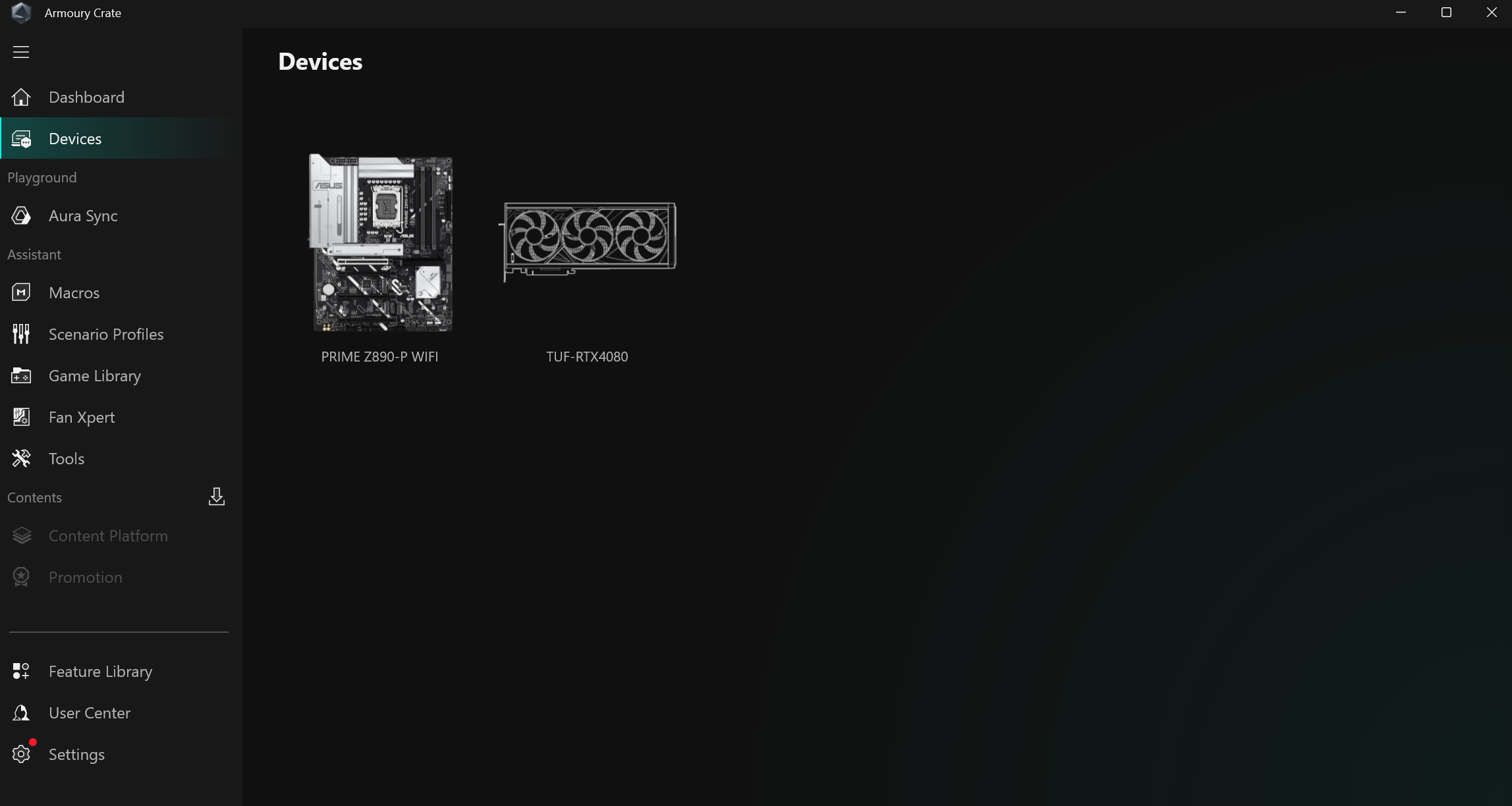

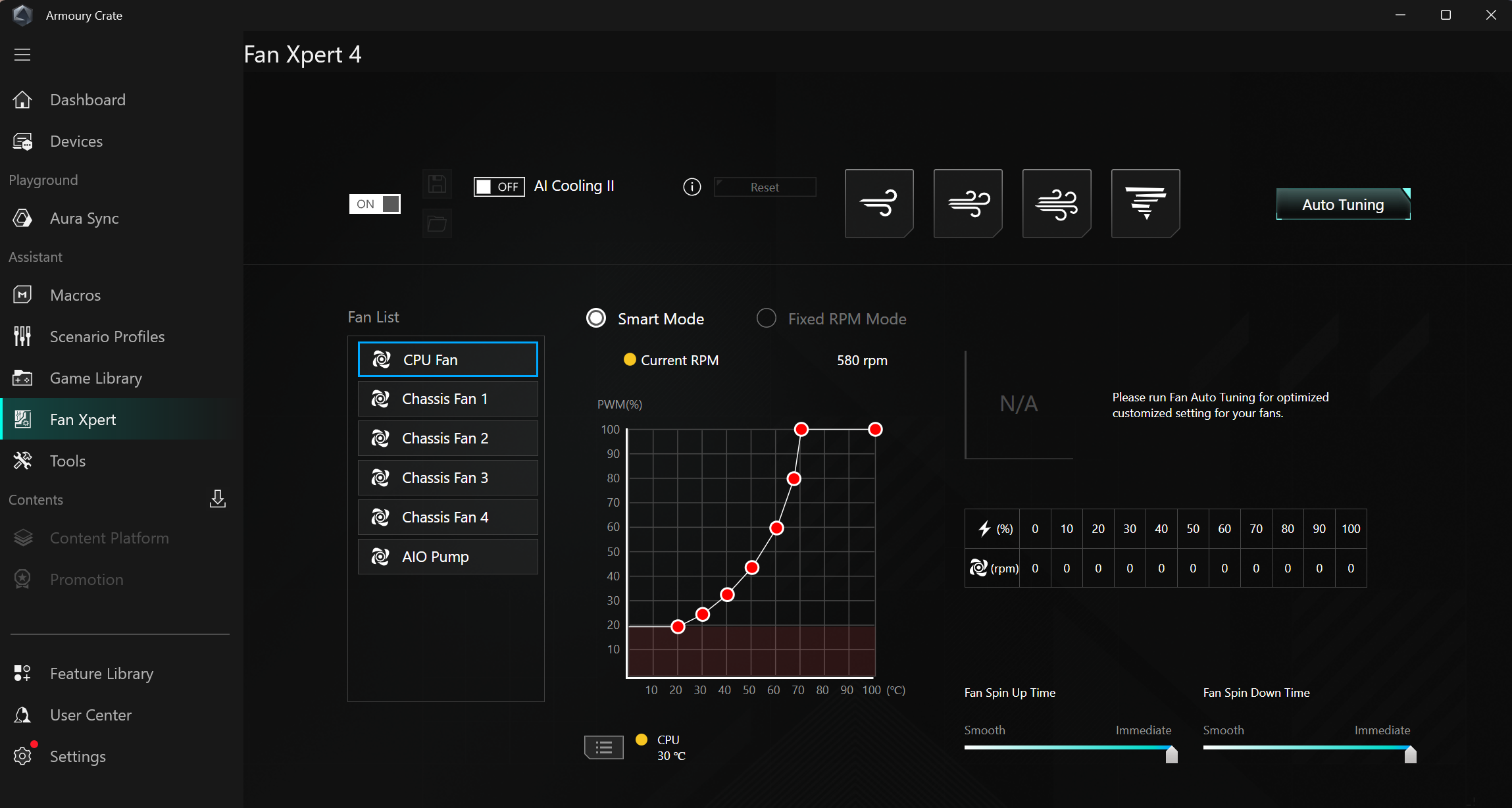

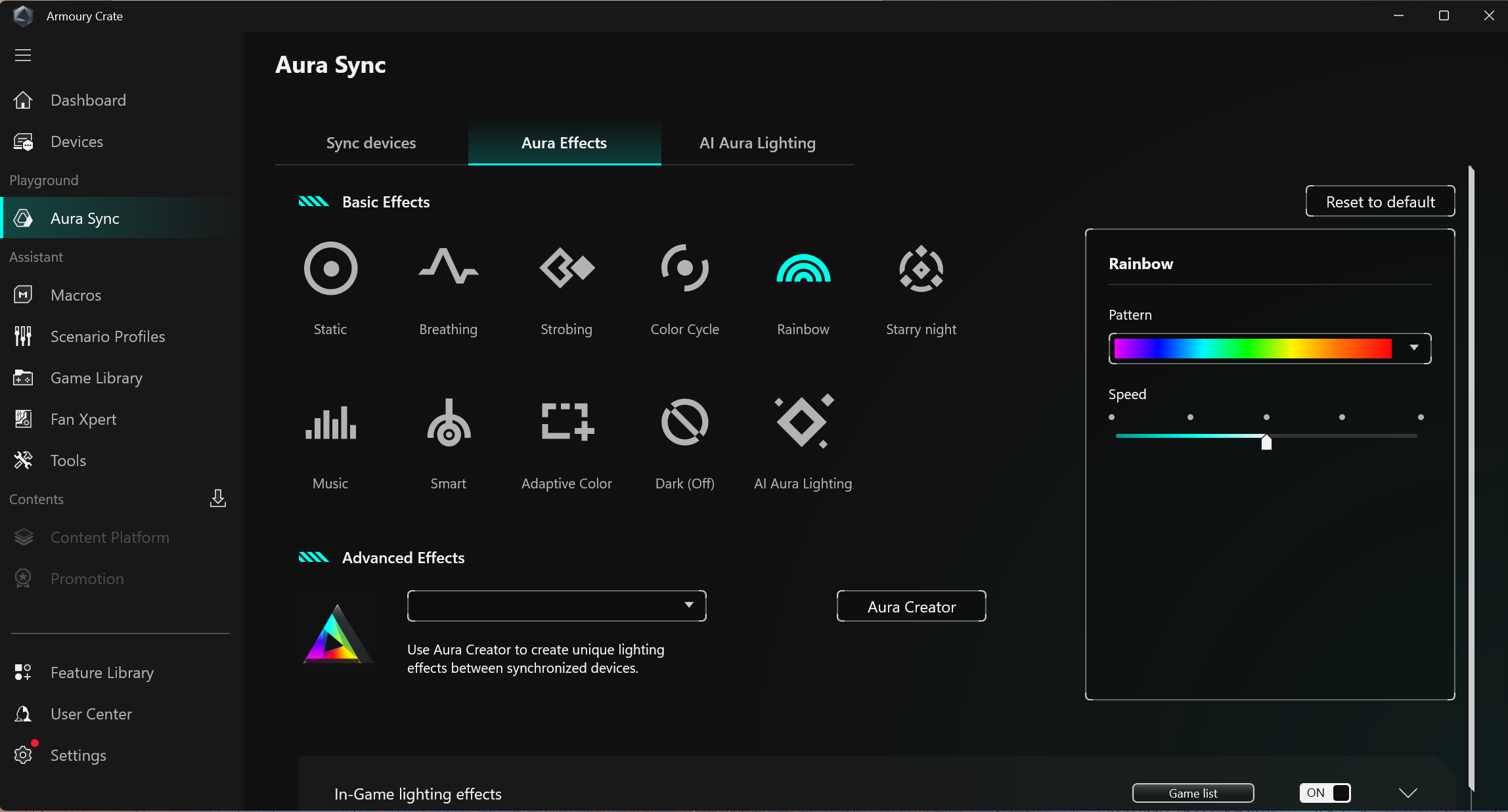

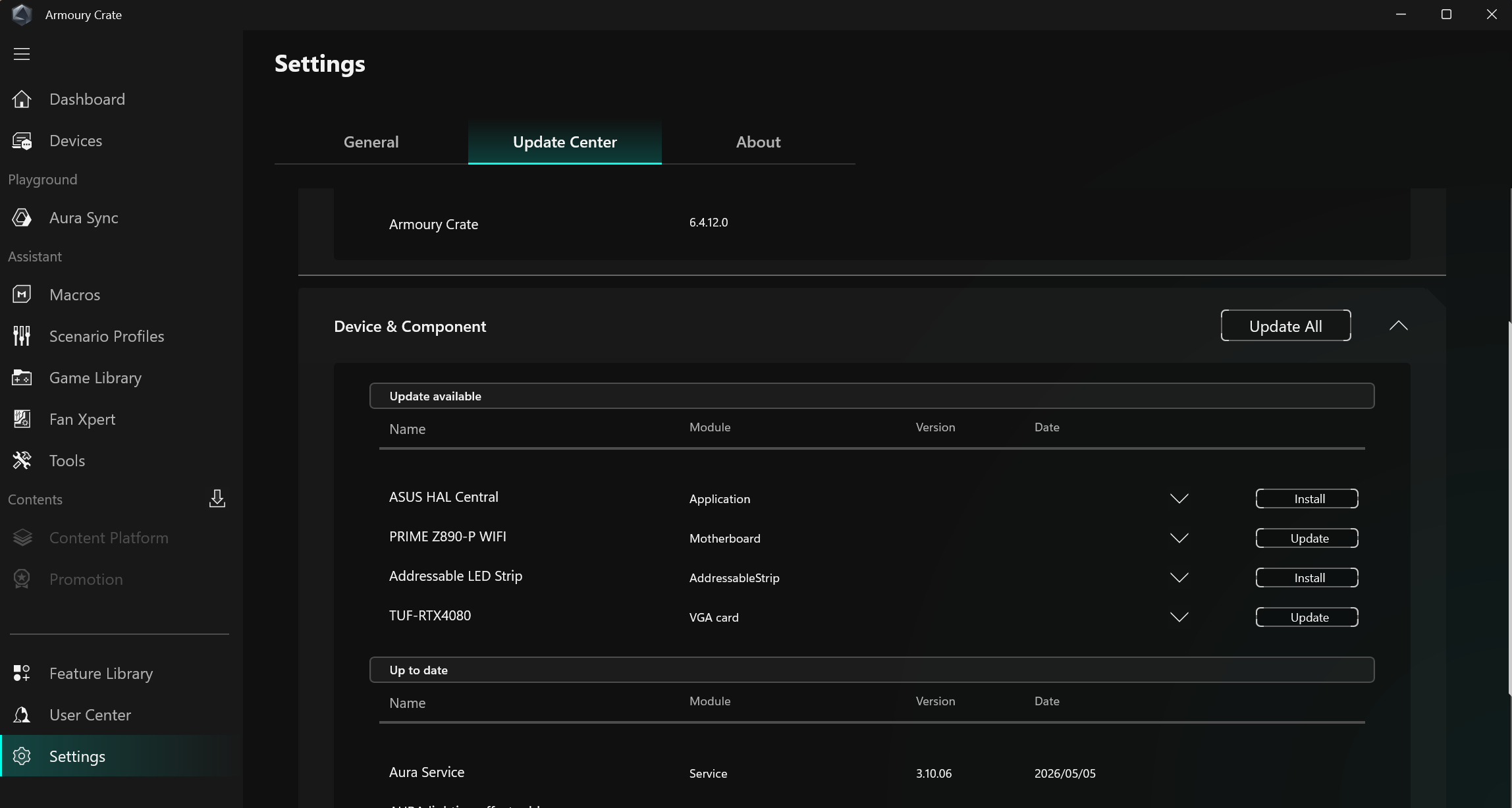

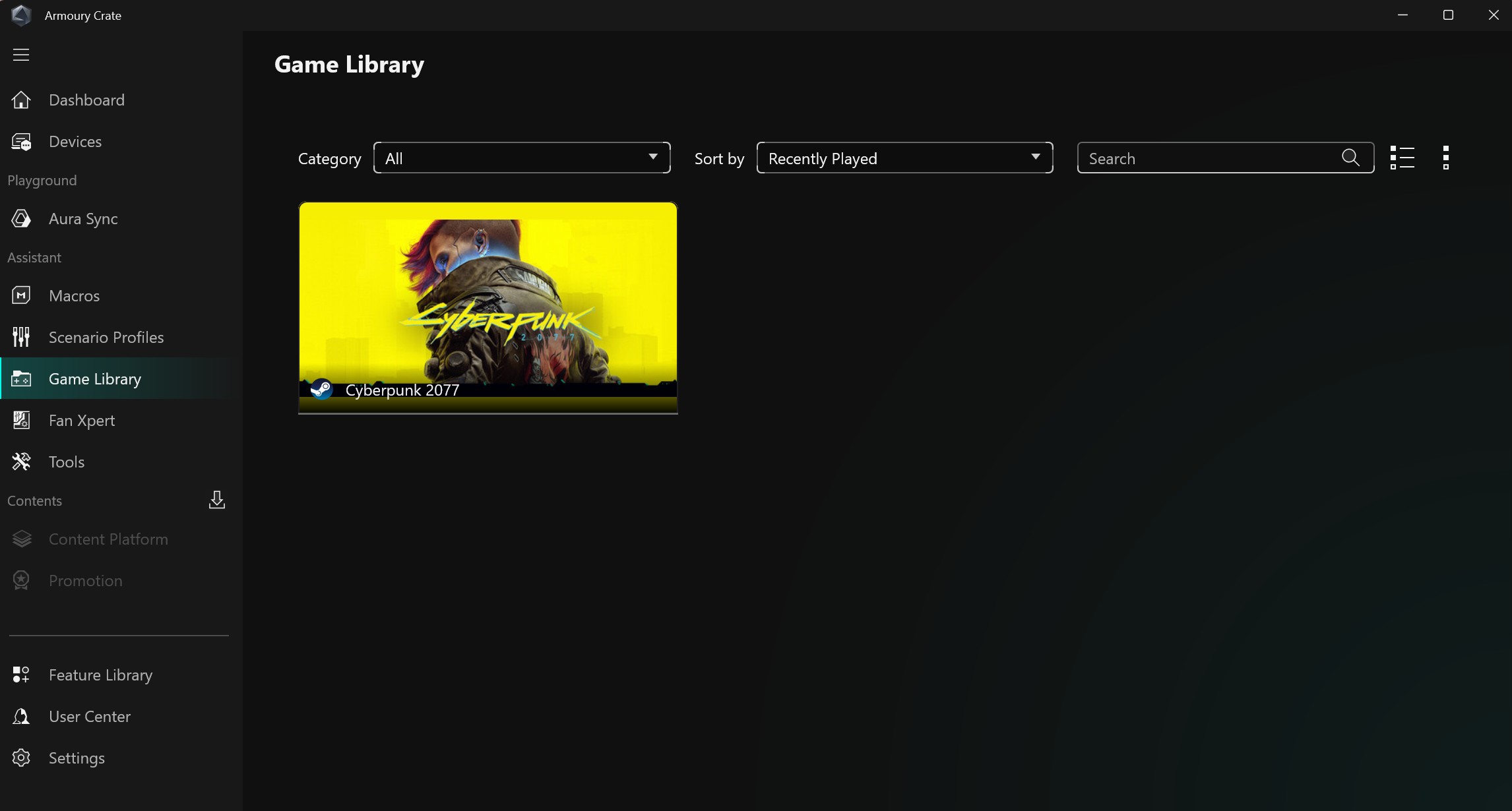

Armoury Crate here also follows the ROG-inspired theme. Several applications exist for various functions, ranging from RGB lighting control and audio to system monitoring and overclocking. It's also worth mentioning the included software. When purchasing this Asus motherboard, you get a one-year AIDA64 license – a helpful application for stress and performance testing; Asus’ Driver Hub (get your updated drivers here); Dolby Atmos (for audio); and a custom version of Hwinfo for real-time monitoring — all are helpful applications. We’ve captured a few screenshots of the applications below.

Image 1 of 6
Asus ROG Crosshair 2006 - Armoury Crate
(Image credit: Future)

Test System / Comparison Products

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest publicly available non-beta motherboard BIOS. The hardware we used is as follows:

TEST SYSTEM COMPONENTS

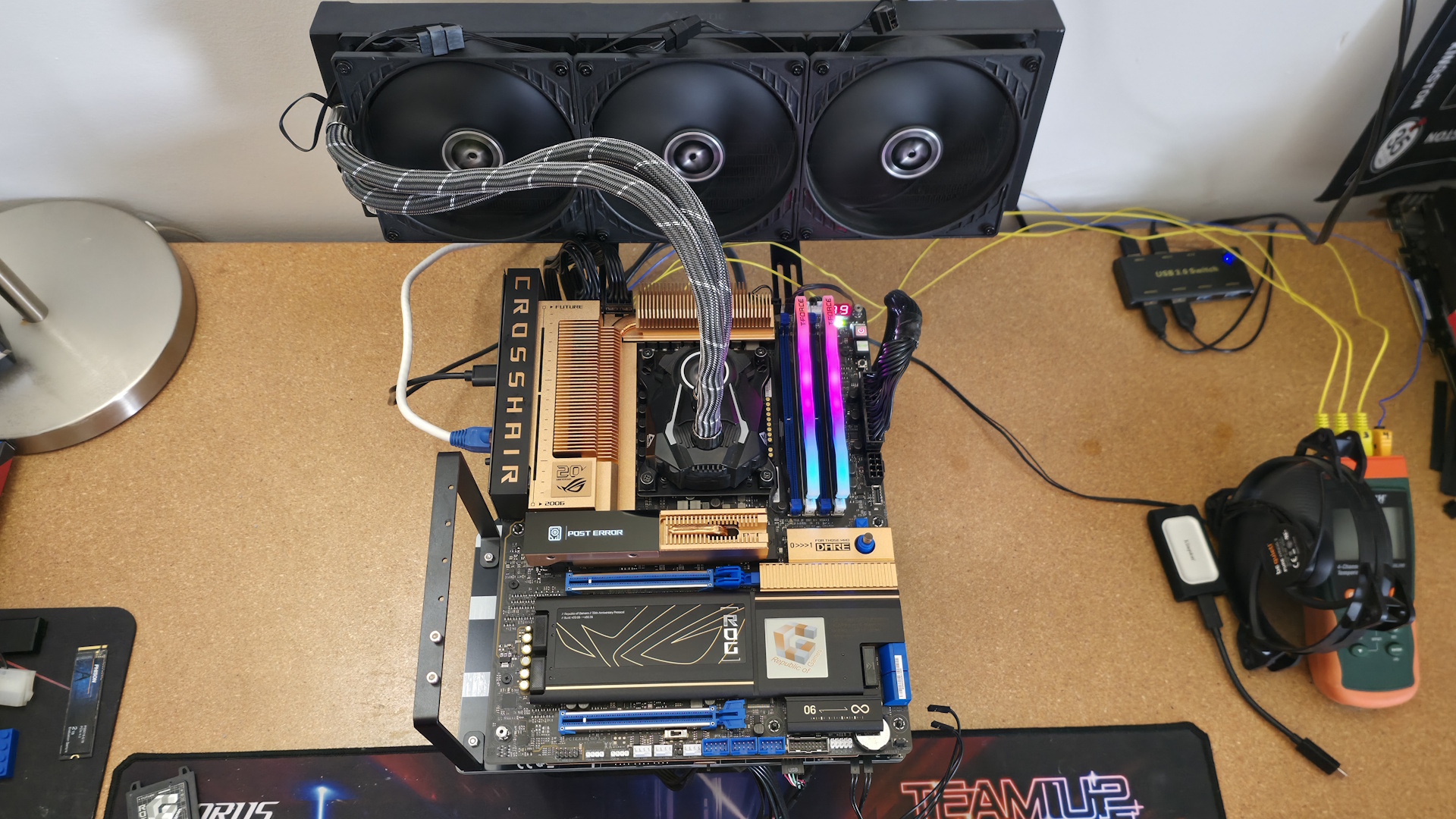

Asus ROG Crosshair 2006 - On the testbed

(Image credit: Future)
Swipe to scroll horizontally

Sound

Integrated HD audio

Network

Integrated Networking (GbE to 10 GbE)

Graphics Driver

GeForce 561.09

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings

Procyon

Version 2.8.1352 64

Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)

3DMark

Version 2.29.8294.0 64

Speed Way and Steel Nomad (Default)

Cinebench R24

Version 2024.1.0
Open GL Rendering Benchmark - Single and Multi-threaded

Blender

Version 4.2.0
Full benchmark (all 3 tests)

Application Tests and Settings

LAME MP3

Version SSE2_2019

Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)

HandBrake CLI

Version: 1.8.2

Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)

Corona 1.4

Version 1.4

Custom benchmark

7-Zip

Version 24.08

Integrated benchmark (Command Line)

Game Tests and Settings

Cyberpunk 2077

Ultra RT: - 1920 x 1080, DLSS - Balanced.

F1 2024

Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: Best Motherboard Deals

MORE: Best Motherboard Combo Deals

MORE: All Motherboard Content
