ASRock X870 Nova WiFi Motherboard Review: Lots of storage, not without sacrifice

This sub-$300 board gives you five M.2 slots, but be aware of the consequences.

Reviews
By published
ASRock X870 Nova WiFi
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

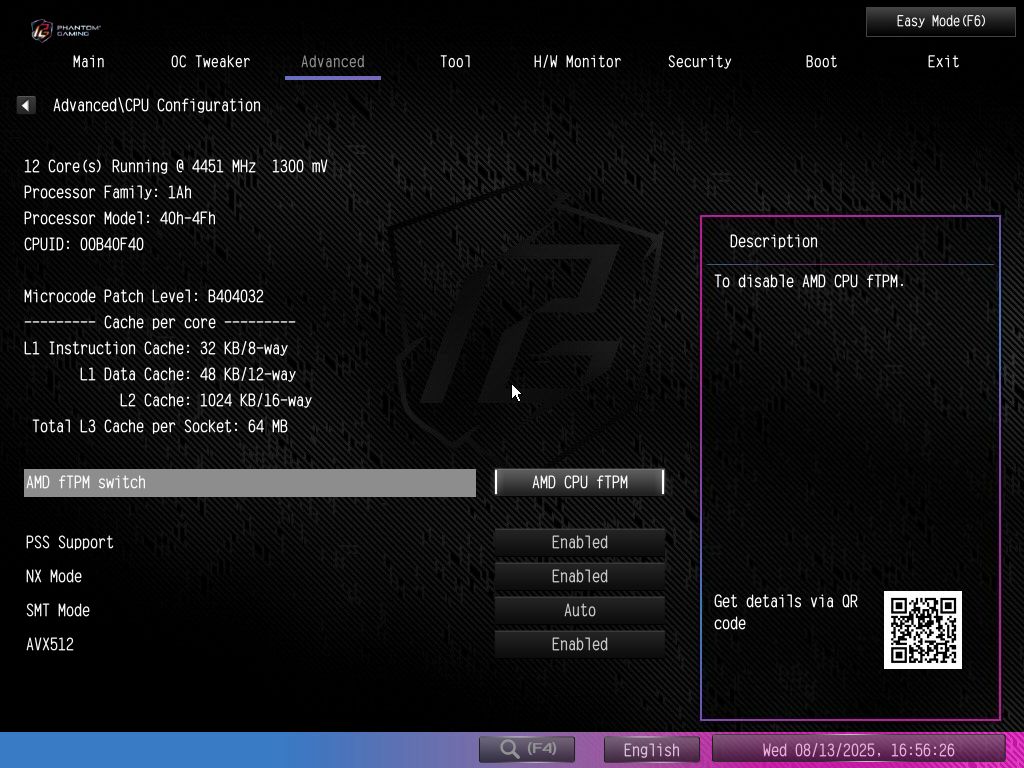

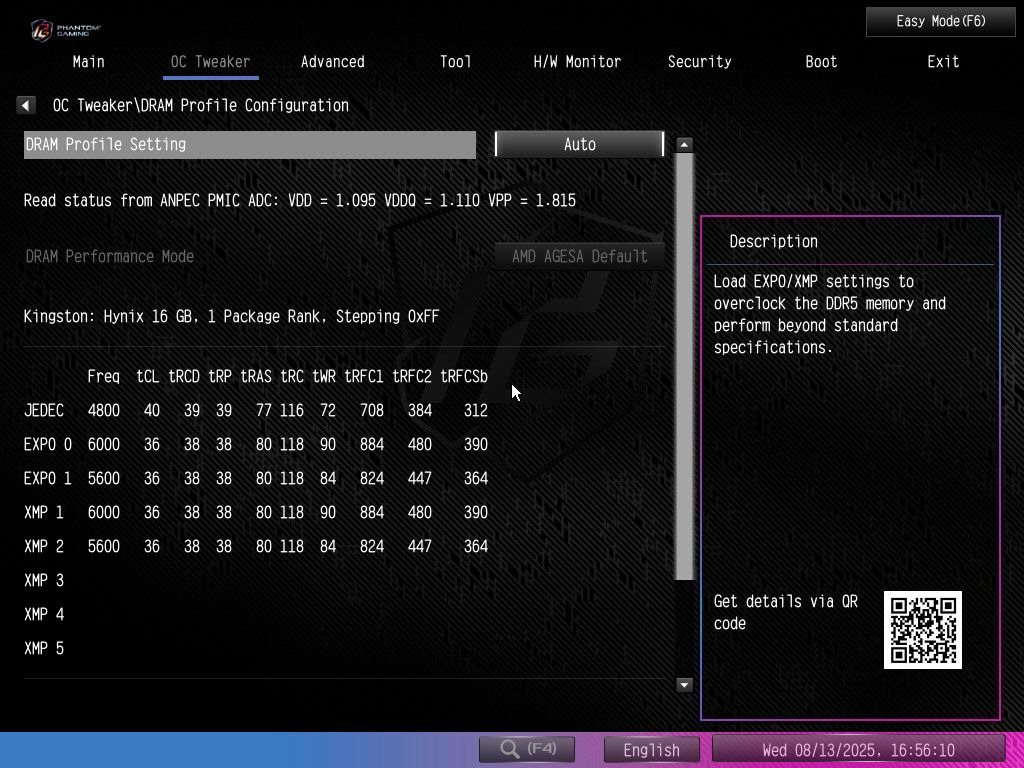

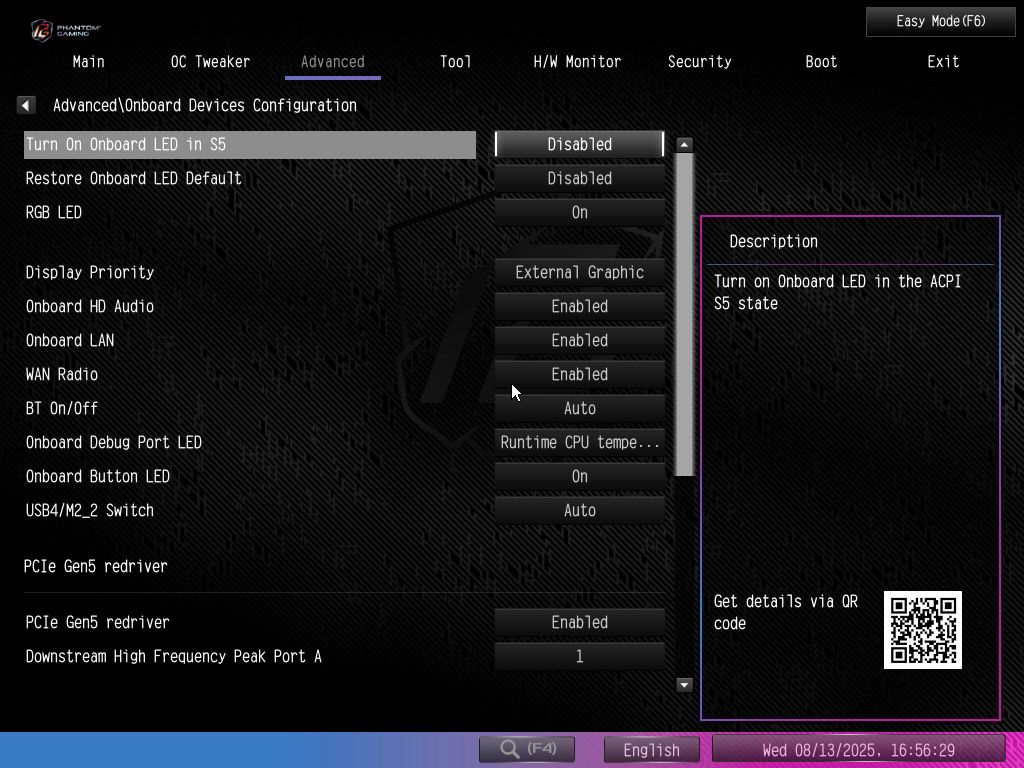

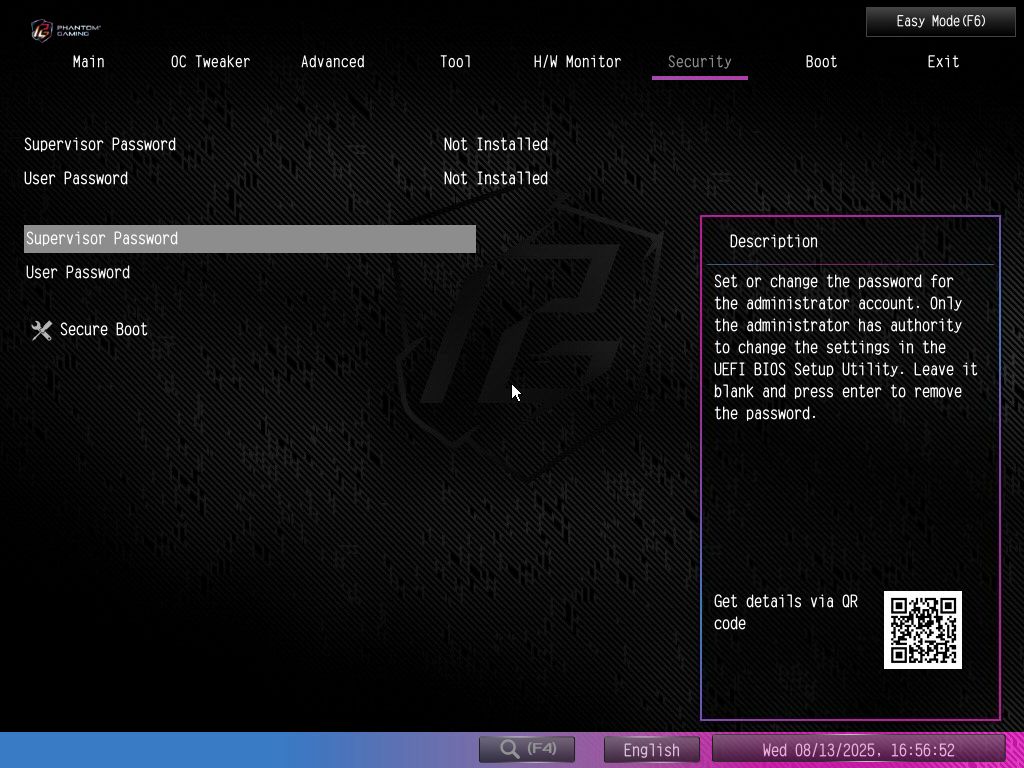

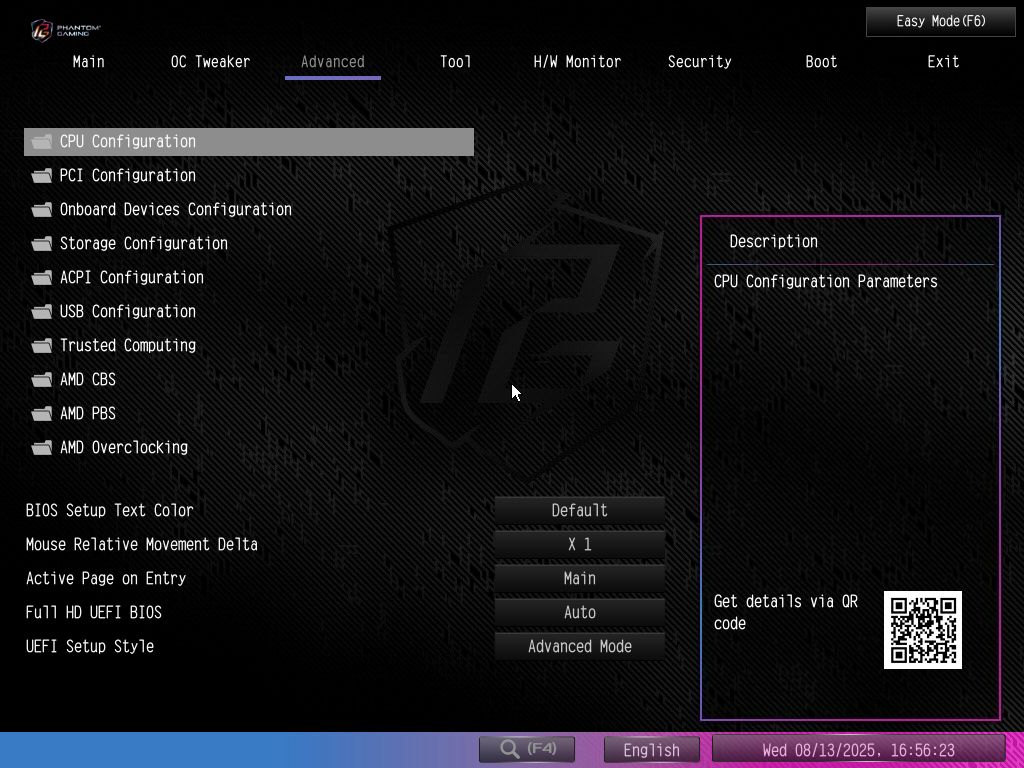

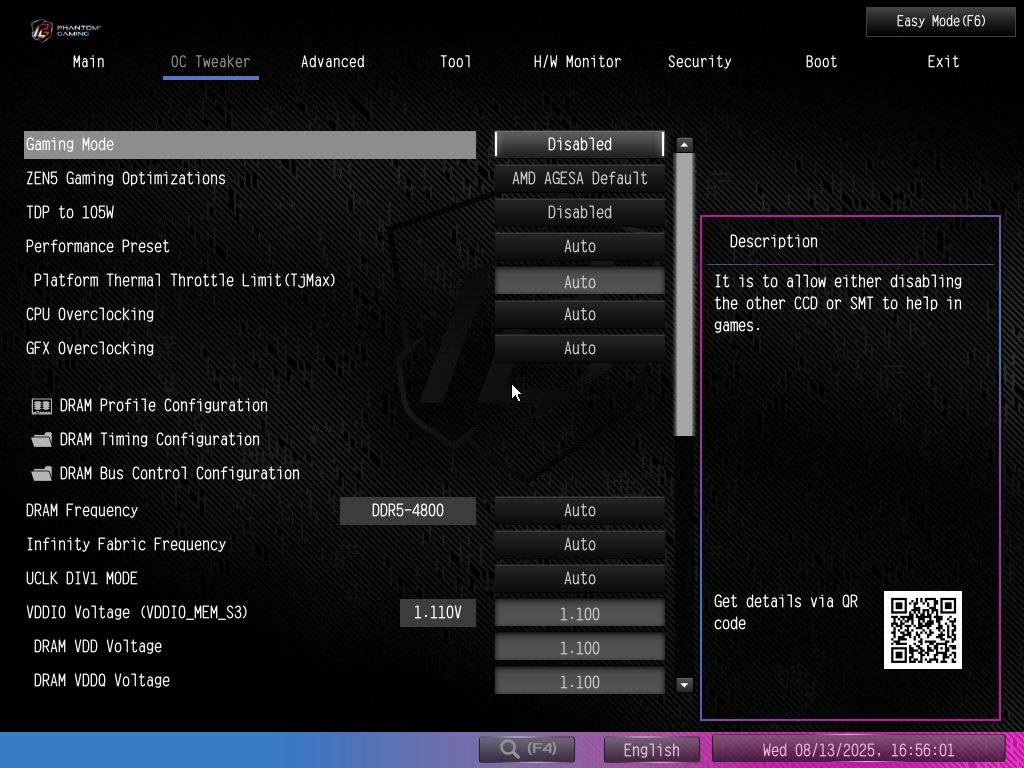

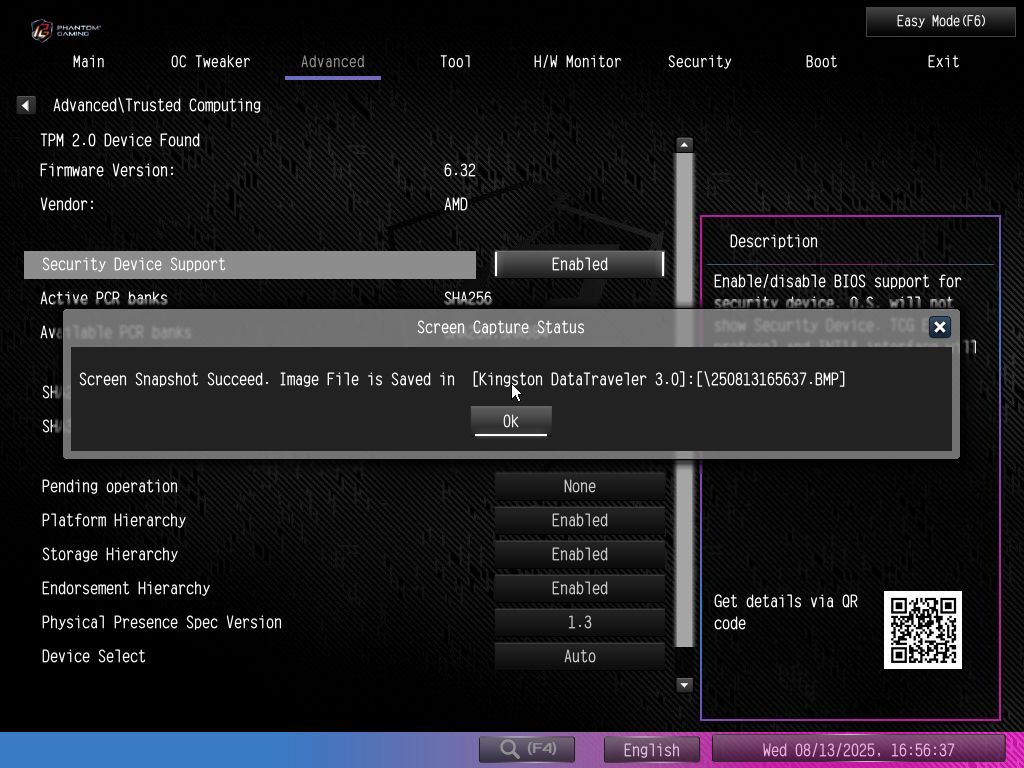

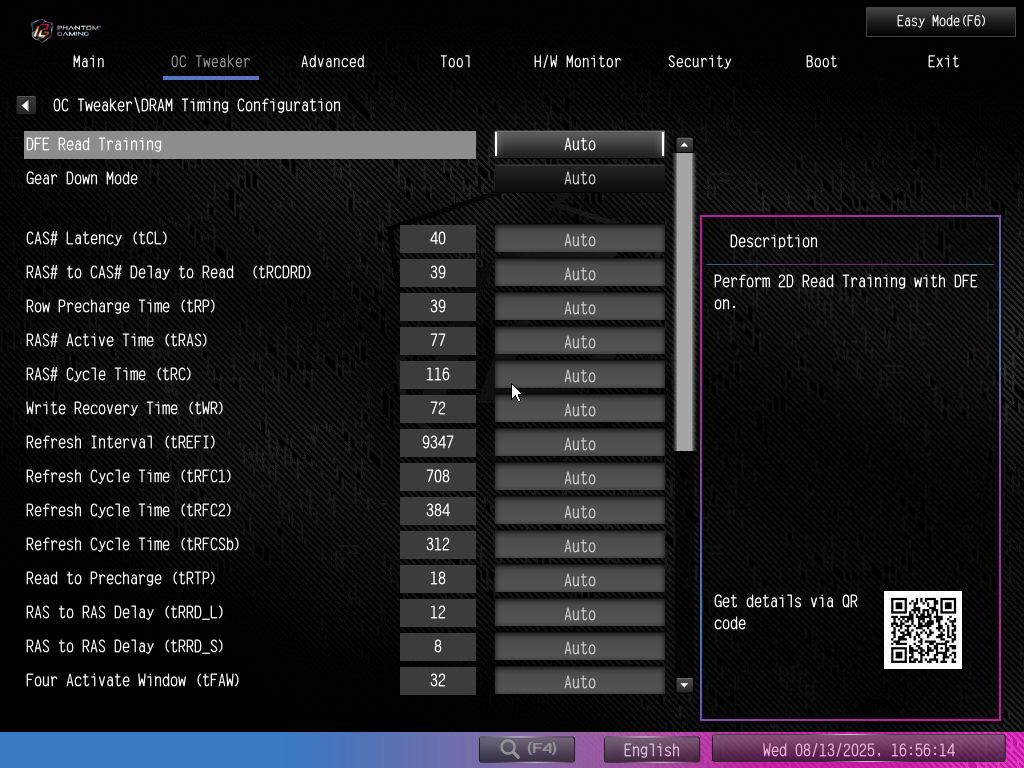

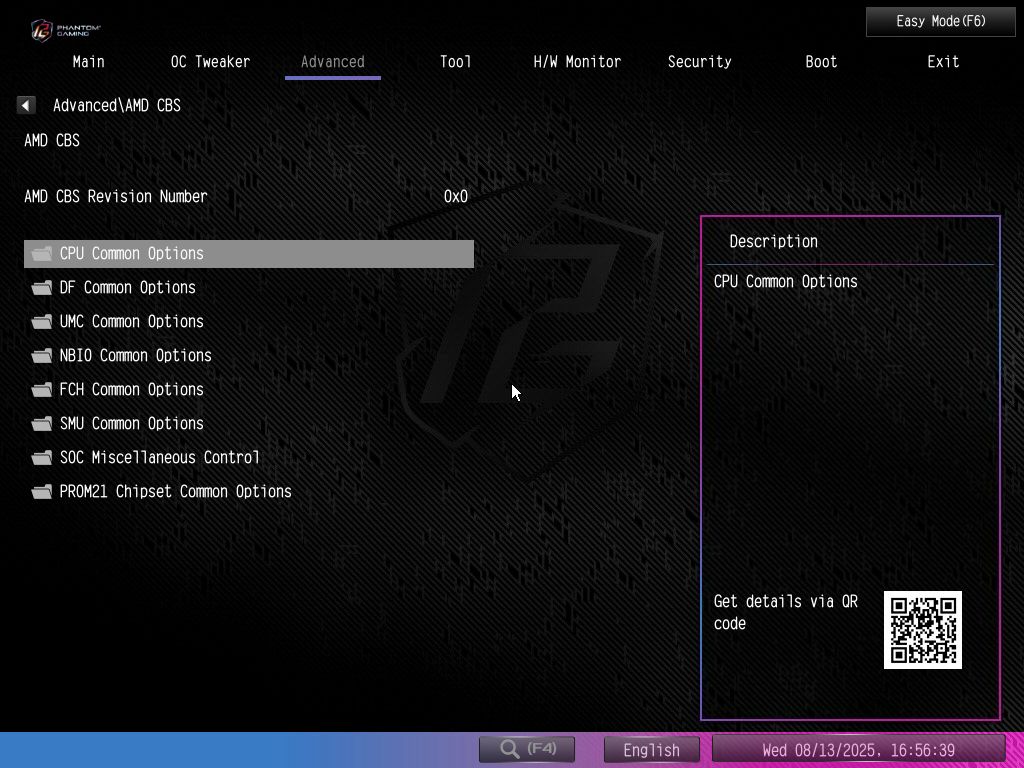

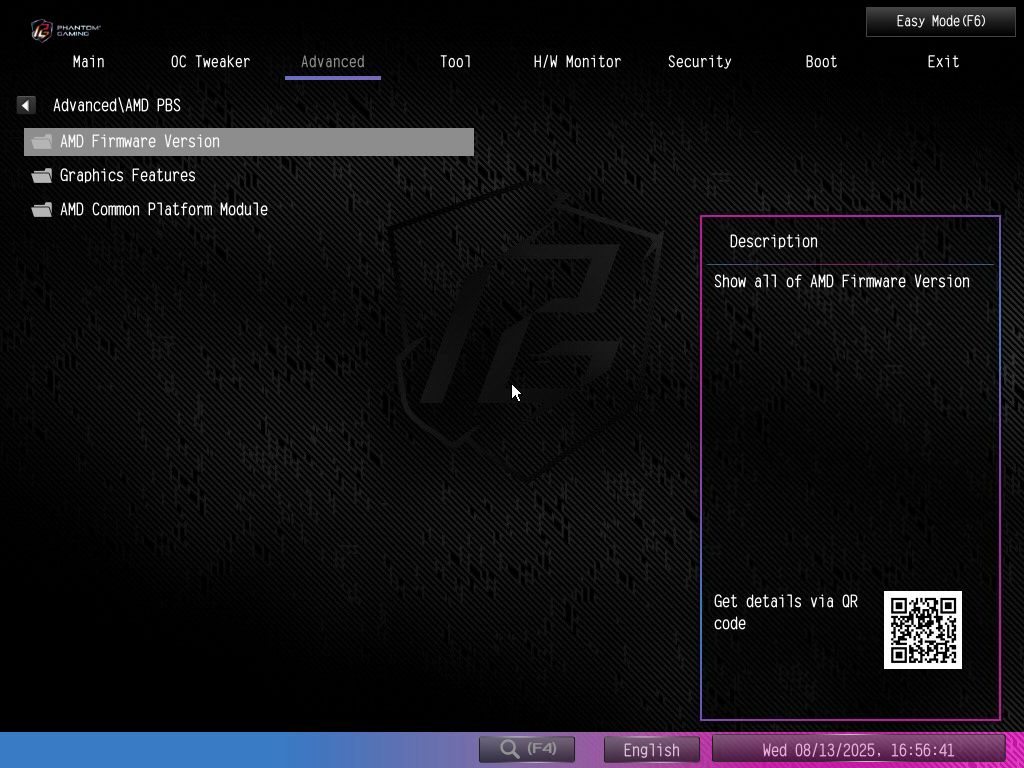

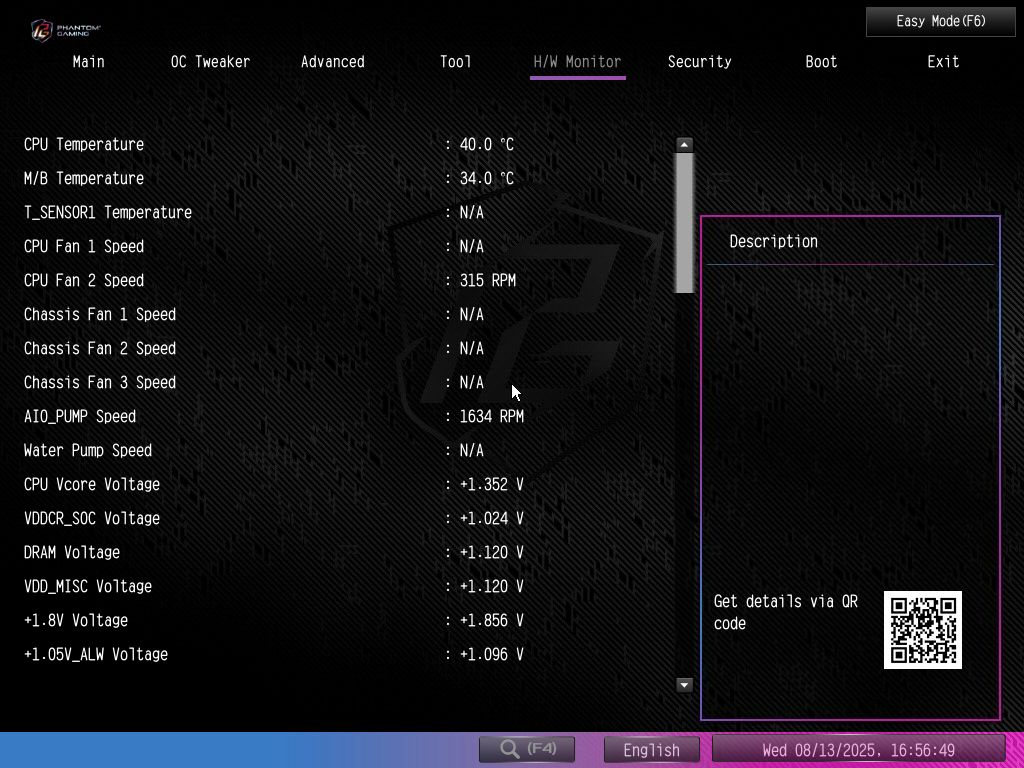

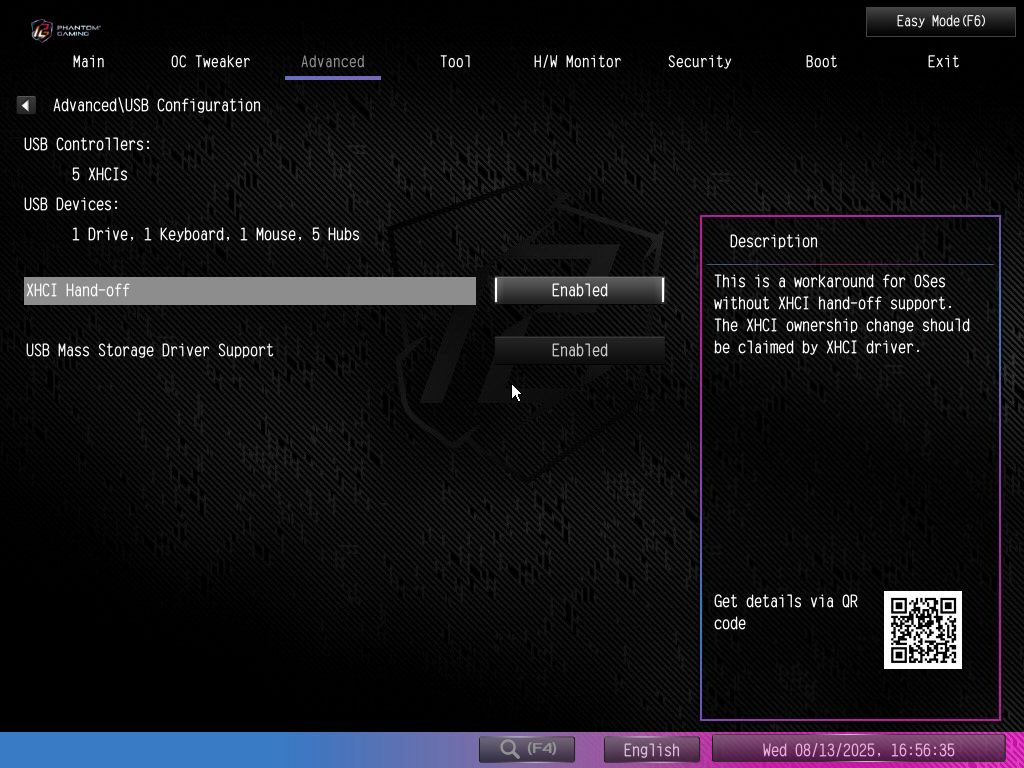

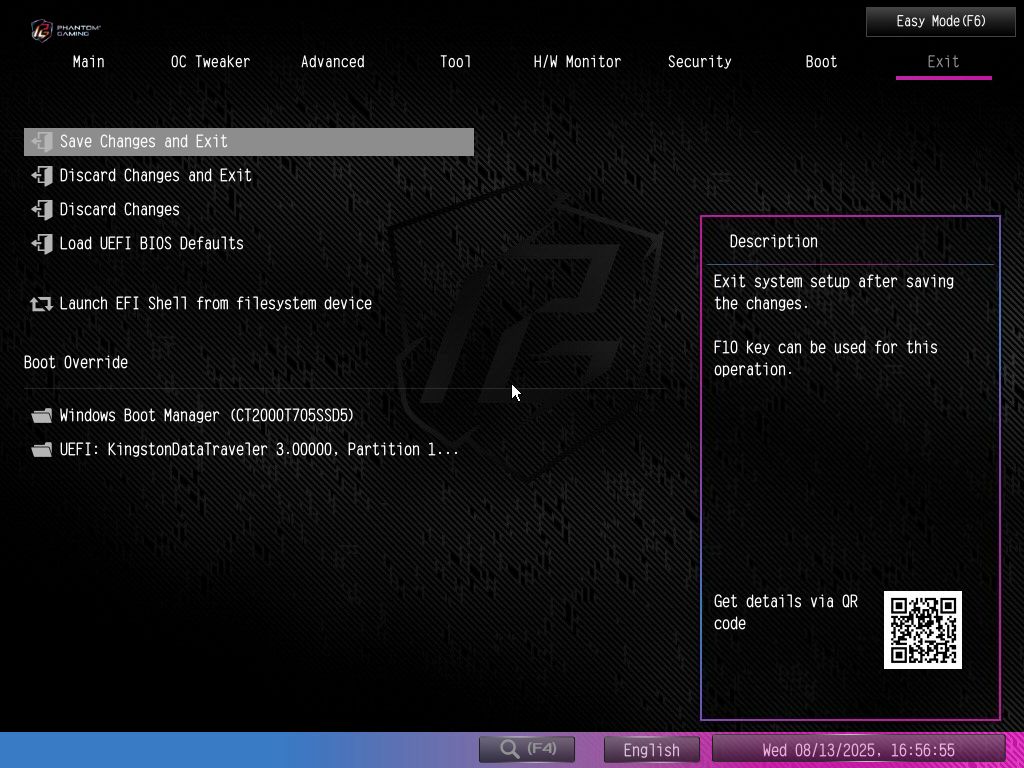

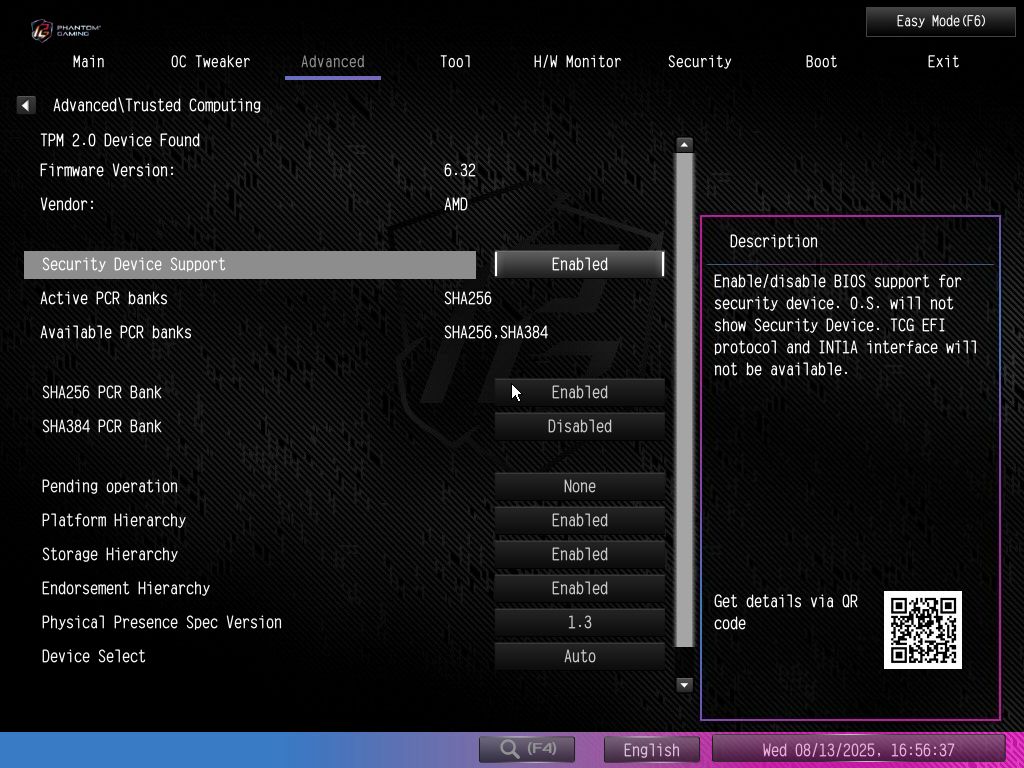

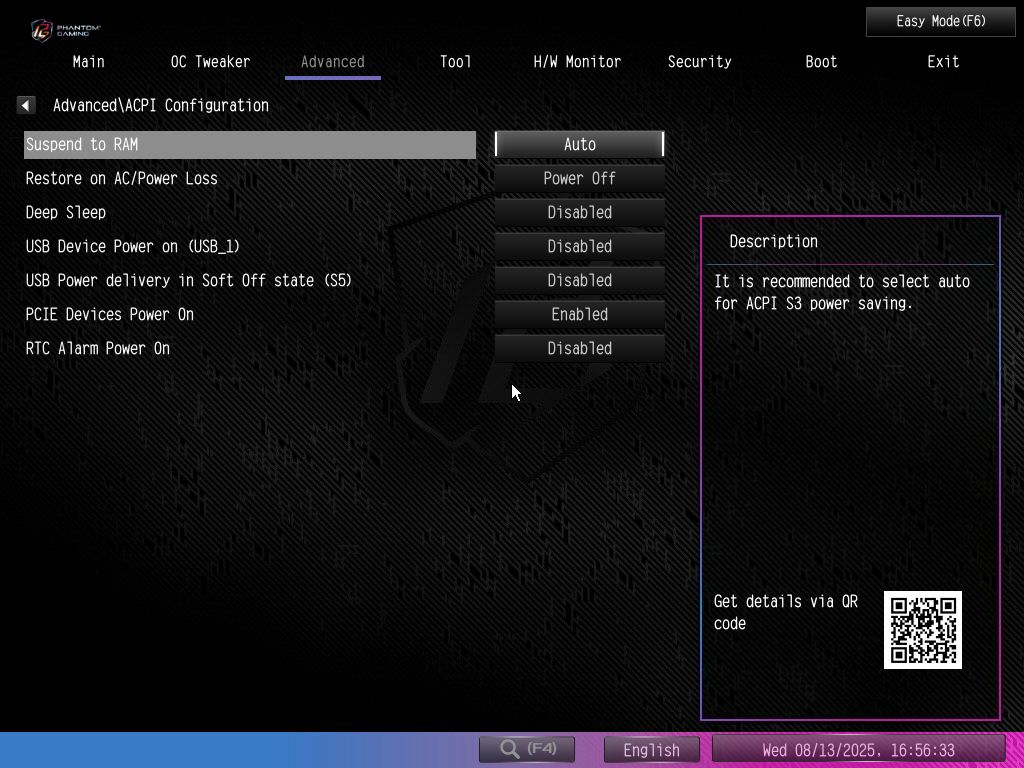

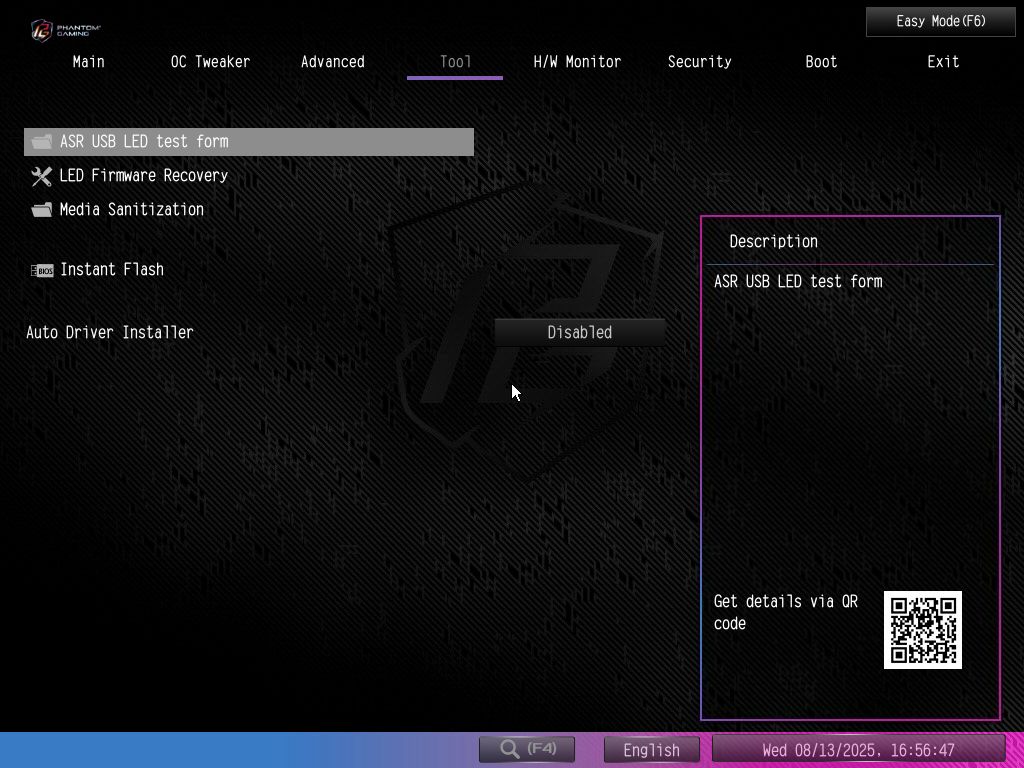

Like the other ASRock boards, the X870 Nova WiFi starts in the informative Easy Mode, but it allows you to adjust several options (XMP, profiles, boot order, access to Fan-Tastic Tuning, etc.). The Nova uses a black background with light gray characters, making it easy to read. The standard BIOS displays headings across the top, with subheadings and details below.

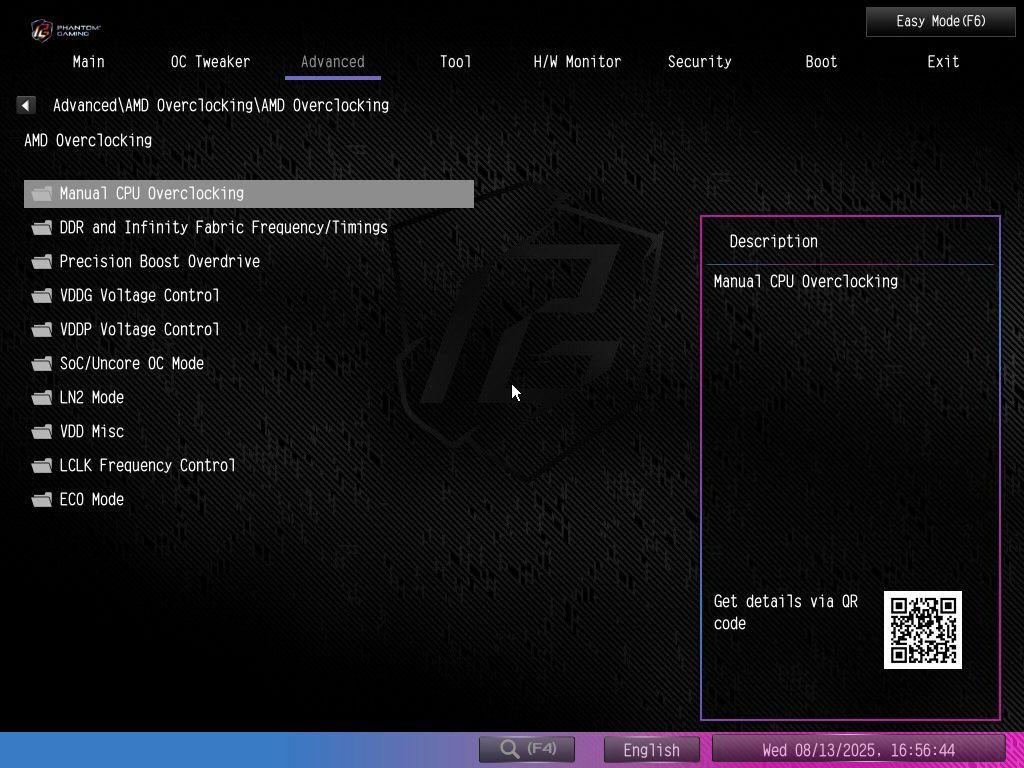

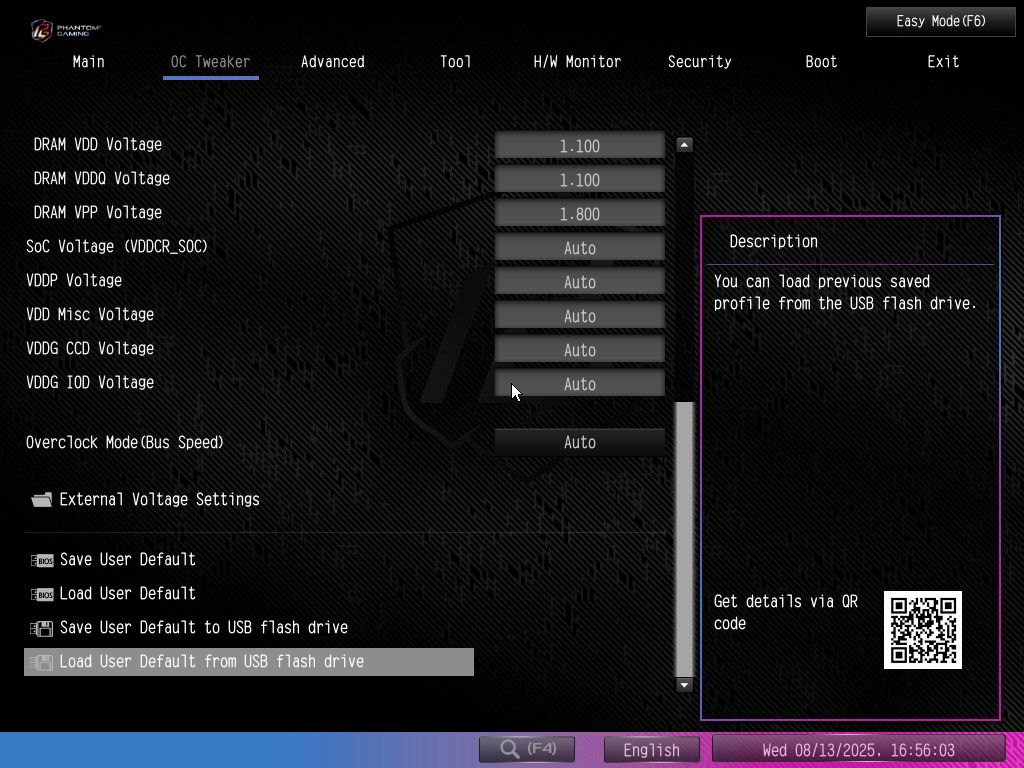

You can tweak everything here, as ASRock includes every option you can think of. Overclocking is straightforward, with most options readily available. The layout is logical, and the mouse movement is smooth. We have no significant complaints about the ASRock firmware. But, it’s due for an update to match Gigabyte and MSI UEFIs on their new X870/B850 offerings.

Image 1 of 25
ASRock X870 Nova WiFi
(Image credit: Tom's Hardware)

Software

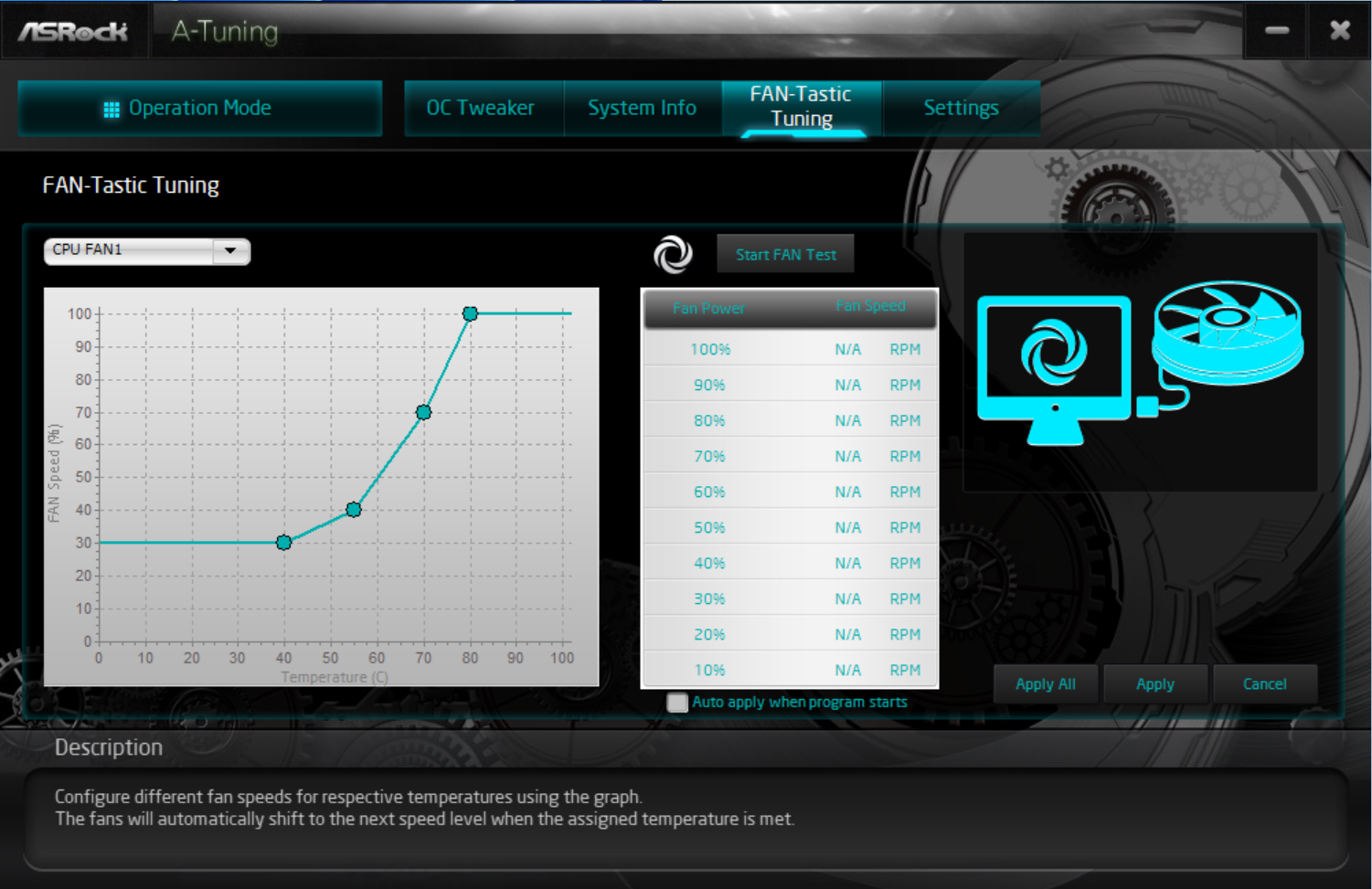

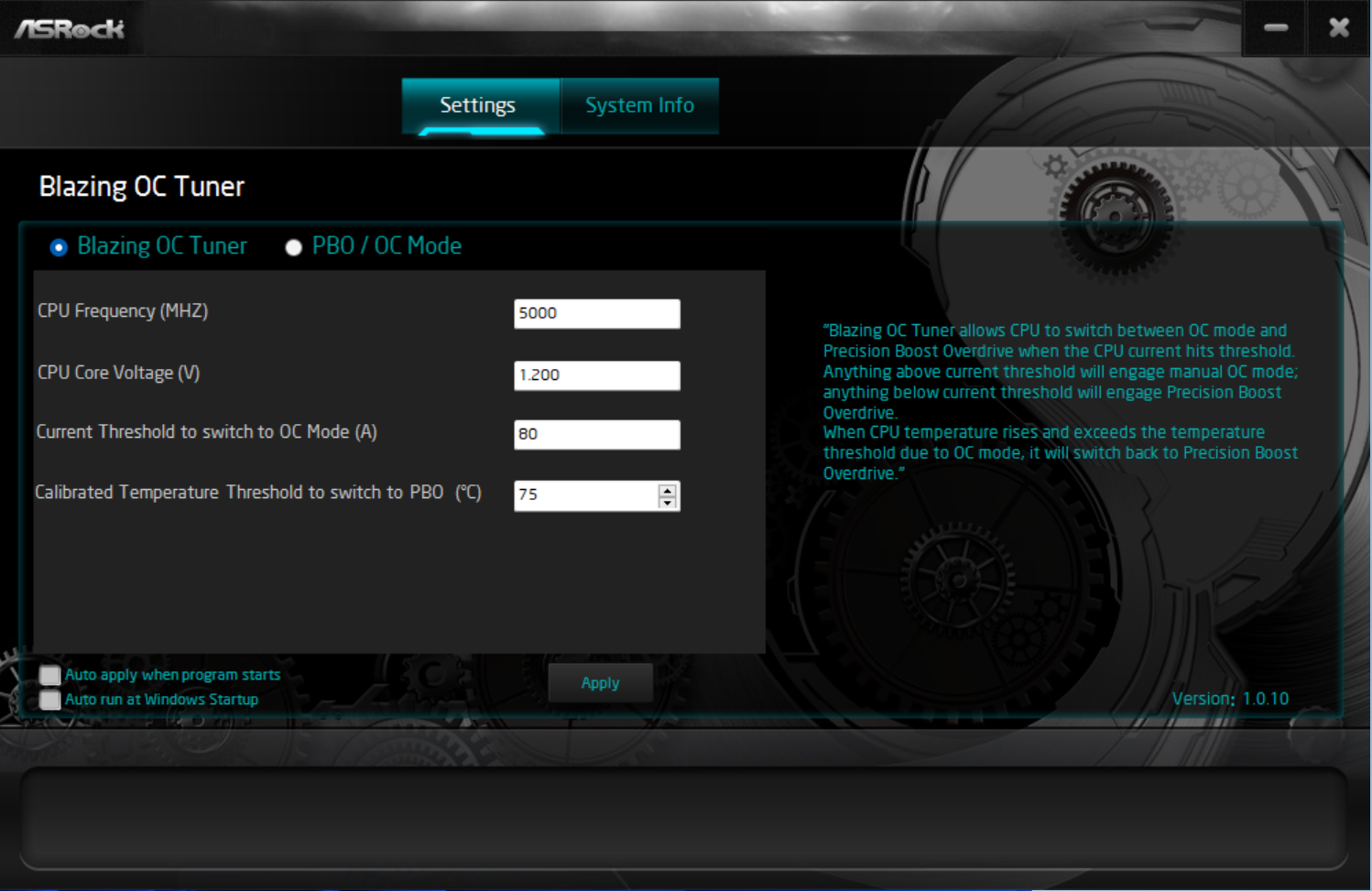

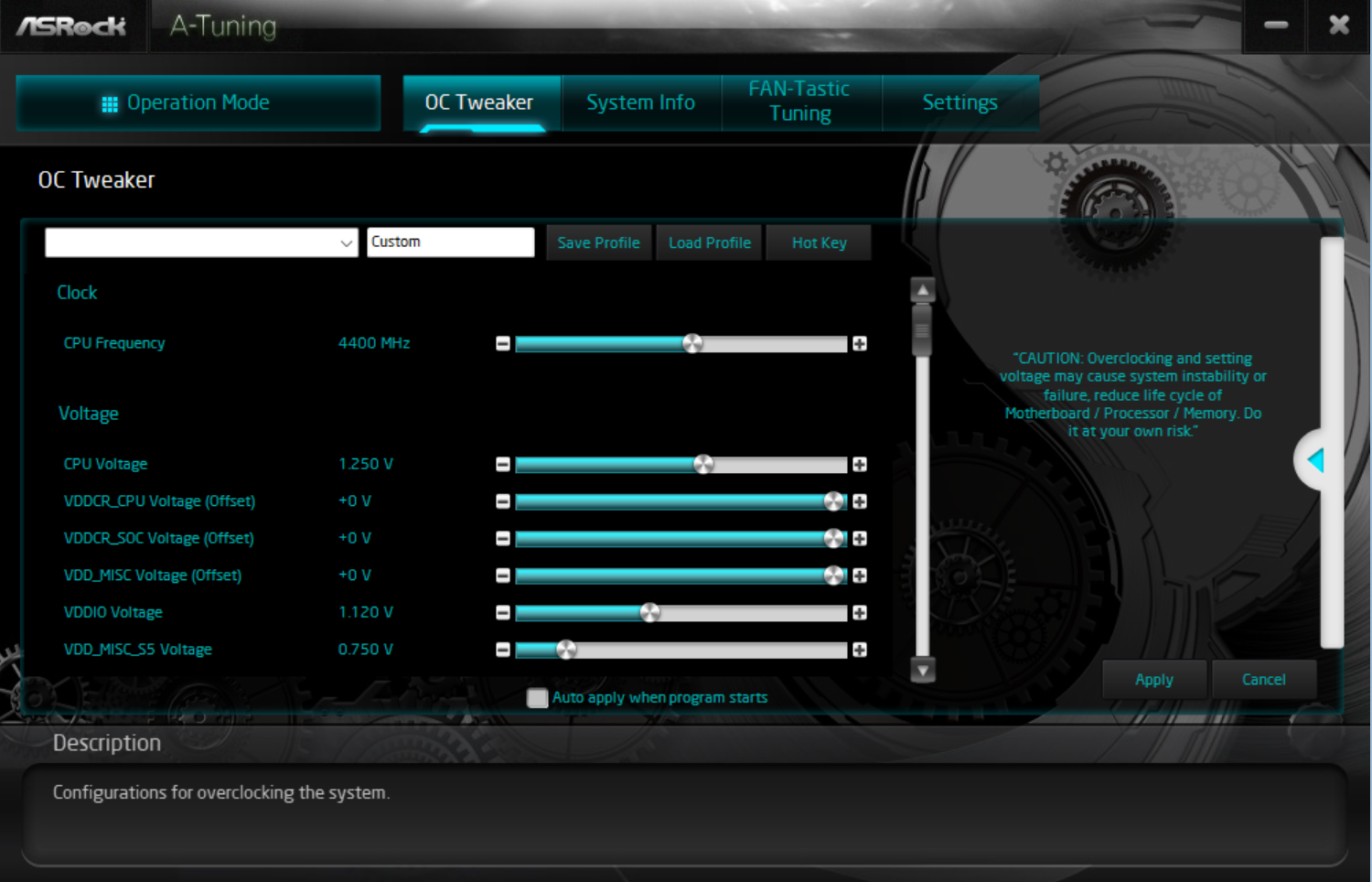

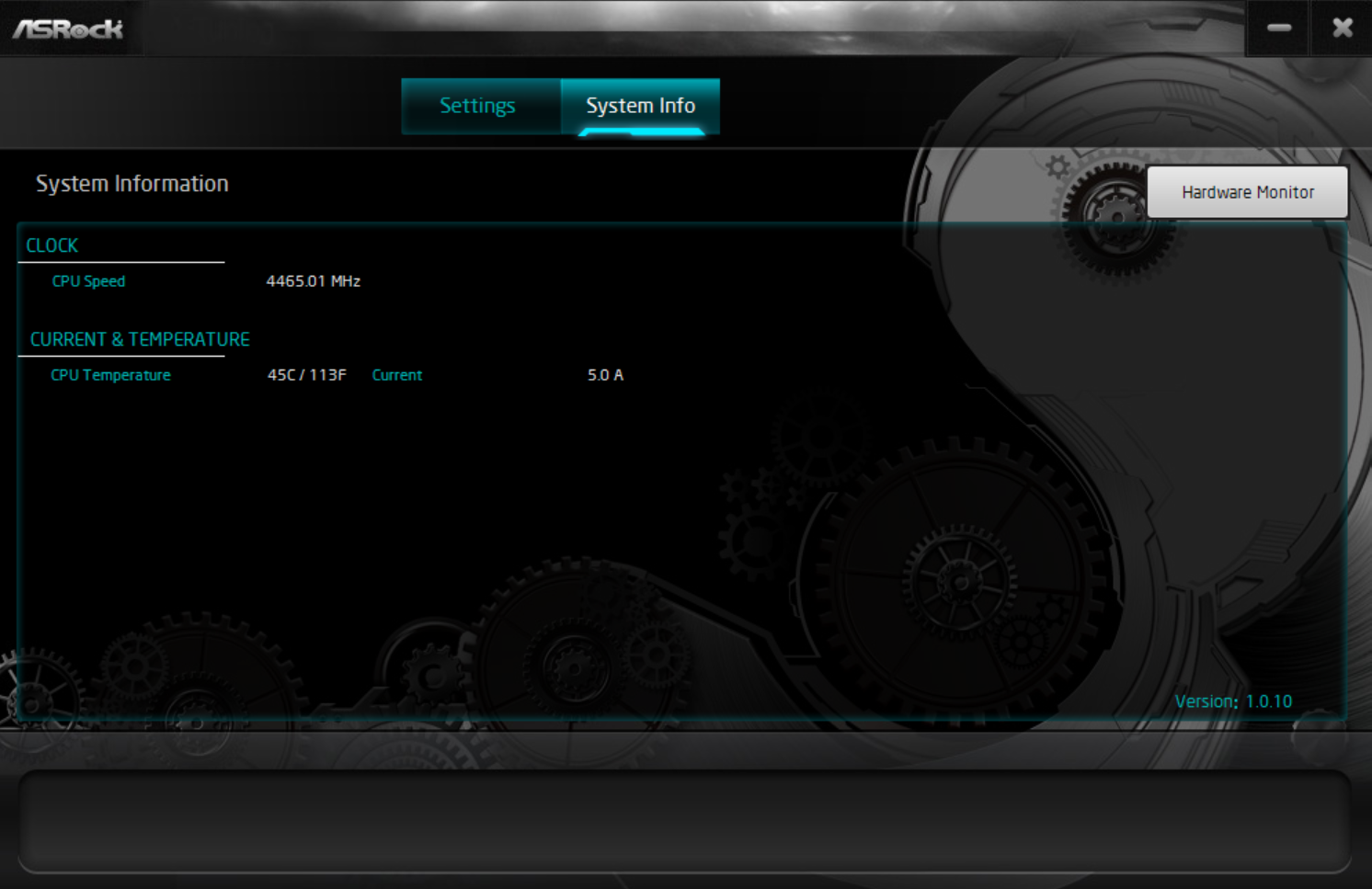

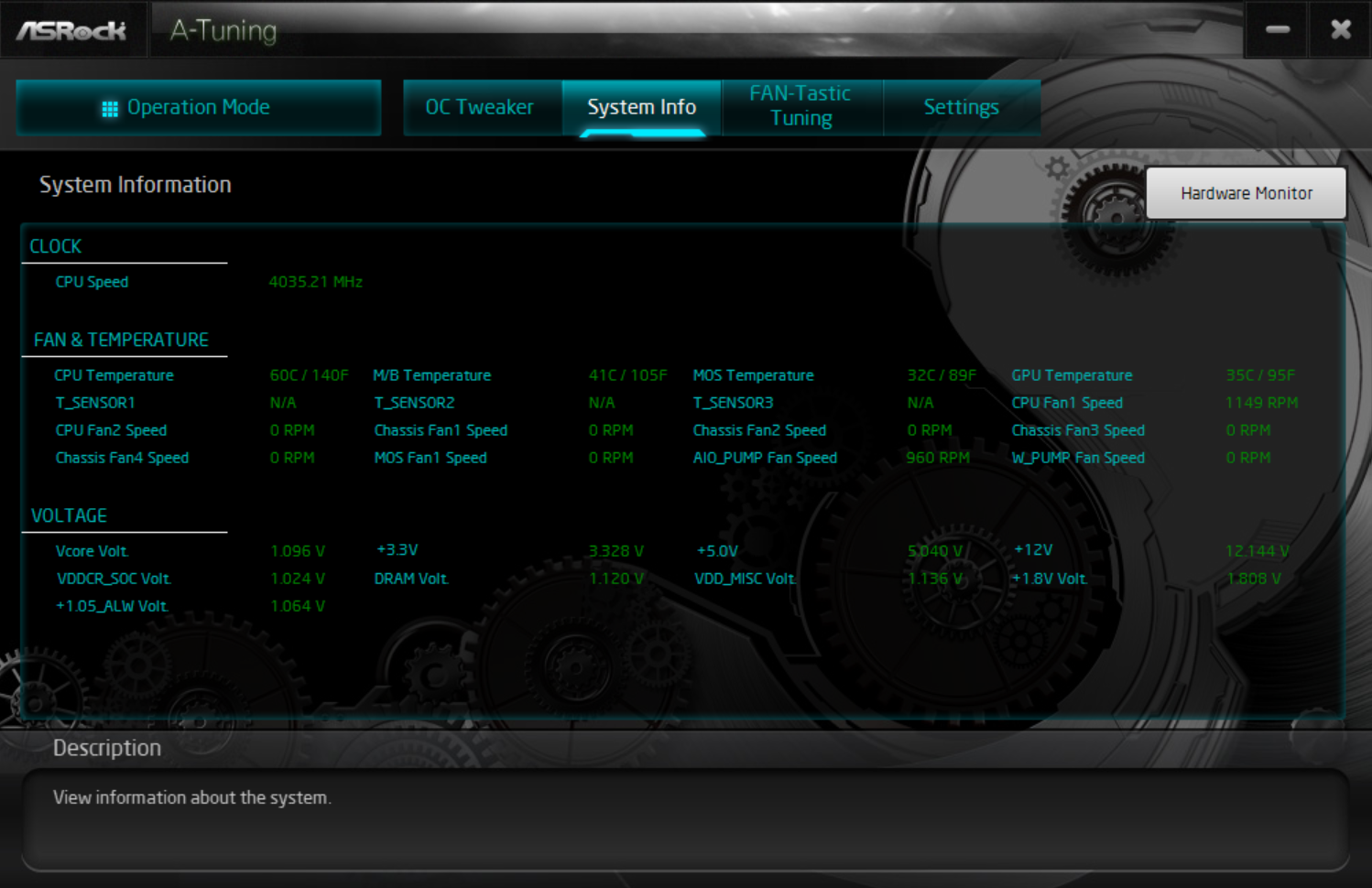

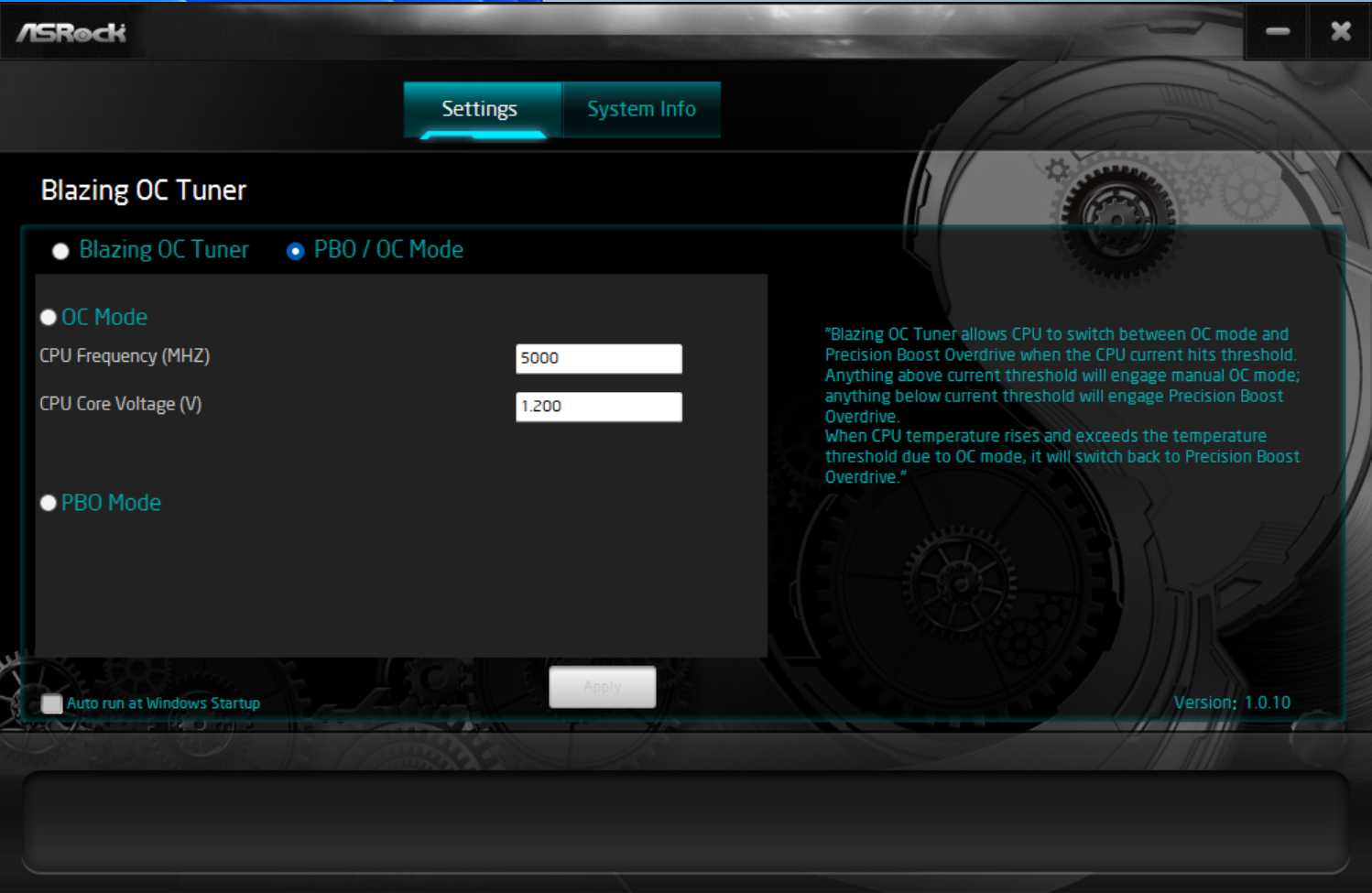

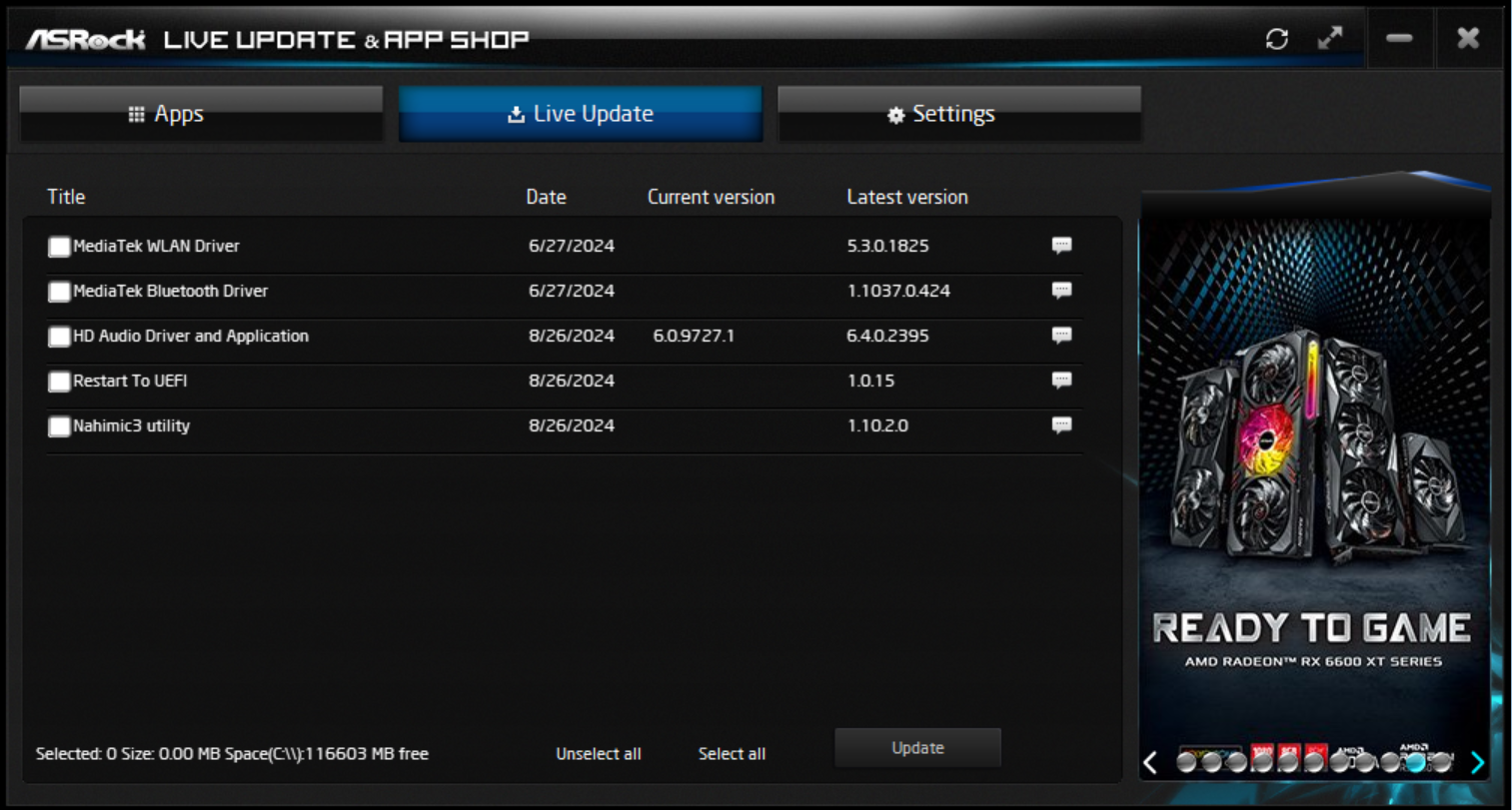

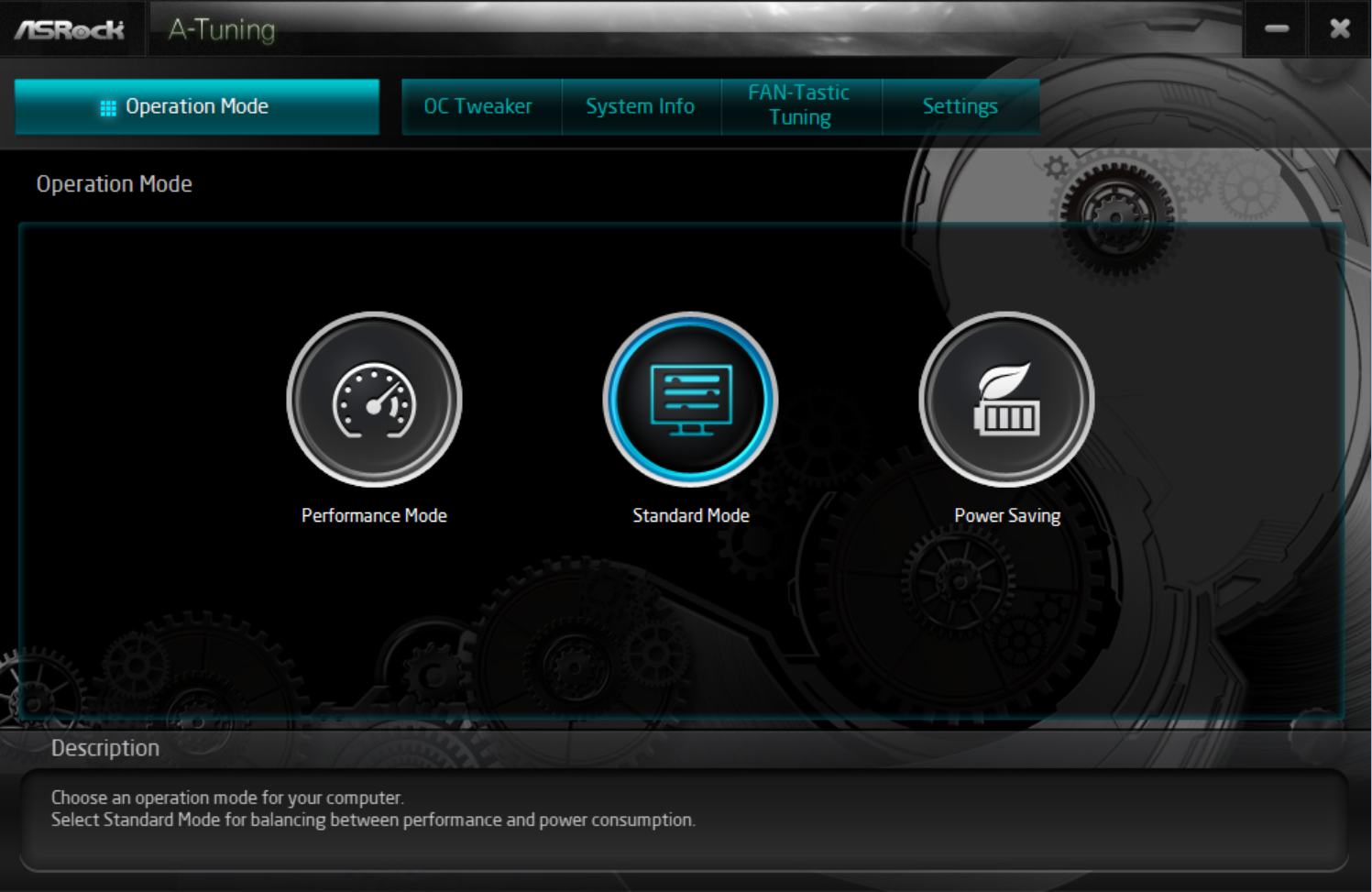

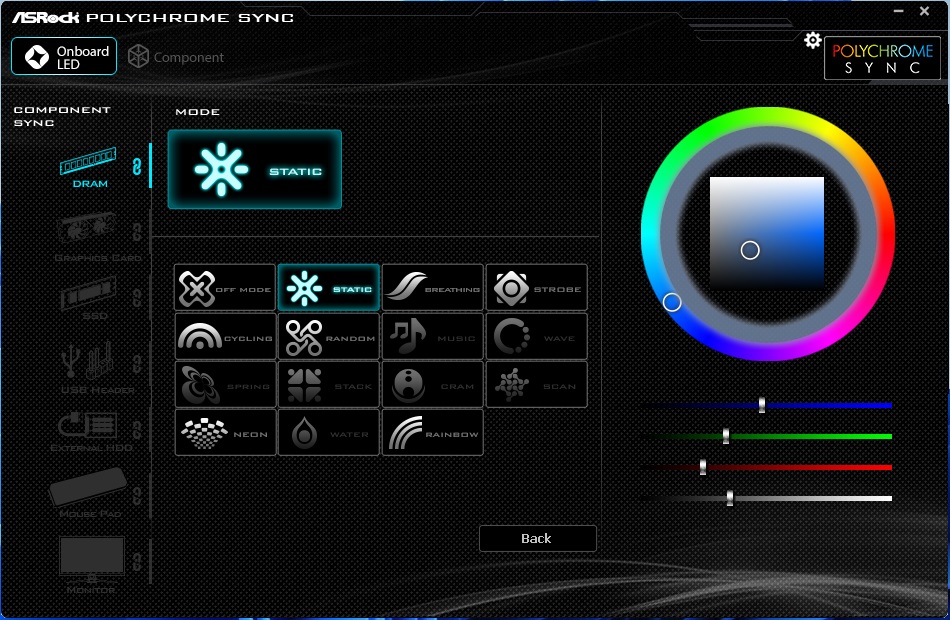

ASRock offers several different software options. These include the App Shop, which allows users to install drivers and software, the Nahimic 3 audio control panel, the A-Tuning application, which enables users to overclock their systems and control fans, the Polychrome RGB software, and more. There’s also a Blazing OC Tuner and a pop-up to install drivers when the system first boots. ASRock’s software provides everything users need to manage and tweak their systems.

Image 1 of 10
ASRock X870 Nova WiFi
(Image credit: Tom's Hardware)

Test System / Comparison Products

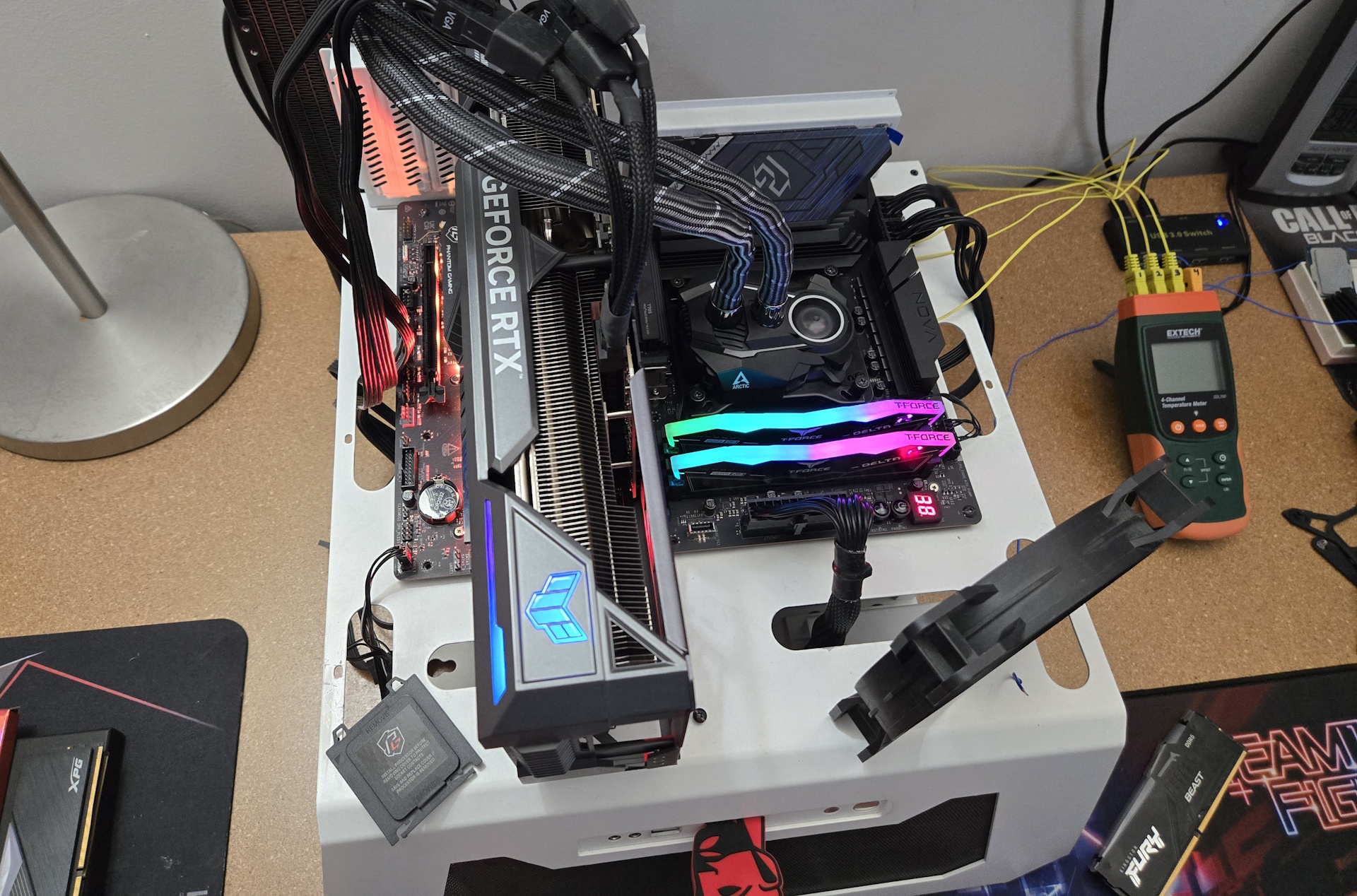

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS that is publicly available. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally

CPU

AMD Ryzen 9 9900X

Cooling

Arctic Liquid Freezer II 420

Storage

 Crucial 2TB T705 M.2 PCIe 5.0 NVMe SSD

RAM

Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)

RAM

Teamgroup T-Froce Delta DDR5-7200 CL34 (FF3D518G7200HC34ABK)

RAM

Klevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)

GPU

 Asus TUF RTX 4080 16G

PSU

EVGA Supernova 850W P6

Software

Windows 11 64-bit (23H2 - 22631.4169)

Graphics

NVIDIA Driver 561.09

Sound

Integrated HD audio

Network

Integrated Networking (GbE to 10 GbE)

ASRock X870 Nova WiFi

(Image credit: Tom's Hardware)

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings

Row 0 - Cell 1

Procyon

Version 2.8.1352 64

Row 2 - Cell 0

Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)

3DMark

Version 2.29.8294.0 64

Row 4 - Cell 0

Speed Way and Steel Nomad (Default)

Cinebench R24

Version 2024.1.0

Row 6 - Cell 0

Open GL Rendering Benchmark - Single and Multi-threaded

Blender

Version 4.2.0

Row 8 - Cell 0

Full benchmark (all three tests)

Application Tests and Settings

Row 9 - Cell 1

LAME MP3

Version SSE2_2019

Row 11 - Cell 0

Mixed 271MB WAV to mp3: Command: -b 160 -- (160Kb/s)

HandBrake CLI

Version: 1.8.2

Row 13 - Cell 0

Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)

Corona 1.4

Version 1.4

Row 15 - Cell 0

Custom benchmark

7-Zip

Version 24.08

Row 17 - Cell 0

Integrated benchmark (Command Line)

Game Tests and Settings

Row 18 - Cell 1

Cyberpunk 2077

Ultra RT Preset - 1920 x 1080,  DLSS - Balanced.

F1 2024

Ultra High Preset - 1920 x 1080, 16xAF/TAA, FPS Counter ON, Great Britain (Clear/Dry)

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

TOPICS
Joe Shields
Joe Shields
Staff Writer, Components

Joe Shields is a staff writer at Tom’s Hardware. He reviews motherboards and PC components.
