Hi-Rely RAIDFrame: External Disk-To-Disk Backup Via eSATA

Features
By published

Benchmark Results: IOMeter

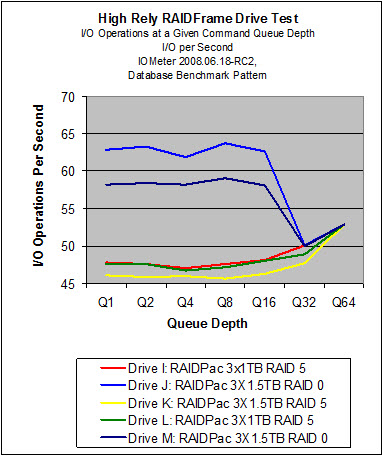

In the first four IOMeter tests, we used the standard Database, File Server, Web Server, and Workstation test patterns with queue depths set to max out at 64. Each pattern was run once across all five eSATA RAIDPacs.

For the second set of IOMeter testing, we ran the Streaming Read and Streaming Write patterns, as they would give a better real-world simulation.
