MSI MEG X670E Ace Review: PCIe 5.0 M.2 Aplenty

Six M.2 sockets and 10 GbE for around $700

MSI MEG X670E Ace
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

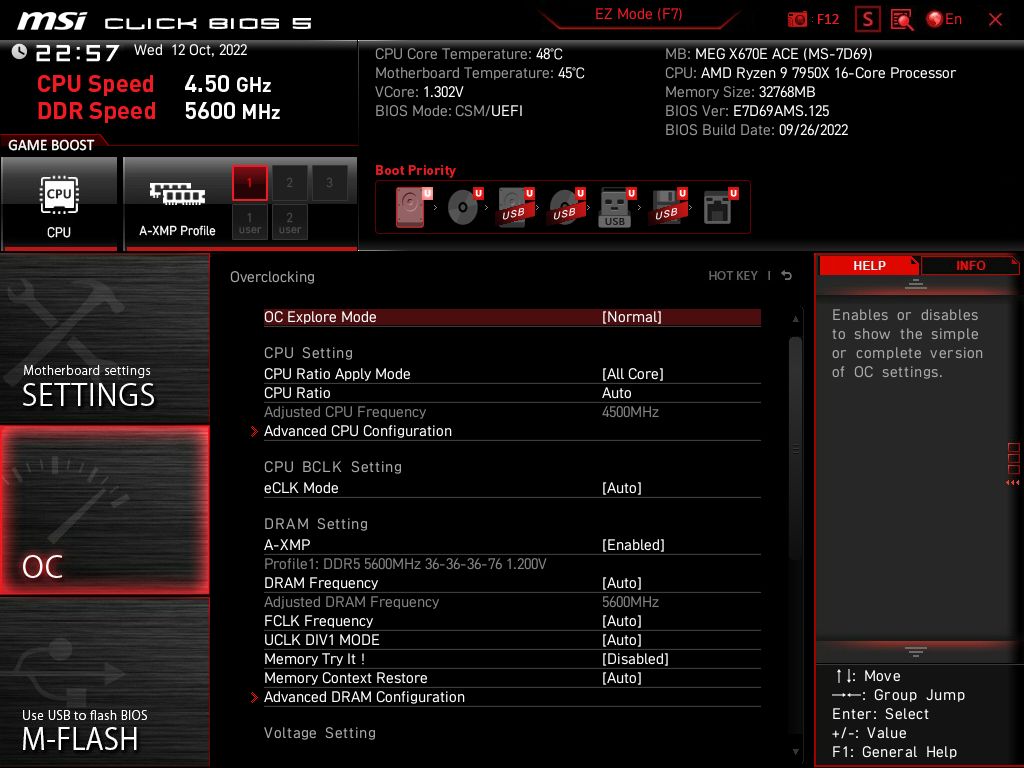

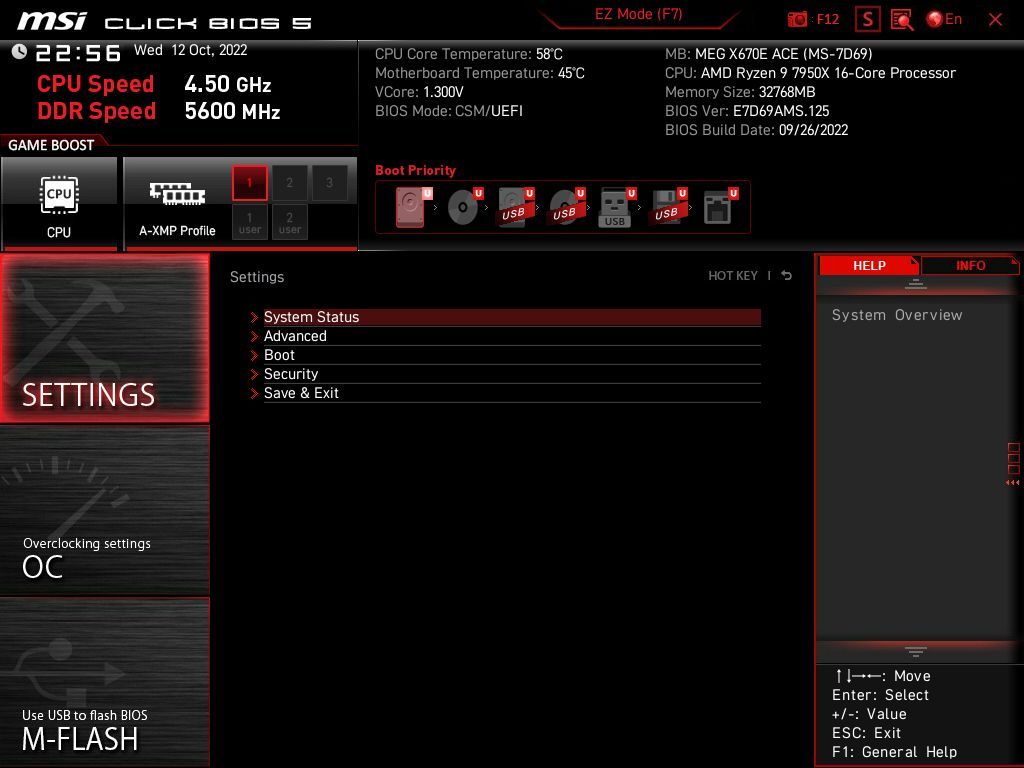

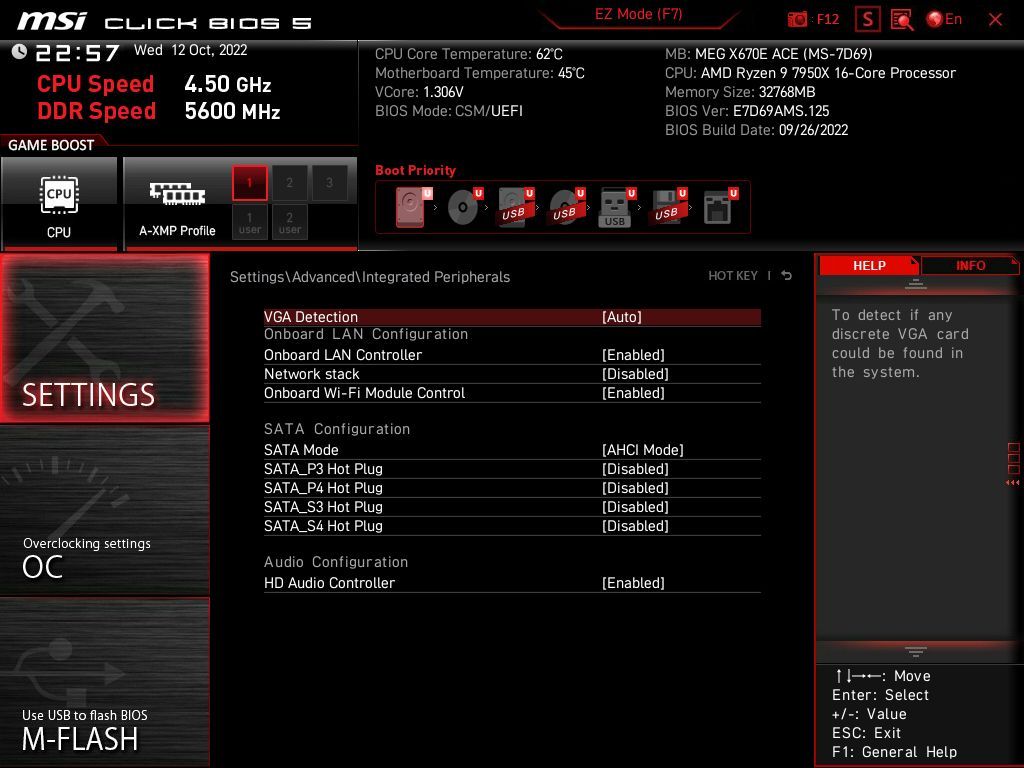

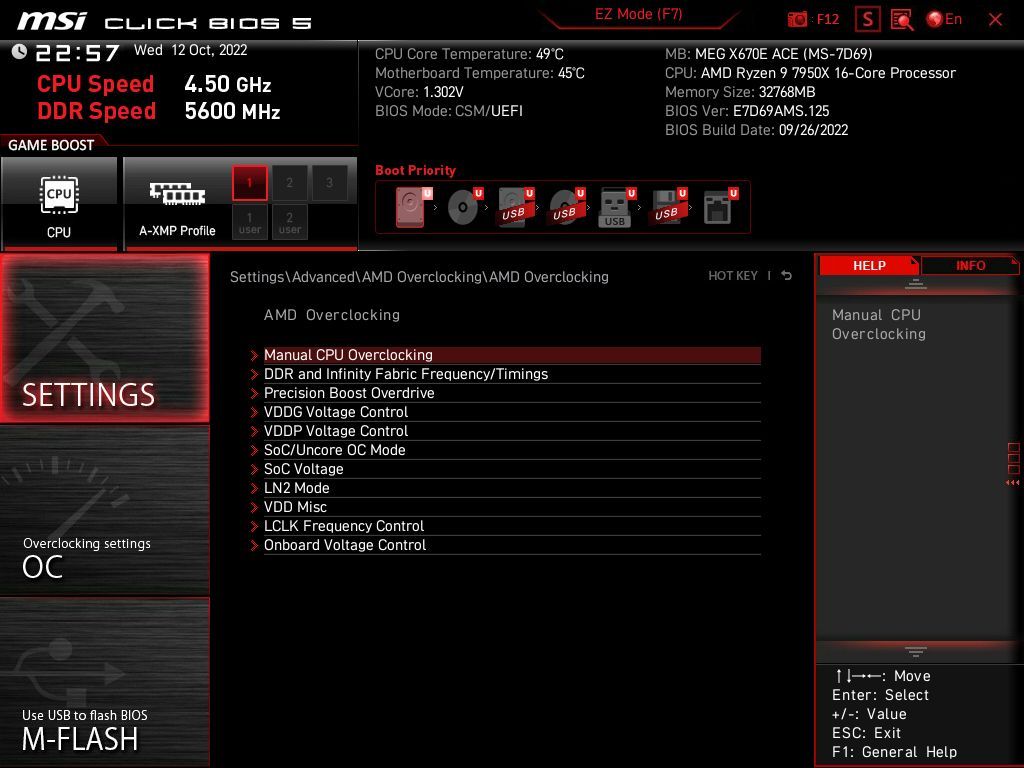

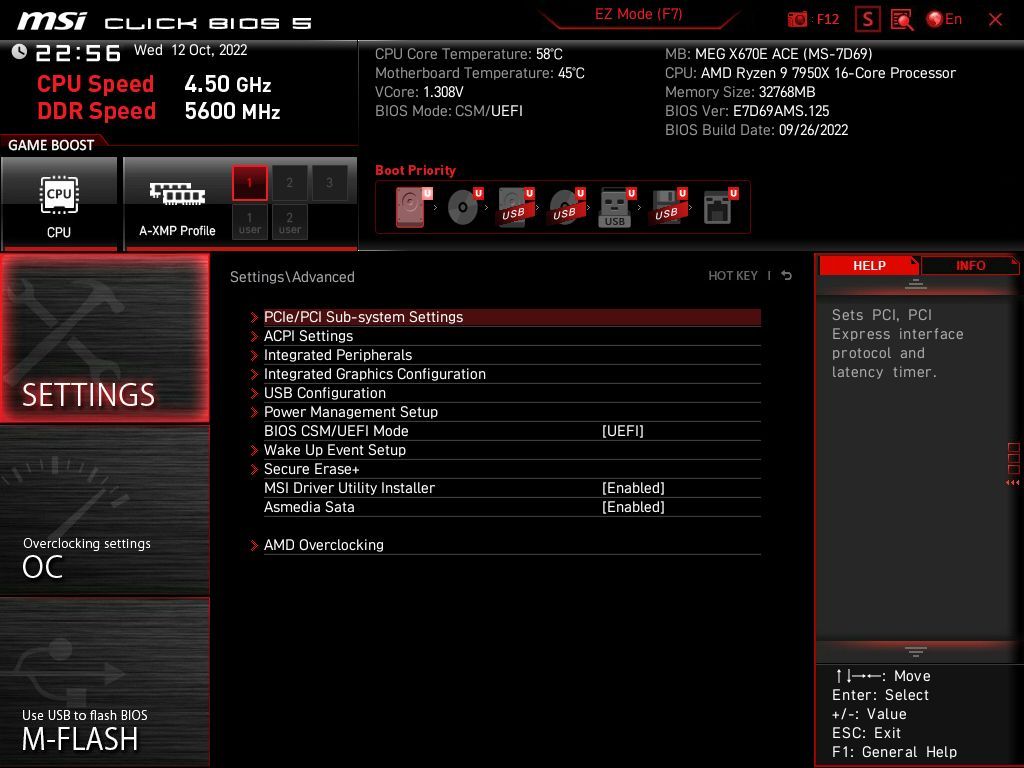

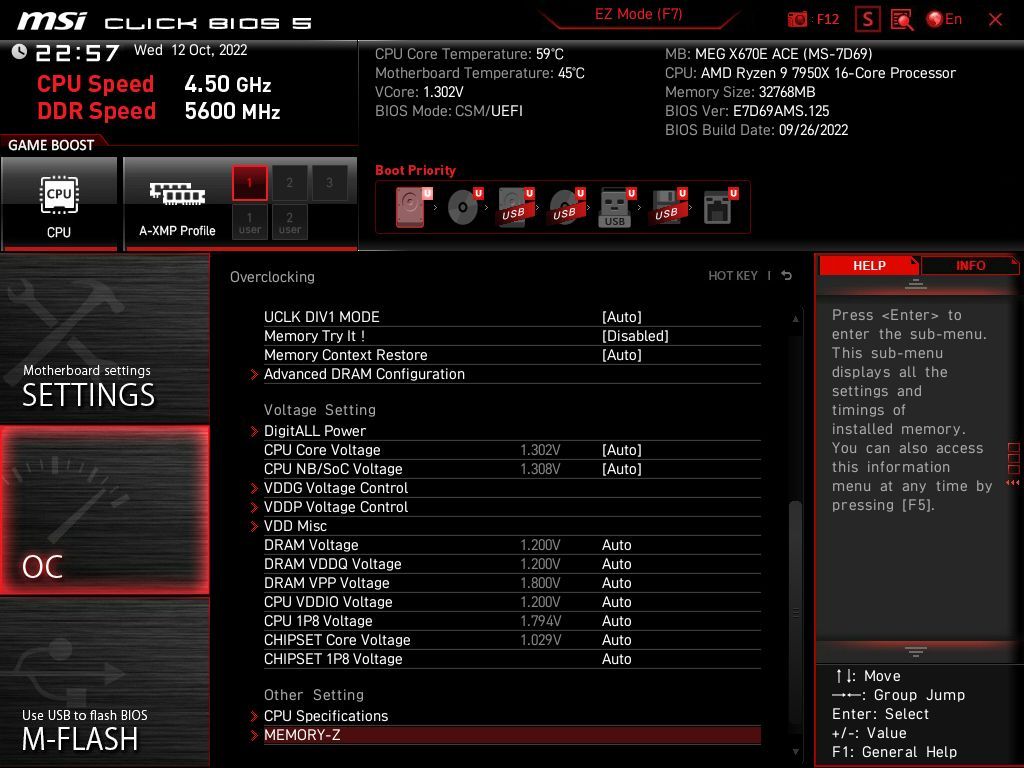

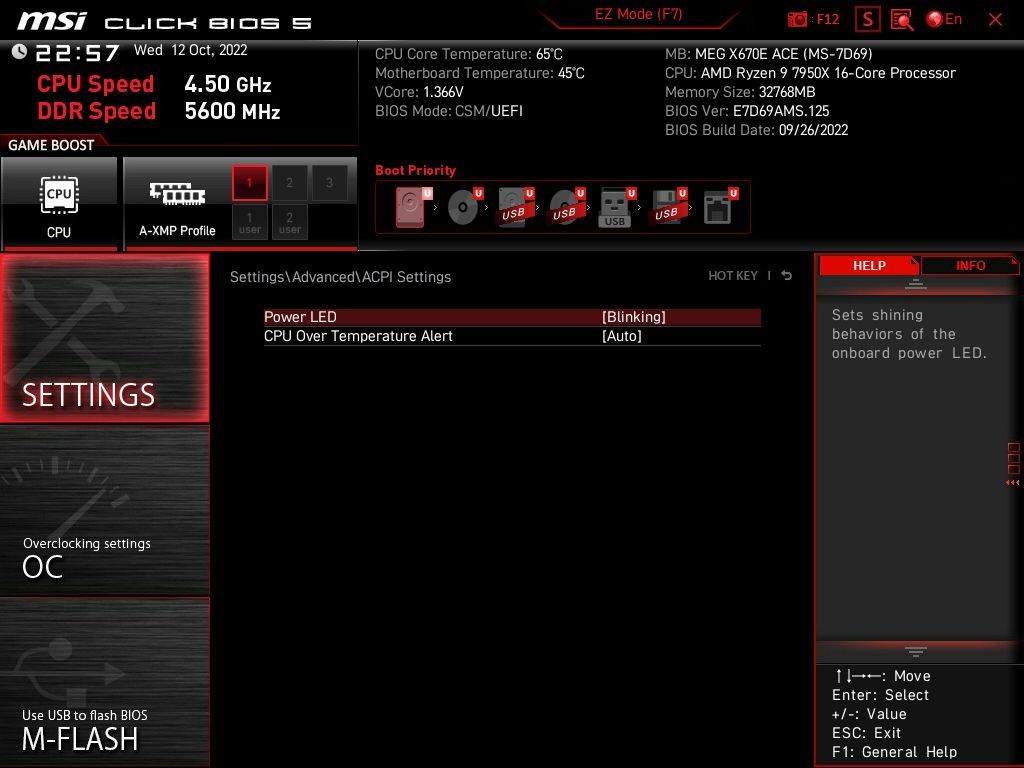

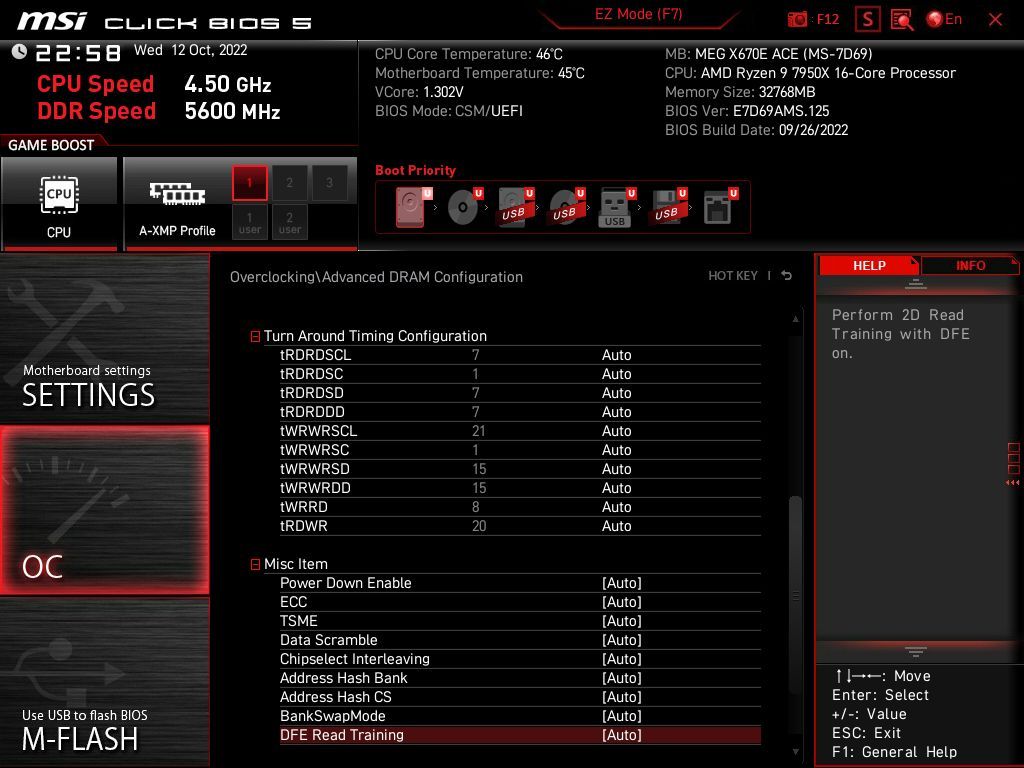

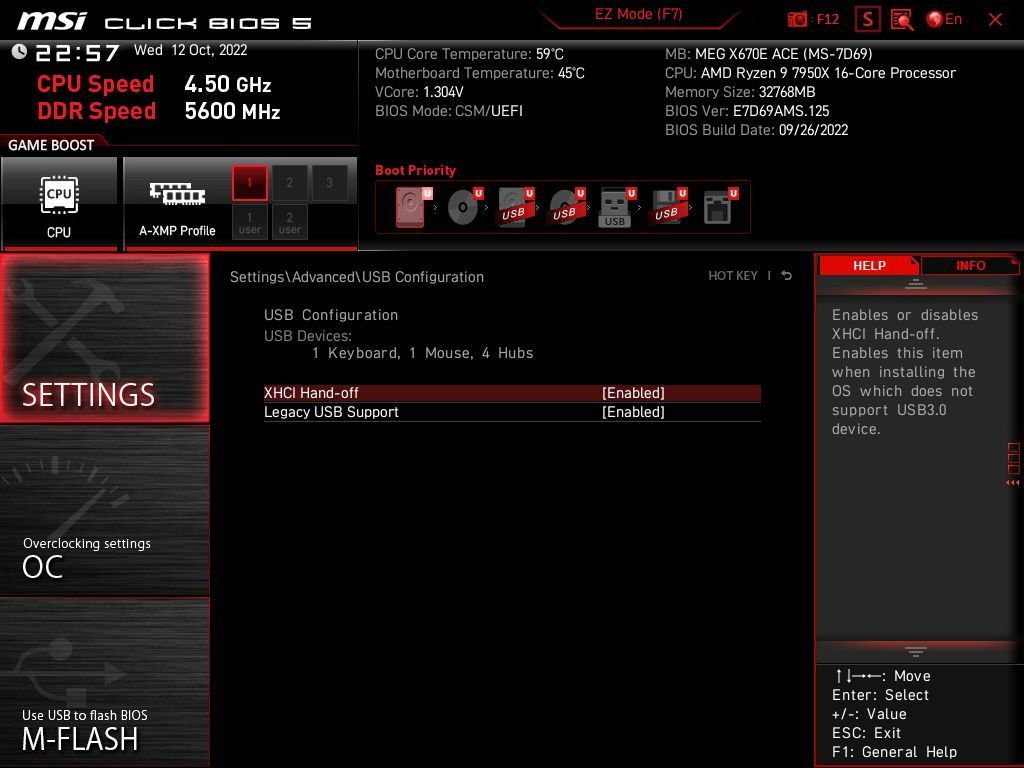

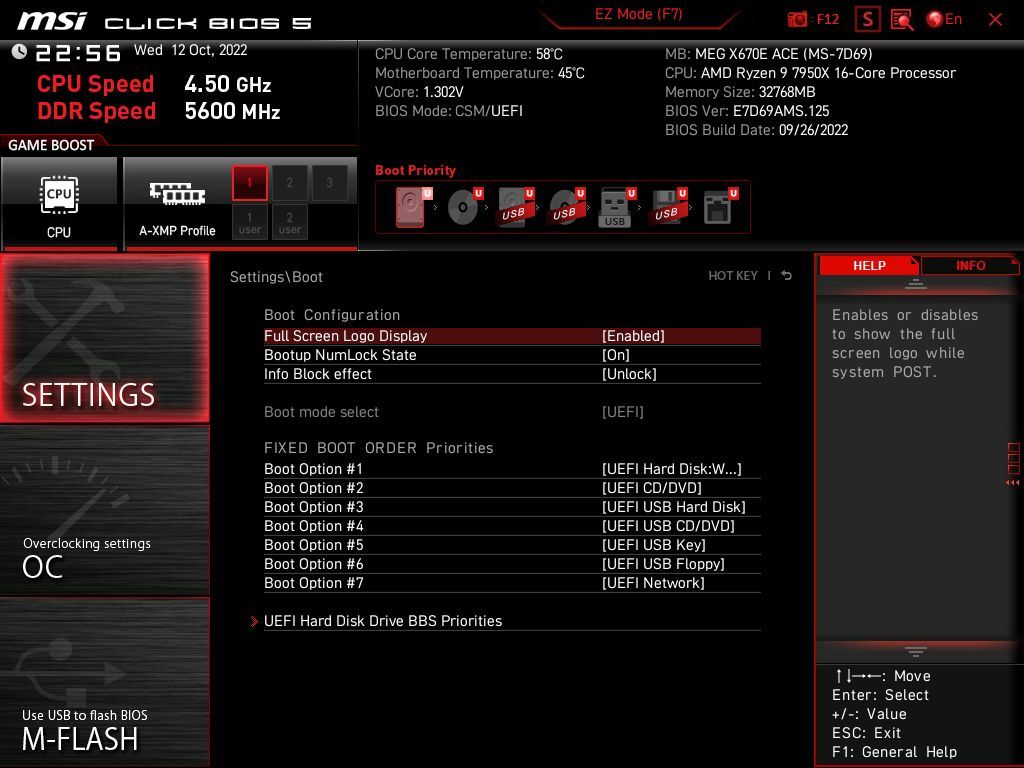

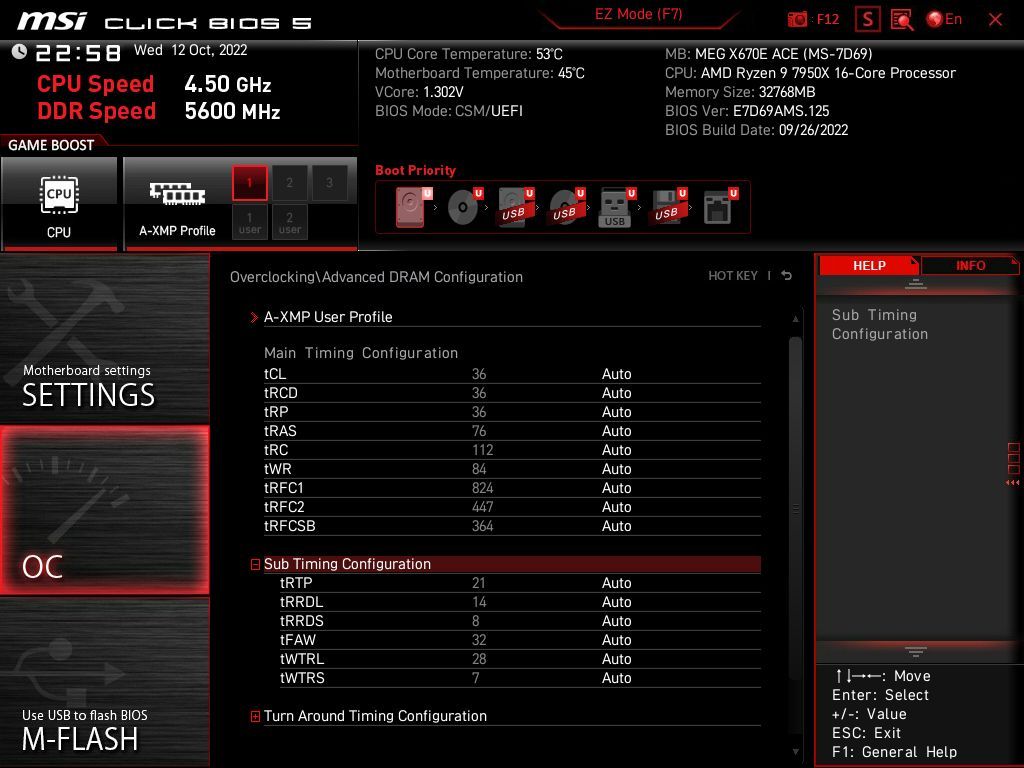

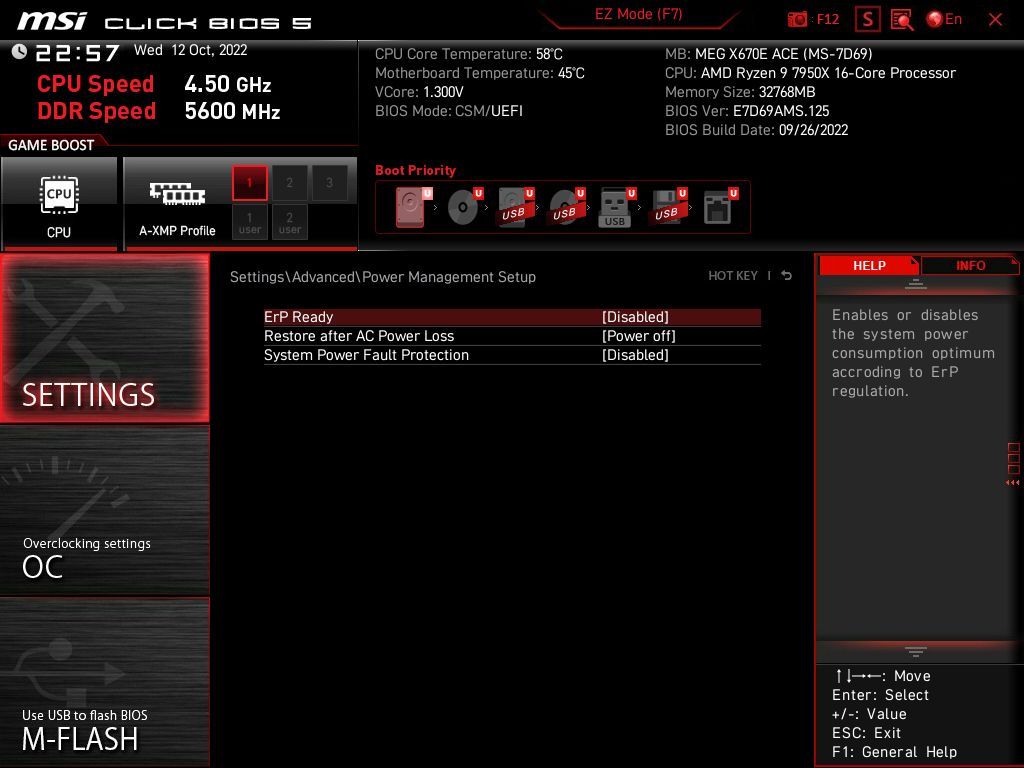

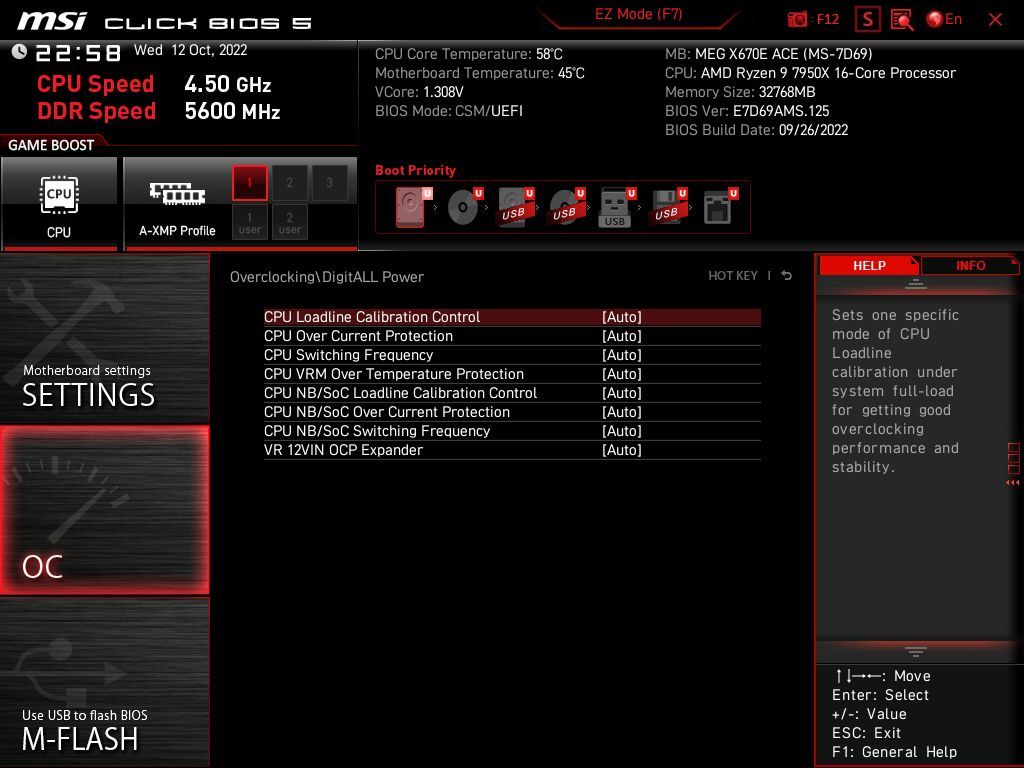

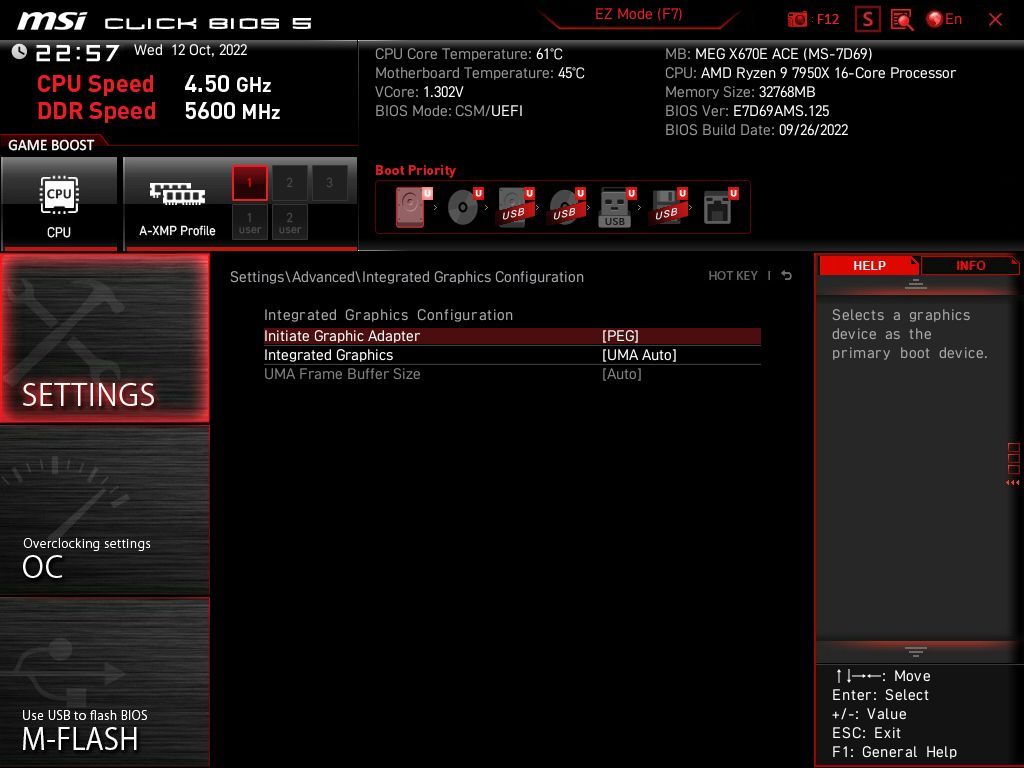

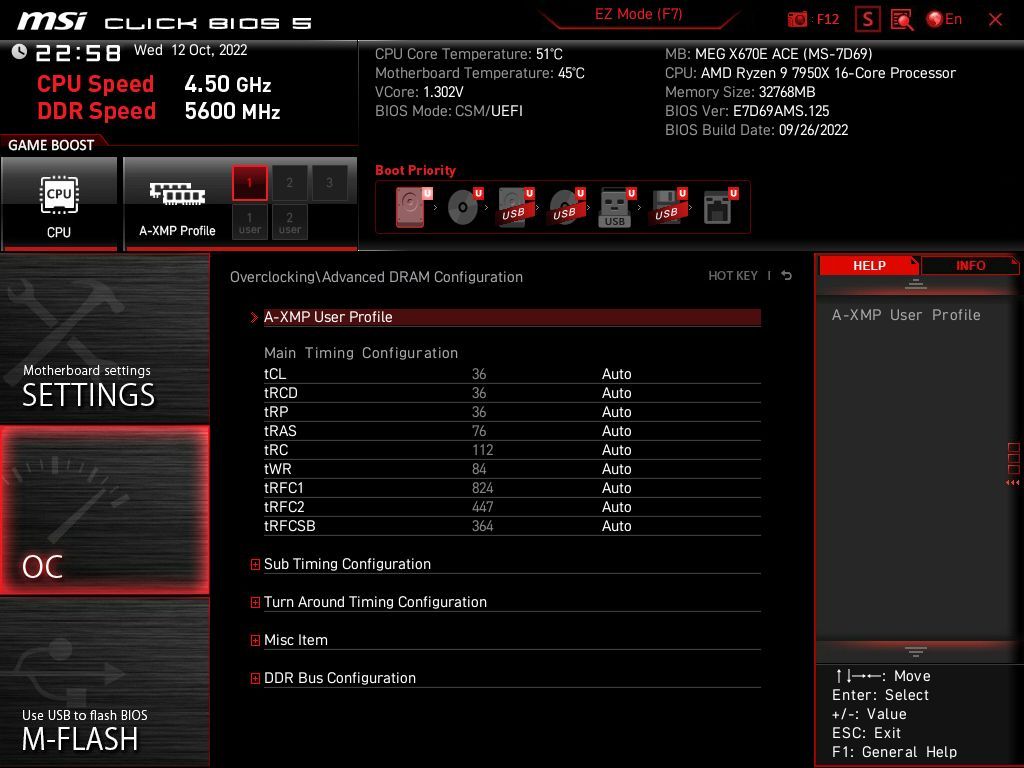

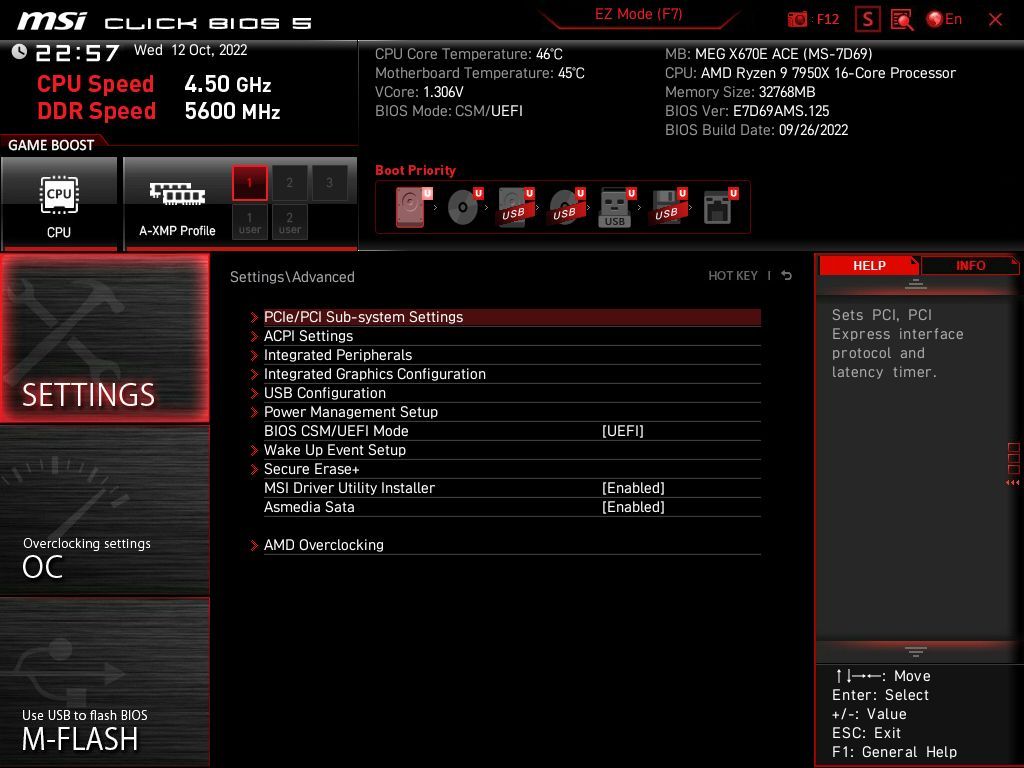

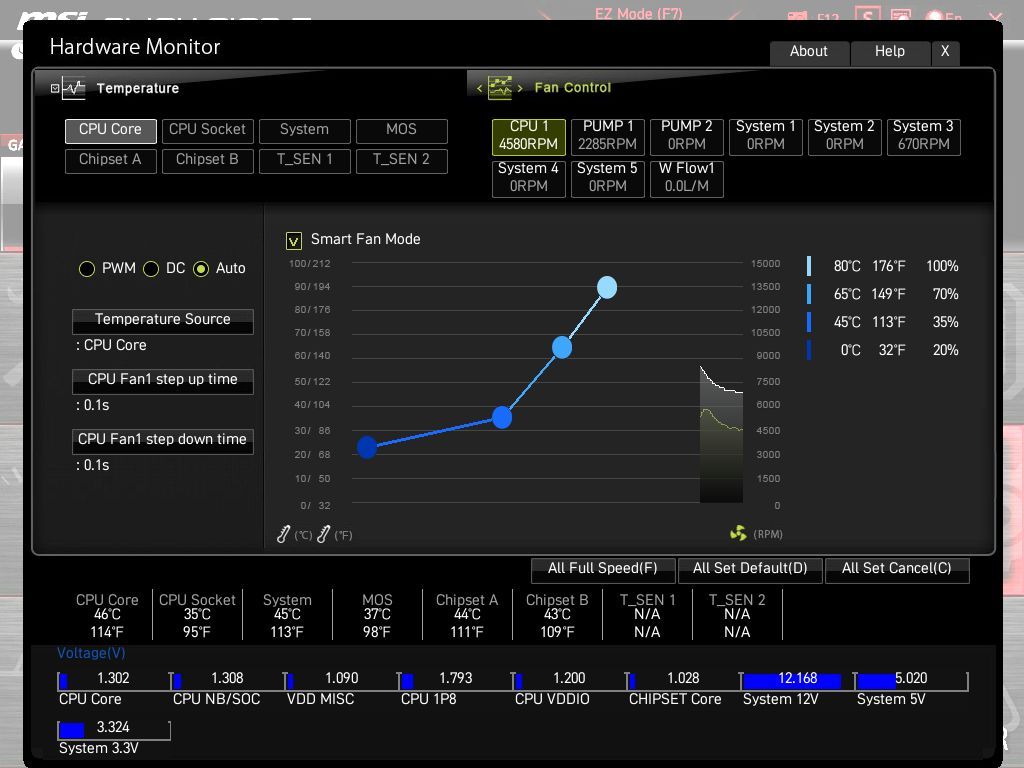

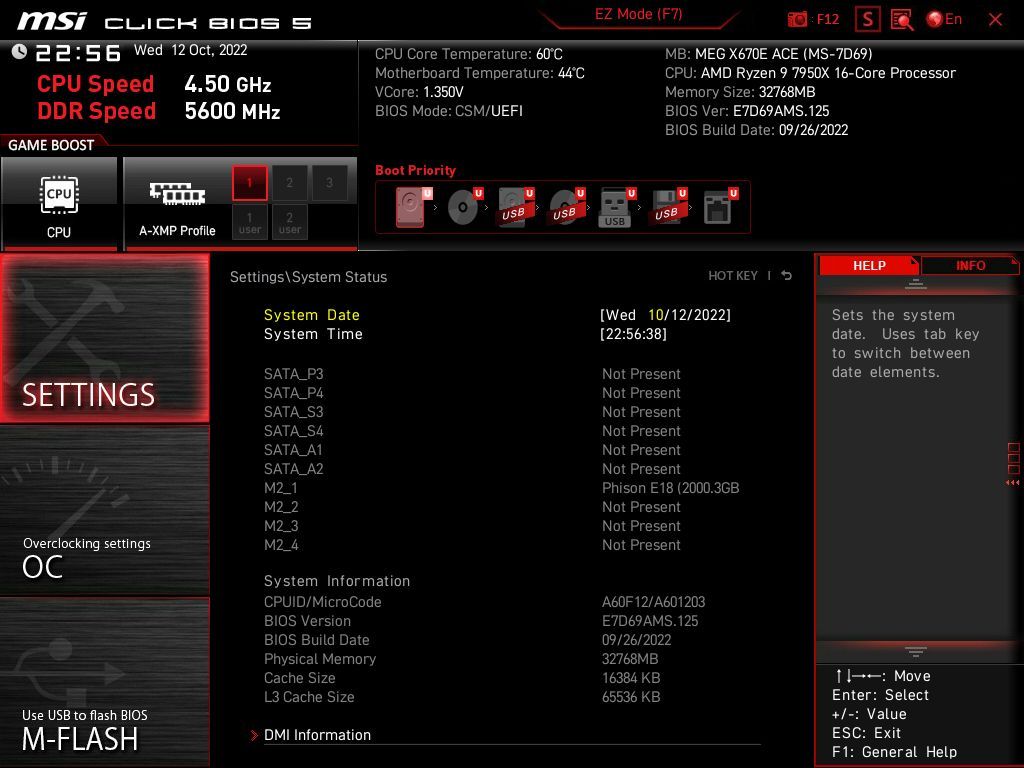

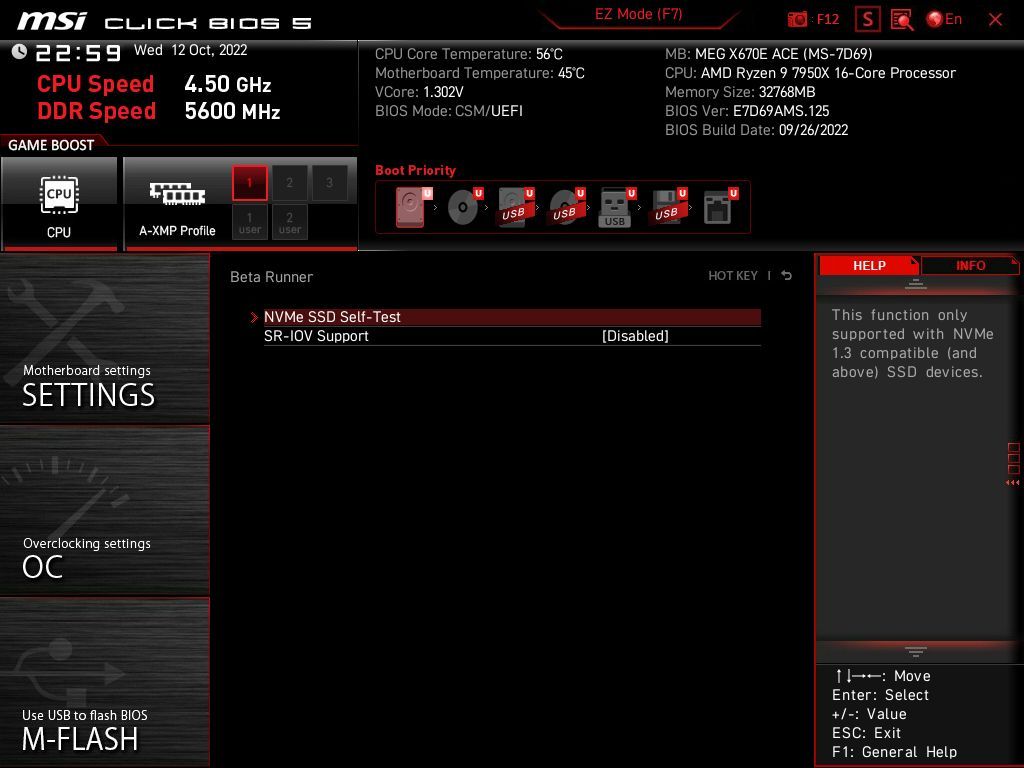

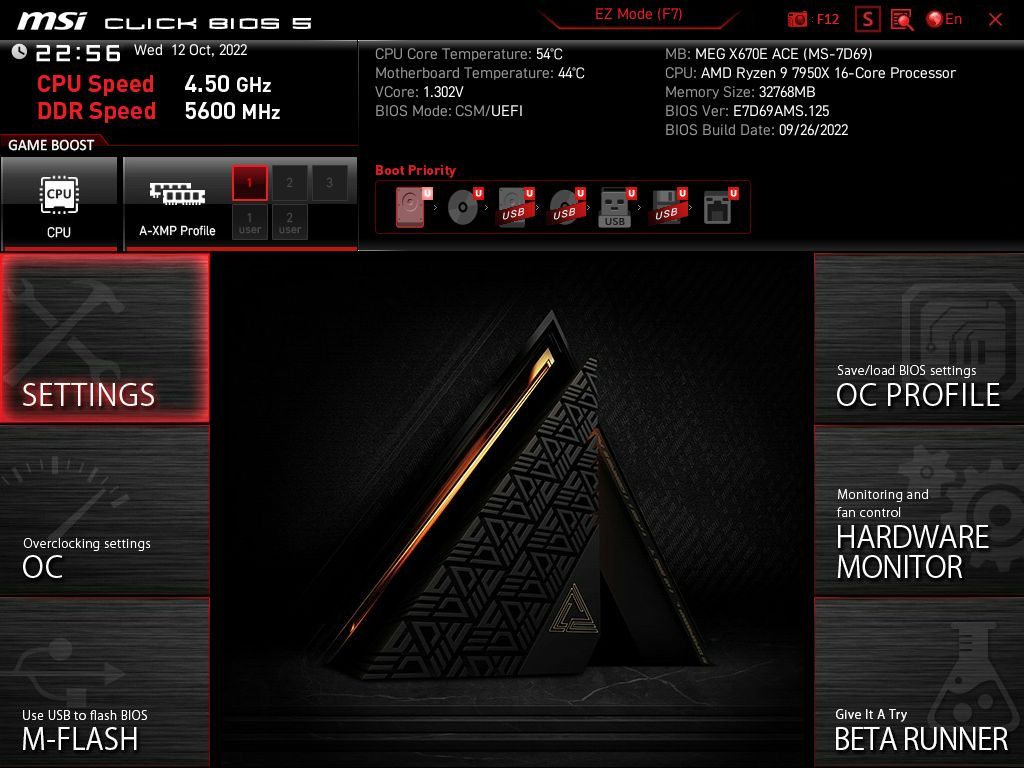

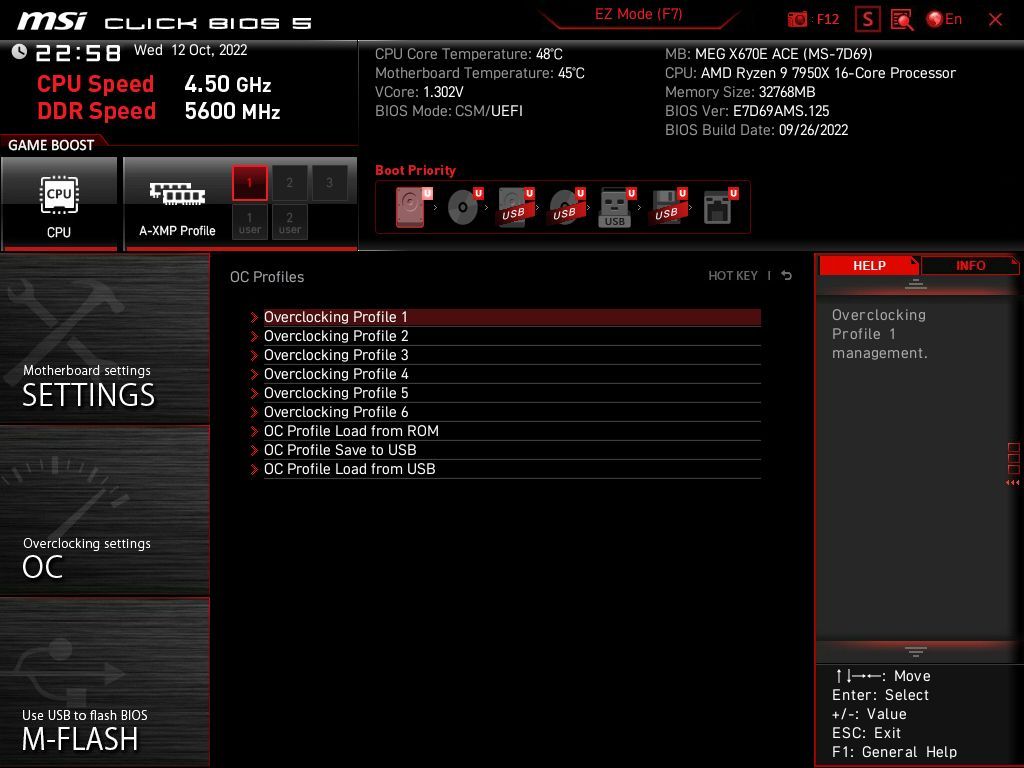

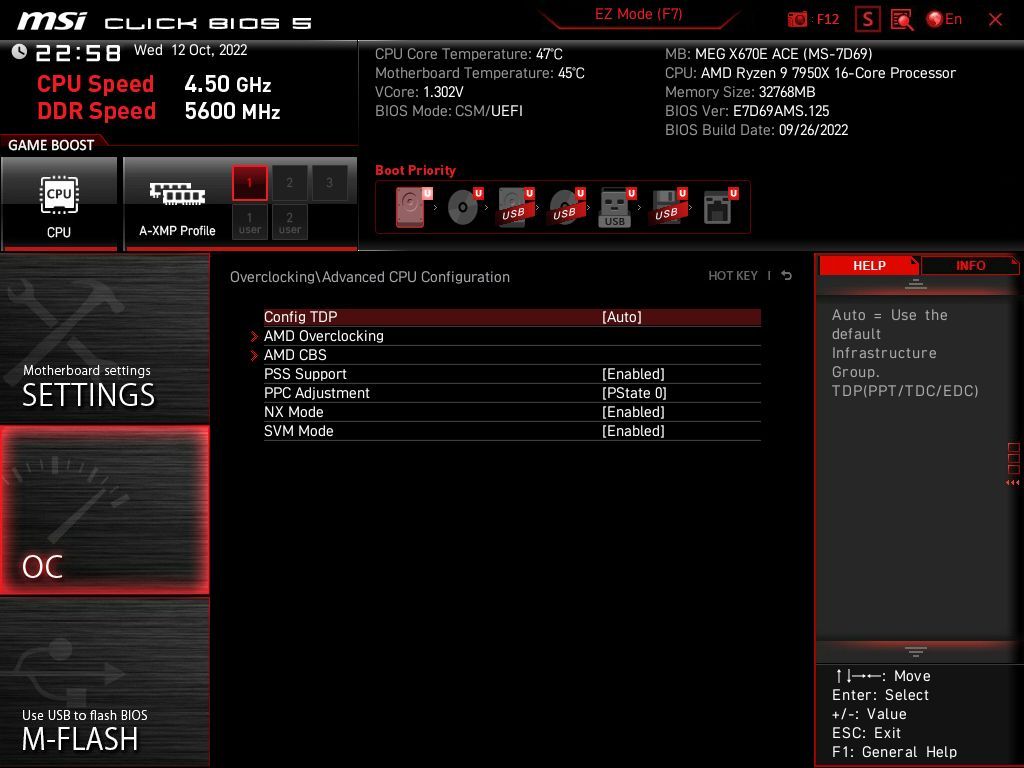

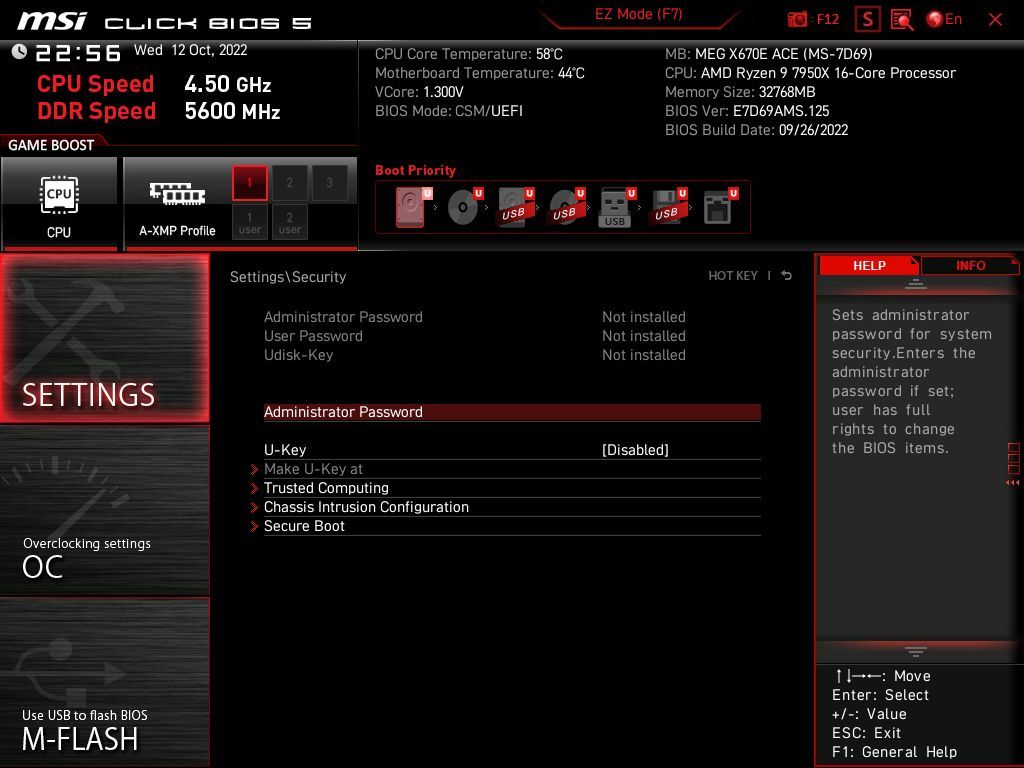

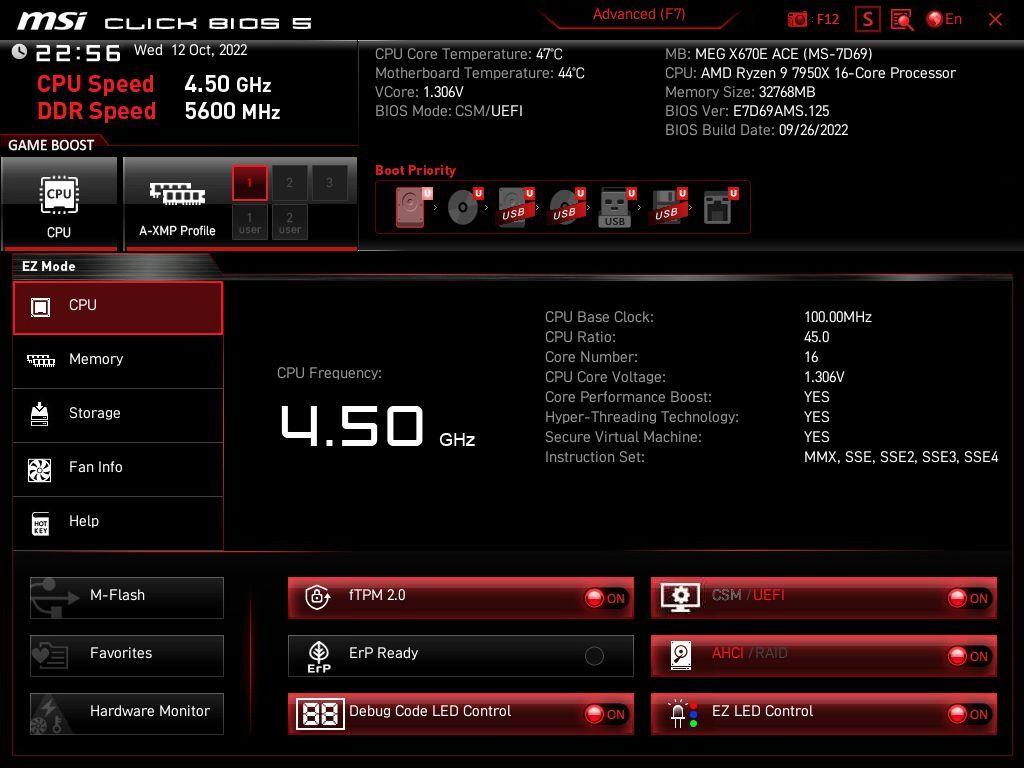

MSI’s Firmware on the new X670E boards are similar to the last gen and its Intel counterparts. It starts out with an EZ Mode that displays high-level system information and allows you to change some settings including EXPO profiles for RAM, boot order, and more. The advanced portion of the BIOS is unique compared to the others. Where normally the headers/sections are across the top they are on the left and right sides with a graphic in the middle. Navigating around the BIOS is easy and the contrast of black, red, and white make for easy reading too. All items are in logical places, and you don’t need to dig deep into the menus for most overclocking functionality. Overall, we like the layout and its ease of use.

Software

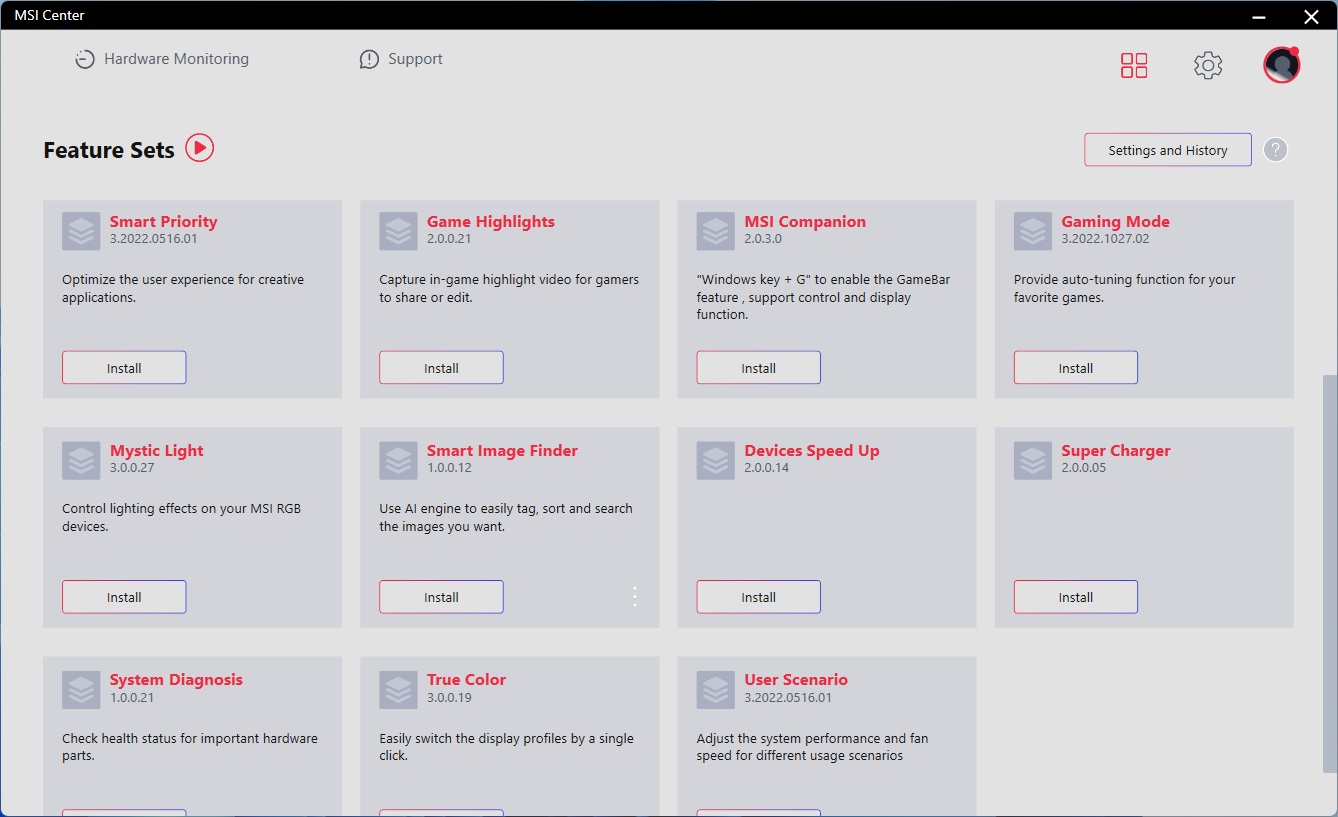

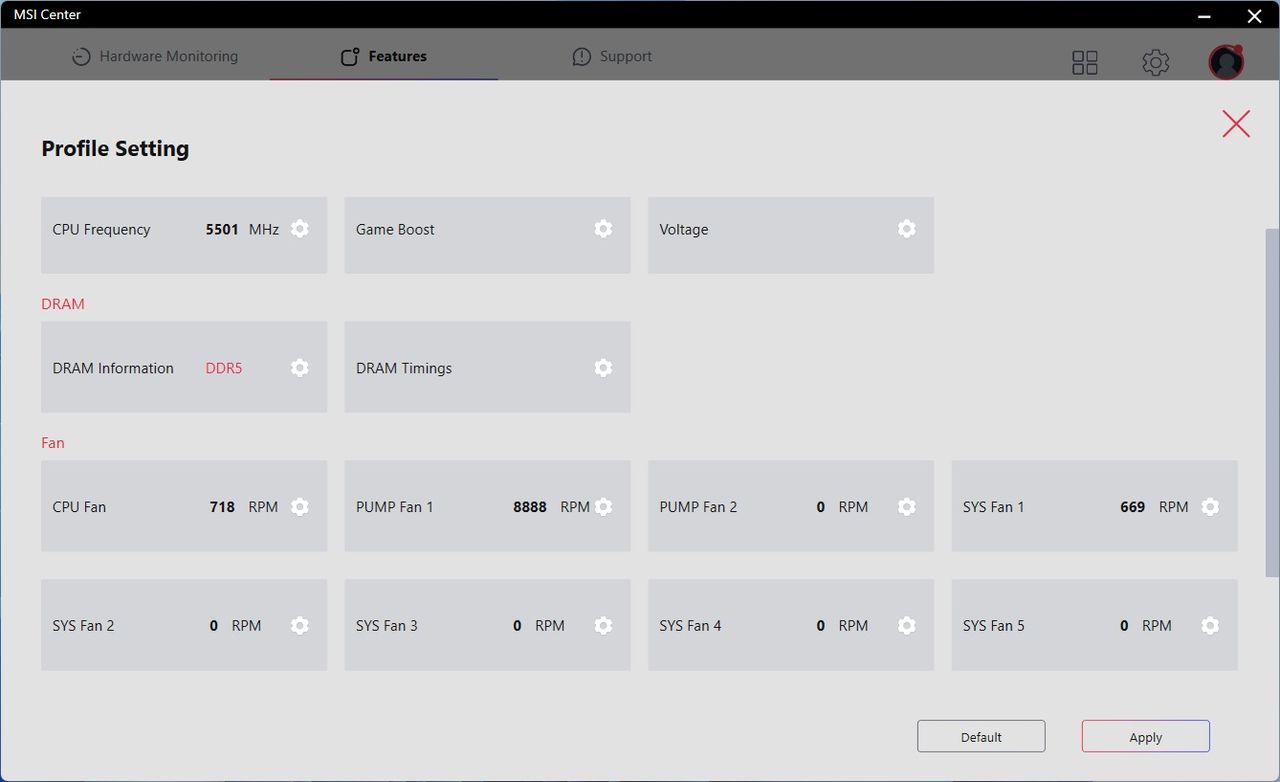

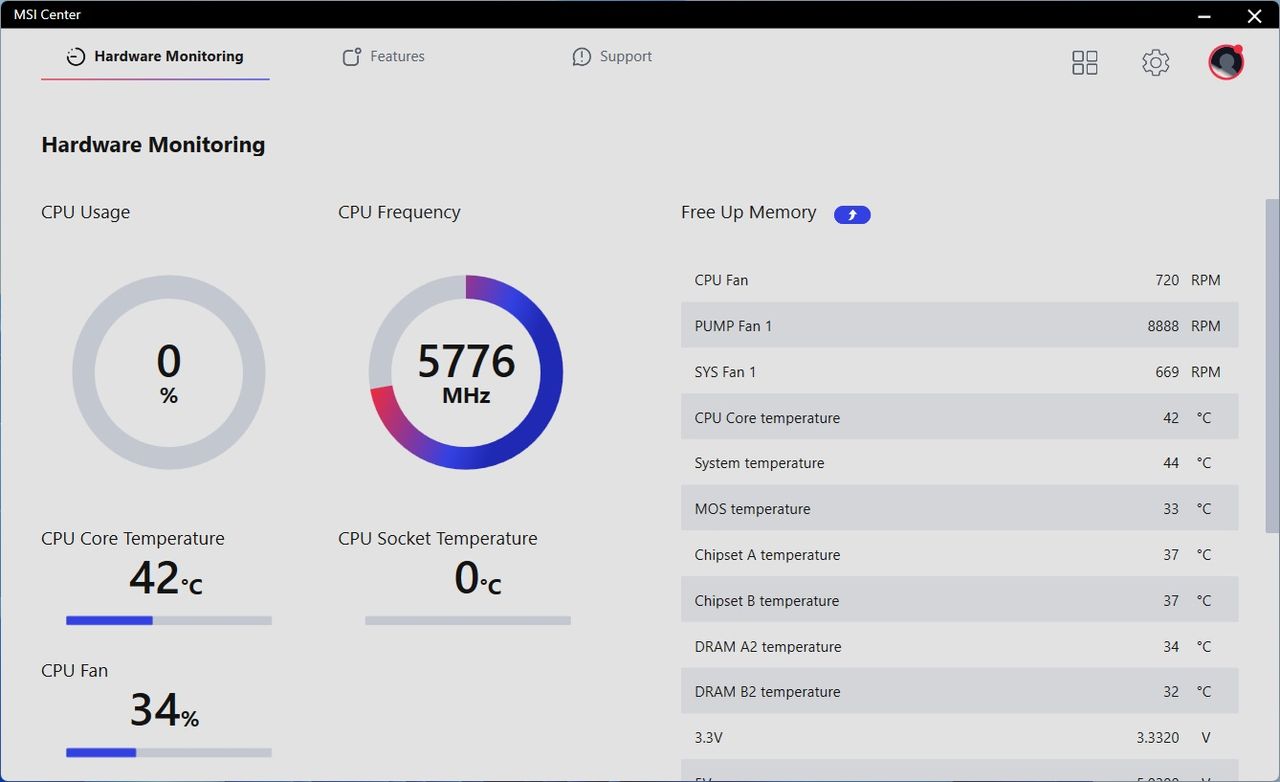

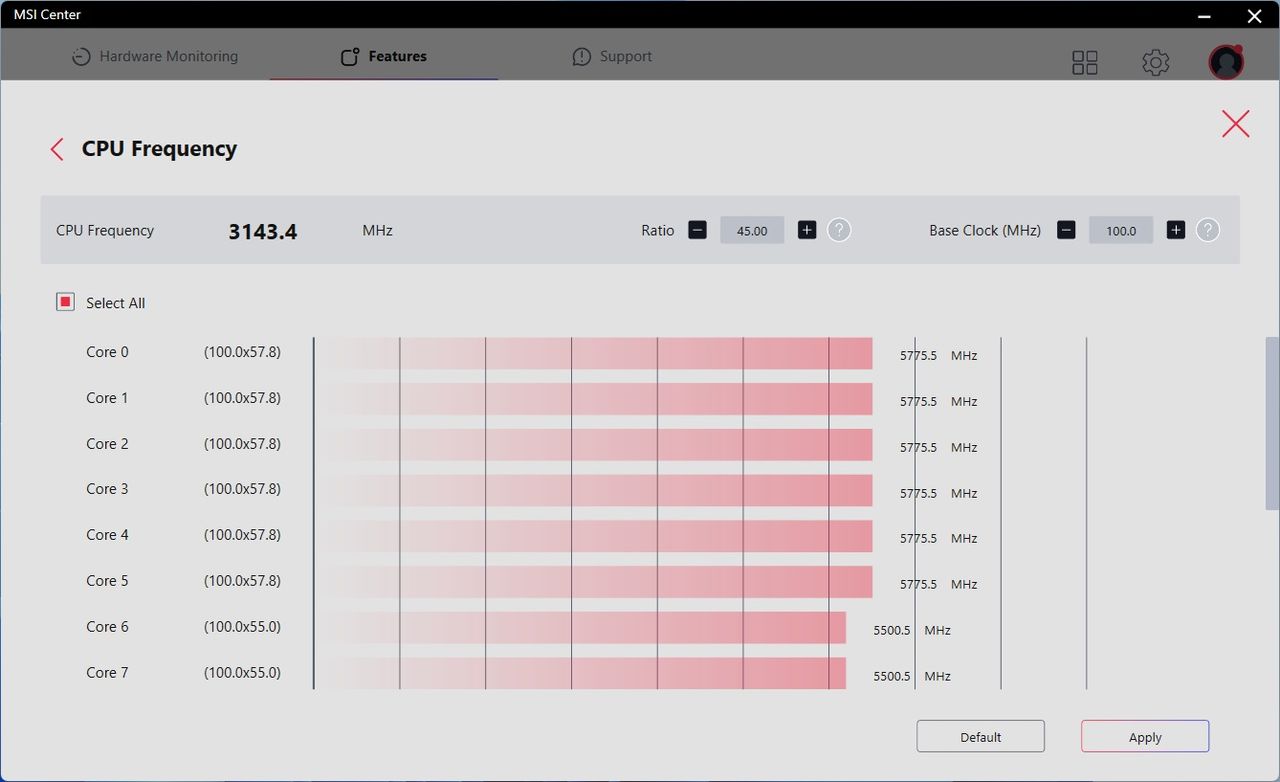

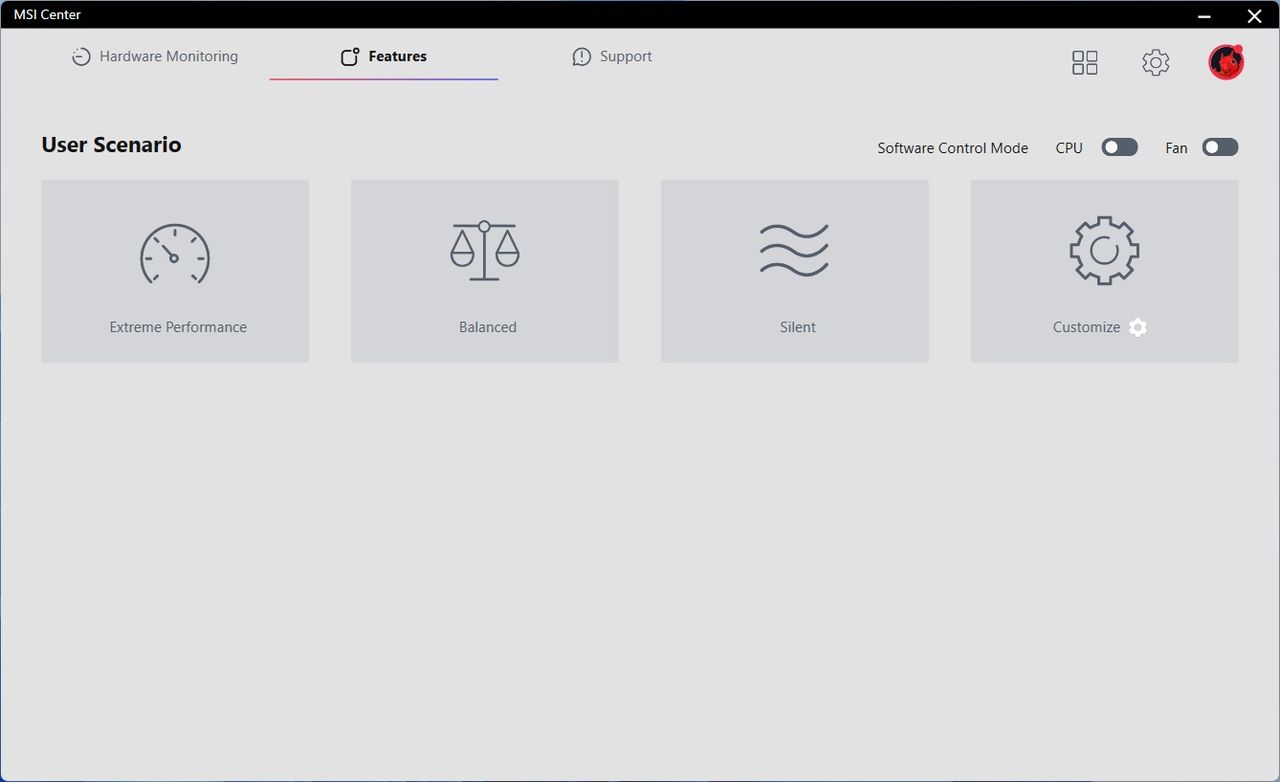

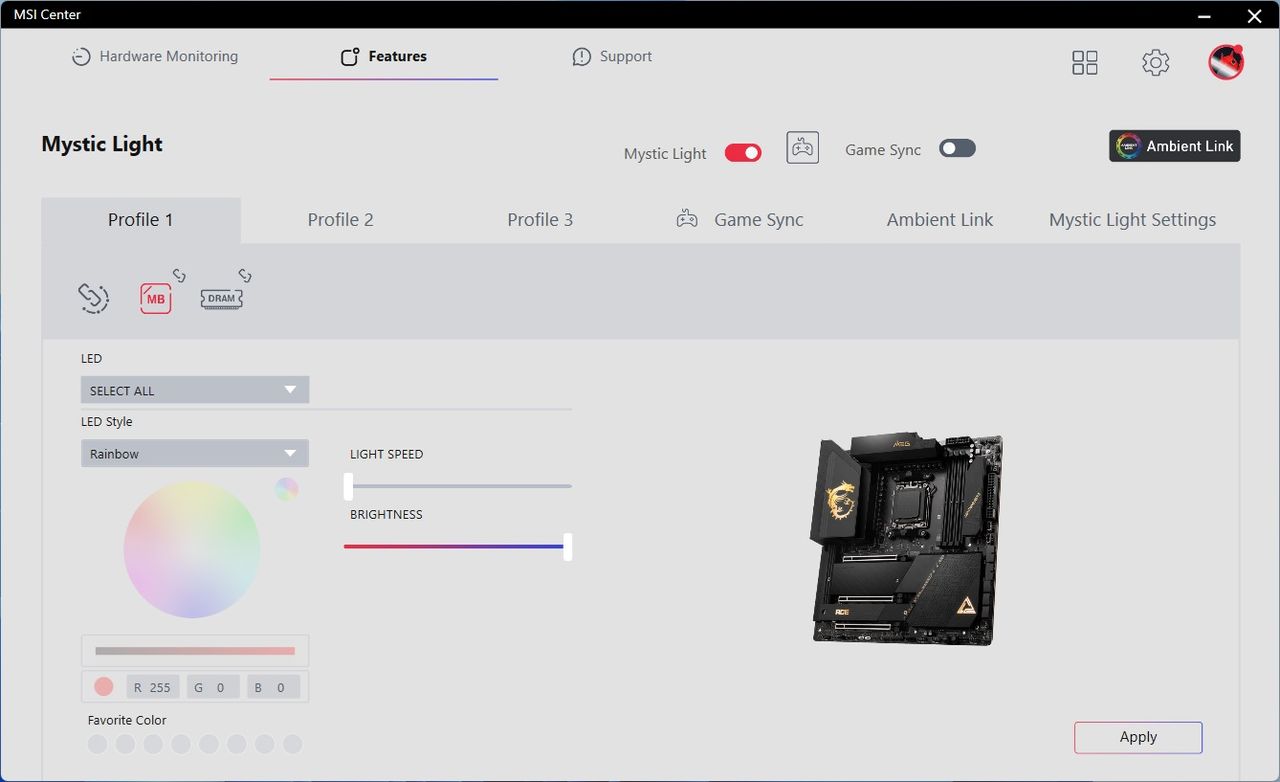

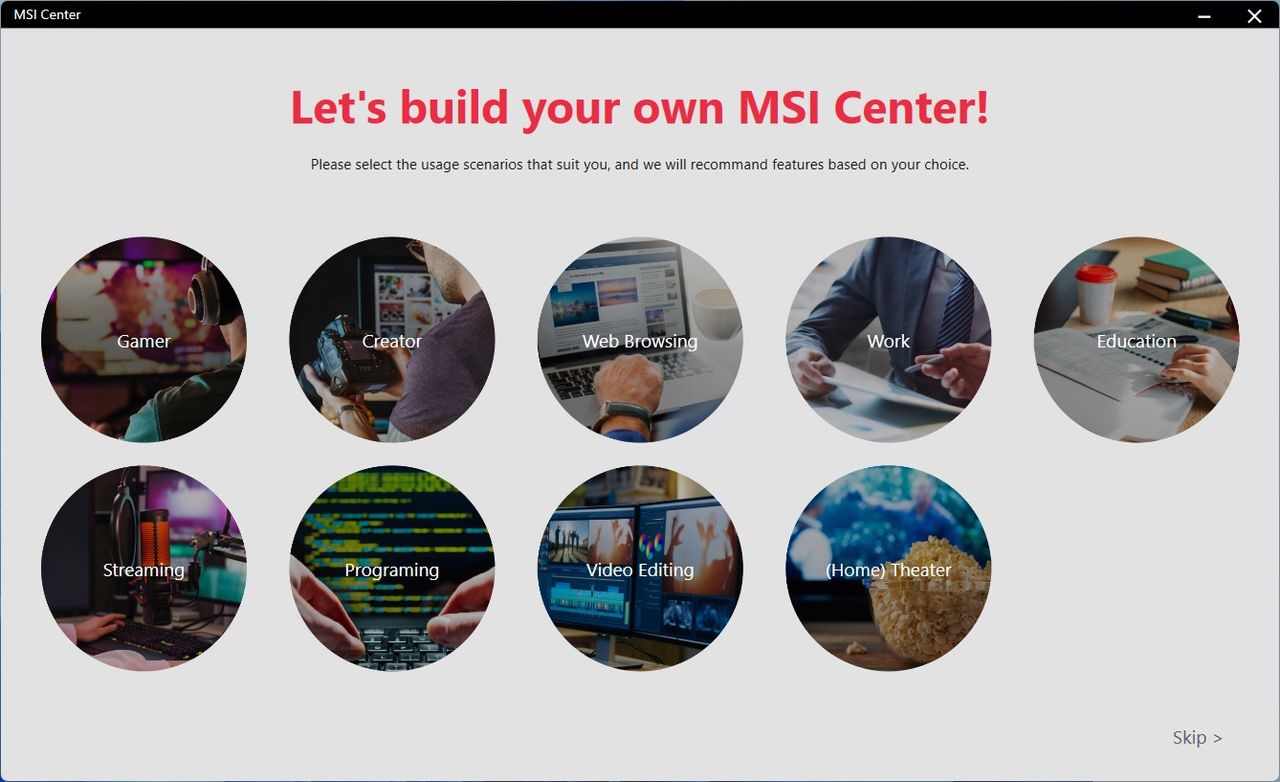

For software, MSI chose to place their applications in one program called MSI Center (formerly Dragon Center). This software allows you to select and download individual applets you want/need. Some of the programs include Mystic Light (RGB control), User Scenario (overclocking, monitoring, and fan control), Super Charger, MSI Companion (help record games), and there are several more.

Test System / Comparison Products

We’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver. Additionally, we updated to F1 22 for our games and kept Far Cry 6. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally
CPUAMD Ryzen 9 7950X
MemoryGSkill Trident Z DDR5-5600 CL36 (F5-5600U3636C16GX2-TZ5RK)
Row 2 - Cell 0 Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
GPUAsus TUF RTX 3070
CoolingCoolermaster MasterLiquid PL360 Flux
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (22H2, Build 22622.601)
Graphics DriverNVIDIA Driver 522.25
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)

(Image credit: Tom's Hardware)

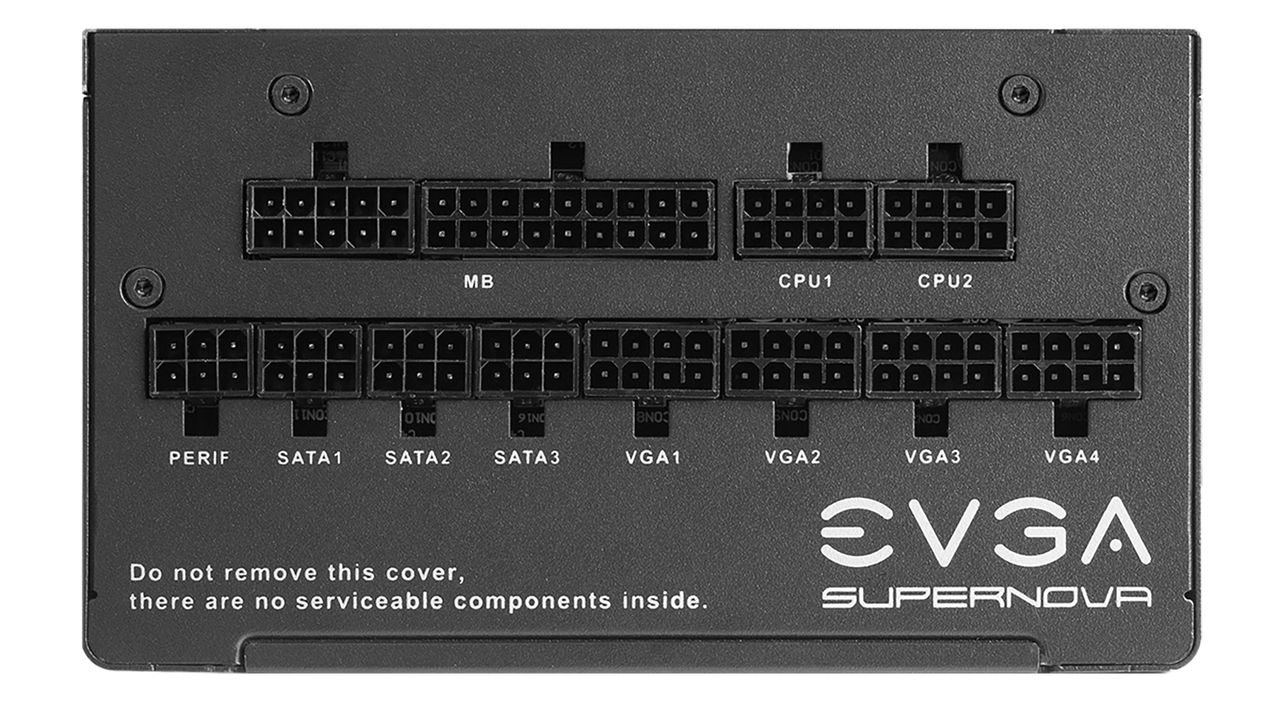

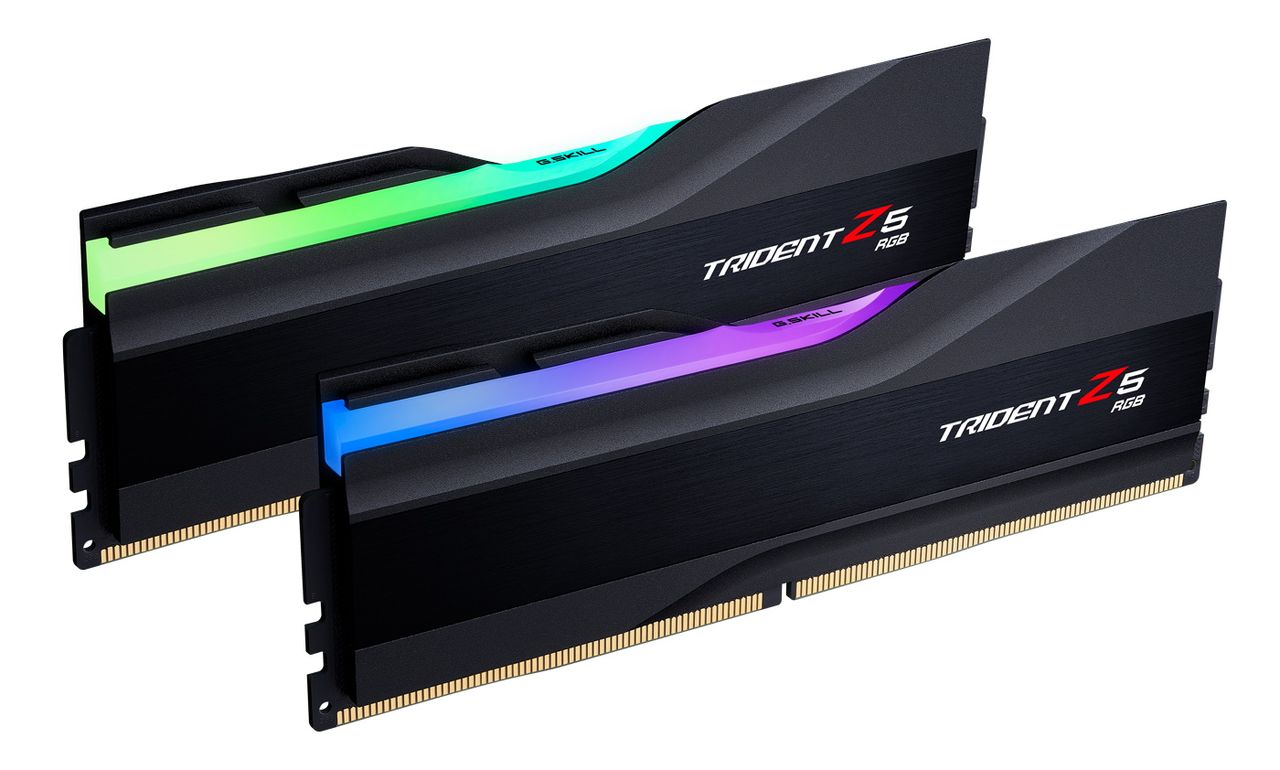

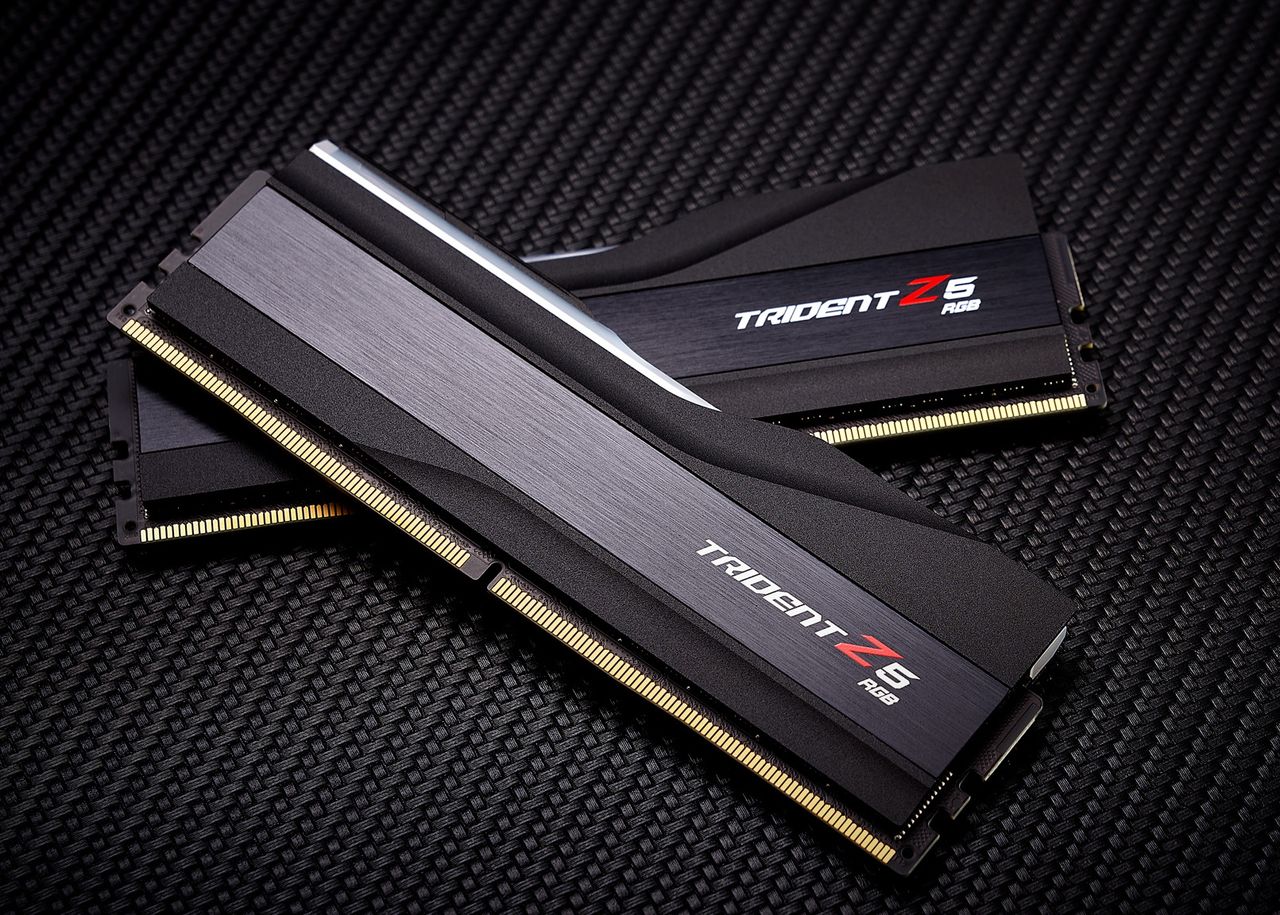

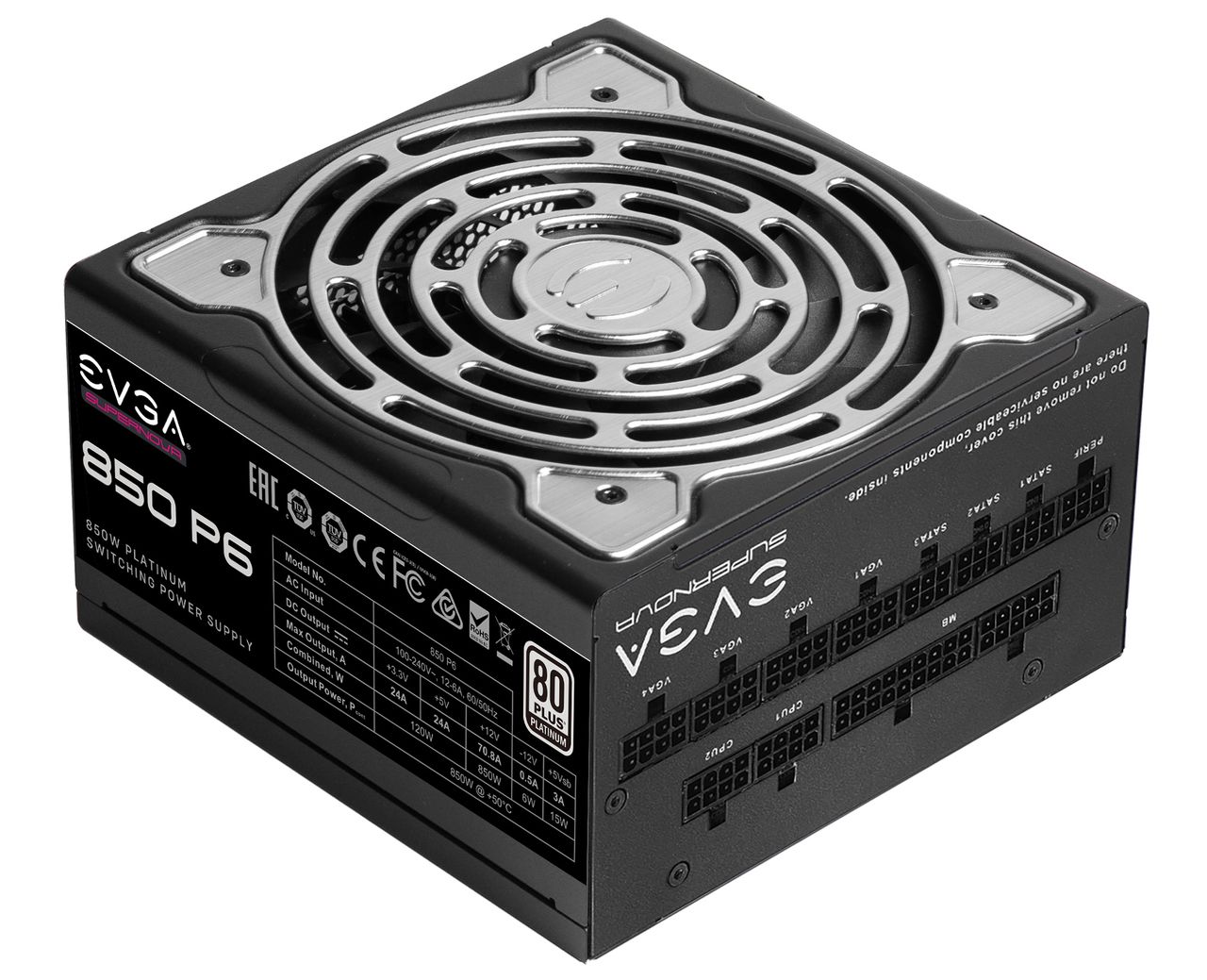

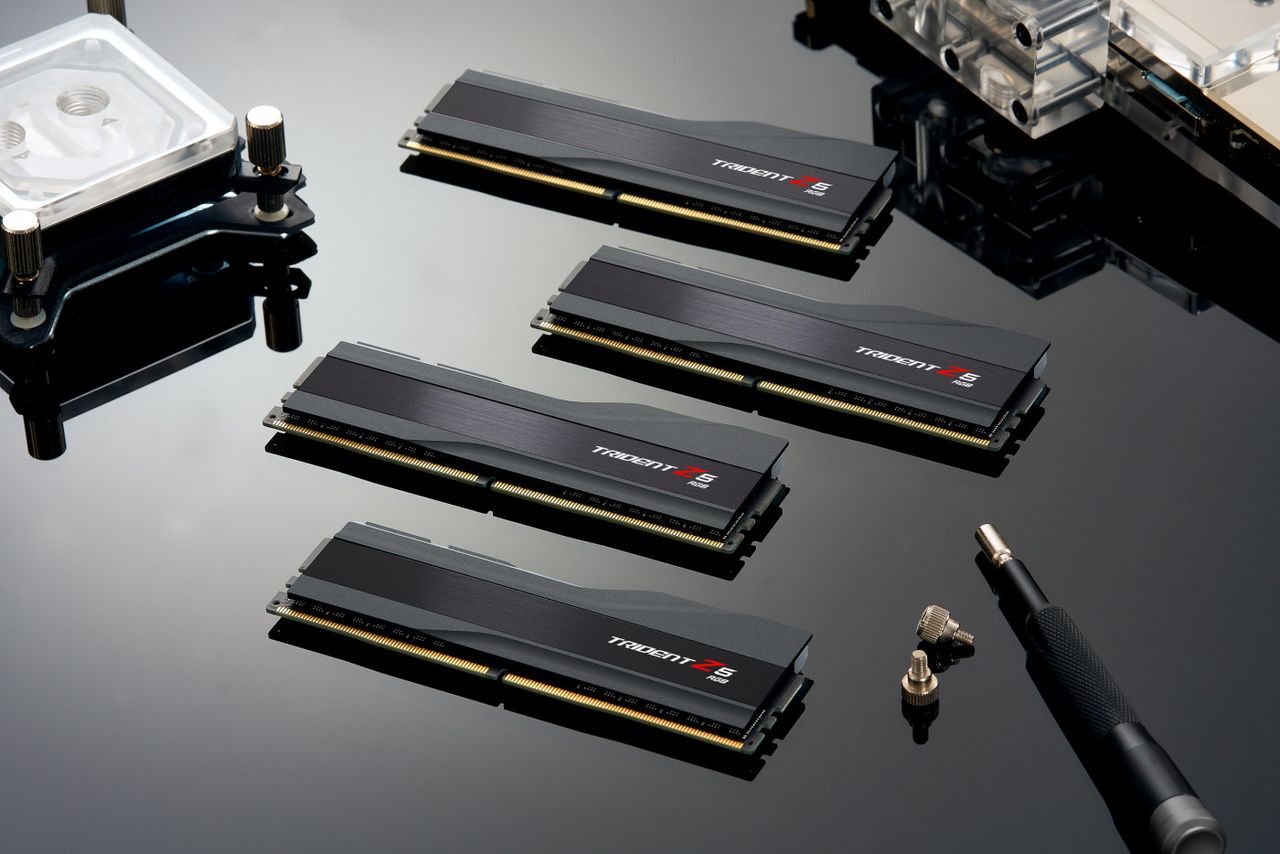

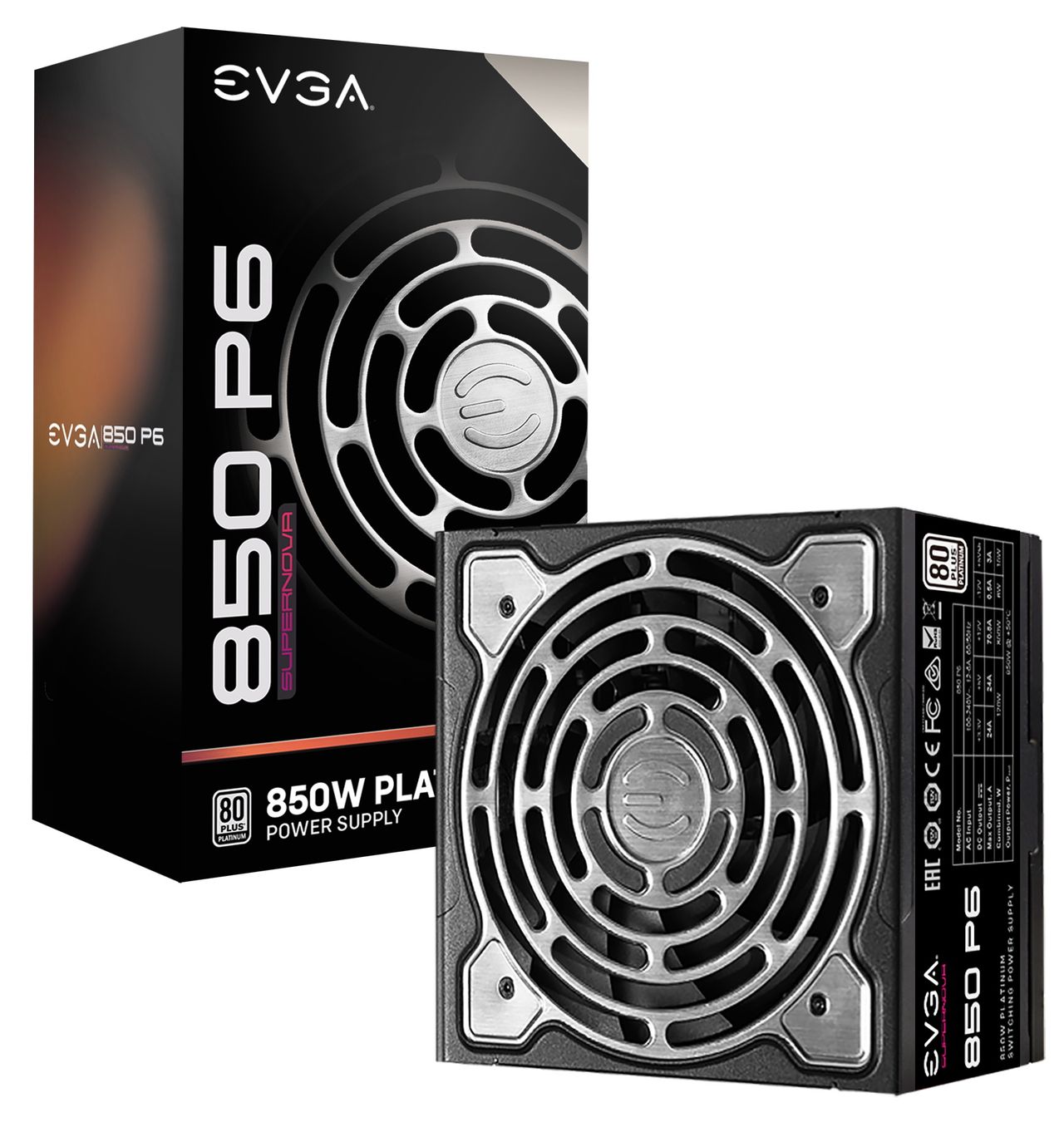

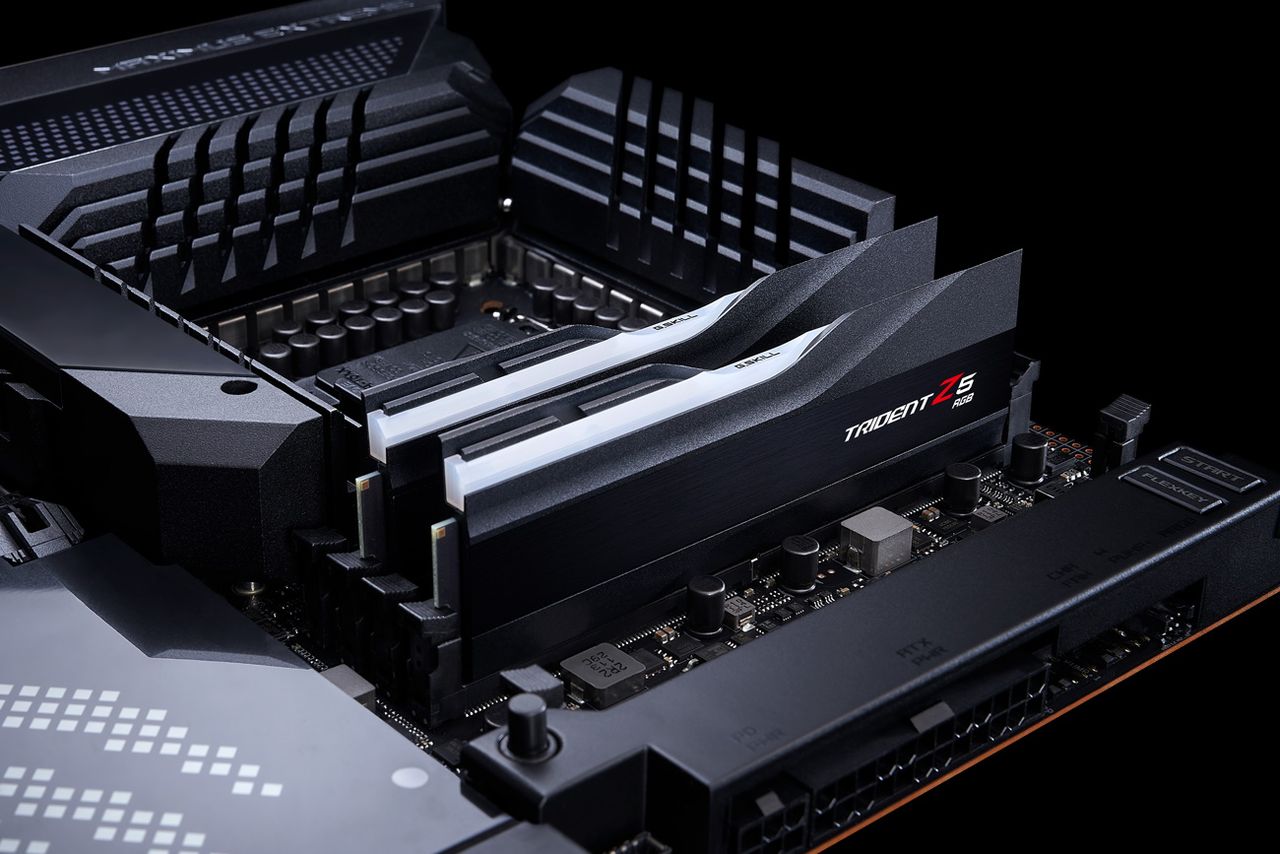

EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the 1.2KW monster we used previously) for our test systems, and G.Skill sent us a DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for testing.

Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and SettingsRow 0 - Cell 1
ProcyonVersion 2.1.459 64
Row 2 - Cell 0 Office Suite (Office 365), Video Editing (Premiere Pro 22.6.2.2), Photo Editing (Photoshop 23.5.1, Lightroom Classic 11.5)
3DMarkVersion 2.22.7359 64
Row 4 - Cell 0 Firestrike Extreme and Time Spy Default Presets
Cinebench R23Version RBBENCHMARK330542
Row 6 - Cell 0 Open GL Benchmark - Single and Multi-threaded
BlenderVersion 3.3.0
Row 8 - Cell 0 Full benchmark (all 3 tests)
Application Tests and SettingsRow 9 - Cell 1
LAME MP3Version SSE2_2019
Row 11 - Cell 0 Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Row 13 - Cell 0 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Row 15 - Cell 0 Custom benchmark
7-ZipVersion 21.03-beta
Row 17 - Cell 0 Integrated benchmark (Command Line)
Game Tests and SettingsRow 18 - Cell 1
Far Cry 6Ultra Preset - 1920 x 1080, HD Textures ON
F1 2022Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Joe Shields
Motherboard Reviewer

Joe Shields is a Freelance writer for Tom’s Hardware US. He reviews motherboards.
