Test Setup and Transfer Diagrams - Hitachi, Samsung

Tom’s Winter 2008 Hard Drive Guide
By
System Hardware
Processor(s) 2x Intel Xeon Processor (Nocona core)
3.6 GHz, FSB800, 1 MB L2 Cache
Platform Asus NCL-DS (Socket 604)
Intel E7520 Chipset, BIOS 1005
RAM Corsair CM72DD512AR-400 (DDR2-400 ECC, reg.)
2x 512 MB, CL3-3-3-10 Timings
System Hard Drive Western Digital Caviar WD1200JB
120 GB, 7,200 RPM, 8 MB Cache, UltraATA/100
Mass Storage Controller(s) Intel 82801EB UltraATA/100 Controller (ICH5)
Promise SATA 300TX4
Promise FastTrak TX4310
Driver 2.06.1.310
Networking Broadcom BCM5721 On-Board Gigabit Ethernet NIC
Graphics Subsystem On-Board Graphics
ATI RageXL, 8 MB
Benchmarks
Performance Measurements c’t h2benchw 3.6
PCMark05 V1.01
I/O Performance IOMeter 2003.05.10
Fileserver-Benchmark
Webserver-Benchmark
Database-Benchmark
Workstation-Benchmark
System Software & Drivers
OS Microsoft Windows Server 2003 Enterprise Edition,
Service Pack 1
Platform Driver Intel Chipset Installation Utility 7.0.0.1025
Graphics Driver Default Windows Graphics Driver

Transfer Diagrams - Hitachi

Watch out ! Hitachi’s Deskstar 7K1000.B is far superior to the first generation Deskstar 7K1000 (without the “.B”).

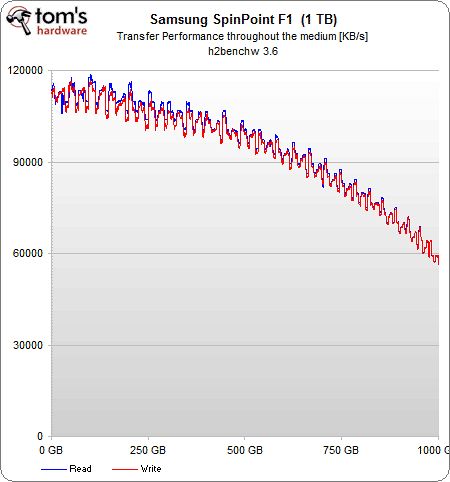

Transfer Diagrams - Samsung
