ASRock X370 Taichi AMD Ryzen Socket AM4 ATX Motherboard Review

X370 Taichi's UEFI: Growing Pains

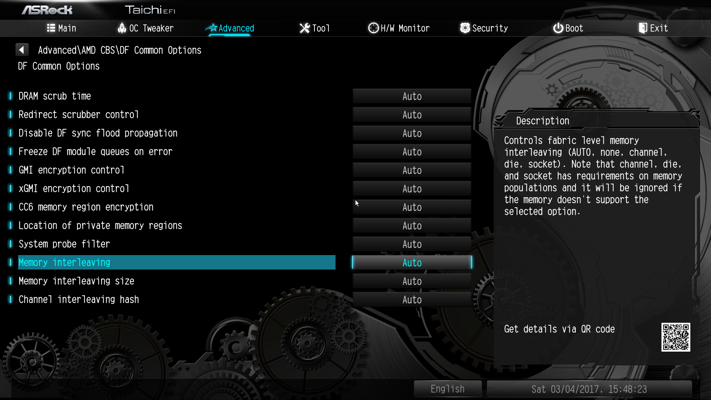

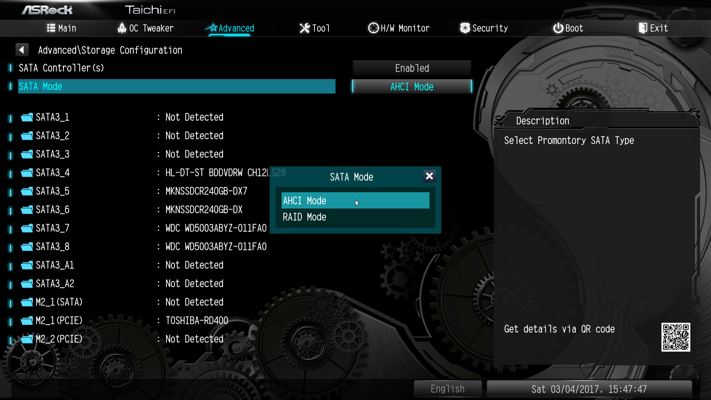

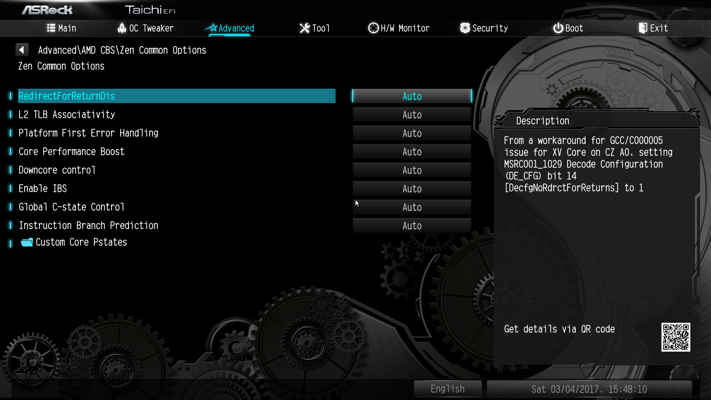

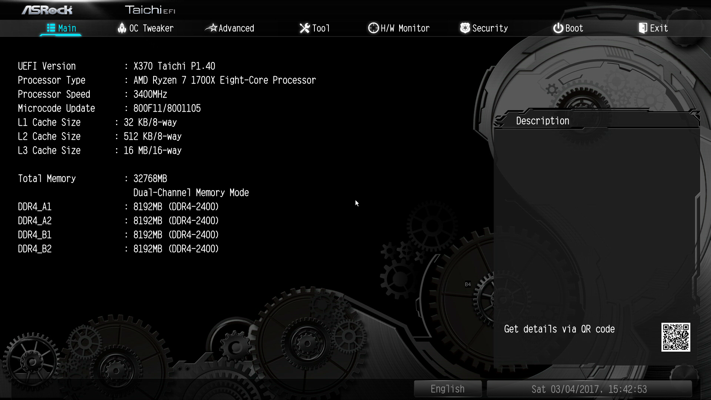

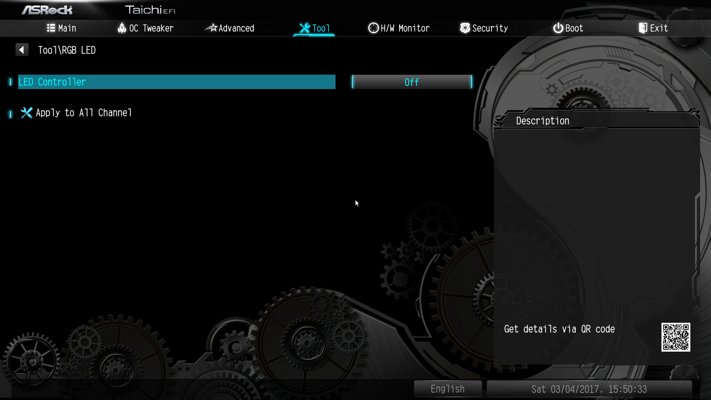

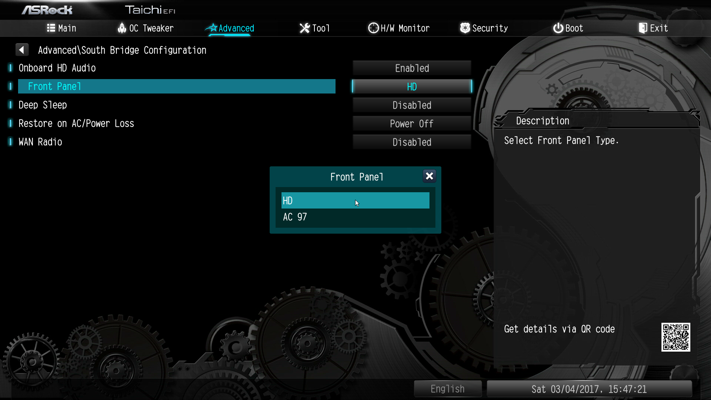

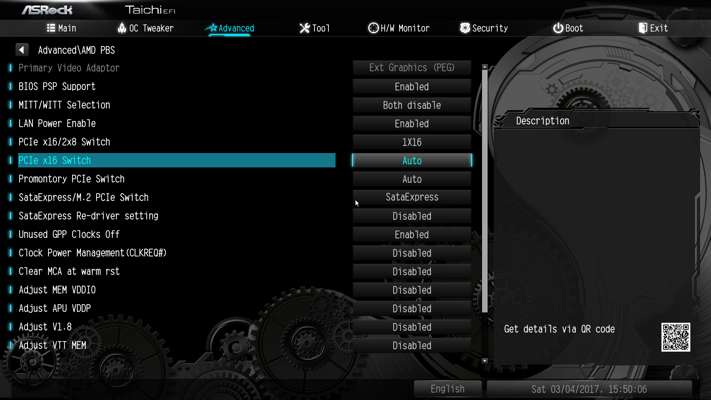

For the Taichi line, ASRock abandons the familiar red-and-black clad UEFI in favor of the modern design of the motherboard. Along with the traditional text based feel, ASRock provides well documented descriptions for many options within the menu, which will come in handy in the overclocking segment.

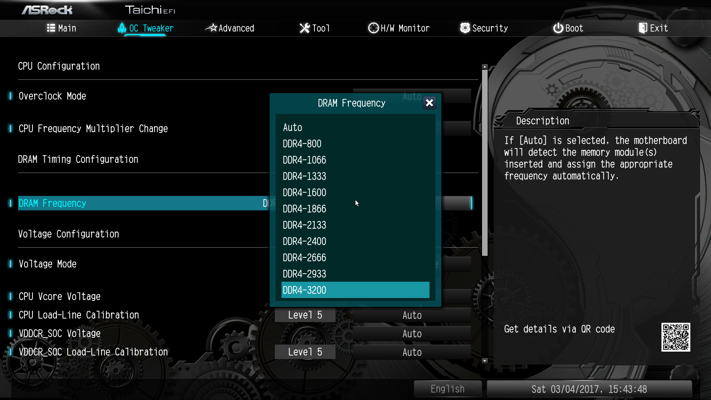

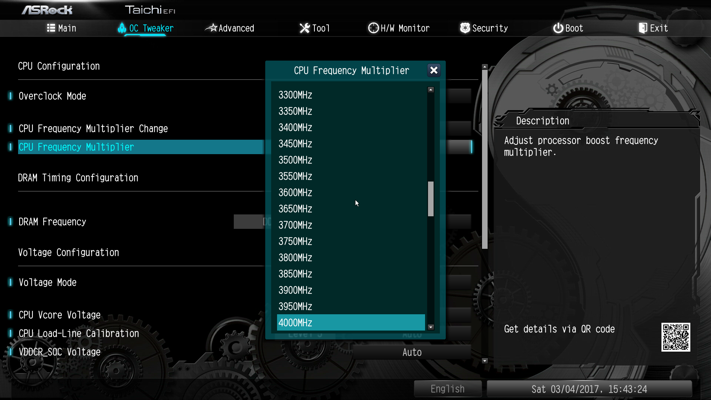

CPU multipliers, DRAM frequency, voltage adjustments, and timing options cover the bulk of the OC Tweaker tab as usual. For Ryzen, though, plenty of new options adorn the OC Tweaker and Advanced tabs, tying into the new architecture. The Zen Commands menu enables various architecture controls and workarounds, while digging through the AMD CBS menu unfolds a huge tree of options that almost never end. The AMD PBS menu accesses Ryzen specific features like enabling the two x8 PCIe Gen 3 ports and SATA express options.

Having received this sample on day one of launch, it's no surprise that we'd be flashing various versions of firmware onto this board. Loading the appropriate BIOS binary onto our jump drive and selecting F11 then “UEFI: Built-in EFI Shell” took care of the process, where we would have preferred the simplicity of the network enabled options.

In time, we hope to see additional firmware updates that remove some of the superfluous options and enable some of the simpler solutions that a top tier motherboard would typically deploy. Given that ASRock has already released publicly three different BIOS versions leads us to believe that the company is on top of it.

Test Configuration

Pretty much our entire rig has been carried over from our C236 platform reviews, so there's nothing unique to talk about here. We were fortunate enough to reach Noctua in time for this article, resulting in three different heatsinks for use in our AM4 reviews. Today, we are deploying the monstrous NH-D15 SE-AM4 on our test bed for maximum cooling and awesomeness. This cooler is so large that getting thermal readings off the Taichi’s voltage regulators was nearly impossible. Compared to my dusty Sunbeamtech from the 990FX reviews, this cooler is more than adequate for cooling my CPU.

As with all of our AMD motherboard reviews, we did not change any settings through the OS or UEFI to alter our results. Our intent is to test the product as a typical user would deploy it. If you're comparing our data to those of other articles, please keep this in mind. If changing the SMT, HPET, or any other setting is desirable, let us know in the comments section.

The Corsair AX860 continues to supply our system with power. Gigabyte's GTX 970 G1 Gaming is deployed to compare this AMD's 1700X data to other platforms using the same GPU. We opted to plug the 250GB OCZ RD400 NVMe M.2 into the U.2 slot to utilize the 32 Gb/s connection rather than the PCIe 2.0 interface.

We are giving our Crucial 8GB UDIMMs a shot in this new platform despite their plain green color. Good thing the Noctua cooler dwarfs all four slots!

If there are any other pieces of hardware that would be interesting to gather data on, feel free to let us know in the comments.

Benchmark Settings

Synthetic Benchmarks and Settings

PCMark 8

Version 2.7.613
Home, Creative, Work, Storage, Applications (Adobe & Microsoft)

SiSoftware Sandra

Version 2016.03.22.21
CPU Arithmetic, Multimedia, Cryptography
Memory Bandwidth

DiskSPD

4k Random Read, 4k Random Write
128k Sequential Read, 128k Sequential Write

Cinebench R15

Build RC83328DEMO
OpenGL Benchmark

CompuBench

Version 1.5.8
Face Detection, Optical Flow, Ocean Surface, Ray Tracing

3D Tests and Settings

3DMark 13

Version 4.47.597.0
Test Set 1: Skydiver, 1920x1080, Default Preset
Test Set 2: Firestrike, 1920x1080, Default Preset
Test Set 3: Firestrike Extreme, 2560x1440 Default Preset

Application Tests and Settings

HandBrake CLI

Version: 0.9.9
Sintel Open Movie Project
4.19 GB 4k mkv to x265 mp4

LAME MP3

Version 3.98.3
Mixed 271MB WAV to mp3
Command: -b 160 --nores (160 Kb/s)

Adobe After Effects CC

Release 2015.3.0
Version 13.8.0.144
PCMark driven routine

Adobe Photoshop CC

Release 2015.5.0
20160603.r.88 x64
PCMark driven routine (light and heavy)

Adobe InDesign CC

Release 2015.4
Build 11.4.0.90 x64
PCMark driven routine

Adobe Illustrator

Release 2015.3.0
Version 20.0.0 (64-bit)
PCMark driven routine

Blender

 Version 2.68a
BMW 27 CPU Render Benchmark
BMW 27 GPU Render Benchmark

7-Zip

Version 16.02
THG-Workload (7.6 GB) to .7z, command line switches "a -t7z -r -m0=LZMA2 -mx=9"

Game Tests and Settings

Ashes of Singularity

Version 1.31.21360
High Preset - 1920x1080, Mid Shadow Quality, 1x MSAA
Crazy Preset - 1920x1090, High Shadow Quality, 2x MSAA

F1 2015

2015 Season, Abu Dhabi Track, Rain
UltraHigh Preset, 16x AF

Metro Last Light Redux

Version 3.00 x64
High Quality, 1920x1080, High Tesselation
Very High Quality, 1920x1080, Very High Tesselation

The Talos Principle

Version 267252
Medium Preset, High Quality, High Tesselation, 4x AF
Ultra Preset, VeryHigh Quality, VeryHigh Tesselation, 16x AF
