Cross-Load Tests & Infrared Images
Our cross-load tests are described in detailĀ here.
To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature was between at 30°C (86°F) to 32°C (89.6°F).

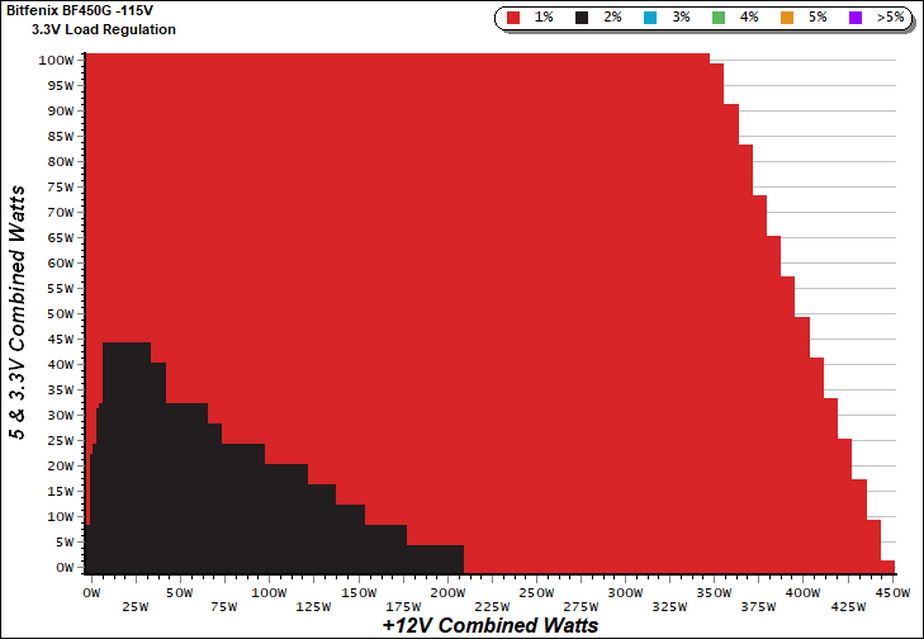

Load Regulation Charts
Efficiency Chart
The BF450G delivers between 90 to 92% efficiency for a quite large region.

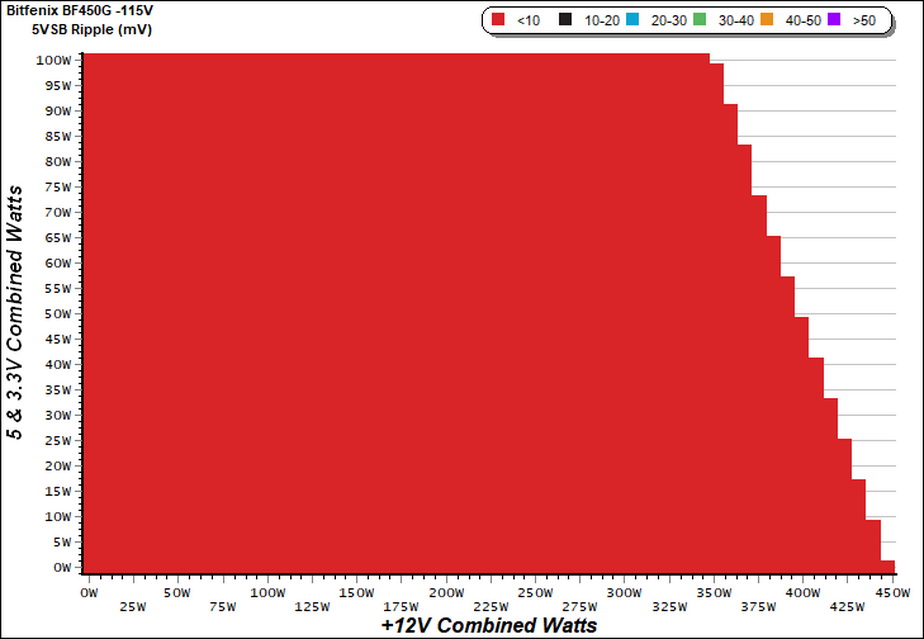

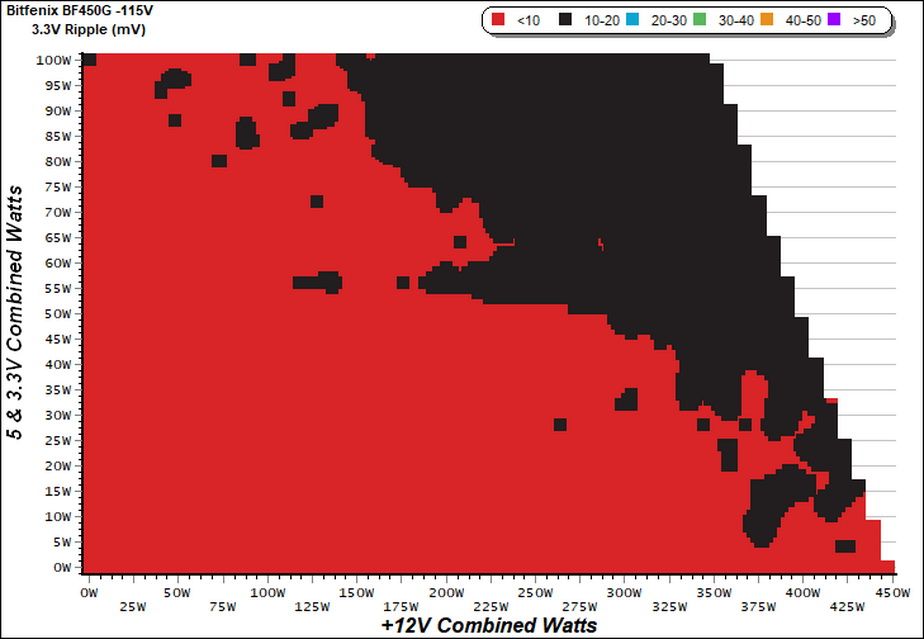

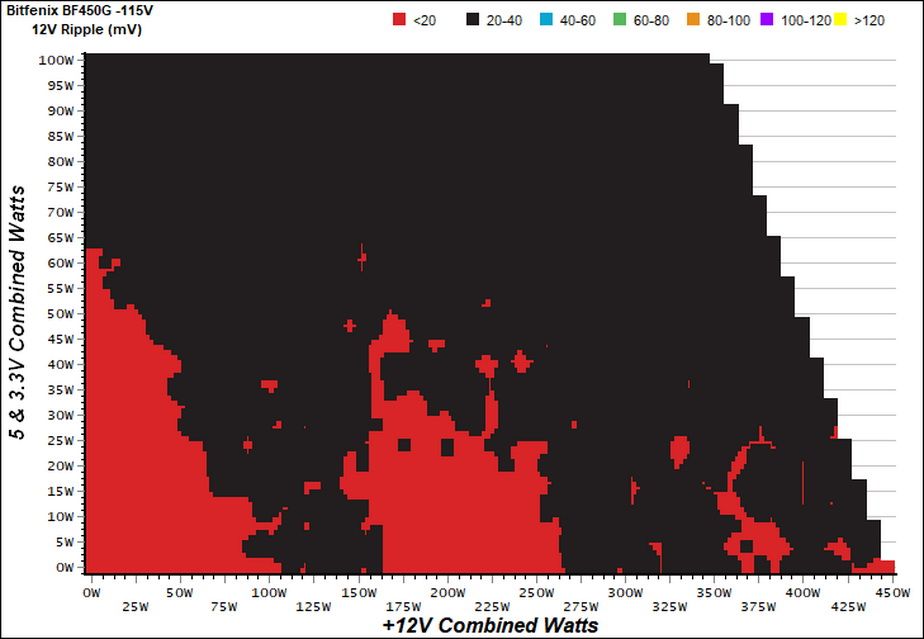

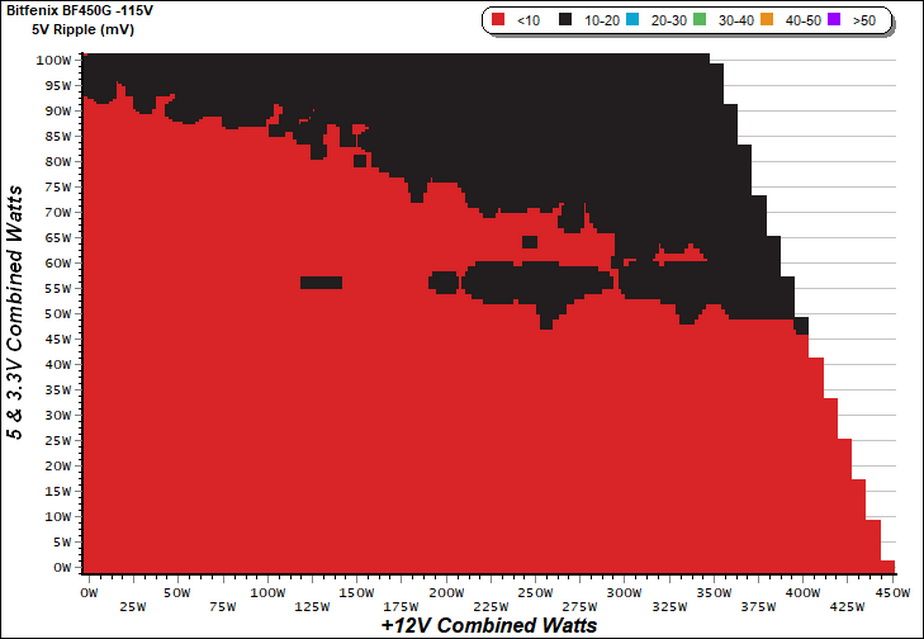

Ripple Charts
Infrared Images

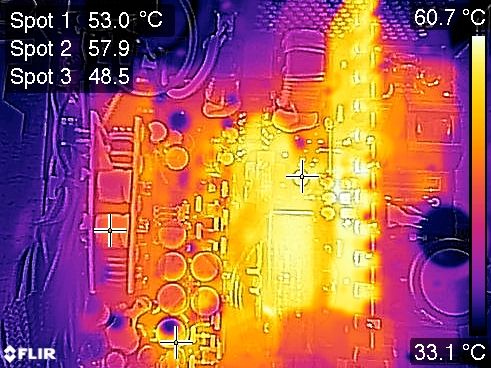

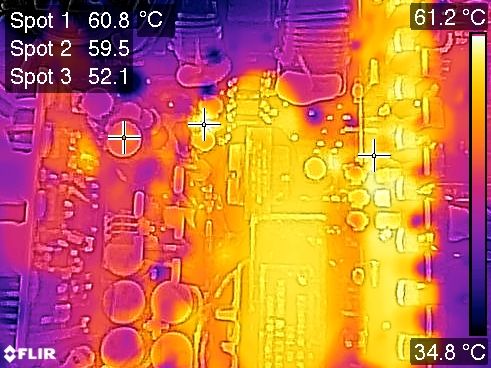

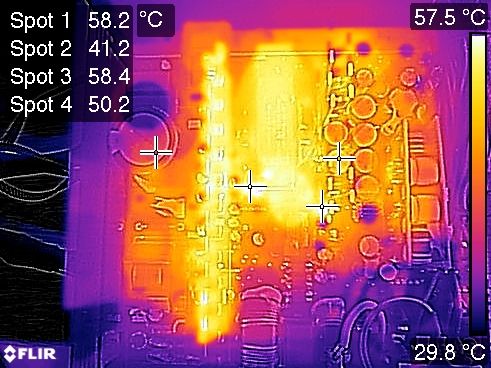

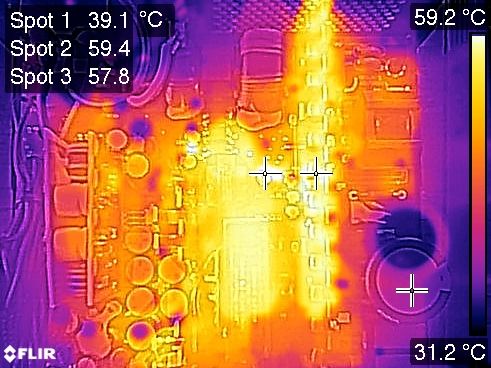

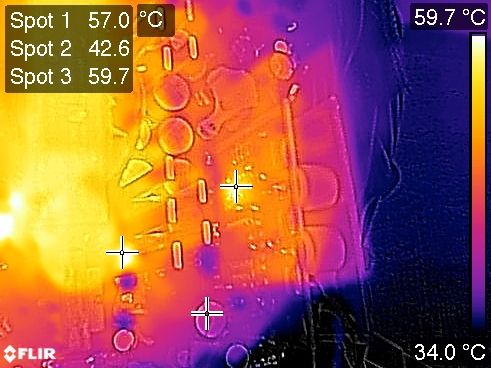

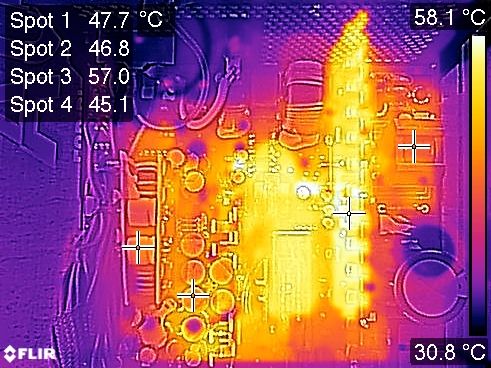

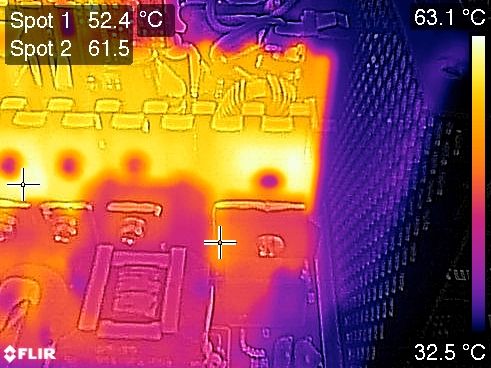

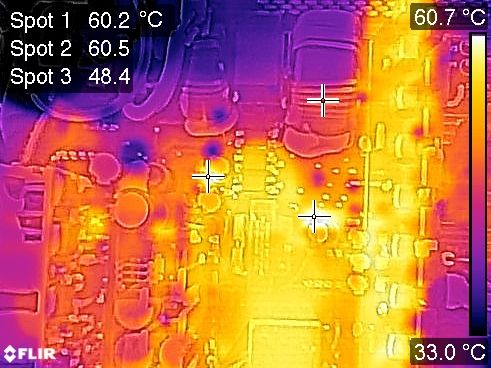

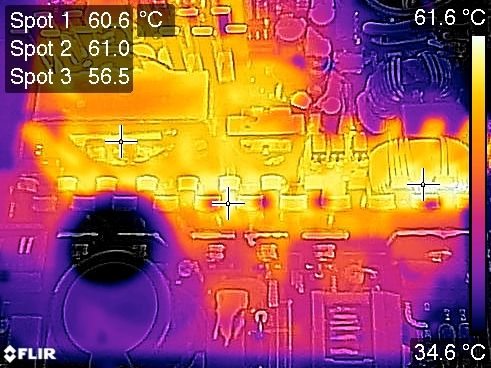

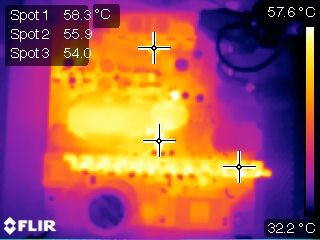

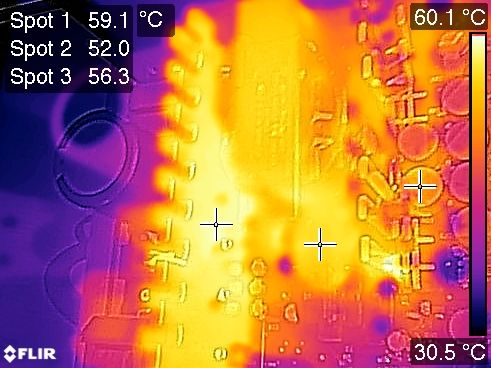

We applied half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).
Temperatures inside the BF450G are kept low thanks to reduced energy losses. That's why CWT used a relaxed fan profile and made the BF450G one of the quietest PSUs with active cooling. Only passive PSUs without coil whine issues can offer even quieter operation.
