System Builder Marathon: Performance & Value

Benchmark Results: Productivity

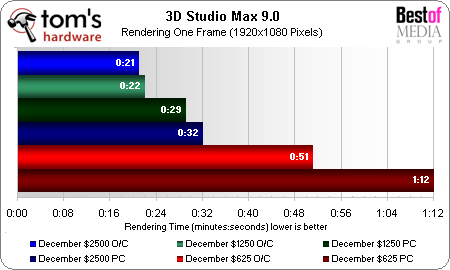

3D Studio Max was one of the first benchmarks to prove the full worth of quad-core processing, but it also appears to get at least some benefit from the new Core i7 architecture as well.

Photoshop CS3 isn’t optimized for modern quad-cores, which is why we’re anxious to see our benchmark team produce a script for CS4.

AVG 8 and WinRAR performance scales upward with both increased processing cores and increased clock speed, making only the $625 system appear slow.

Minimal performance differences between drastically different hardware configurations point to Winzip as a single-threaded application.

Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
  • one-shot
    My e6750 @ 3.7Ghz and ATI 4850 look kind of slow compared to these i7 based systems. :(
    Reply
  • very nice article. i love this series.
    Reply
  • skora
    Taken from Dec $625 SBM conclusion:

    Those who don’t want to go back and compare old charts will need to wait for the Performance Analysis to see how the two systems compare in straight-out gaming performance.

    Last line of the Dec $625 SBM:

    All that’s left now is to see how this system compares directly to last month's build and also to the other two more-expensive systems.

    So where is the head to head Dec vs Nov $625 analysis?
    Reply
  • Crashman
    9467210 said:
    Taken from Dec $625 SBM conclusion:

    Those who don’t want to go back and compare old charts will need to wait for the Performance Analysis to see how the two systems compare in straight-out gaming performance.

    Last line of the Dec $625 SBM:

    All that’s left now is to see how this system compares directly to last month's build and also to the other two more-expensive systems.

    So where is the head to head Dec vs Nov $625 analysis?

    Great question. The answer is unfortunate: There was a miscommunication between the $625 system editor and all the other editors.
    Reply
  • SirSuperSouthern
    The GTX 260 Core 216 triple threat allowed our $2,500 monster to chew through frames even at our highest setting.
    No it didn’t. Both Crysis and Supreme Commander were unplayable at 25x16 (TRUE highest setting), whereas they both had acceptable FPS in October’s build that paired two 4870X2s. The proof is sitting in this month’s $2,500 article, where the same group of games was compared to October’s “high-end” build @ 25x16. The final conclusion is simply not accurate as a result.

    Real conclusion:

    GPUs are currently experiencing an awkward, gangly teenage phase. They still desperately need to bulk up on GDDR5 RAM before they can be taken seriously, as evidenced by the one set of benchmarks brave enough to tell the embarrassing truth.

    Gaming @ 25x16 with 4xAA puts enormous strain on the GPUs RAM, which is why the 4870X2s were playable at that resolution while the 260s were not. The 260s GPU is obviously not the problem, it’s a good chip; but it only has 896MB of GDDR3 RAM which is completely inadequate for moving such a large payload. Its like trying to fit a bowling ball inside a garden hose.

    That said, spending $1,000 on two 4870X2s is not a very attractive option either. The next round of cards will have a minimum of 2GB GDDR5 RAM, possibly even 4, we’ll have to wait and see. You’ll be able to get better performance from one while at the same time saving a good deal of power.

    The bottom line is that if your goal is to run the most demanding games @ 25x16 with AA cranked, you best move is, sadly, to wait. I don’t like using that four-letter-word, but I thinks its appropriate in this case. Not only is the current line-up of GPUs RAM deficient, but Intel is coming out with a proper socket for its new LGA 1366 CPUs mid-’09. By that time prices will have dropped on not only the CPUs, RAM and motherboards, but the ABS Canyon 695 PC case might drop a few hundred dollars as well…
    Reply
  • V3NOM
    The dreaded power consumption test will surely disappoint fans of Intel's new Core i7, as these new processors are extremely power-hungry when overclocked.

    Reply
  • coopchennick
    SirSuperSouthern,

    I've read through all of your posts on the other articles and while I do agree with you that the best option now is probably just to wait, I don't really see an immediate solution from you. In the mean time, the articles must be made. I enjoy reading through these articles each month and I think THW did pretty much the best they could do -of course except for the RAM- at this particular time with the given budget marks (which have been chosen due to popular demand).

    Another thing is that the 4870's GDDR5 isn't benefiting the card any more than a 280's GDDR3 because of the narrower bus. Your bowling ball analogy works better for the 4870 - what must be limiting the 260 at 2560x1600 more so (as you pointed out) is the amount of memory.


    Overall, I enjoyed this set of articles - toying with the i7 and whatnot. Though we could have been a little more "mature" (supersouthern v crashman), I like to see these discussions flare up.


    Next month, screw the benchmarks and go with x64.
    I kind of like these price points how they are. Maybe I'm nuts but I don't find it as exciting to spend as much money as you can on each and every component rather than sticking to a (somewhat high for the "enthusiast" build) budget and seeing what type of performance I can get out of that. With the insano-crazy expensive builds, it always seems to me that they are just a little bit unimpressive considering the money spent, and totally impractical for gaining any knowledge for the majority of discerning computer builders who visit this site.

    Thanks for the articles
    Reply
  • randomizer
    1920x1200 Crysis performance on the $2500 system is a thing of beauty.
    Reply
  • Shit! $625 is still expensive for me.
    Reply
  • Crysis is the shittest game ever made
    Reply
