MyDigitalSSD BP5e Low-Cost TLC SSD Review

Reviews
By
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Four-Corner Performance Testing

Comparison Products
Crucial MX200 1TB
OCZ Vector 180 960GB
Samsung 850 EVO (1TB)

To read about our storage tests in-depth, please check out How We Test HDDs And SSDs. Four-corner testing is covered on page six of our How We Test guide.

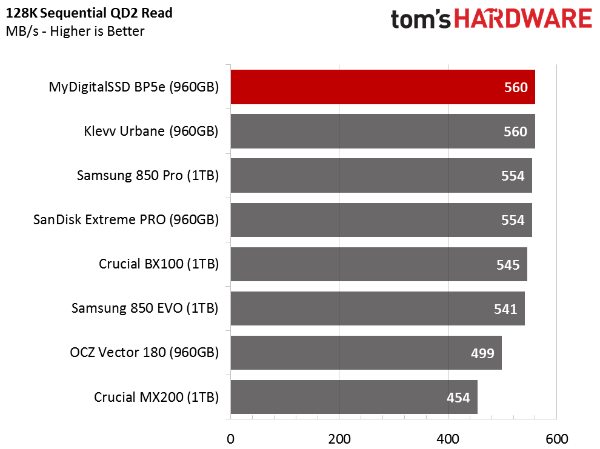

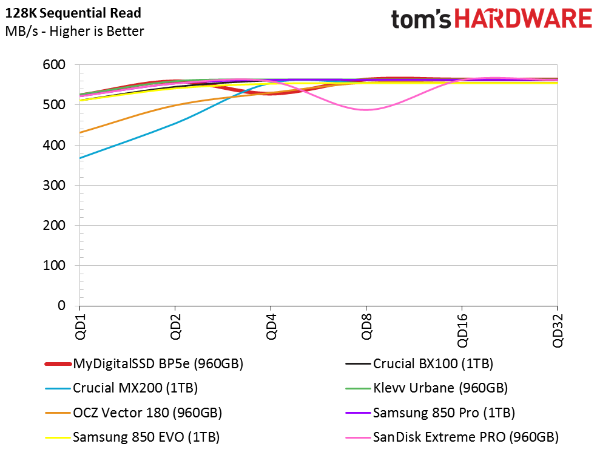

Sequential Read

Image 1 of 2

Regardless of whether it's complemented by MLC or TLC NAND, Phison's S10 controller blows through large-block sequential workloads. Both the MyDigitalSSD BP5e and Klevv Urbane utilize Toshiba flash. The Urbane comes armed with MLC on a Toggle-mode 2.0 interface, so you'd expect it to be faster. Don't tell that to the BP5e, though, because it's at the top of our chart in this test.

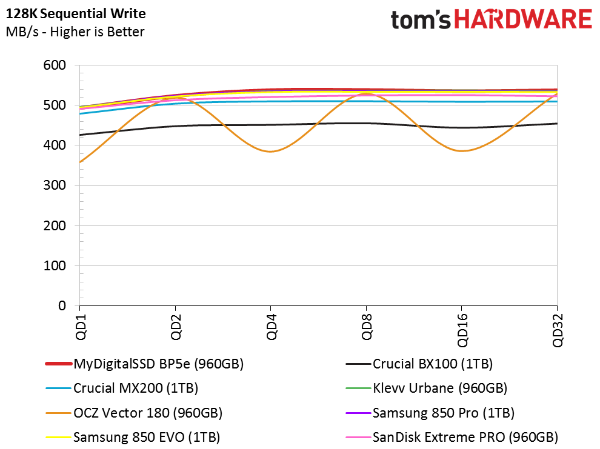

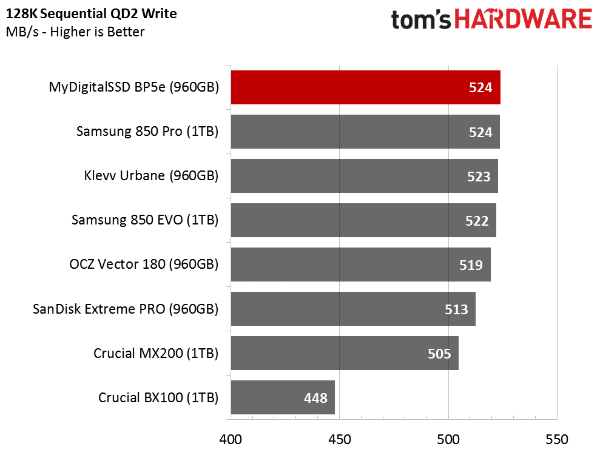

Sequential Write

Image 1 of 2

High performance that maxes out the real-world limits of SATA 6Gb/s carries over to our sequential write test, too. The BP5e doesn't waver much in this benchmark, which is something we often see from TLC-based SSDs.

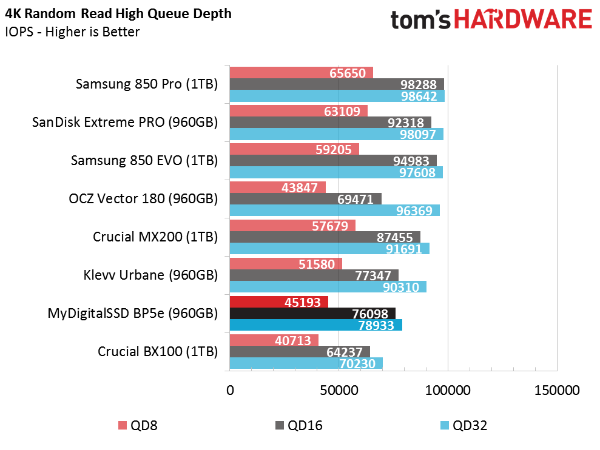

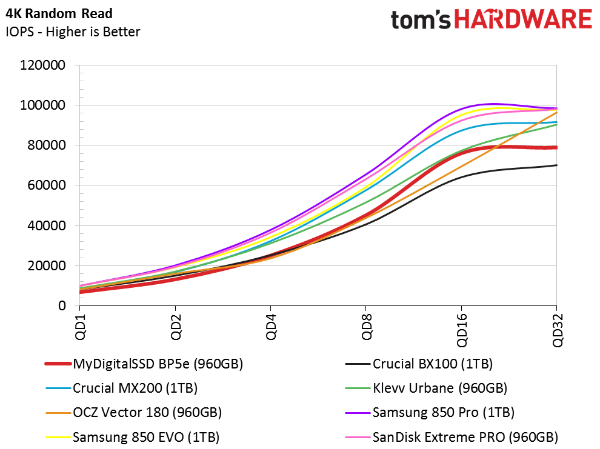

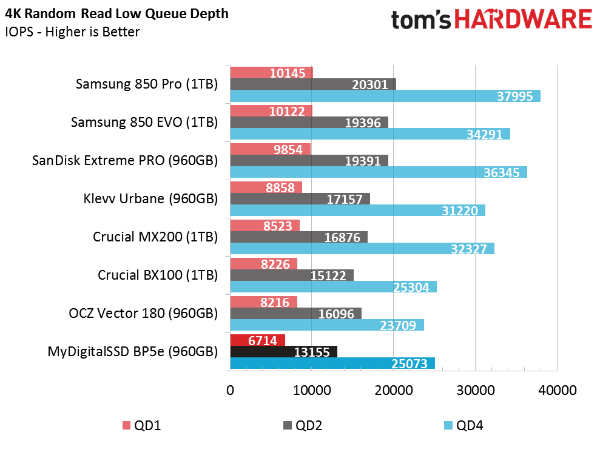

Random Read

Image 1 of 3

A high entropy rate (that means incompressible data) causes the BP5e's random read performance to suffer. It doesn't help that many of the drives on this chart are higher-end models. There simply aren't a lot of products in the low-cost segment to compare a 960GB BP5e.

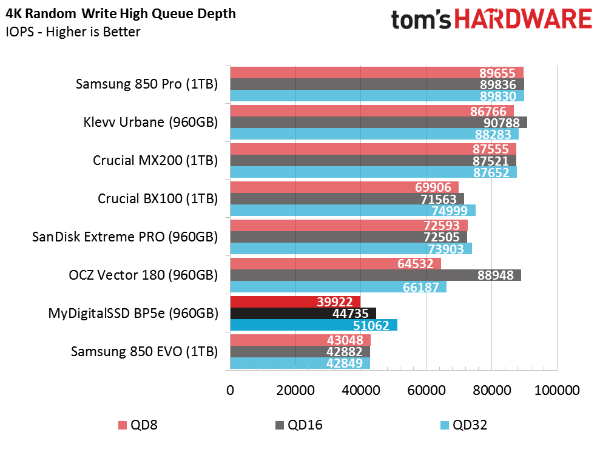

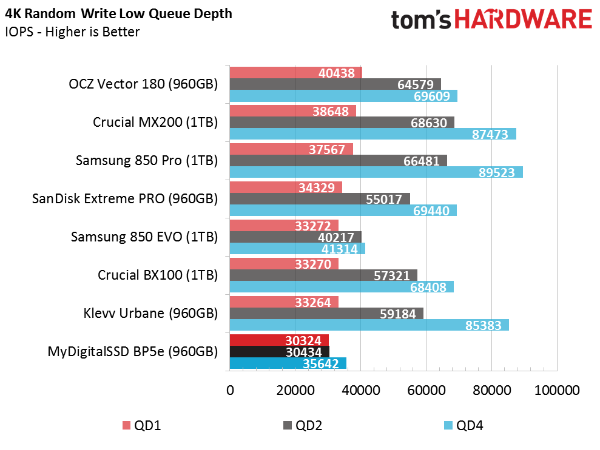

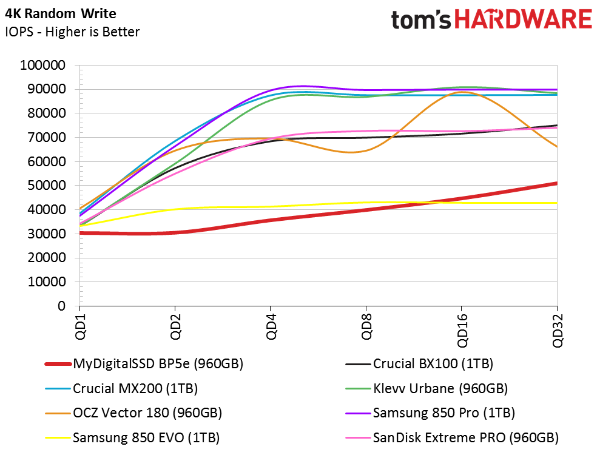

Random Write

Image 1 of 3

The BP5e demonstrates weak 4KB random write performance across the queue depth range. It doesn't scale well in our test, mainly because the emulated SLC buffer doesn't get much time to recover. As we see more inexpensive TLC-based drives, we'll look at revising our testing methods to let the buffer replenish fresh cells.
MyDigitalSSD BP5e 240GB
MyDigitalSSD BP5e 480GB
MyDigitalSSD BP5e 960GB

See more SSDs Reviews
