The Tests: Random, Sequential, DVD and Idle

Previous Next
1:40 AM - 07/14/2008 by Patrick Schmid and Achim Roos

Test 1: I/O Performance

The first test run utilizes the IOMeter workstation profile to stress the drives with a benchmark profile that is based on 80% read, 20% write, 80% random and 20% sequential access. The profile is based on an 8-KB block size and it delivers an average result of I/O operations per second during a defined part of the duration of the benchmark.

ssd hard drive

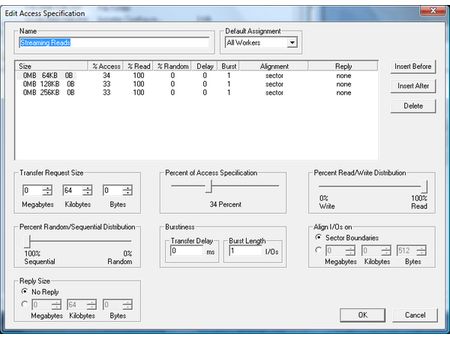

Test 2: Streaming Reads

Our second run also utilizes IOMeter, but this time we use a profile that executes only sequential reads. We use an equal distribution of 64-KB, 128-KB and 256-KB blocks here. The result represents the average amount of I/O operations per second for the given sequential workload.

ssd hard drive

Test 3: DVD Video Playback

A lot of people requested we run a test that would put the drives under a controlled load, such as a data stream for DVD video. We used the VLC player and broke out the good old Terminator 2 VOB file we’ve used in the past. We determined average power by measuring from second 1,000 to second 2,000 of the VOB file.

Test 4: Drive Idle

Finally, we wanted to know the idle power of all drives, since many people criticized how the Hitachi drive had an idle power high enough to invalidate some of the test results. As a matter of fact, different hard drives have different mechanisms to save power. And the Hitachi drive we used even has a power-saving state that can be applied while streaming DVD data. You’ll find more information in the appropriate benchmark section.

ssd hard drive We switched off the drive power saving options in Windows Vista to determine the actual hard drive idle power.
