Build Your Own Mini-PC for $80

By Daniel Schuhmann
published

CPU On-Board: Intel Celeron 220

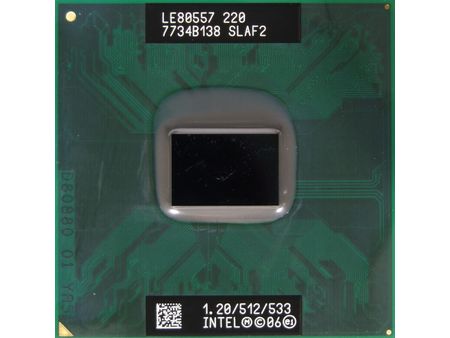

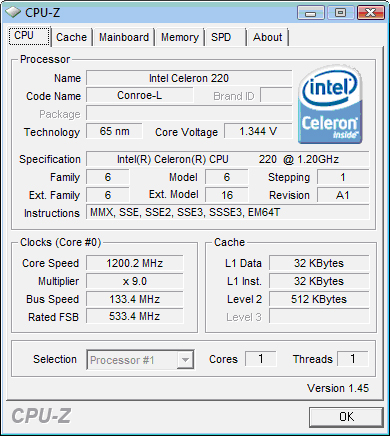

Intel’s D201GLY2 motherboard comes with an Intel Celeron 220 CPU soldered directly onto the board. This single-core processor uses the Conroe-L design, based on the 65 nm Conroe architecture.

The Celeron 220 is the successor to the Yonah-based Celeron 215. Intel used this part on its previous D201GLY board.

Like all of Intel’s Celeron models, the 220 does not possess the SpeedStep power saving feature. The CPU is also not sold separately.

Swipe to scroll horizontally
FeaturePentium Dual-CoreCeleron 220
CoreAllendaleConroe-L
Process65 nm65 nm
Socket775479
L1-Cache32-KB Data 32-KB Data32-KB Data 32-KB Data
L2-Cache1 MB512 KB
FSB200 MHz (800QDR)133 MHz (533QDR)
64 BitEM64TEM64T
Multimedia ExtensionsMMX SSE SSE2 SSE3 SSSE3MMX SSE SSE2 SSE3 SSSE3
Hyperthreading--
VirtualizationVT-
Power SavingC1E Speedstep-
Thermal MonitorTM1&2TM1&2
Execution PreventionXD bitXD bit

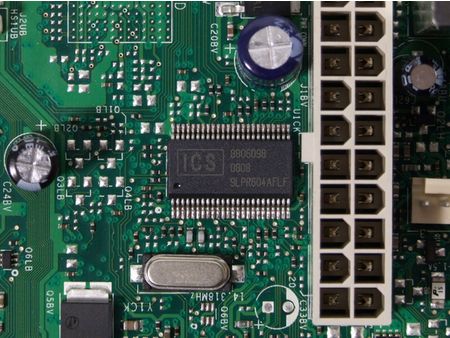

Since the BIOS does not offer any FSB speed controls, overclocking through bus speed manipulation is not an option. Our review board used the ICS 9LPR604AFLF clock generator; other versions use the 9LPR604AGLF that can be adjusted using software tools. This, unfortunately, did not work on our board.
