EVGA Z170 Classified Review

Reviews
By
published

Skylake processors offer great per-core performance and overclocking capability, but only have sixteen PCIe 3.0 lanes for graphics. EVGA has a solution, but is it worth the added cost?

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

How We Test & Results

How We Test

Test System Components

We’re using our standardized test system, minus its LGA 2011 motherboard, CPU and DDR4-2400, to measure the performance of every LGA 1151 test board. Replacements for those parts include today’s Z170 Classified motherboard, Intel’s Core i7-6700K, and G.Skill’s overclockable Ripjaws V DDR4-3600.

Drivers

Swipe to scroll horizontally
GraphicsGeForce 353.30
ChipsetIntel INF 10.0.27

Benchmark Suite

Swipe to scroll horizontally
Synthetics
3DMark 11Version: 1.0.5.0, Benchmark Only
3DMark ProfessionalVersion: 1.2.250.0 (64-bit), Fire Strike Benchmark
PCMark 8Version: 1.0.0 x64, Full Test
SiSoftware SandraVersion 2014.02.20.10, CPU Test = CPU Arithmetic / Multimedia / Cryptography, Memory Bandwidth Benchmarks
Games
Battlefield 4Version 1.0.0.1, DirectX 11, 100-sec. Fraps "Tashgar"Test Set 1: Medium Quality Preset, No AA, 4X AF, SSAOTest Set 2: Ultra Quality Preset,  4X MSAA, 16X AF, HBAO
Grid 2Version 1.0.85.8679, Direct X 11, Built-in BenchmarkTest Set 1: High Quality, No AATest Set 2: Ultra Quality, 8x MSAA
Arma 3Version 1.08.113494, 30-Sec. Fraps "Infantry Showcase"Test Set 1: Standard Preset, No AA, Standard AFTest Set 2: Ultra Preset, 8x FSAA, Ultra AF
Far Cry 3V. 1.04, DirectX 11, 50-sec. Fraps "Amanaki Outpost"Test Set 1: High Quality, No AA, Standard ATC, SSAOTest Set 2: Ultra Quality, 4x MSAA, Enhanced ATC, HDAO
Applications
Adobe After Effects CCVersion 12.0.0.404: Create Video which includes 3 Streams, 210 Frames, Render Multiple Frames Simultaneosly
Adobe Photoshop CCVersion 14.0 x64: Filter 15.7MB TIF Image: Radial Blur, Shape Blur, Median, Polar Coordinates
Adobe Premeire Pro CCVersion 7.0.0 (342), 6.61 GB MXF Project to H.264 to H.264 Blu-ray, Output 1920x1080, Maximum Quality
iTunesVersion 11.0.4.4 x64: Audio CD (Terminator II SE), 53 minutes, default AAC format
Lame MP3Version 3.98.3: Audio CD "Terminator II SE", 53 min, convert WAV to MP3 audio format, Command: -b 160 --nores (160 kb/s)
Handbrake CLIVersion: 0.99: Video from Canon Eos 7D (1920x1080, 25 FPS) 1 Minutes 22 SecondsAudio: PCM-S16, 48000 Hz, 2-Channel, to Video: AVC1 Audio: AAC (High Profile)
TotalCodeStudio 2.5Version: 2.5.0.10677: MPEG-2 to H.264, MainConcept H.264/AVC Codec, 28 sec HDTV 1920x1080 (MPEG-2), Audio: MPEG-2 (44.1 kHz, 2 Channel, 16-Bit, 224 kb/s), Codec: H.264 Pro, Mode: PAL 50i (25 FPS), Profile: H.264 BD HDMV
ABBYY FineReaderVersion 10.0.102.95: Read PDF save to Doc, Source: Political Economy (J. Broadhurst 1842) 111 Pages
Adobe Acrobat 11Version 11.0.0.379: Print PDF from 115 Page PowerPoint, 128-bit RC4 Encryption
Autodesk 3ds Max 2013Version 15.0 x64: Space Flyby Mentalray, 248 Frames, 1440x1080
BlenderVersion: 2.68A, Cycles Engine, Syntax blender -b thg.blend -f 1, 1920x1080, 8x Anti-Aliasing, Render THG.blend frame 1
Visual Studio 2010Version 10.0, Compile Google Chrome, Scripted
WinZipVersion 18.0 Pro: THG-Workload (1.3 GB) to ZIP, command line switches "-a -ez -p -r"
WinRARVersion 5.0: THG-Workload (1.3 GB) to RAR, command line switches "winrar a -r -m3"
7-ZipVersion 9.30 alpha (64-bit): THG-Workload (1.3 GB) to .7z, command line switches "a -t7z -r -m0=LZMA2 -mx=5"

Comparison Motherboards

ASRock Z170 Extreme6

Biostar Gaming Z170X

ECS Z170-Claymore

Test Results

Synthetics

Image 1 of 7

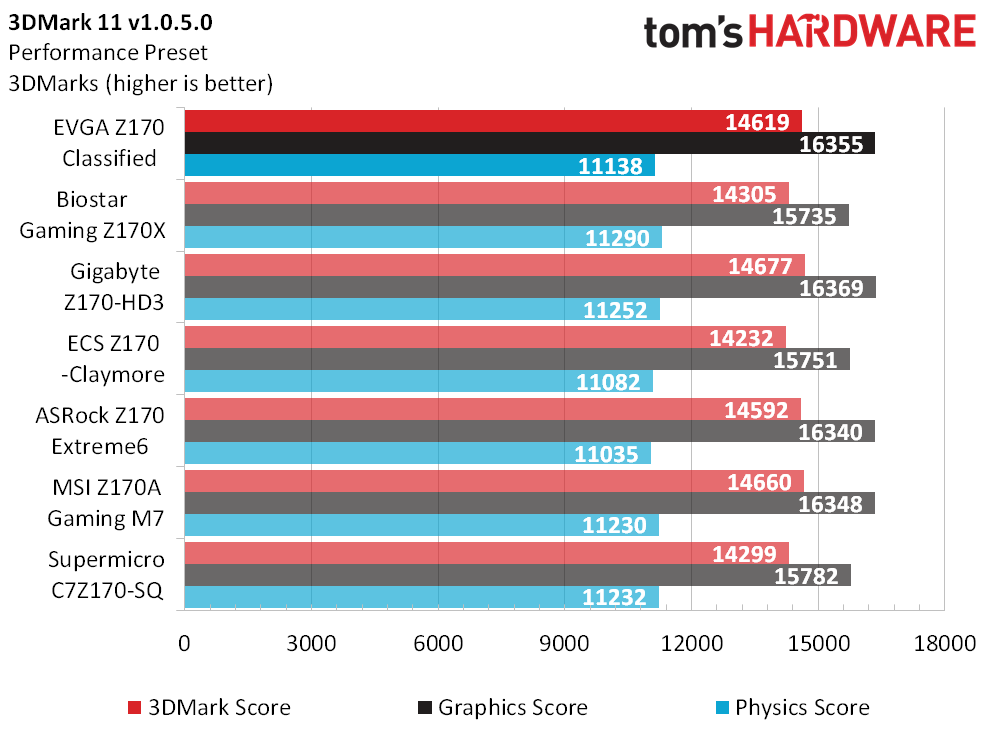

The Z170 Classified runs with the top half of competitors in the majority of synthetic benchmarks, which is good news for us since any standouts usually require in-depth investigation. Simply put, it’s no longer possible to get more performance out of a CPU or GPU without overclocking, and overclocking one product without overclocking its competitors would be unfair.

Gaming

Image 1 of 4

The Z170 Classified fell slightly behind at the DRAM-bottlenecked “High” preset of Grid 2, but pulled slightly ahead at our “High Quality” settings in Far Cry 3. Retests proved both of these results consistent, and the average of all games shows that the Z170 Classified produces average performance when using a single graphics card on its CPU-connected top slot.

Productivity

Image 1 of 4

Two of EVGA’s competitors pulled ahead slightly in our Adobe Premiere test, but the Z170 Classified finished so close to the top in so many tests that it retained 99.9% the performance of the average of all tested products.

Power, Heat & Efficiency

Image 1 of 4

The Z170 Classified needs a few extra watts at idle, probably to power the few extra parts that make it a premium board, but still keeps full-load wattage reasonable. It’s 1.6% above average efficiency results from the Z170-Claymore’s downward pull on the curve.
