Protection Features, DC Power Sequencing, Cross-Load Tests and Infrared Images
Protection Features
Check out our PSUs 101 article to learn more about PSU protection features.
| Protection Features | |
| OCP | 12V: 82.8A (116.95%), 11.927V 5V: 31.6A (158%), 5.011V 3.3V: 33.2A (166%), 3.255V 5VSB: 3.9A (156%), 5.028V |
| OPP | 1024.25W (120.5%) |
| OTP | ✓ (121°C @ 12V heat sink) |
| SCP | 12V: ✓ 5V: ✓ 3.3V: ✓ 5VSB: ✓ -12V: ✓ |
| PWR_OK | Accurate but lower than 16ms |
| NLO | ✓ |
| SIP | Surge: MOV Inrush: NTC Thermistor & Bypass Relay |
The OCP triggering points on the 5V and 3.3V rails are way too high. Normally, they should be within 130%. The OCP and OPP features are properly configured and the over-temperature protection is working well. Finally, the power OK signal is accurate, but its hold-up time is lower than 16ms, which is what the ATX spec requires.

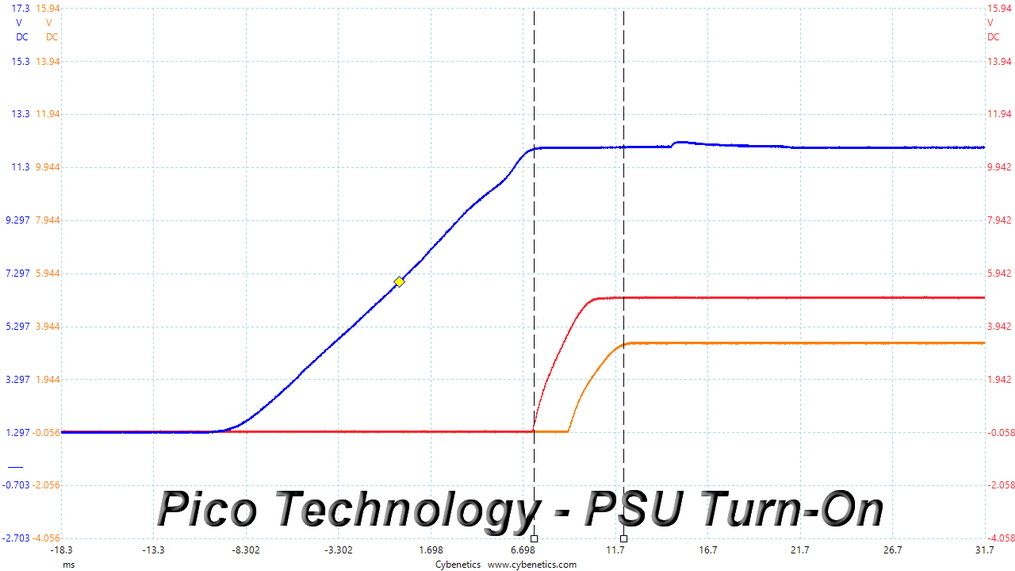

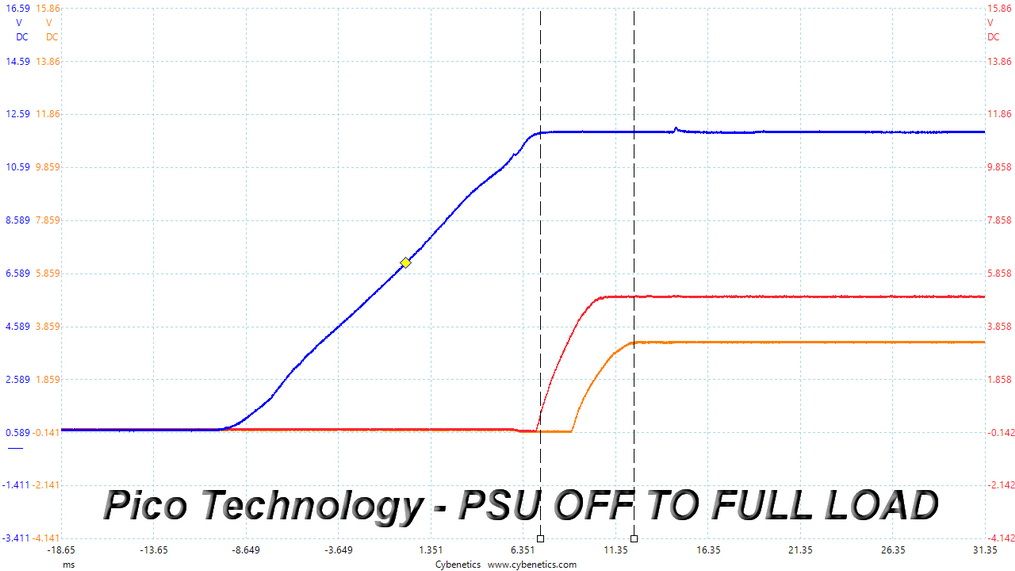

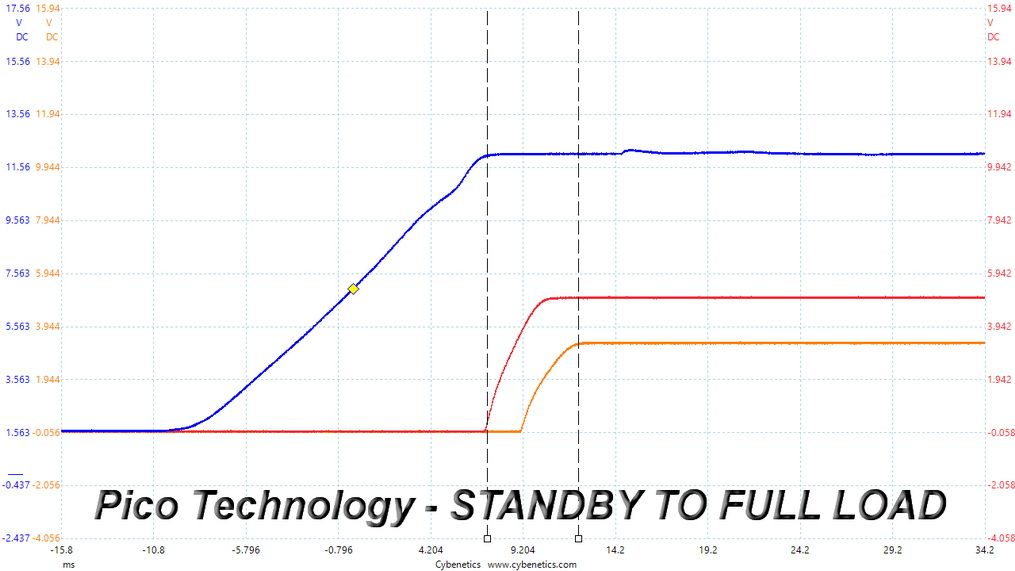

DC Power Sequencing
According to Intel’s most recent Power Supply Design Guide (revision 1.4), the +12V and 5V outputs must be equal to or greater than the 3.3V rail at all times. Unfortunately, Intel doesn't mention why it is so important to always keep the 3.3V rail's voltage lower than the levels of the other two outputs.
Fine performance here.
Cross Load Tests
To generate the following charts, we set our loaders to auto mode through custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature during testing was between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

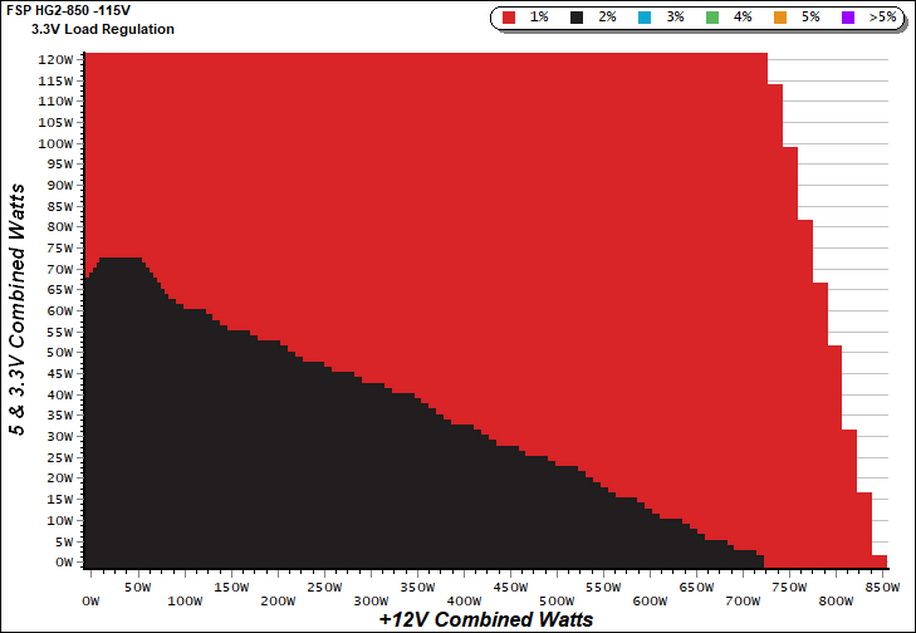

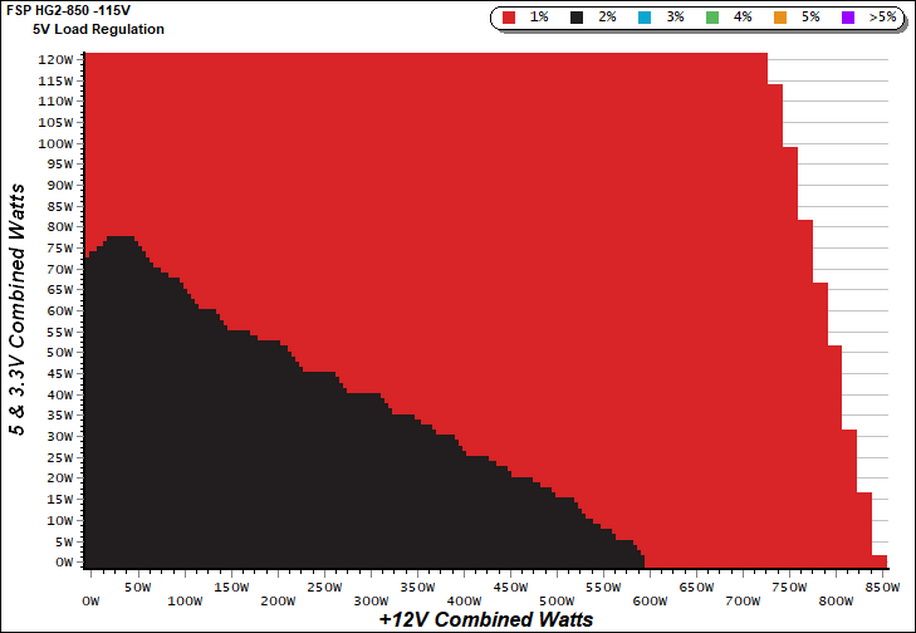

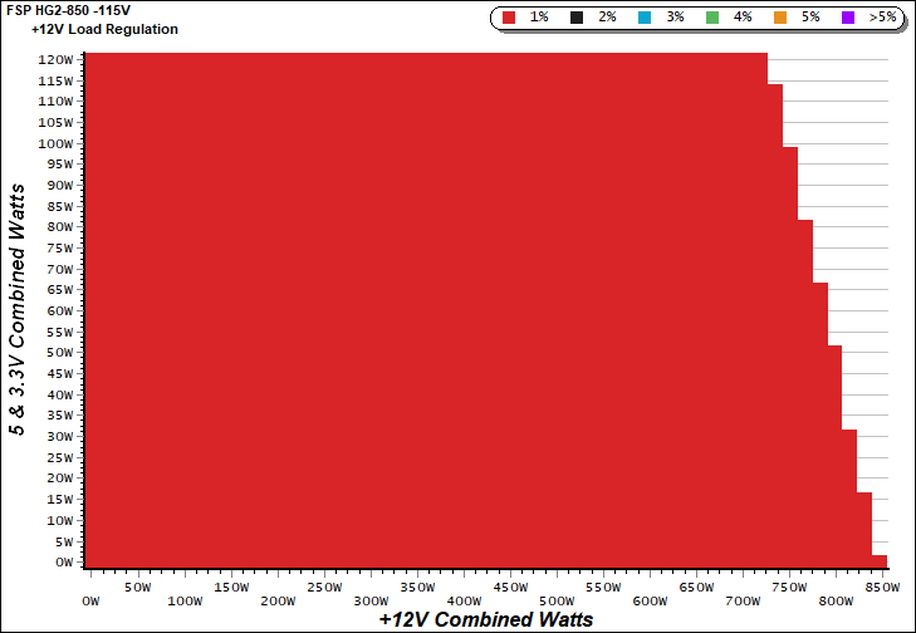

Load Regulation Charts
Efficiency Chart

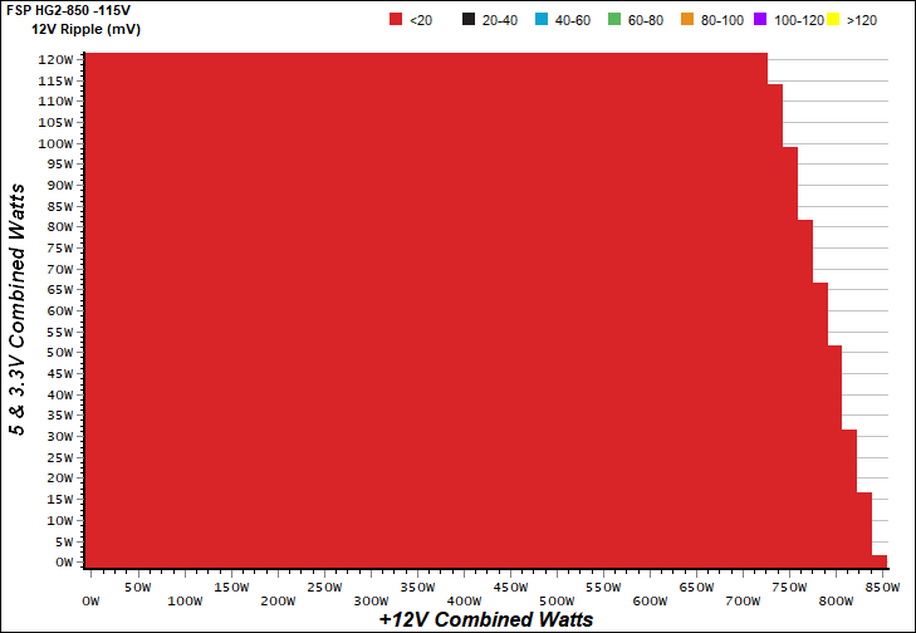

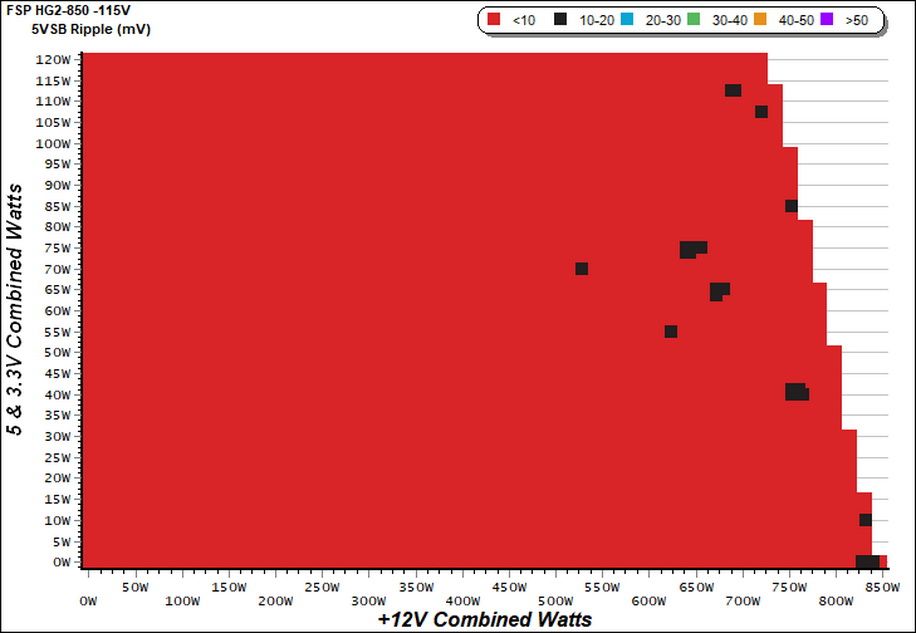

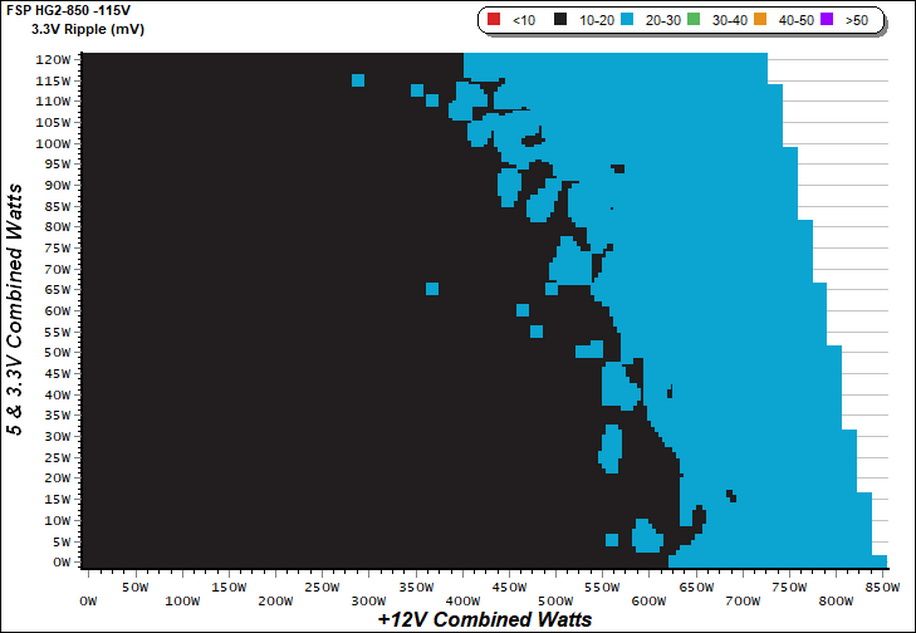

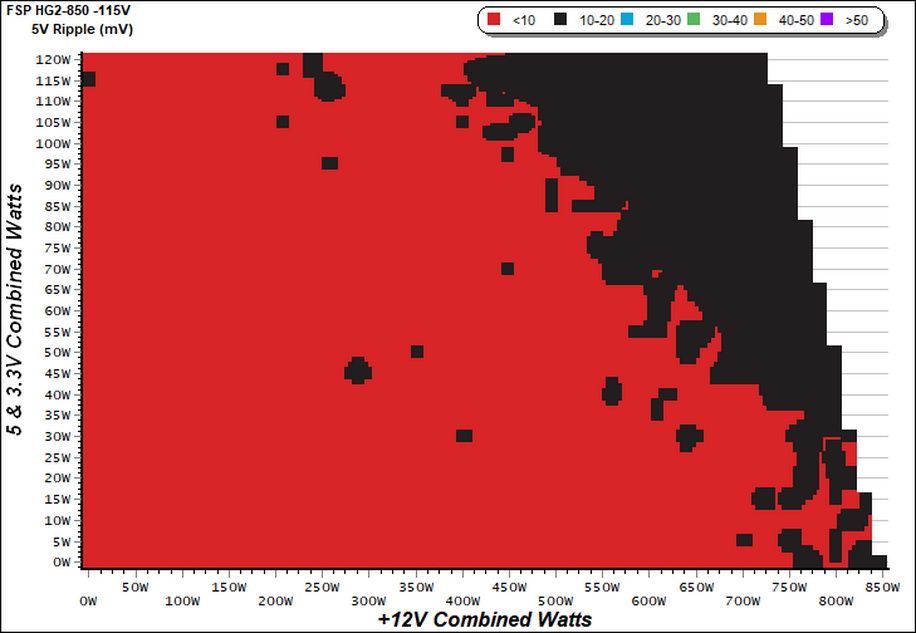

Ripple Charts
The lower the power supply's ripple, the more stable the system will be and less stress will also be applied to its components.

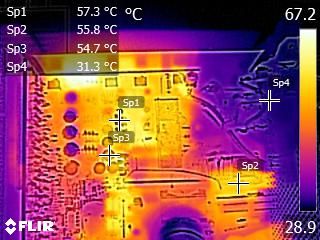

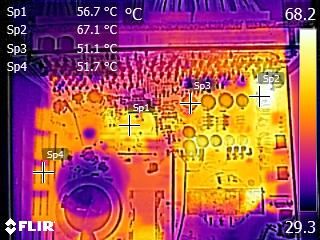

Infrared Images

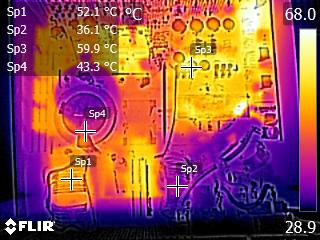

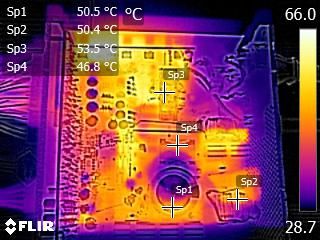

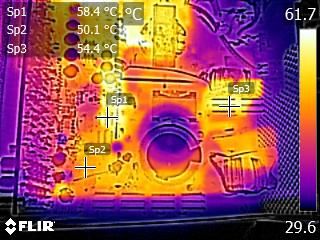

We apply a half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with a modified FLIR E4 camera able to deliver an IR resolution of 320x240 (76,800 pixels).
We notice low temperatures here, so there is no reason for an aggressive fan speed profile.
