Intel Soon Shipping Fanless "Bay Trail" NUC Mini PC

By - Source: Intel

Intel's mini PC will start shipping towards the end of the month.

Intel revealed on Monday that its fanless NUC kit will begin shipping on April 28. The company calls it a "pint-sized powerhouse," packing a single-core Atom E3815 processor clocked at 1.46 GHz. The device targets value-conscious businesses and organizations.

"With its vertical industrial design and support for Linux and Windows Embedded operating systems, this Intel NUC was designed as the essential building block to power the thin-client market," reads the company's announcement. "A fanless kit with flash storage built in, and USB3 and audio headset support, this Intel NUC fits right at home in schools, call centers, and other locations with a large installed base of VGA monitors."

According to the specs, the NUC kit includes a DDR3L SO-DIMM single-channel slot for up to 8 GB of memory, 4 GB of internal storage, and support for a 2.5-inch HDD or SSD up to 9.5 mm thickness. There's also Intel HD Graphics, an embedded DisplayPort (1.3), one VGA port, and an HDMI 1.4a port. For networking, there's an Ethernet port, and a half-length PCIe mini-card slot and wireless antennas pre-installed.

But that's not all. This kit also provides three internal USB 2.0 ports, two USB 2.0 ports on the back and one USB 3.0 port on the front. Other features include a fanless design, Discrete Trusted Module (TPM 1.2), two serial port headers, a vertical stand, a VESA mount bracket and support for a Kensington lock. The enclosure features a metallic grey plastic ring with black sides, and the overall dimensions are 190 x 116 x 40 mm.

"The Intel NUC Kit DE3815TYKHE also provides an ideal combination of power consumption, performance, affordability, and software compatibility to drive light digital signage, point-of-sale, and kiosk solutions, amongst other usages," states the announcement.

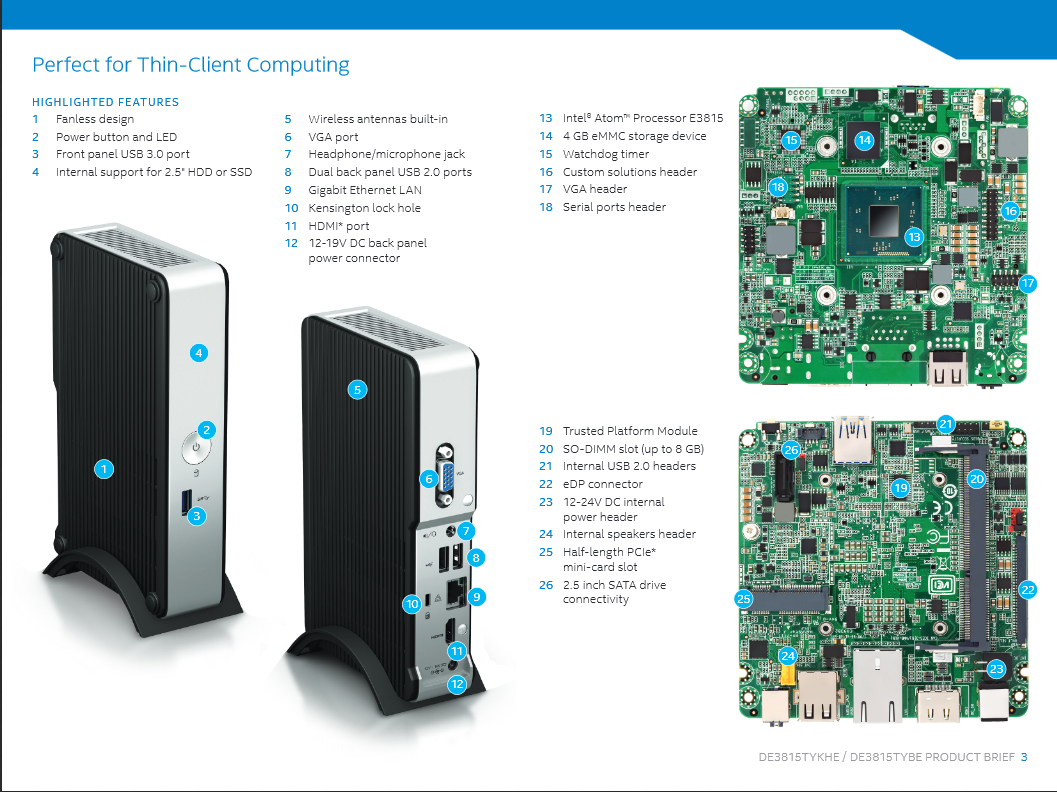

That all said, the only hardware customers have to add to this kit is the RAM and a possible hard drive or SSD. To see the full layout, check out the screenshot below.

Discuss
Add your comment Display all 18 comments.
  • 3 Hide
    iceman26 , April 21, 2014 6:51 PM
    now i think this will be a good build as a download machine only but i hope the price will be good too
  • 1 Hide
    jasonelmore , April 21, 2014 7:29 PM
    The idea is to have one big PC somewhere in the same building with lots of cores and ram and then run these "thin" clients in each room, allocating each with 2 cores and 4GB of ram. You could run 4-6 workstations off the main server, instead of buying full fledged workstations for each user. Very cost effective. I'm really glad to see gigabit ethernet, because that's gonna really make image quality good.
  • 2 Hide
    joraph , April 21, 2014 10:43 PM
    This is a very good & i hope Intel won't kill with a very high price..
  • 2 Hide
    agnickolov , April 21, 2014 11:29 PM
    Running centralized workstations with thin clients is not necessarily cheaper on the hardware (quite the opposite usually). It's cheaper on maintenance (TCO) however, as well as far easier to secure.
  • -4 Hide
    delazaren , April 22, 2014 2:42 AM
    Quote:
    The idea is to have one big PC somewhere in the same building with lots of cores and ram and then run these "thin" clients in each room, allocating each with 2 cores and 4GB of ram. You could run 4-6 workstations off the main server, instead of buying full fledged workstations for each user. Very cost effective. I'm really glad to see gigabit ethernet, because that's gonna really make image quality good.

  • 0 Hide
    delazaren , April 22, 2014 2:44 AM
    How would you use these as thin clients? Would you connect for example to a windows server using remote desktop?

    p.s. cannot believe that I cannot delete my own comments, anyway...
  • 1 Hide
    Pherule , April 22, 2014 2:44 AM
    "Atom" "Powerhouse" - yeah nah
  • 0 Hide
    InvalidError , April 22, 2014 3:06 AM
    Quote:
    The idea is to have one big PC somewhere in the same building with lots of cores and ram and then run these "thin" clients in each room, allocating each with 2 cores and 4GB of ram. You could run 4-6 workstations off the main server, instead of buying full fledged workstations for each user.

    What does the average non-gamer, non-professional would use anything remotely close to a workstation/server-class PC for? For about 80% of the people I know, the NUC would be perfectly suitable as a PC replacement as-is.
  • 1 Hide
    fokka , April 22, 2014 5:00 AM
    Quote:

    What does the average non-gamer, non-professional would use anything remotely close to a workstation/server-class PC for? For about 80% of the people I know, the NUC would be perfectly suitable as a PC replacement as-is.


    as long as they don't watch youtube in fullscreen. i'm all for adequate, non-overpowered systems, but a single-core atom leaves a bit to be desired.
  • 2 Hide
    Haravikk , April 22, 2014 5:22 AM
    This doesn't really seem powerful enough even as a thin-client. Personally I'd much rather build AM1 based systems for $200-300 and backing them with a much less expensive server. Even a basic dual core AM1 processor should handle office type tasks quite happily, and I really don't see a single-core NUC setup being used for much more, regardless of the server backing it.
  • 0 Hide
    stevenrix , April 22, 2014 5:49 AM
    I own 2 of these boxes (the Intel DN2820FYKH) which is really similar to this model since it's a baytrail. I use them either as seedbox or HTPC, it has a high latency and these machines are very bad at multitasking. I like them for their low energy cost, until Intel is ready to release a NUC that works with solar energy.
  • 0 Hide
    f-14 , April 22, 2014 6:41 AM
    this is what your pc could be like if windows 98 or XP were still supported. it's even faster than most of the pc's of those eras (60%)

    Quote:
    this Intel NUC fits right at home .......... call centers, and other locations with a large installed base of VGA monitors.
    Quote:

    most call centers i know of run 2-4 23" screens that are barely powered by 5 year old mobile laptops...this thing would only power 2 19" screens sluggishly at best i know an ODB that would instantly have this thing max core before full installation let alone integration... i don't see how it's going manage all of this while running a vpn as a thin client unit and do so adequately.

    this would be a better product marketed towards home users for basic computing or 2nd/3rd world countries
  • 1 Hide
    AngryCorgi , April 22, 2014 7:40 AM
    Something is fishy. Max 8GB does not mesh with Intel's documentation for the CPU stating a maximum of 4GB.
  • 2 Hide
    InvalidError , April 22, 2014 8:13 AM
    Quote:
    Something is fishy. Max 8GB does not mesh with Intel's documentation for the CPU stating a maximum of 4GB.

    Since all of Intel's other CPUs support 8GB DIMMs and only the two lowest-end Atom 38xx models have this odd 4GB limit, my guess it is an ARK database typo... but I cannot confirm with the datasheets since they appear to be missing from the Atom datasheet download page

    Edit: found the datasheet located in the developers' resources instead of the Atom Family datasheet page...
    http://www.intel.com/content/www/us/en/intelligent-systems/bay-trail/atom-e3800-family-datasheet.html

    P.268: 4GB max per rank so with a dual-rank (double-sided) module, you can get 8GB per channel.
  • 3 Hide
    OptimusPavlos1 , April 22, 2014 11:54 AM
    "Powerhouse" made me laugh.
  • 0 Hide
    AngryCorgi , April 22, 2014 1:42 PM
    Quote:
    Quote:
    Something is fishy. Max 8GB does not mesh with Intel's documentation for the CPU stating a maximum of 4GB.

    Since all of Intel's other CPUs support 8GB DIMMs and only the two lowest-end Atom 38xx models have this odd 4GB limit, my guess it is an ARK database typo... but I cannot confirm with the datasheets since they appear to be missing from the Atom datasheet download page

    Edit: found the datasheet located in the developers' resources instead of the Atom Family datasheet page...
    http://www.intel.com/content/www/us/en/intelligent-systems/bay-trail/atom-e3800-family-datasheet.html

    P.268: 4GB max per rank so with a dual-rank (double-sided) module, you can get 8GB per channel.


    Nice research job!
  • 0 Hide
    Wisecracker , April 23, 2014 8:25 AM

    This, apparently, is the next iteration of a updated "Minnowboard" - Bay Trail (Fail) version for Debian 'Nix and Android (think Raspberry Pi in a fancy package).

    The original Minnowboard was $200 and the new version -a decent upgrade over the original- will (reportedly) be $100 - each without the fancy cabinet.

    It's hard to see any competition from the Minnows for goodies like the ZBox Nanos -- especially the Kabini/Temash versions.




  • -1 Hide
    genz , April 23, 2014 8:45 AM
    Quote:
    This doesn't really seem powerful enough even as a thin-client. Personally I'd much rather build AM1 based systems for $200-300 and backing them with a much less expensive server. Even a basic dual core AM1 processor should handle office type tasks quite happily, and I really don't see a single-core NUC setup being used for much more, regardless of the server backing it.


    Yes, but that system will use around 1/2 to 1/5 the power. If you are in a situation where you need large availability, but not all clients will likely be used at once (like say a school for example, when the classes are full, the library is empty, and not all classes are actually using their computers all the time) then the thinner and more power efficient the client the more money that can be spent on a fat host.
