Inno3D Launches New GTX 1080 And GTX 1060 GPUs With Faster Memory

Inno3D announced three new GeForce 10-series graphics cards, with each sporting increased memory speeds. Meet the Inno3D GeForce GTX 1080 11Gbps iChill X3 and X4, and their speedy little brother, the GTX 1060 9Gbps iChill X3.

Two 1080s

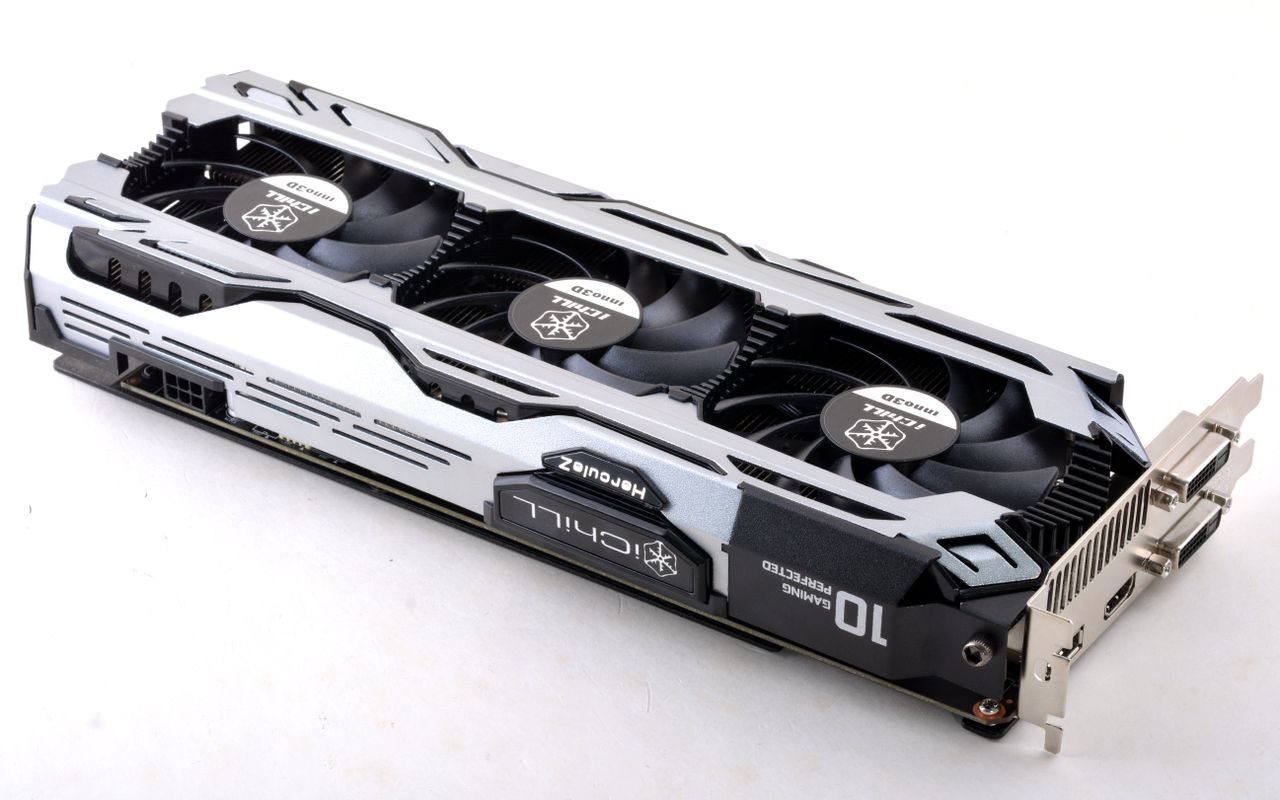

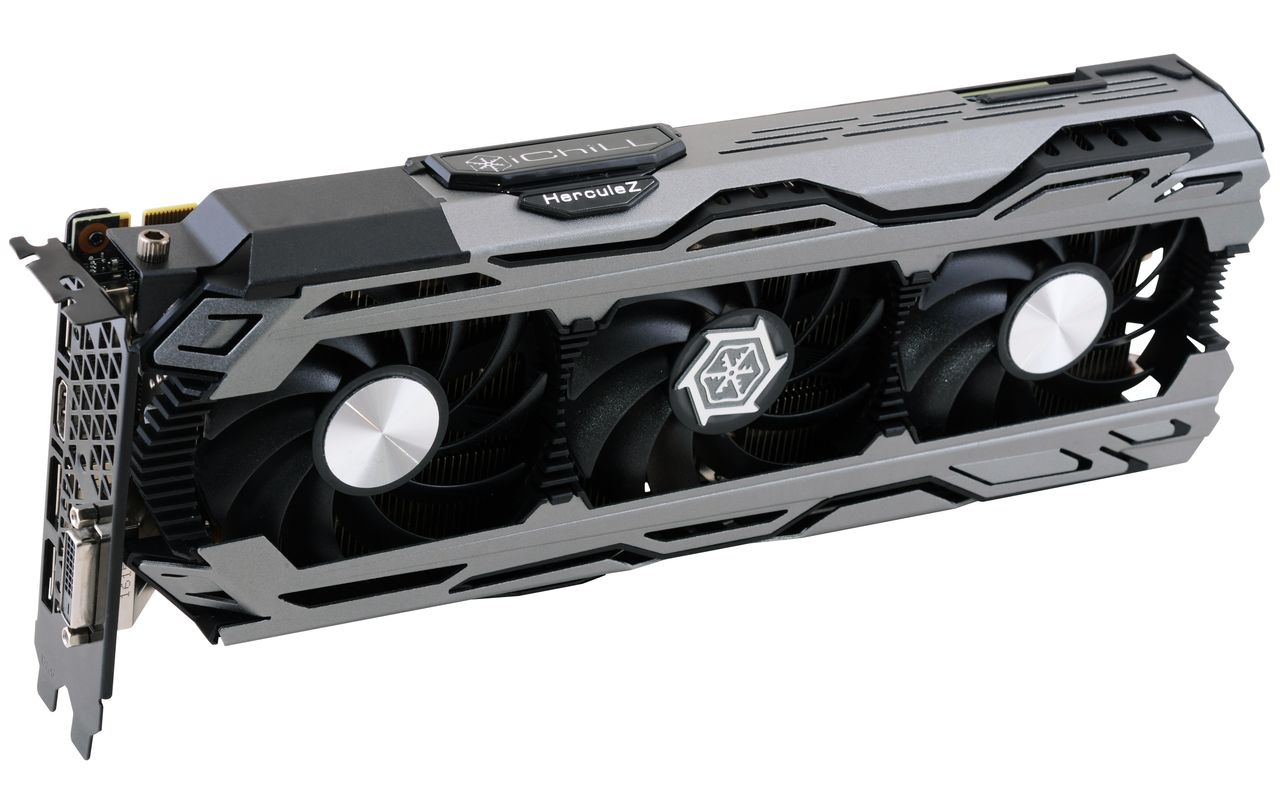

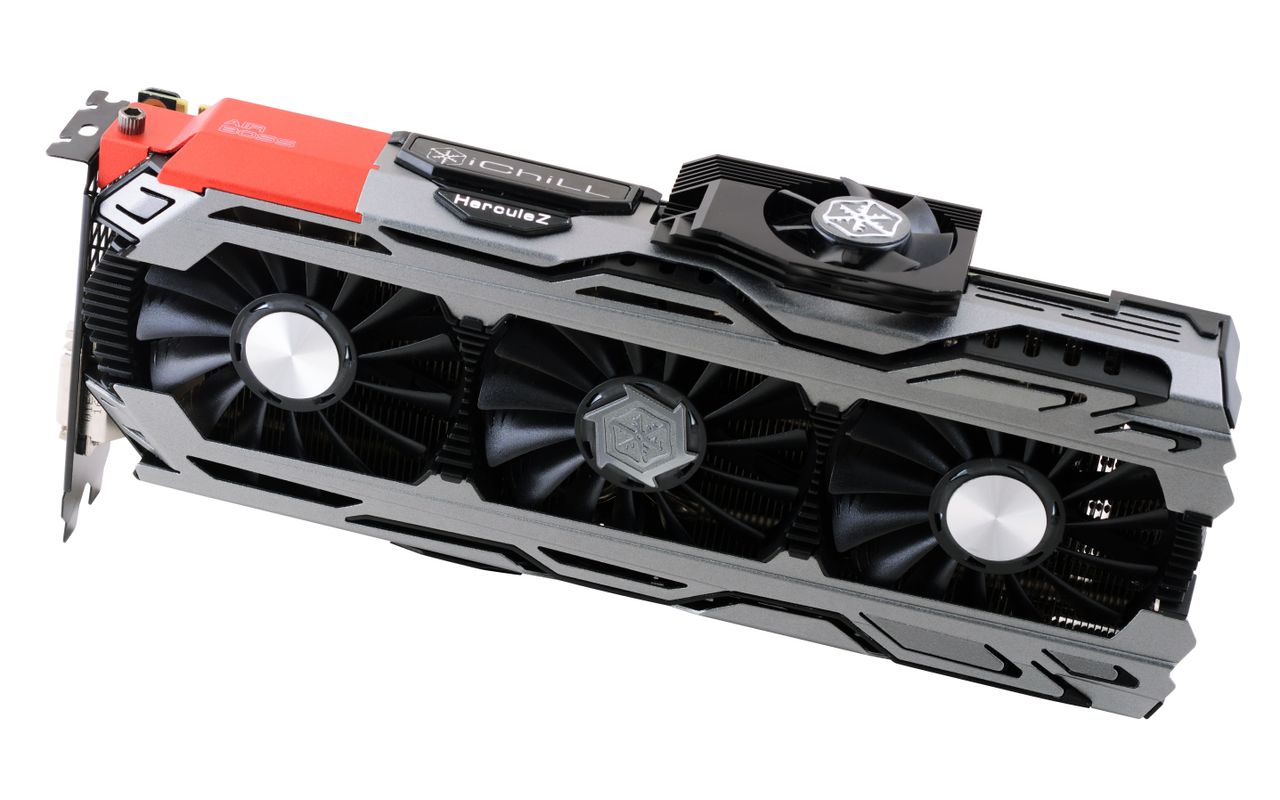

The company offers two versions of the speedier GTX 1080, the Inno3D GeForce GTX 1080 11Gbps iChill X3 and X4. The only discernible difference between the two is a variation of the cooler. The X3 model sports three Scythe blade fans, whereas the X4 features three 92mm Turbine fans with a fourth 50mm fan on top. Both cards sport the same base and boost clock rates (1,759MHz and 1,898MHz, respectively) with 2,560 CUDA cores and 8GB of GDDR5X memory clocked at 11.4Gbps on a 256-bit bus. The company says a 550W PSU will keep these beastly GPUs powered.

Although some vendors are rolling out BIOS updates to enable 11Gbps memory speeds for GTX 1080 graphics cards, Inno3D appears to be producing new GPUs instead of modifying an existing product (although these two new cards appear to be carbon copies of the previous GTX 1080 iChill X3 and X4). It may be possible to flash the BIOS on older cards, but without official support, we wouldn’t recommend it.

Upgraded GTX 1060, Too

Inno3D also released a new GeForce GTX 1060 9Gbps iChill X3 graphics card, which bumps the GTX 1060’s memory clock from 8Gbps to (you guessed it) 9Gbps. It sports the same three Scythe fans as its bigger brother, with 1,280 CUDA cores clocked at 1,556MHz and 1,771MHz (base and boost, respectively). The 6GB of 9Gbps memory runs on a 192-bit bus, and Inno3D recommends a 400W PSU to run this card.

Pricing and availability for the new Inno3D GTX 1080 11Gbps iChill X3, X4, and GTX 1060 9Gbps iChill X3 is currently unknown.

Swipe to scroll horizontally
Inno3D ProductGeForce GTX 1080 11Gbps iChill X3GeForce GTX 1080 11Gbps iChill X4GeForce GTX 1060 11Gbps iChill X3
CUDA Cores2,5602,5601,280
Memory8GB GDDR5X (256-Bit)8GB GDDR5X (256-Bit)6GB GDDR5 (192-Bit)
Memory Bandwidth11.4Gbps11.4Gbps9Gbps
Output3 x DisplayPort 1 x HDMI1 x DVI3 x DisplayPort 1 x HDMI1 x DVI3 x DisplayPort 1 x HDMI1 x DVI
Recommended PSU550W550W400W
Power Connector6+8-pin6+8-pin8-pin
Derek Forrest
Derek Forrest is a Contributing Writer for Tom's Hardware US. He writes hardware news and reviews gaming desktops and laptops.
  • acme64
    i was under the impression the faster memory was a different sort of chip
    Reply
  • Kepalajamuran
    My my. Look at that little fan. It's so cute i wanna pluck it off and use it as key holder.
    Reply
  • hst101rox
    11.4Gbps if awefully slow... a bit less than 1.5GB/s?? I though new GPUs are 100GB/s memory bandwidth easily? Some typo..

    Wonder what the performance improvement may be, how much the system is memory-bottlenecked. And if any laptop 1060/70/80 GPUs can get a firmware update.
    Reply
  • blazorthon
    19598588 said:
    11.4Gbps if awefully slow... a bit less than 1.5GB/s?? I though new GPUs are 100GB/s memory bandwidth easily? Some typo..

    Wonder what the performance improvement may be, how much the system is memory-bottlenecked. And if any laptop 1060/70/80 GPUs can get a firmware update.

    That's 11.4Gb/s per pin of the data bus. 11.4Gb/s x 256 = 364.8GB/s of memory bandwidth. Yes, they made a bit of a mistake by putting the effective frequency (2,850MHz x 4 because it is quad data rate) of the GDDR5X bus in a box labeled as Memory Bandwidth.
    Reply
