Grand Theft Auto V & Hitman
Grand Theft Auto V
We measure performance during Grand Theft Auto V's F-16 flight sequence with the built-in benchmark.
- image048
- image050
- image054
- image042
- image056
- image052
- image058

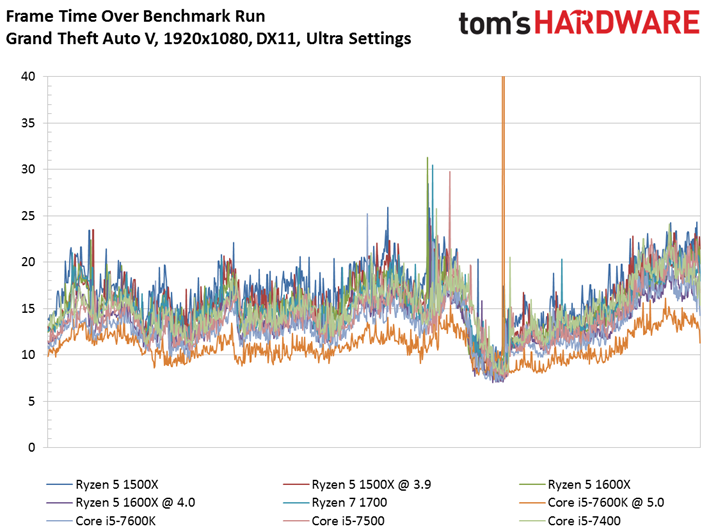

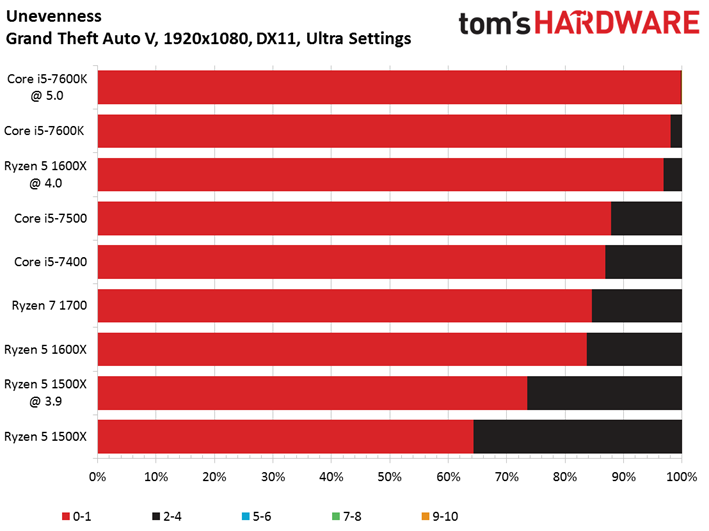

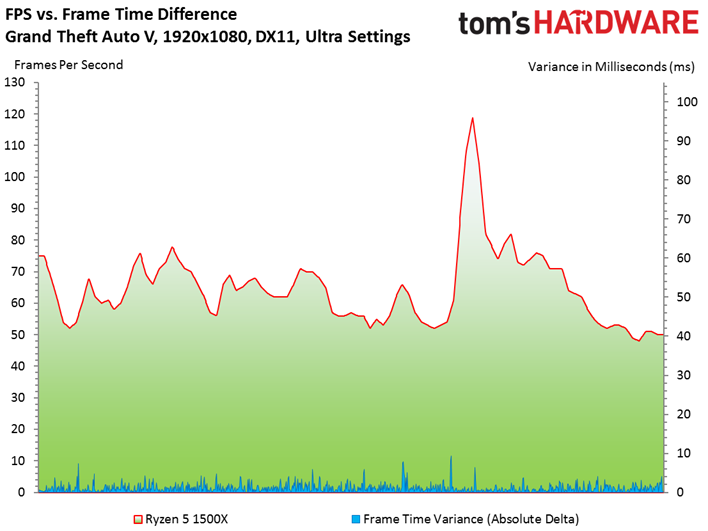

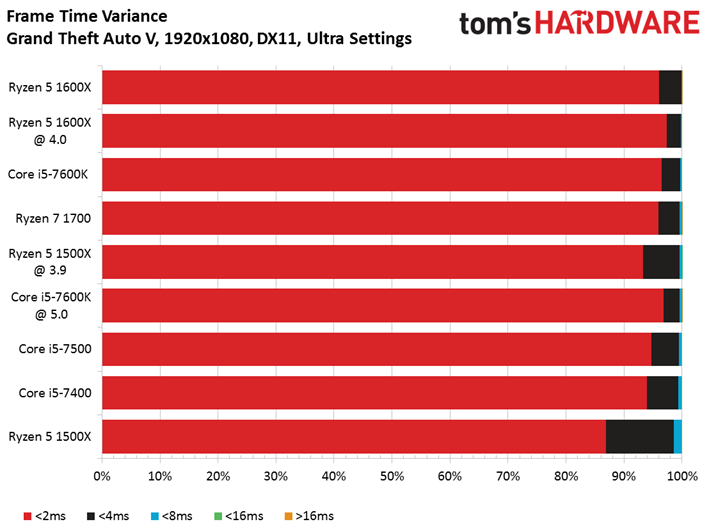

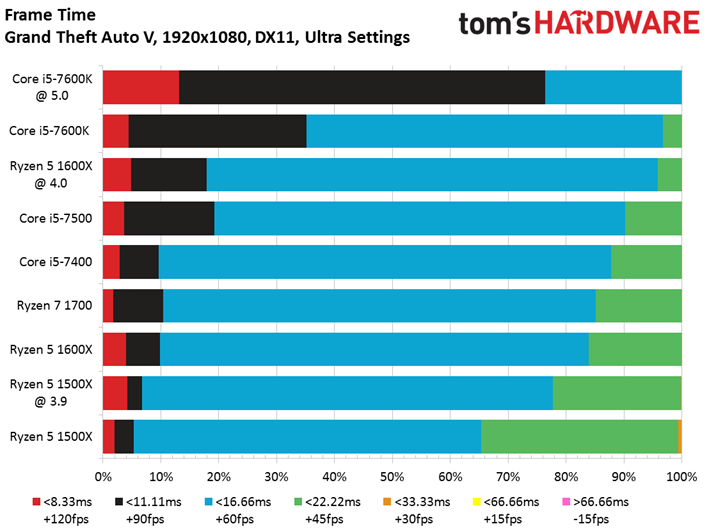

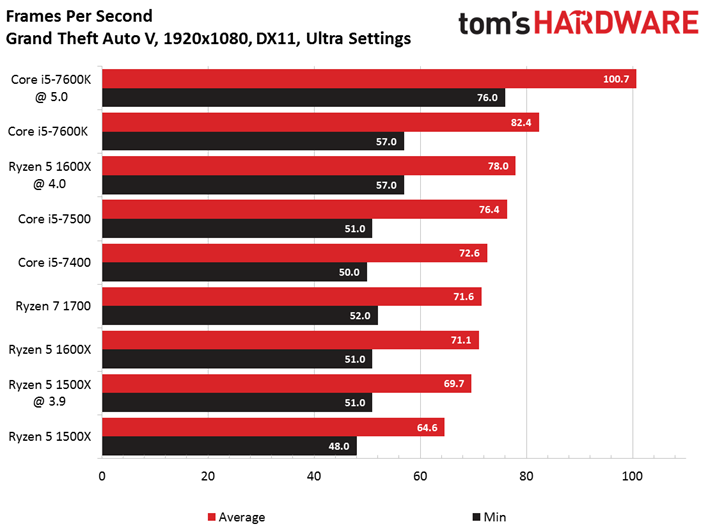

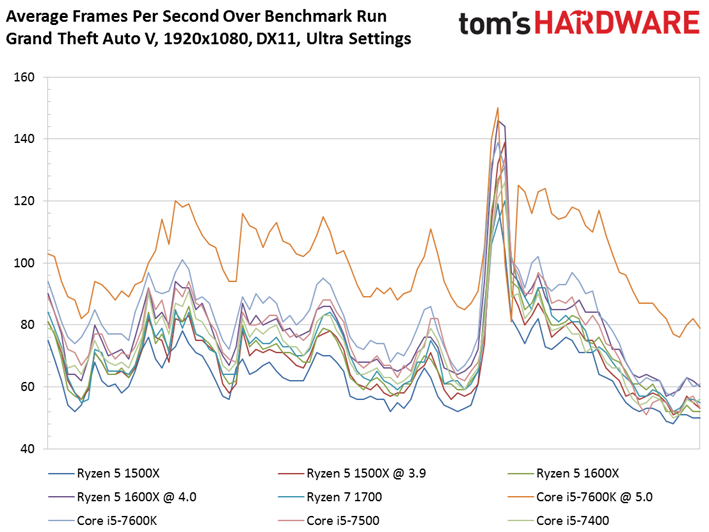

The 1500X isn't as competitive in this game. Overclocking improves its average frame rate, but only moves the CPU up one position on our charts. In comparison, AMD's 1600X fares better against Intel's Core i5s.
Hitman
- image048
- image050
- image054
- image056
- image042
- image052
- image058

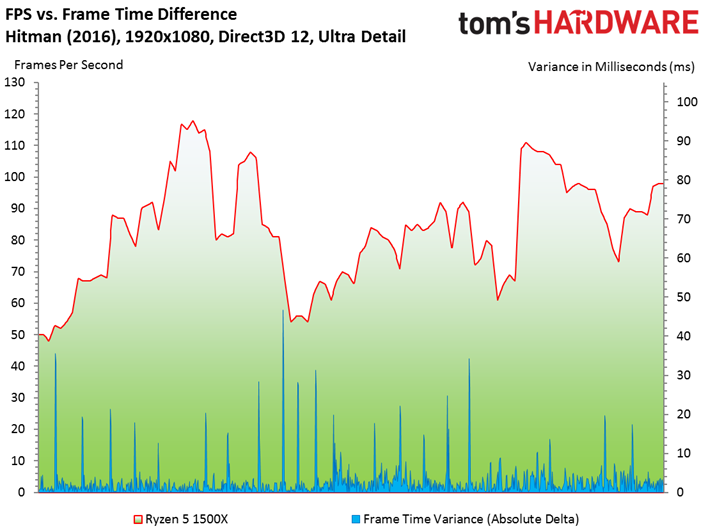

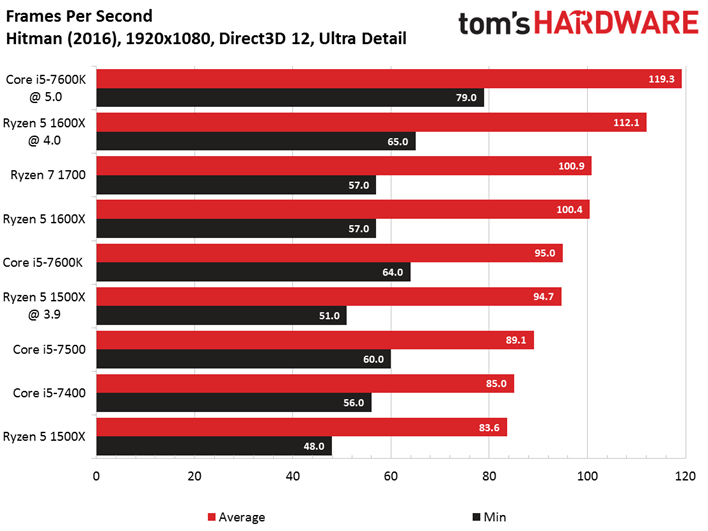

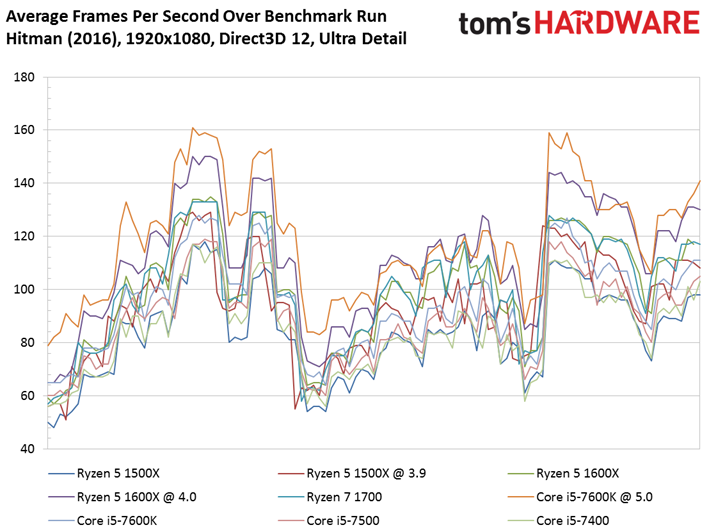

The 1500X enjoys an impressive 11 FPS gain from overclocking. Tuning also pushes the Ryzen 5 chip's minimum frame rate up by three.

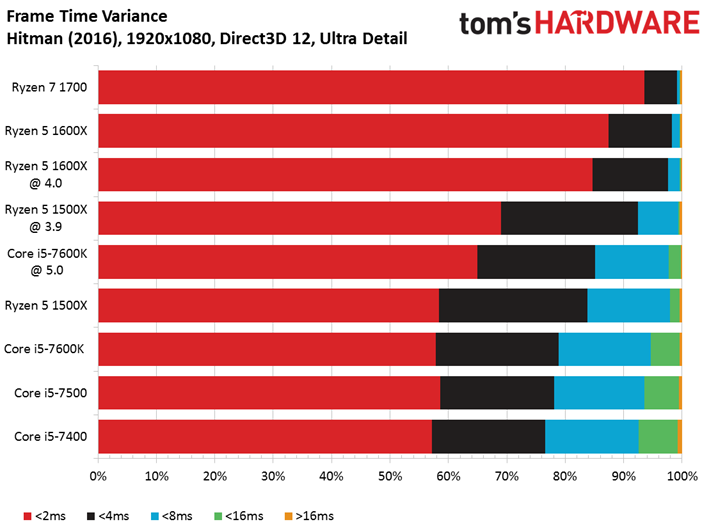

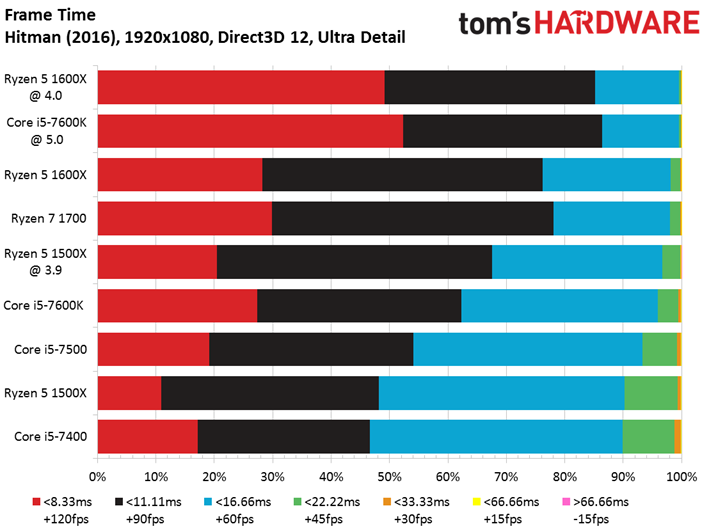

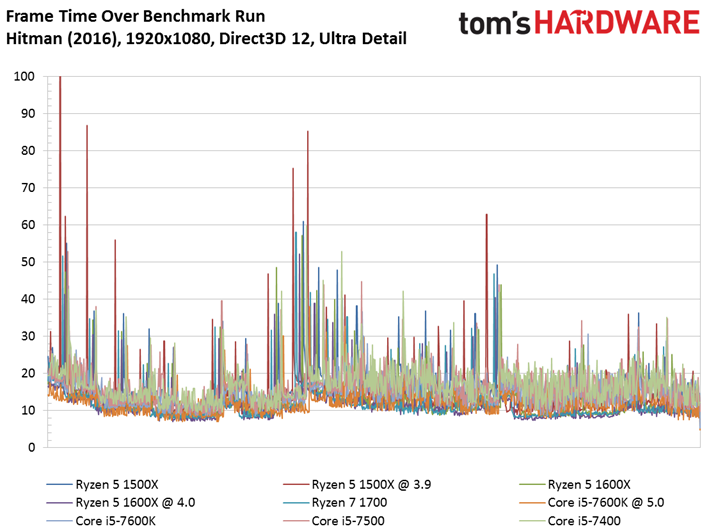

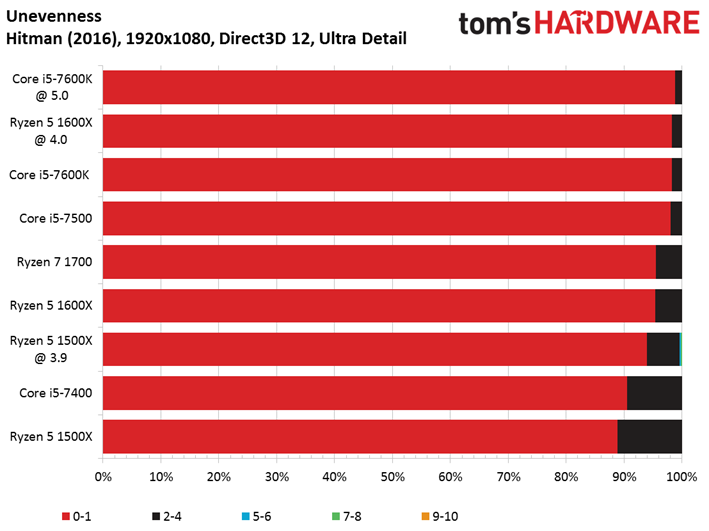

Intel's locked Core i5s generally deliver better minimum frame rates, and this favorable position carries over to the frame time results, too. Ryzen 5 1500X provides smooth gameplay at stock settings but encounters more variance when we overclock. The Core i5-7500 and -7400 also experience a bit of frame time variance during our test. Still, they facilitate playable performance.
