Firmware
The PG Riptide theme carries over from the Phantom Gaming line using black/red as its predominant colors. As usual, we capture a majority of the BIOS screens to share with you. ASRock includes an Easy Mode for high-level monitoring and adjustments, along with an Advanced section. The BIOS is organized well, with many of the more commonly used functions accessible without drilling down multiple levels to find them. In the end, the BIOS worked well and was easy to navigate and read.
Software

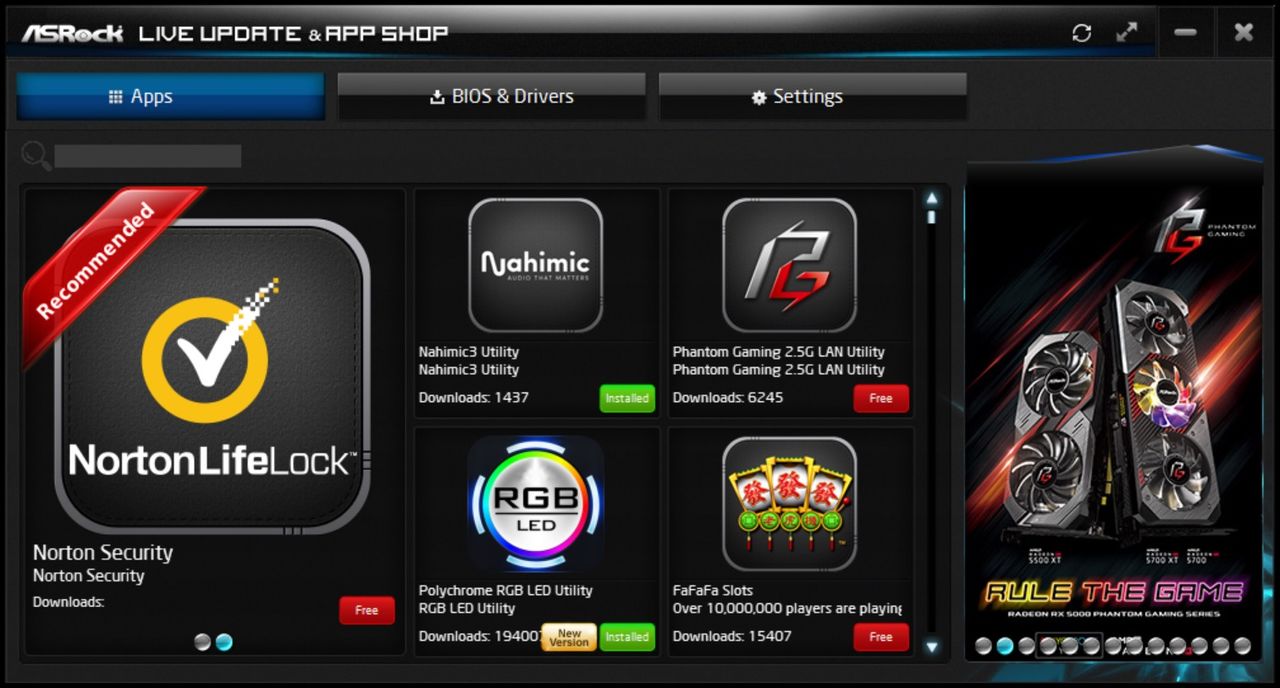

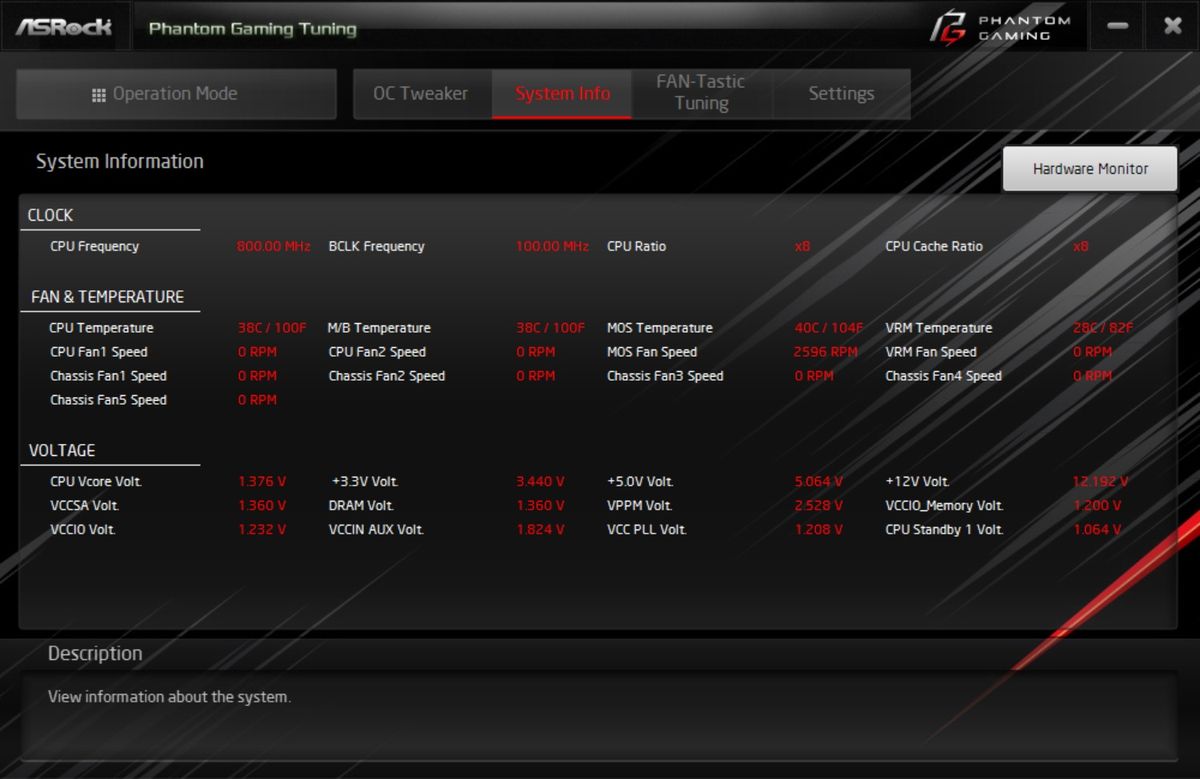

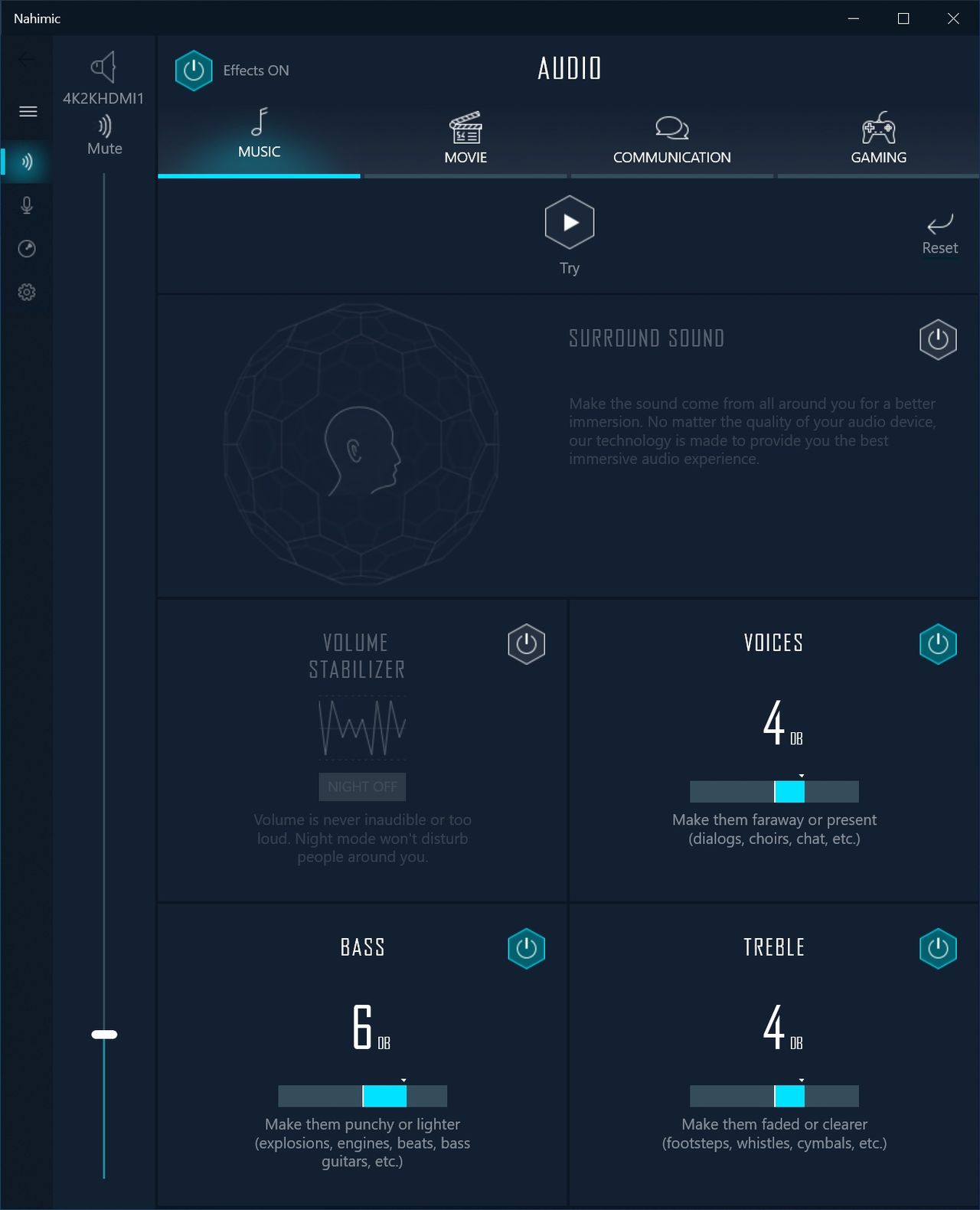

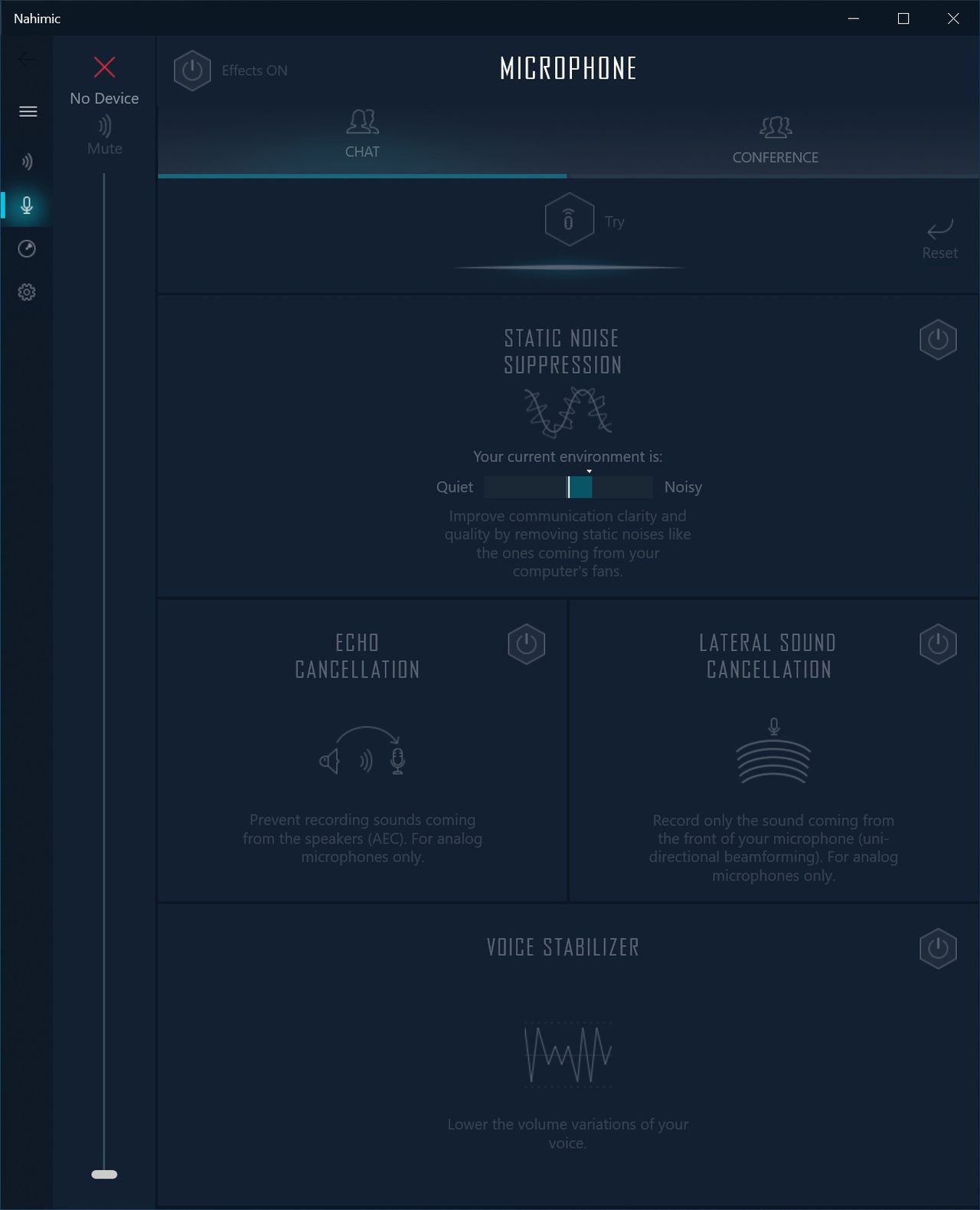

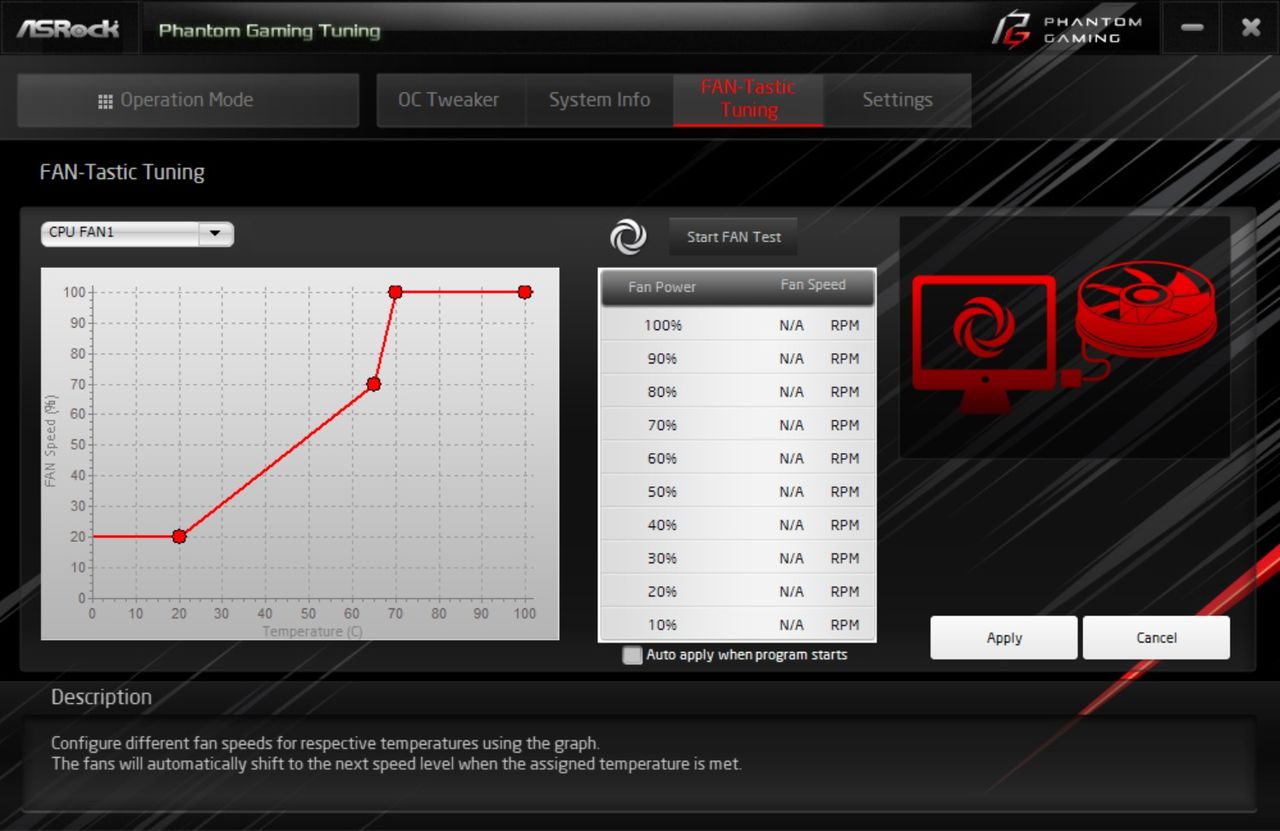

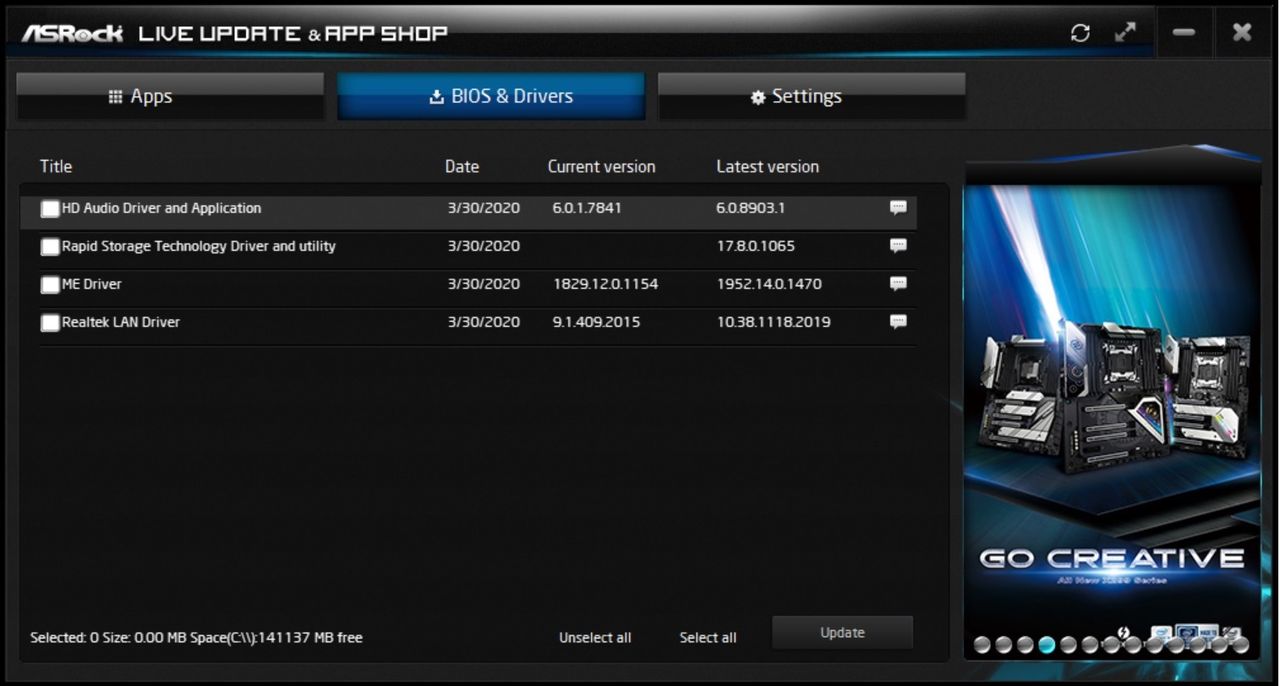

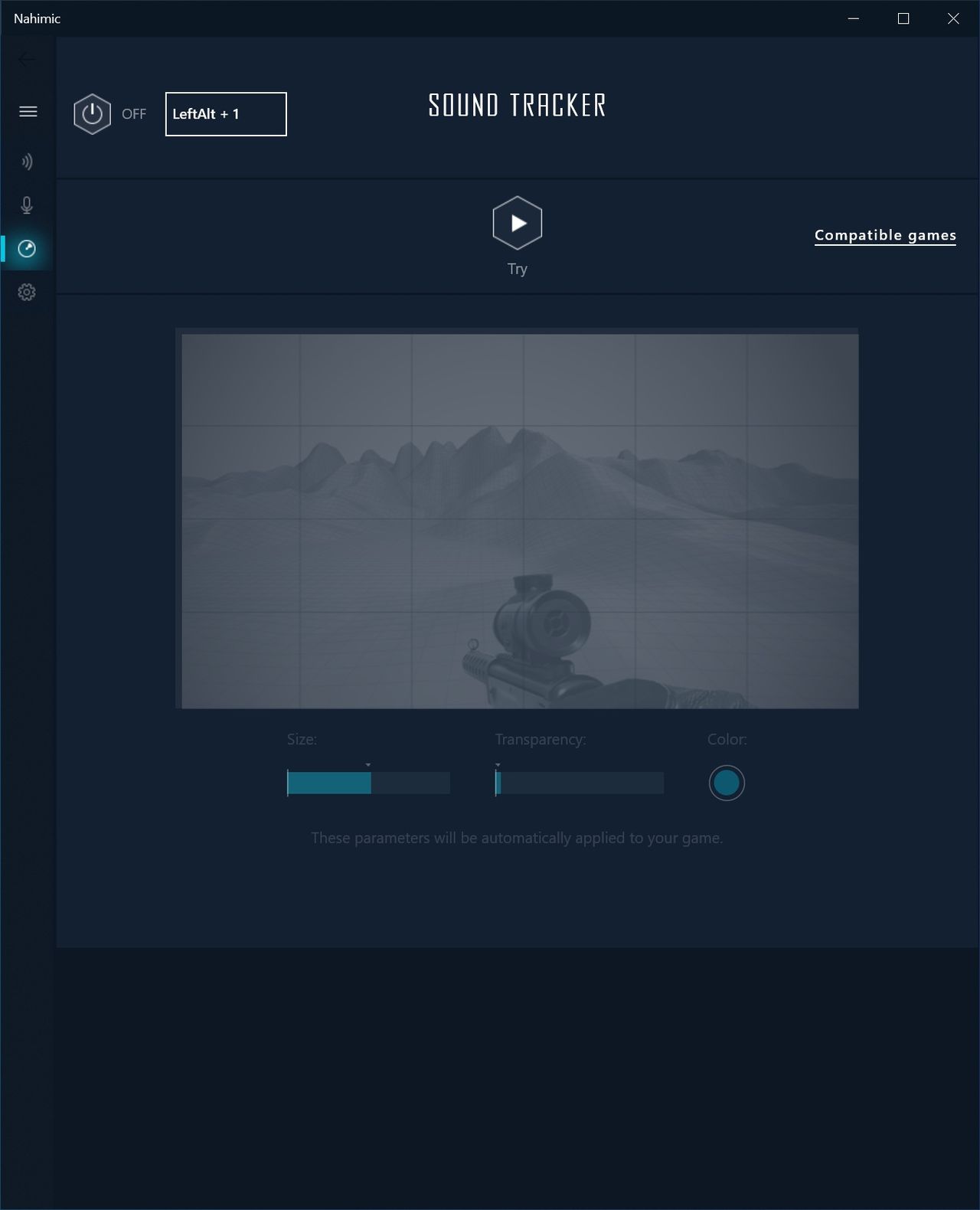

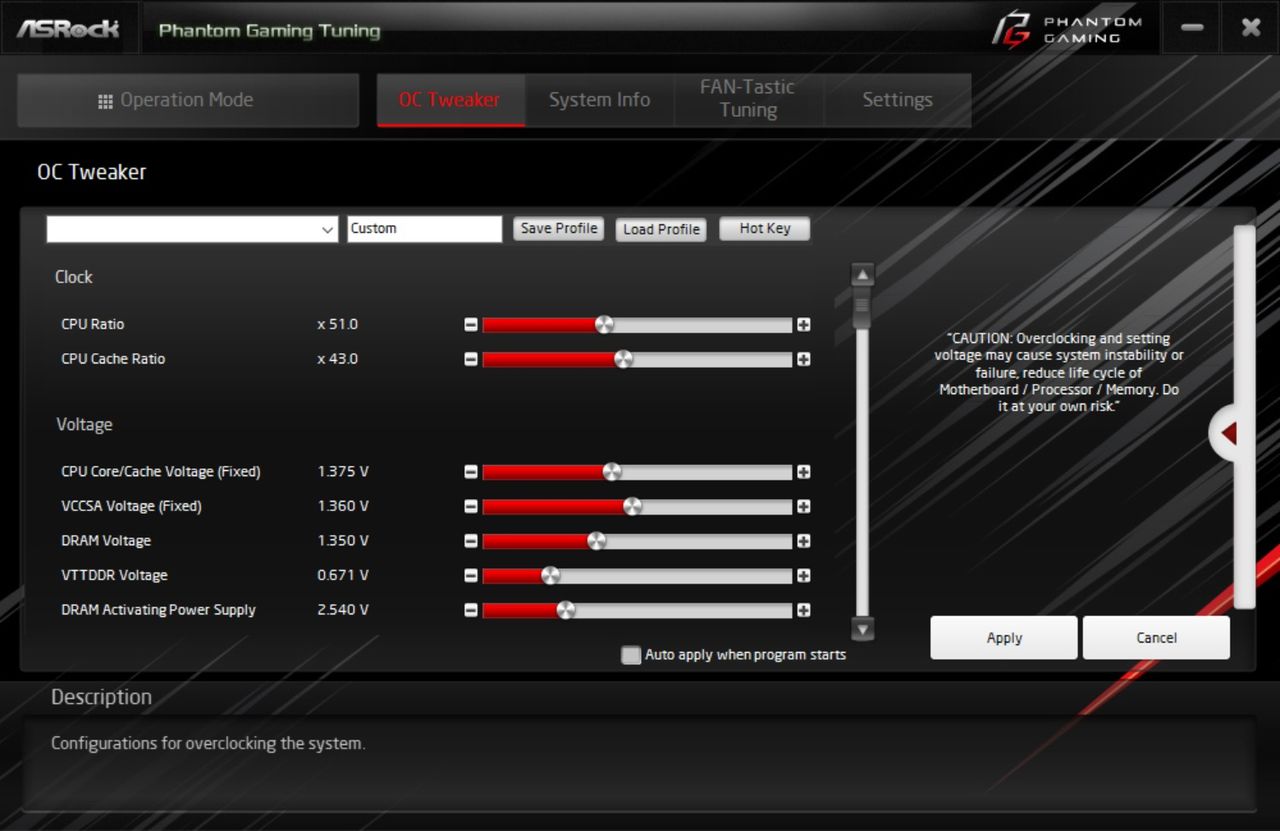

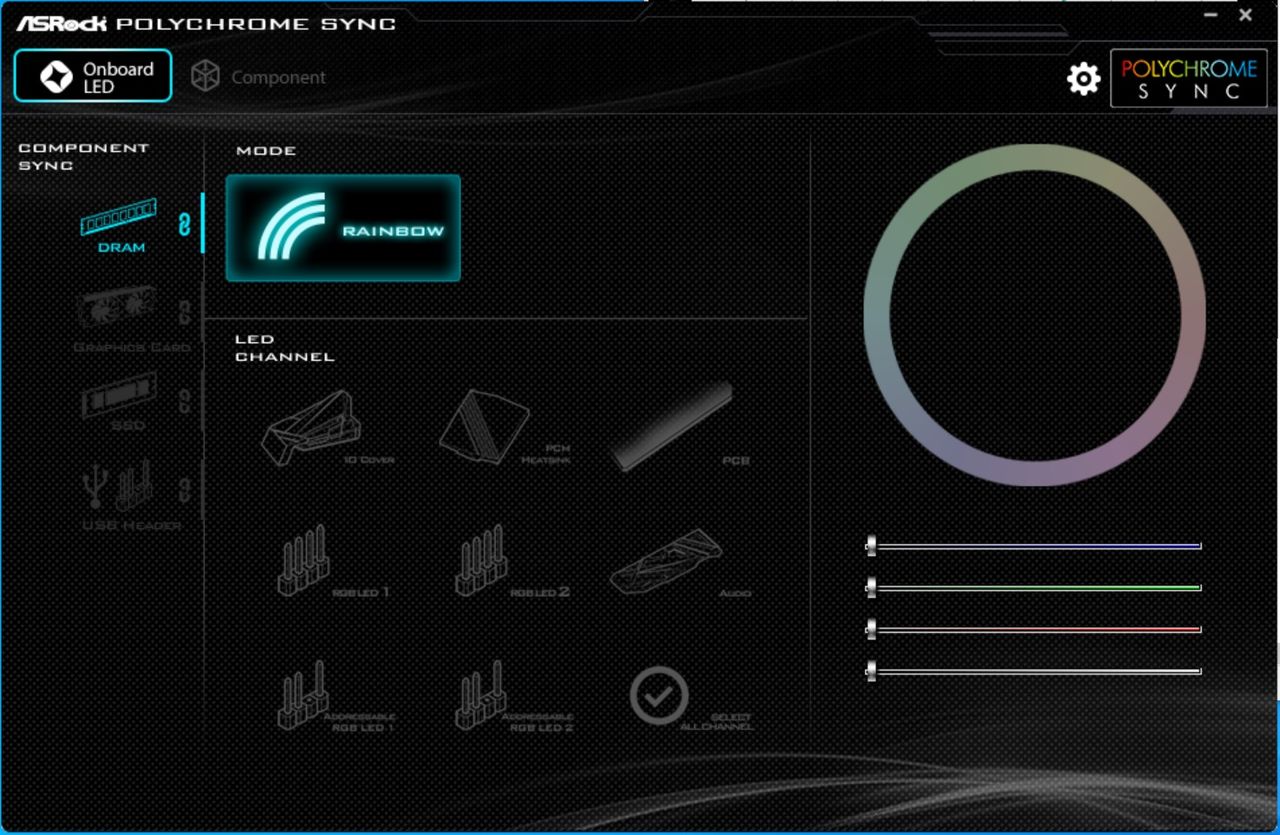

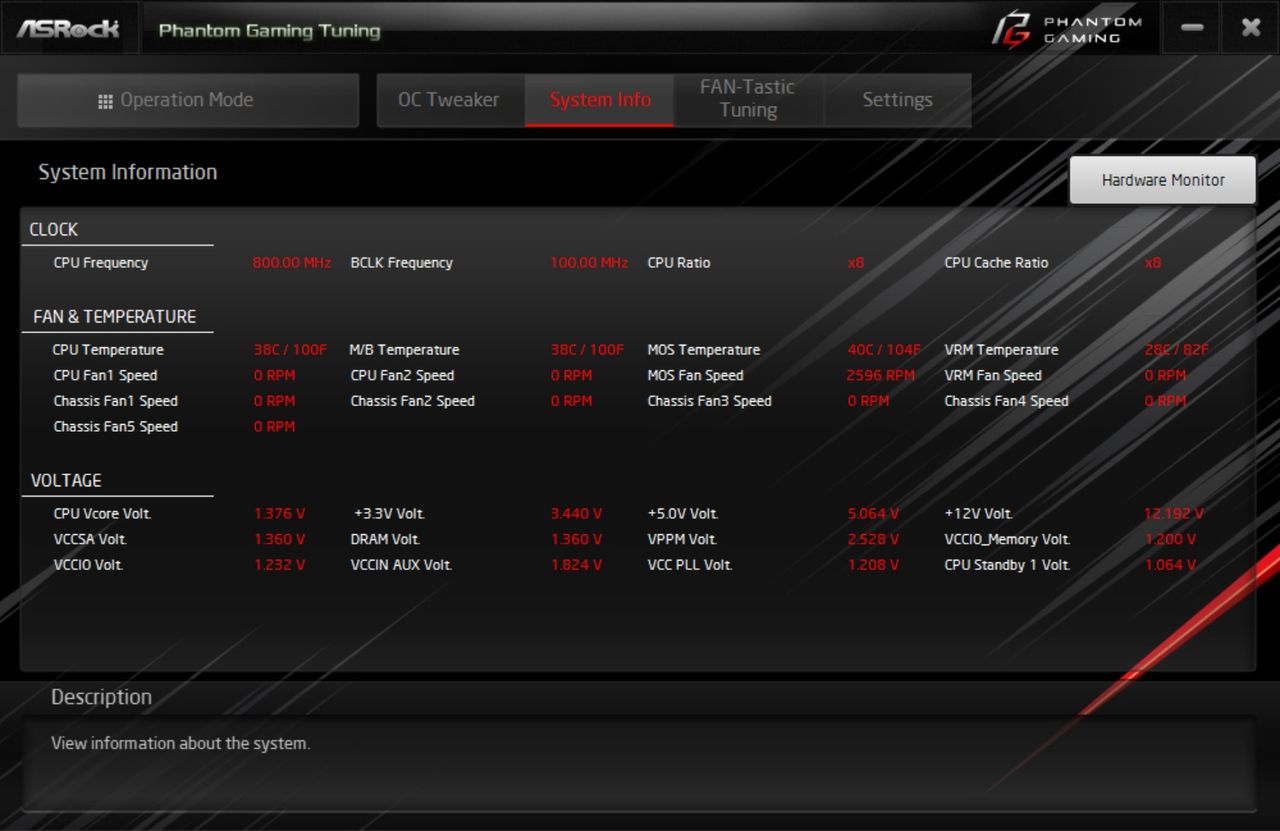

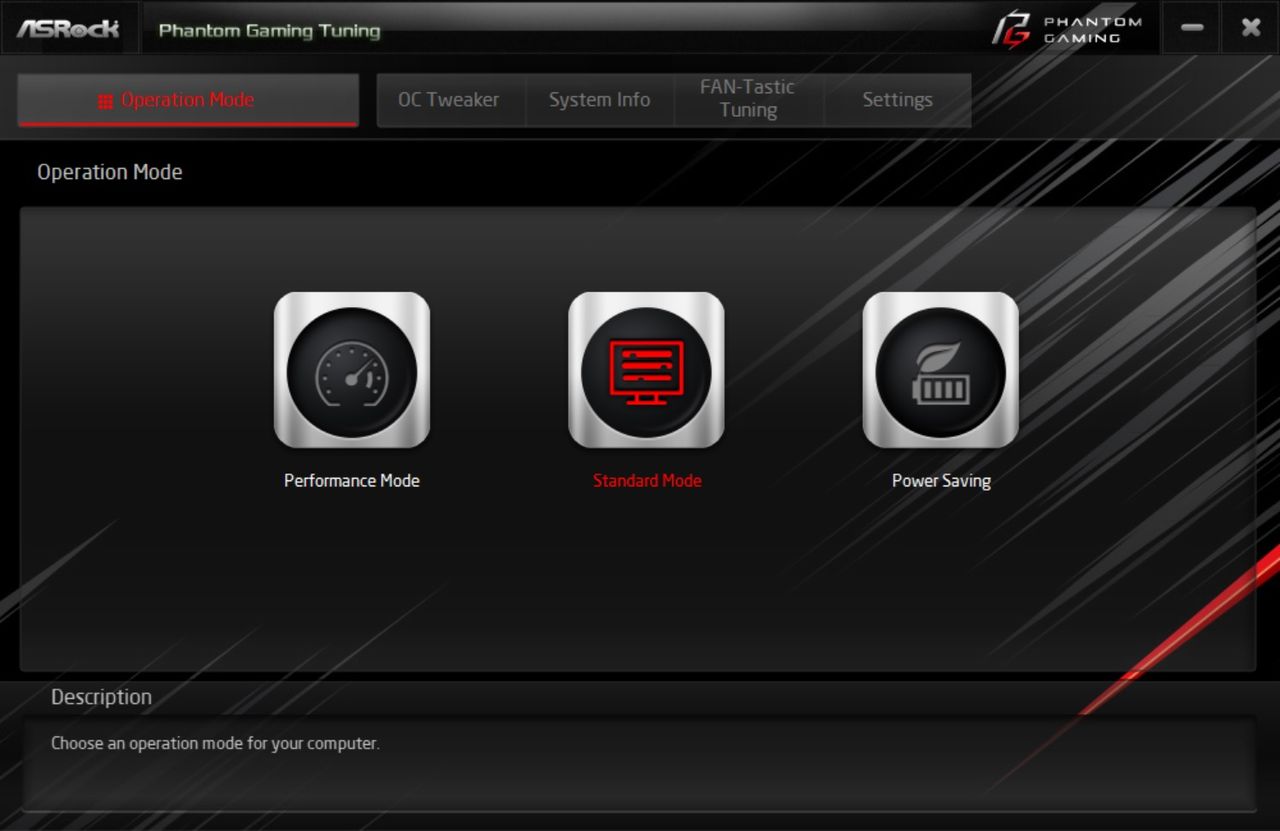

On the software side, ASRock includes a few utilities that cover overclocking and monitoring (PG-Tuning), audio (Nahimic 3), software for updating drivers and downloading applications (App Shop), and of course, RGB control (Polychrome RGB). We did not run into any issues in our limited use of the applications on this board.
Test System / Comparison Products
As of late November 2020, we’ve updated our test system to Windows 10 64-bit OS (20H2) with all threat mitigations applied. We also upgraded our video card driver to 457.30 and reran all the game tests, moving to new 5000 series CPU. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware used is as follows:
Test System Components
CPU | AMD Ryzen R9 5950X |
Memory | GSkill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16Q-32GTZN) |
GPU | Asus ROG Strix RTX 2070 |
Cooling | Corsair H150i |
PSU | Corsair AX1200i |
Software | Windows 10 64-bit 20H2 |
Graphics Driver | NVIDIA Driver 457.30 |
Sound | Integrated HD audio |
Network | Integrated Networking (GbE or 2.5 GbE) |
Benchmark Settings
Synthetic Benchmarks and Settings | Row 0 - Cell 1 |
PCMark 10 | Version 2.1.2177 64 |
Row 2 - Cell 0 | Essentials, Productivity, Digital Content Creation, MS Office |
3DMark | Version 2.11.6866 64 |
Row 4 - Cell 0 | Firestrike Extreme and Time Spy Default Presets |
Cinebench R20 | Version RBBENCHMARK271150 |
Row 6 - Cell 0 | Open GL Benchmark - Single and Multi-threaded |
Application Tests and Settings | Row 7 - Cell 1 |
LAME MP3 | Version SSE2_2019 |
Row 9 - Cell 0 | Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s) |
HandBrake CLI | Version: 1.2.2 |
Row 11 - Cell 0 | Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX) |
Corona 1.4 | Version 1.4 |
Row 13 - Cell 0 | Custom benchmark |
7-Zip | Version 19.00 |
Row 15 - Cell 0 | Integrated benchmark |
Game Tests and Settings | Row 16 - Cell 1 |
The Division 2 | Ultra Preset - 1920 x 1080 |
Forza Horizon 4 | Ultra Preset - 1920 x 1080 |
