Ripple Measurements
To learn how we measure ripple, please click here.

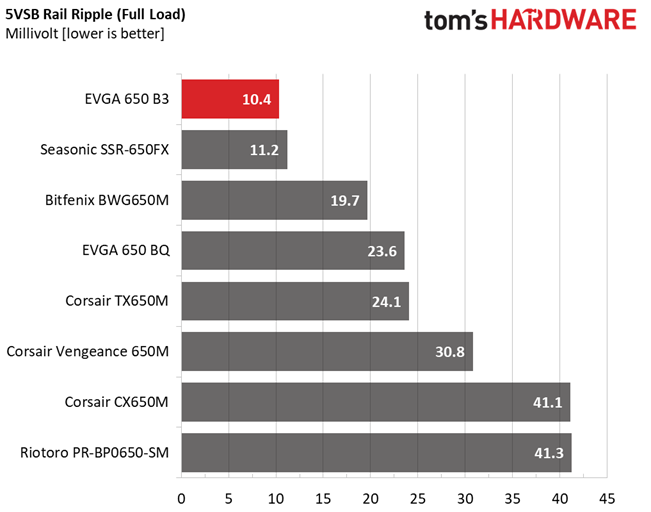

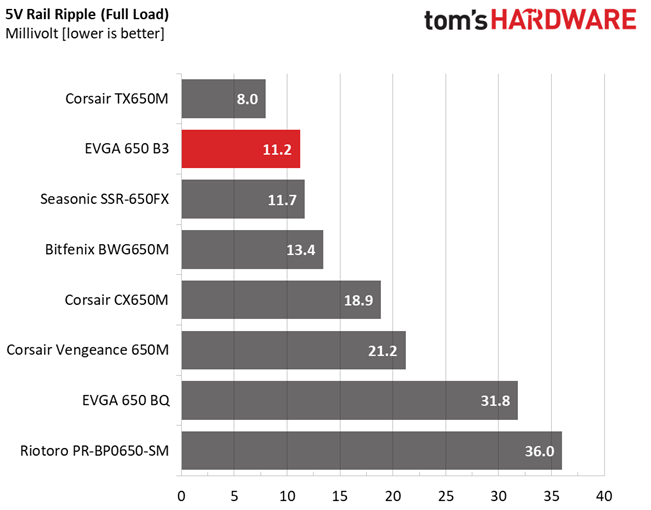

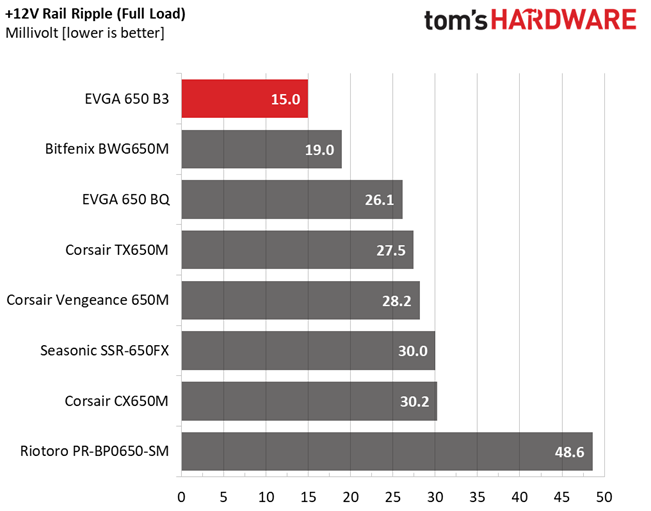

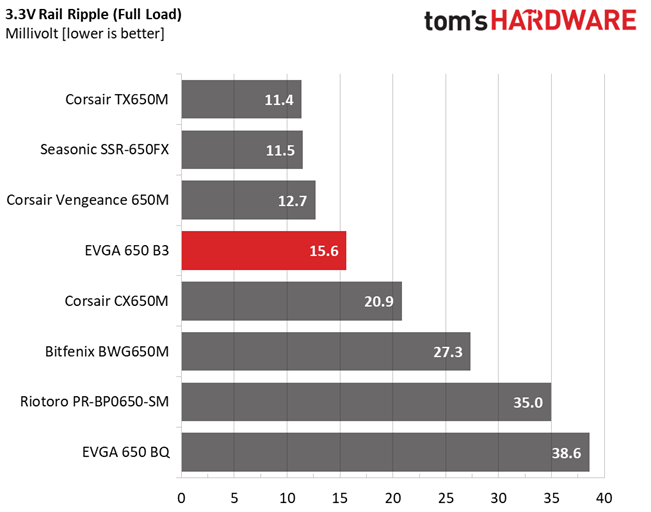

The following table includes the ripple levels we measured on the 650 B3’s rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 6.8mV | 4.8mV | 6.9mV | 5.0mV | Pass |
| 20% Load | 8.7mV | 7.4mV | 6.7mV | 4.9mV | Pass |
| 30% Load | 9.2mV | 7.0mV | 8.0mV | 4.9mV | Pass |
| 40% Load | 10.7mV | 7.3mV | 8.8mV | 6.0mV | Pass |
| 50% Load | 12.9mV | 7.5mV | 10.1mV | 6.6mV | Pass |
| 60% Load | 10.4mV | 7.3mV | 11.6mV | 6.3mV | Pass |
| 70% Load | 12.0mV | 8.3mV | 12.0mV | 7.1mV | Pass |
| 80% Load | 12.1mV | 9.1mV | 12.3mV | 7.1mV | Pass |
| 90% Load | 12.8mV | 10.1mV | 13.5mV | 8.4mV | Pass |
| 100% Load | 15.0mV | 11.2mV | 15.6mV | 10.4mV | Pass |
| 110% Load | 14.6mV | 11.5mV | 15.5mV | 10.8mV | Pass |
| Cross-Load 1 | 9.4mV | 6.7mV | 8.2mV | 8.1mV | Pass |
| Cross-Load 2 | 14.6mV | 10.2mV | 14.3mV | 9.0mV | Pass |
The ripple suppression on every rail was excellent, as is usually the case in Super Flower's platforms.
Ripple Oscilloscope Screenshots

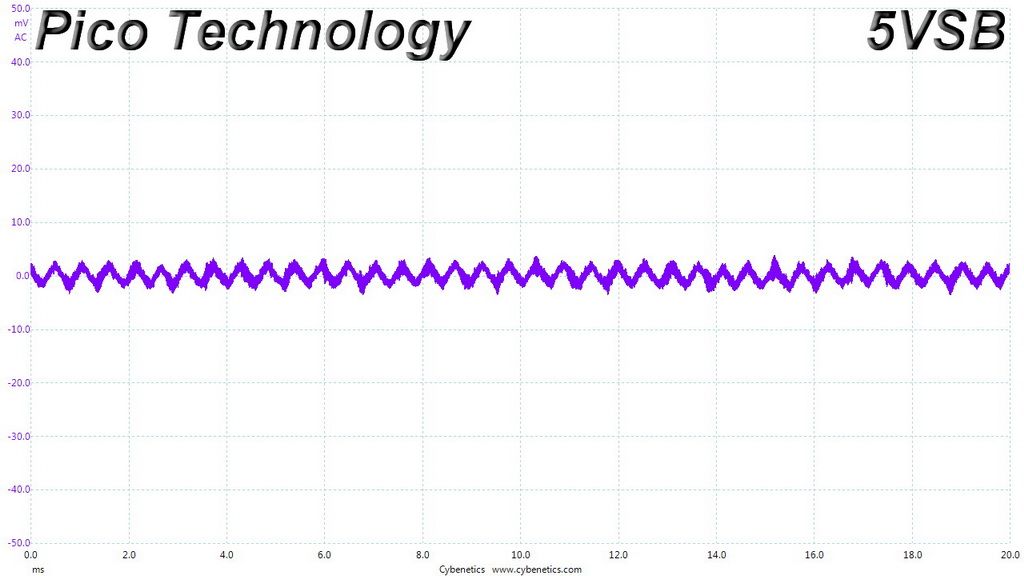

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

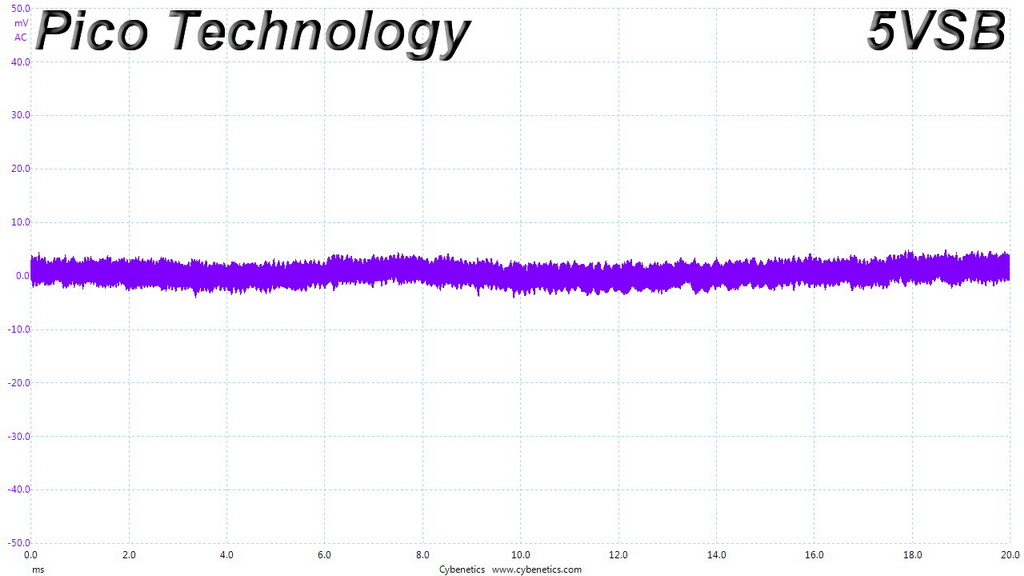

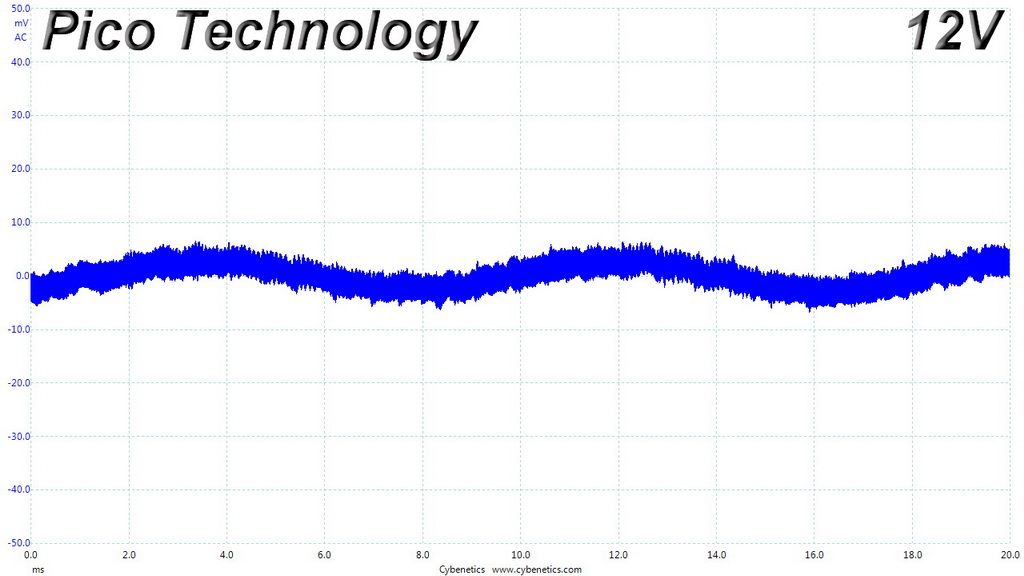

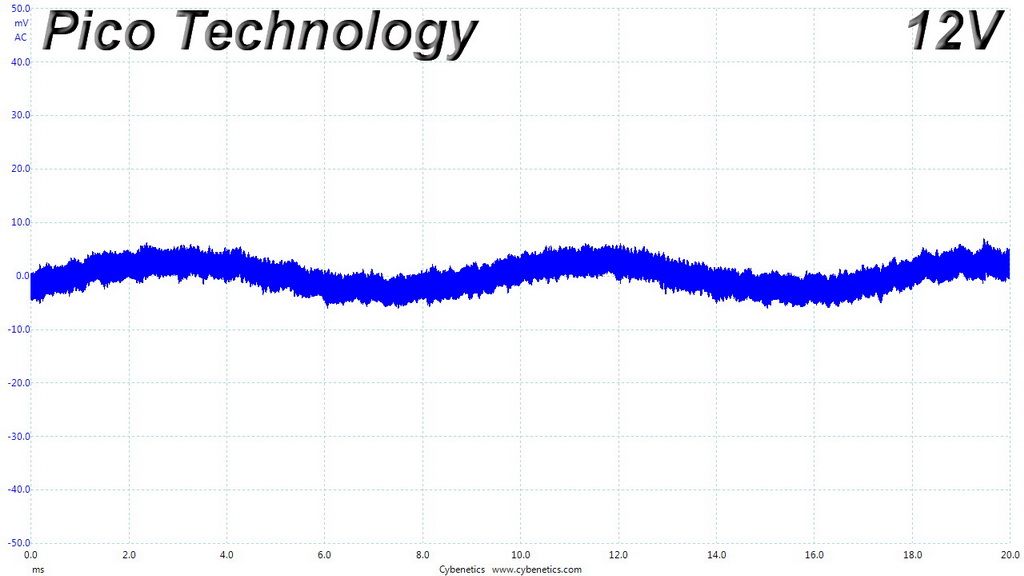

Ripple At Full Load

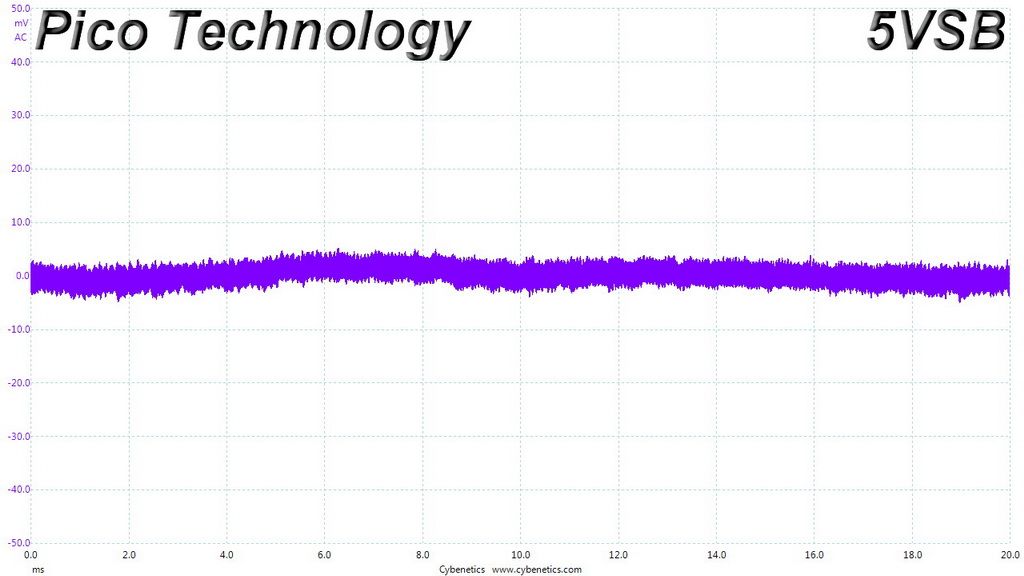

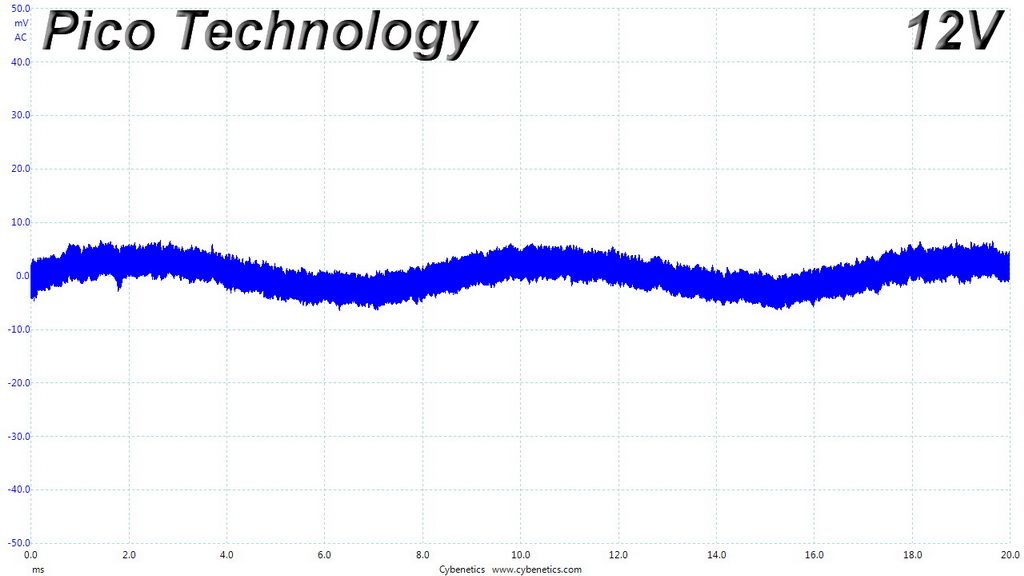

Ripple At 110-Percent Load

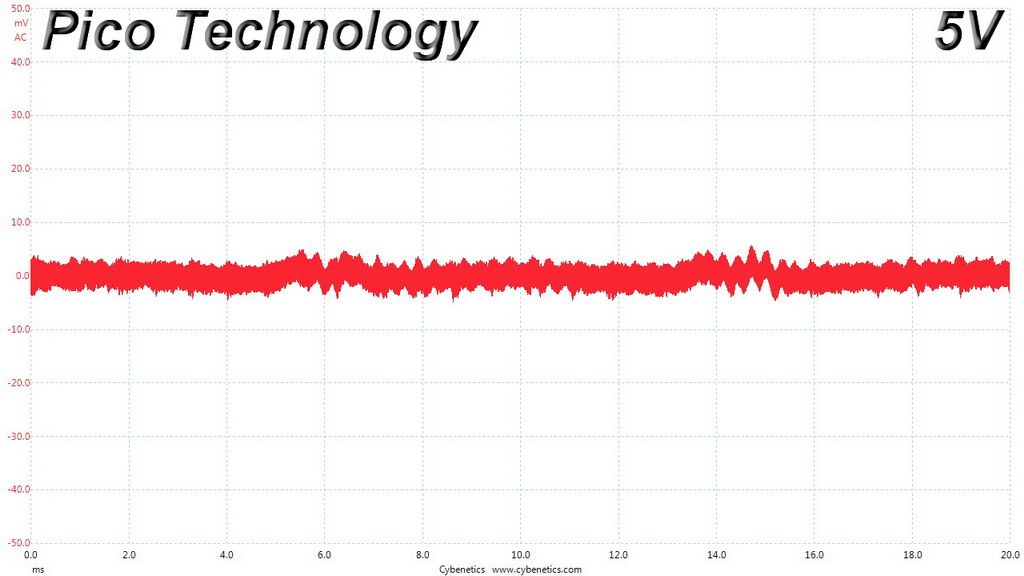

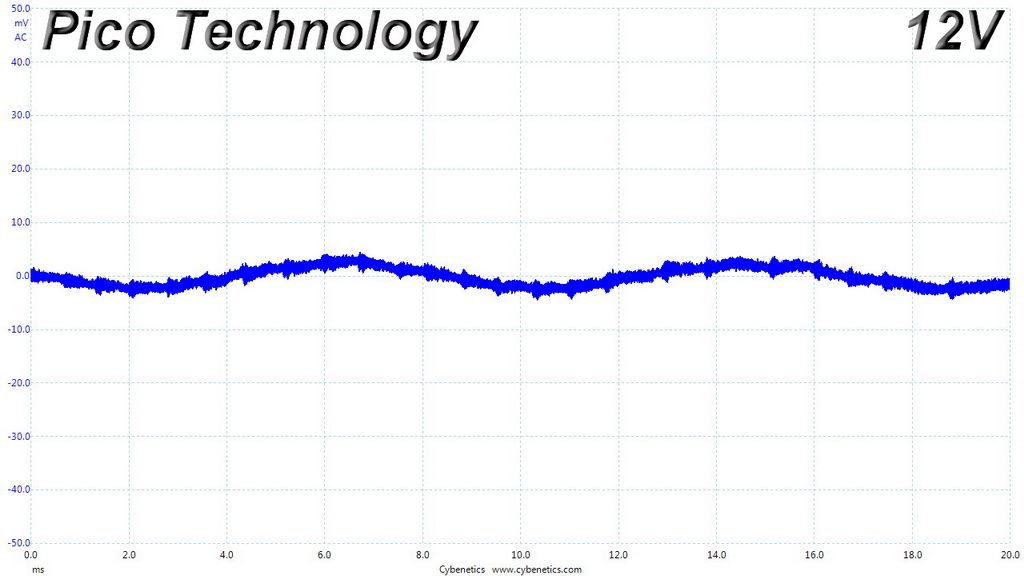

Ripple At Cross-Load 1

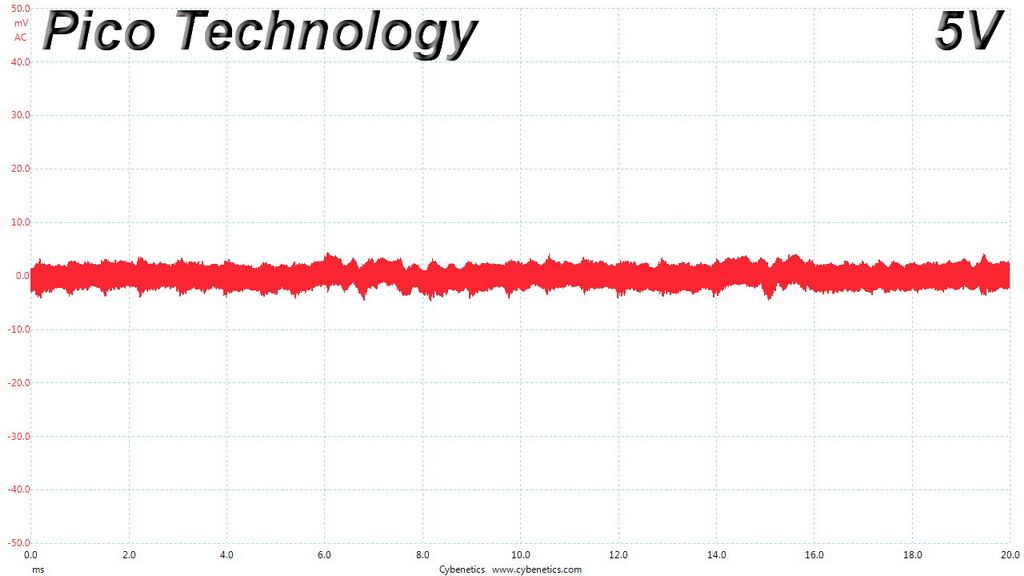

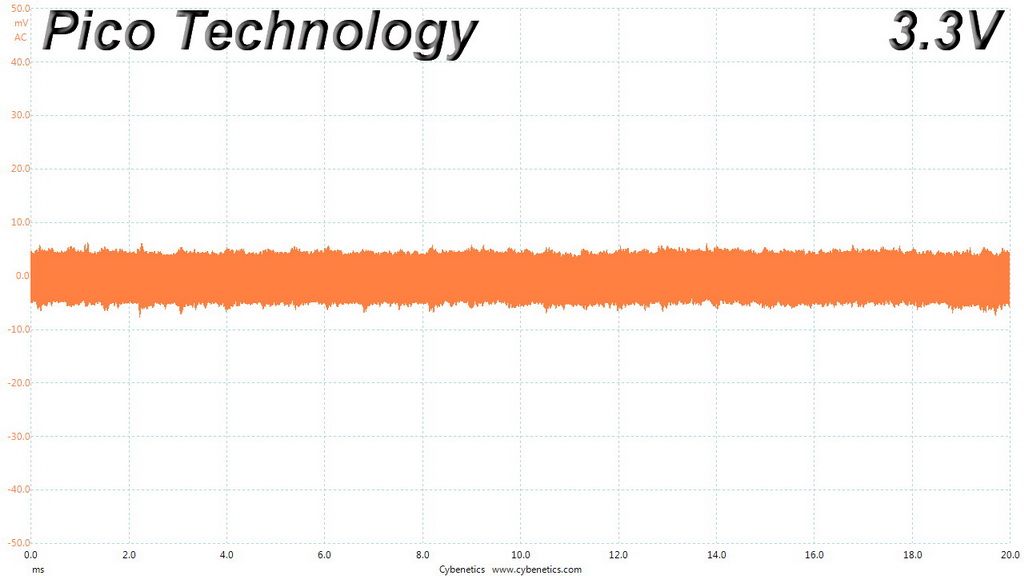

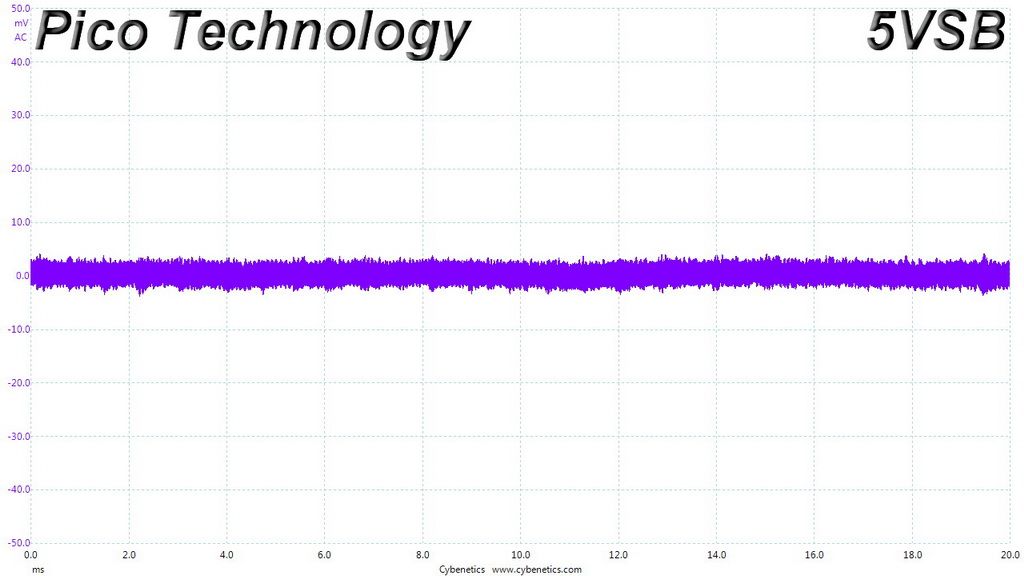

Ripple At Cross-Load 2
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
