Rosewill Quark 1000 Power Supply Review

Reviews
By
published

Today we take a look at Rosewill's Quark 1000. In addition to 80 PLUS Platinum efficiency and fully modular cabling, this $200 unit can support multiple GPUs.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the Quark 1000's rails. The limits are, according to the ATX specification, 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally
Test12V5V3.3V5VSBPass/Fail
10% Load38.3mV11.6mV11.7mV7.1mVPass
20% Load16.9mV11.9mV12.5mV8.6mVPass
30% Load15.7mV9.1mV13.1mV10.9mVPass
40% Load17.7mV12.6mV13.6mV12.7mVPass
50% Load20.2mV13.0mV15.2mV15.2mVPass
60% Load23.2mV13.3mV16.0mV17.1mVPass
70% Load24.3mV16.4mV18.8mV19.0mVPass
80% Load26.5mV16.9mV20.4mV21.4mVPass
90% Load29.4mV17.6mV21.5mV22.9mVPass
100% Load31.1mV21.3mV23.3mV26.0mVPass
110% Load33.6mV21.8mV23.9mV28.4mVPass
Cross-Load 129.4mV9.7mV12.3mV7.5mVPass
Cross-Load 230.5mV19.9mV22.4mV25.9mVPass

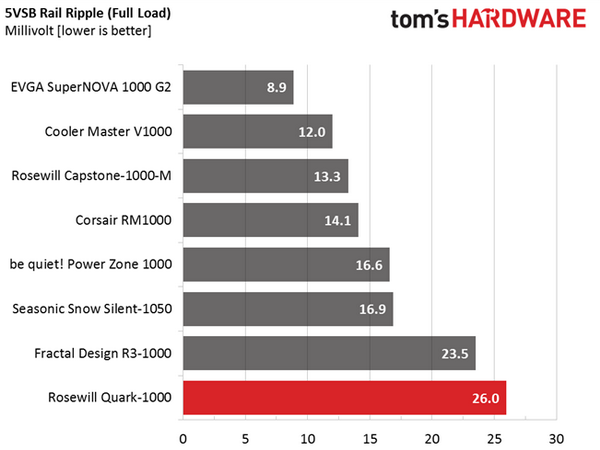

Image 1 of 4

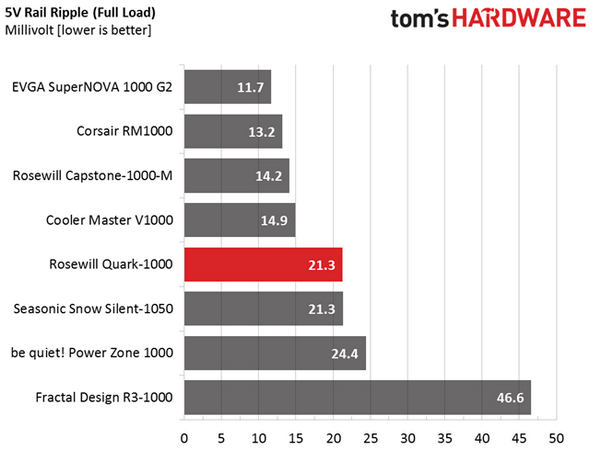

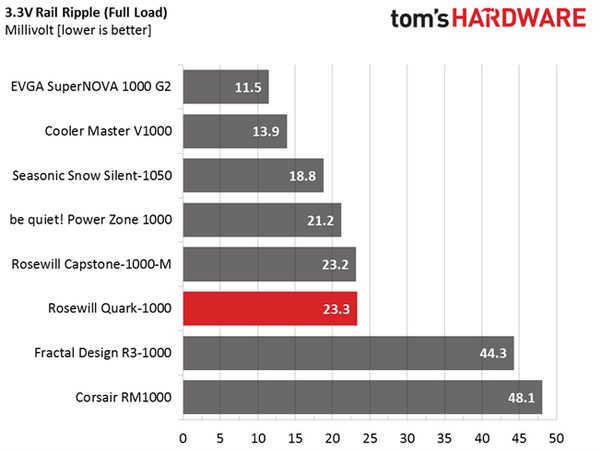

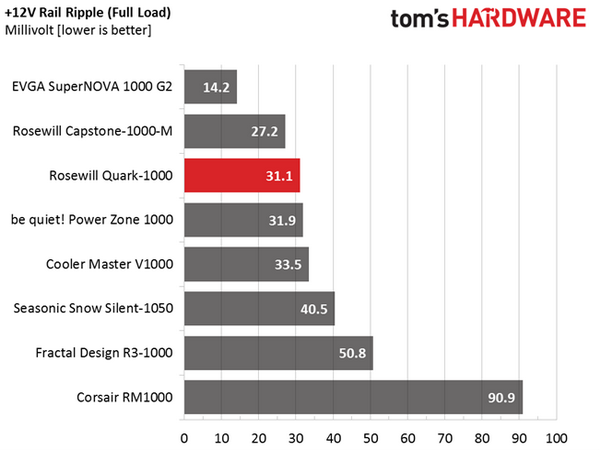

Ripple suppression was pretty good on all rails. Only Super Flower's platforms managed to outperform this one's ripple performance at +12V, which is the rail we really care about since it feeds most system components.

Ripple Oscilloscope Screenshots

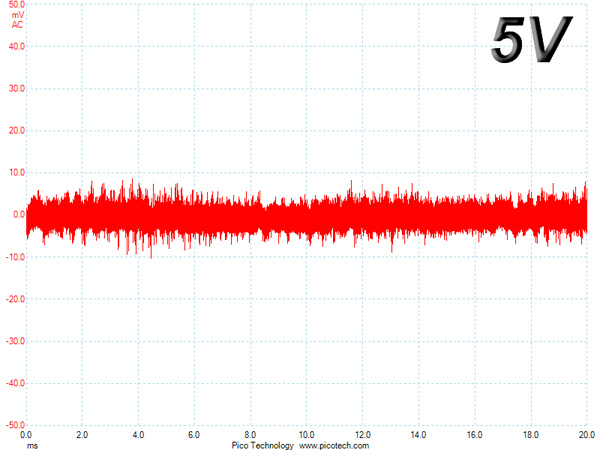

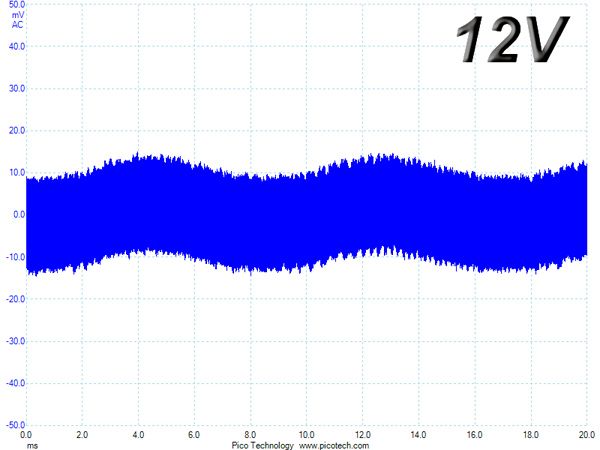

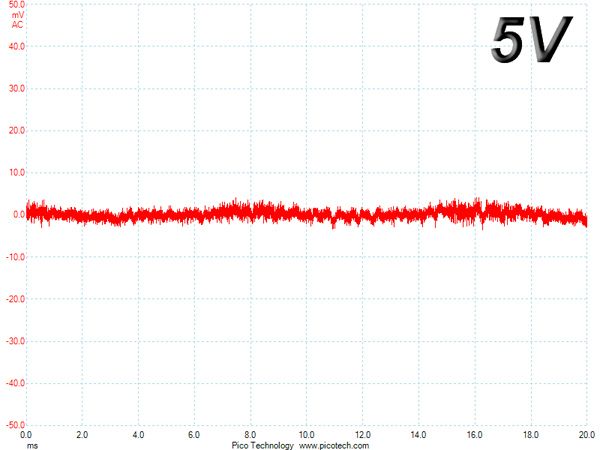

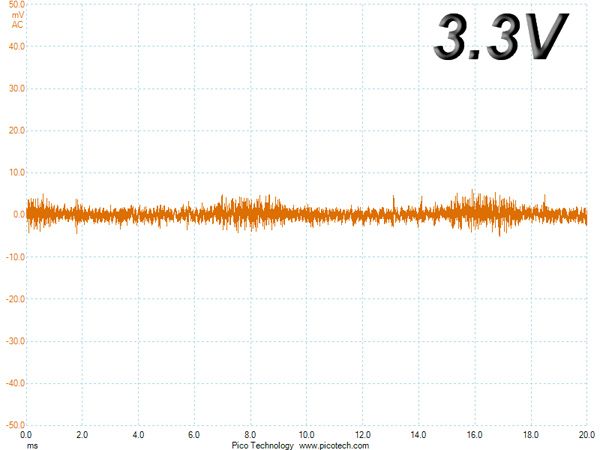

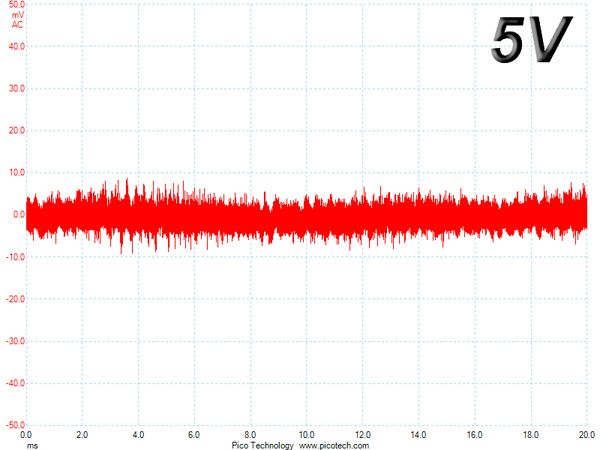

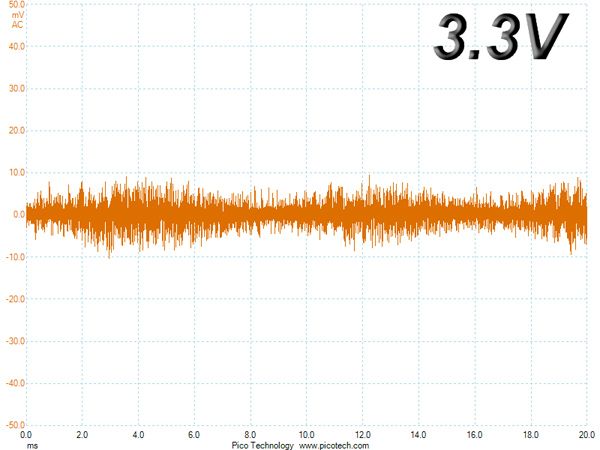

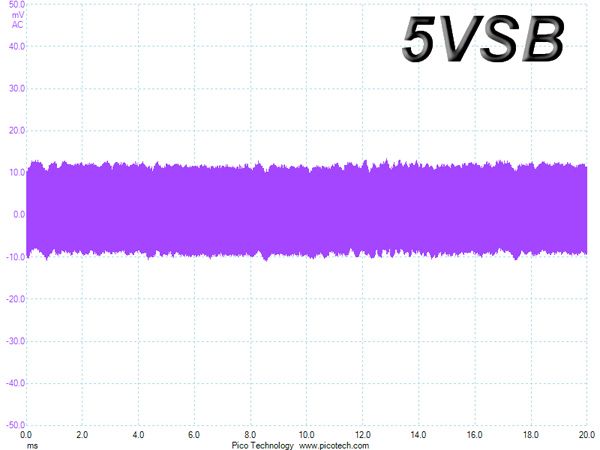

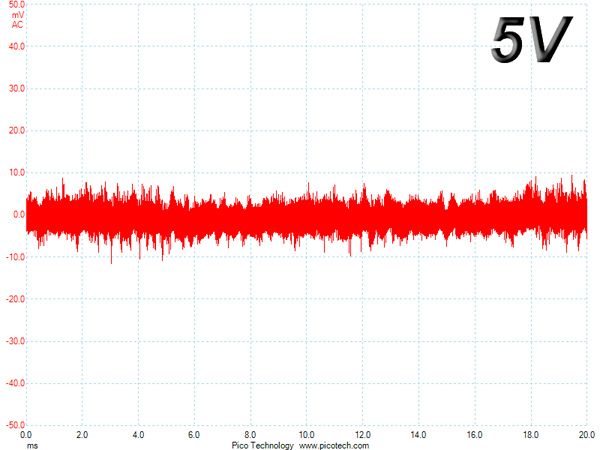

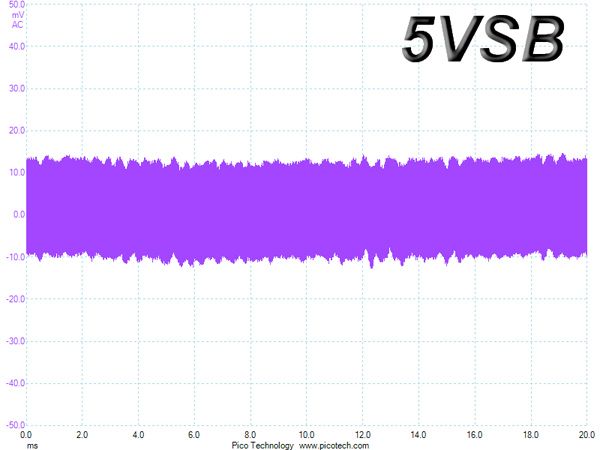

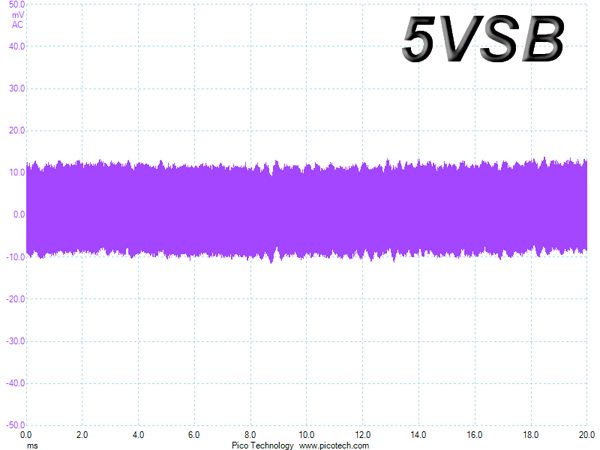

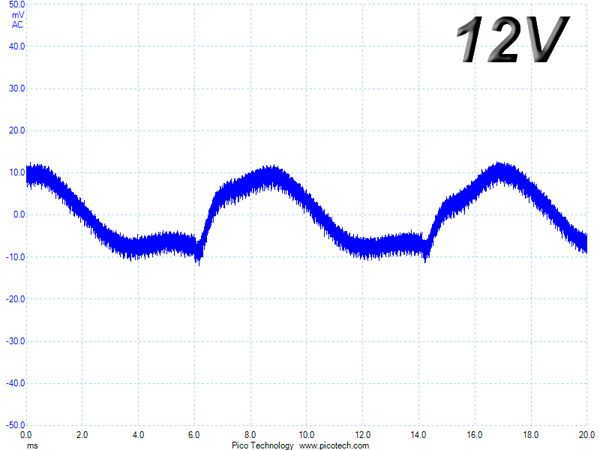

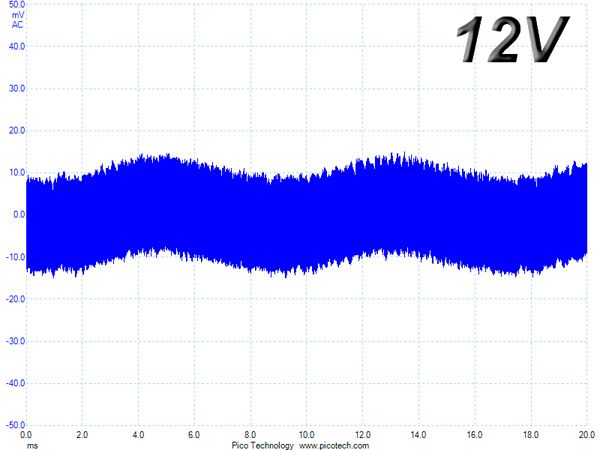

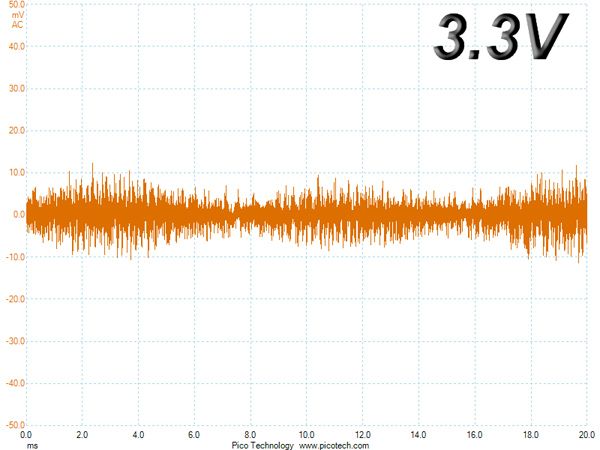

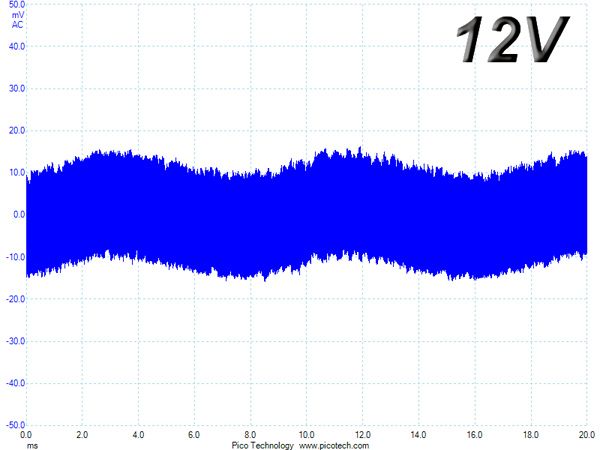

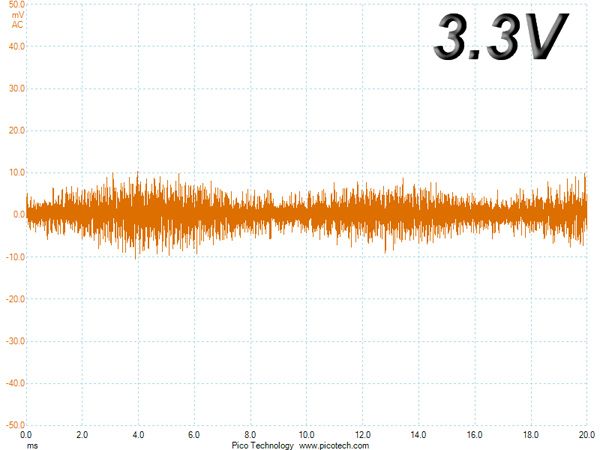

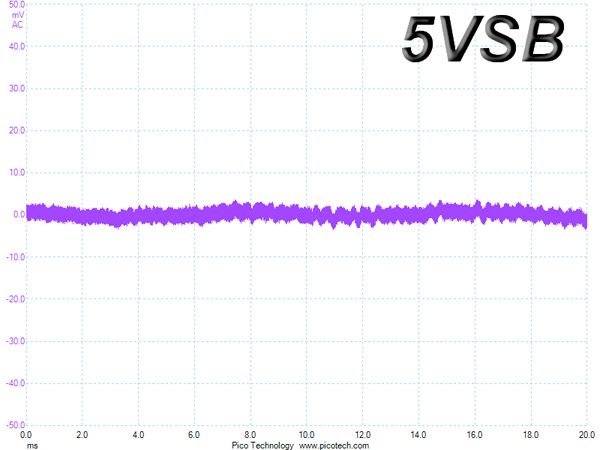

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

Ripple At Full Load

Image 1 of 4

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

Ripple At Cross-Load 2

Image 1 of 4
