Four Z87 Express Motherboards For Three- And Four-Way SLI

Round-ups
By published

Formerly a very exclusive component, the PCI Express switch that makes Intel’s LGA 1150-based platforms three- and four-way SLI-capable is now available across a range of high-end motherboards. Today we compare four premium enthusiast-oriented models.

Z87 Extreme9/ac Software

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

ASRock includes a variety of freeware and trial software on its installation CD, in addition to ODM-supplied and its own branded applications. These include XFast USB by FNet, XFast LAN packet prioritization by cFos, Restart to UEFI, and various freeware and shareware discussed in a previous review. Realtek’s DTS-enabled audio control interface replaces the non-DTS-enabled Creative software found in some of the firm’s other high-end boards.

Image 1 of 2

We were able to confirm much of ASRock’s OC Tweaker functions through CPU-Z and DIMM slot measurements. The program’s limits are tied to motherboard hardware limits, which are fairly consistent for ASRock’s full-sized enthusiast-grade motherboards.

ASRock A-Tuning also has an automatic overclocking algorithm with a built-in stability test. It pushed our Core i7-4770K to 4.30 GHz at 1.20 V, which is a perfectly acceptable target for this heat-constricted CPU. Our tests at 1.25 V generally yield a limit of around 4.6 GHz.

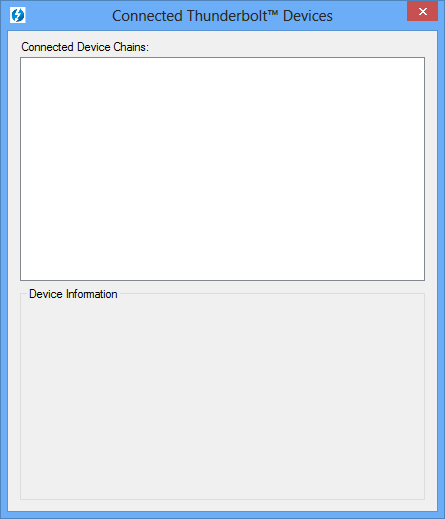

The Thunderbolt device manager is new to the Z87 Extreme9/ac, and accurately shows that I have no Thunderbolt devices to connect. Fortunately, our storage editors handle those details, and the hardware on this board is consistent with previously-tested configurations.
