Test Configuration
Swipe to scroll horizontally
| Hardware | |
|---|---|
| Processor | Intel Pentium 4, 2.0 GHz256 kB L2 Cache (Willamette) |
| Motherboard | Intel 845EBTIntel 845E ChipsetBIOS BT84520A.86A.0024.P10 |
| Memory | 256 MB DDR/PC2100, CL2.0Micron/Crucial |
| Controller | i845E UltraDMA/100-Controller (ICH4)On-Board USB 2.0 (ICH4)On-Board FireWire |
| Graphics Card | ATI Radeon SDRAM, 32 MB |
| Network | 3COM 905TX PCI 100 MBit |
| OS | Windows XP Pro 5.10.2600 SP1 |
| Benchmarks & Measurements | |
| Performance Measurements | ZD WinBench 99 - Disk Inspection Testhd tach 2.61 |
| Graphics Driver | 5.1.2001.0 (Windows XP Standard) |
| IDE Driver | Intel Application Accelerator 2.3 |
| DirectX Version | 9.0a |
| Screen Resolution | 1024x768, 16 Bit, 85 Hz refresh |
Benchmark Results

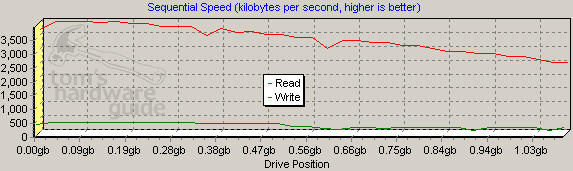

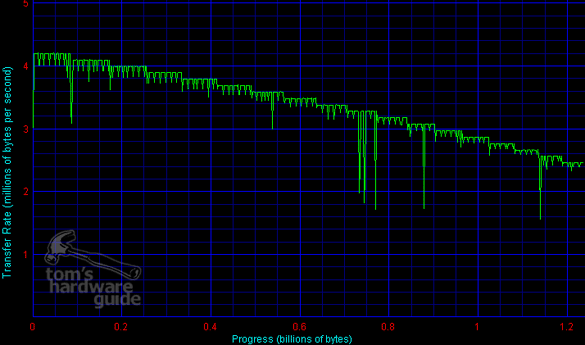

Data Transfer Diagrams
